ARCHIVED
LIVE SOUND

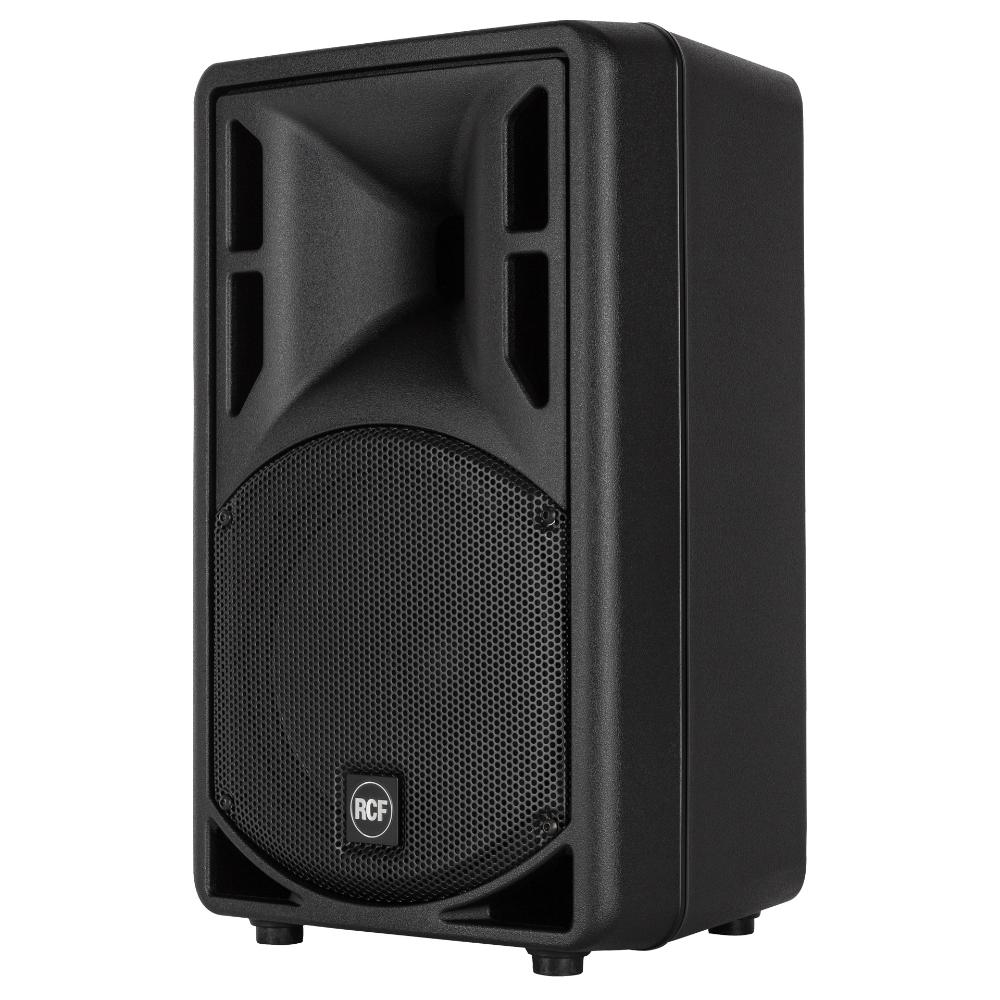

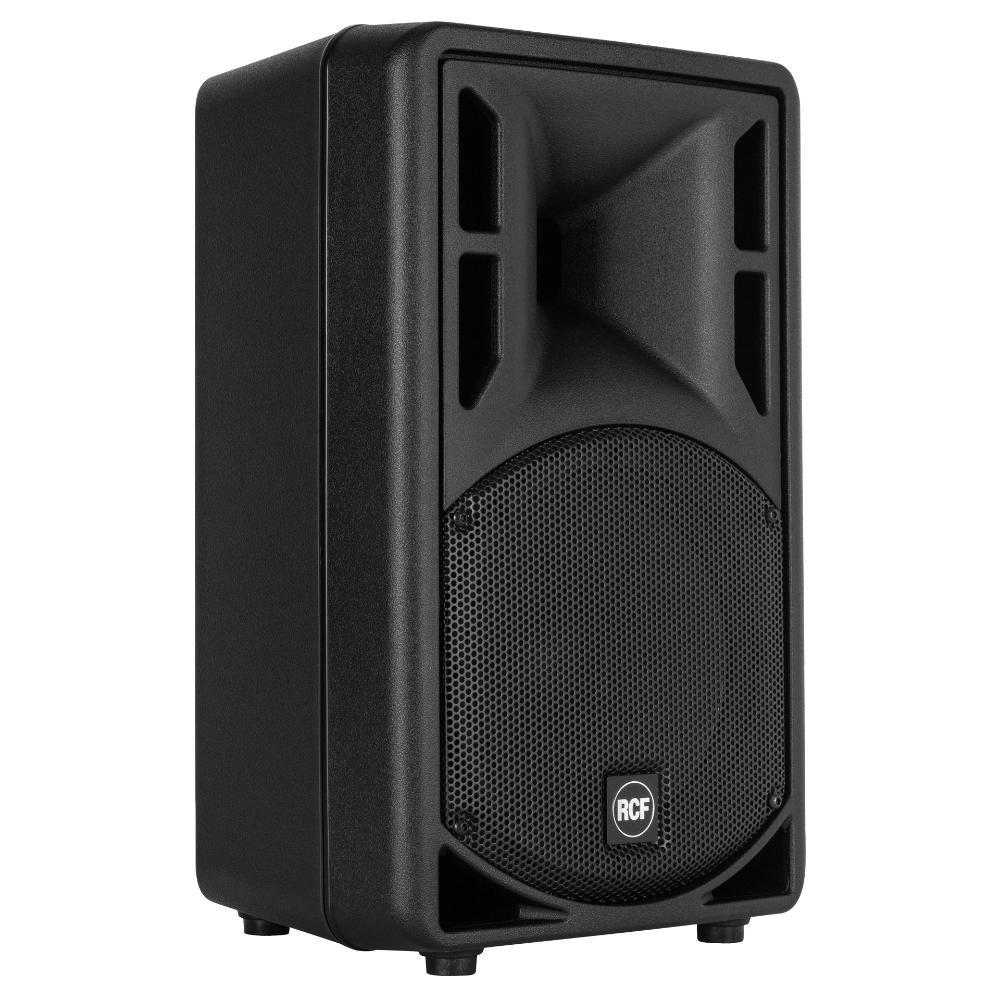

ART 310-A MK4

ACTIVE TWO-WAY SPEAKER
  • 800 WATT 2-way peak power
  • 127 dB Max SPL
  • 1" HF driver, mylar dome, 1.5" voice coil
  • DSP Processing with FiRPHASE
FiRPHASE
Support
Features
  • 127 dB Max SPL
  • 800 WATT 2-way peak power
  • DSP Processing with FiRPHASE
  • 10" High Powered Woofer
  • 1" HF driver, mylar dome, 1.5" voice coil
  • high power handling low impedance crossover design

The RCF Art 310-A MK4 two-way active speaker is the optimum choice for vocal applications, music playback and demanding musicians. The ART 310-A MK4 is very easy to transport everywhere.

ARCHIVED

Part number:

13000537
ART 310-A MK4
220-240V, EAN 8024530014940

13000538
ART 310-A MK4
115V, EAN 8024530015084

Specifications
Acoustical specifications
Frequency Response:
50 Hz ÷ 20000 Hz
Max SPL @ 1m:
127 dB
Horizontal coverage angle:
90°
Vertical coverage angle:
70°
Transducers
Compression Driver:
1 x 1.0'', 1.5'' v.c
Woofer:
10'', 2.0'' v.c
Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR, Jack
Output connectors:
XLR
Input sensitivity:
-2 dBu/+4 dBu
Mic. Input Sensitivity:
-32 dBu
Processor section
Crossover Frequencies:
1800 Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Volume, Boost, Mic/Line
Power section
Total Power:
800 W Peak, 400 W RMS
High frequencies:
200 W Peak, 100 W RMS
Low frequencies:
600 W Peak, 300 W RMS
Cooling:
Convection
Connections:
VDE
Standard compliance
Safety agency:
CE compliant
Physical specifications
Cabinet/Case Material:
PP Composite
Hardware:
2 x M10
Handles:
1 Top
Pole mount/Cap:
Yes
Grille:
Steel
Color:
Black
Size
Height:
537 mm / 21.14 inches
Width:
337 mm / 13.27 inches
Depth:
315 mm / 12.4 inches
Weight:
12.2 kg / 26.9 lbs
Shipping information
Package Height:
600 mm / 23.62 inches
Package Width:
396 mm / 15.59 inches
Package Depth:
372 mm / 14.65 inches
Package Weight:
14.8 kg / 32.63 lbs
