LIVE SOUND

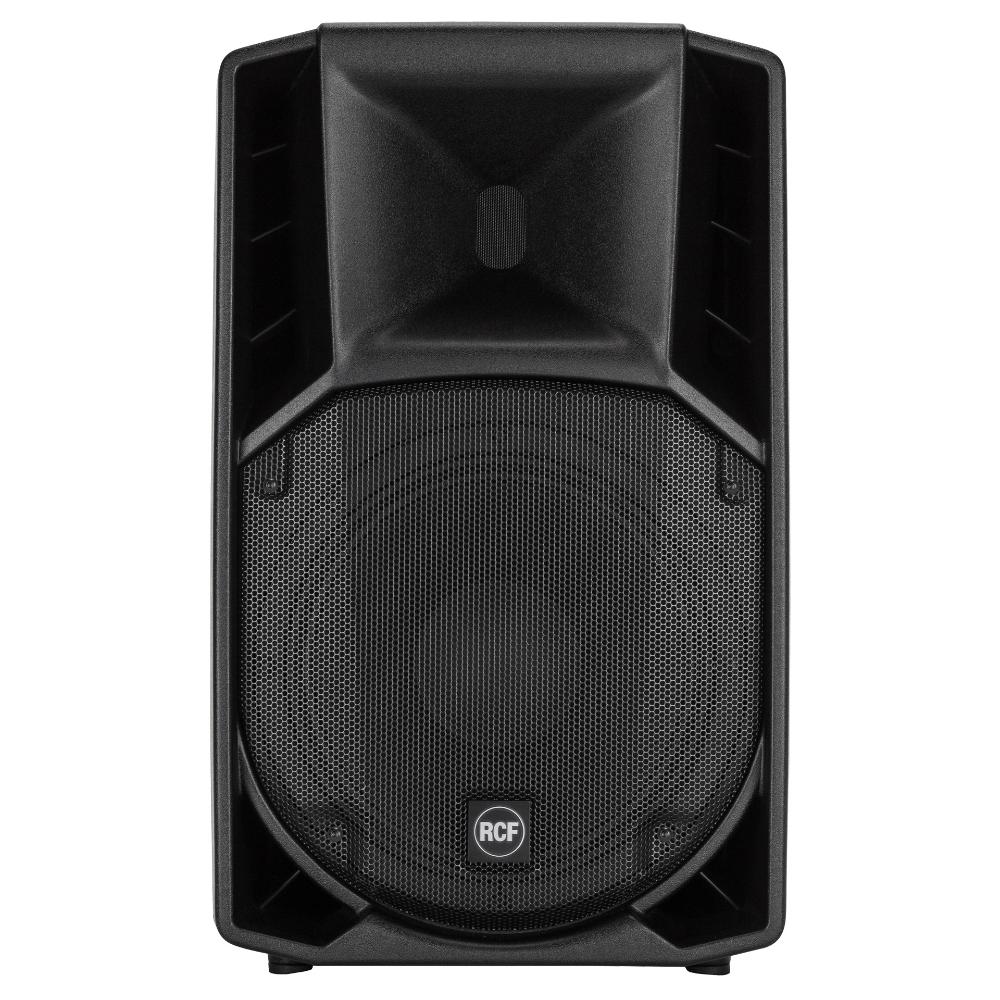

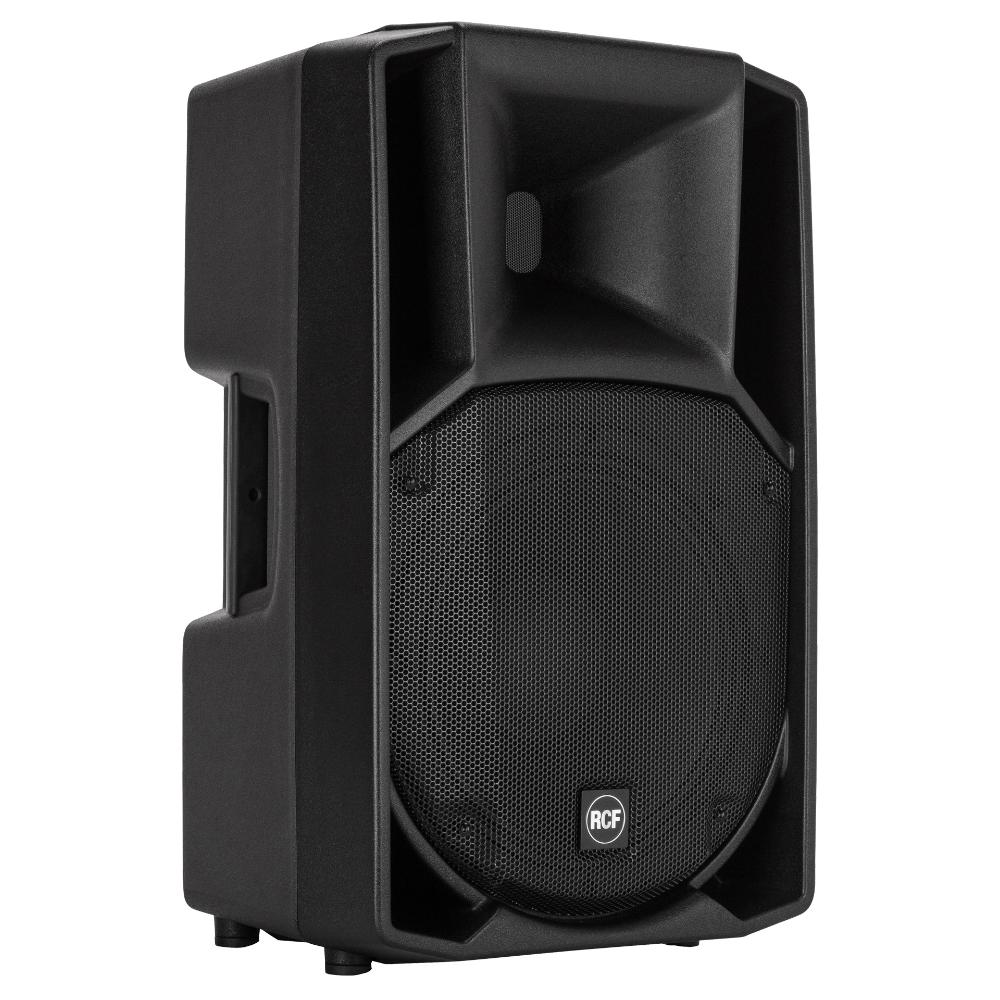

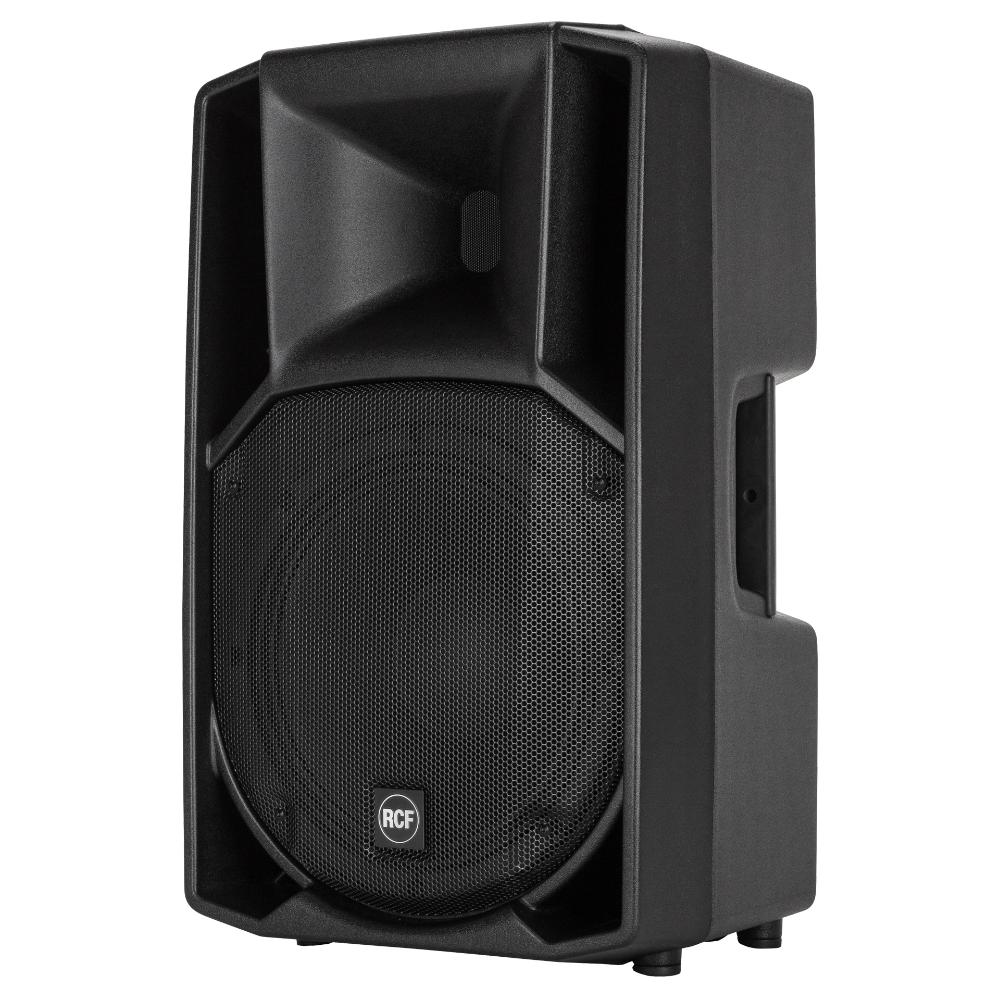

ART 712-A MK4

ACTIVE TWO-WAY SPEAKER
  • 1400 WATT 2-way peak power
  • 129 dB Max SPL
  • 1" Compression Driver, 1.75" v.c.
  • FiRPHASE Technology
FiRPHASE
Where to buy
Features
  • 129 dB Max SPL
  • 1400 WATT 2-way peak power
  • Innovative DSP Processing
  • 1" Compression Driver, 1.75" v.c.
  • 12" Woofer
  • 90°x60°, wide dispersion constant directivity horn
  • FiRPHASE Technology

ART 712-A MK4 is a unique product in its category. The professional compression driver with custom designed dome and high power voice coil offers unique vocal clarity and sound projection. The 12” woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.

READ MORE

Part number:

13000522
ART 712-A MK4
220-240V, EAN 8024530014735

13000523
ART 712-A MK4
115V, EAN 8024530014919

New perspective on linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
Responsive Image
Responsive Image

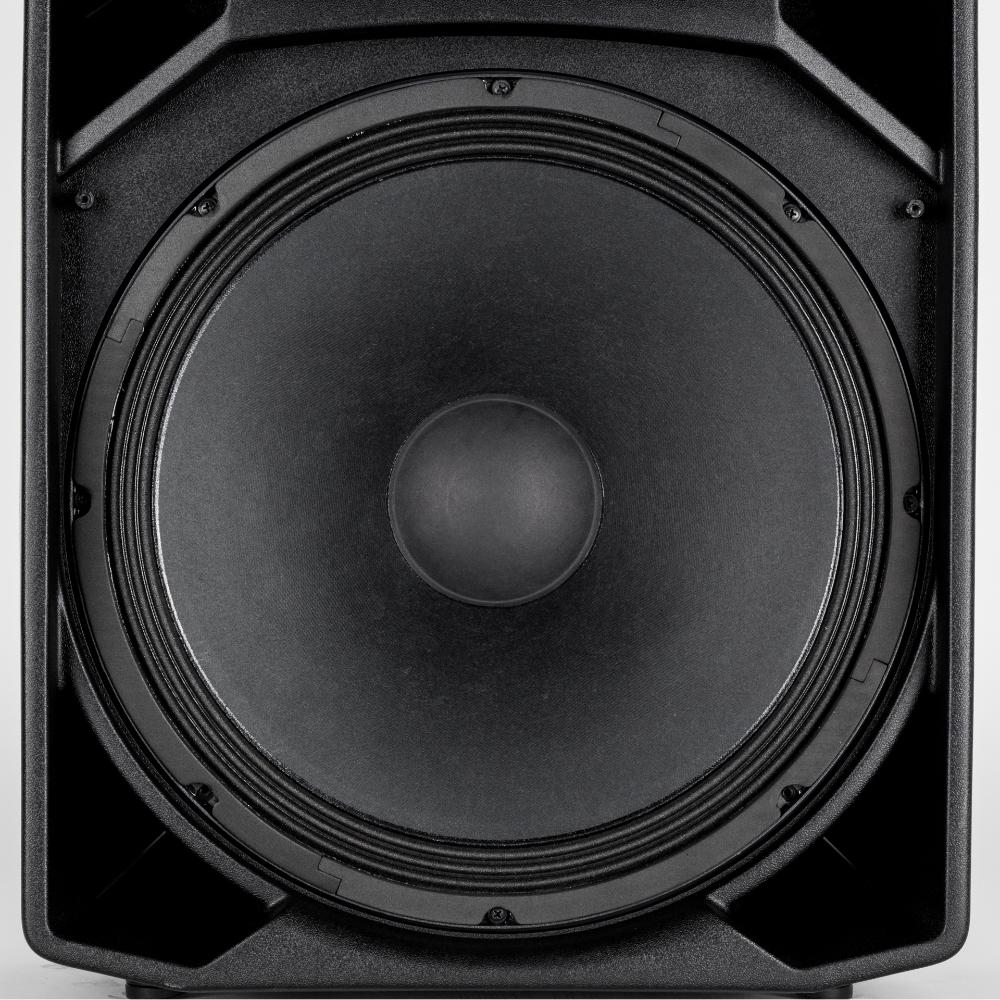

Superior transducers

Woofers and compression drivers are precision built taking advantage of RCF’s technologies and a wealth of professional knowledge and experience dedicated to achieving extremely high standards.

Powerful class D amplifiers

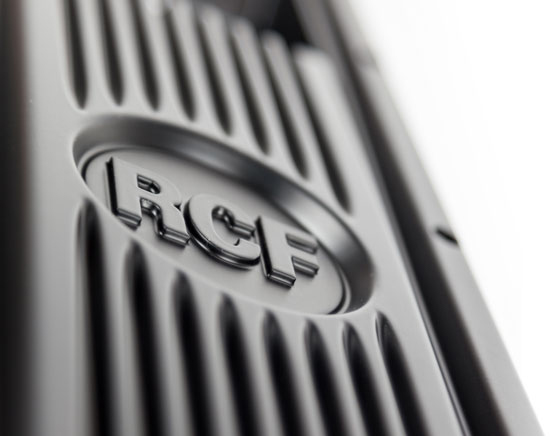

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. ART 7 amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminum structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the ART 7 amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.
Responsive Image
Responsive Image

Bring ART with you

The RCF ART 7 Series has earned the prestigious international Red Dot Design Award in the Product Design category. Receiving the renowned Red Dot acts as proof of the excellent design achievements of professionals and up-and-coming talent alike, thus symbolising a seal of quality.
Responsive Image
Specifications
Acoustical specifications
Frequency Response:
50 Hz ÷ 20000 Hz
Max SPL @ 1m:
129 dB
Horizontal coverage angle:
90°
Vertical coverage angle:
60°
Transducers
Compression Driver:
1 x 1.0'', 1.75'' v.c
Woofer:
12'', 2.5'' v.c

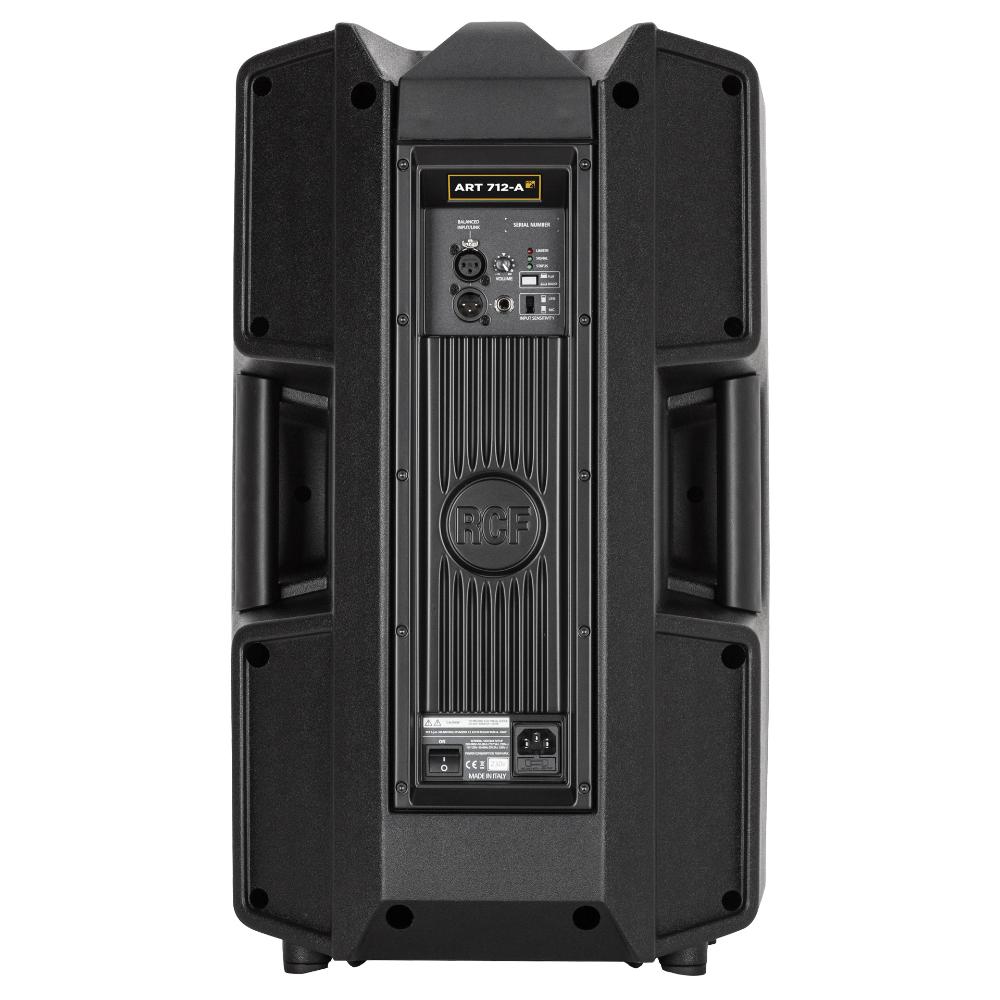

Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR, Jack
Output connectors:
XLR
Input sensitivity:
-2 dBu/+4 dBu
Mic. Input Sensitivity:
-32 dBu
Processor section
Crossover Frequencies:
1600 Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Volume, Boost, Mic/Line
Power section
Total Power:
1400 W Peak, 700 W RMS
High frequencies:
400 W Peak, 200 W RMS
Low frequencies:
1000 W Peak, 500 W RMS
Cooling:
Convection
Connections:
VDE
Standard compliance
Safety agency:
CE compliant
Physical specifications
Cabinet/Case Material:
PP Composite
Hardware:
2 x M10

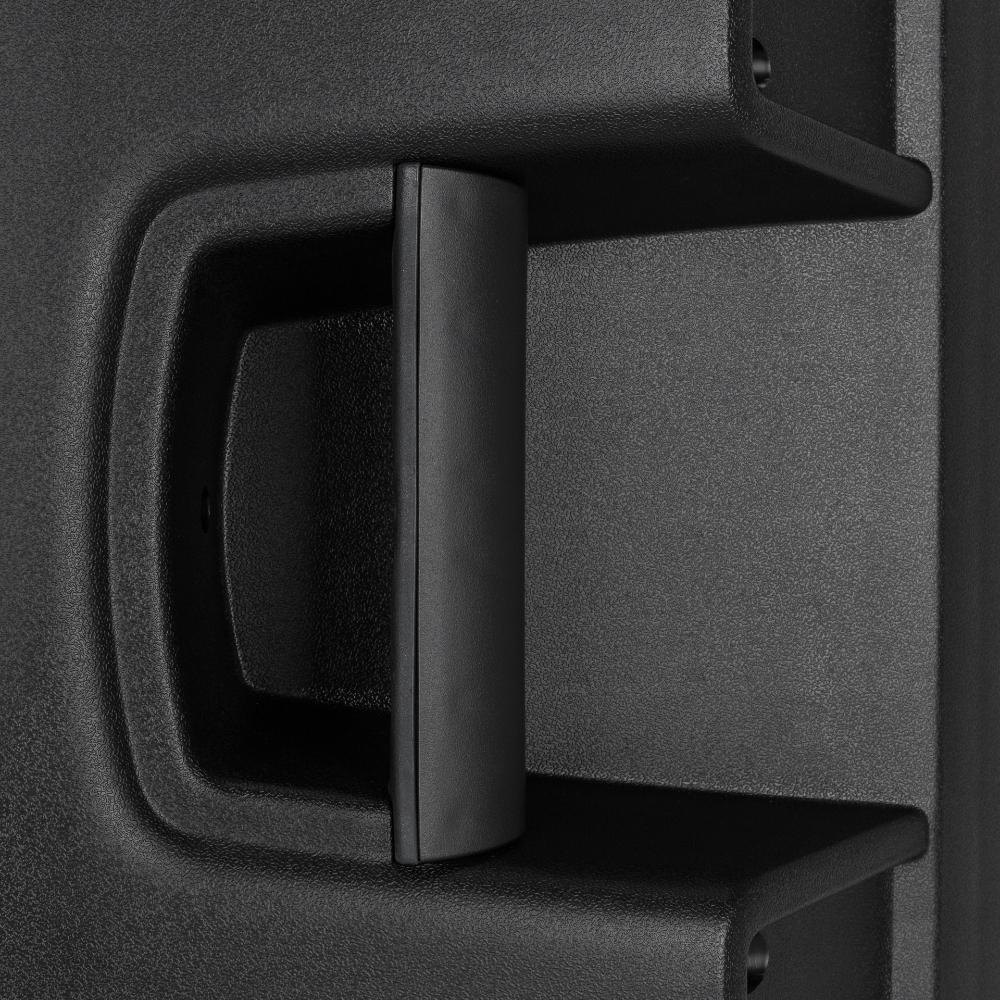

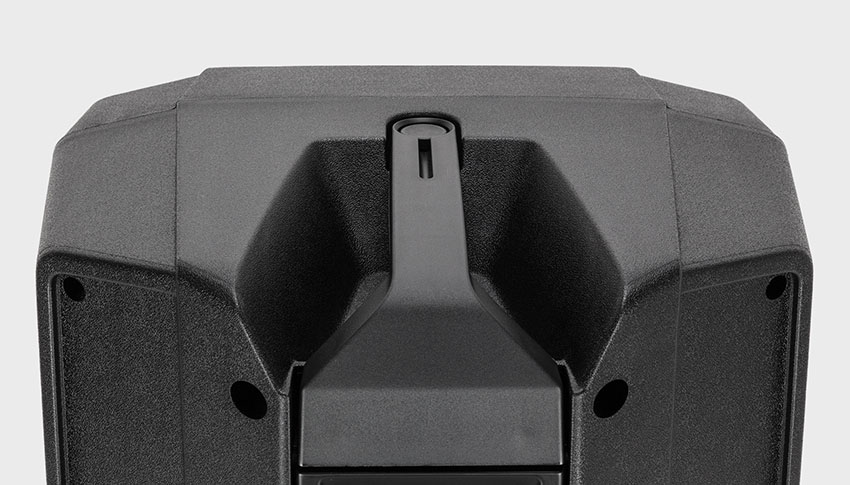

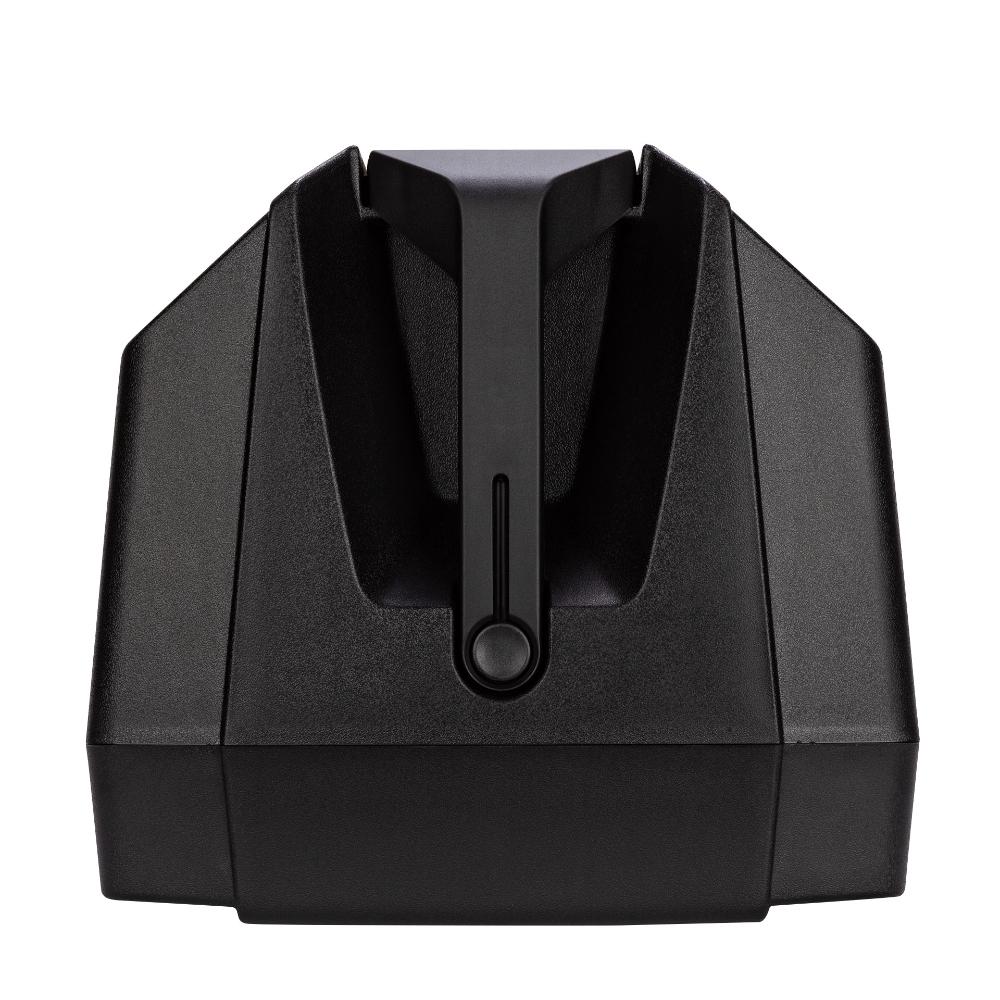

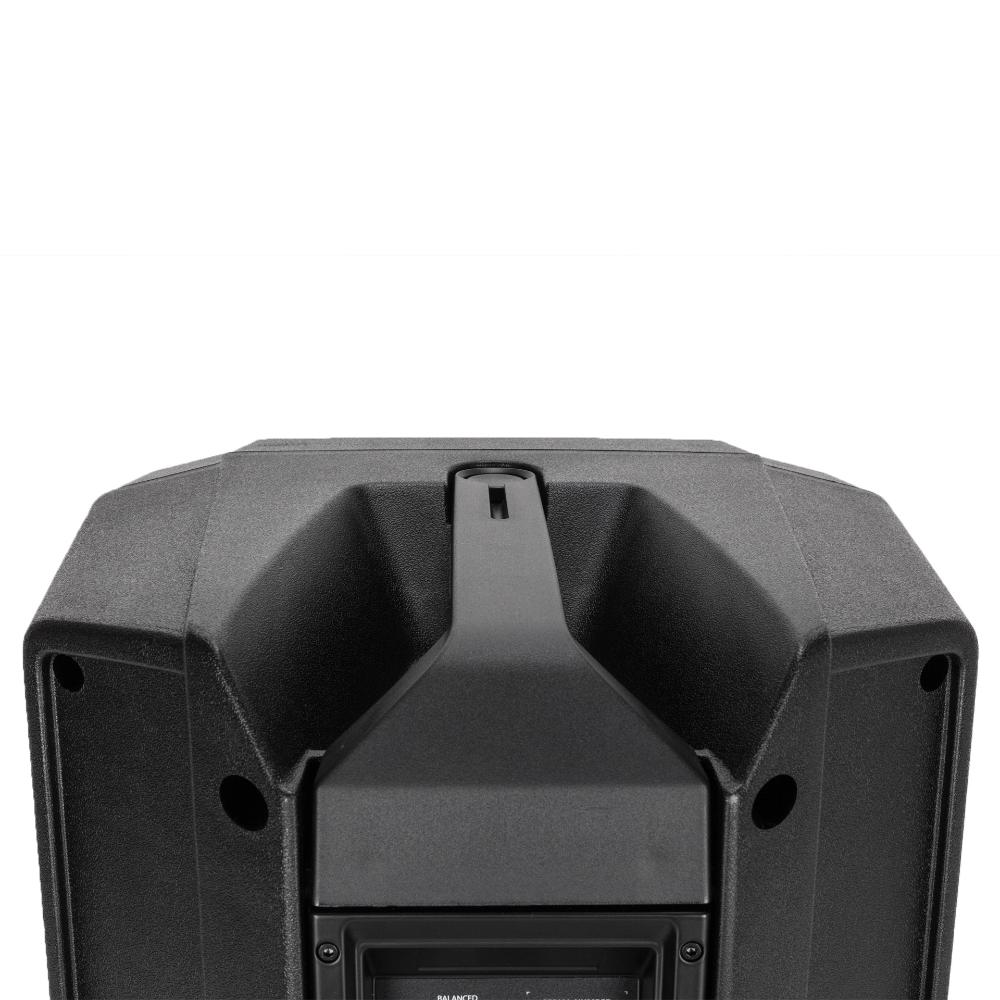

Handles:
1 Top, 2 Side

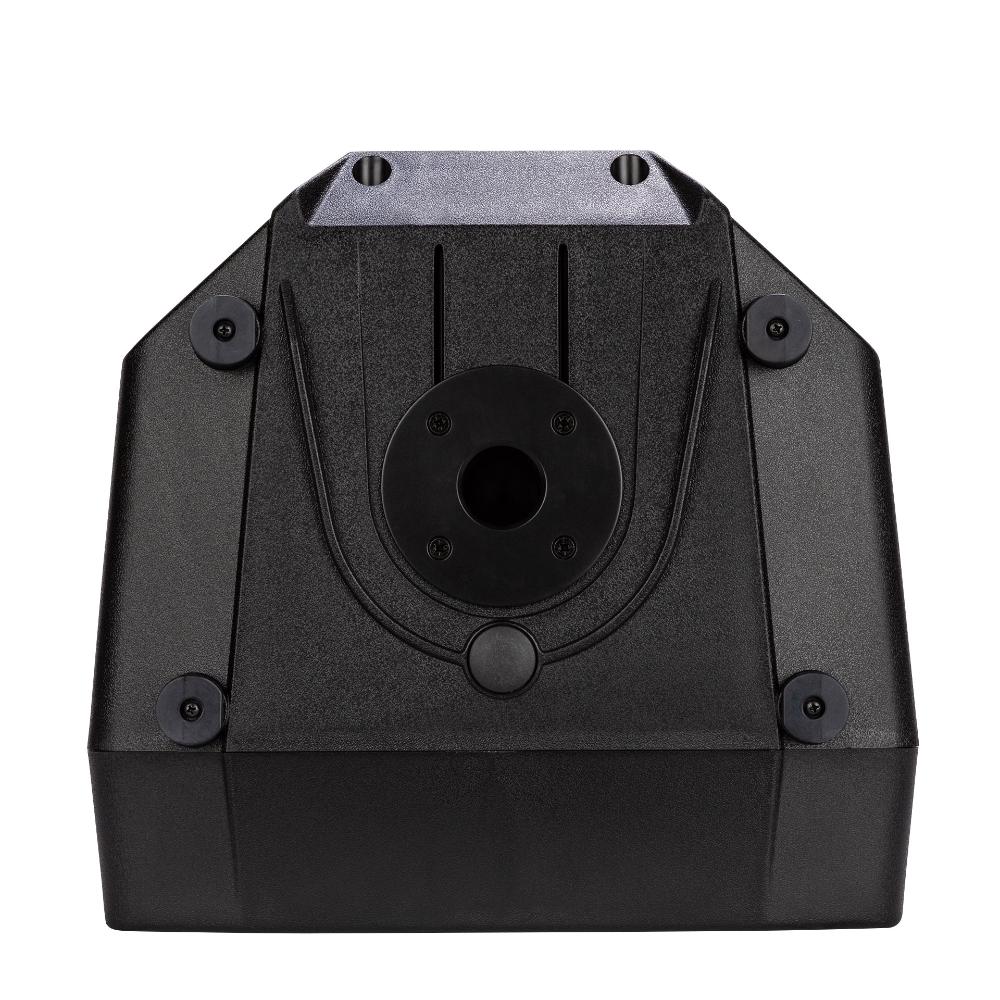

Pole mount/Cap:
Yes
Grille:
Steel
Color:
Black
Size
Height:
637 mm / 25.08 inches
Width:
387 mm / 15.24 inches
Depth:
363 mm / 14.29 inches
Weight:
17.8 kg / 39.24 lbs
Shipping information
Package Height:
680 mm / 26.77 inches
Package Width:
440 mm / 17.32 inches
Package Depth:
420 mm / 16.54 inches
Package Weight:
20.6 kg / 45.42 lbs
