LIVE SOUND

ART 915-AX

PROFESSIONAL ACTIVE BLUETOOTH® SPEAKER

2100W Class-D Bi-Amplification
Bluetooth® stereo audio input, with dual speaker pairing option
Advanced User Interface w/ touch panel and remote control
Built-in 6-channel Digital Mixer

Bluetooth®

FiRPHASE

BASS MOTION CONTROL

Where to buy

Features

Built-in 6-channel Digital Mixer
Advanced User Interface w/ touch panel and remote control

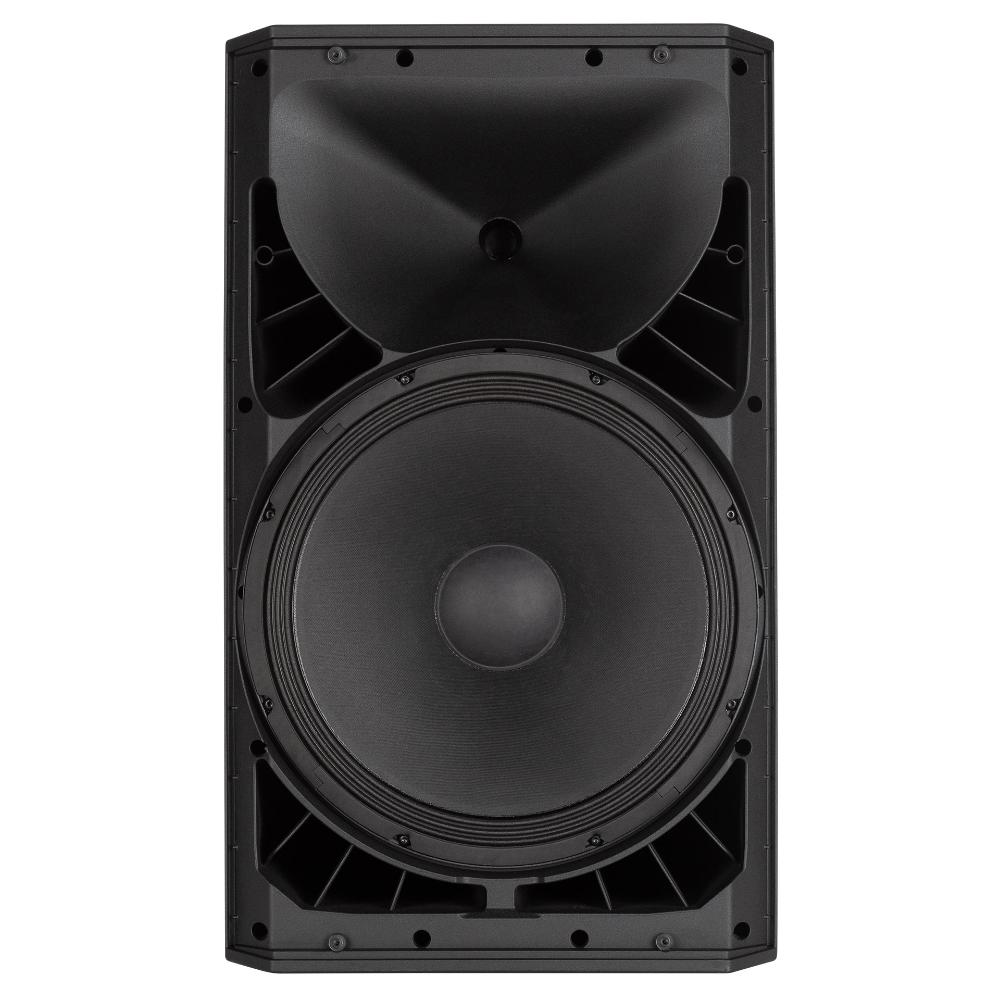

1.75" Compression Driver and 15" Woofer
Up to 131 dB Sound Pressure Level
2100W Class-D Bi-Amplification
Dual combo preamp with 48V Power and Mini-jack stereo line input
Bluetooth® stereo audio input, with dual speaker pairing option
True Resistive Waveguide, FiRPHASE, and Bass Motion Control

ART 915-AX is a top-notch solution for any audio application, featuring 48V microphone preamps and line inputs, an internal 6-channel digital mixer with advanced DSP, Bluetooth® stereo audio input, with dual speaker pairing option. The combination of a 1.75" compression driver, 15" woofer, and two-channel 2100W amplifier, produces 100° x 60° constant directivity coverage for the listening area with up to 131 dB SPL, distortion-free sound. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.

TUTORIALS

Part number:

13000710
ART 915-AX
220-240V, EAN 8024530020118

13000711
ART 915-AX
100-120V, EAN 8024530020224

Enjoy the Powerful Internal Digital Mixer and Advanced Bluetooth® Pairing

ART 9-AX is a top-notch solution for any portable audio application

Connect your instruments and microphones to the 48V powered preamps or the line inputs; an internal 6-channel digital mixer with Compressors, EQs, Reverb, and Ducker will help you get the job done. And if you run out of time, use the quick setup modes with step-by-step configuration options.

ART 9-AX Overview

Learn all the key features of ART 9-AX with our videos

2100 W: the most powerful wireless Bluetooth® speaker

ART 9-AX is the most powerful speaker on the market, also when connected wireless.

The Class 1 Bluetooth® connection can receive 2-channel audio streaming and provides a stereo or dual mono output for pairing with AX-featured RCF speakers. We tested over 100 meters (328 feet) free-field operability. Enjoy the convenience of Bluetooth® connection when you have architectural constraints, pedestrian areas, or inaccessible signal connections.

Power that moves

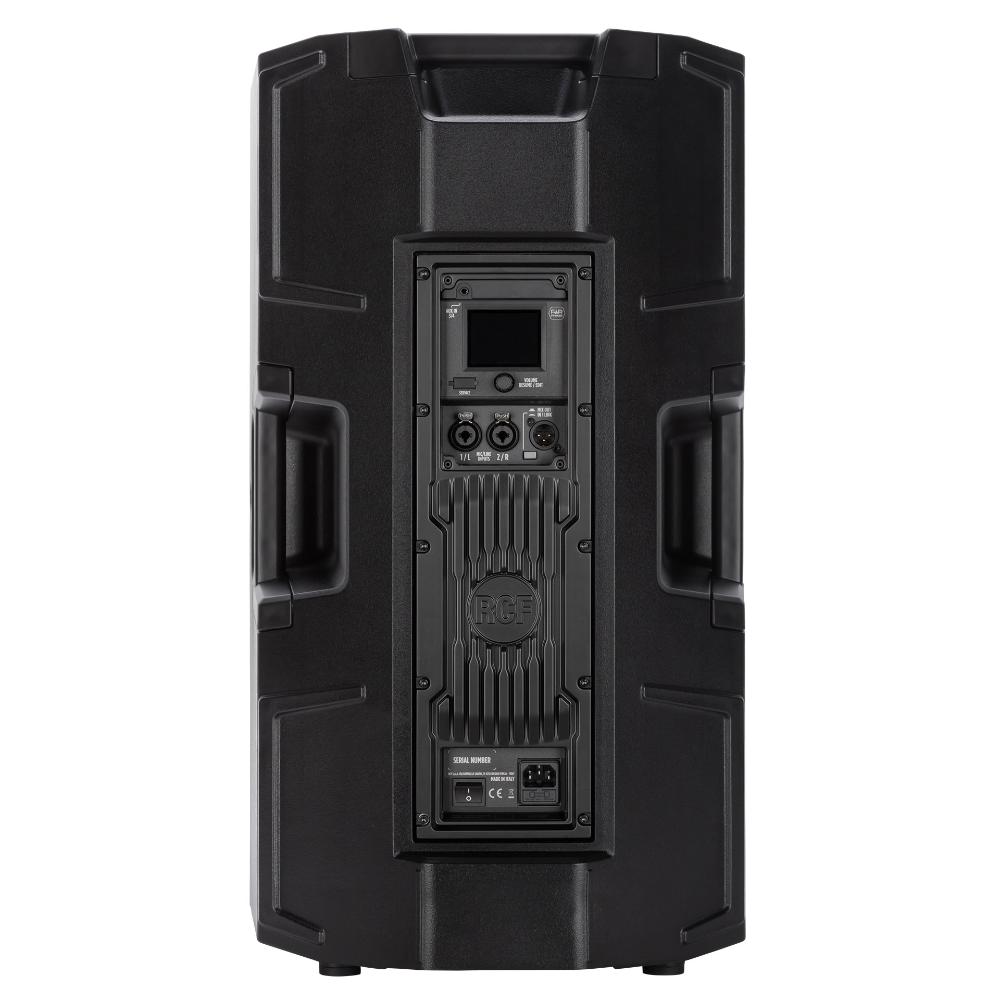

The most powerful amplifier in its class. RCF's improvements in transducer design make them stronger and powerful, so the amplifier follows the evolution. With 2100 Watts of power, the 2-channel ART 9 Class-D amplifier is 50% more powerful than previous models, able to manage extremely high sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. ART 9 is very energy-efficient so there is no need for a cooling fan - the amplifier is attached to a solid aluminum heat exchanger in the back of the unit - with no moving parts. Being physically connected with the internal frame, the amplifier is firm and solid within the cabinet. The input circuit features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All ART 9 amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section joining high-efficiency with minimum weight.

A Live Experience in your Pocket

Manage ART 9-AX from your Smartphone or Tablet with LiveRemote App

RCF LiveRemote App makes it easy to adjust ART 9-AX mixer, DSP, FX, routing, and Bluetooth® settings. LiveRemote also allows full control of the internal ART 9-AX engine: recall and save presets, set your desired volume levels, adjust EQ, compressors, and FX, customize and tune your sound system and much more. Available for Android and iOS phones and tablets.

IOS APP DOWNLOAD

ANDROID APP DOWNLOAD

VIDEO TUTORIAL

Advanced Features for Professional Users

The internal mixer disentangles all your routing needs and an internal crossover helps you use the speaker with any subwoofer. An internal 5-band parametric EQ lets you manage boomy spaces or modal resonances, while the output delay keeps your sound always in time. Wireless pairing to another ART 9-AX is a handy tool when you have physical constraints and can't run signal cables.

Specifications

Acoustical specifications

Frequency Response:

45 Hz ÷ 20000 Hz

Max SPL @ 1m:

131 dB

Horizontal coverage angle:

100°

Vertical coverage angle:

60°

Transducers

Compression Driver:

1 x 1.0'', 1.75'' v.c

Woofer:

15'', 2.5'' v.c

Input/Output section

Input signal:

bal/unbal

Input connectors:

Combo XLR/Jack

Output connectors:

XLR

Processor section

Crossover Frequencies:

1600Hz

Protections:

Thermal, RMS

Limiter:

Soft Limiter

Controls:

Color touch panel, data entry/volume encoder, dedicated App for iOS and Android.

Power section

Total Power:

2100 W Peak, 1050 W RMS

High frequencies:

700 W Peak, 350 W RMS

Low frequencies:

1400 W Peak, 700 W RMS

Cooling:

Convection

Connections:

VDE

Electronic specifications

Frequency Response:

20 Hz ÷ 20 Hz

THD+N, 20dB gain, 0dBu out

0.005% A-Weighted

Processing

Processing Channels:

Signal Processing:

24 Bit

A/D-D/A conversion:

32 Bit @ 48.0 kHz

Dynamic range:

110

Inputs

Mic:

Remote Controlled Storable Gain:

Yes

Gain Range:

0 dB ÷ 42 dB

Input Noise Level:

-114 dBu A-Weighted

Mic Inputs Impedance:

6 kohm

Low Cut:

20 Hz ÷ 400 Hz

Phantom Power +48V:

Yes

Mono Line:

Gain Selection:

0 dB ÷ 22 dB

Line Input Impedance:

21 kohm

A/D Dynamic range:

114 dB

Stereo Line:

Gain Selection:

0 dB ÷ 10 dB

Stereo Line Input Impedance (kOhm)

13 kohm

Outputs

Main MIX:

Outputs specifications

Main Out Impedance:

150 ohm

Main Out Level:

22 dBu

D/A Dynamic Range:

114 dB

Compressors

RCF Compressors:

Compressors on MIC/LINE CH1 & CH2 inputs.

Input Channels EQ:

2 Shelving 1

Description:

3 Band EQ: High and Low band shelving, MID band peak on IN
5 Band EQ: 4 Full Parametric, 1 High Shelving and HPF 24 dB/Oct on Amplifier and MAIN output,

Internal Effects

Send Effects:

Mastering processors

Main OUT type:

MIX OUT, CROSSOVER OUT with RCF SUBWOOFERS presets, STEREO OUTPUT, CH1 LINK OUT.

Standard compliance

Safety agency:

CE compliant

Physical specifications

Cabinet/Case Material:

PP Composite

Hardware:
