RECORDING

AYRA PRO10 SUB

ACTIVE REFERENCE SUBWOOFER
  • TRUE ACTIVE 300 W RMS CLASS D POWER AMPLIFIER
  • 10" COMPOSITE FIBER WOOFER
  • 30 HZ – 120 HZ FREQUENCY RESPONSE
  • STEREO INPUT BOARD, STEREO X-OVER OUTPUT
Where to buy
Features
  • TRUE ACTIVE 300 W RMS CLASS D POWER AMPLIFIER
  • 10" COMPOSITE FIBER WOOFER
  • 30 HZ – 120 HZ FREQUENCY RESPONSE
  • STEREO INPUT BOARD, STEREO X-OVER OUTPUT
  • LOW TURBULENCE FRONTAL BASS REFLEX PORT
  • VARIABLE 2ND ORDER CROSSOVER FROM 50 TO 120 HERTZ

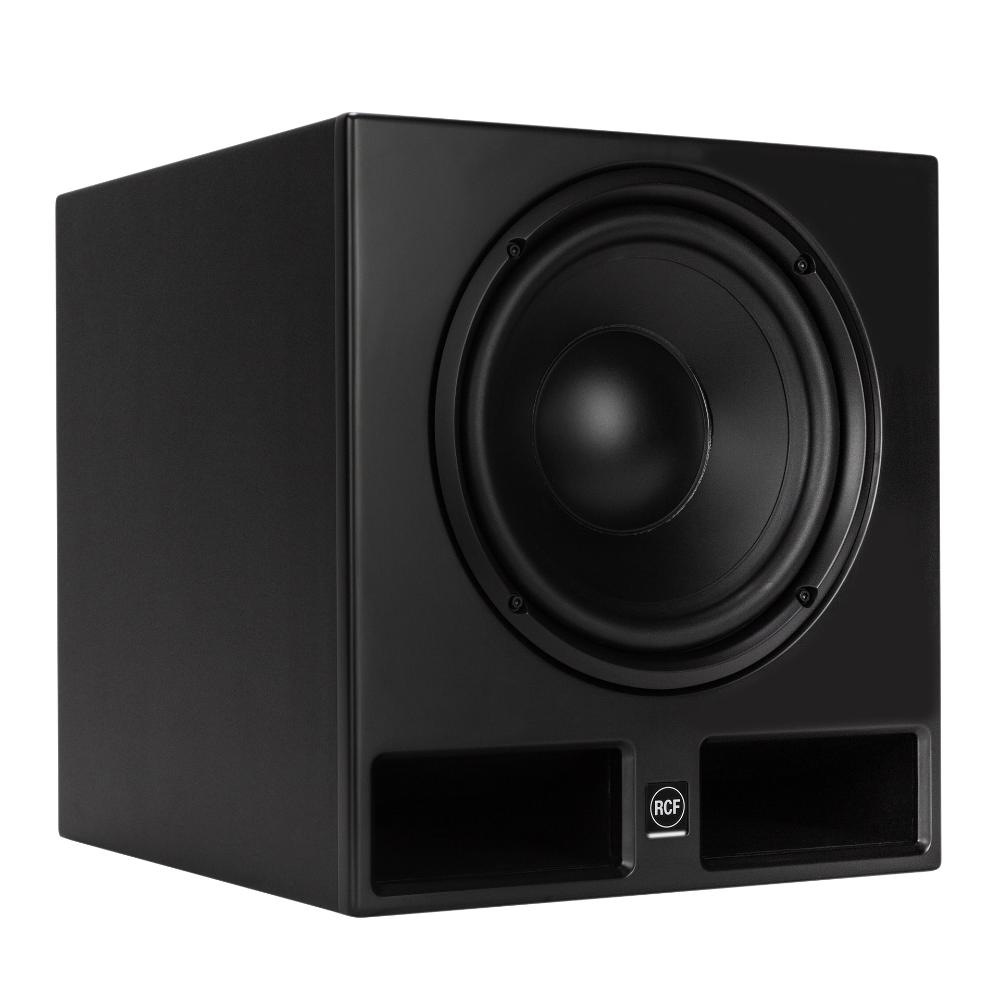

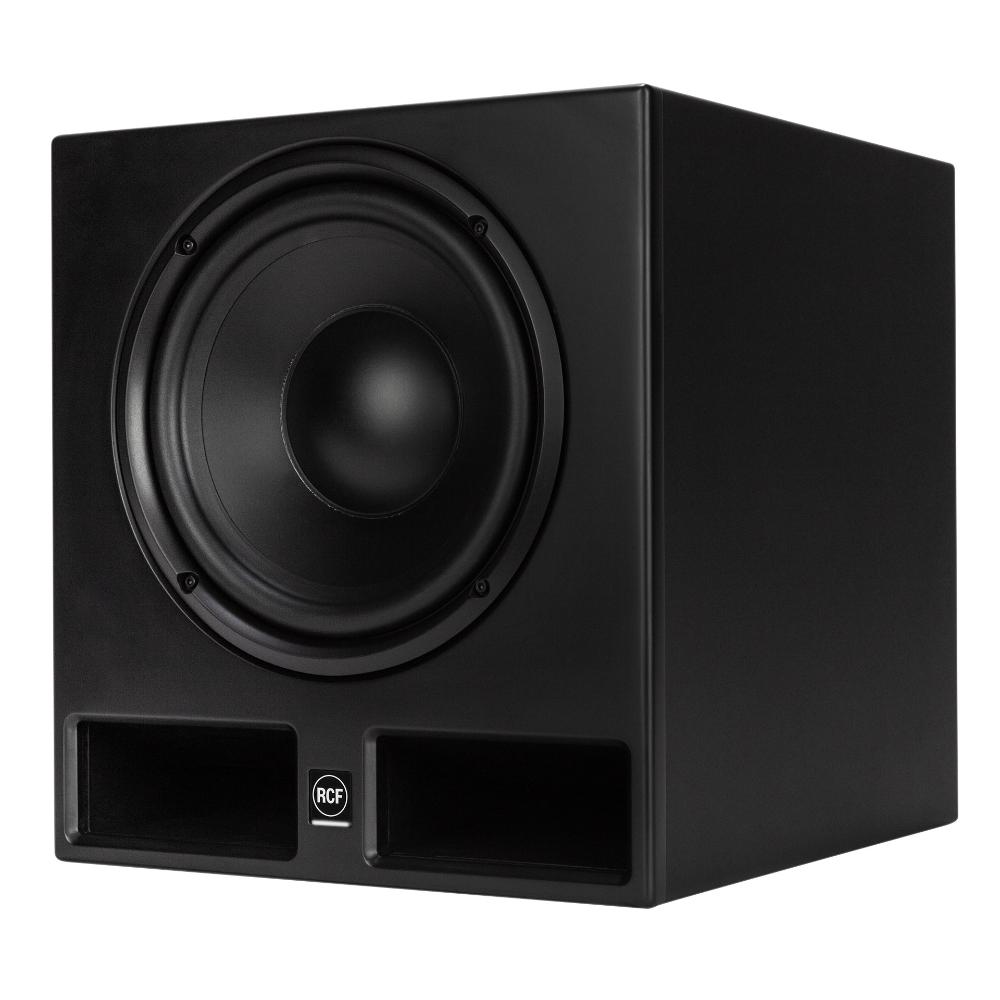

AYRA PRO10 SUB is an active reference subwoofer designed for AYRA PRO studio monitors, also suitable for low-frequency extension on third-party audio systems. With tight and accurate bass reproduction it's ideal for audio recording, mixing, multichannel systems, desktop use, and other creative applications.

READ MORE

Part number:

13000608
AYRA PRO10 SUB
90-240V, EU, EAN 8024530017699

13000733
AYRA PRO10 SUB
100V, JP

13000734
AYRA PRO10 SUB
115V, US, EAN 8024530018771

13000735
AYRA PRO10 SUB
240V, UK

FEEL THE MIX

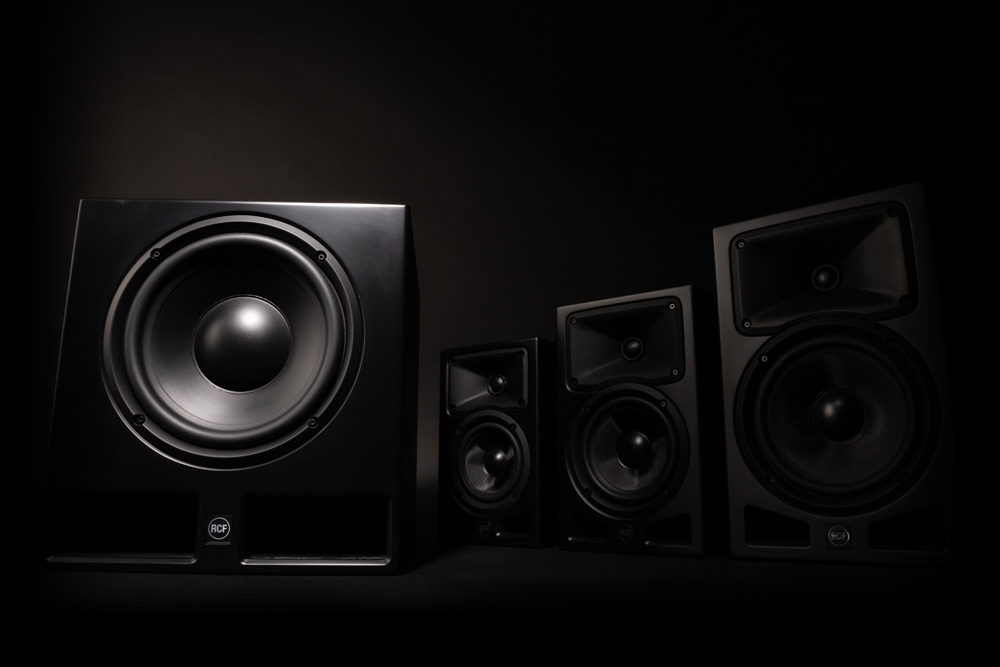

Pairing the AYRA PRO10 SUB with RCF studio monitors delivers an optimized monitoring experience with extended headroom and powerful low-end. With 300 Watts RMS Class-D Amplifier, frequency range from 30 up to 120 Hz and a variable 2nd order crossover from 50 to 120 hertz, you have enough power for any mixing room size. The bypass footswitch disables the high-pass crossover and mutes the subwoofer, providing full range audio to the monitors without switching off the subwoofer.
Responsive Image
Responsive Image

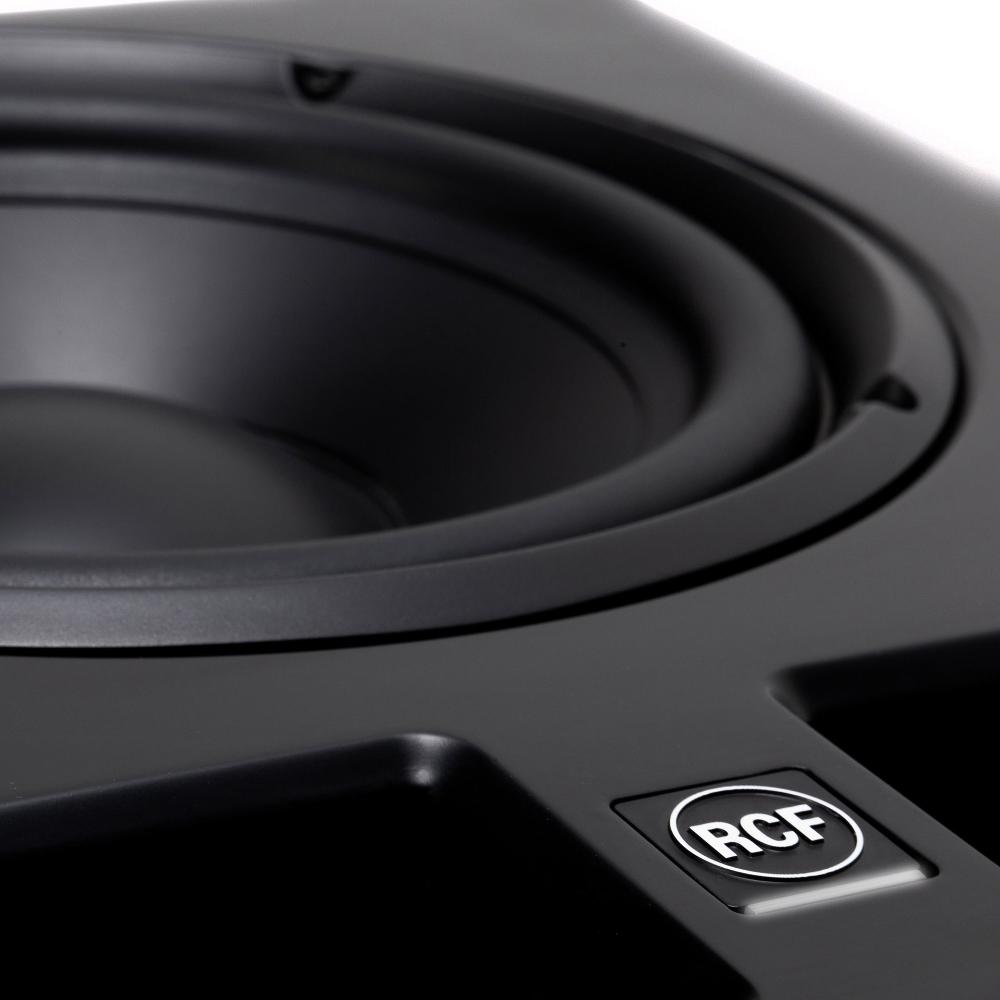

LOW RESONANCE AND MINIMUM DISTORTION

Drawing from RCF’s 70-plus years knowledge in speaker production, the low-resonance fiberboard box design follows the requests of many professional sound engineers. Undesirable cabinet’s resonances are removed with careful electro-acoustic design.

THE GOOD FLOW

The advanced vented port is a proprietary solution that helps to achieve a good aerodynamic behavior of the air (laminar), gaining efficiency and reducing distortion.

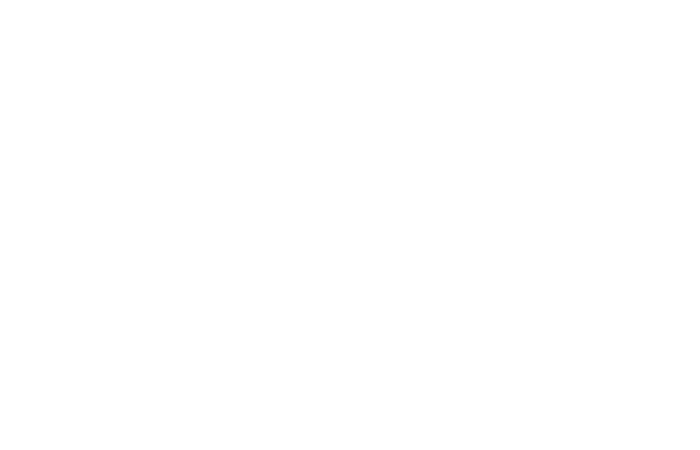

CLASSIC BASS REFLEX PORT
The flow becomes turbulent
and the vortices are evident
Responsive Image

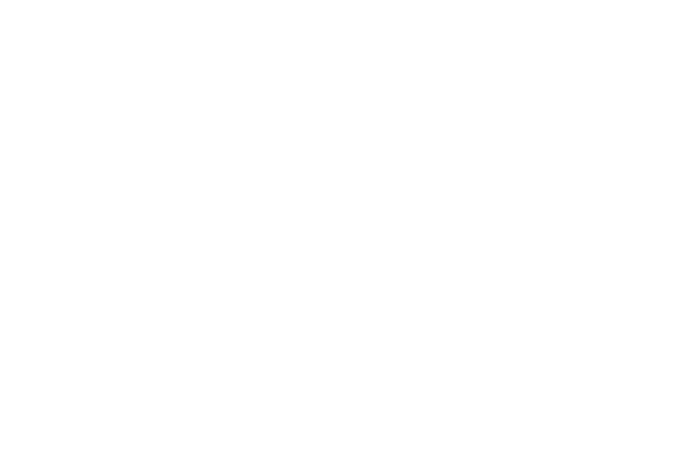

LAMINAR FLOW VENTED PORT
Good aerodynamic behaviour of the air (laminar), gaining efficiency and reducing distortions
Responsive Image
Responsive Image

BRING OUT THE LOWS

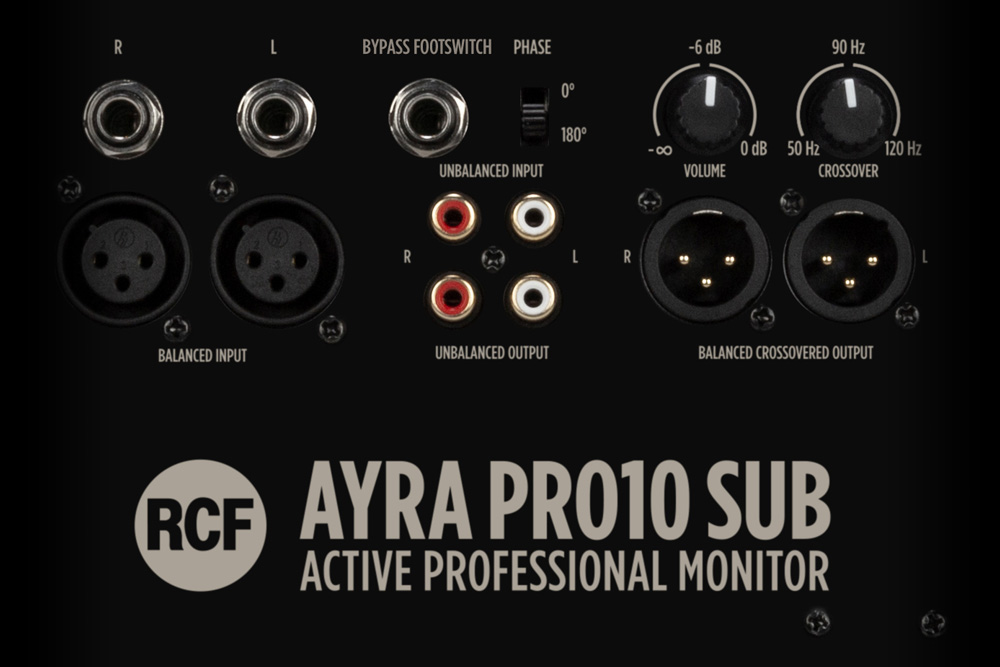

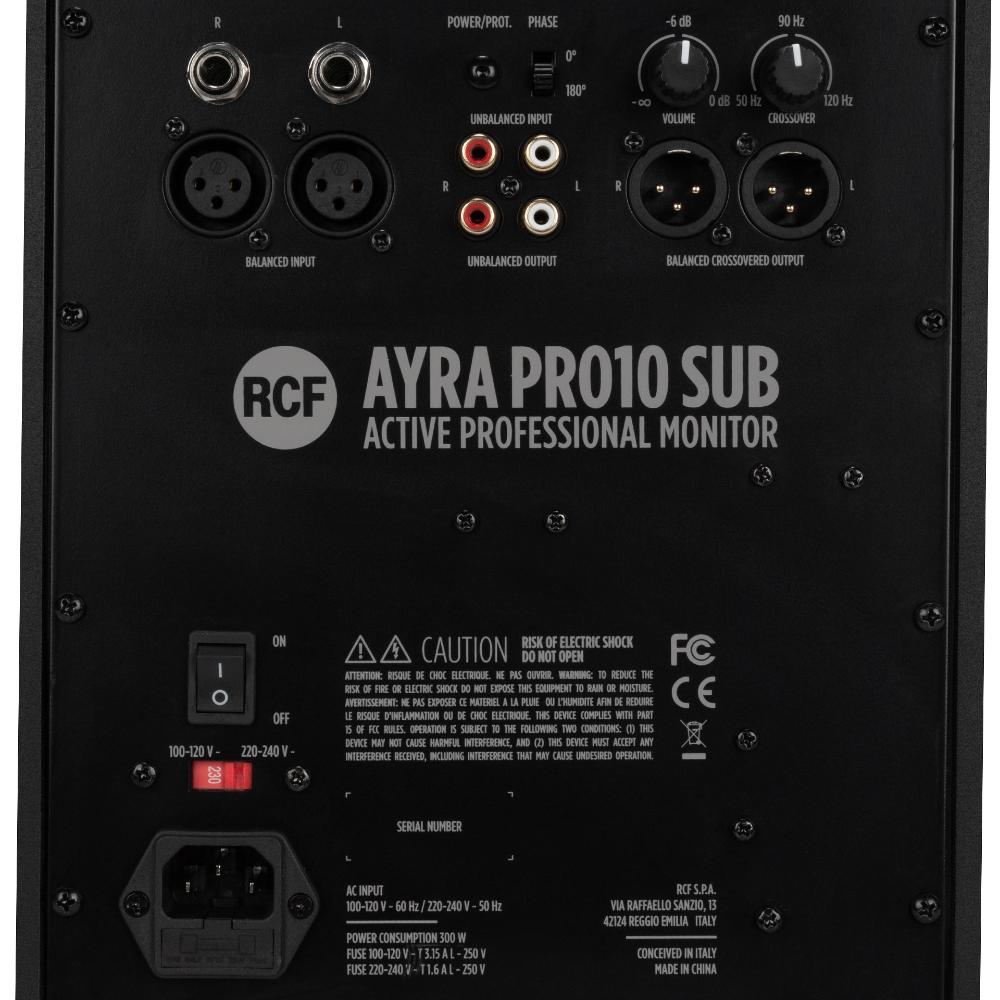

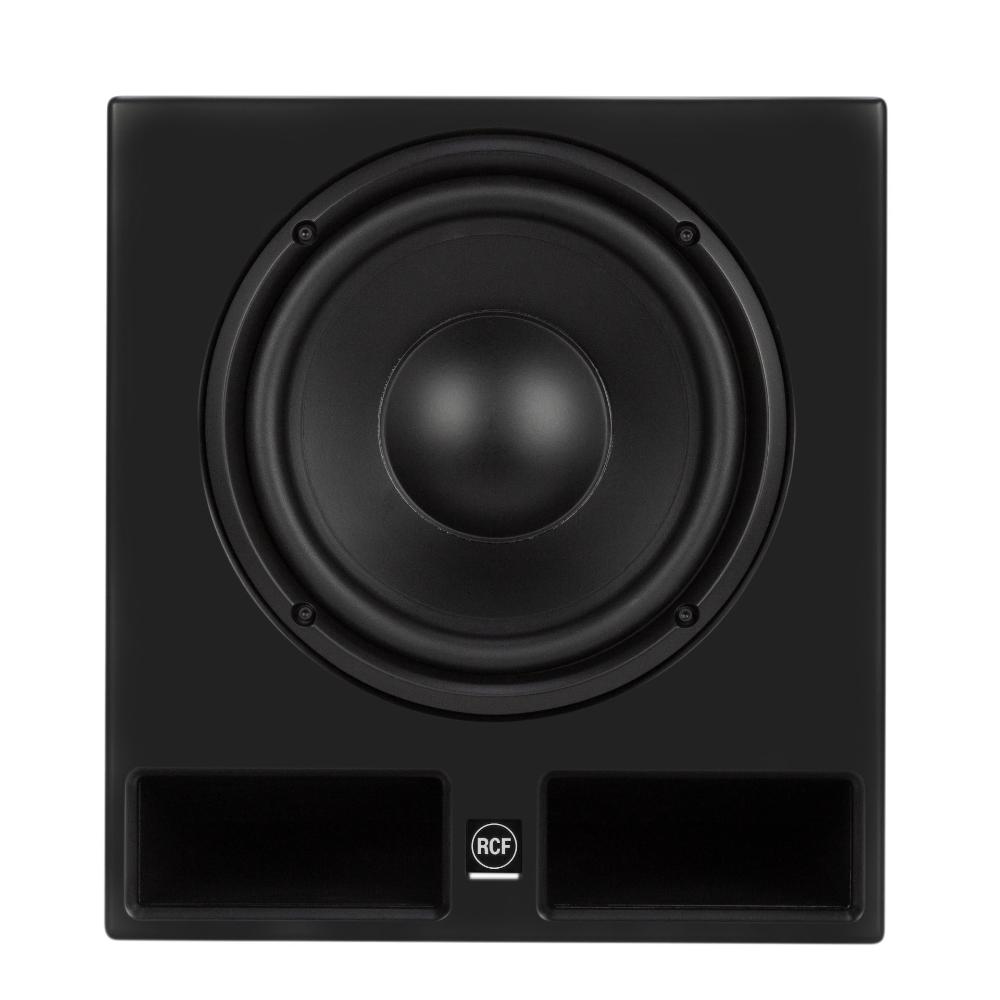

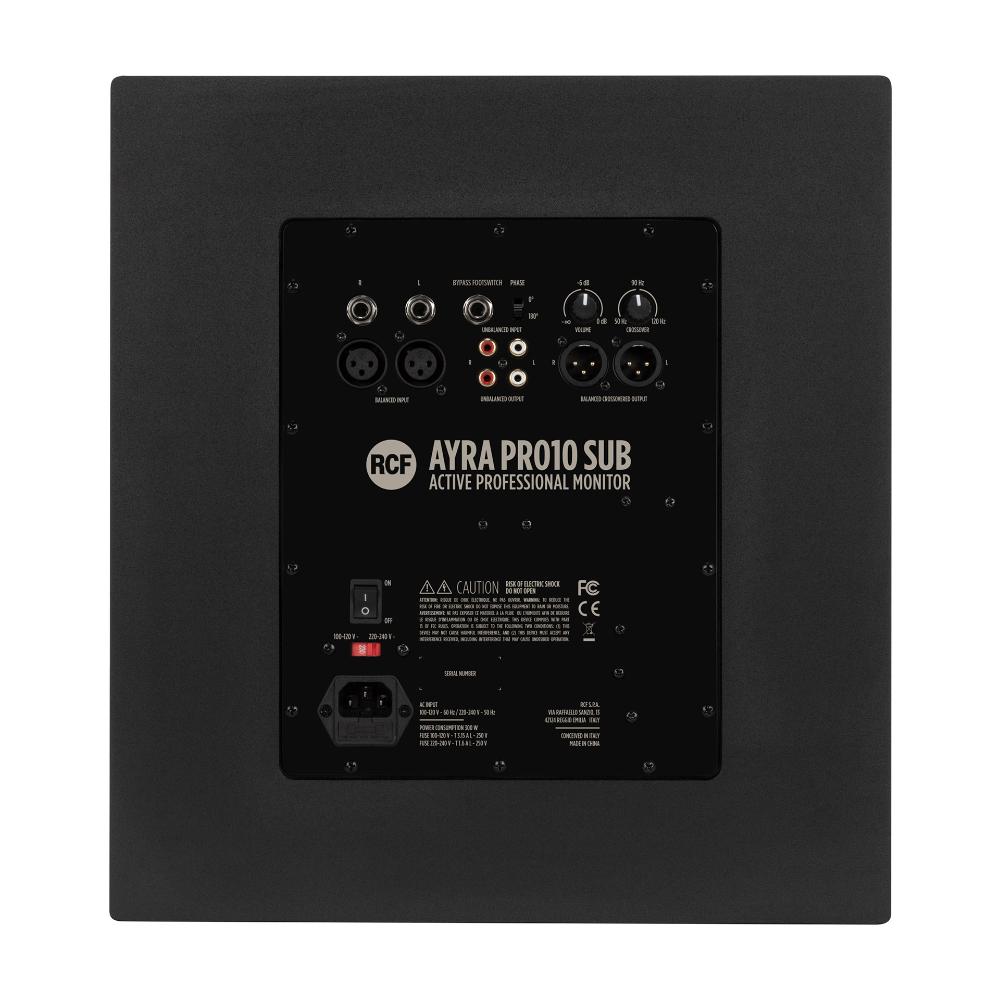

Complete range of analog connectors and controls on the rear panel let you master your monitoring system at its best. The low-frequency behavior of the system is managed carefully with a variable crossovered output for stereo monitors. The low turbulence frontal bass reflex port allows for the best placement flexibility.
Specifications
Acoustical specifications
Frequency Response:
30 Hz ÷ 120 Hz
Max SPL @ 1m:
120 dB
Transducers
Woofer:
10'', 2.5'' v.c
Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR, Jack, RCA
Output connectors:
XRL Stereo
Input sensitivity:
0 dBu
Processor section
Hi-Pass Frequencies:
Selectable 50-120Hz
Limiter:
Soft Limiter
Controls:
Level -inf./0dB
Selectable High-pass filter 50-120Hz
Bypass footswitch
0°/180° phase selector
Power section
Total Power:
600 W Peak, 300 W RMS
Low frequencies:
600 W Peak, 300 W RMS
Connections:
XLR, Jack, RCA
Standard compliance
Safety agency:
CE compliant
Physical specifications
Cabinet/Case Material:
MDF
Color:
Black - RAL 9005
Size
Height:
400 mm / 15.75 inches
Width:
355 mm / 13.98 inches
Depth:
390 mm / 15.35 inches
Weight:
17.8 kg / 39.24 lbs
Shipping information
Package Height:
500 mm / 19.69 inches
Package Width:
460 mm / 18.11 inches
Package Depth:
500 mm / 19.69 inches
Package Weight:
21 kg / 46.3 lbs
