BUSINESS MUSIC

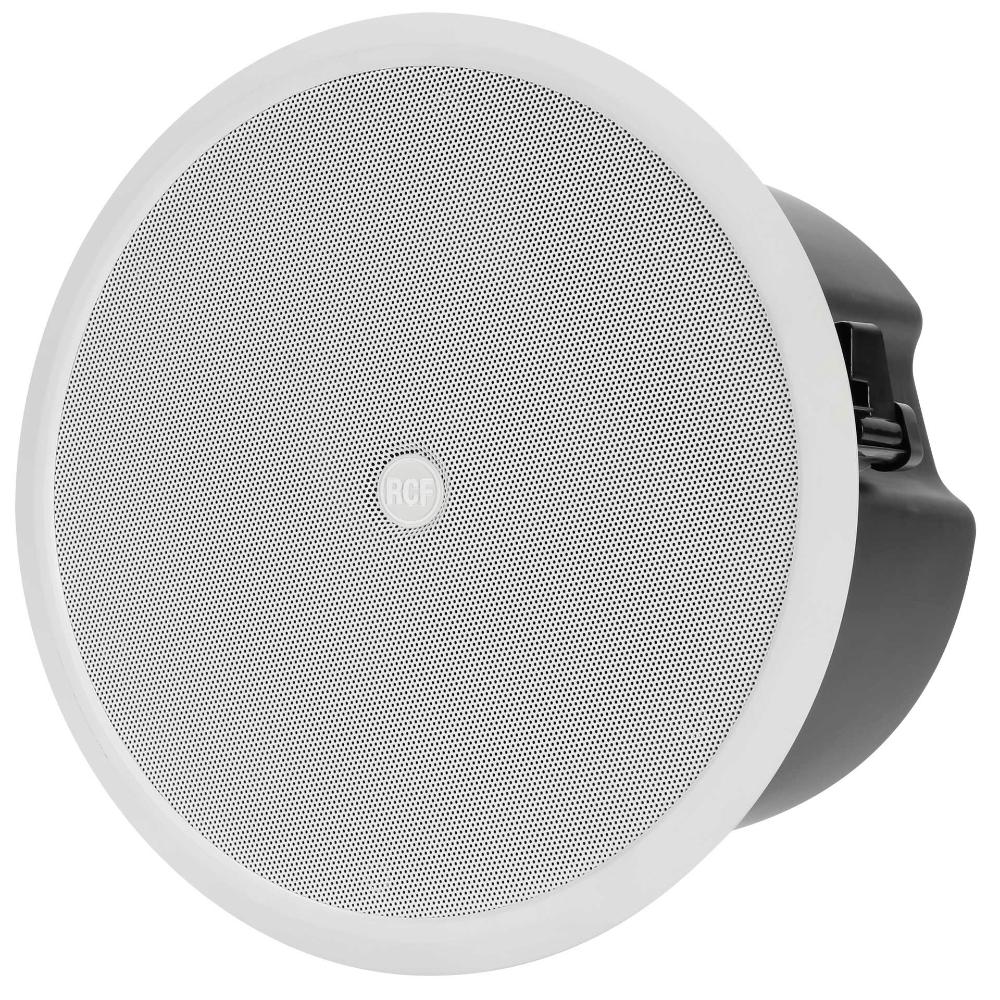

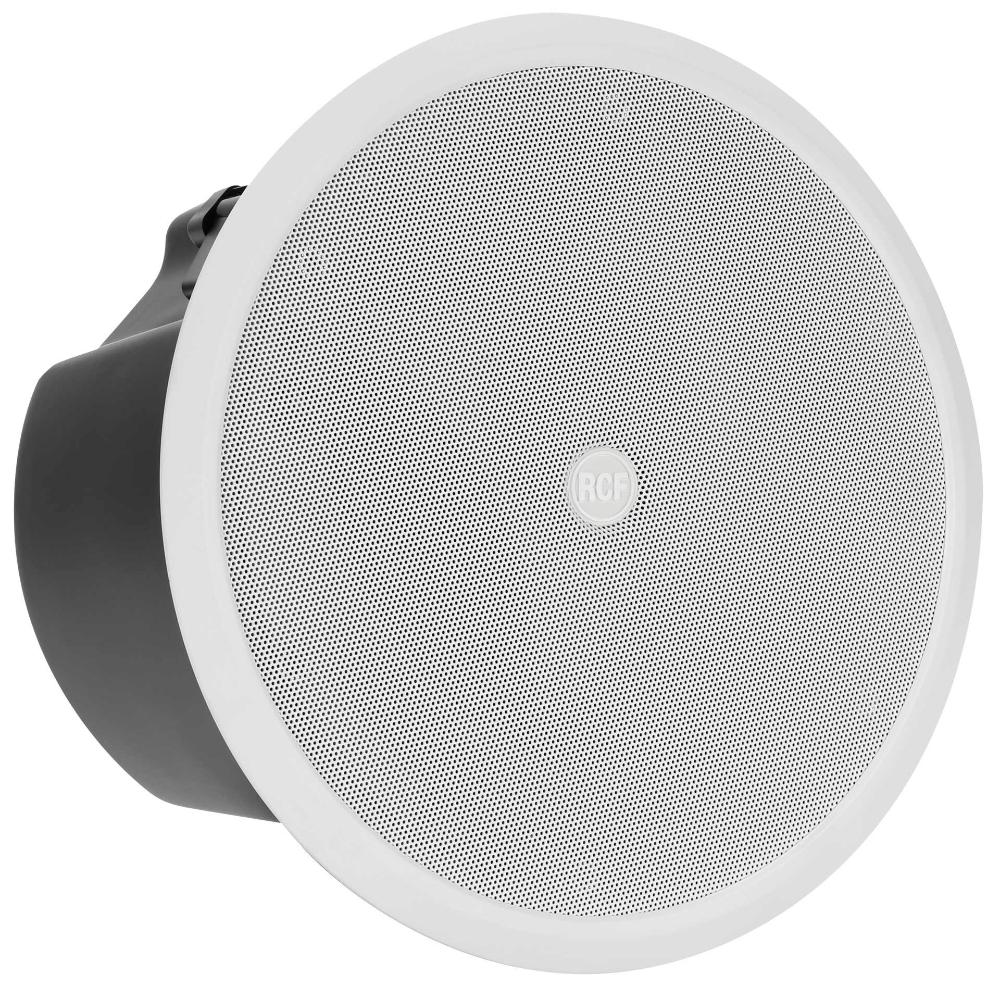

CMR 60T

TWO-WAY CEILING MONITOR SPEAKER
  • 80W RMS power handling
  • 114 dB max SPL
  • Self extinguishing plastic body and metal backcan
  • Steel magnetic front grille
Where to buy
Features
  • 80W RMS power handling
  • 114 dB max SPL
  • 70 ÷ 20000 Hz frequency range
  • 130° constant directivity conical coverage angle
  • 6.5" high power woofer
  • 1" neodymium dome tweeter
  • Self extinguishing plastic body and metal backcan

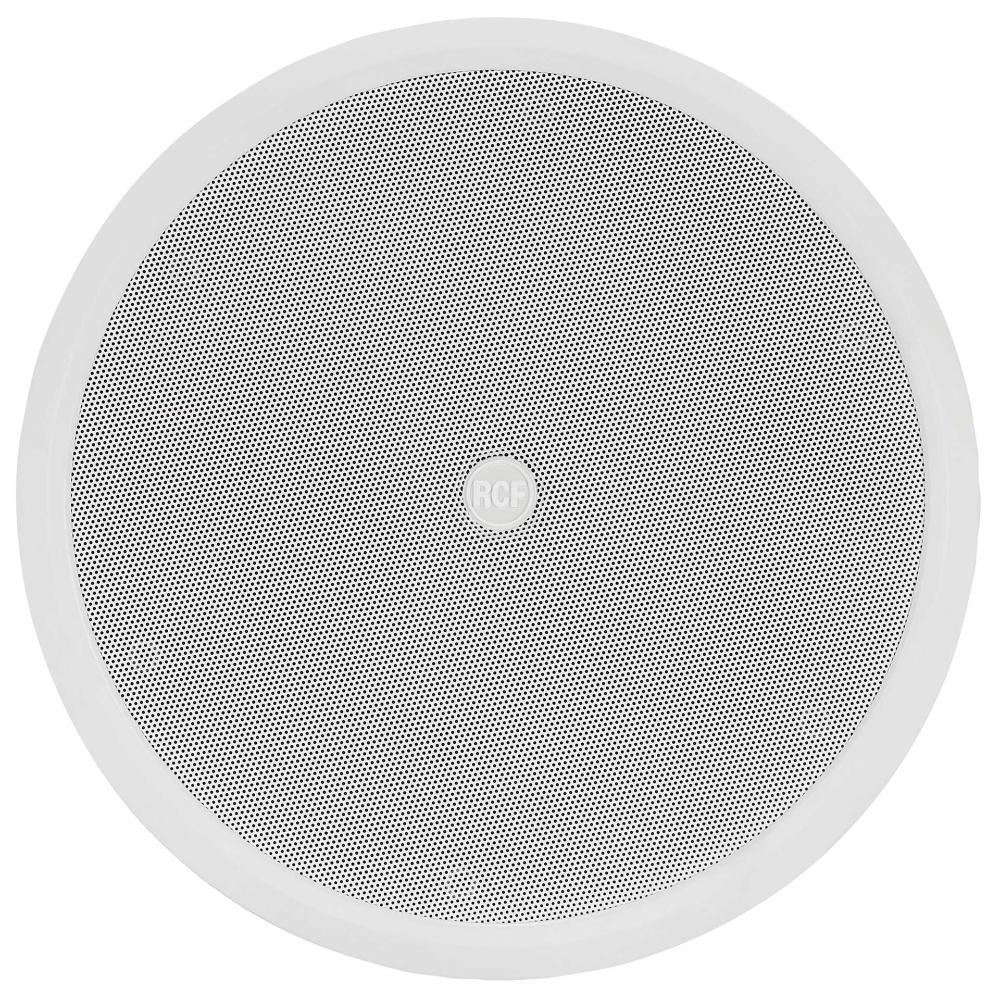

  • Steel magnetic front grille

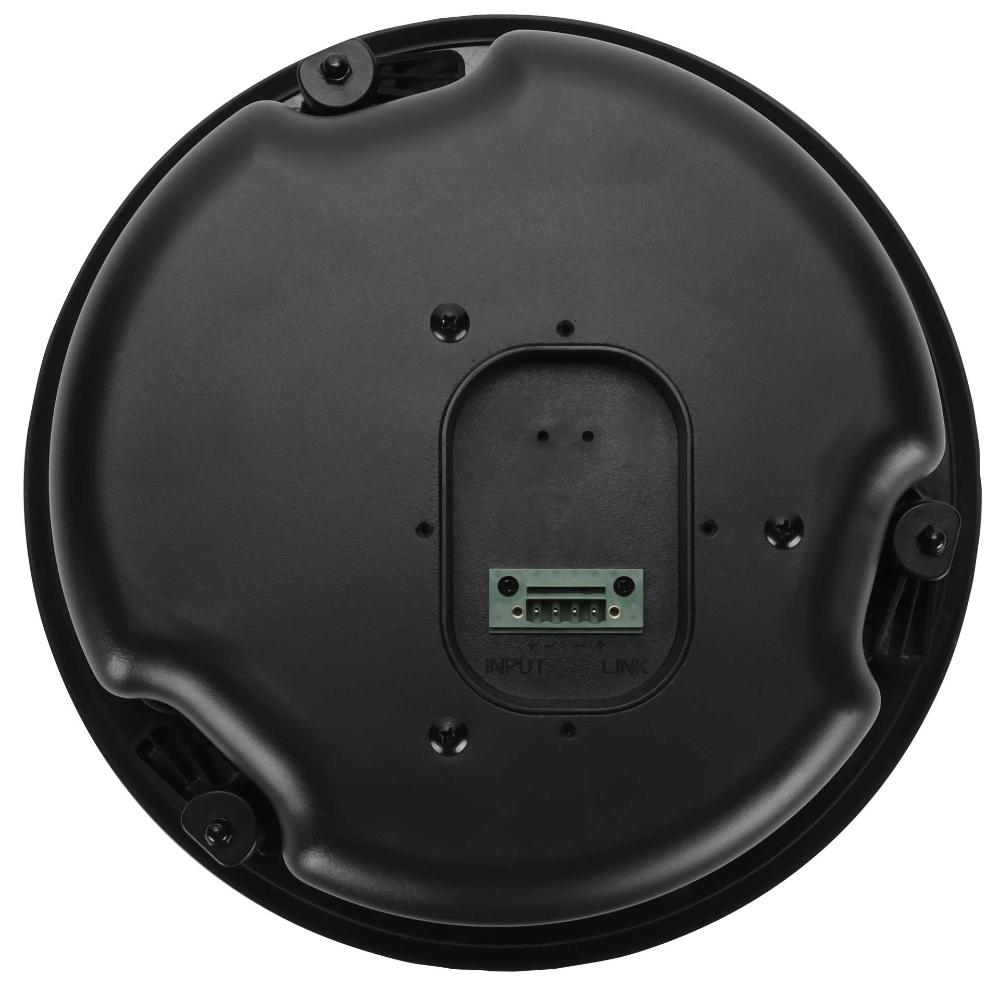

  • 4 pole EUROBLOCK connector (audio input and parallel link output)
  • 5 different power levels selectable

CMR 60T is a multipurpose two-way in-ceiling speaker, suitable for a wide range of applications. Thanks to its elegant and discreet design and accurate details, CMR 60T pairs any building's aesthetic. The high-quality transducers, aligned in a coaxial configuration, guarantees a precise music reproduction of the entire frequency band and provides impressive sound pressure levels for such a compact enclosure. Installation is easy with three long travel clamps. The magnetic grille allows immediate access to the power selector on the front shell: the line transformer provides 80W full power on 70V and 100V constant voltage lines, and five different power levels.

READ MORE

Part number:

13100045
CMR 60T W
White - RAL 9003, EAN 8024530017446

Multipurpose sound

Music nurtures engagement and hospitality inside any social or shopping environment. With a wide conical coverage angle of 130°, CMR speakers feature two transducers in a coaxial configuration with a bass-reflex cabinet design, ideal for both speech and music reproduction.

All products designed for Business Music applications offer optimal background performance and consistent tonal quality across all the Series preserving the same performance, even during high-powered foreground music. The combination of modern monochrome and discreet design blends into any environment.
Responsive Image
Responsive Image

Smooth installation

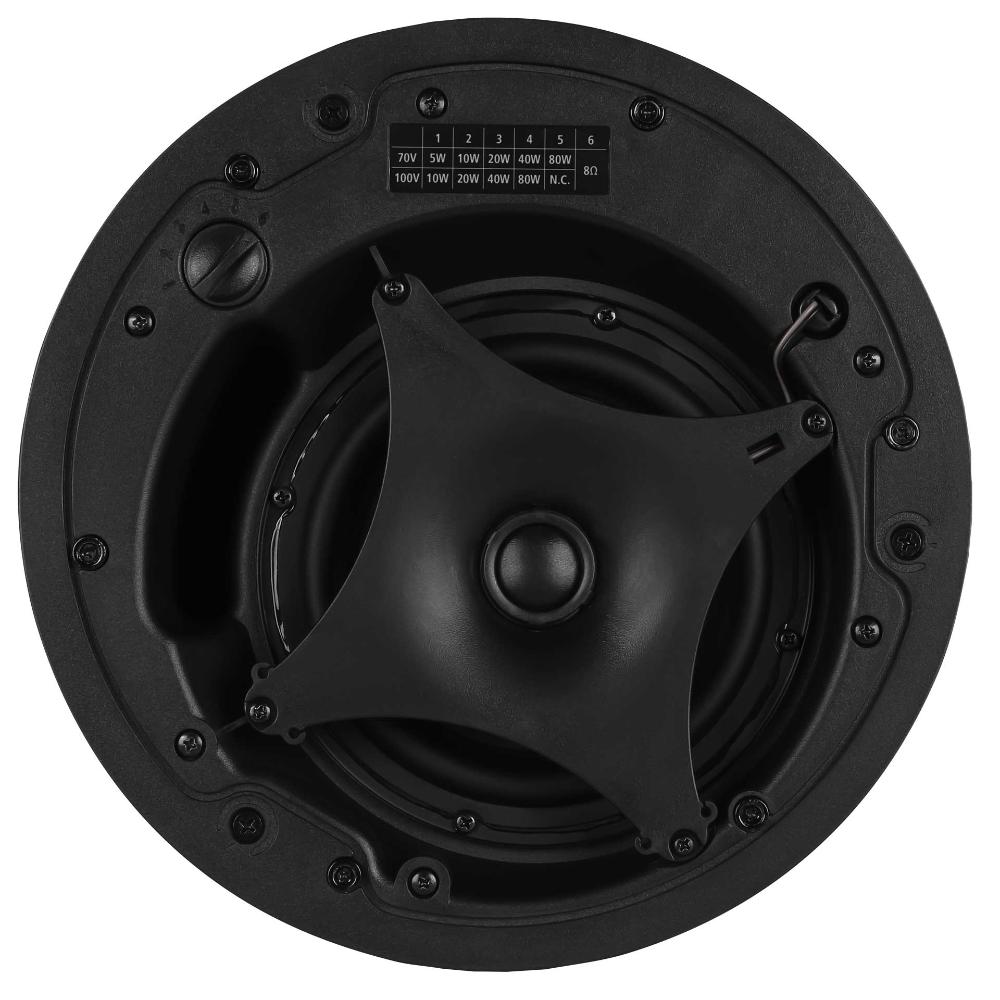

Housed in a compact self-extinguishing cabinet with a metal backcan, all models feature Euroblock inputs, a line transformer for 70V-100V systems, and quick and easy installation. Each model provides accessory options to increase flexibility. The front magnetic grille can be removed quickly and allows immediate action of the power selector on the front baffle.

Uncompromised performance

Quality components and careful acoustic design make the CMR Series a perfect choice for demanding applications. Designed for bars and restaurants, leisure hospitality, recreational facilities, theme parks, shopping malls, and corporate spaces.
Responsive Image
Specifications
Acoustical specifications
Frequency Response (-10dB):
70 Hz ÷ 20000 Hz
Max SPL @ 1m:
114 dB
Coverage angle:
130°
System Sensitivity:
89 dB
Power section
Amplification:
Full Range
Nominal Impedance:
8 ohm
Power Handling:
80 W RMS
Peak Power Handling:
320 W PEAK
Recommended Amplifier:
160 W
Crossover Frequencies:
2500
Transducers
Dome Tweeter:
1.0'' neo, 1.0'' v.c
Woofer:
6.5'', 1.2'' v.c
Input/Output section
Input connectors:
Euroblock
Output connectors:
Euroblock
Constant Voltage Transformer:
70/100 V
Power selection 1:
80 W - 125 ohm
Power selection 2:
40 W - 250 ohm
Power selection 3:
20 W - 500 ohm
Power selection 4:
10 W - 1000 ohm
Power selection 5:
5 W - 2000 ohm
Standard compliance
Safety agency:
CE compliant, UL 1480A
Physical specifications
Cabinet/Case Material:
ABS
Hardware:
Steel backcan
Grille:
Steel
Color:
White - RAL 9003
Size
Depth:
202 mm / 7.95 inches

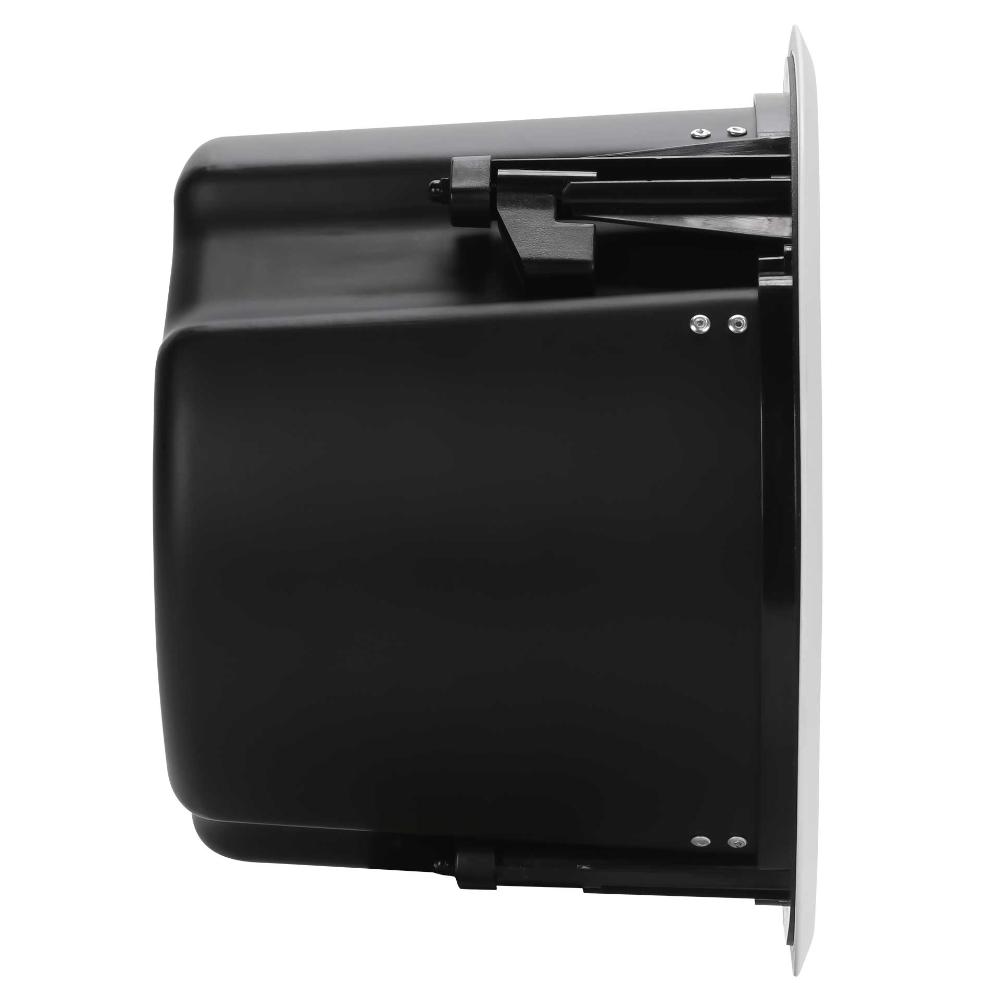

Recessed Depth:
193 mm / 7.6 inches
Diameter:
300 mm / 11.81 inches
Cut out diameter:
260 mm / 10.24 inches
Weight:
4.5 kg / 9.92 lbs
Shipping information
Package Height:
280 mm / 11.02 inches
Package Width:
362 mm / 14.25 inches
Package Depth:
362 mm / 14.25 inches
Package Weight:
6 kg / 13.23 lbs
