COMPACT M 06

TWO-WAY PROFESSIONAL SPEAKER
  • 100 W RMS power handling
  • 116 dB max SPL
  • 60 ÷ 20000 Hz frequency range
  • 120° x 80° constant directivity coverage angle
Where to buy
Features
  • 100 W RMS power handling
  • 116 dB max SPL
  • 60 ÷ 20000 Hz frequency range
  • 120° x 80° constant directivity coverage angle

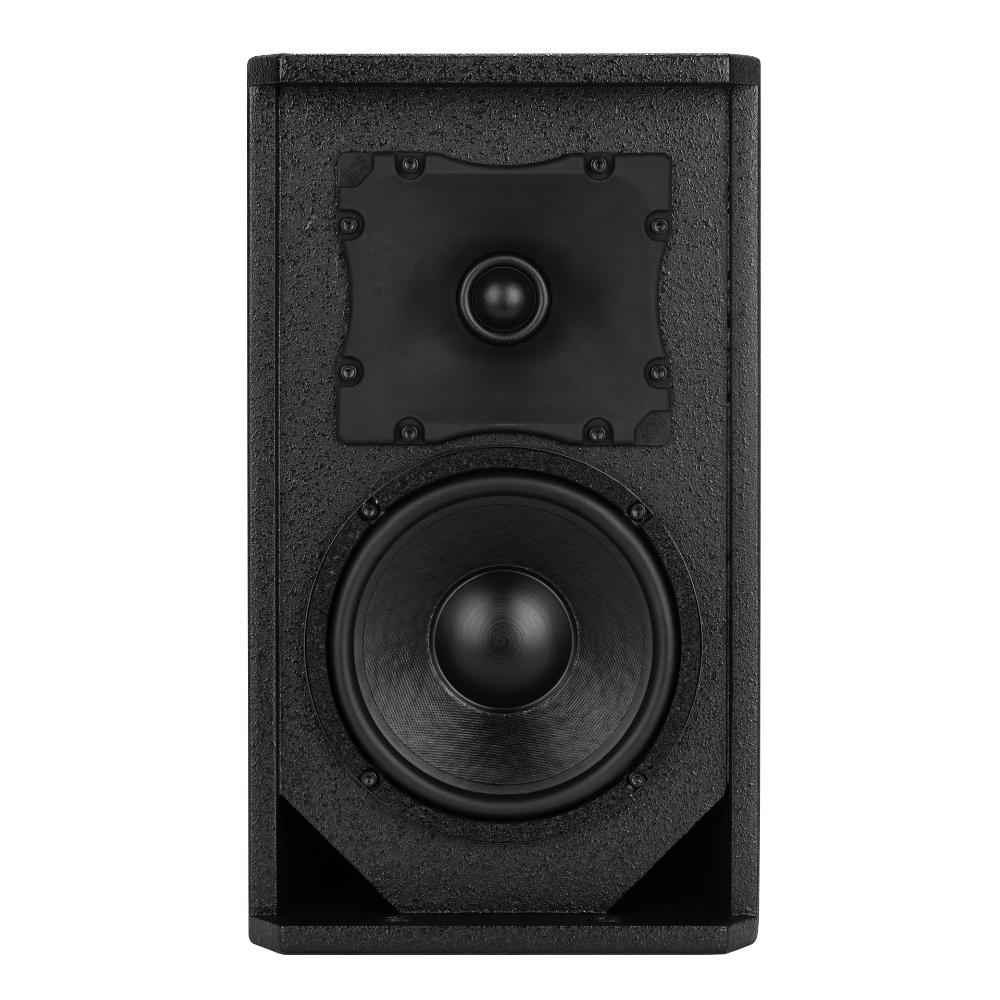

  • 1 x 6" high power woofer

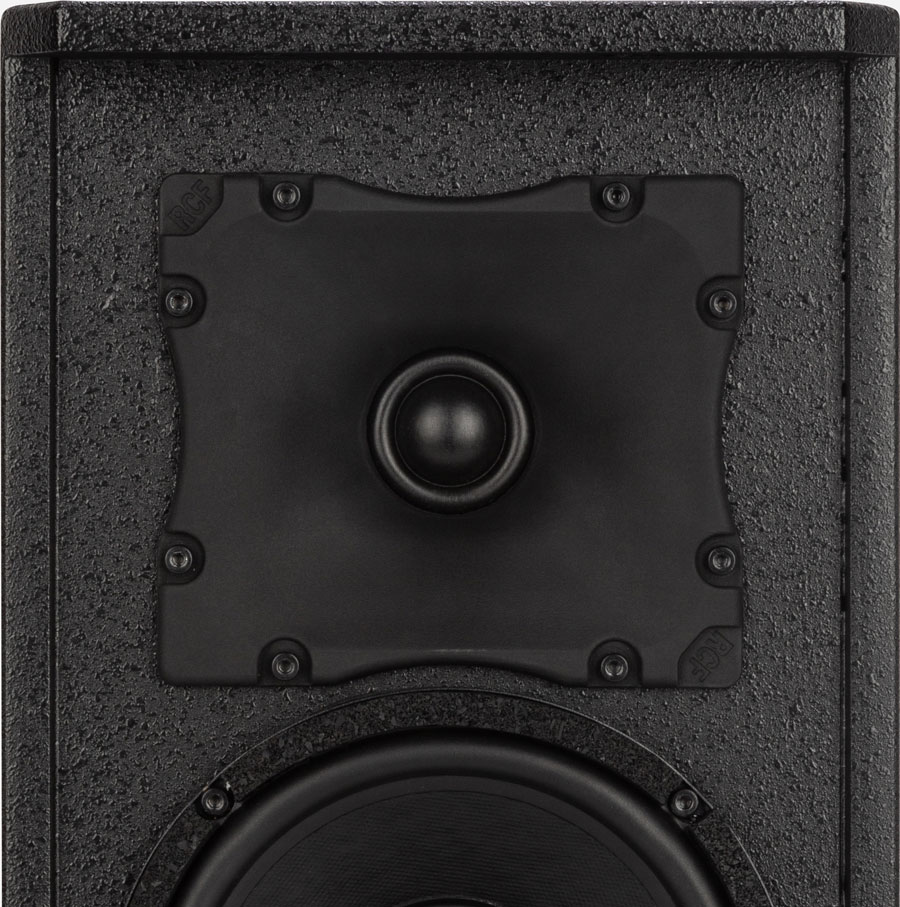

  • 1 x 1" voice coil neodymium dome tweeter
  • High quality plywood cabinet

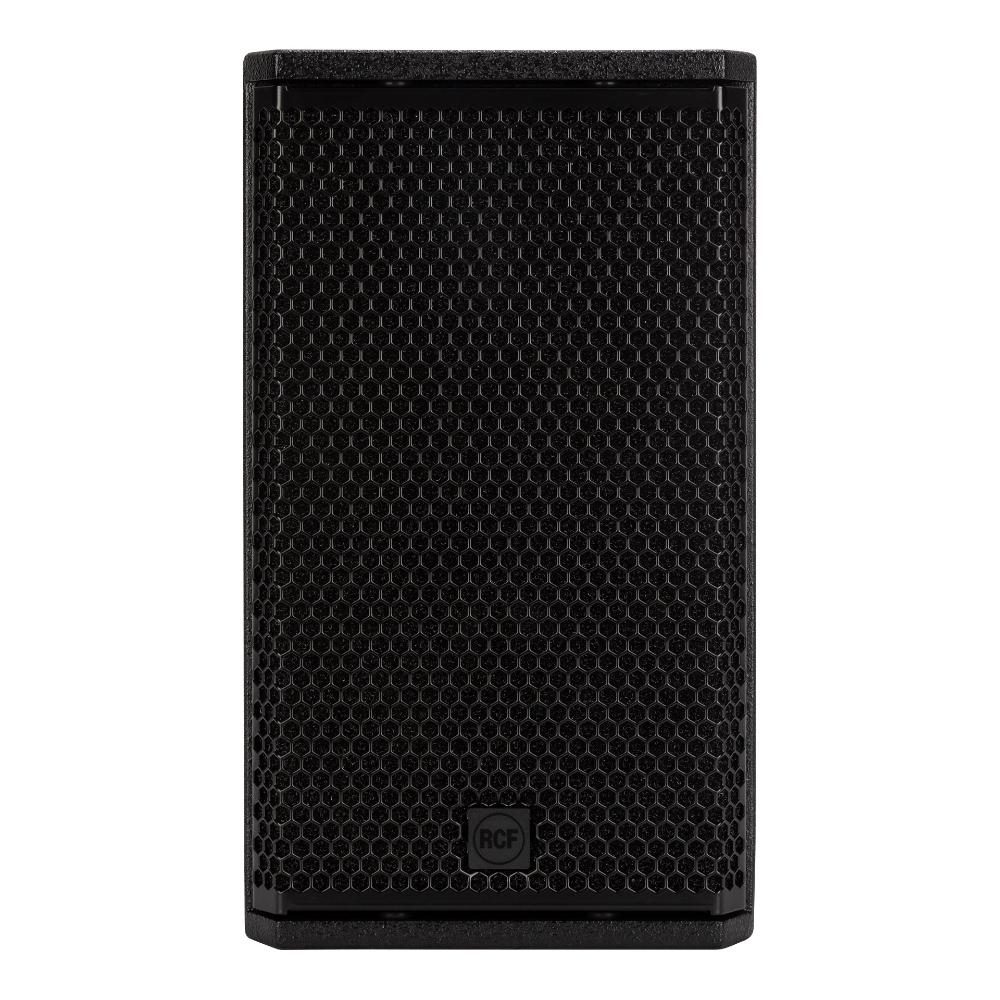

  • Steel front grille with clothing

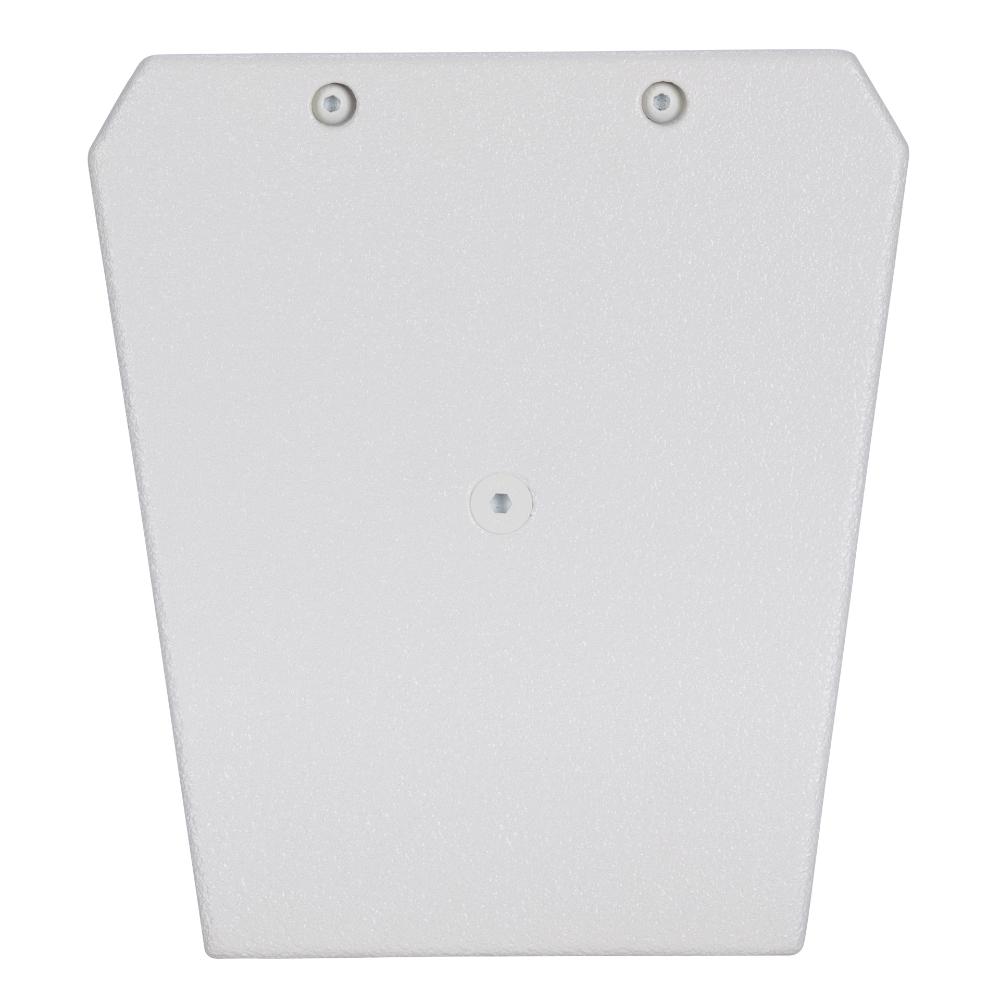

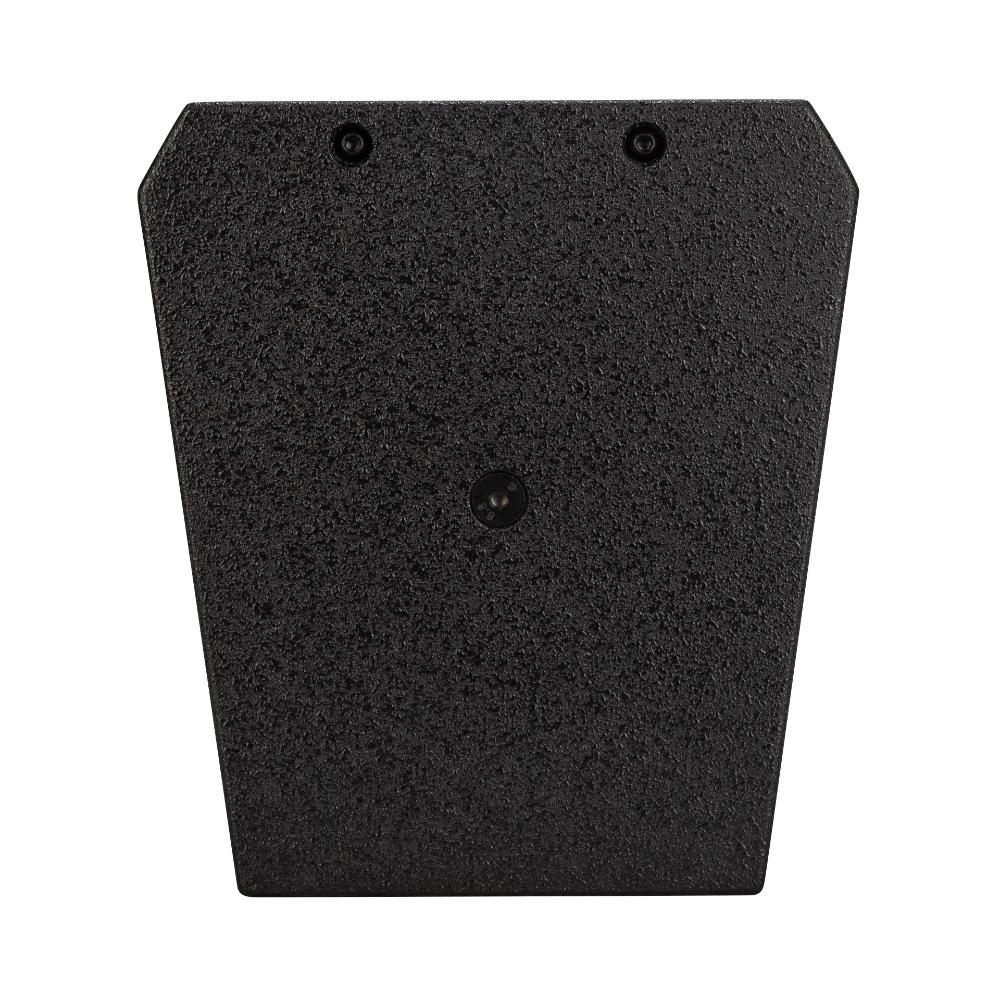

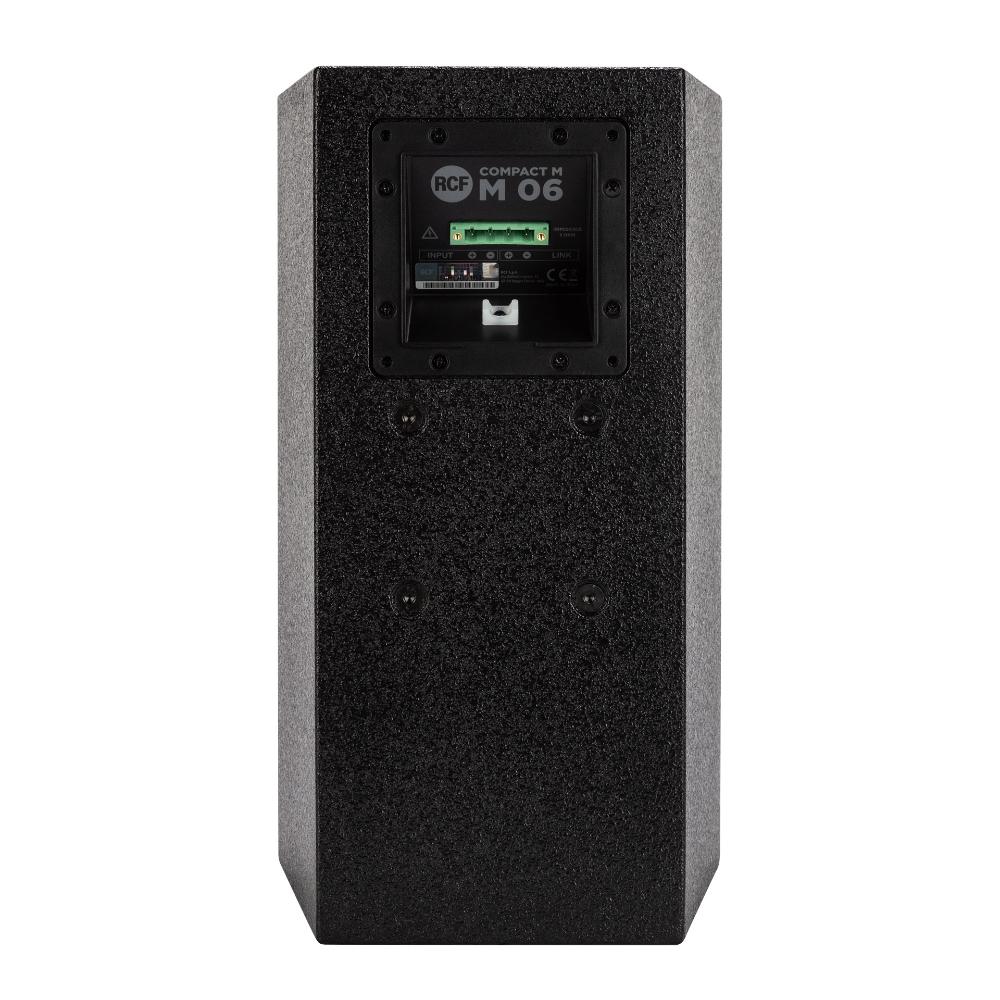

  • Installation points available on rear, top and bottom panels

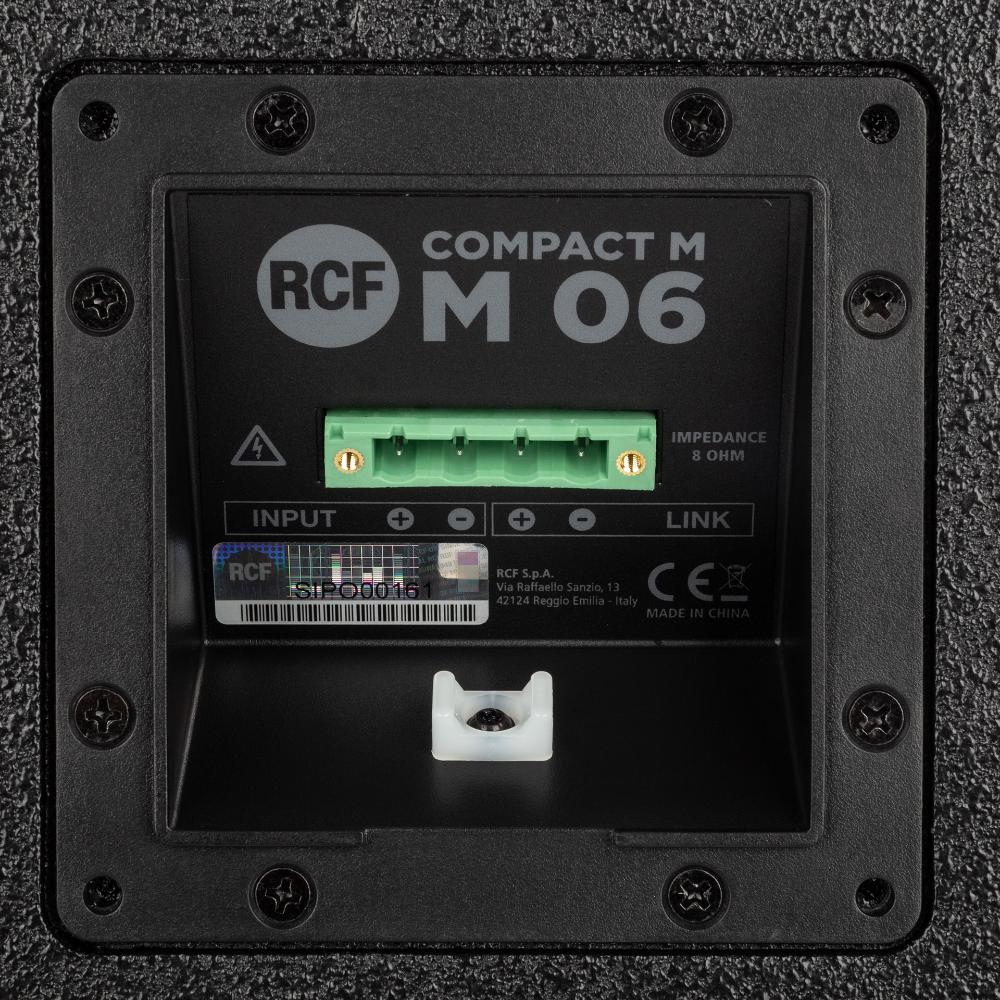

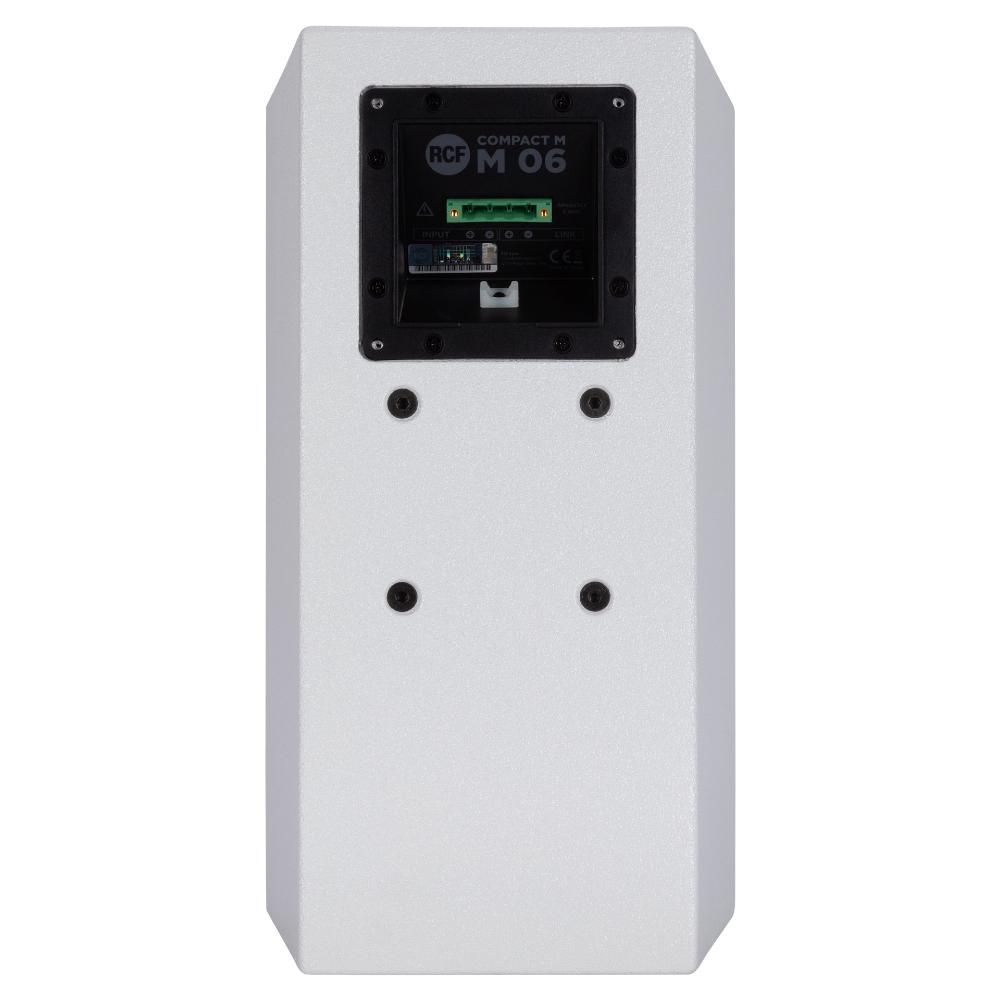

  • 4 pole EUROBLOCK connector (audio input and parallel link output)

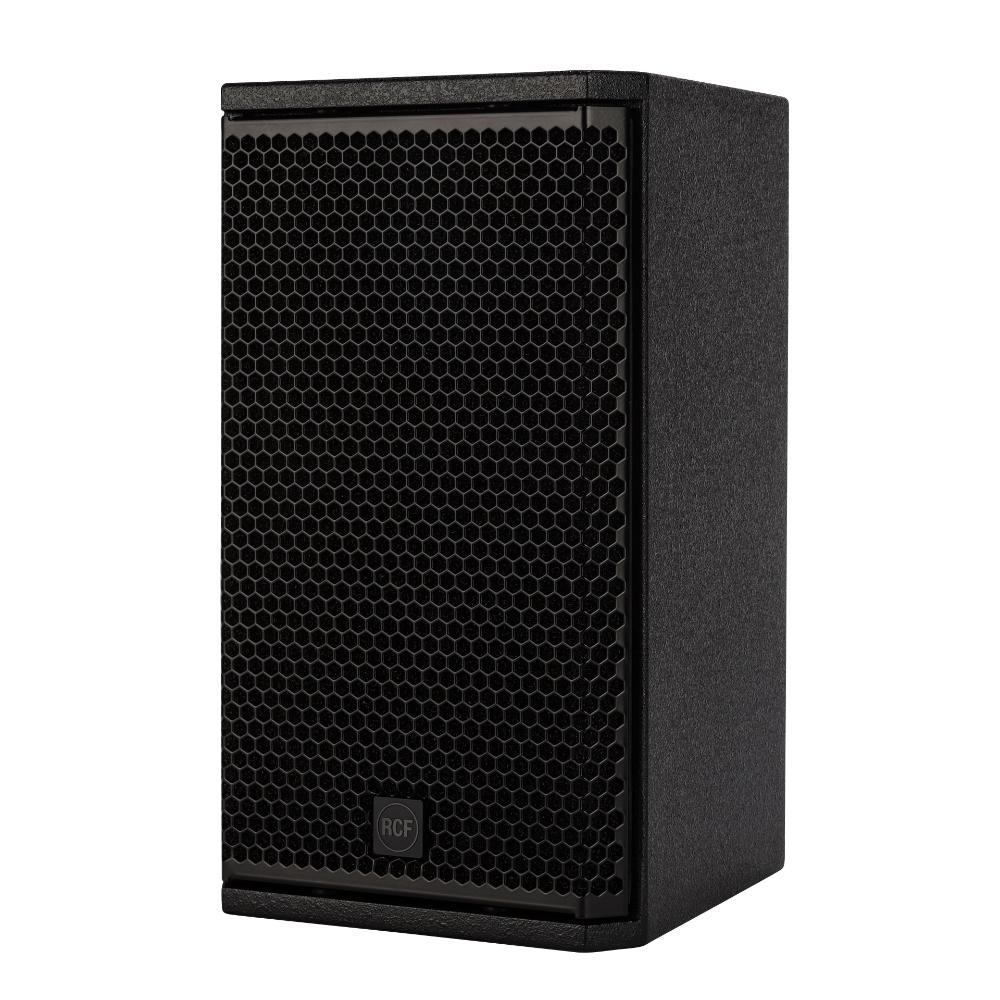

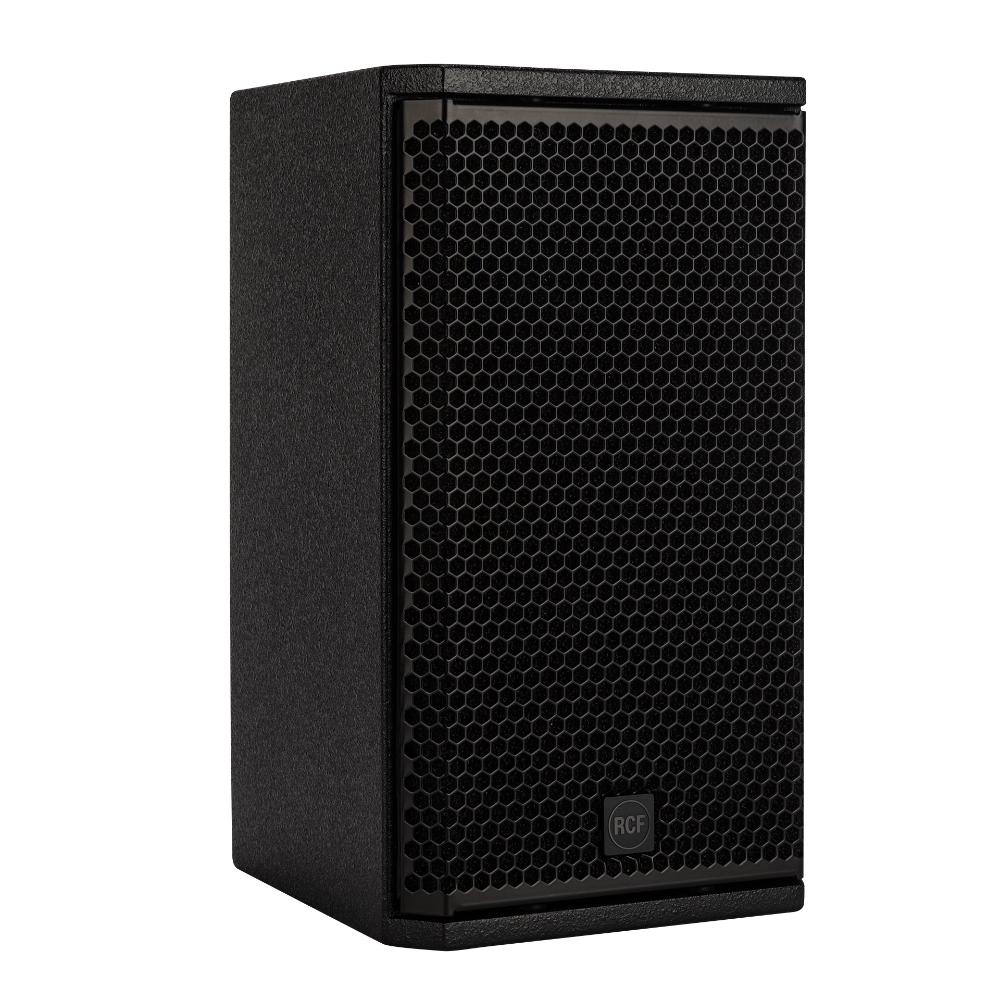

COMPACT M 06 is a multipurpose two-way full-range speaker system, suitable for a wide range of applications. Its balanced sound is a big asset in near-field applications for the best intelligibility. The M 06 features high sensitivity, typical of professional audio cabinets thanks to the use of oversized magnets and a HI-FI sound quality, with smooth and wide frequency response, thanks to the wave-guided neodymium dome tweeter. The SPL level of low-distortion audio the M 06 can provide goes far beyond expectations of such a compact solution. The elegant and compact design with accurate finishing makes M 06 suitable for almost any environment, even with architectural constraints. Optional mounting accessories allow using M 06 on wall or ceiling installations.

READ MORE

Part number:

13000582
COMPACT M 06
Black - RAL 9005, EAN 8024530017781

13000721

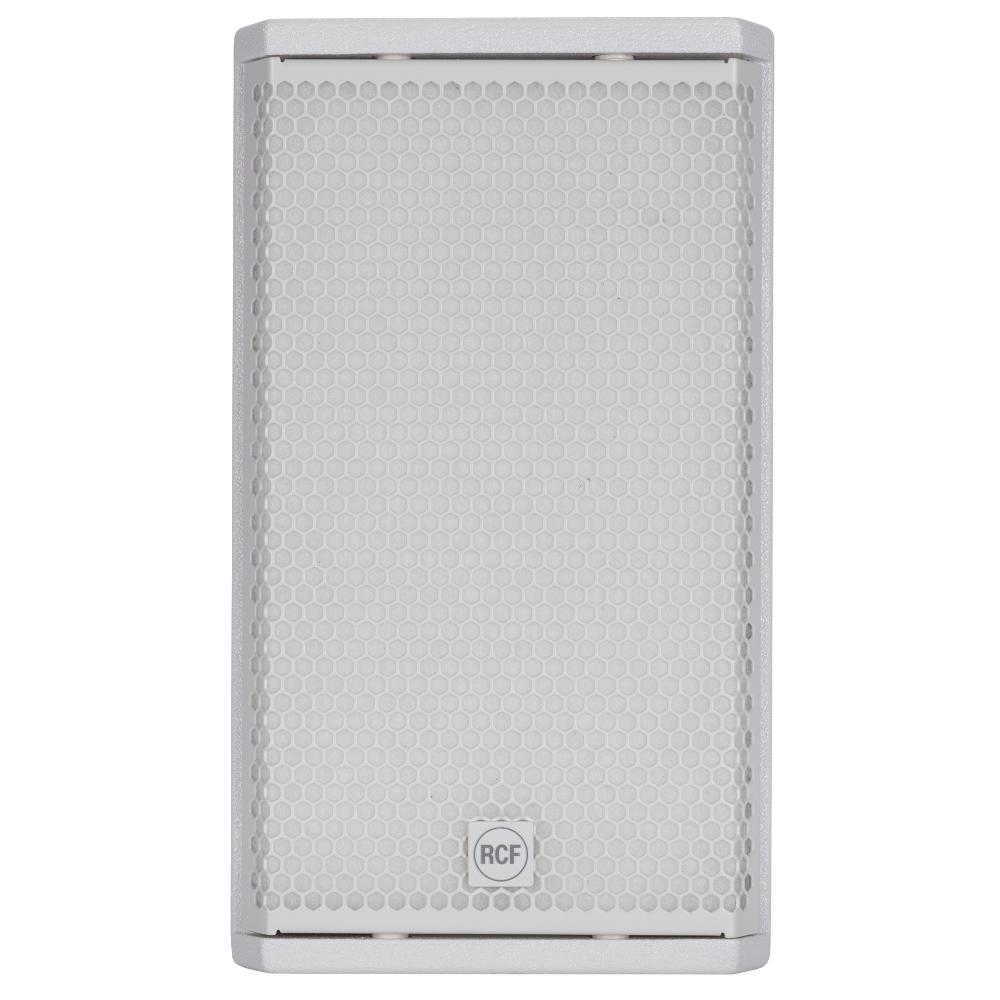

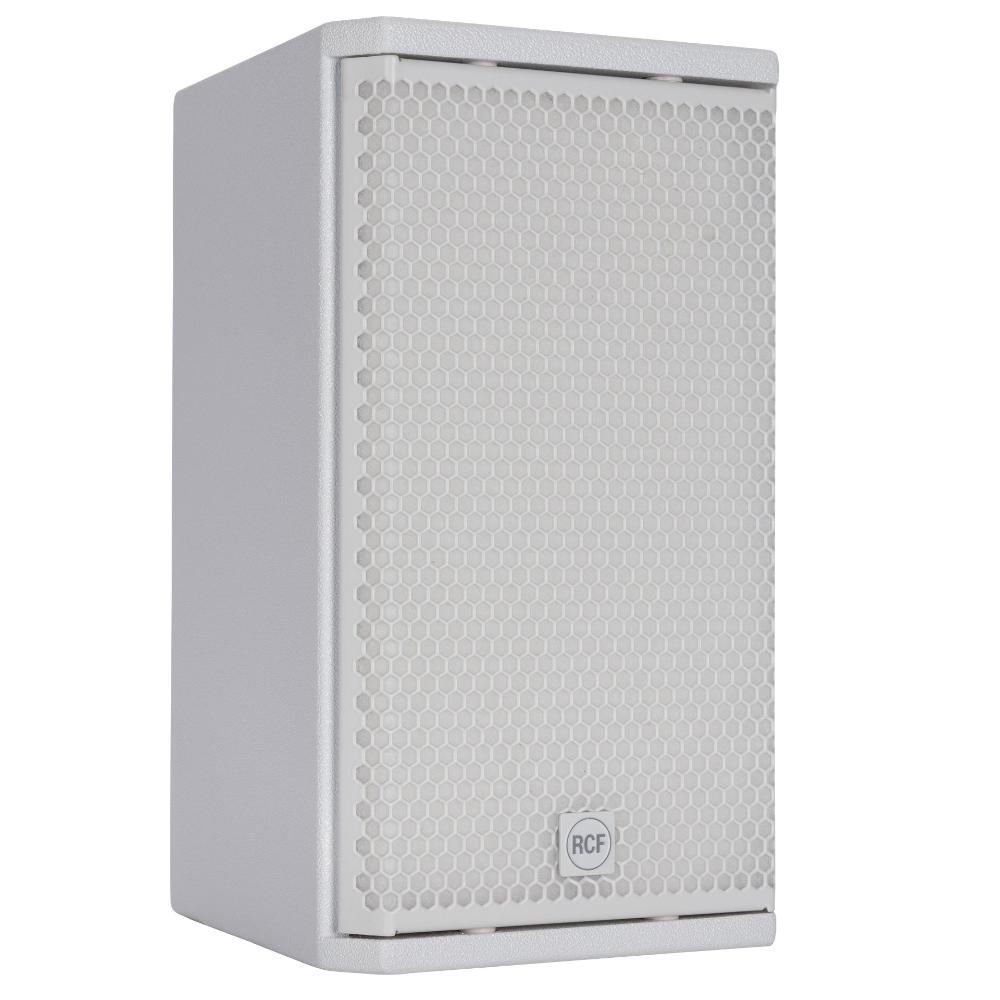

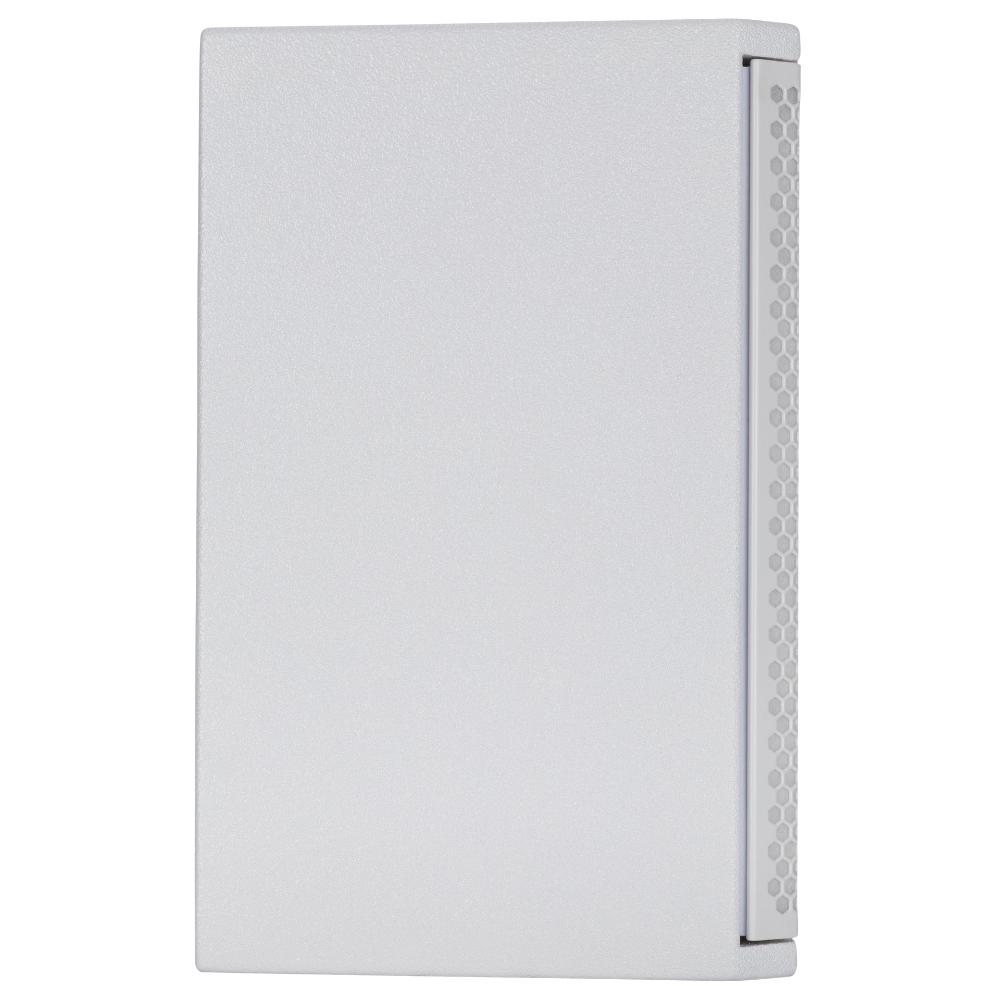

COMPACT M 06 W
White - RAL 9003, EAN 8024530019334

Black & white

When in need of a particular appearance, matching the colour of interiors, or searching for a stylish, minimalistic sound system for your next DJ set, we can provide you with a full set of white speakers — a tough coating for wooden speakers or a robust white polypropylene composite material for portable systems, pole included, in perfect fashion. Purity and elegance, all available to be included in corporate gigs, weddings, and houses of worship.
Responsive Image

Multipurpose sound

Elegant design aesthetic, multiple formats and RCF signature sound quality that allows to deliver a supreme audio experience in any application, from restaurant and retail shops to clubs, corporate spaces and venues.
Responsive Image
Responsive Image

Engage your customers

Compact dimensions and impressive size/weight to SPL output ratio. These are the features that will allow your audience enjoying an immersive musical experience.

Improve the audio atmosphere

Music supports engagement and improves the feeling of hospitality in the environment, especially if the perceived sound quality is higher. This is the aim of RCF Compact M Series - optimal performance in both background music and high powered foreground audio.
Responsive Image
Responsive Image

Smooth installation

Compact M speakers sticks to the functionality and style of the Italian design, always in harmony with any type of interiors. With a complete range of solid wood cabinets, multiple rigging points and accessories, installation time is minimal. The EUROBLOCK connection panel can be replaced with female Neutrik SpeakON connection panel in seconds.
Specifications
Acoustical specifications
Frequency Response (-10dB):
60 Hz ÷ 20000 Hz
Max SPL @ 1m:
116 dB
Horizontal coverage angle:
120°
Vertical coverage angle:
80°
Directivity index Q:
7
System Sensitivity:
90 dB
Power section
Amplification:
Full Range
Nominal Impedance:
8 ohm
Power Handling:
100 W
Peak Power Handling:
400 W PEAK
Recommended Amplifier:
200 W
Protections:
Dynamic active mosfet
Crossover Frequencies:
2200 Hz
Transducers
Dome Tweeter:
1.3'' neo, 1.0'' v.c
Woofer:
6.0'', 1.5'' v.c
Input/Output section
Input connectors:
Euroblock
Output connectors:
Euroblock
Standard compliance
Safety agency:
CE compliant
Physical specifications
Cabinet/Case Material:
Plywood
Hardware:
4 x M6, 2 x M8
Grille:
Steel with clothing
Color:
Black - RAL 9005, White - RAL 9003
Size
Height:
365 mm / 14.37 inches
Width:
211 mm / 8.31 inches
Depth:
232 mm / 9.13 inches
Weight:
5.5 kg / 12.13 lbs
Shipping information
Package Height:
386 mm / 15.2 inches
Package Width:
256 mm / 10.08 inches
Package Depth:
235 mm / 9.25 inches
Package Weight:
7 kg / 15.43 lbs
