COMMERCIAL AUDIO BUSINESS MUSIC

DM 61

TWO-WAY COMPACT SPEAKER
  • 6" woofer with 1'' dome tweeter
  • Power selectable (100 V): 25 W – 12.5 W – 7.5 W – 5 W – 2.5 W
  • 89 dB sensitivity
  • Colour white RAL 9002
Where to buy
Features
  • 6" woofer with 1'' dome tweeter
  • Power selectable (100 V): 25 W – 12.5 W – 7.5 W – 5 W – 2.5 W
  • 89 dB sensitivity
  • Colour white RAL 9002
  • Plastic body UL 94 V0, steel grille
  • Protection grade IP 55

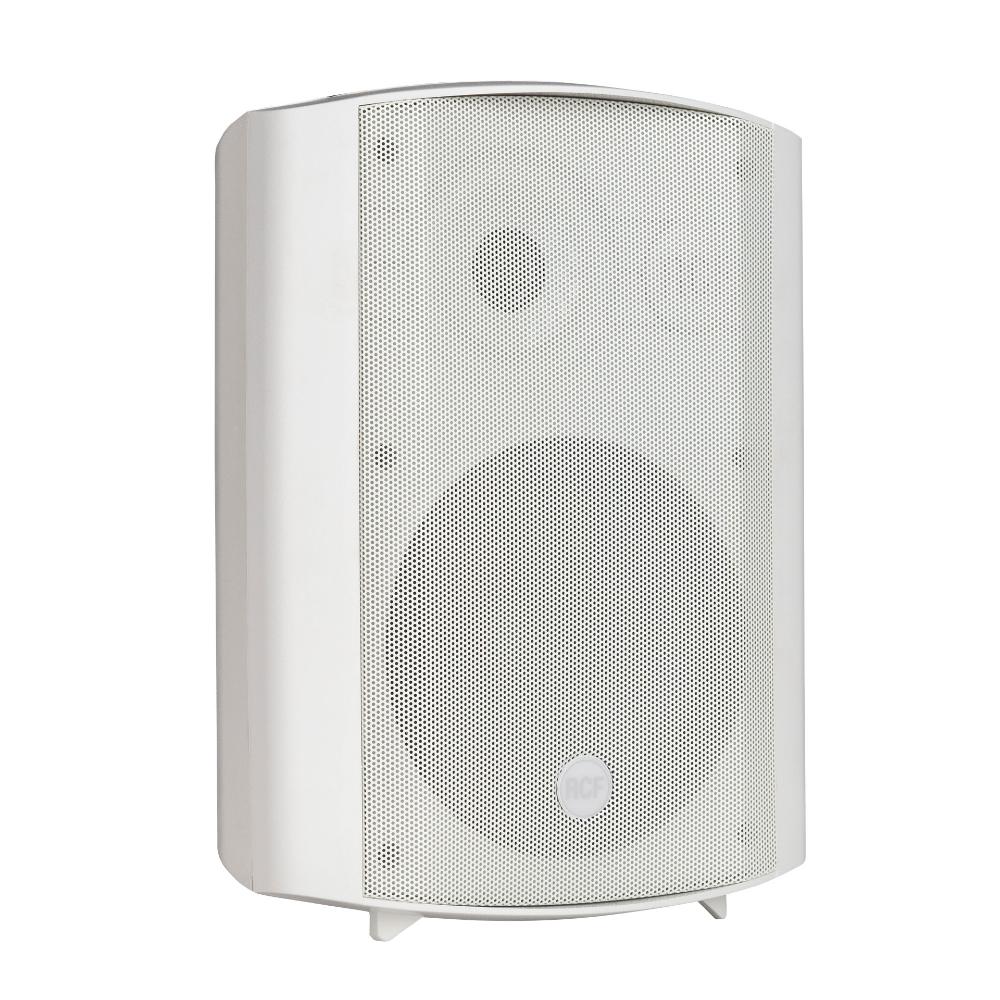

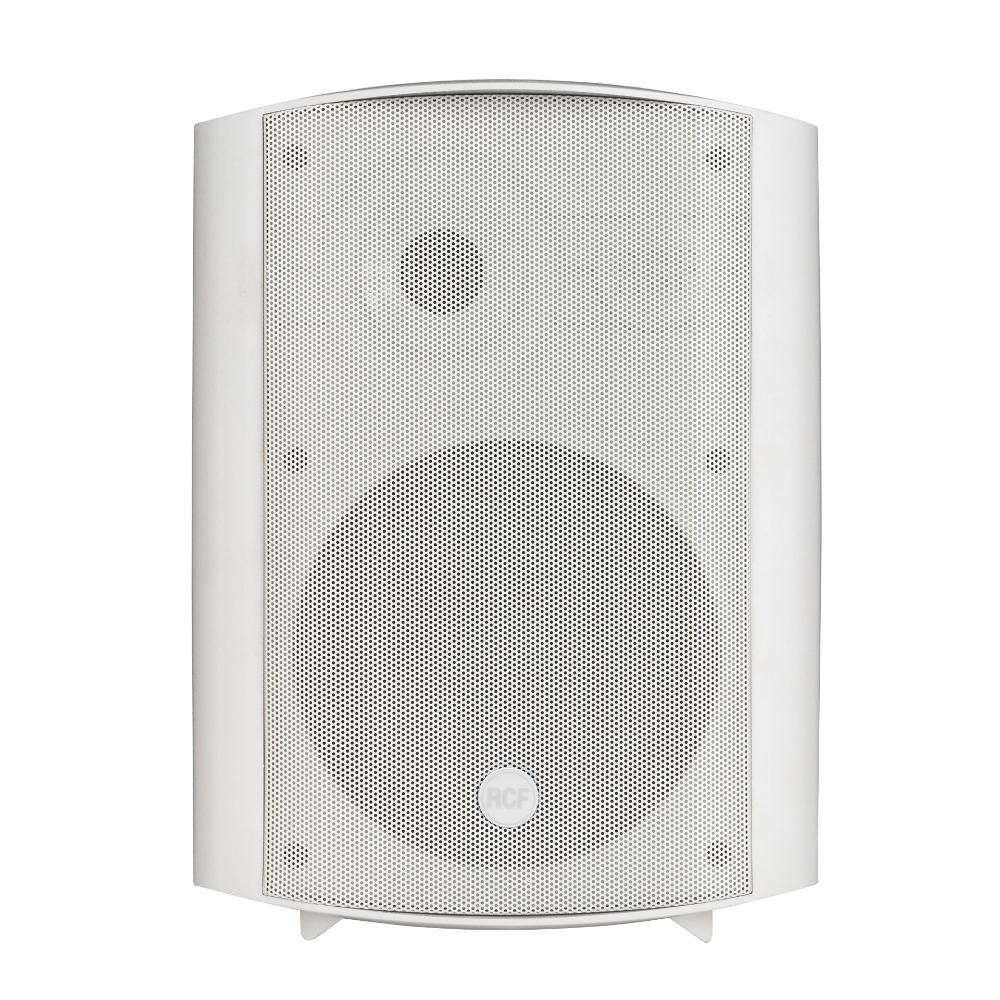

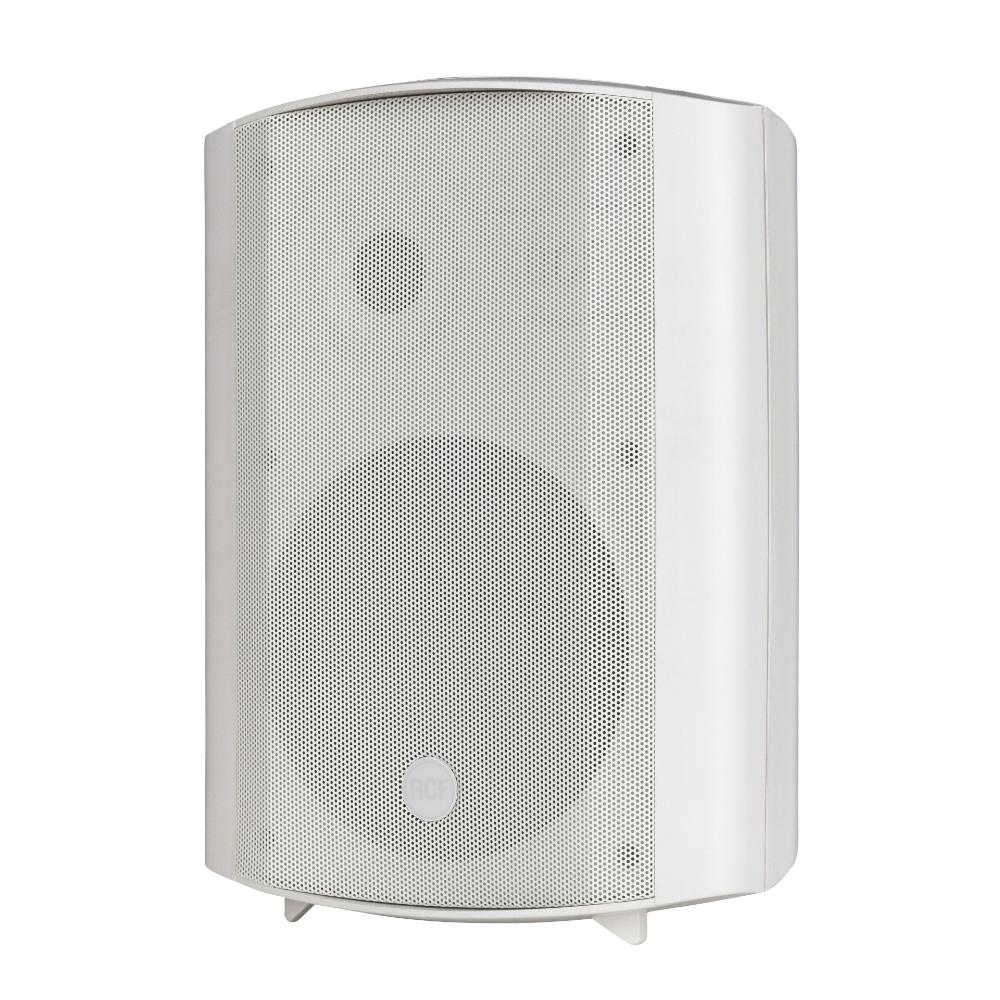

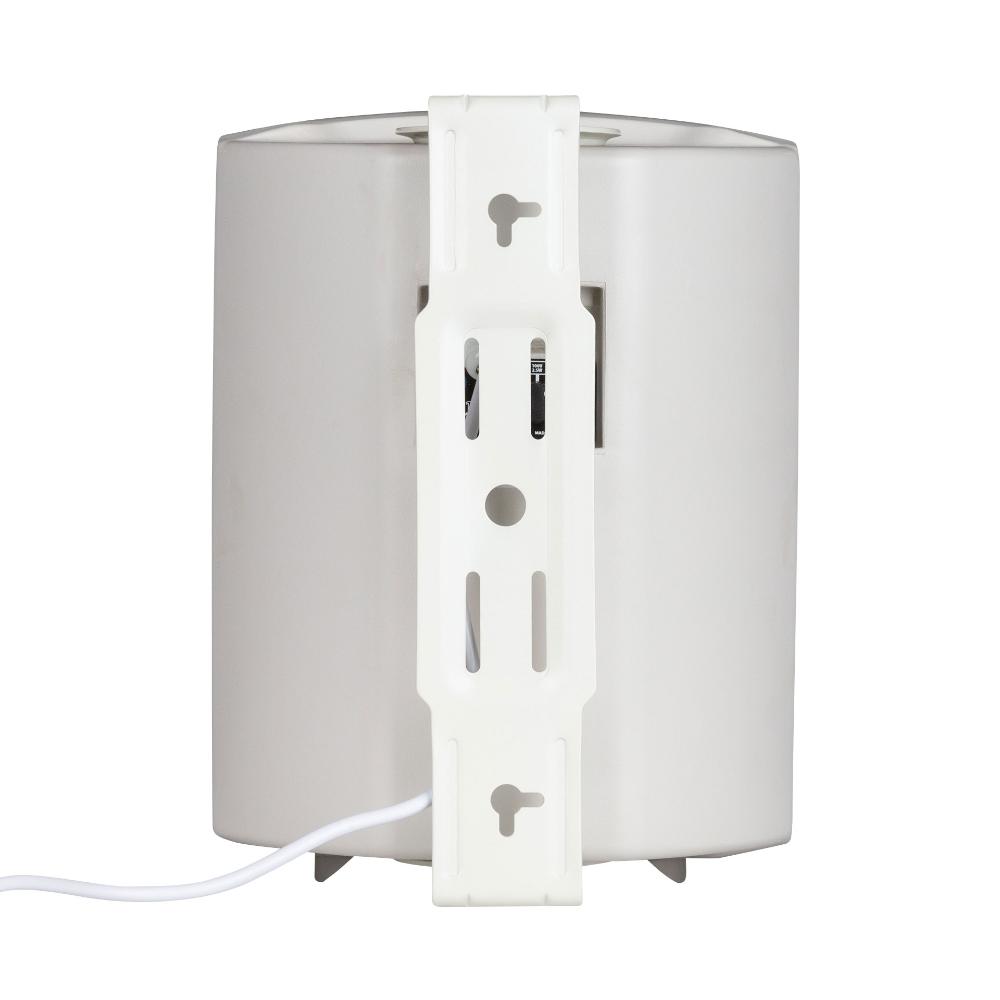

DM 61 is a compact two way speaker designed for constant voltage systems. The speaker provide natural, smooth sound reproduction ideal for use in business music systems and indoor/outdoor background music apllications. Connections to the loudspeaker line are made by using the two wire cable coming out from the loudspeaker rear side. The enclosure includes a protective perforated grille and an accessory for the wall mounting.

Part number:

13000050
DM 61
EAN 8024530004958

Specifications
Acoustical specifications
Frequency Response (-10dB):
70 Hz ÷ 20000 Hz
Max SPL @ 1m:
106 dB
Horizontal coverage angle:
120°
Vertical coverage angle:
140°
System Sensitivity:
89 dB
Power section
Nominal Impedance:
8 ohm
Power Handling:
25 W
Peak Power Handling:
100 W PEAK
Recommended Amplifier:
50 W
Crossover Frequencies:
6000 Hz
Transducers
Dome Tweeter:
1.0''
Woofer:
6.0''
Input/Output section
Input connectors:
Cable
Output connectors:
Cable
Constant Voltage Transformer:
100 V

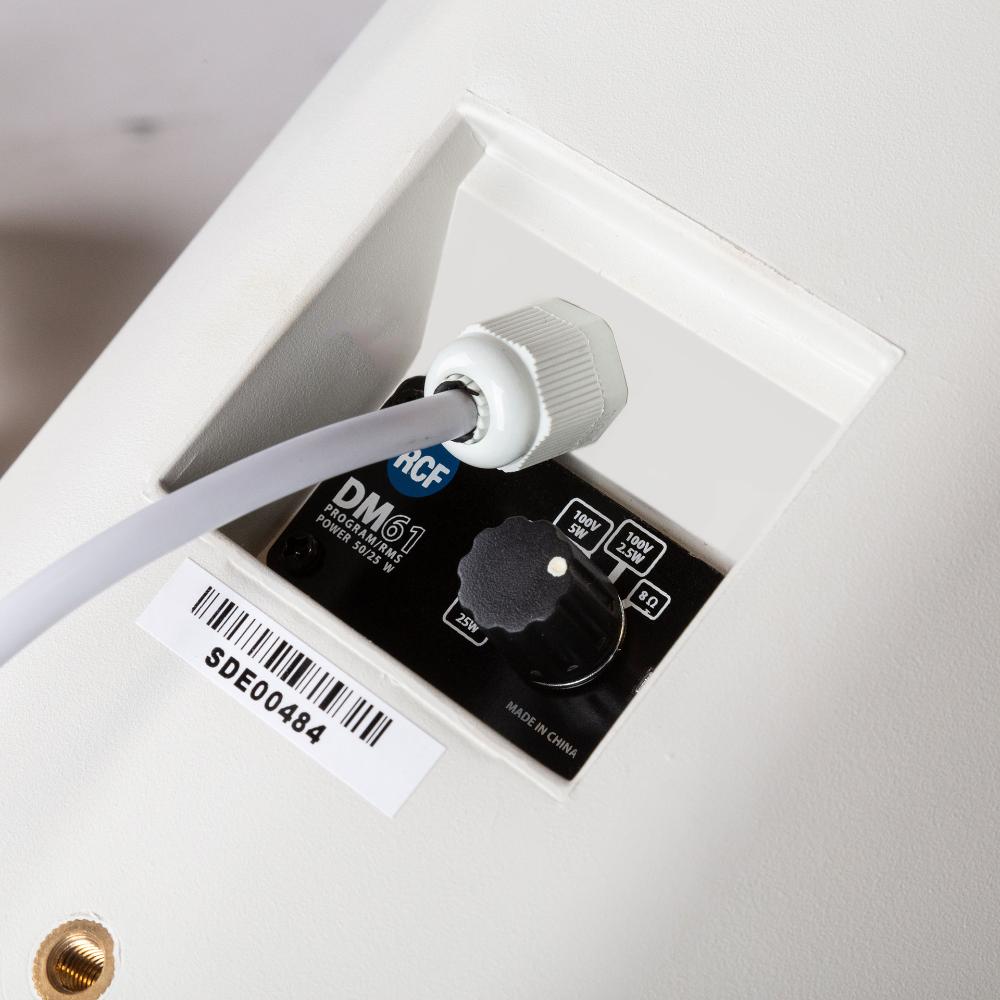

Power selection 1:
25 W - 400 ohm
Power selection 2:
12.5 W - 800 ohm
Power selection 3:
7.5 W - 1333 ohm
Power selection 4:
5 W - 2000 ohm
Power selection 5:
2.5 W - 4000 ohm
Standard compliance
IP protection grade:
IP 55
Physical specifications
Cabinet/Case Material:
Plastic
Hardware:
Aluminium U bracket
Grille:
Aluminium
Color:
White - RAL 9002
Size
Height:
289 mm / 11.38 inches
Width:
216 mm / 8.5 inches
Depth:
177 mm / 6.97 inches
Weight:
3.98 kg / 8.77 lbs
Shipping information
Package Height:
340 mm / 13.39 inches
Package Width:
265 mm / 10.43 inches
Package Depth:
250 mm / 9.84 inches
Package Weight:
4.5 kg / 9.92 lbs
