MIXING CONSOLES

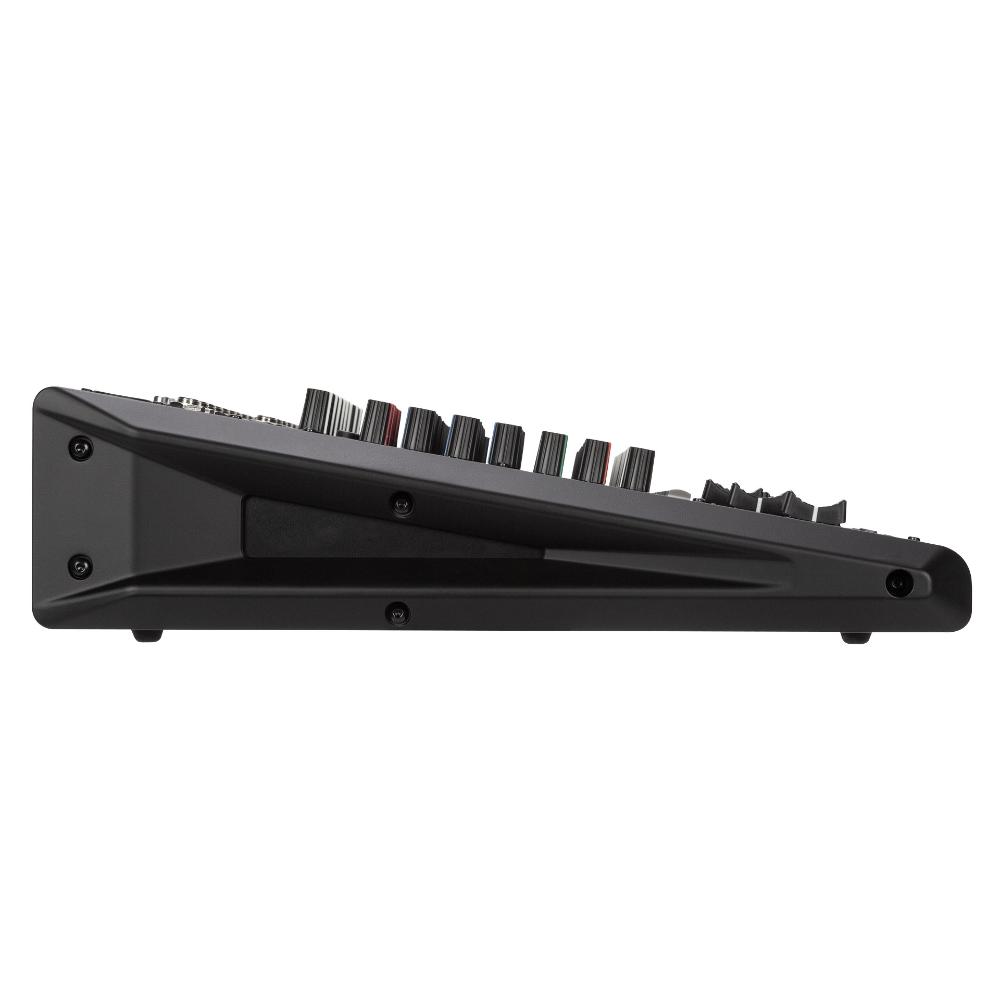

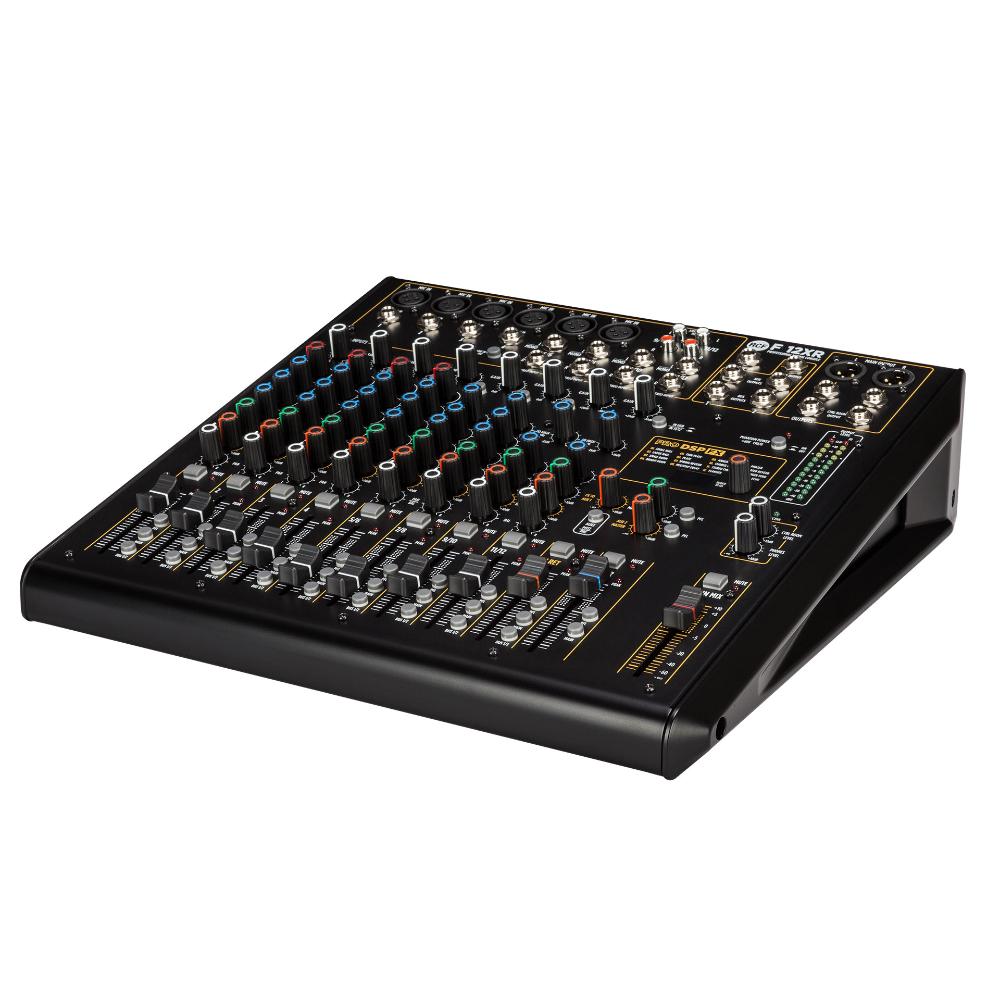

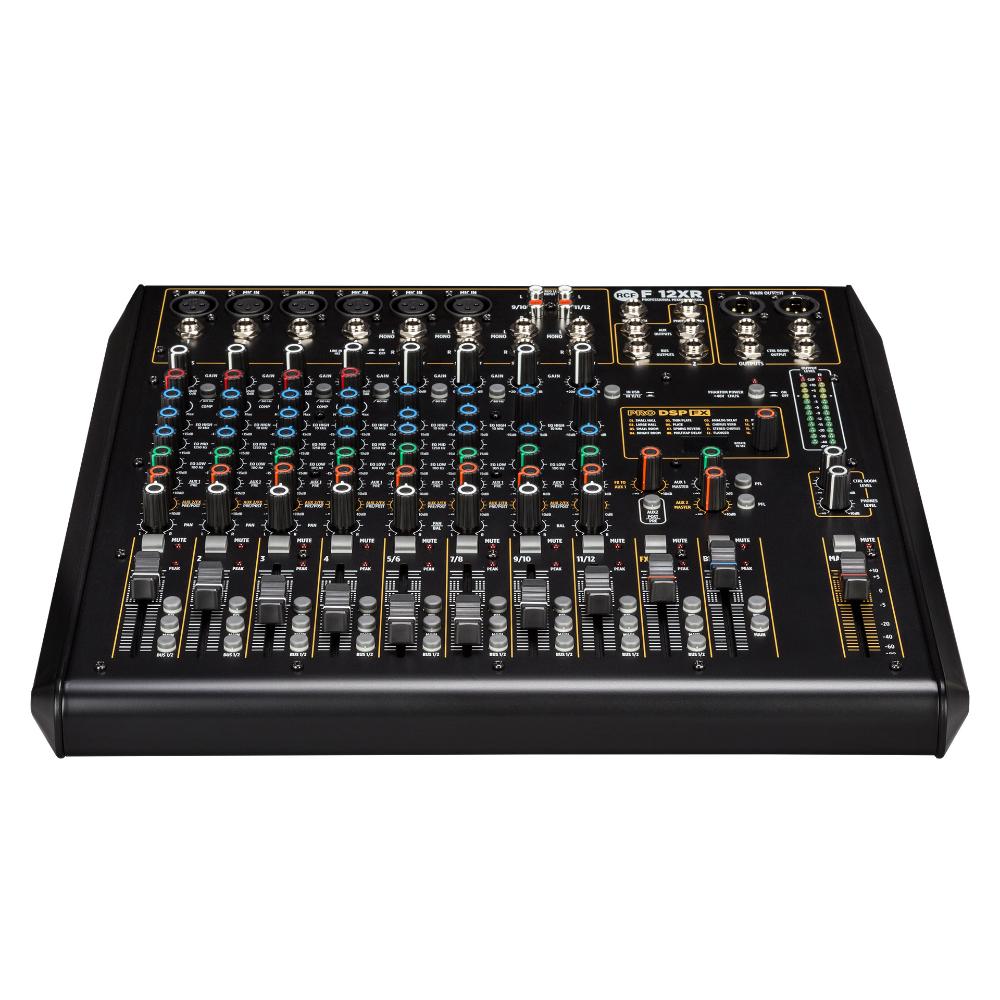

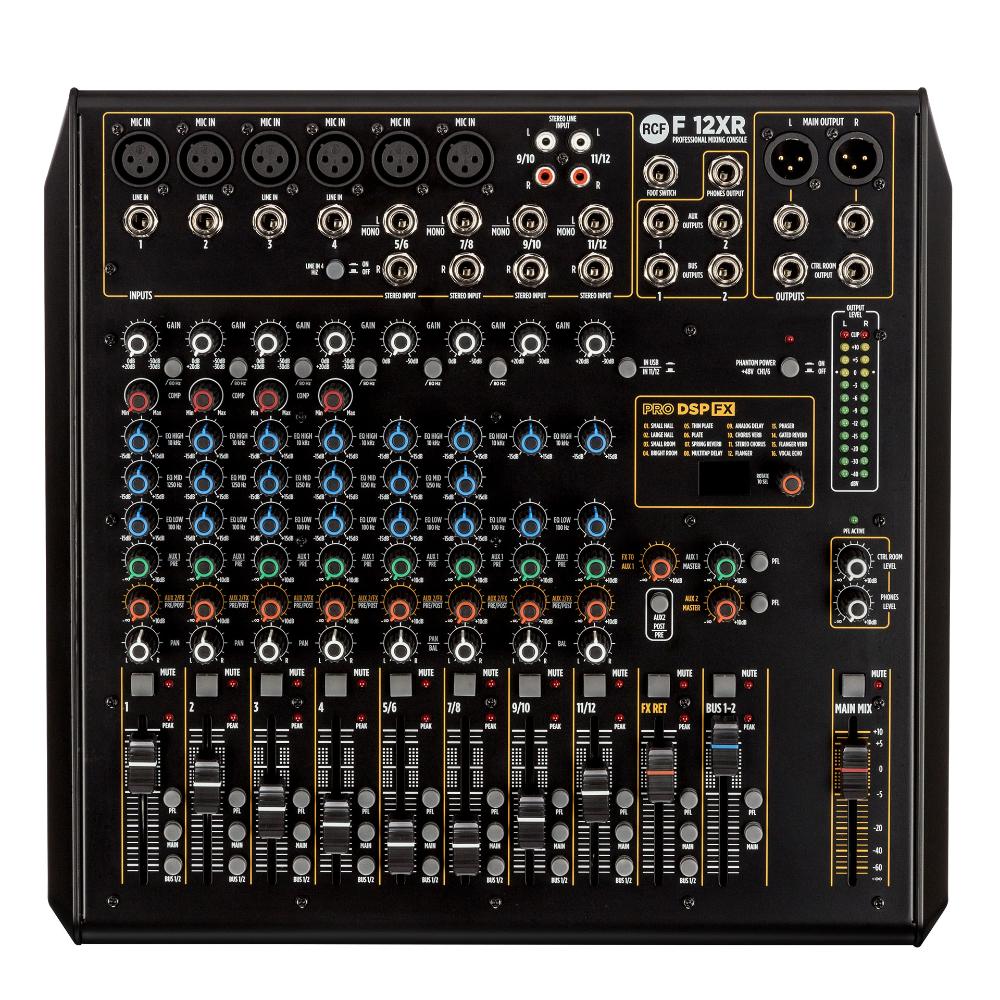

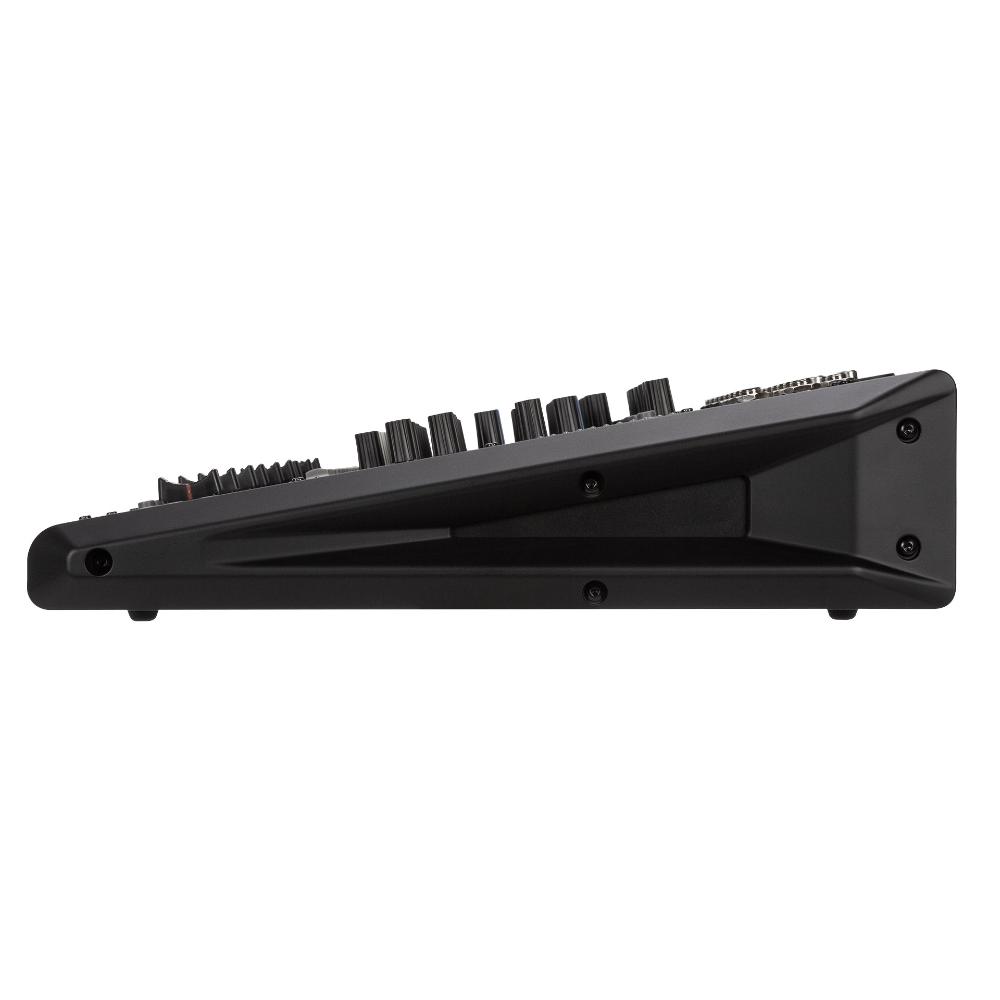

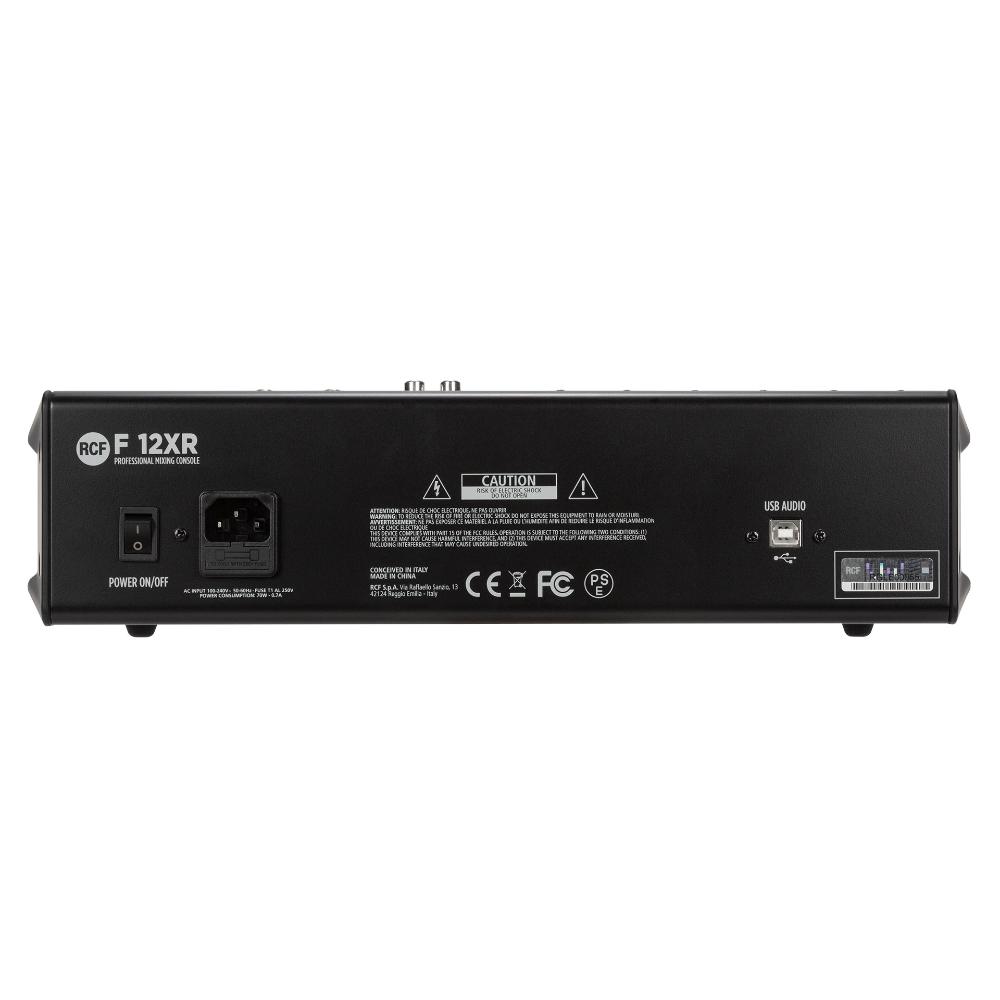

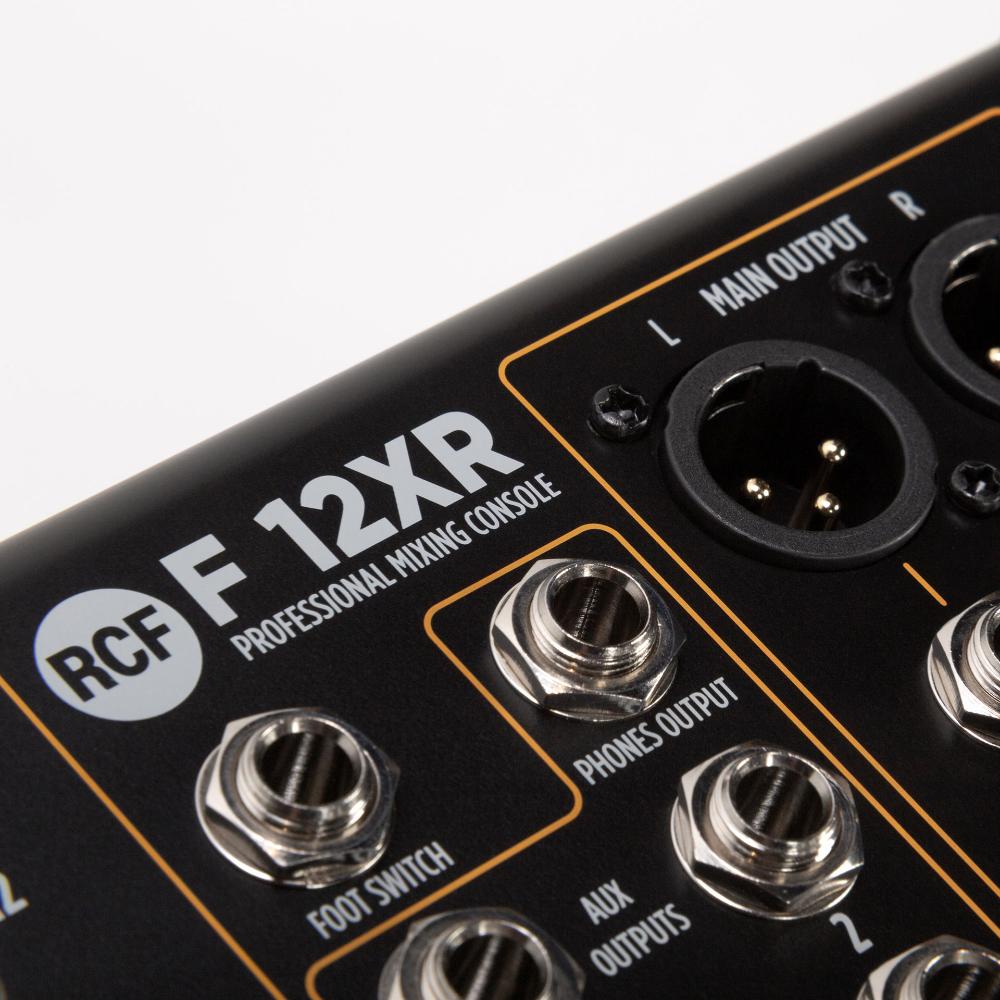

F 12XR

12-CHANNEL MIXING CONSOLE WITH MULTI-FX & RECORDING
  • Sturdy Metal Chassis
  • PRO DSP FX onboard with 16 presets
  • Stereo Recording and Playback via USB port
  • Balanced main output audio path from input to output
Where to buy
Features
  • Sturdy Metal Chassis
  • PRO DSP FX onboard with 16 presets
  • Stereo Recording and Playback via USB port
  • Balanced main output audio path from input to output
  • 4 single control compressors
  • Mono channels provided with 3-band EQ. 2-band EQ on stereo channels.
  • Robust, compact and attractive design.
  • Designed and Engineered in Italy
  • Internal Universal Power Supply

RCF’s next generation F Series mixers builds on the rich analog legacy found in the professional E Series, featuring high quality sound in five formats from 6 to 24 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F- 10XR, F-12XR, F-16XR and F-24XR, include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.

READ MORE

Part number:

17140090
F 12XR
EU, EAN 8024530016159

17140095
F 12XR
US, EAN 8024530016715

17140097
F 12XR
UK, EAN 8024530016739

17140098
F 12XR
JP, EAN 8024530016746

Specifications
Electronic specifications
Frequency Response:
20 Hz ÷ 20 kHz
THD+N, 20dB gain, 0dBu out
<0,02% A-Weighted
Processing
Dynamic range:
> 85dB
Inputs
Channels:
12
Mic:
6
Gain Range:
0 dB ÷ -50 dB
Input Noise Level:
-124 dBu A-Weighted
Mic Inputs Impedance:
14 kohm
Low Cut:
80 Hz
Phantom Power +48V:
Yes
Mono Line:
4
Gain Selection:
20 dB ÷ -30 dB
Line Input Impedance:
21 kohm
HI-Z Line Inputs:
1
HI-Z Line Inputs Impedance (Mohm):
1 Mohm
Stereo Line:
4
Gain Selection:
20 dB ÷ -30 dB
Stereo Line Input Impedance (kOhm)
15 kohm
Input connectors:
XLR, Jack, RCA
Outputs
Main MIX:
1
Control Room:
Yes
FX Send:
1
AUX Send:
1
AUX Output:
2
Group Out:
1
Phones:
1
Output connectors:
XLR, Jack
Outputs specifications
Main Out Level:
28 dBu
Aux Out Level:
28 dBu
Group Out Level:
28 dBu
Phones Out impedance (ohm):
150 ohm
Compressors
RCF Compressors:
n° 4 Single Control Compressors on Channels 1 to 4
EQ
Input Channels EQ:
2 Shelving / 1 Generic
Description:
High: +/-15 dB @ 10 kHz Shelving
Mid: +/-15 dB @ 1,250 kHz Bell
Low: +/-15 dB @ 100 Hz Shelving
Auxiliary sends
AUX:
1 PRE/POST
FX POST:
1
Internal Effects
Send Effects:
1
USB audio
USB Audio Interface:
Yes
Type:
B
Play trk:
2
Rec trk:
2
Supported Sample Rate:
44.1, 48.0 kHz
Other features
Footswitch:
Yes
Electrical specifications
Power supply:
Internal
Voltage requirements:
100 V - 240 V
Power consumption (MAX):
24 W
Standard compliance
Safety agency:
CE compliant
Physical specifications
Cabinet/Case Material:
Metal
Color:
Black
Size
Height:
97 mm / 3.82 inches
Width:
373 mm / 14.69 inches
Depth:
355 mm / 13.98 inches
Weight:
4.5 kg / 9.92 lbs
Shipping information
Package Height:
140 mm / 5.51 inches
Package Width:
400 mm / 15.75 inches
Package Depth:
425 mm / 16.73 inches
Package Weight:
5.5 kg / 12.13 lbs

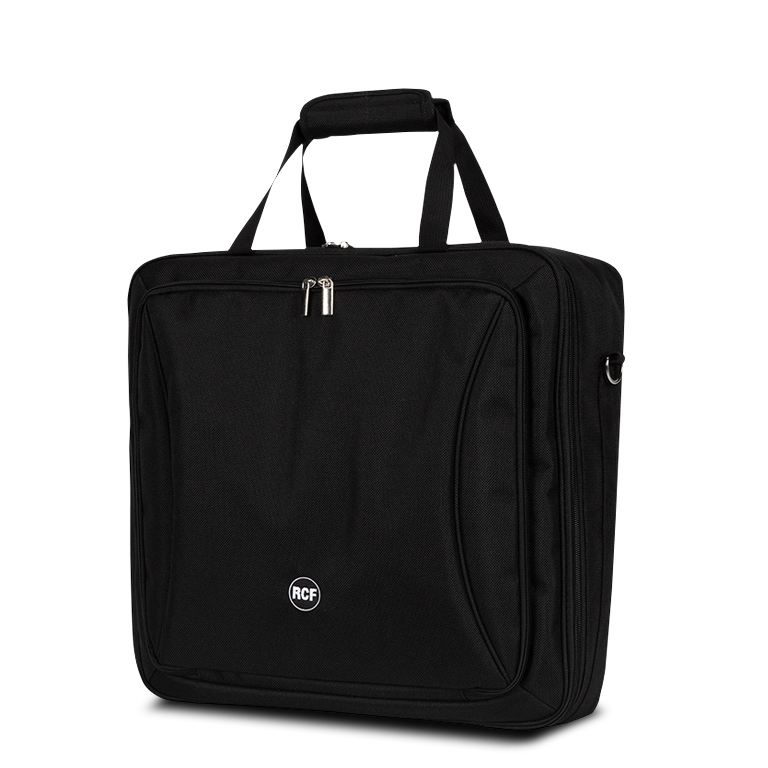

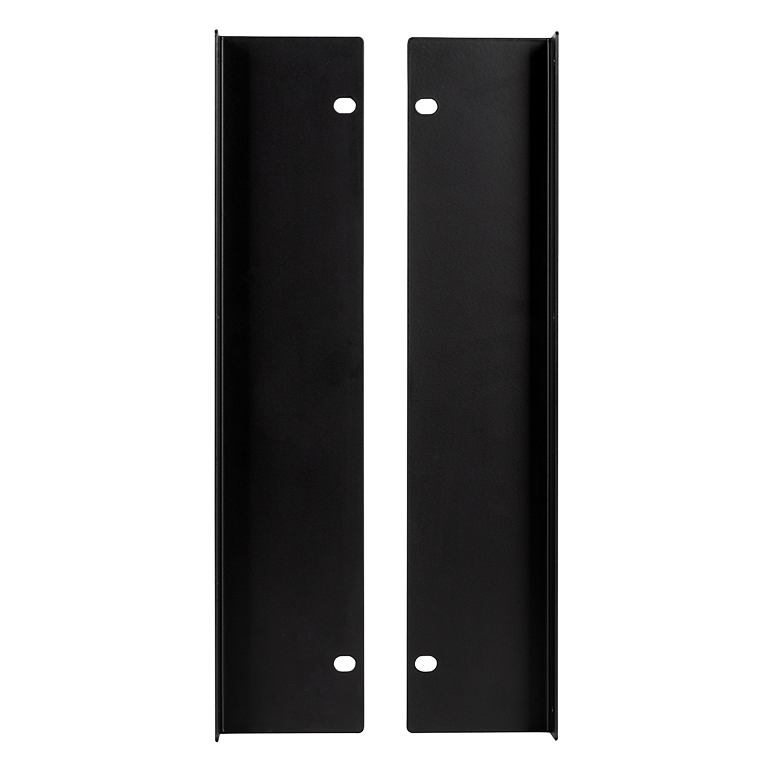

Accessories
