MIXING CONSOLES

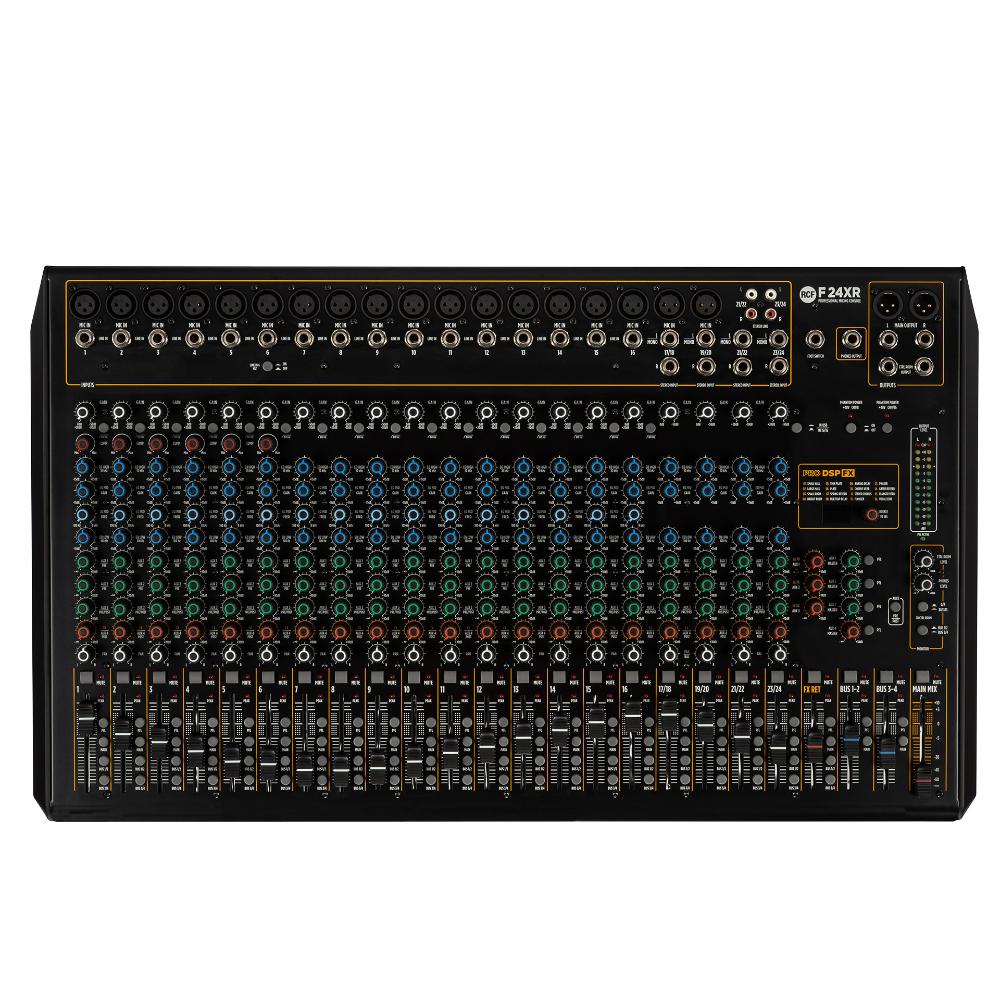

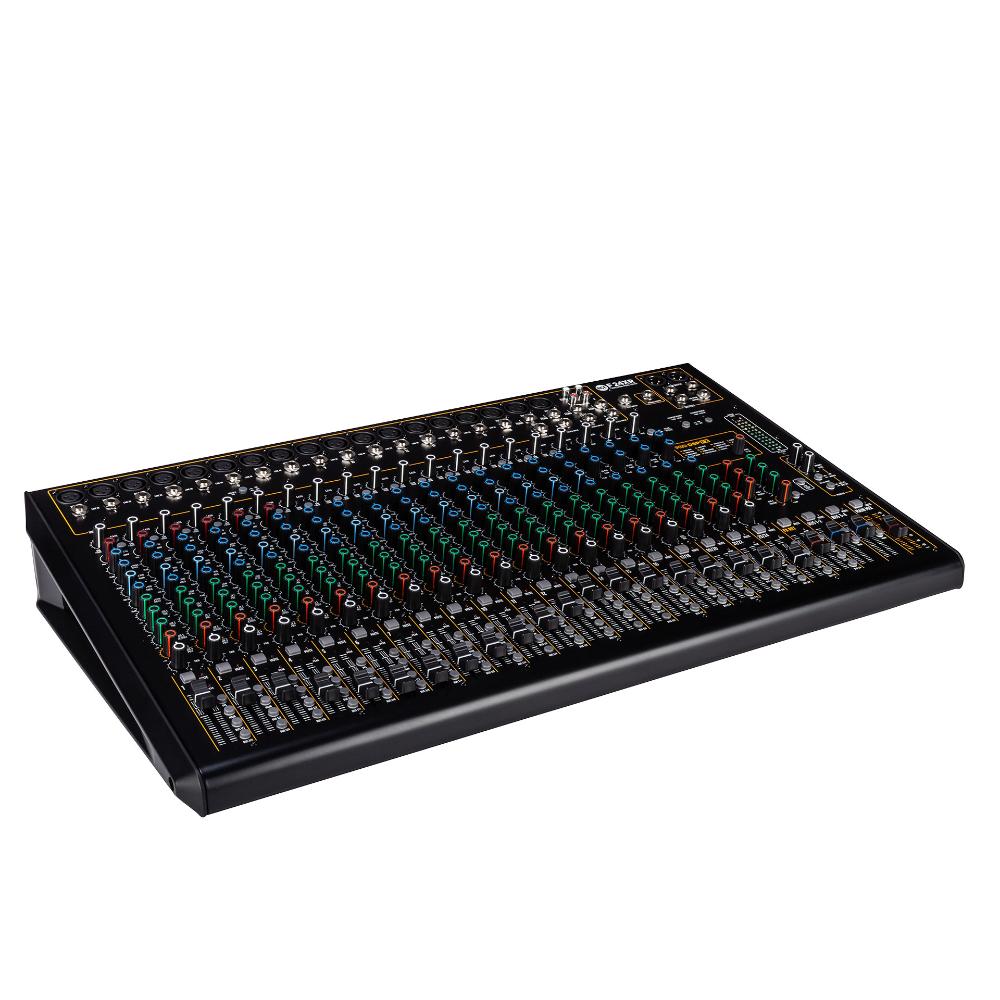

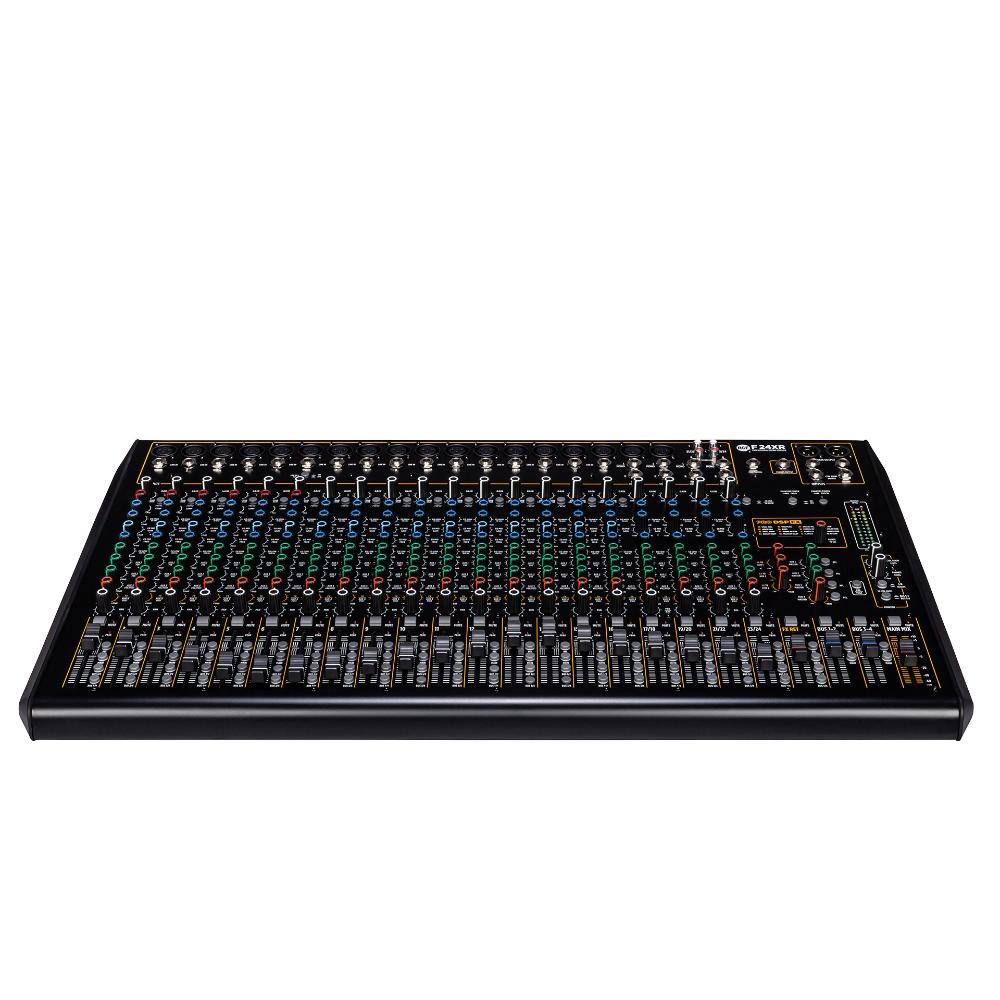

F 24XR

24-CHANNEL MIXING CONSOLE WITH MULTI-FX & RECORDING
  • Sturdy Metal Chassis
  • PRO DSP FX onboard with 16 presets
  • Stereo Recording and Playback via USB ports
  • Balanced main output audio path from input to output
Where to buy
Features
  • Sturdy Metal Chassis
  • PRO DSP FX onboard with 16 presets
  • Stereo Recording and Playback via USB ports
  • Balanced main output audio path from input to output
  • 6 single control compressors
  • Mono channels provided with 3-band EQ, with selectable mid frequency
  • Robust, compact and attractive design.
  • Designed and Engineered in Italy
  • Internal Universal Power Supply
  • 60 mm faders

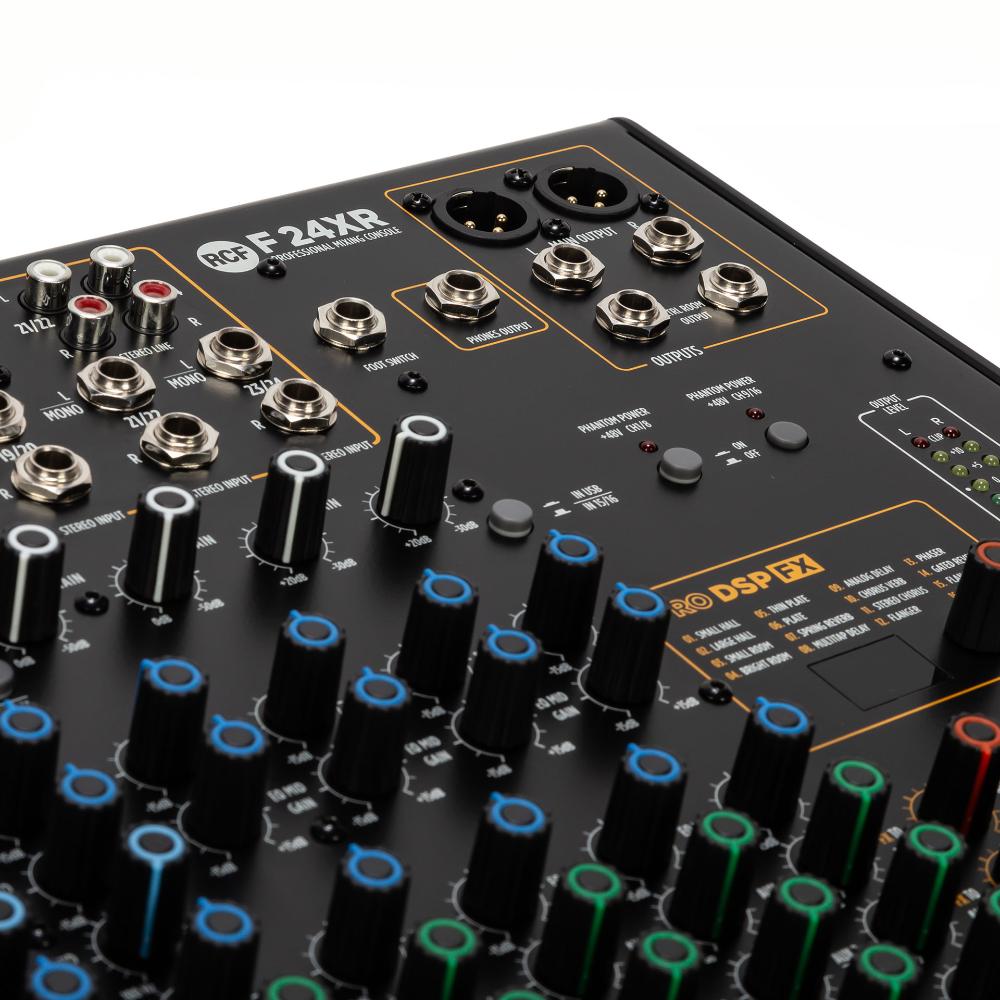

The F 24XR features 18 mic preamp inputs, 16 mono line inputs, 4 stereo line inputs, multi-FX, 6 single control compressors, stereo recording and playback via USB port, balanced main output (Stereo XLR + TRS) . The mono channels are provided with 3-band EQ, with selectable mid frequency, and 3-band for stereo channels. The mixer features 16 PRO DSP internal presets, two stereo output busses and 4 aux sends (2 pre, 1 pre/post, 1 post). It also features 60mm faders.

READ MORE

Part number:

17140101
F 24XR
EU, EAN 8024530017675

17140123
F 24XR
US, EAN 8024530018030

17140124
F 24XR
UK, EAN 8024530018047

17140125
F 24XR
JP, EAN 8024530018054

Specifications
Electronic specifications
Frequency Response:
20 Hz ÷ 20 kHz
THD+N, 20dB gain, 0dBu out
<0,02% A-Weighted
Processing
Dynamic range:
> 85dB
Inputs
Channels:
24
Mic:
18
Gain Range:
0 dB ÷ -50 dB
Input Noise Level:
-124 dBu A-Weighted
Mic Inputs Impedance:
14 kohm
Low Cut:
80 Hz
Phantom Power +48V:
Yes
Mono Line:
16
Gain Selection:
20 dB ÷ -30 dB
Line Input Impedance:
21 kohm
HI-Z Line Inputs:
1
HI-Z Line Inputs Impedance (Mohm):
1 Mohm
Stereo Line:
4
Gain Selection:
20 dB ÷ -30 dB
Stereo Line Input Impedance (kOhm)
14 kohm
Input connectors:
XLR, Jack, RCA
Outputs
Main MIX:
1
Control Room:
Yes
FX Send:
1
AUX Send:
3
AUX Output:
4
Group Out:
2
Phones:
1
Output connectors:
XLR, Jack
Outputs specifications
Main Out Level:
28 dBu
Aux Out Level:
28 dBu
Group Out Level:
28 dBu
Phones Out impedance (ohm):
150 ohm
Phones Out Level:
10 dBm
Compressors
RCF Compressors:
n°6 Single Control Compressors on Channels 1 to 6
EQ
Input Channels EQ:
1 Semi Parametric / 2 Shelving
Description:
High: +/-15 dB @ 10 kHz Shelving
Mid: +/-15 dB @ Freq. sel. from 100Hz to 8kHz - Bell
Low: +/-15 dB @ 100 Hz Shelving
Auxiliary sends
AUX:
2 PRE / 1 PRE/POST
FX POST:
1
Internal Effects
Send Effects:
1
USB audio
USB Audio Interface:
Yes
Type:
B
Play trk:
2
Rec trk:
2
Supported Sample Rate:
44.1, 48.0 kHz
Other features
Footswitch:
Yes
Electrical specifications
Power supply:
Internal
Voltage requirements:
100 V - 240 V
Power consumption (MAX):
70 W
Standard compliance
Safety agency:
CE compliant
Physical specifications
Cabinet/Case Material:
Metal
Color:
Black

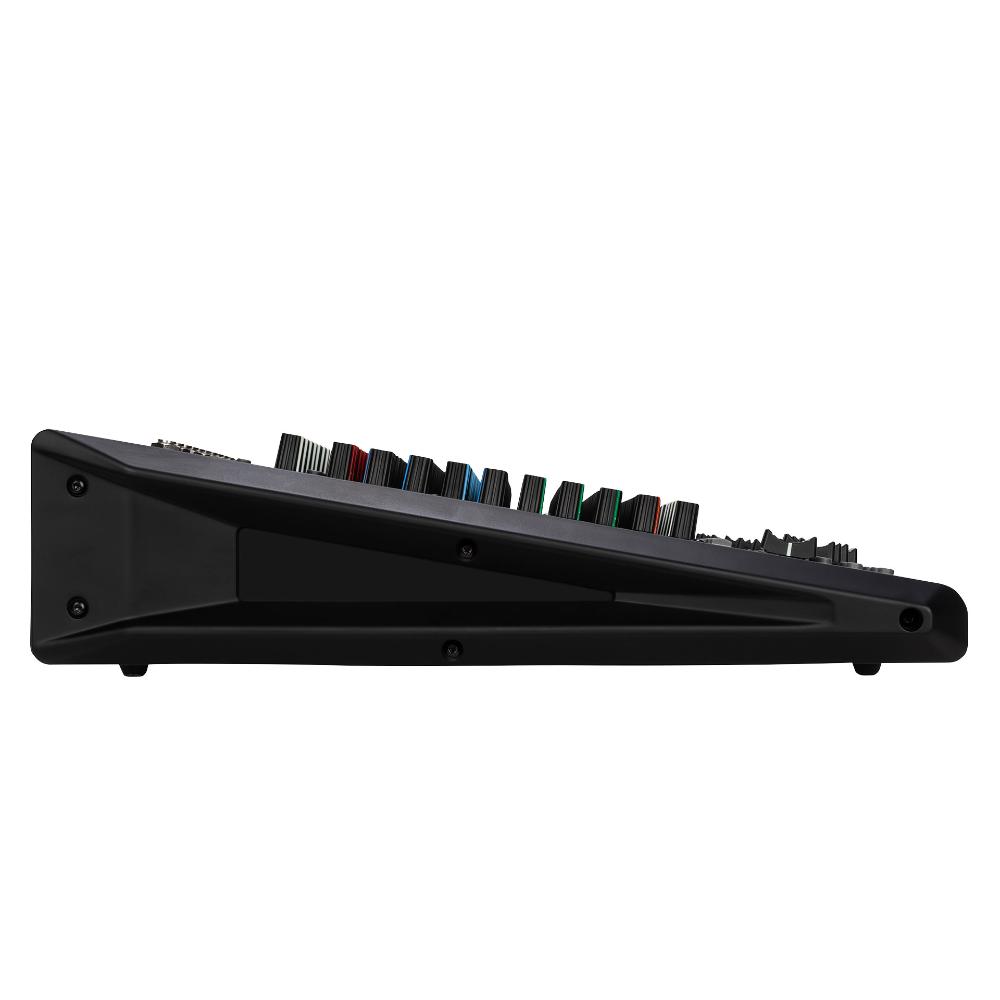

Size
Height:
107 mm / 4.21 inches
Width:
720 mm / 28.35 inches
Depth:
406 mm / 15.98 inches
Weight:
9.5 kg / 20.94 lbs
Shipping information
Package Height:
201 mm / 7.91 inches
Package Width:
759 mm / 29.88 inches
Package Depth:
524 mm / 20.63 inches
Package Weight:
12.5 kg / 27.56 lbs
