LIVE SOUND

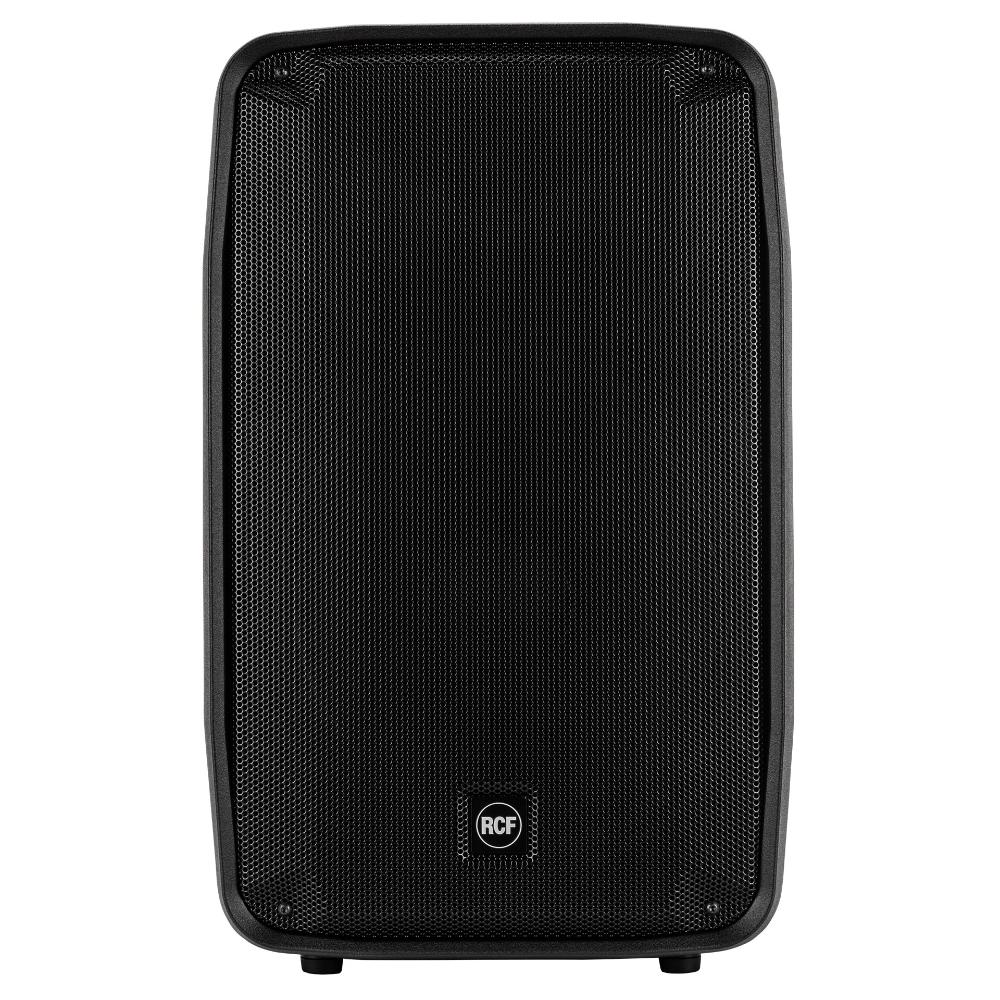

HD 15-A

ACTIVE TWO-WAY SPEAKER
  • 130 dB Max SPL
  • 1400 Watts 2-way peak power
  • DSP Processing with FiRPHASE
  • Lightweight Composite Cabinet
FiRPHASE
Where to buy
Features
  • 130 dB Max SPL
  • 1400 Watts 2-way peak power
  • DSP Processing with FiRPHASE
  • 1.0" Compression Driver, 1.75” v.c.
  • 15” Woofer, high power
  • Lightweight Composite Cabinet
  • 90°x60°, wide dispersion constant directivity horn
  • Silent Fanless Class-D Amplifier

The HD 15-A is a unique product in its category. The professional compression driver with custom designed dome and high-power voice coil offers exceptional vocal clarity and sound projection. The 15” high power woofer offers an extremely linear response and a precise, deep low-frequency control. The amplifier delivers 1400 watts and is controlled by a powerful DSP that takes care of crossover, equalization, FiRPHASE, soft limiting and speaker protection.

Part number:

13000589
HD 15-A
220-240V, EAN 8024530016647

13000590
HD 15-A
115V, EAN 8024530016678

New perspective on linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
Responsive Image
Responsive Image

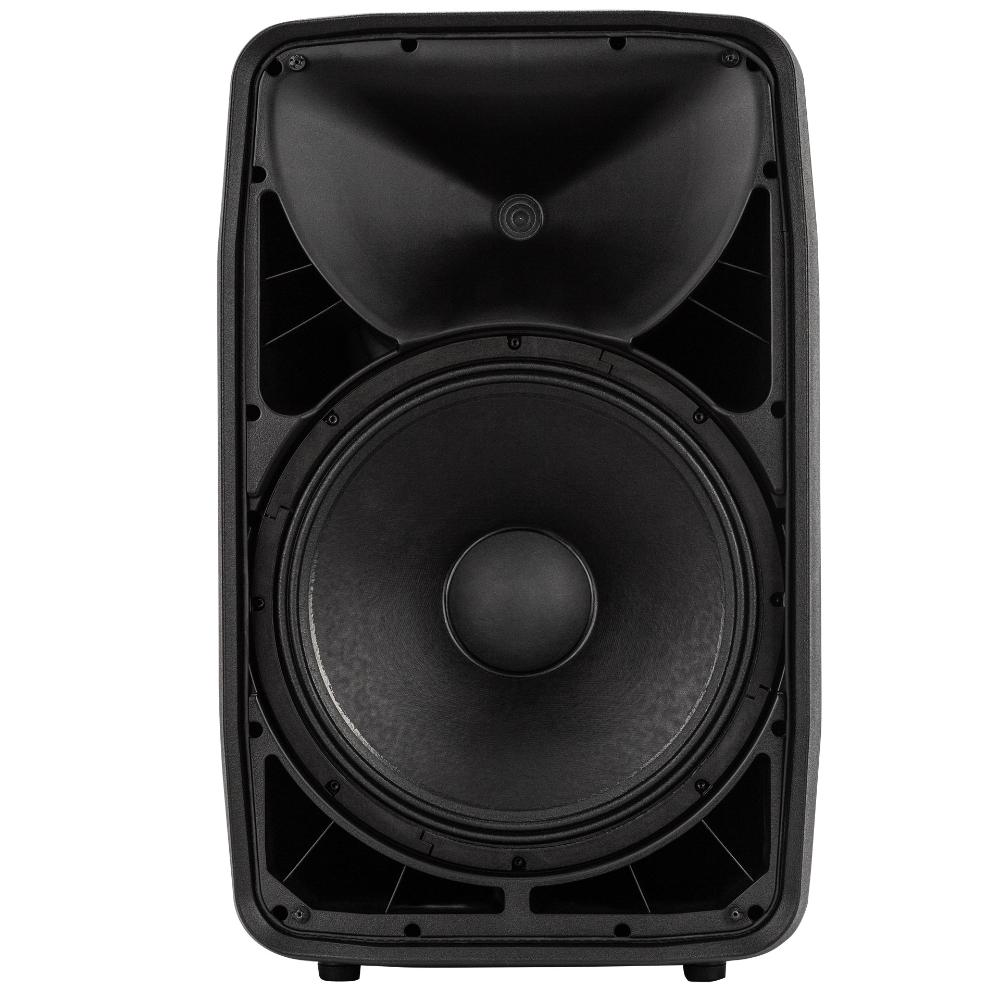

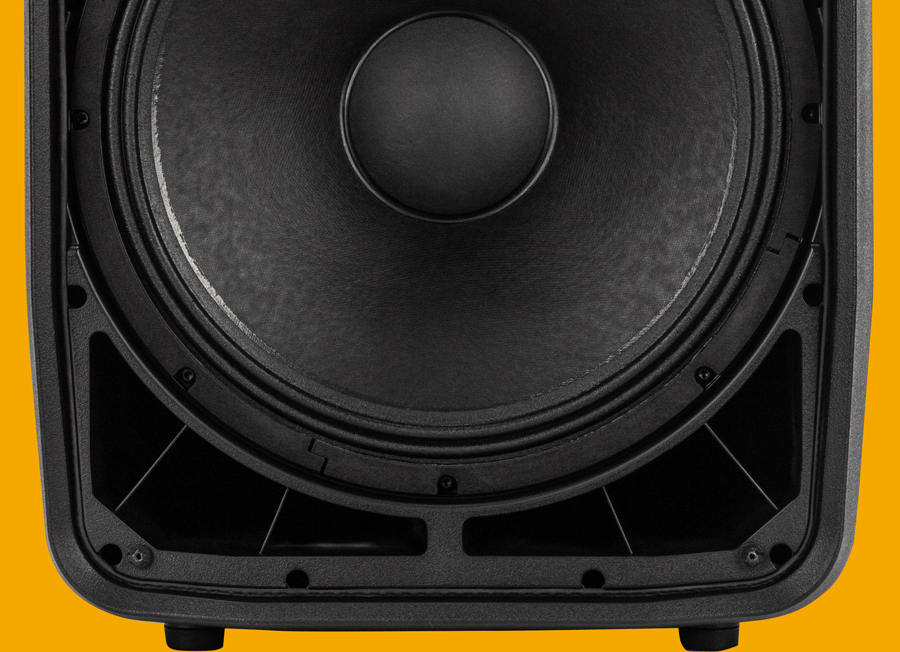

High quality transducers

Woofers and compression drivers are precision built taking advantage of RCF’s assembly technologies and a wealth of professional knowledge and experience dedicated to achieving extremely high standards.

Powerful class D amplifiers

RCF’s Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. D-Line amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminum structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the D-Line amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.
Responsive Image

Rental proof

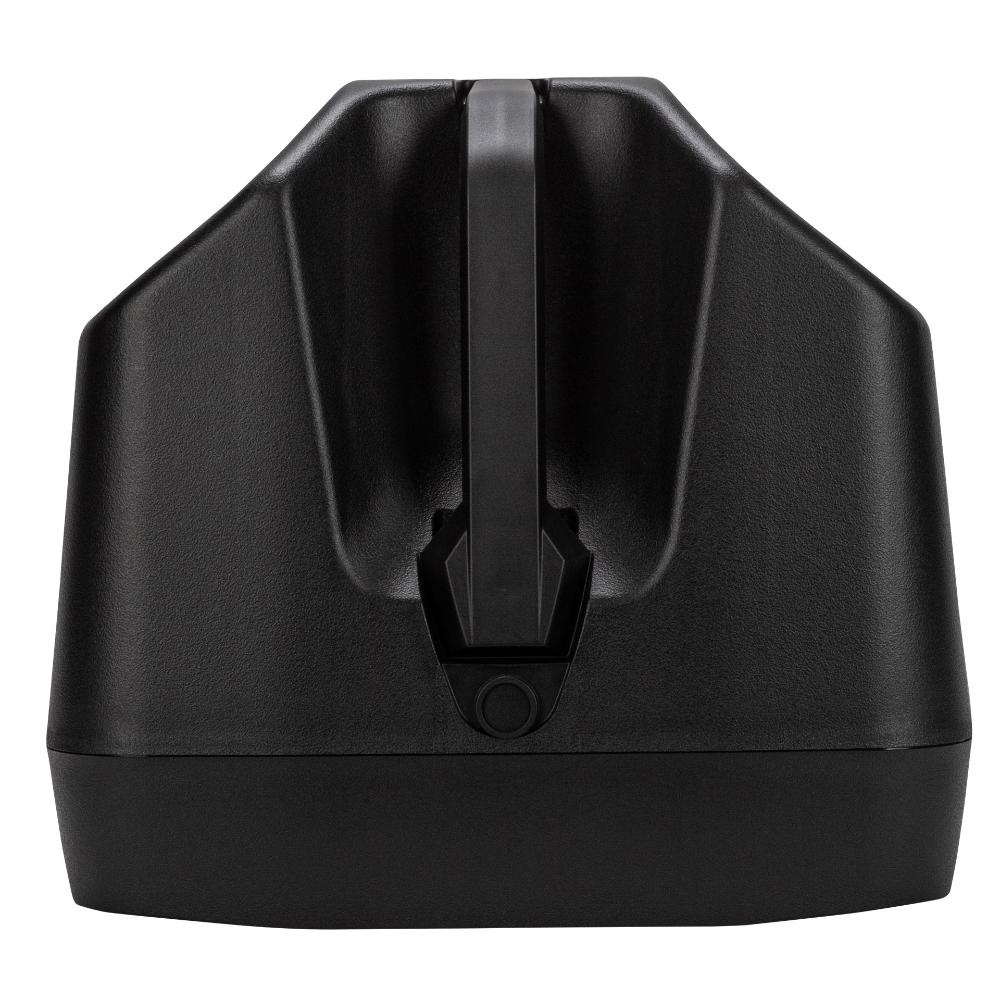

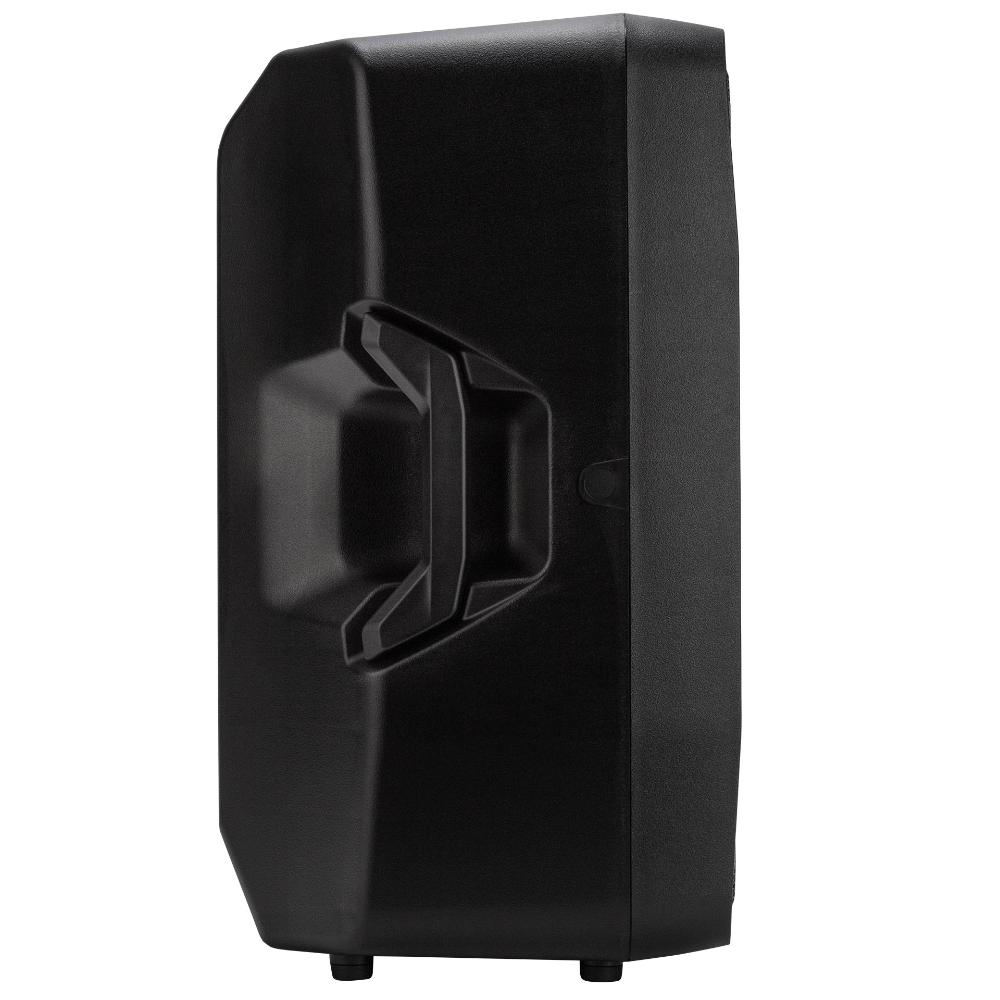

D LINE cabinets are molded with a special polypropylene composite material designed to dampen vibrations even at maximum volume settings. From molding to the final texture, D-LINE offers maximum reliability and strength for intensive use on the road. The advanced vented architecture offer high efficiency and low distortion. The speaker is equipped with a top handle and two side handles with rubber handgrips for greater portability.
Responsive Image

High demand applications

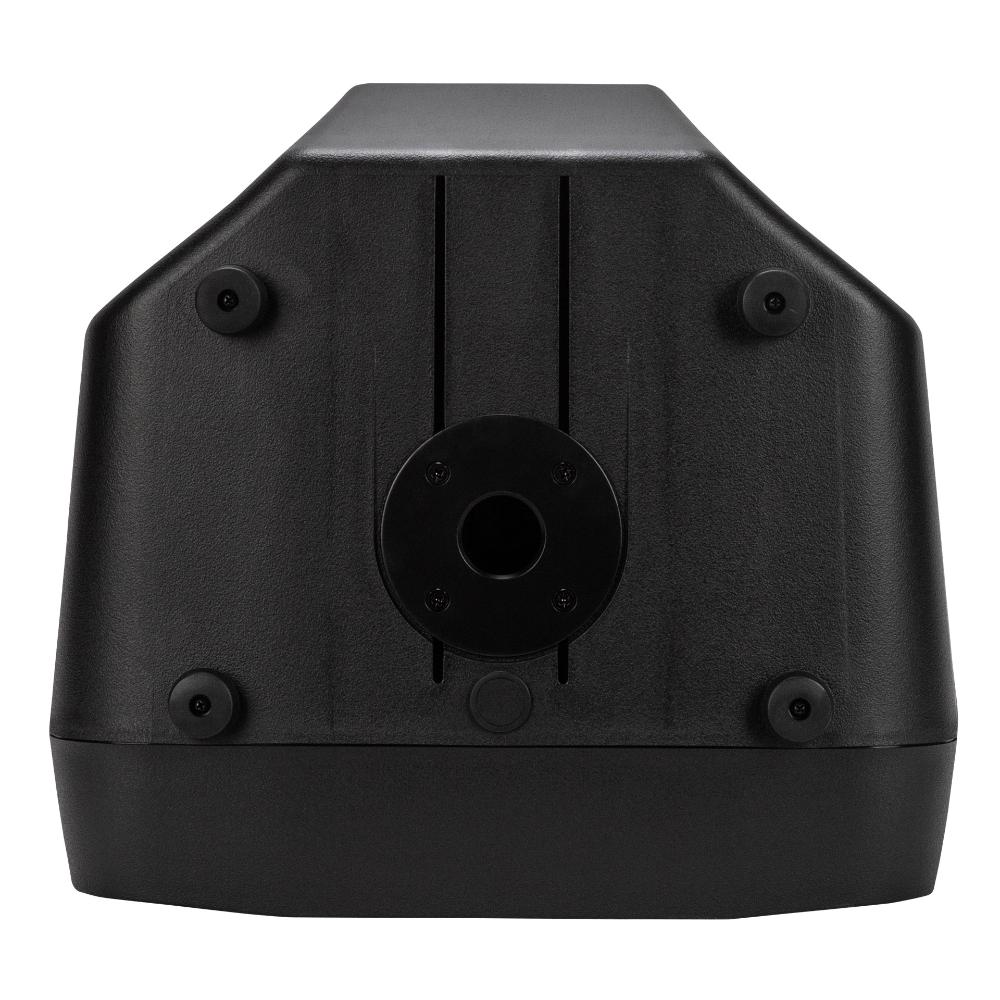

The multi-purpose cabinet shape will allow every D-LINE model to be used in the standard configuration as well as in stage monitor mode. Two M10 and three M6 threaded inserts available for optional mounting hardware. This makes the speakers perfect for use in mounted or flown situations. When used on top of a SUB Series the HD speaker becomes an incredibly powerful PA system.
Specifications
Acoustical specifications
Frequency Response:
45 Hz ÷ 20000 Hz
Max SPL @ 1m:
130 dB
Horizontal coverage angle:
90°
Vertical coverage angle:
60°
Transducers
Compression Driver:
1.0'', 1.75'' v.c
Woofer:
15'', 2.5'' v.c

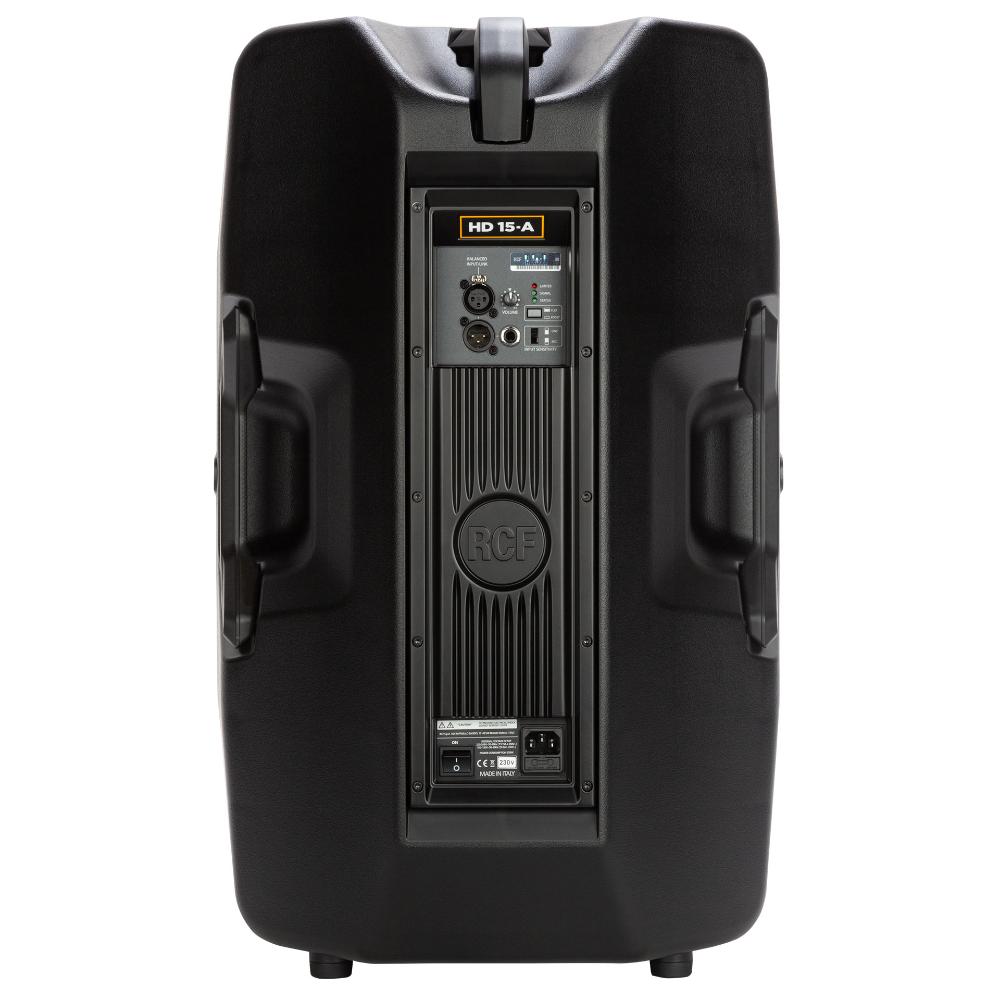

Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR, Jack
Output connectors:
XLR
Input sensitivity:
-2 dBu/+4 dBu
Mic. Input Sensitivity:
-32 dBu
Processor section
Crossover Frequencies:
1800 Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Volume, Boost, Mic/Line
Power section
Total Power:
1400 W Peak, 700 W RMS
High frequencies:
400 W Peak, 200 W RMS
Low frequencies:
1000 W Peak, 500 W RMS
Cooling:
Convection
Connections:
VDE
Physical specifications
Cabinet/Case Material:
PP Composite
Hardware:
1 x M10 top, 1 x M10 bottom, 2 x M10 side
Handles:
1 Top, 2 Side
Grille:
Steel
Color:
Black
Size
Height:
714 mm / 28.11 inches
Width:
442 mm / 17.4 inches
Depth:
397 mm / 15.63 inches
Weight:
22 kg / 48.5 lbs
Shipping information
Package Height:
700 mm / 27.56 inches
Package Width:
450 mm / 17.72 inches
Package Depth:
500 mm / 19.69 inches
Package Weight:
24.5 kg / 54.01 lbs
