PRO SOUND

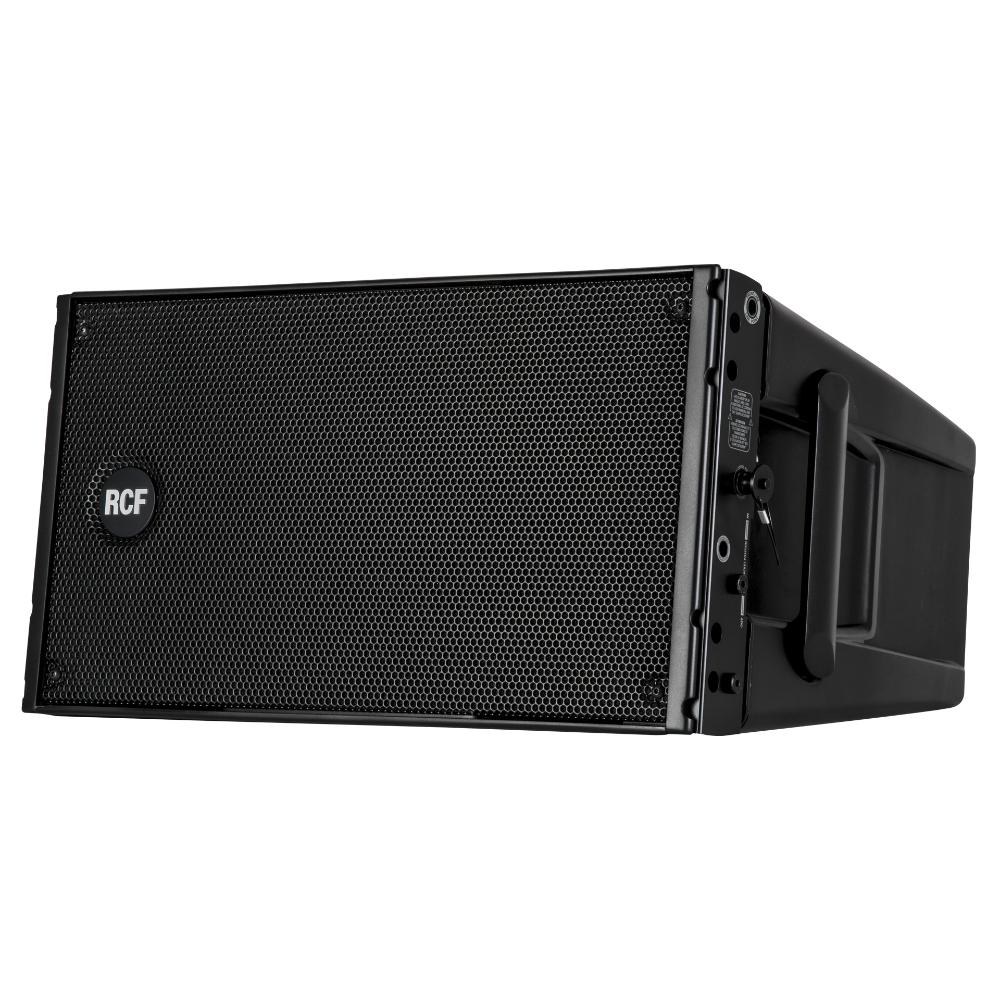

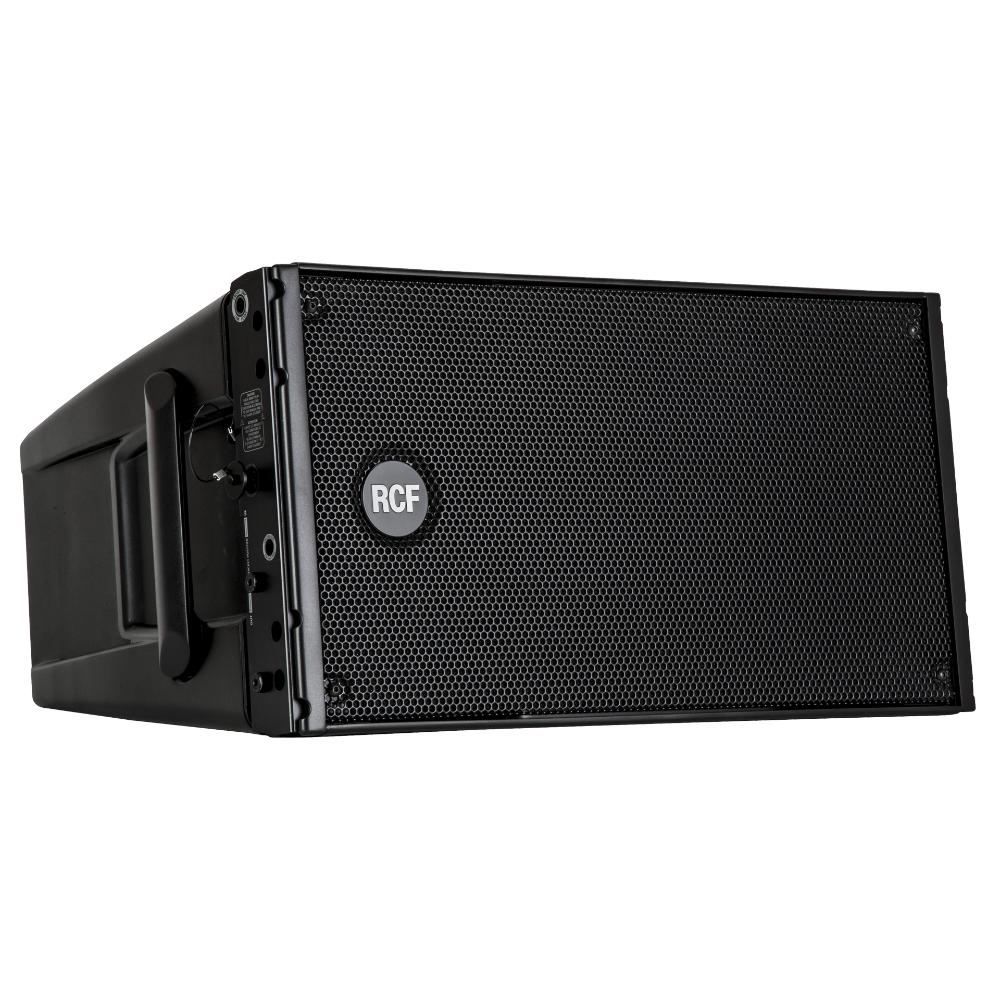

HDL 10-A

ACTIVE LINE ARRAY MODULE
  • 1400 Watt Peak power - 700 Watt RMS
  • 2 x 8" Woofers
  • 133 dB max SPL
  • 65 Hz 20 kHz frequency response
Where to buy
Features
  • 1400 Watt Peak power - 700 Watt RMS
  • 133 dB max SPL
  • 65 Hz 20 kHz frequency response
  • 2 x 8" Woofers
  • 1 x 2" Compression Driver
  • DSP controlled Input section with selectable presets
  • Tour grade safe and solid variable mechanics
  • Composite PP enclosure structurally wooden reinforced

The very compact size, no compromise transducers and a unique composite cabinet design make the HDL 10-A the perfect tool in many situations. Ideal in live sound reinforcement and reliable installed situations. The HDL 10-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP. The HDL 15-AS is the ideal flyable bass complement for the HDL 10-A array system.

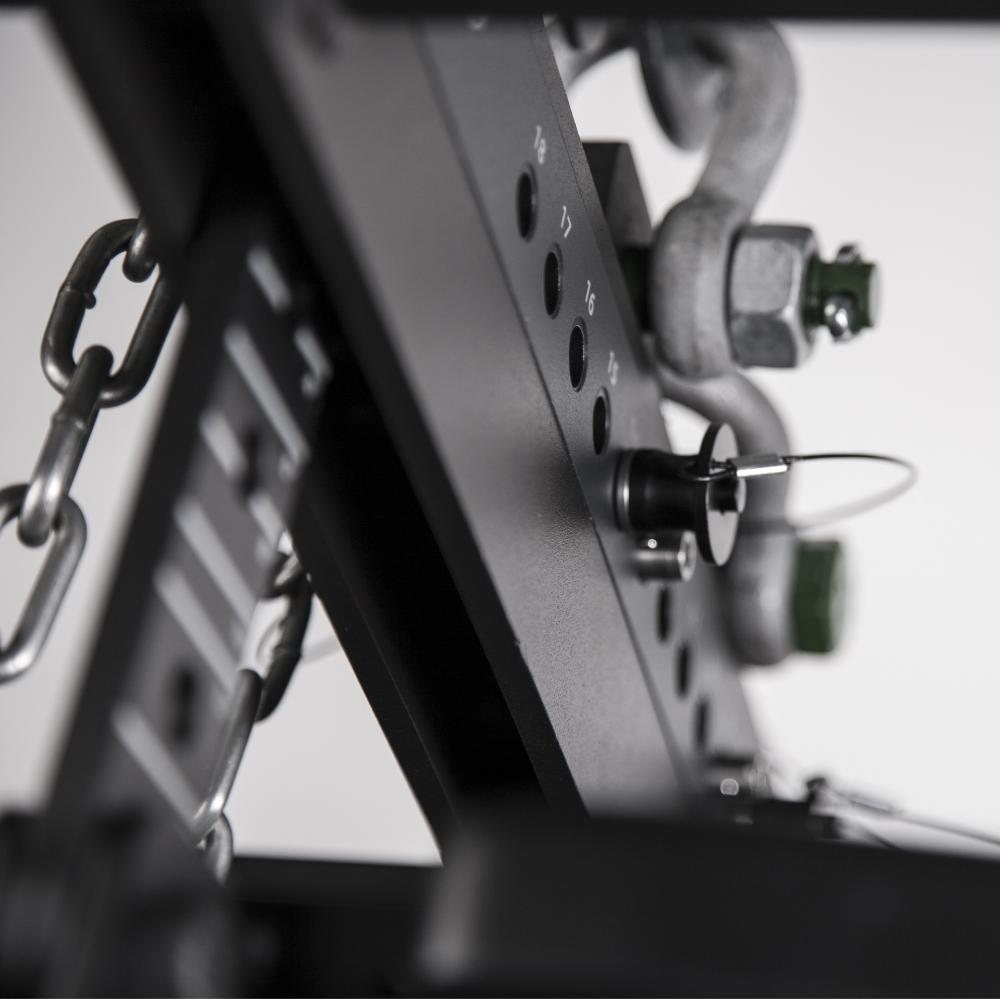

READ MORE Quick lock PIN Table Easy Shape Designer

Part number:

13040016
HDL 10-A
220-240V, Black, EAN 8024530010843

13040017
HDL 10-A
115V, Black, EAN 8024530010850

13040022
HDL 10-A W
220-240V, White, EAN 8024530012113

13040023
HDL 10-A W
115V, White, EAN 8024530012403

Responsive Image

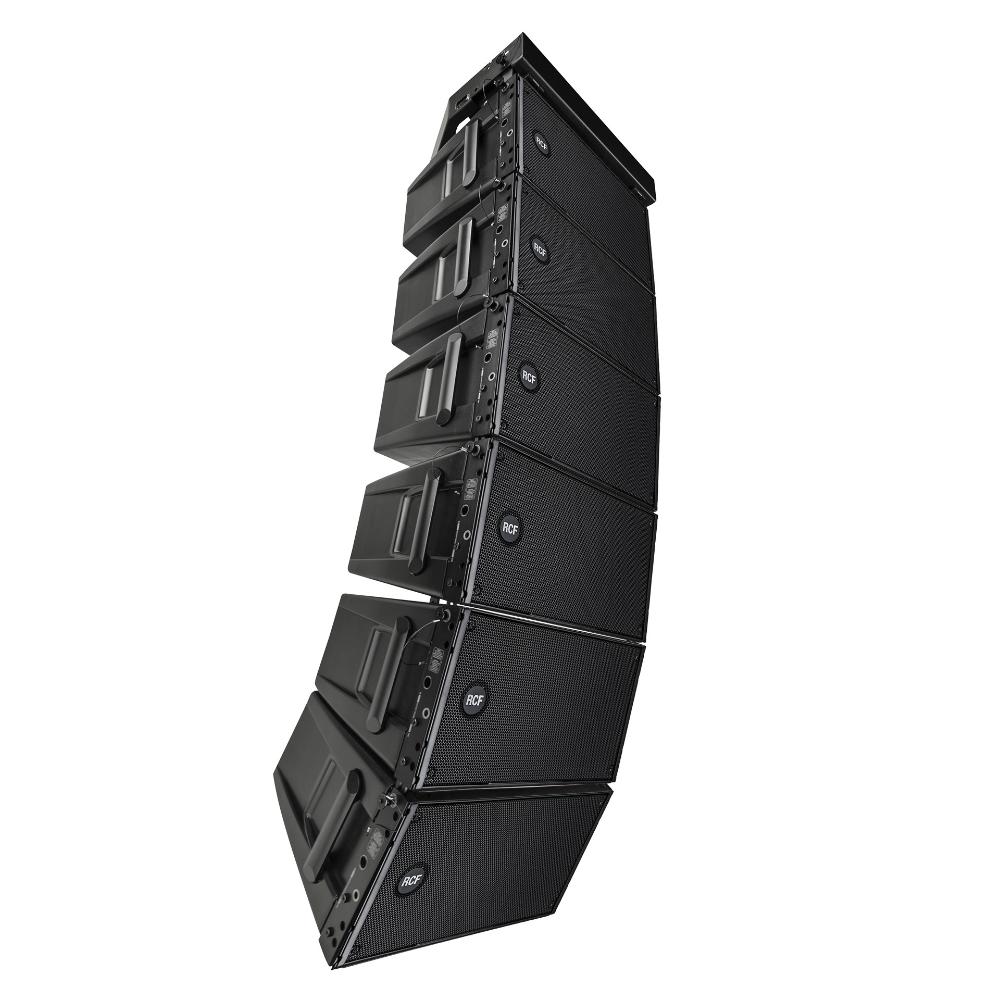

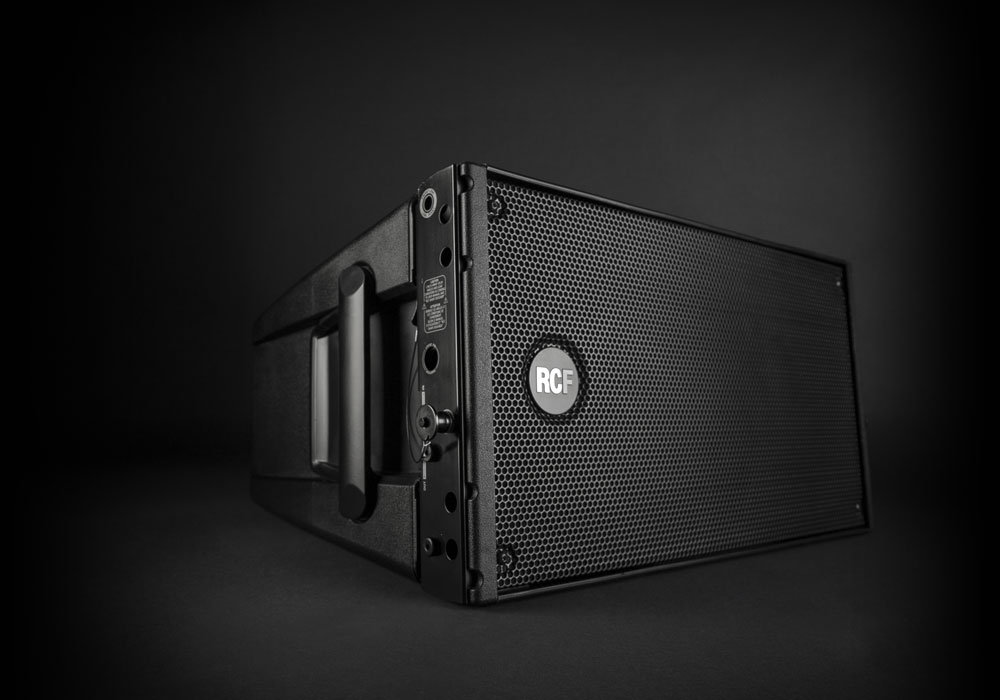

Tour sound in a compact size

The HDL 10-A is a true active and high power ready to use touring system equipped with a high efficiency Class-D amplifier that delivers superior SPL reducing energy requirement. The integrated processing and the cabling reduction will make the set-up faster and easier and, thanks to its compact size, the truck space requirement is reduced to the minimum.
Responsive Image

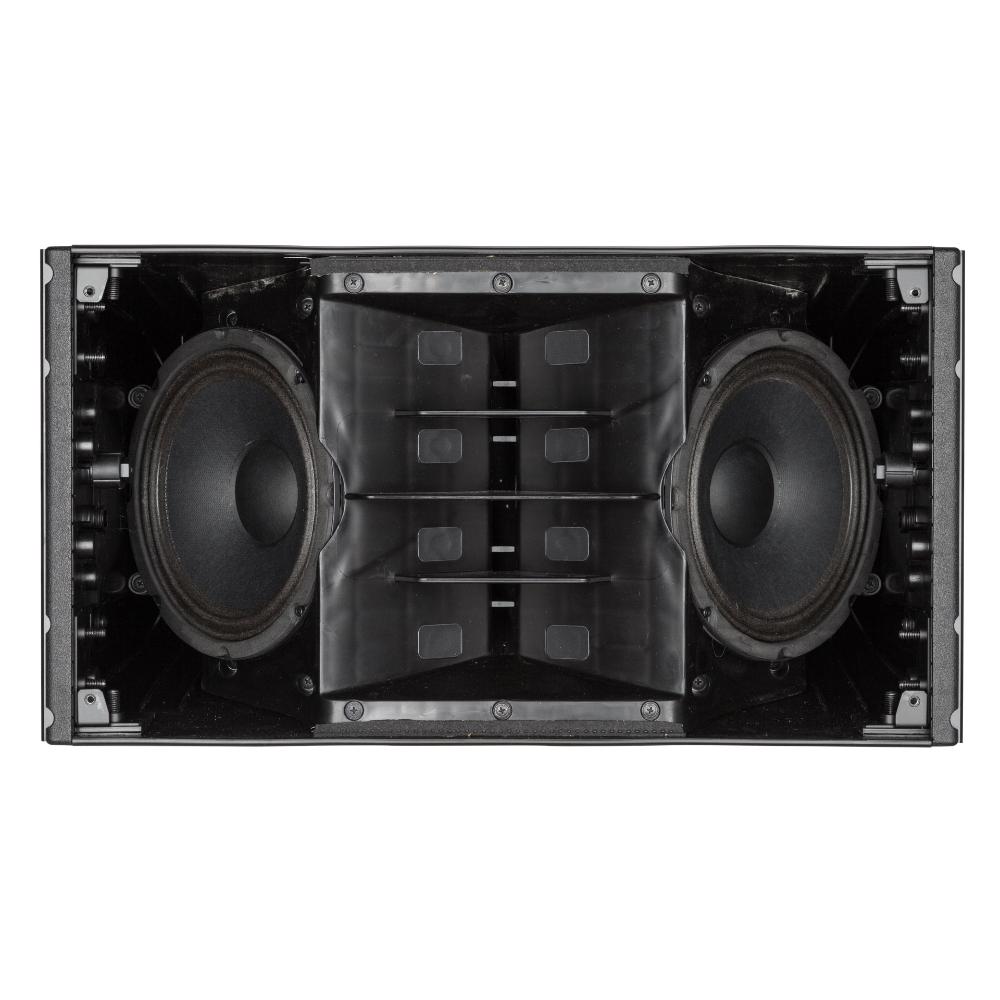

RCF precision transducers

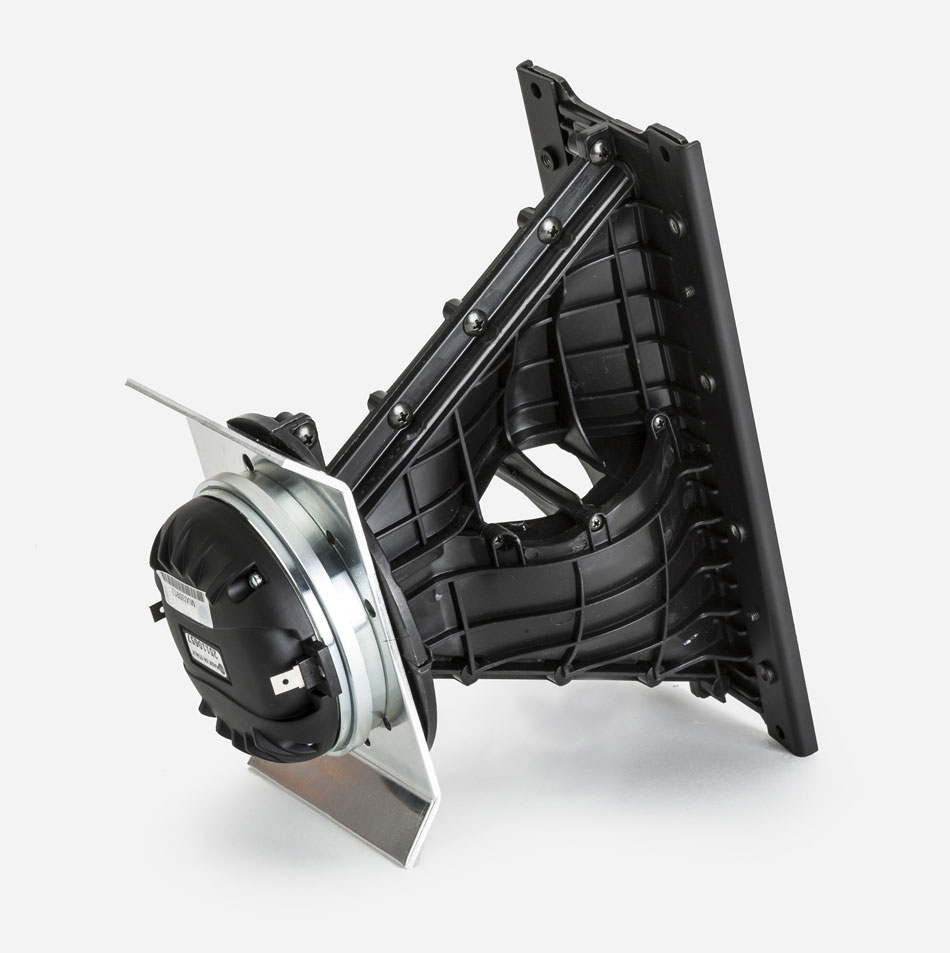

High frequencies - The ND640 large format compression driver delivers one of the key advantages of the HDL 10-A, the 2.5” voice coil allows a crossover point of 800Hz and therefore almost all of the vocal range can be produced by this driver. This allows better coverage and dispersion control, and superior efficiency.
Low frequencies - High power woofers. Very high efficient and controlled bass reproduction.
  • 2 X 8" Woofers, 2.0" Inside-Outside voice coil
  • Water resistant fibre doped cone
  • Polycotton M-roll surround
  • High power magnetic structure

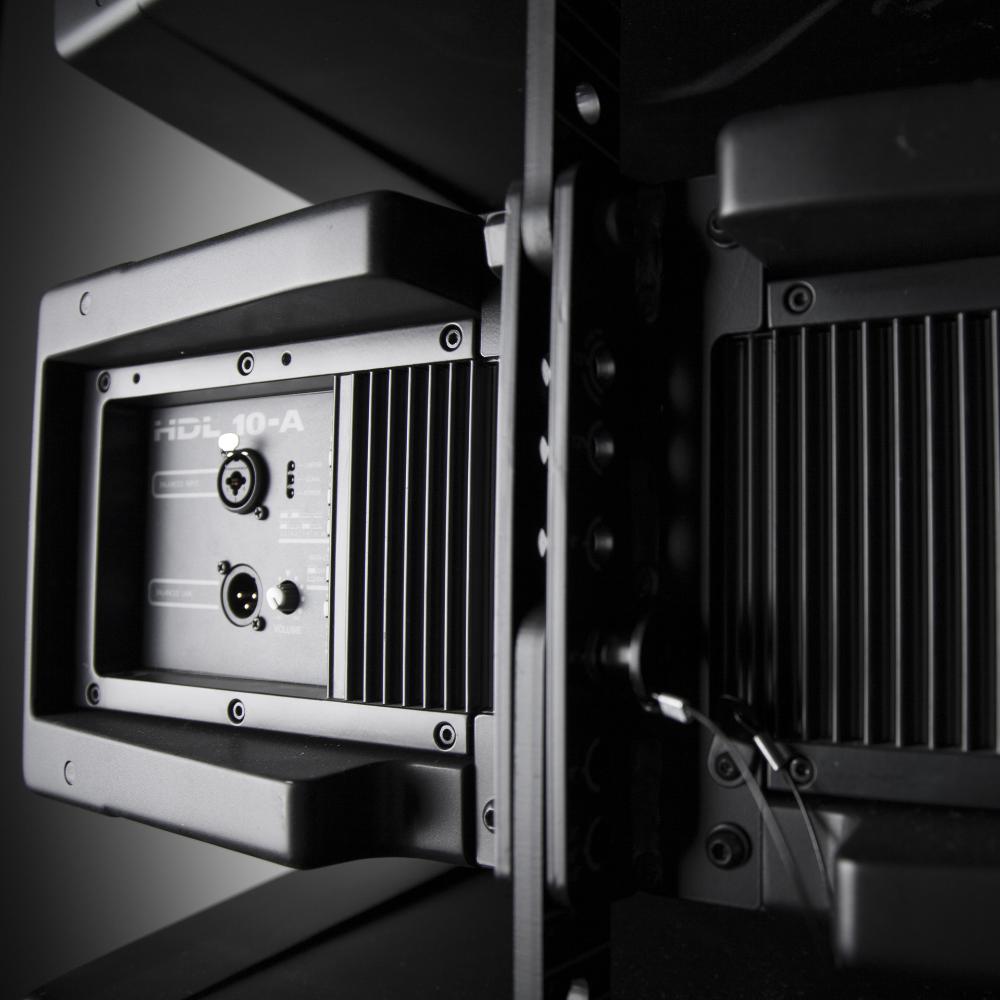

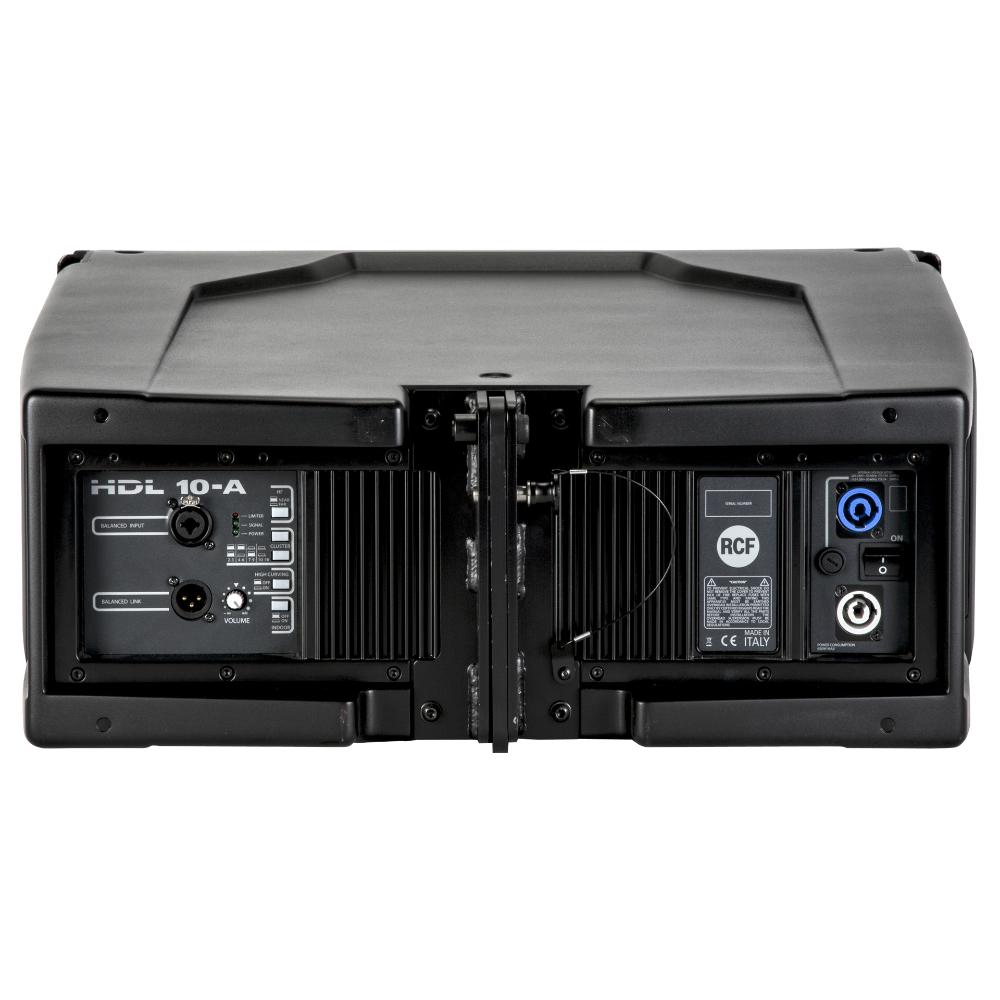

Powerful class D amplifiers

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. HDL amplifiers deliver a ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the HDL amplifiers present SMPS power supply section to produce maximum output and minimum weight.
Responsive Image
Specifications
Acoustical specifications
Frequency Response:
65 Hz ÷ 20000 Hz
Max SPL @ 1m:
133 dB
Horizontal coverage angle:
100°
Vertical coverage angle:
15°
Transducers
Compression Driver:
1 x 2.0'', 2.5'' v.c
Woofer:
2 x 8'', 2.0'' v.c

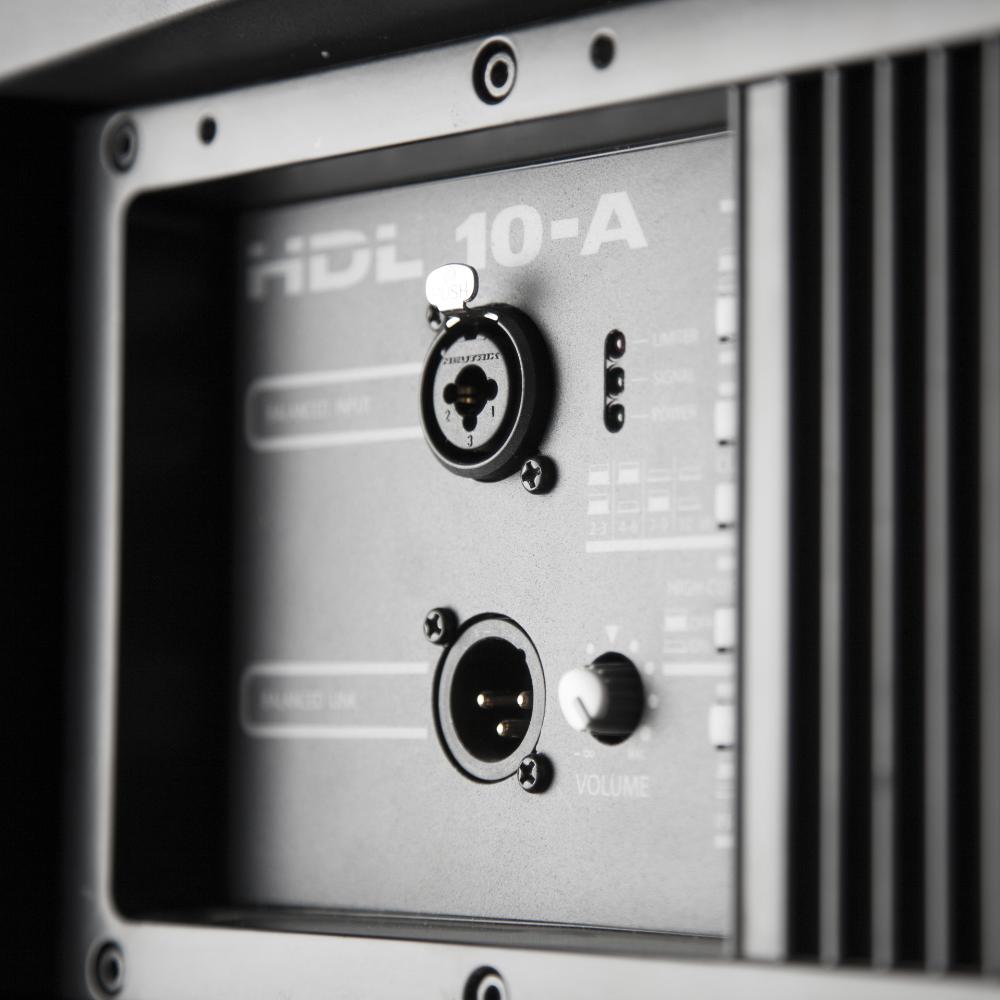

Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR
Output connectors:
XLR
Input sensitivity:
-2 dBu/+4 dBu
Processor section
Crossover Frequencies:
800 Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter

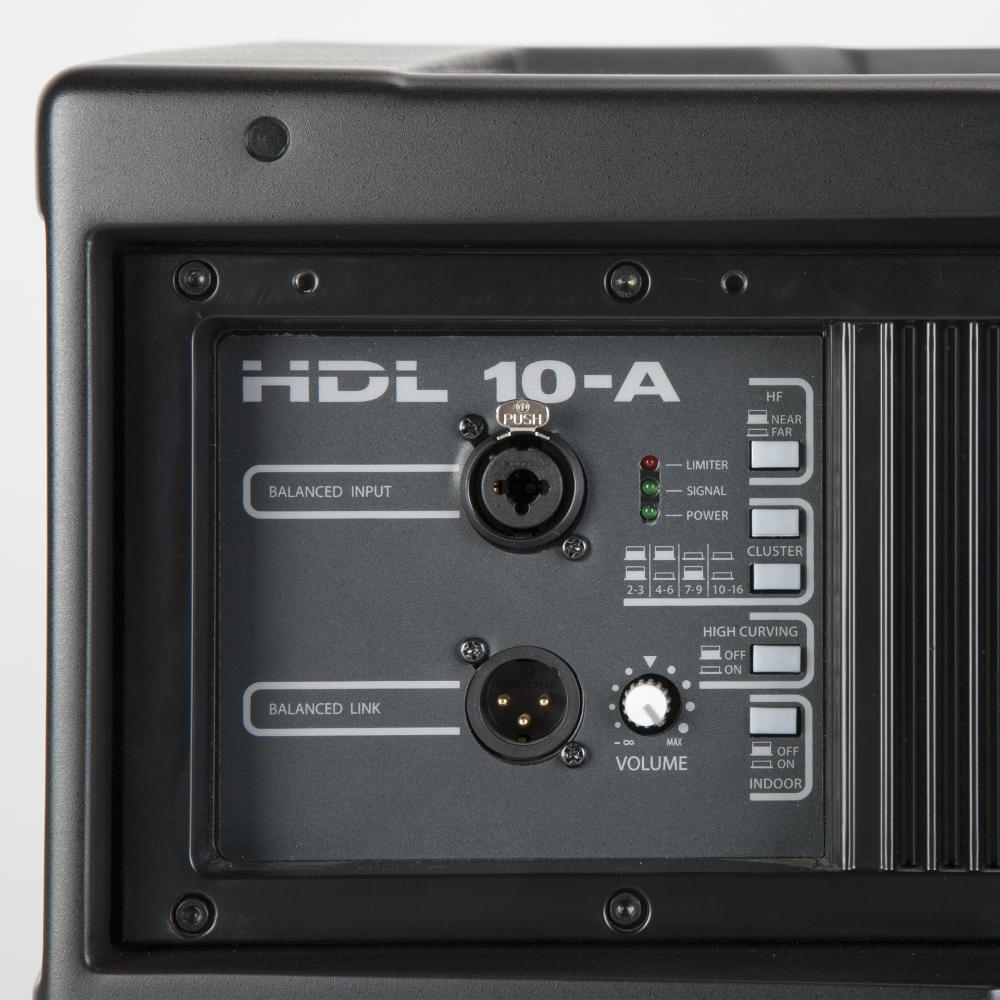

Controls:
Cluster, HF, High curving, Indoor
Power section
Total Power:
1400 W Peak, 700 W RMS
High frequencies:
400 W Peak, 200 W RMS
Low frequencies:
1000 W Peak, 500 W RMS
Cooling:
Convection

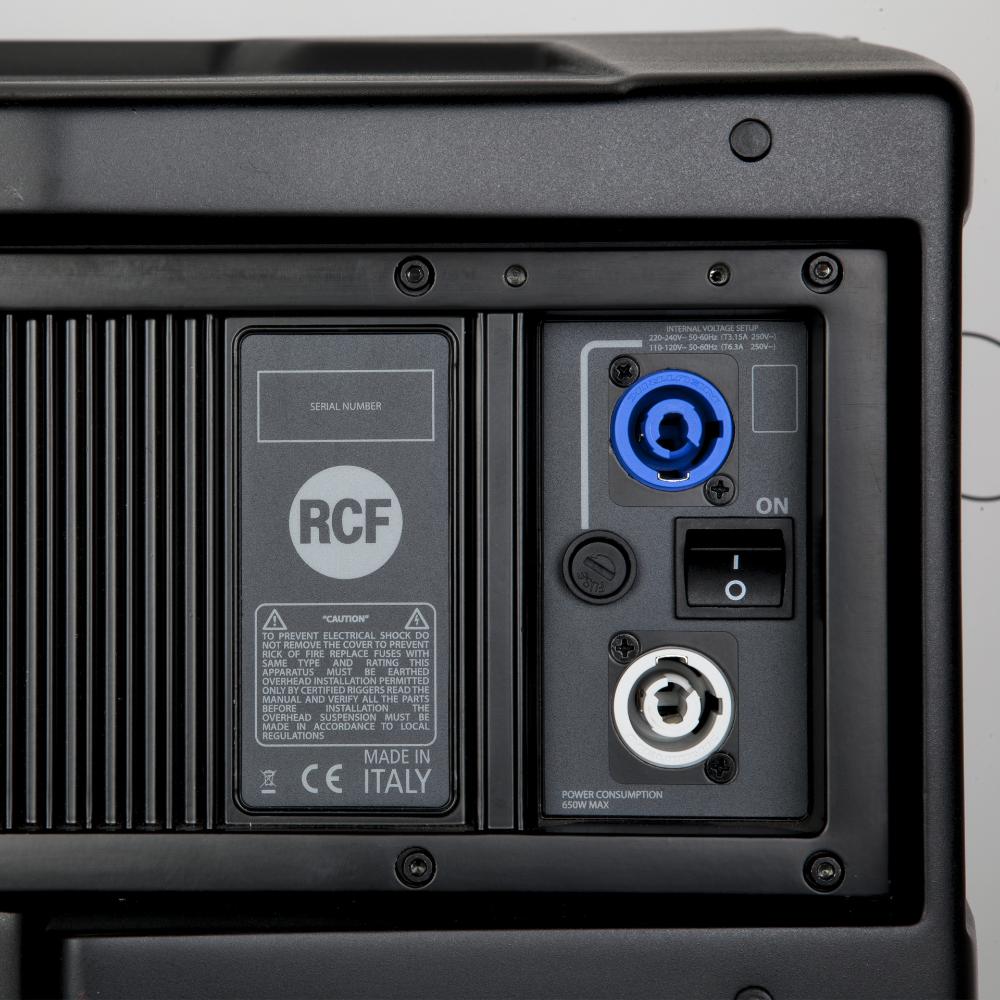

Connections:
Powercon IN/OUT
Standard compliance
Safety agency:
CE compliant
Physical specifications
Cabinet/Case Material:
PP Composite
Hardware:
Rigging flyware

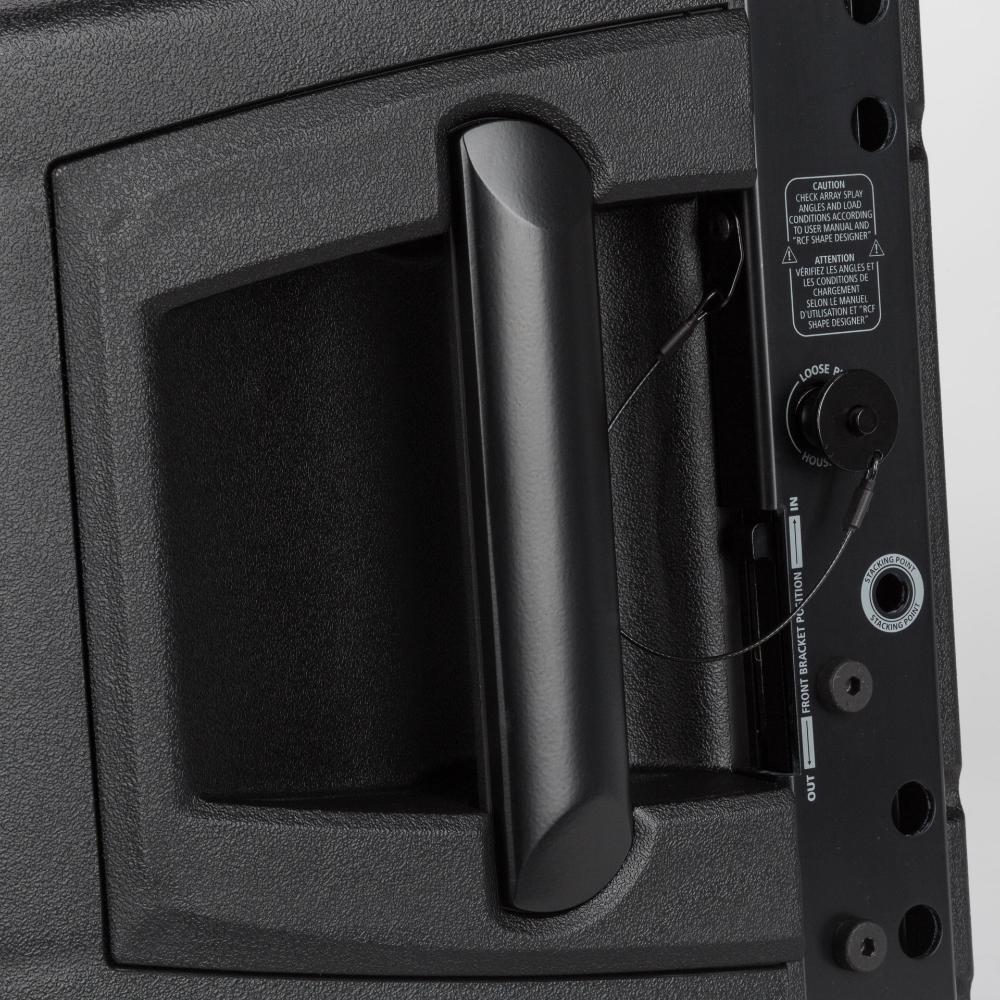

Handles:
2 side
Grille:
Steel
Color:
Black, White
Size
Height:
294 mm / 11.57 inches
Width:
569 mm / 22.4 inches
Depth:
434 mm / 17.09 inches
Weight:
20.4 kg / 44.97 lbs
Shipping information
Package Height:
375 mm / 14.76 inches
Package Width:
650 mm / 25.59 inches
Package Depth:
500 mm / 19.69 inches
Package Weight:
23 kg / 50.71 lbs
