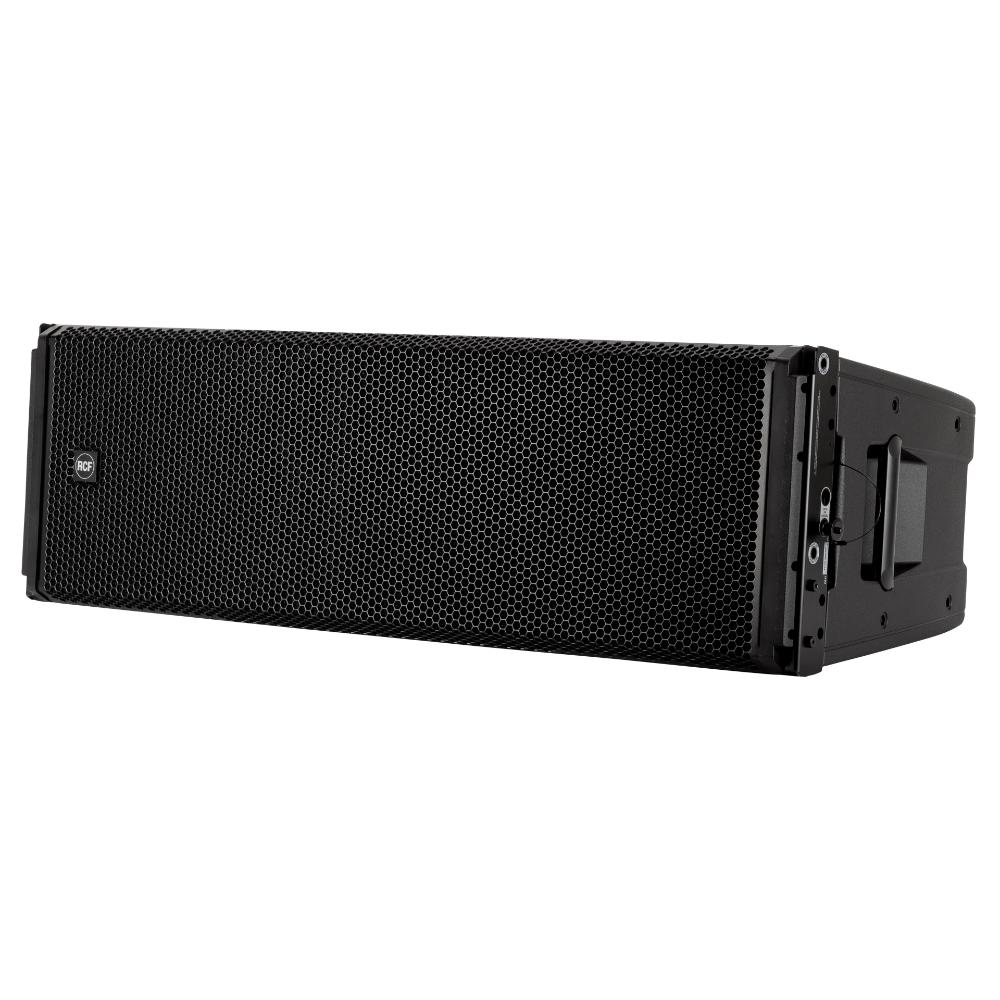

HDL 50-A

ACTIVE THREE-WAY LINE ARRAY MODULE
  • 4400 Watt, 3 way amplification
  • 140 dB max SPL
  • 8 x high power neodymium transducers
  • RDNet on board
Support
Features
  • 4400 Watt, 3 way amplification
  • 140 dB max SPL
  • 8 x high power neodymium transducers
  • 48 kHz, 32 bit DSP processing
  • RDNet on board
  • Remote monitoring and control
  • Symmetrical design
  • Extremely low weight

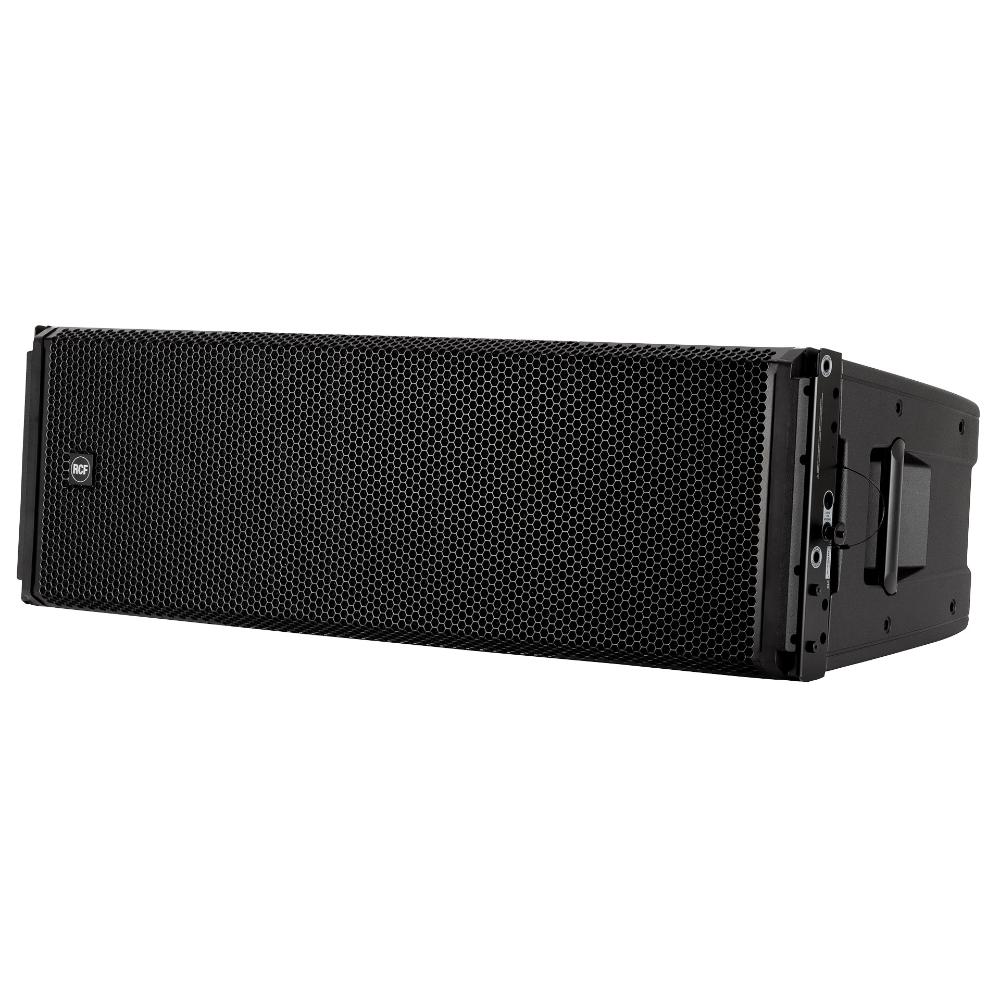

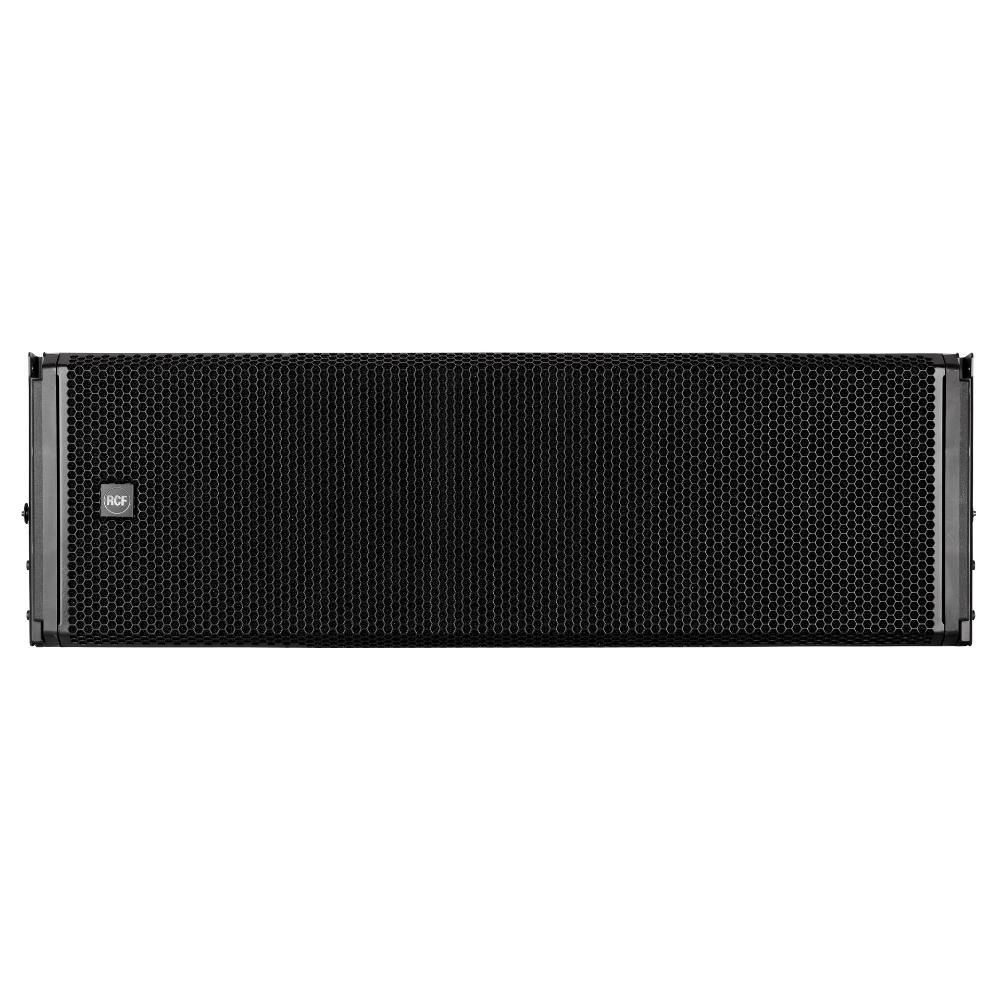

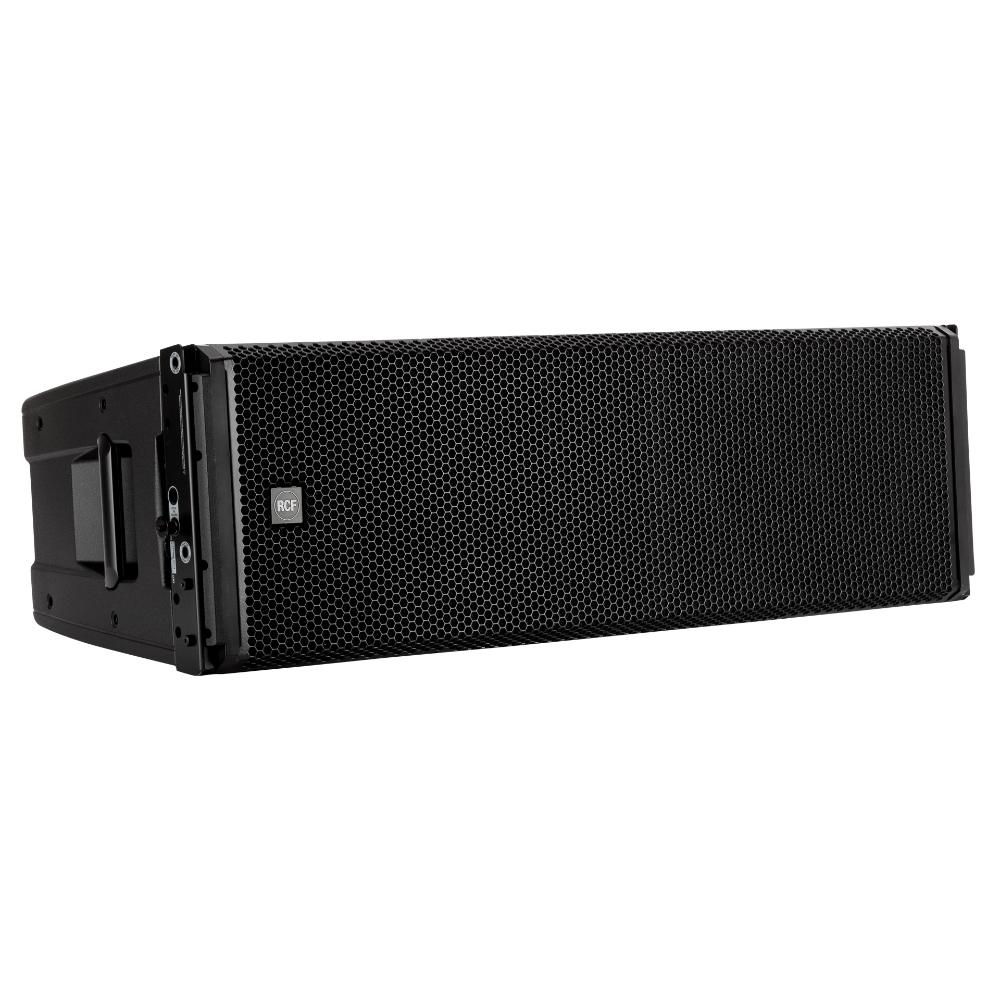

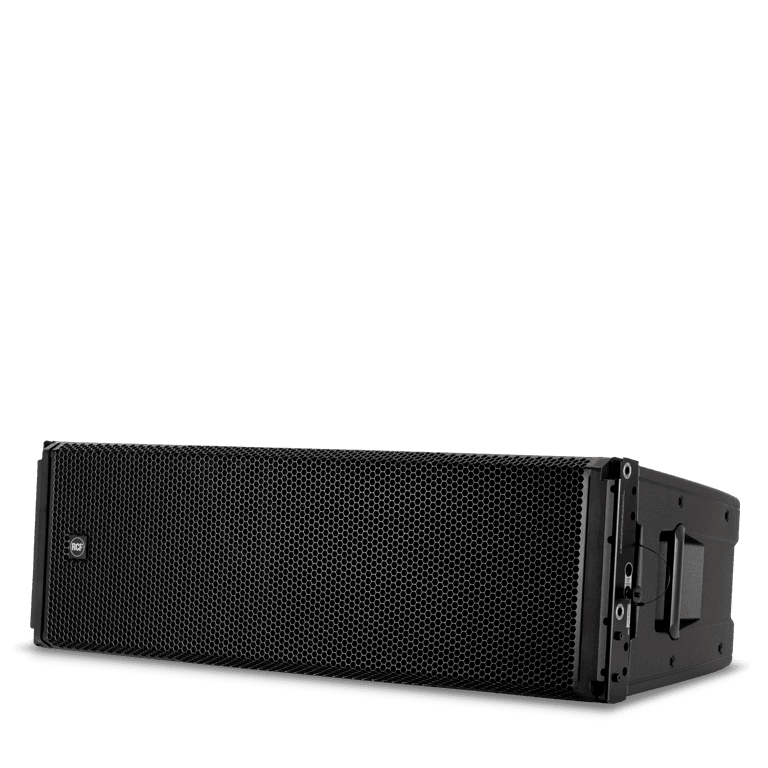

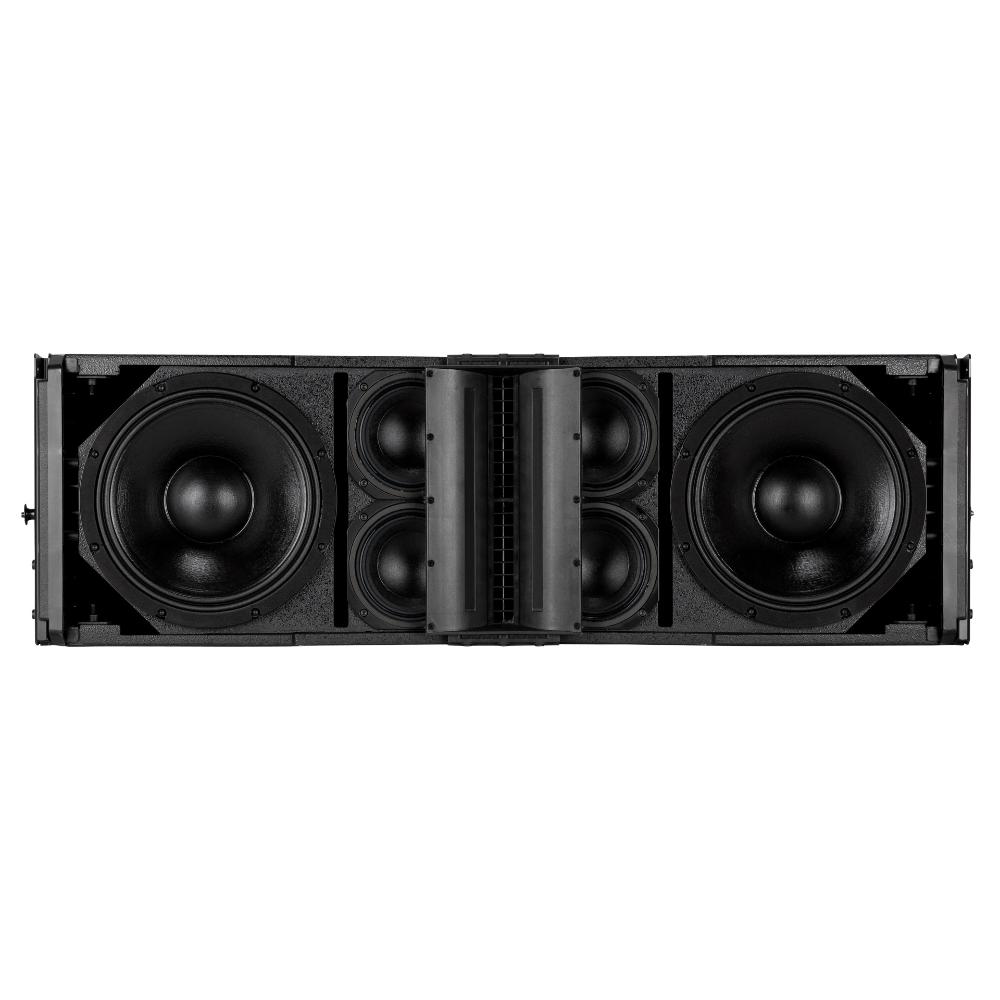

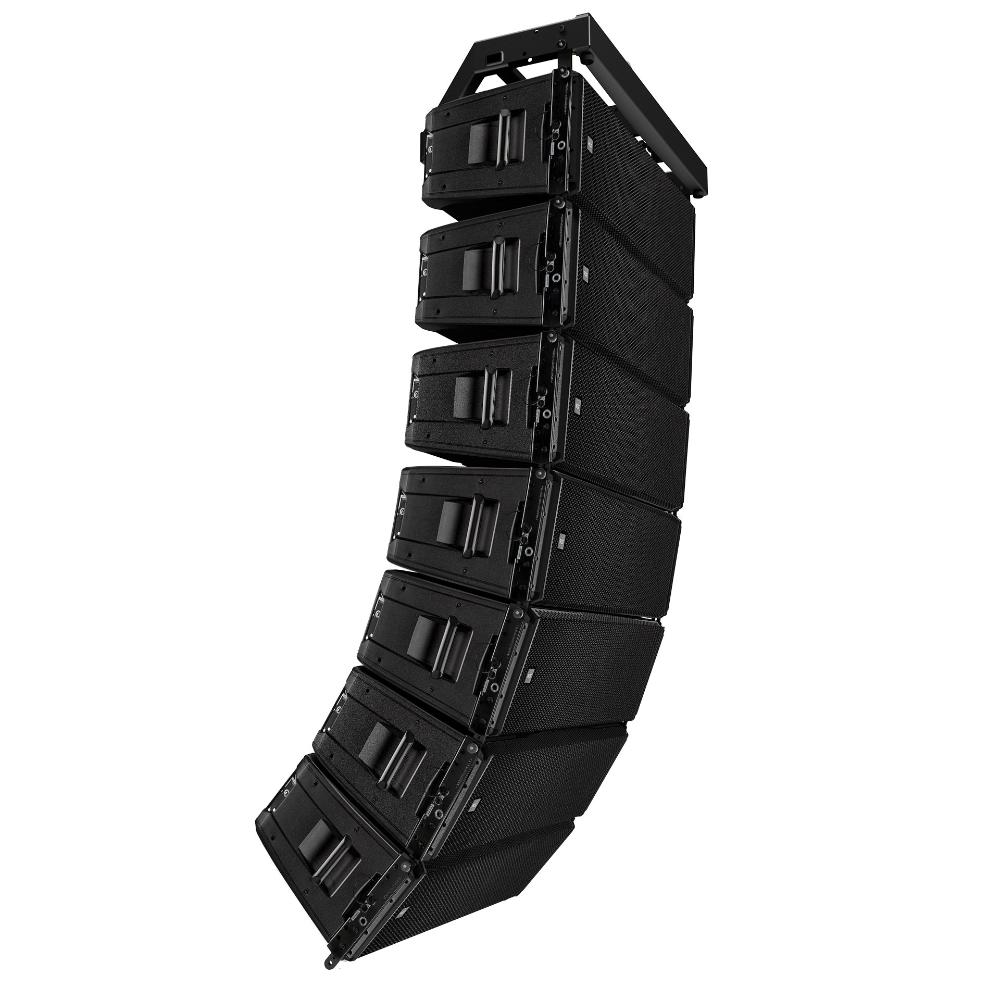

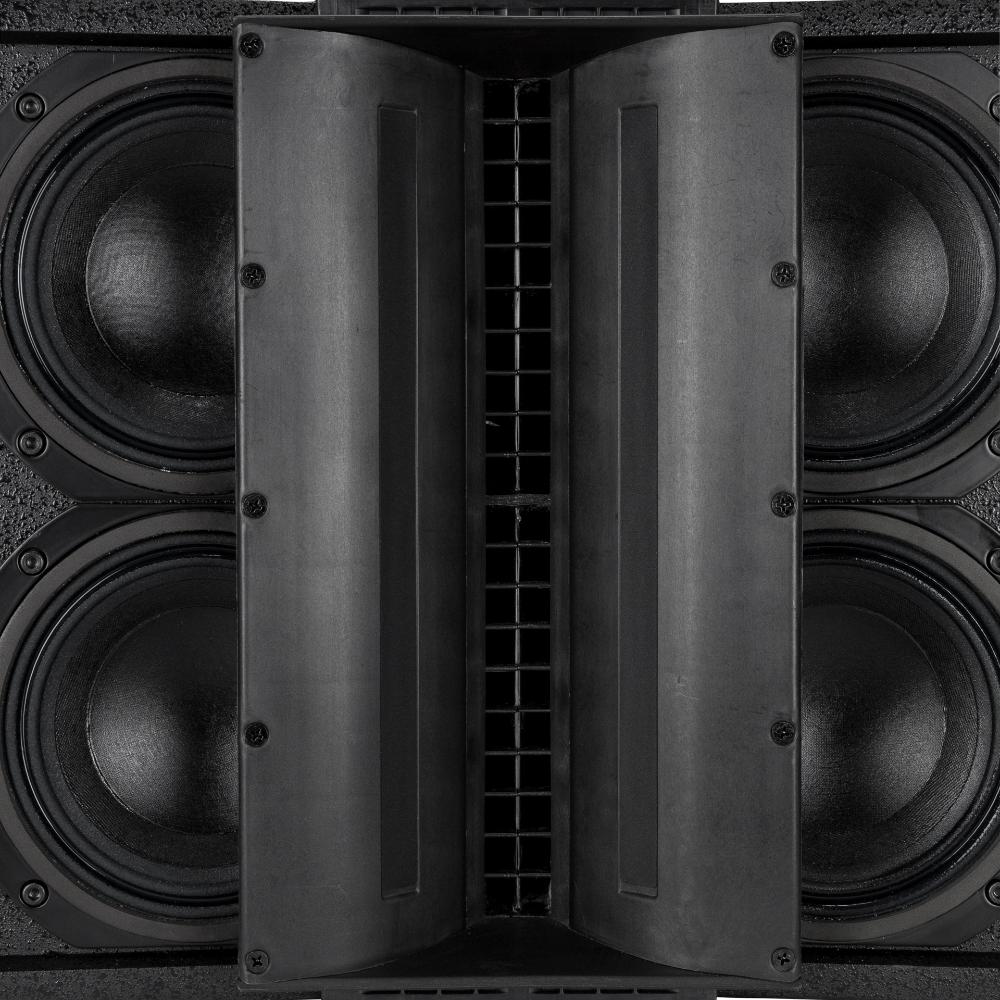

The HDL 50-A is a true active high power speaker system ready to use touring system for large events, indoors and outdoors. Equipped with 2x12” woofers, 4x symmetrical 6.5” midranges and two 2” drivers, it offers excellent playback quality and high sound pressure levels with a built in 2200W RMS powerful digital amplifier that delivers superior SPL, while reducing energy requirement. Using advanced neodymium magnets and a groundbreaking new housing constructed from lightweight plywood and polypropylene, it has a remarkably low weight for easy handling and flying. The HDL 53-AS is the ideal flyable bass complement for the HDL 50-A array system.

ARCHIVED

Part number:

13000477
HDL 50-A
90-240V, EAN 8024530013509

Specifications
Acoustical specifications
Frequency Response:
40 Hz ÷ 20000 Hz
Max SPL @ 1m:
140 dB
Horizontal coverage angle:
90°
Vertical coverage angle:
10°

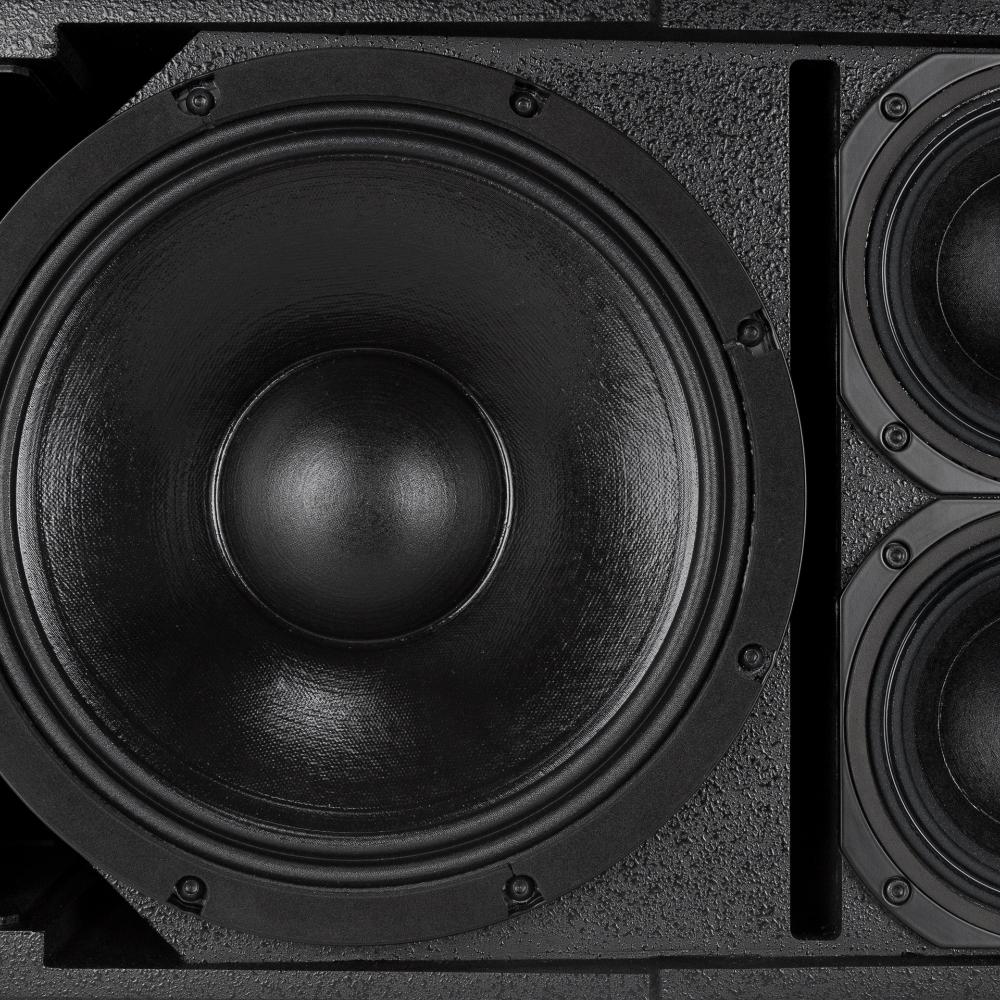

Transducers
Compression Driver:
2 x 1.4'' neo, 3.0'' v.c
Midrange:
4 x 6.0'' neo, 2.0'' v.c
Woofer:
2 x 12'' neo, 3.0'' v.c

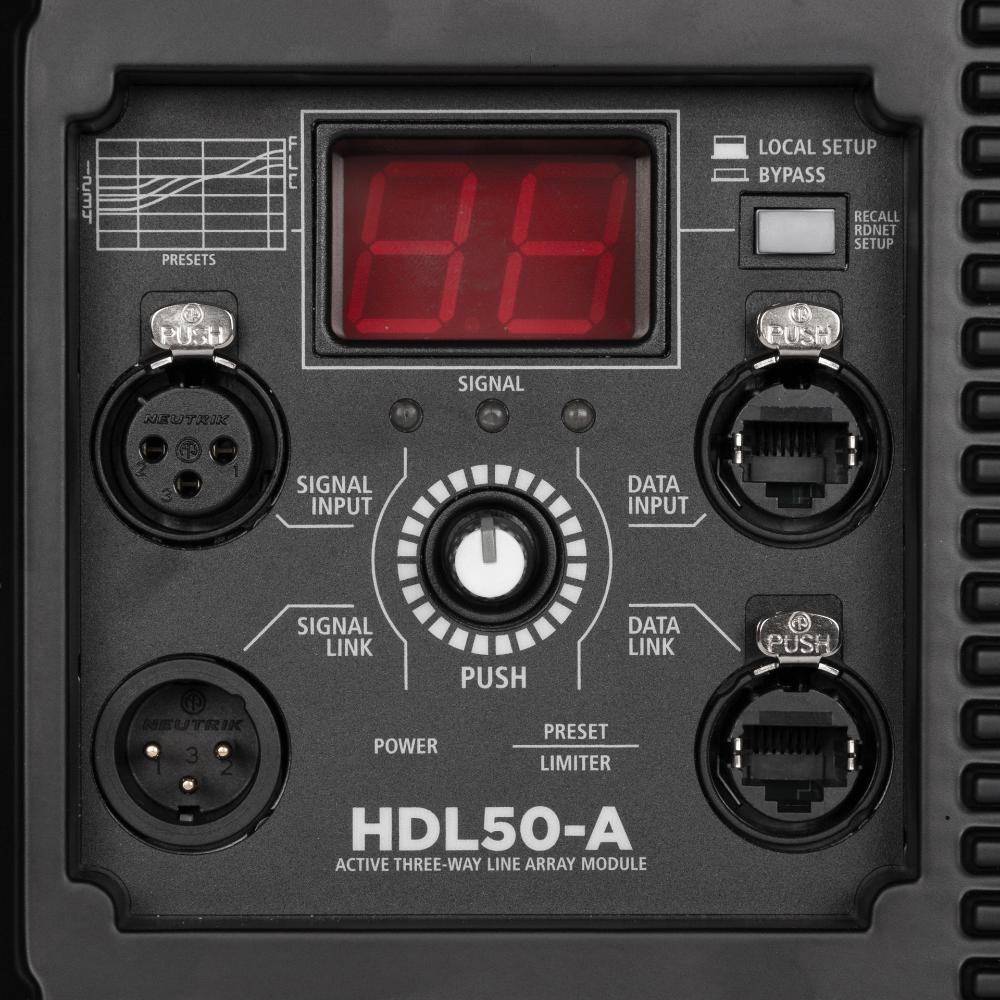

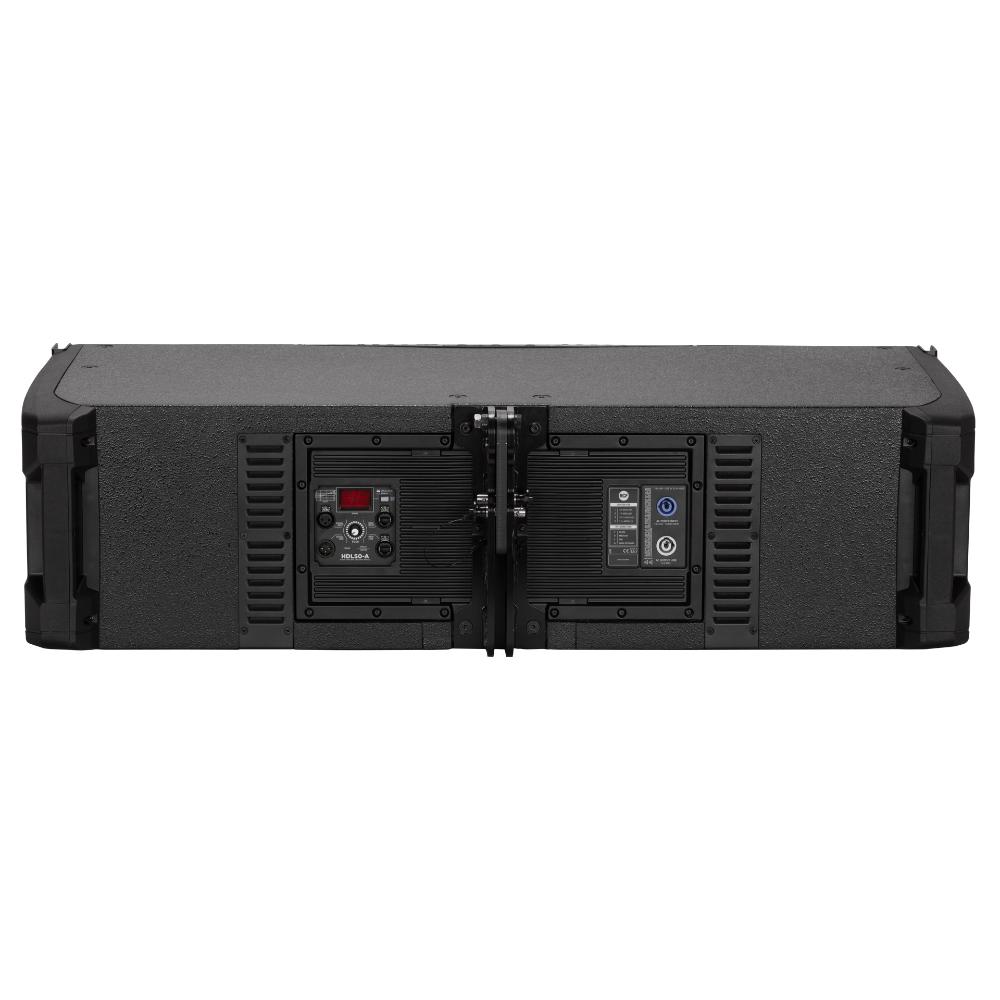

Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR, RDNet Ethercon
Output connectors:
XLR, RDNet Ethercon
Input sensitivity:
+4 dBu
Processor section
Crossover Frequencies:
200 Hz - 800 Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter

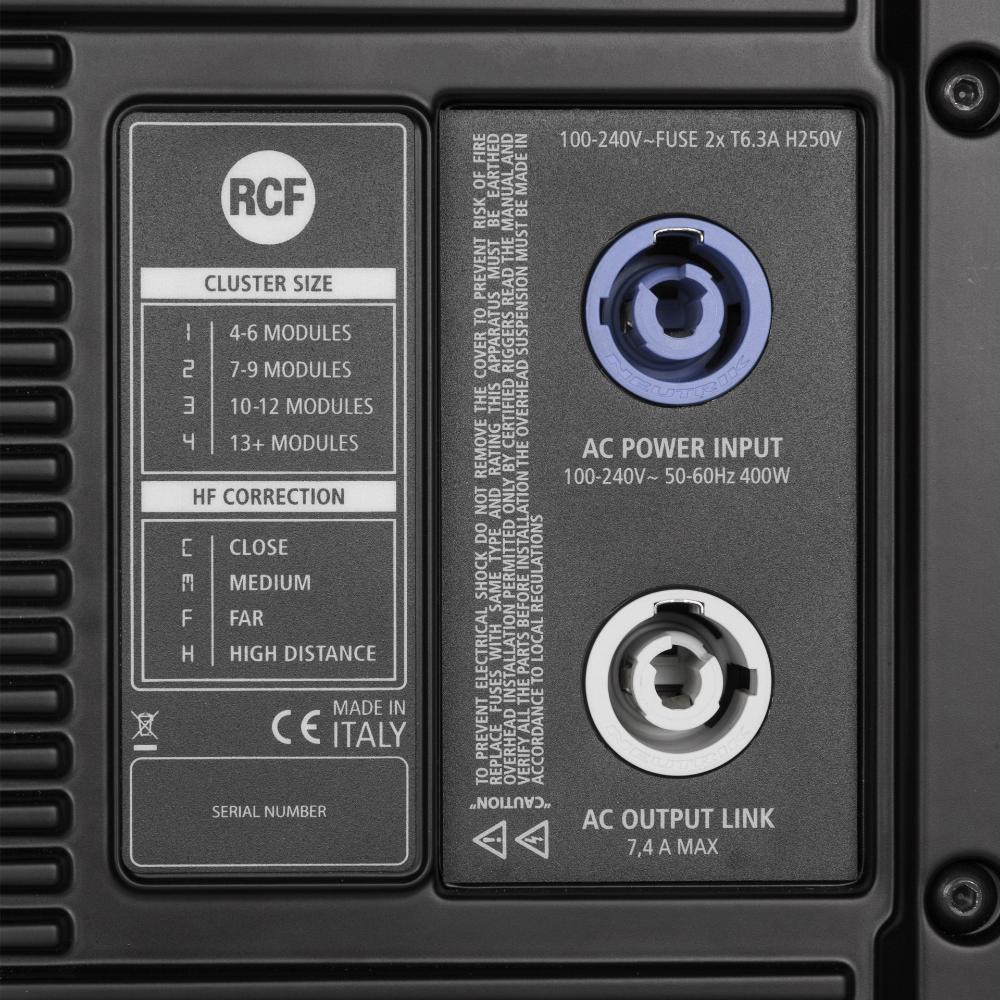

Controls:
Cluster size, HF correction, RDNET
Power section
Total Power:
4400 W Peak, 2200 W RMS
High frequencies:
1100 W Peak, 550 W RMS
Mid frequencies:
1100 W Peak, 550 W RMS
Low frequencies:
2200 W Peak, 1100 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Physical specifications
Cabinet/Case Material:
Baltic birch plywood

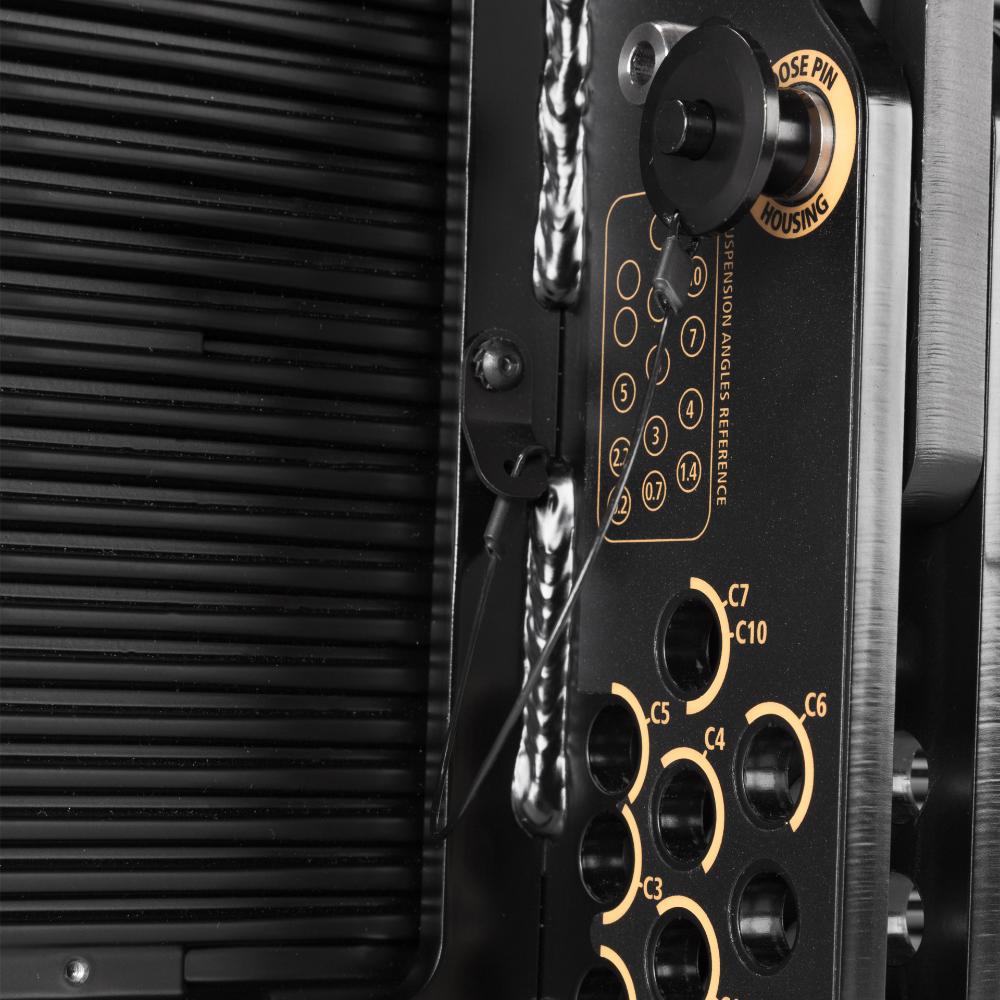

Hardware:

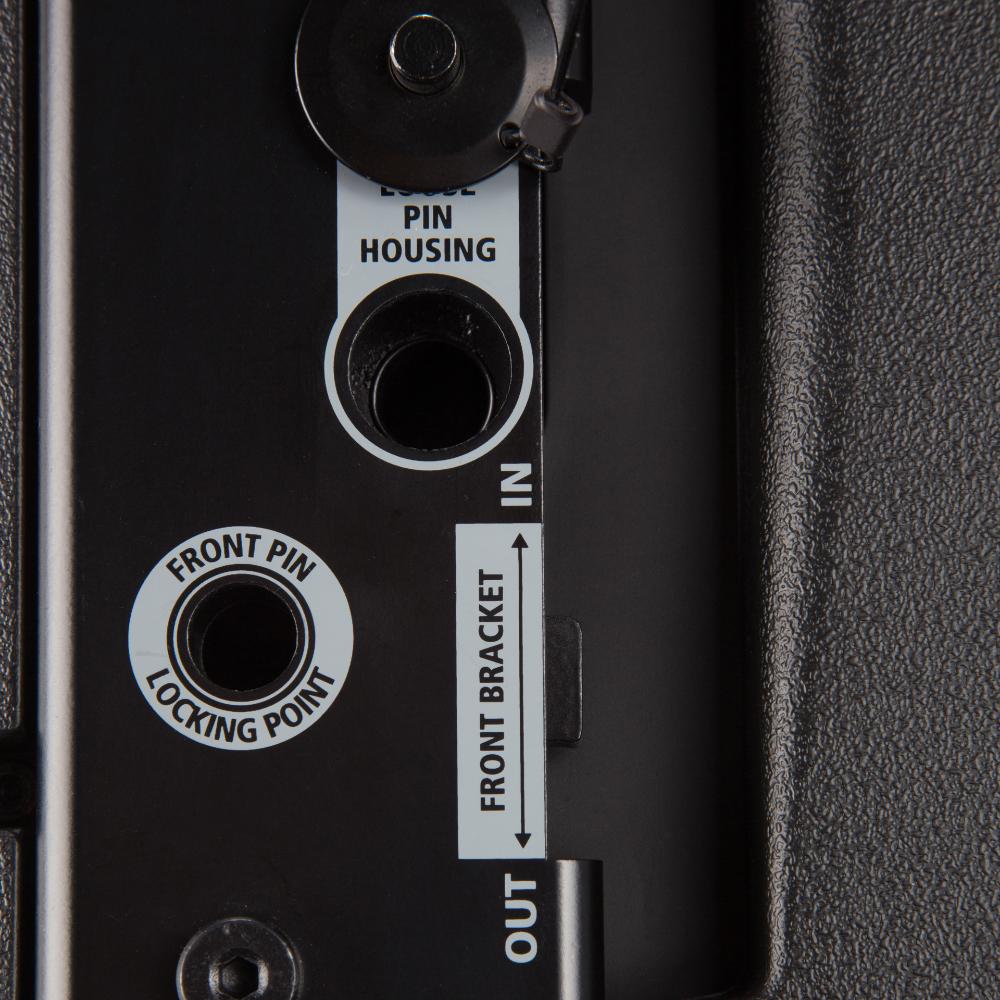

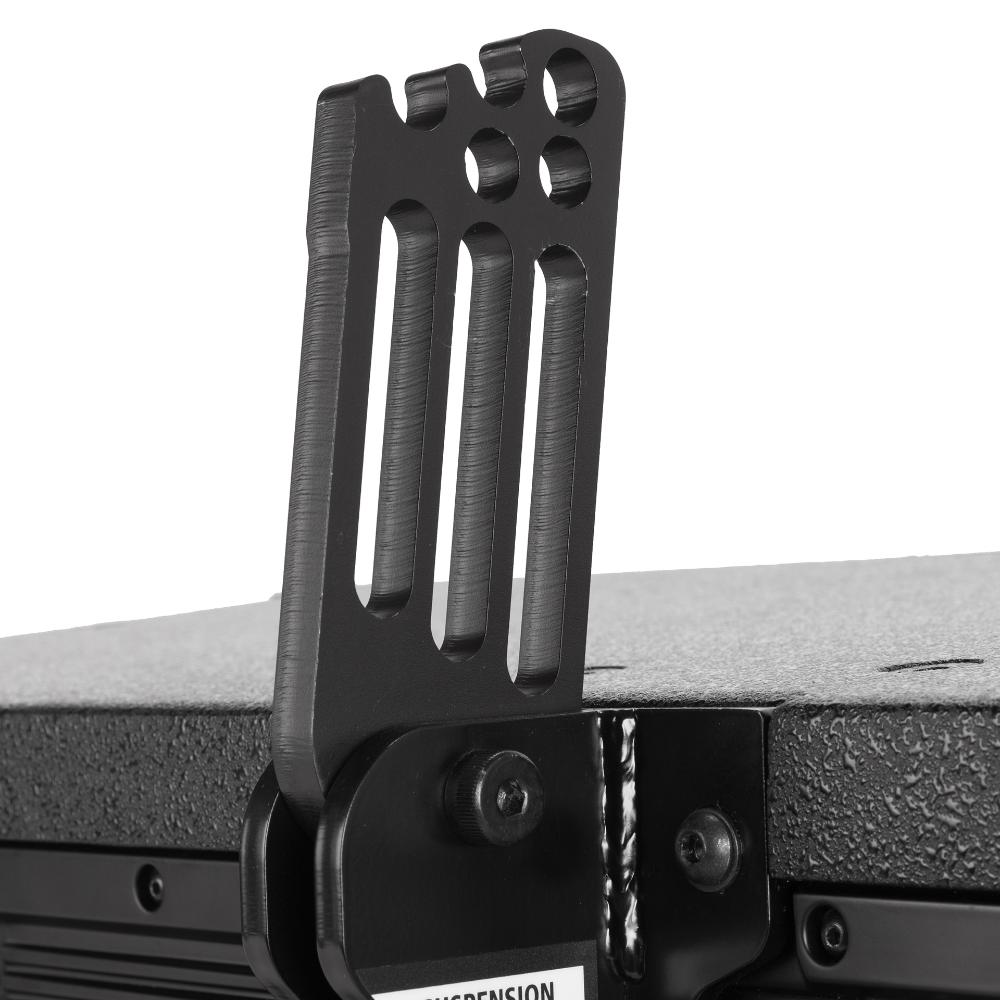

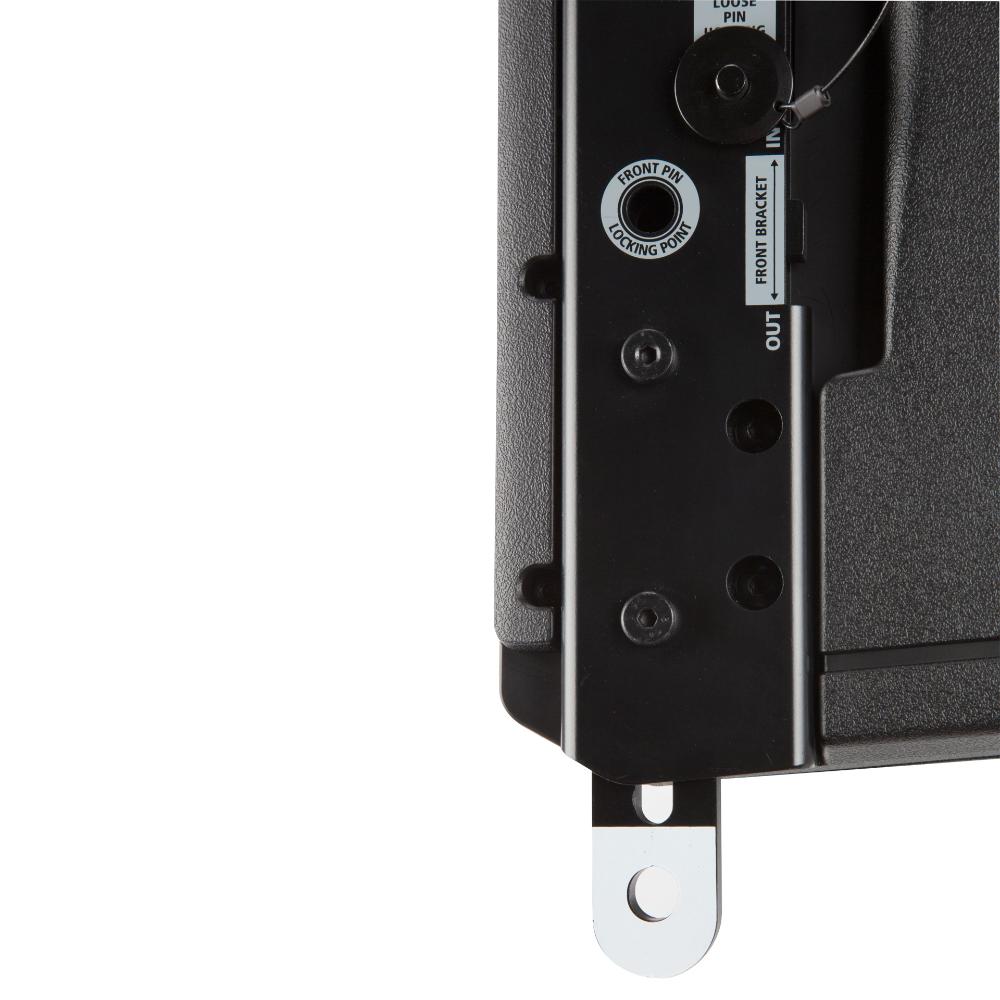

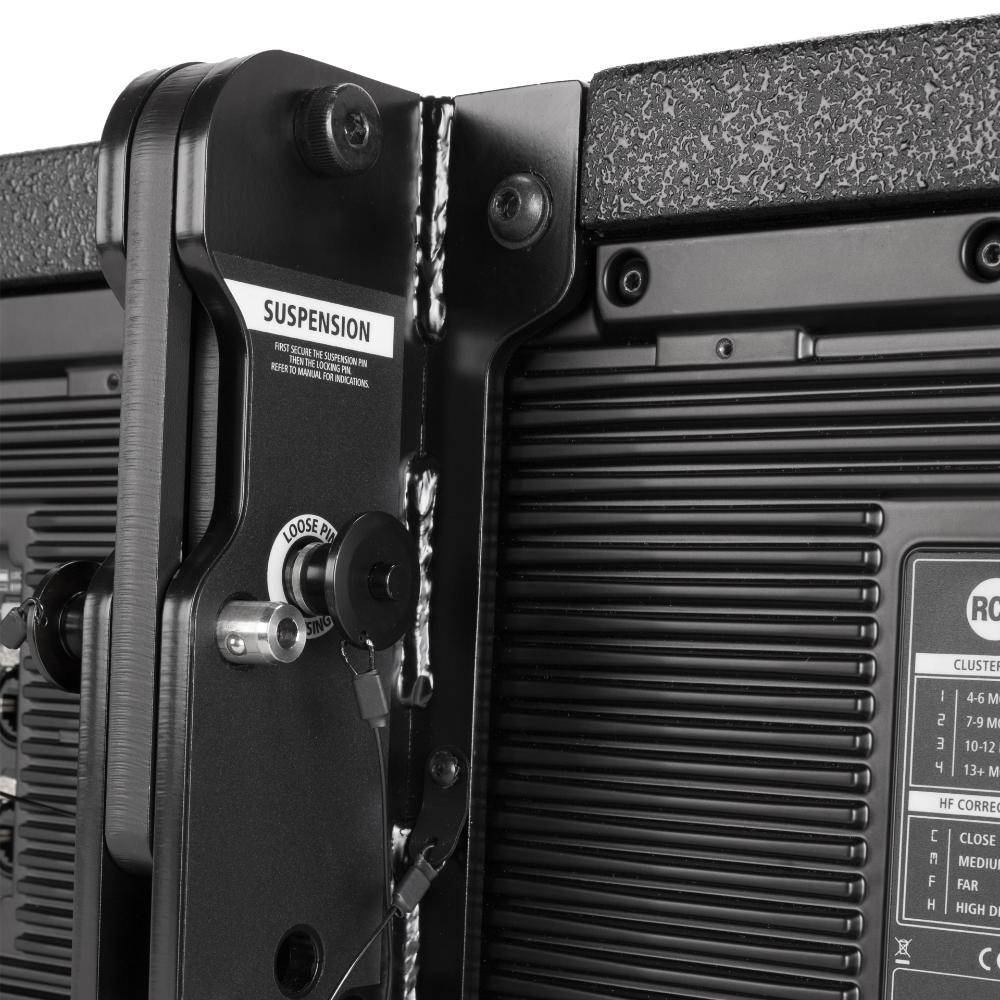

Integrated Mechanics

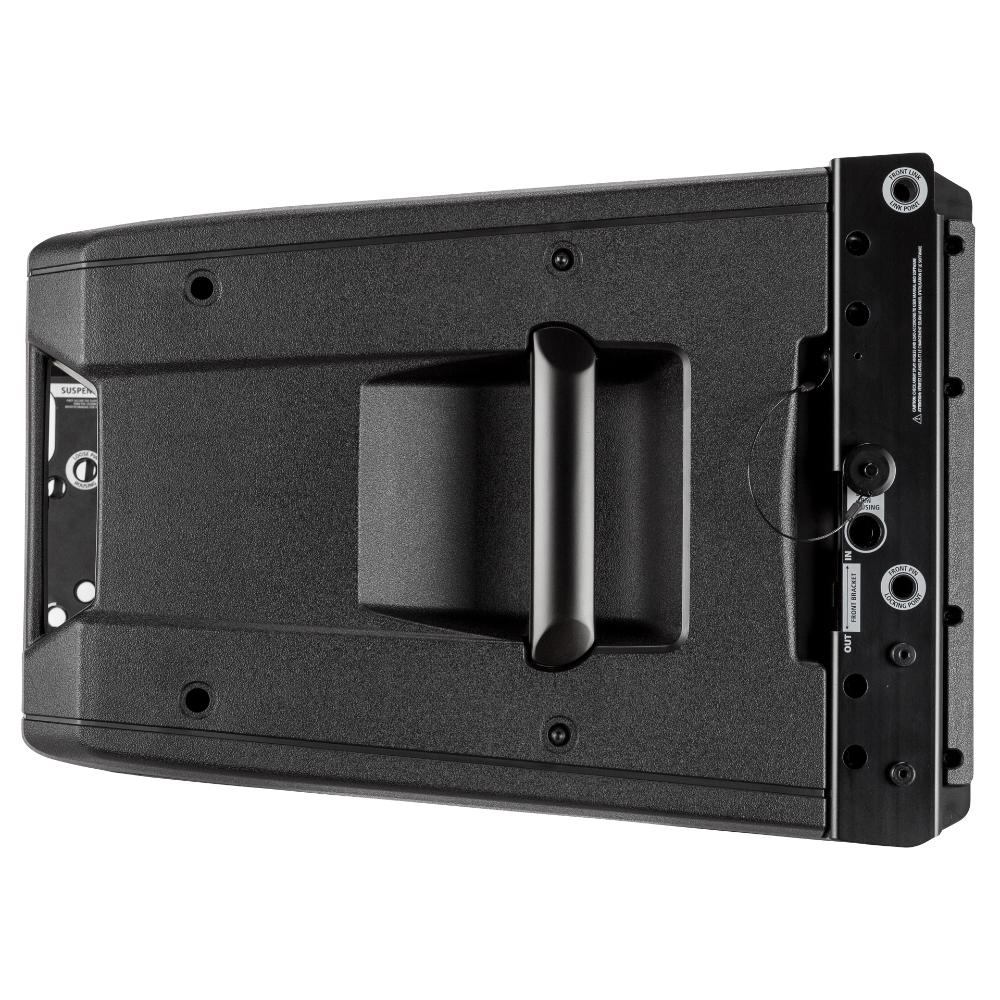

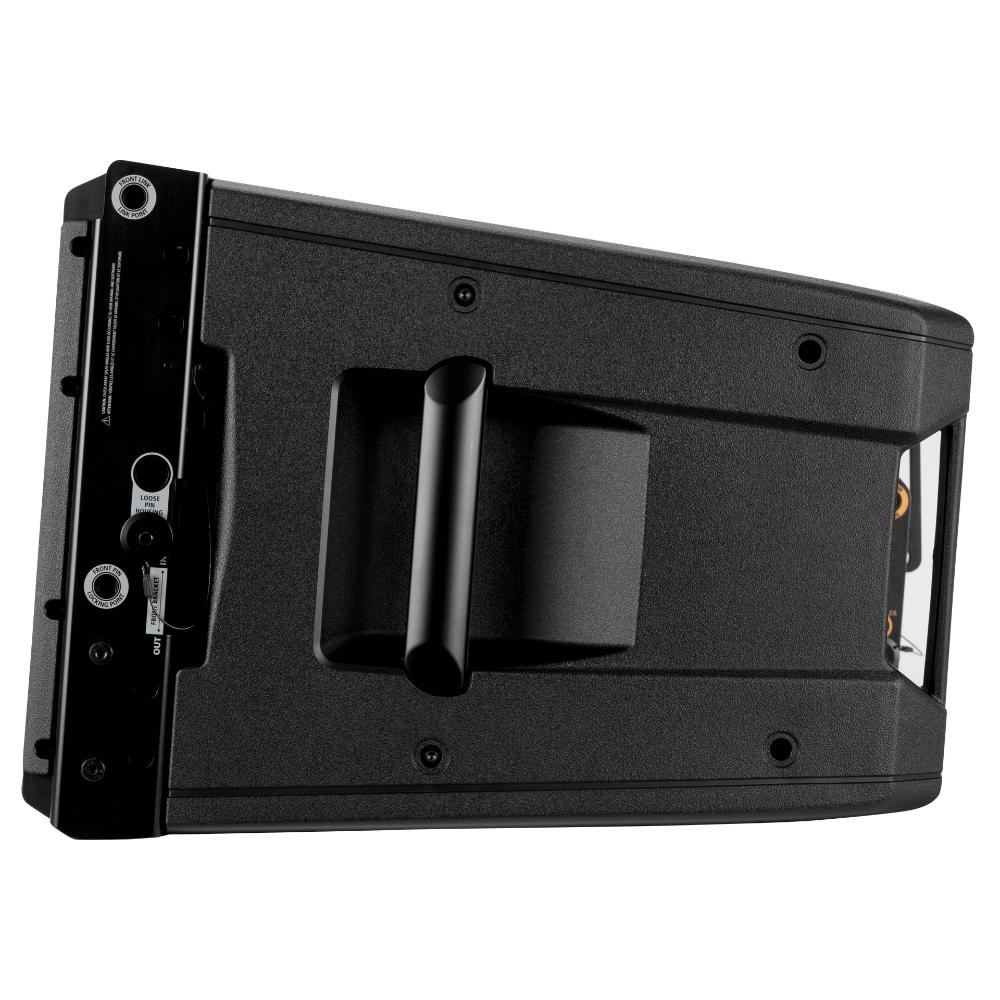

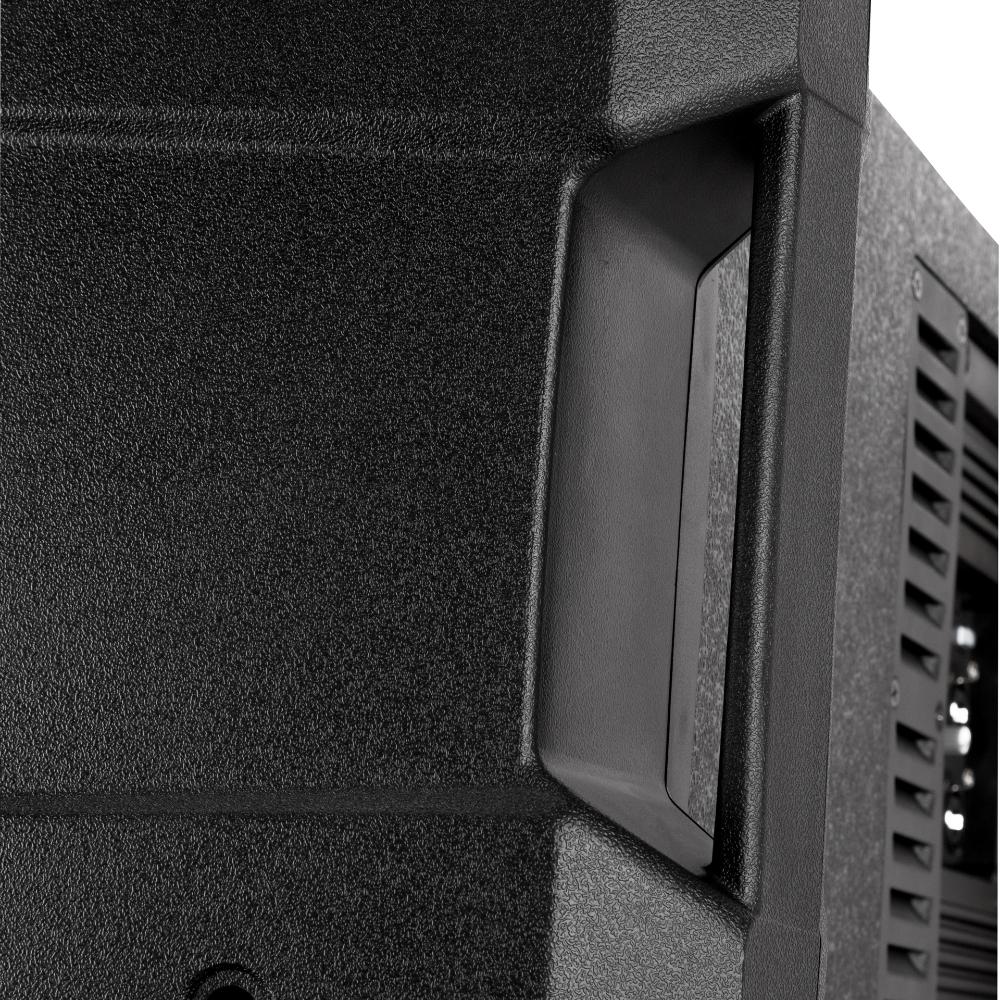

Handles:
2 side, 2 rear

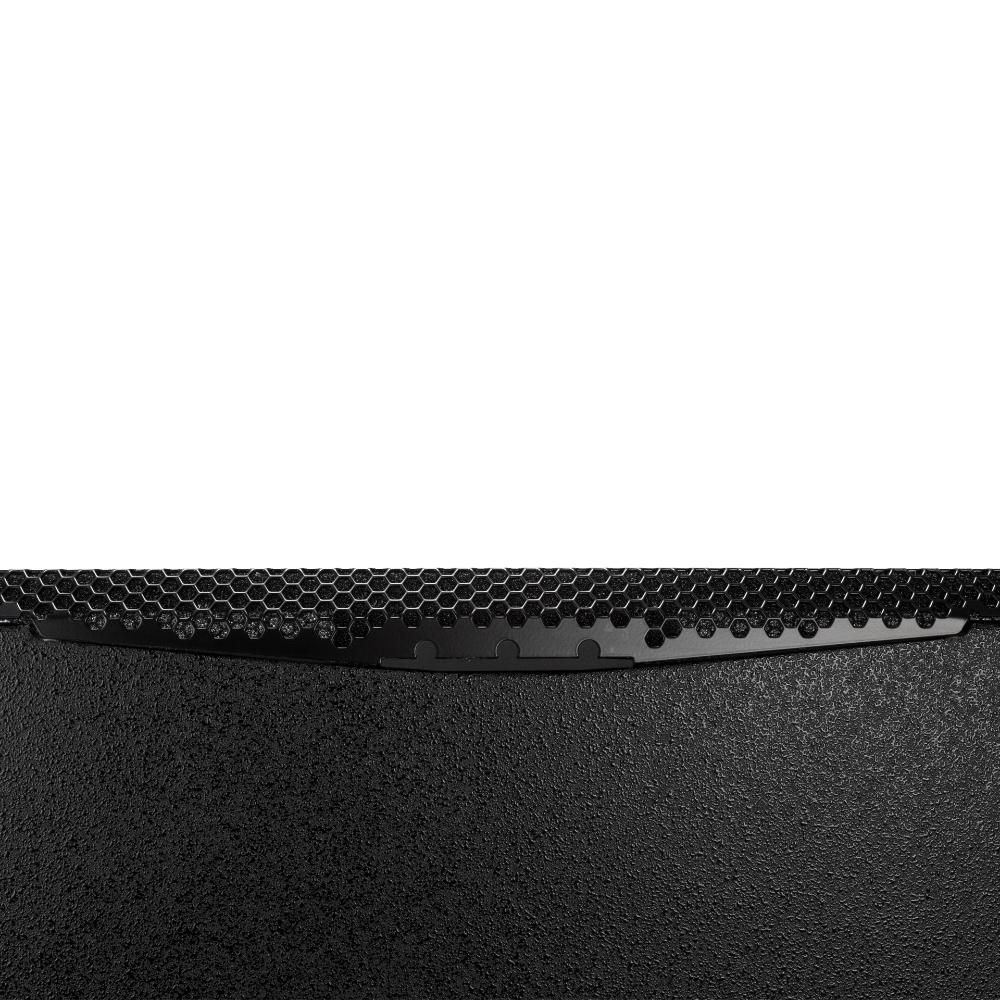

Grille:
Steel
Color:
Black
Size
Height:
366 mm / 14.41 inches
Width:
1171 mm / 46.1 inches
Depth:
502 mm / 19.76 inches
Weight:
56 kg / 123.46 lbs
Shipping information
Package Height:
400 mm / 15.75 inches
Package Width:
1200 mm / 47.24 inches
Package Depth:
600 mm / 23.62 inches
Package Weight:
60 kg / 132.28 lbs
