PRO SOUND

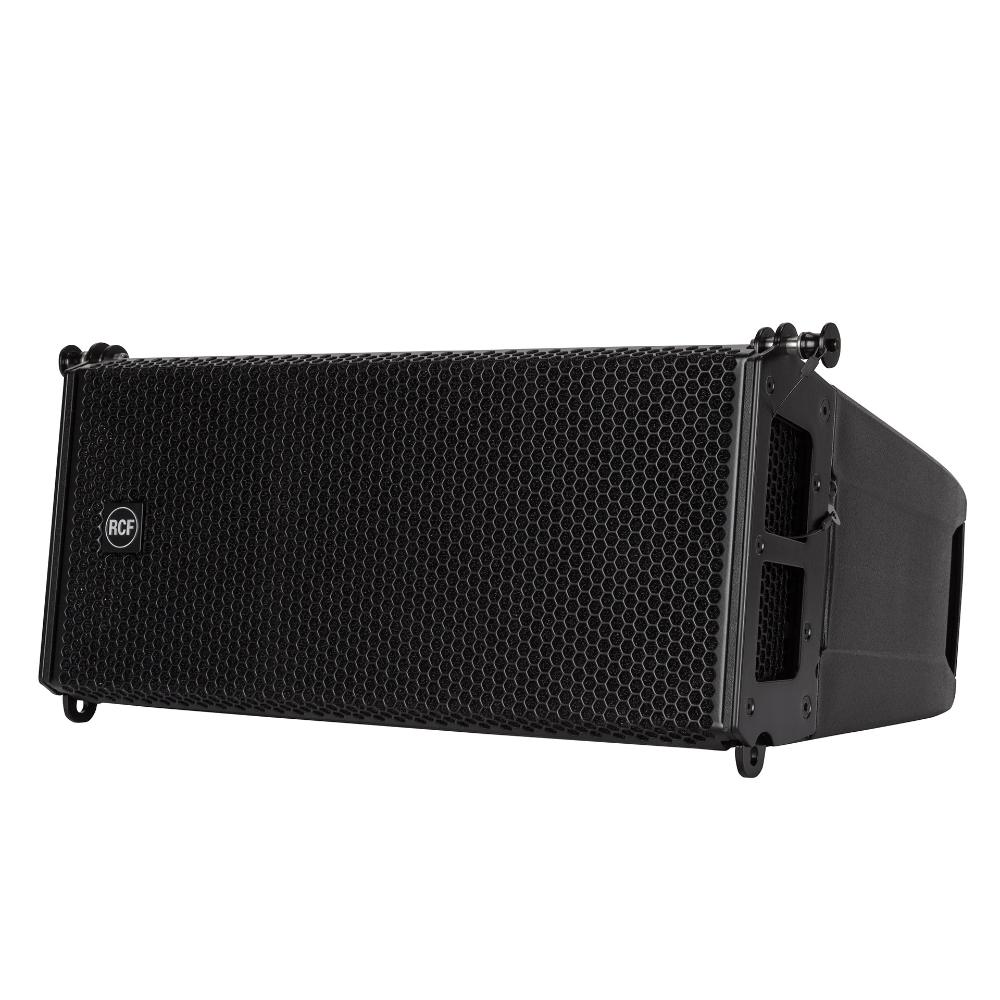

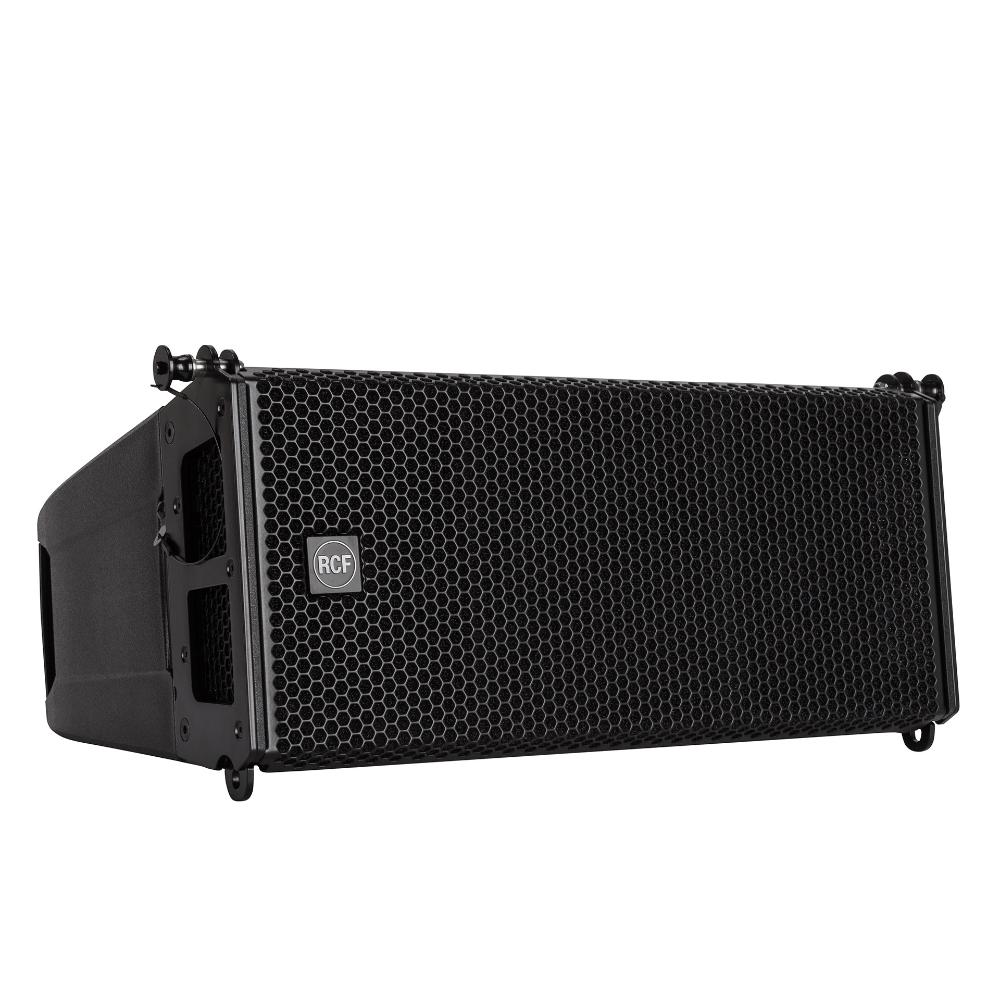

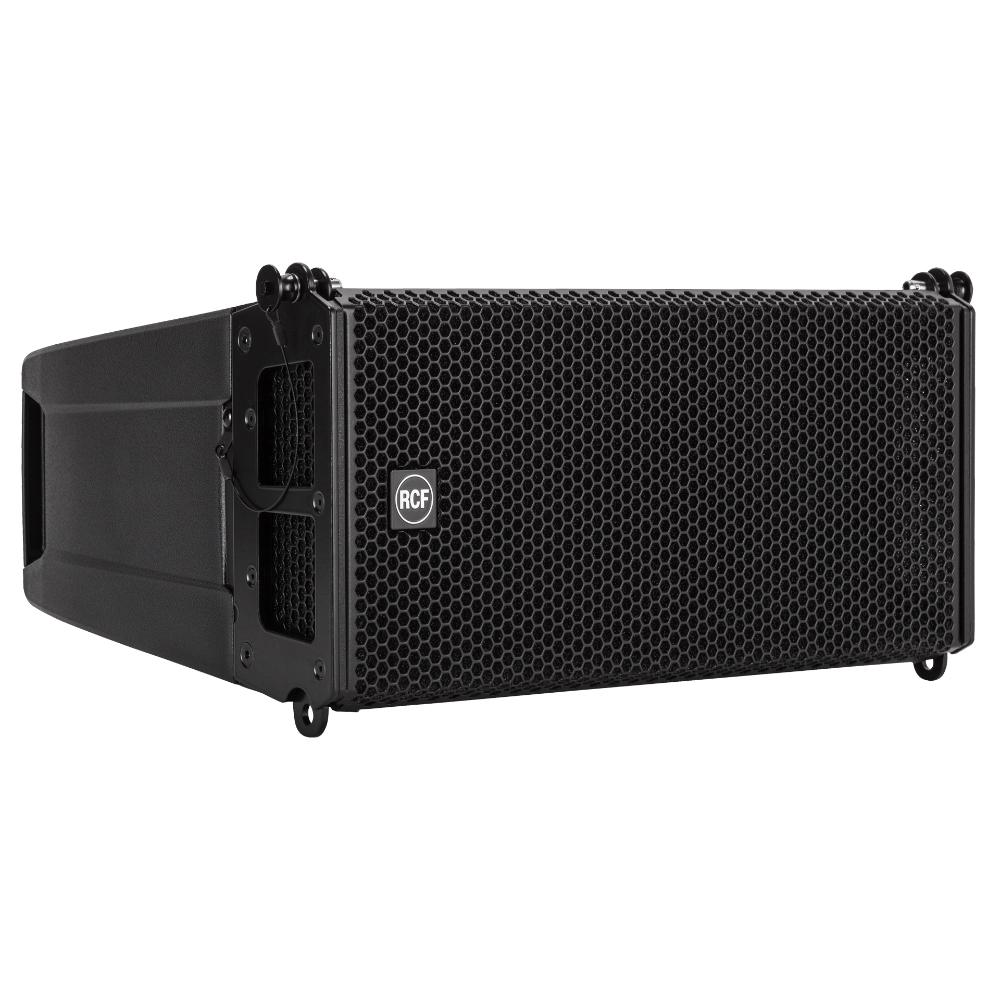

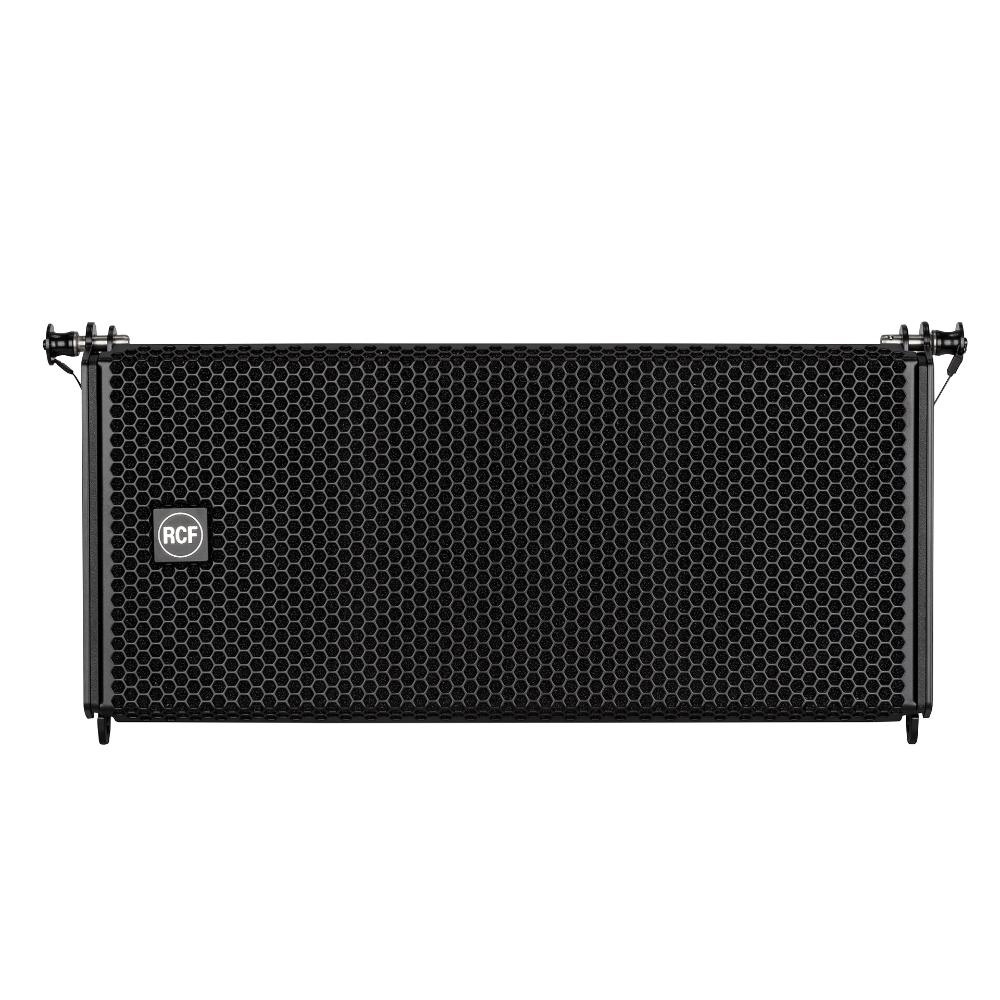

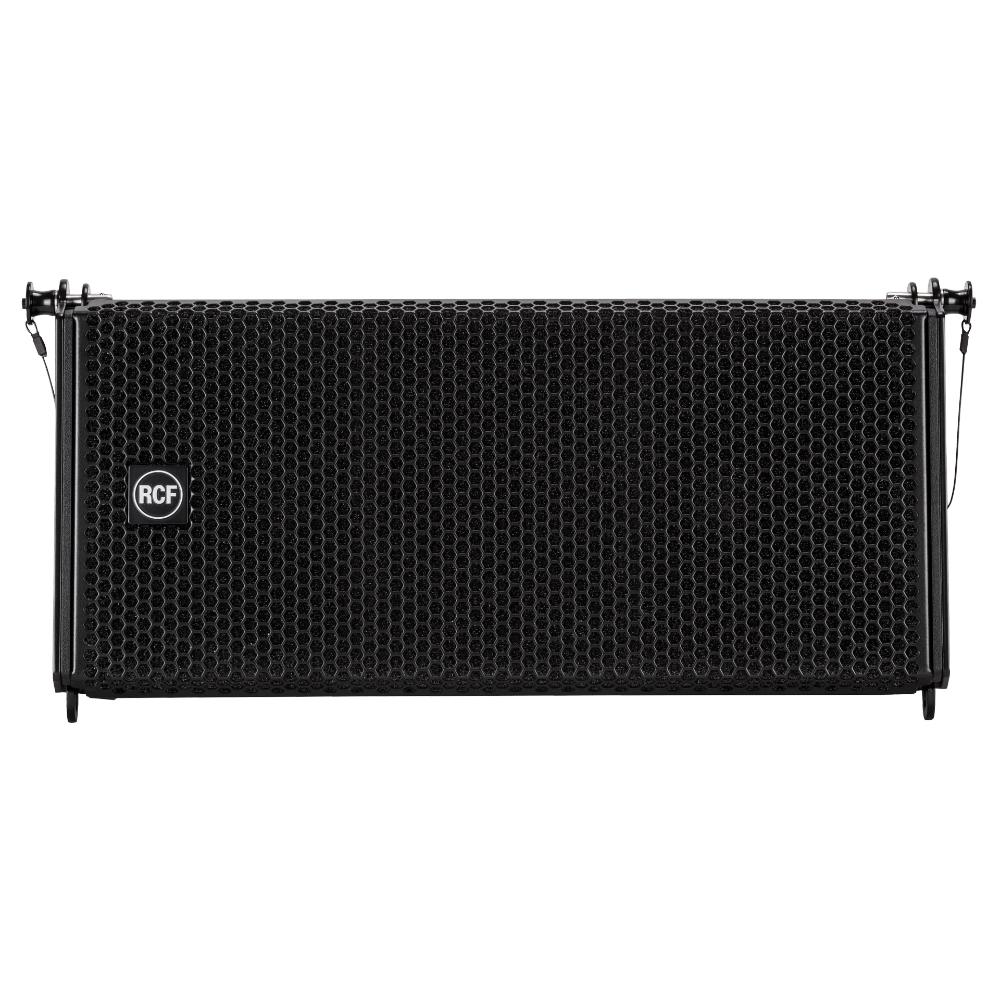

HDL 6-A

ACTIVE LINE ARRAY MODULE
  • 1400 W, two-way amplification
  • 1.7" voice coil neodymium compression driver
  • 2 x high power neodymium 6.0"woofers
  • FiRPHASE processing
FiRPHASE
Where to buy
Features
  • 1400 W, two-way amplification
  • 131 dB max SPL
  • 1.7" voice coil neodymium compression driver
  • 2 x high power neodymium 6.0"woofers
  • 48 kHz, 32 bit floating point DSP processing
  • Symmetrical design
  • Extremely low weight
  • FiRPHASE processing

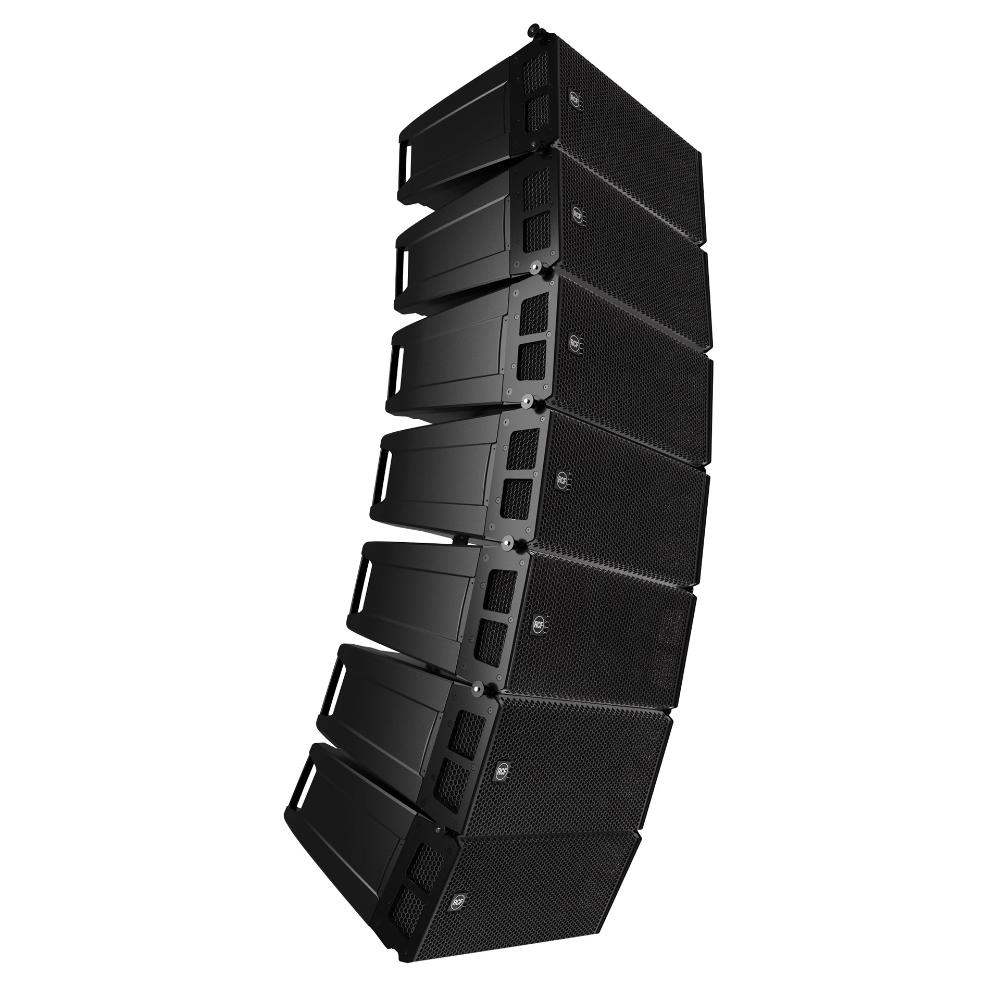

The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic. The HDL 12-AS is the ideal flyable bass complement for the HDL 6-A array system.

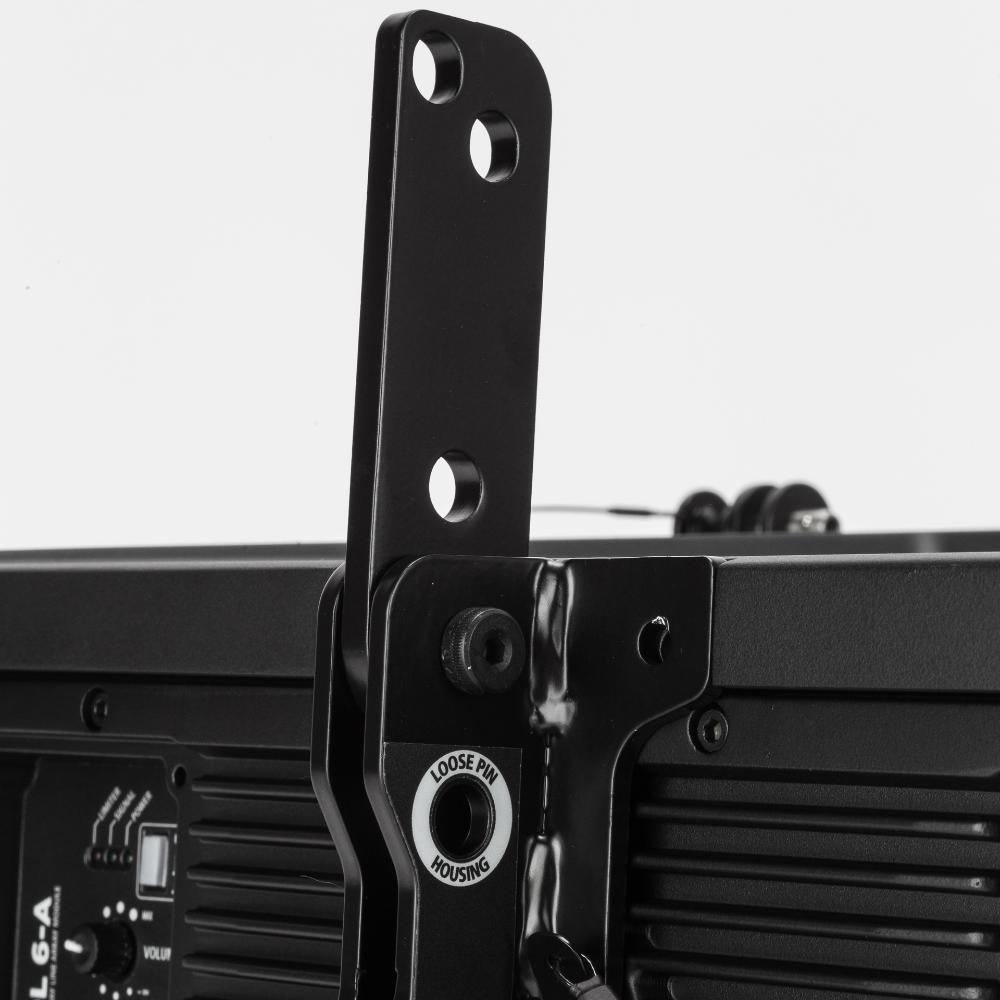

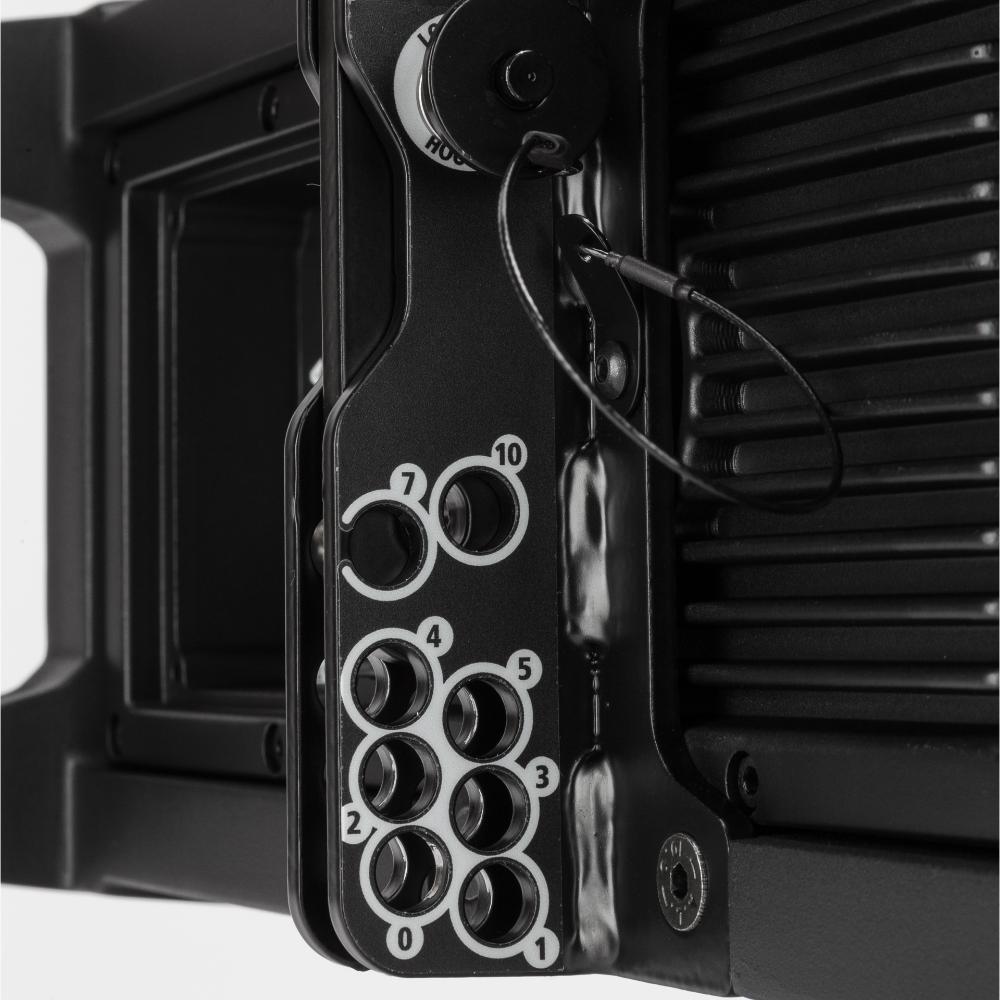

READ MORE Quick lock PIN Table Easy Shape Designer

Part number:

13000496
HDL 6-A
220-240V, Black, EAN 8024530014476

13000509
HDL 6-A
115V, Black, EAN 8024530014483

13000514
HDL 6-A W
220-240V, White, EAN 8024530014773

13000515
HDL 6-A W
115V, White, EAN 8024530014780

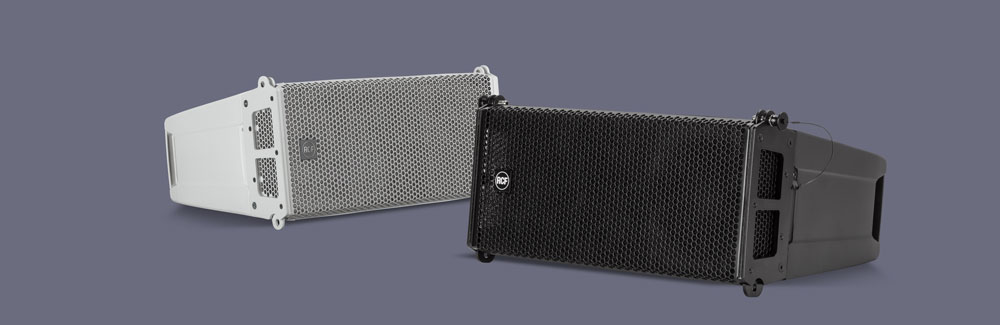

Black & white

The concept of this speaker derives from the touring industry, bringing in a compact cabinet all the experience of RCF professional sound.

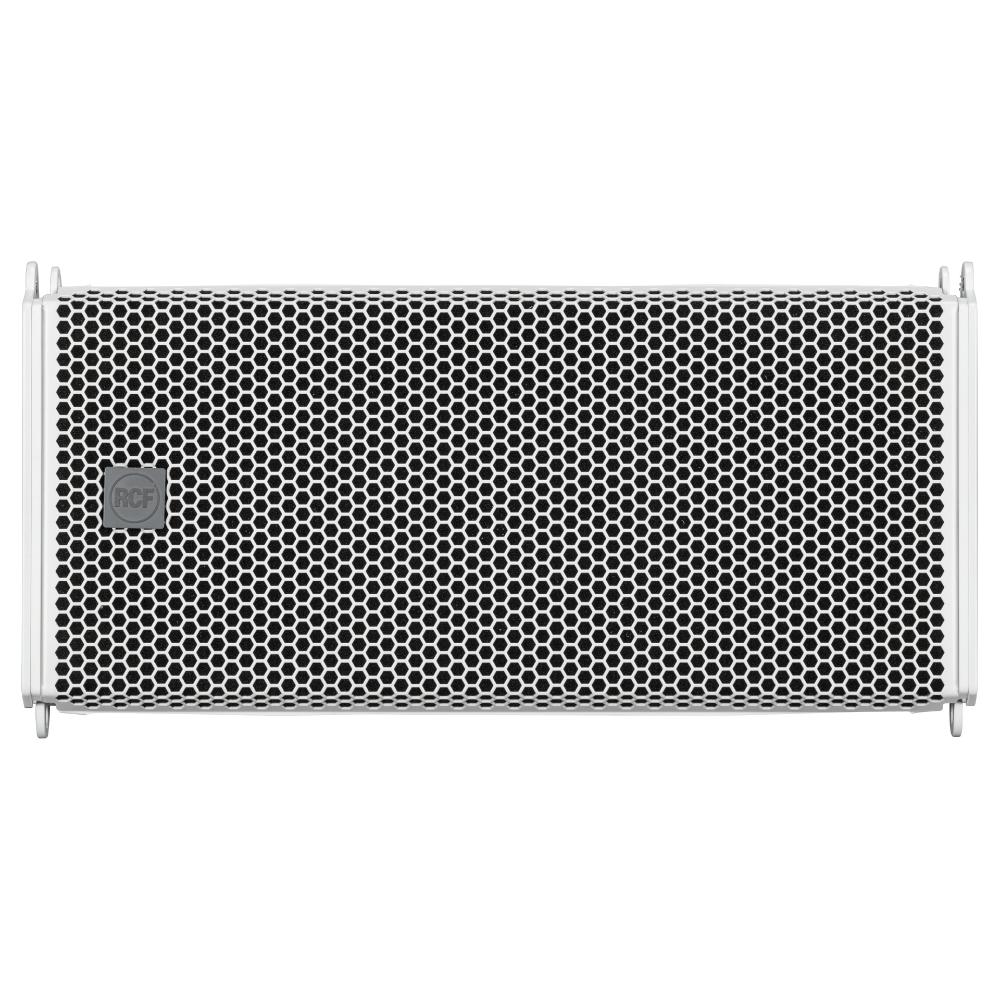

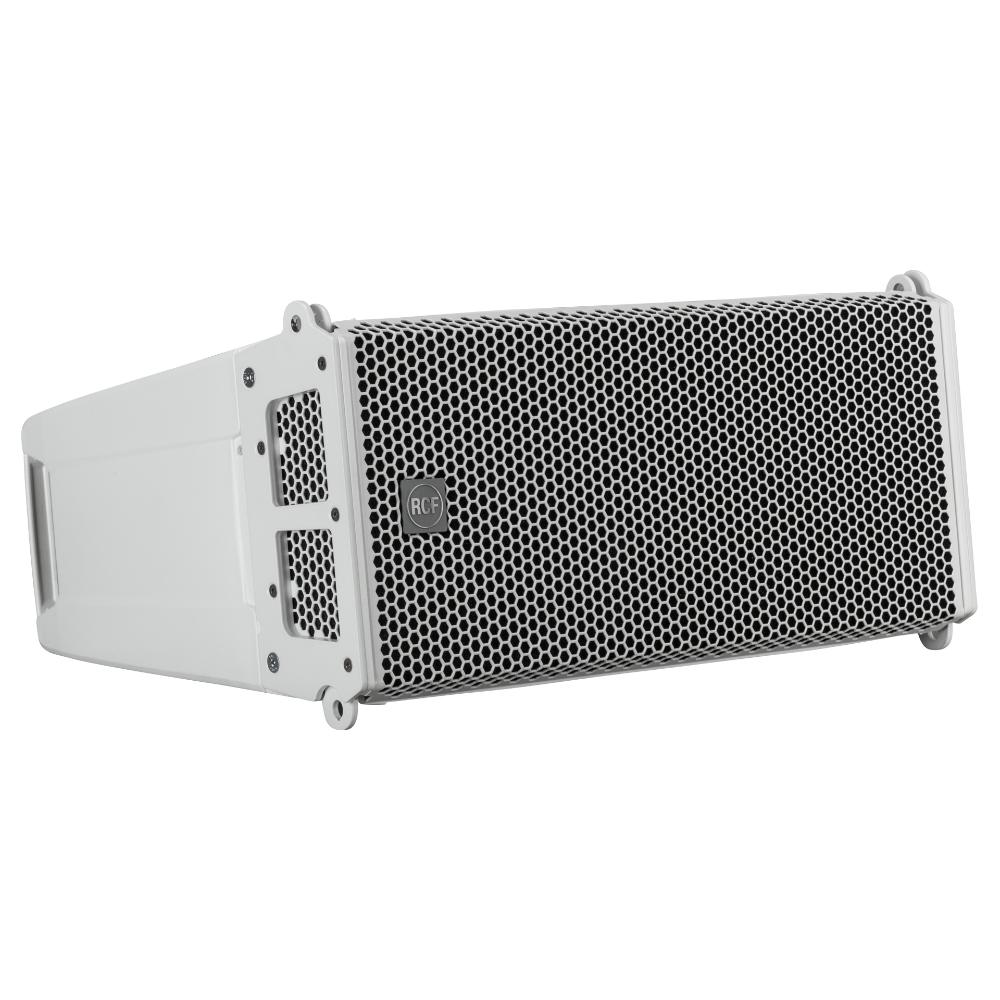

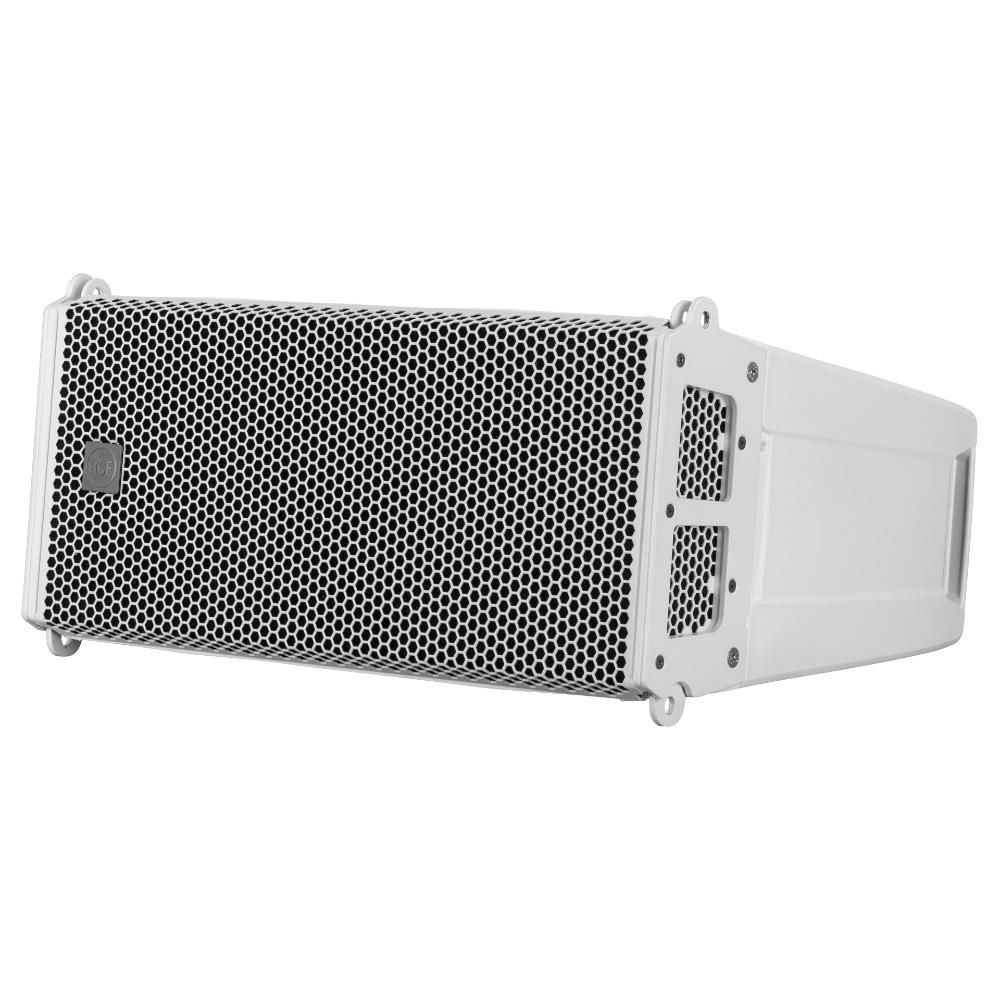

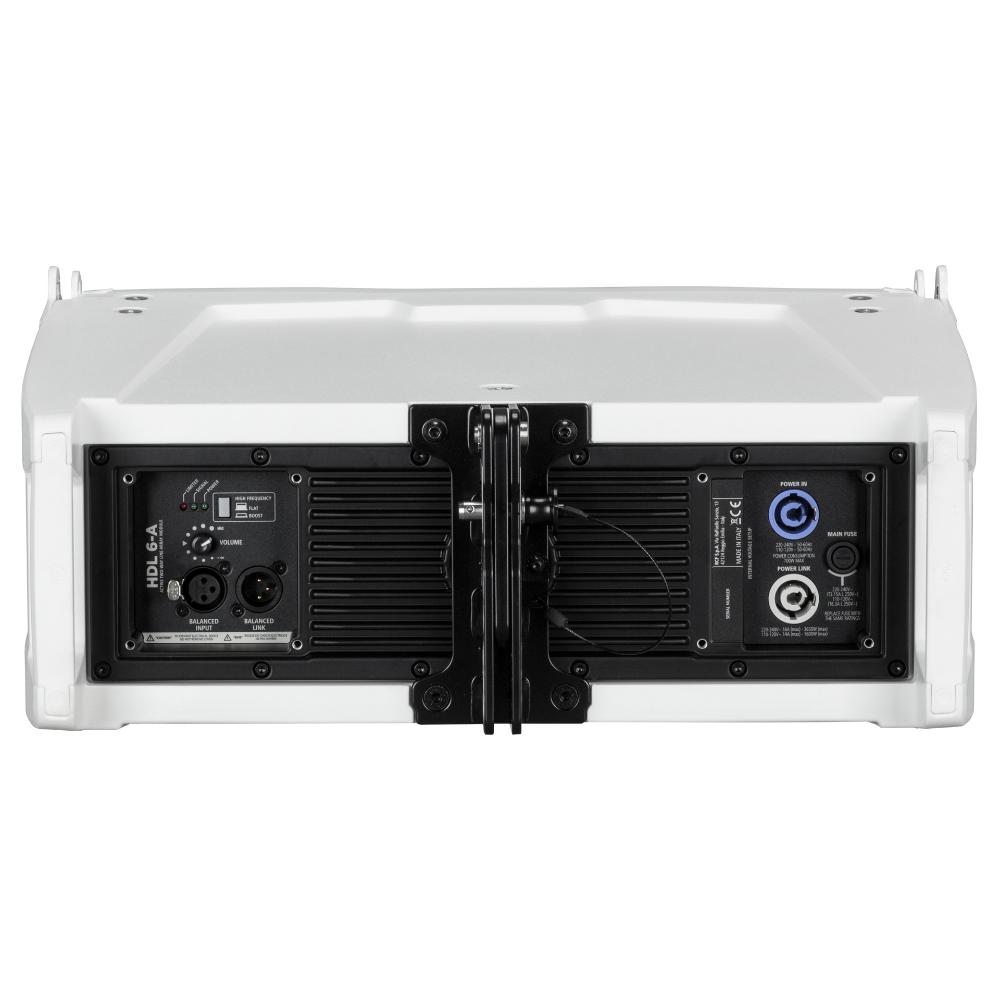

When a brighter look of the system is needed, HDL 6-A is available in white color
Responsive Image
Responsive Image

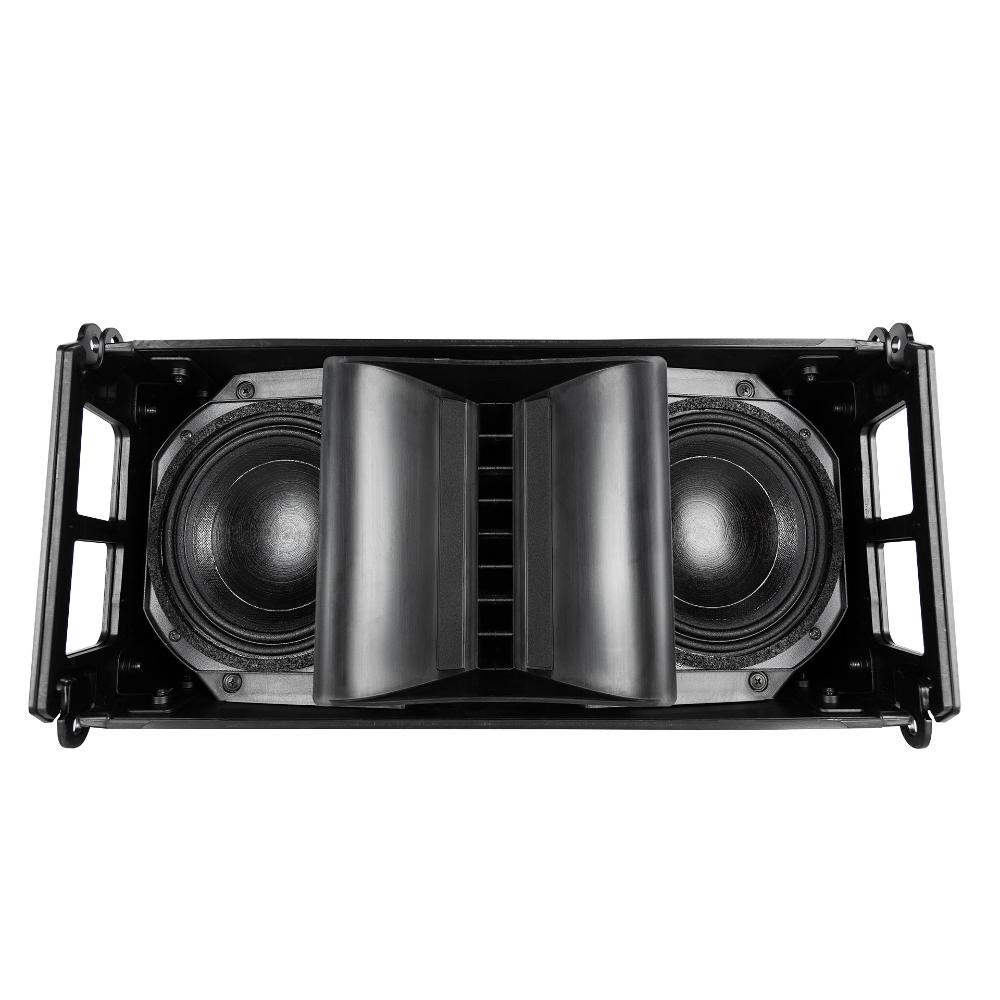

Custom designed waveguide

The custom designed waveguide provides a precise coverage of 100° x 10° delivering a superb, linear high frequency response.

Thanks to its large format compression driver on a waveguide, the HDL 6-A offers superior intelligibility over distance.

Symmetrical design

Due to its symmetrical design the HDL 6-A produces constant coverage without break up or attenuation.

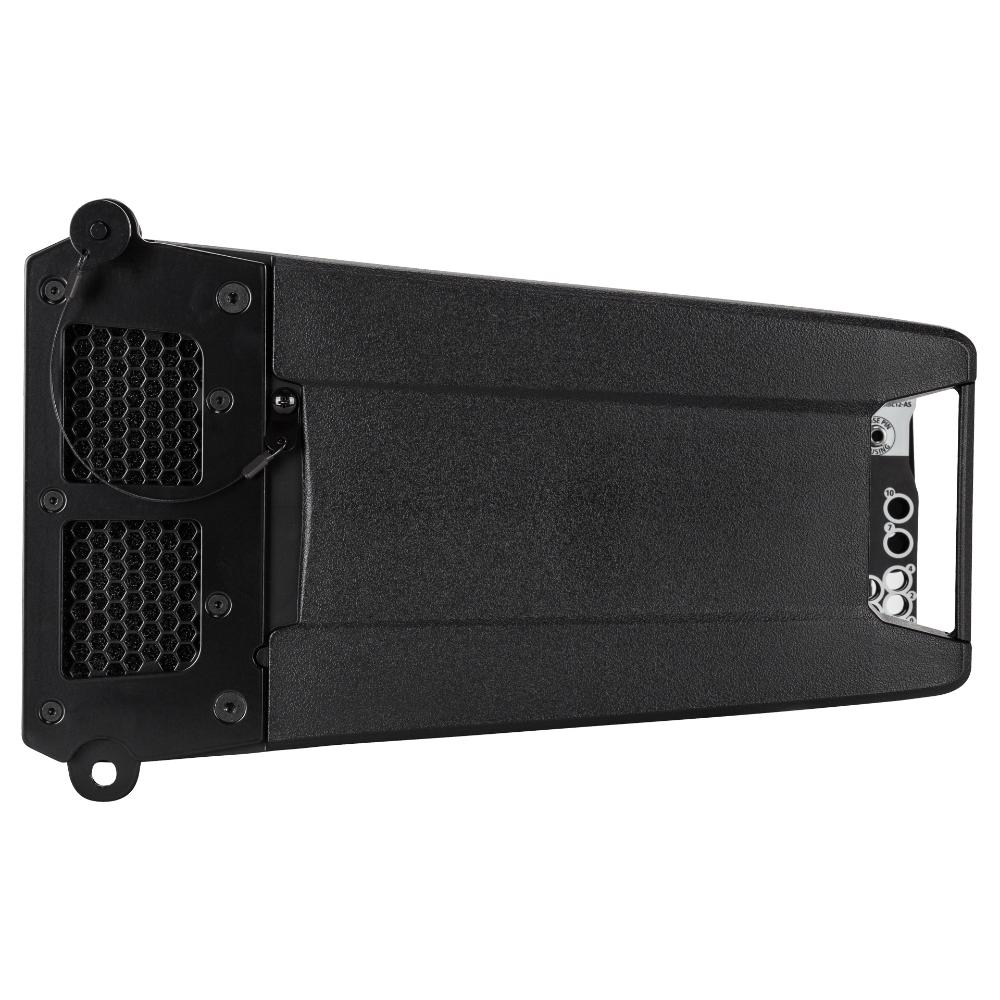

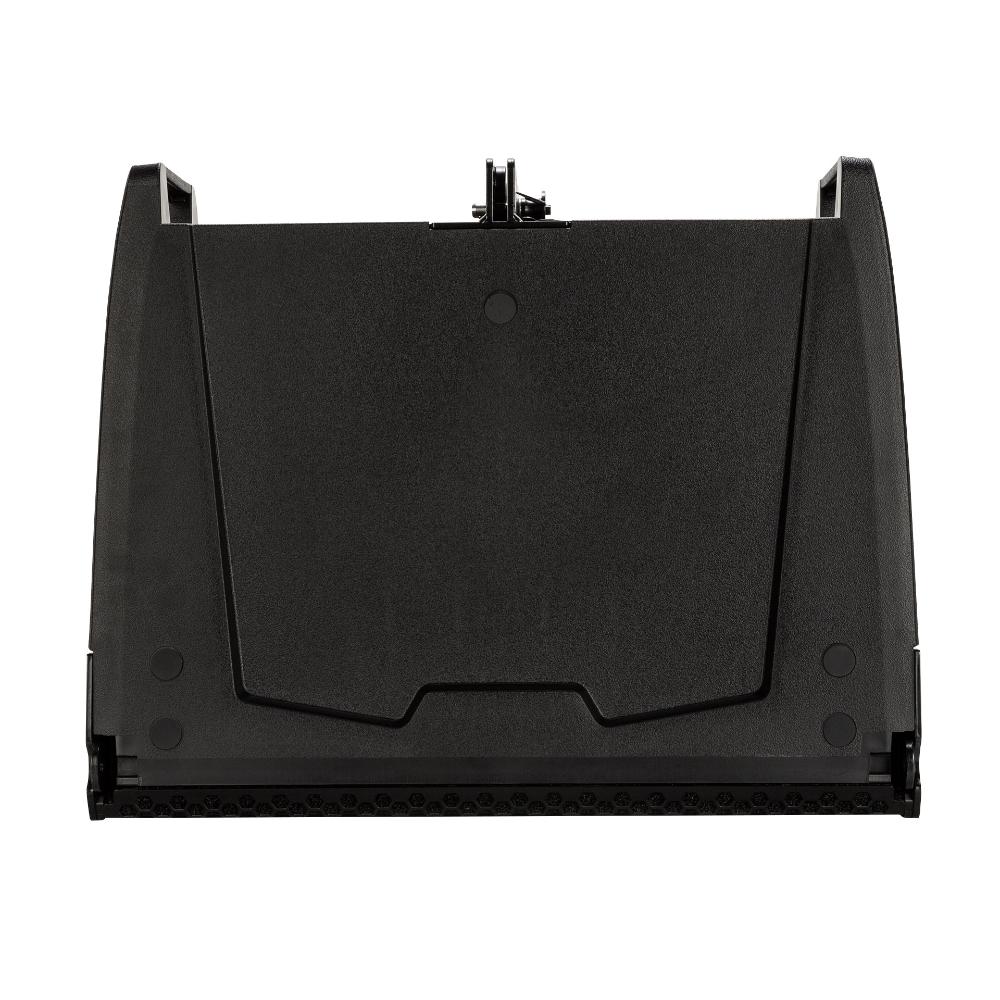

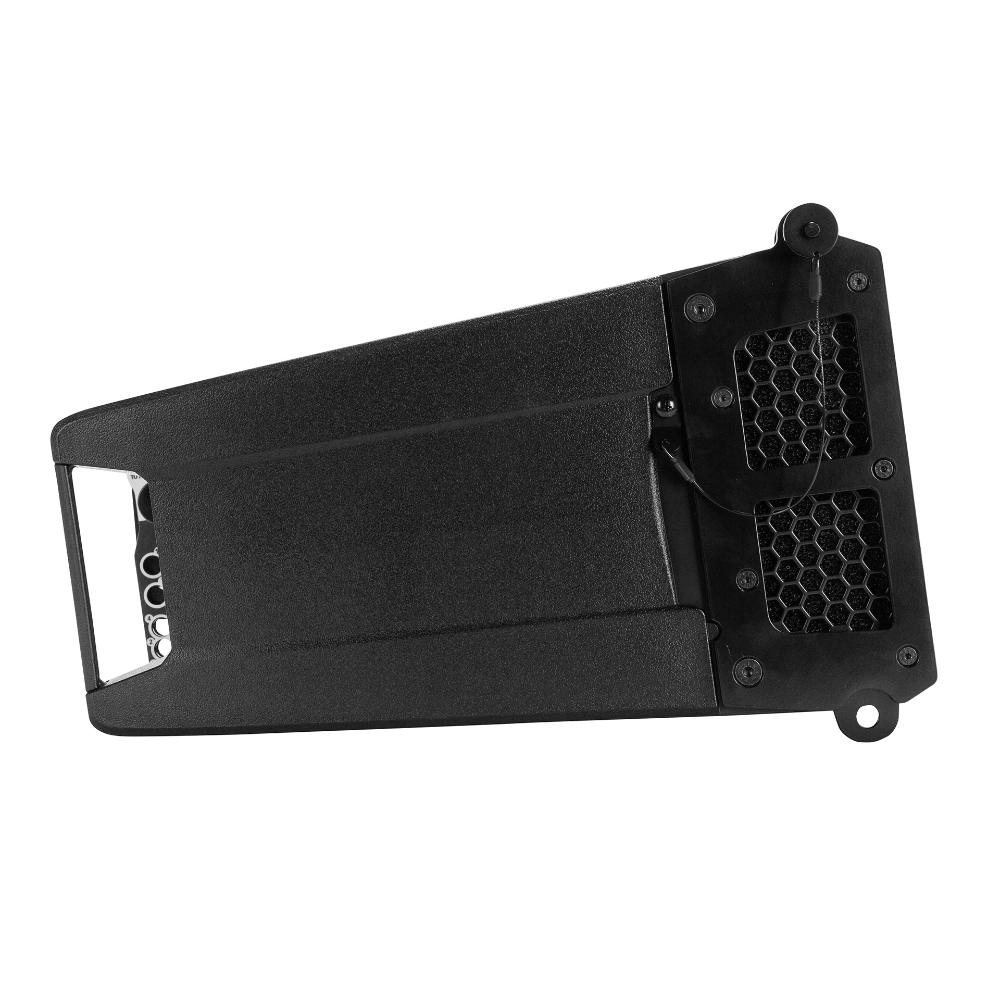

The HDL 6-A tour grade system comes in a structurally wooden reinforced composite polypropylene enclosure, and is equipped with two aluminium rear handles for portability.

The RCF HDL will maintain its intelligibility, definition and signal strength while competitive models will attenuate and break up before the sound reaches its throw distance.
Responsive Image

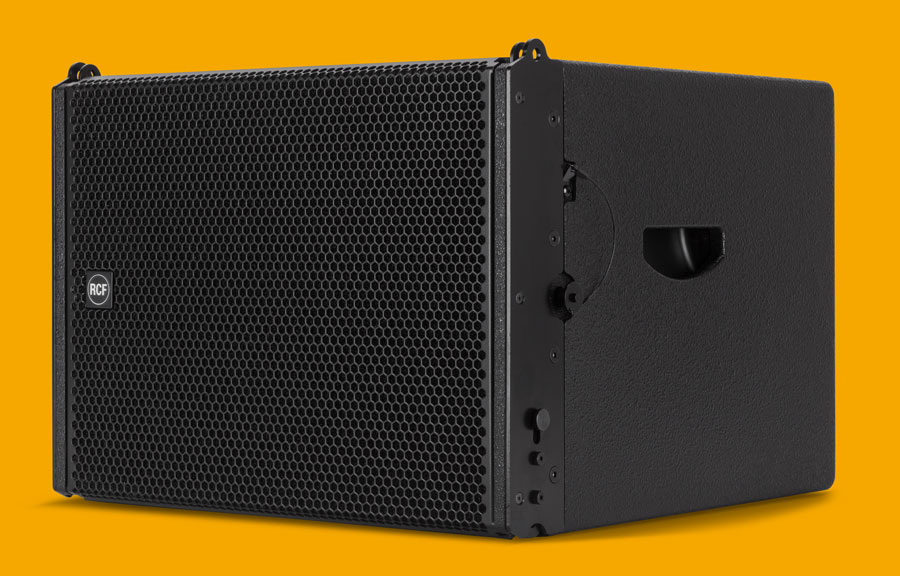

The ideal flyable bass complement

The HDL 12-AS is the companion subwoofer for HDL 6-A. Housing a 12” woofer, the HDL 12-AS, is a very compact active sub enclosure and features a powerful 1400W Class-D amplifier. It is the ideal complement to create flown HDL 6-A clusters with outstanding performance. It features a built-in digital stereo crossover (DSP) with adjustable crossover frequency to connect the HDL 6-A line array module or a satellite. The integrated mechanics are both fast and reliable. The heavy-duty front grille is power coated.
Responsive Image
Specifications
Acoustical specifications
Frequency Response:
65 Hz ÷ 20000 Hz
Max SPL @ 1m:
131 dB
Horizontal coverage angle:
100°
Vertical coverage angle:
10°
Transducers
Compression Driver:
1 x 1.0'' neo, 1.75'' v.c
Woofer:
2 x 6.0'' neo, 2.0'' v.c

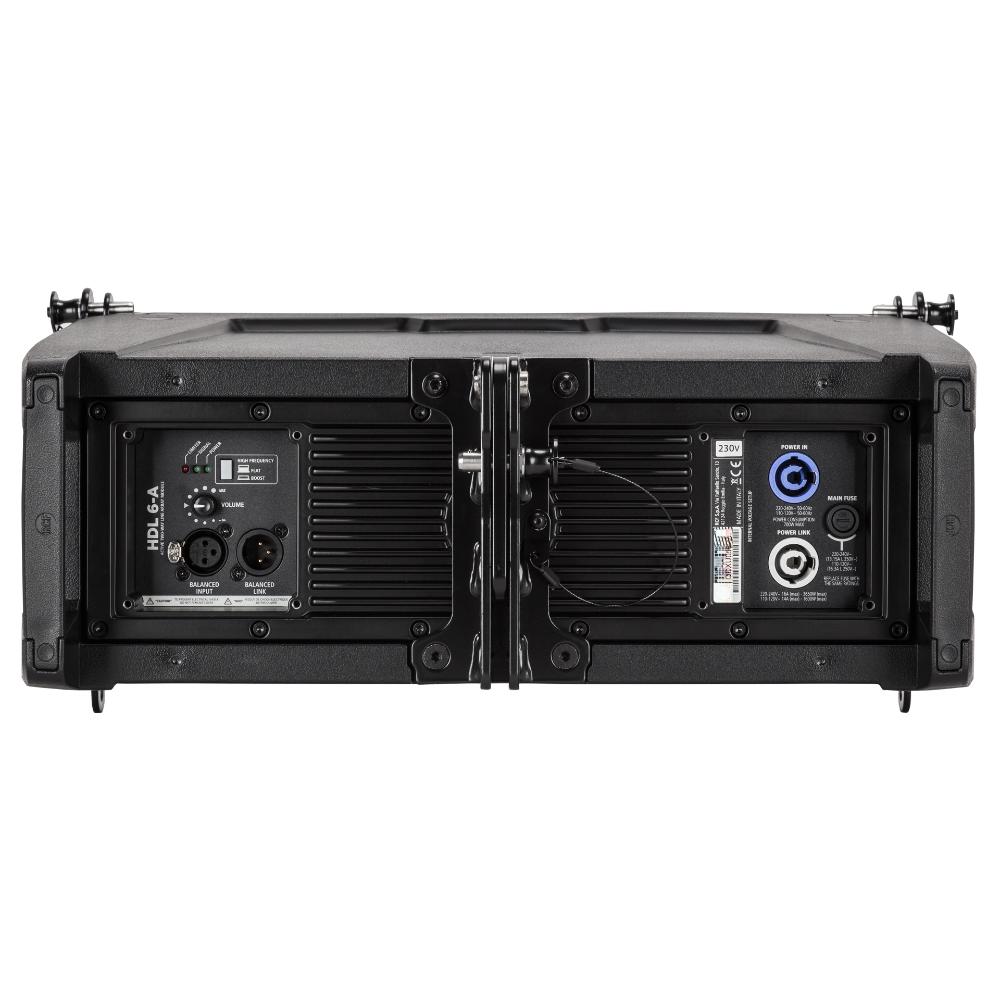

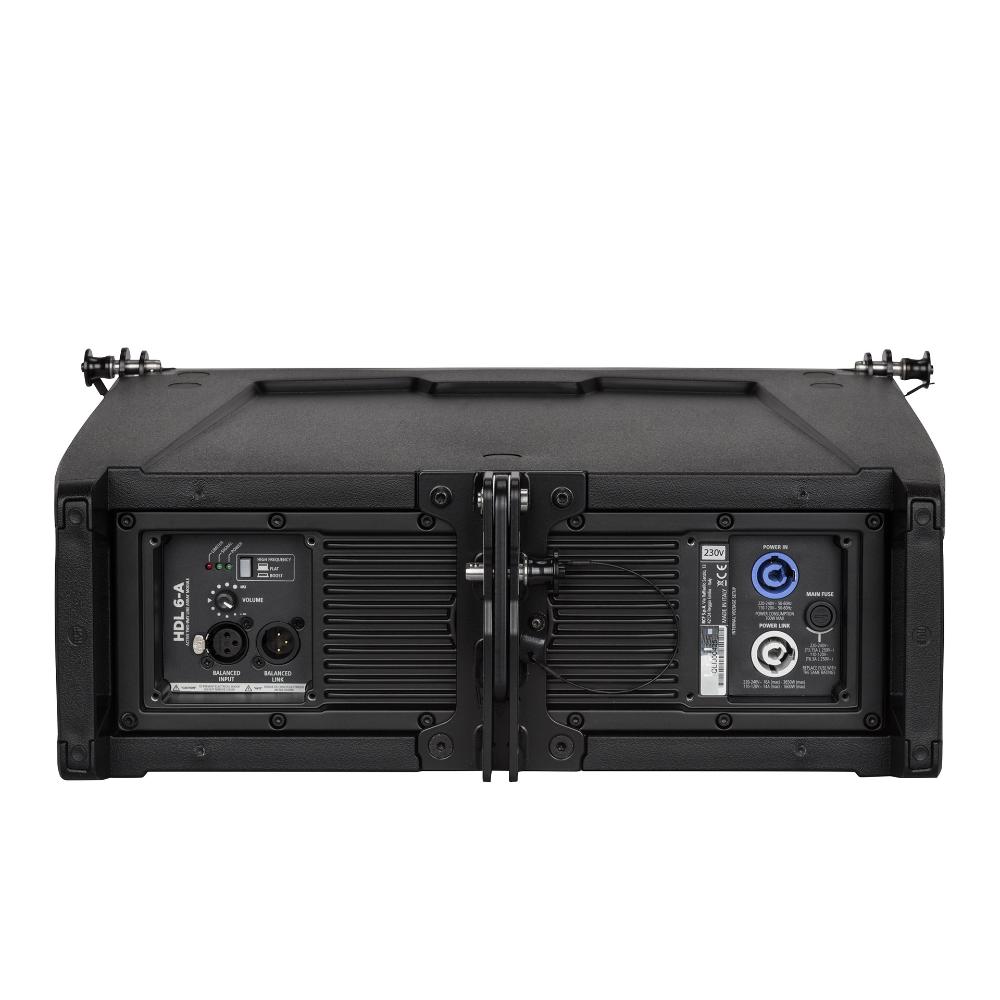

Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR
Output connectors:
XLR
Input sensitivity:
+4 dBu
Processor section
Crossover Frequencies:
900 Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter

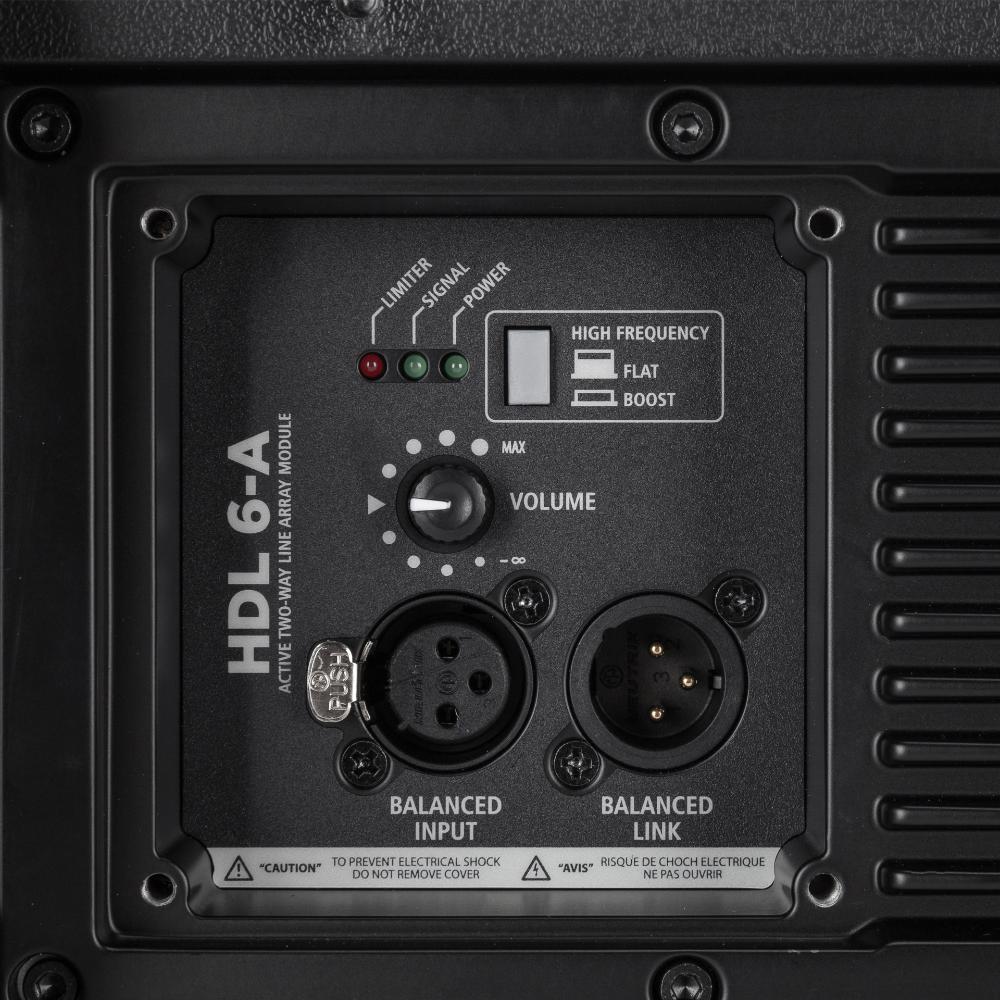

Controls:
HF correction
Power section
Total Power:
1400 W Peak, 700 W RMS
High frequencies:
400 W Peak, 200 W RMS
Low frequencies:
1000 W Peak, 500 W RMS
Cooling:
Convection

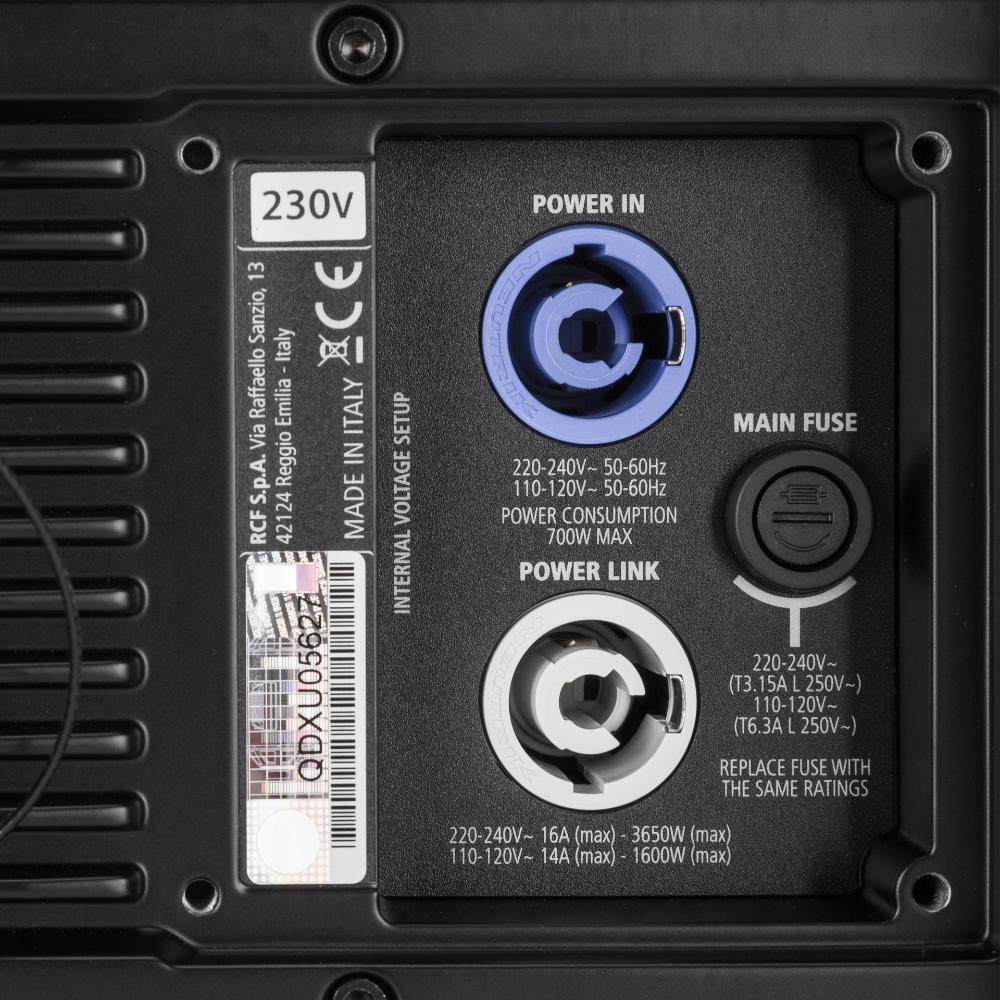

Connections:
Powercon IN/OUT
Physical specifications
Cabinet/Case Material:
PP Composite
Hardware:
Array fittings
Handles:
2 Back
Grille:
Steel
Color:
Black, White
Size
Height:
237 mm / 9.33 inches
Width:
470 mm / 18.5 inches
Depth:
377 mm / 14.84 inches
Weight:
11.6 kg / 25.57 lbs
Shipping information
Package Height:
260 mm / 10.24 inches
Package Width:
550 mm / 21.65 inches
Package Depth:
425 mm / 16.73 inches
Package Weight:
13 kg / 28.66 lbs
