INSTALLED SOUND

HL 35-S

FLYABLE PASSIVE SUBWOOFER
  • 3600W Peak Power Handling
  • 134 dB Max SPL
  • 40 ÷ 140 Hz Frequency Range
  • 1 x 15" High-Power Woofer
Where to buy
Features
  • 3600W Peak Power Handling
  • 134 dB Max SPL
  • 40 ÷ 140 Hz Frequency Range
  • 1 x 15" High-Power Woofer
  • Baltic birch Plywood Cabinet
  • Steel Front Grille with Cloth
  • M20 Standard Pole Mount (top of cabinet)
  • 2 x SpeakON Connectors

The HL 35-S is the ideal flyable bass complement for the HL 6 line array system. It features a Baltic birch plywood cabinet housing one 4.0” voice coil and a 15” neodymium woofer that handles frequencies from 40 Hz to 140 Hz, with maximum linearity and low distortion up to 134 dB. The hardware is designed for fast deployment and is completely compatible with HL 6 rigging. The heavy-duty front grille is powder-coated with a special transparent-to-sound foam backing inside that helps to further protect the transducers from dust and debris.

Part number:

13000732
HL 35-S
EAN 8024530019075

Responsive Image

Designed for installation

The passive architecture makes the HL 35-S one of the lightest 15" flyable bass modules on the market. Perfect for keeping the floor clear and maximizing the efficiency and coherence of the array. Combining it with robust rigging and a wide range of accessories, it's the perfect solution for installation in both sports arenas, corporate environments, and music venues. The HL 35-AS provides sound pressure and clarity that can replace antiquated, oversized sound systems with improved acoustic performance.

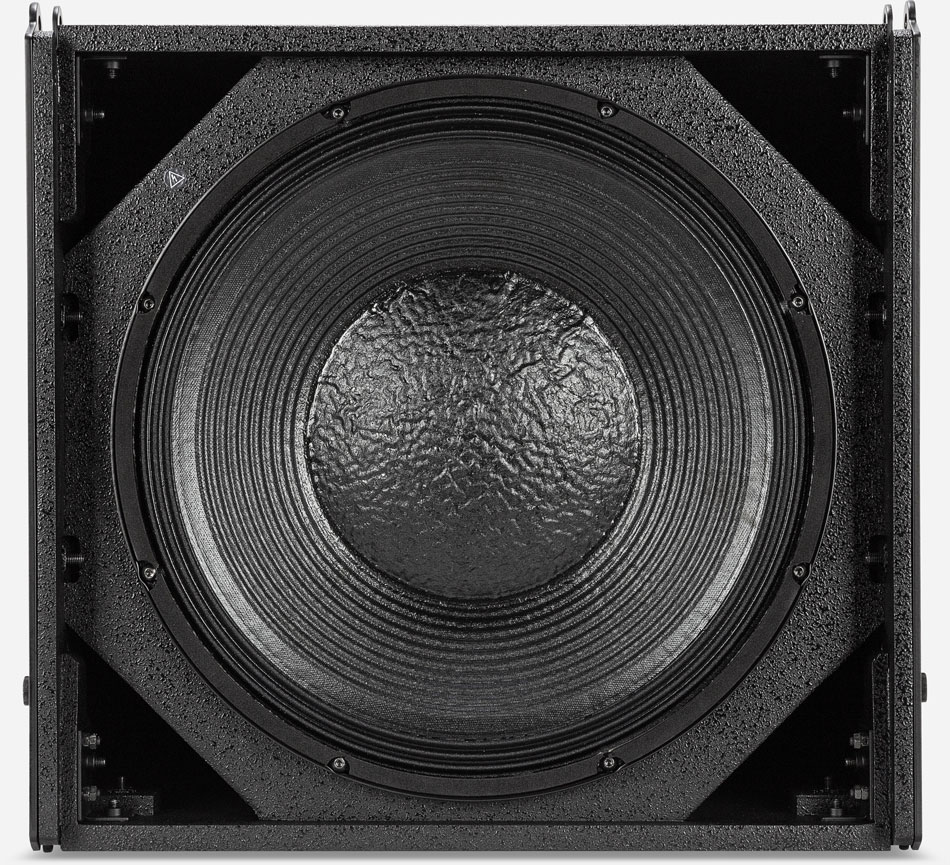

Precision transducers

Our latest developments have resulted in designing state of the art neodymium magnetic circuits, radically new voice coil ventilation systems and ground-breaking direct drive voice coil assemblies.
Responsive Image

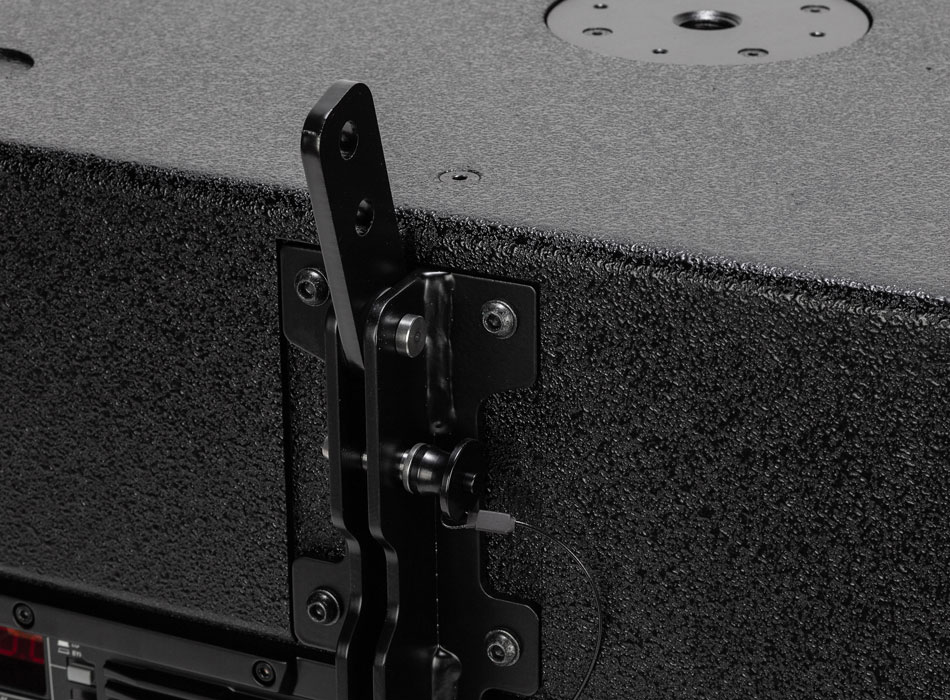

Cabinet & mechanics

The hardware is designed for an easy and fast setup, completely compatibile with the HL 6 rigging. The heavy-duty front grille is powder coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust. For weatherproof capabilities, a rain cover is available.
Responsive Image
Responsive Image

The HL 6’s perfect low-frequency companion

The integrated fittings are both easy to use and reconfigurable, allowing the system engineer to extend the HL 6-A lower range with one or multiple HL 35-S modules. It can be used attached to the flybar, on the floor, or stacked with the HL 6 on top. The hardware is designed for easy and fast setup. The heavy-duty front grille is powder-coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust and debris.
Specifications
Acoustical specifications
Frequency Response (-10dB):
40 Hz ÷ 140 Hz
Max SPL @ 1m:
134 dB
Power section
Amplification:
Full Range
Nominal Impedance:
8 ohm
Power Handling:
900 W
Peak Power Handling:
3600 W PEAK
Recommended Amplifier:
1800 W
Transducers
Woofer:
15'' neo, 4.0'' v.c
Input/Output section
Input connectors:
Speakon
Output connectors:
Speakon
Standard compliance
Safety agency:
CE compliant
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Hardware:
Integrated array mechanics
Handles:
On side panels
Pole mount/Cap:
Yes
Grille:
Steel
Color:
Black - RAL 9005
Size
Height:
444.5 mm / 17.5 inches
Width:
480 mm / 18.9 inches
Depth:
508 mm / 20 inches
Weight:
28 kg / 61.73 lbs
Shipping information
Package Height:
530 mm / 20.87 inches
Package Width:
560 mm / 22.05 inches
Package Depth:
525 mm / 20.67 inches
Package Weight:
33 kg / 72.75 lbs
