INSTALLED SOUND

HL 6

TWO-WAY LINE ARRAY MODULE
  • 1000W Peak Power Handling
  • 131 dB Max SPL
  • 65 ÷ 20000 Hz Frequency Range
  • 100° x 10° Coverage Angles
Where to buy
Features
  • 1000W Peak Power Handling
  • 131 dB Max SPL
  • 65 ÷ 20000 Hz Frequency Range
  • 100° x 10° Coverage Angles
  • 1.75” Neodymium Compression Driver
  • 2 x 6” High-Powered Neodymium Woofers
  • Constant Directivity Waveguide
  • Extremely Low Weight

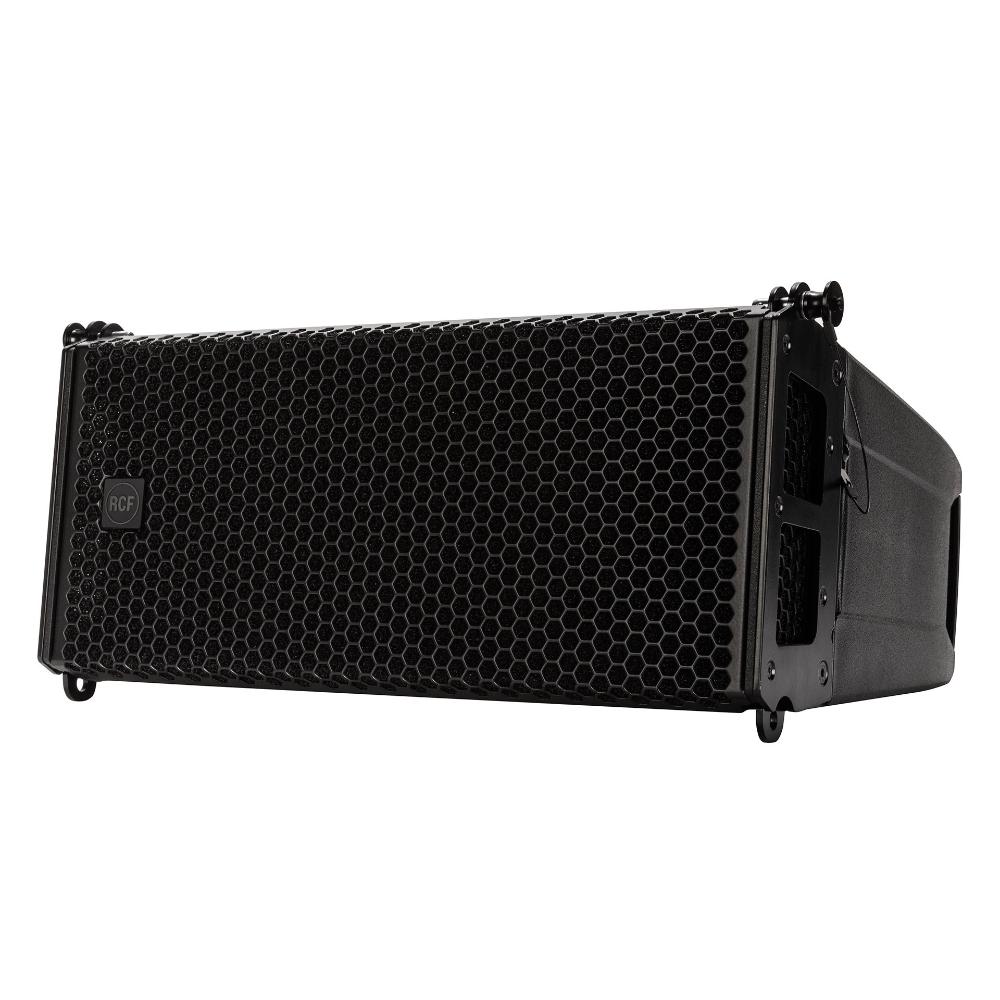

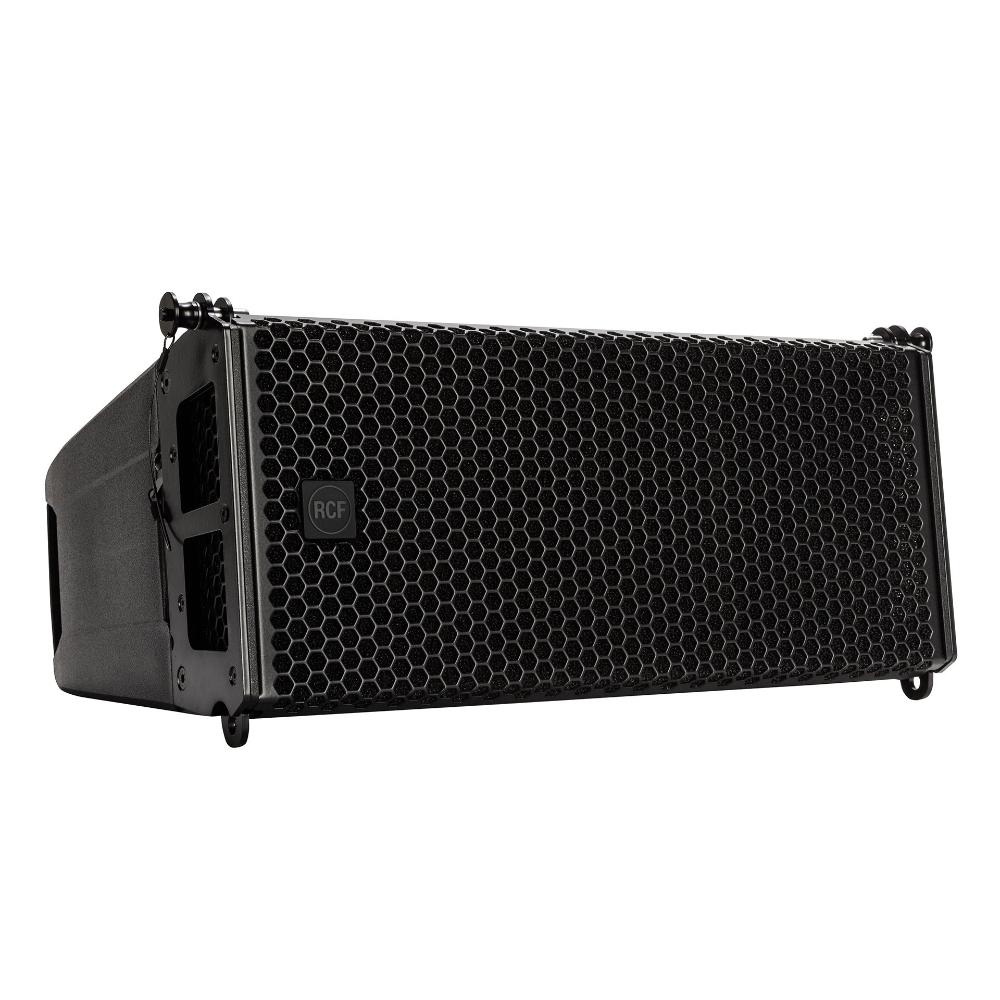

The RCF HL 6 is an ultra-compact passive two-way full-range system for small and medium-sized spaces. The 1.75" neodymium compression driver with a constant-directivity waveguide design generates a horizontal constant-directivity coverage of 100 degrees over the entire vocal range with remarkable clarity. Two high-power 6" woofers deliver extended low-end up to 131 dB SPL for a wide range of applications, both alone, or in line-array configuration.

Part number:

13000726
HL 6
EAN 8024530019068

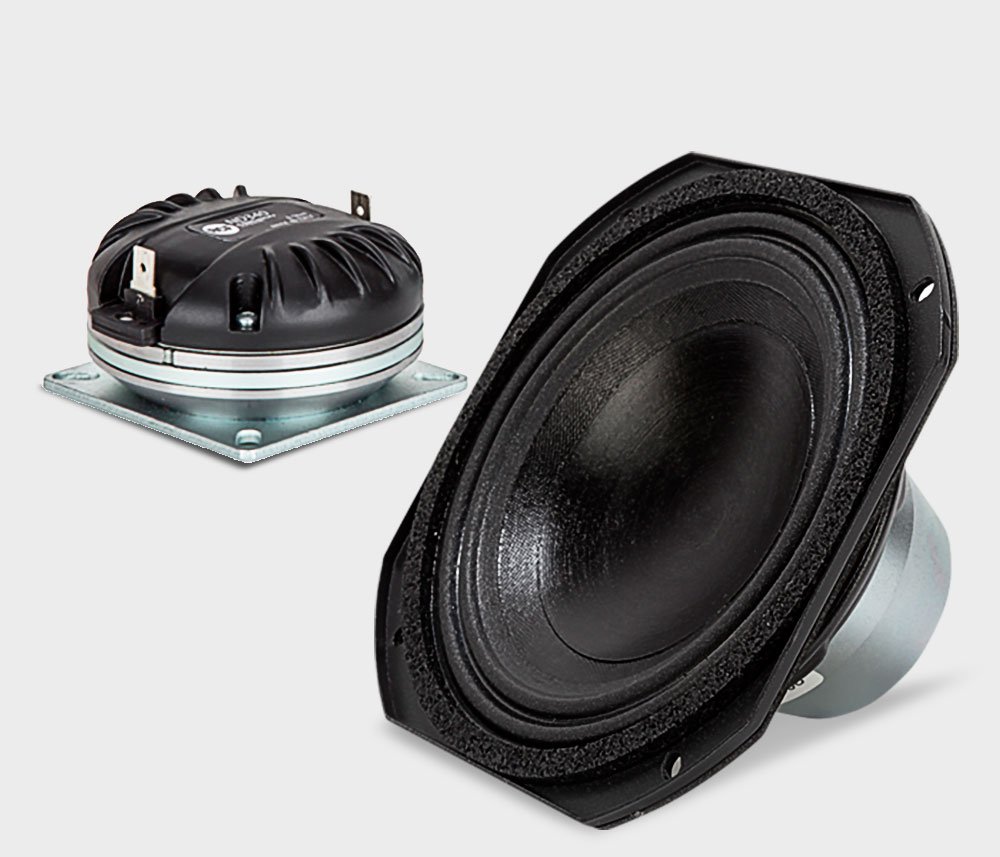

Legendary transducers

The RCF HL 6 features RCF transducers with neodymium magnets. RCF’s experienced engineering teams have specially developed and matched each component. An entire set of protections preserve product life and reliability.
High frequencies
  • High-performance RCF ND340
  • 1.75-inch diaphragm neodymium compression driver
  • 900 Hz crossover point
Low frequencies
  • Two 6” neodymium woofers
  • Low frequencies handling down to 65 Hz
  • Water resistant fiber doped cone
  • Polycotton M-roll surround
  • Hypervented magnetic structure
Responsive Image
Responsive Image

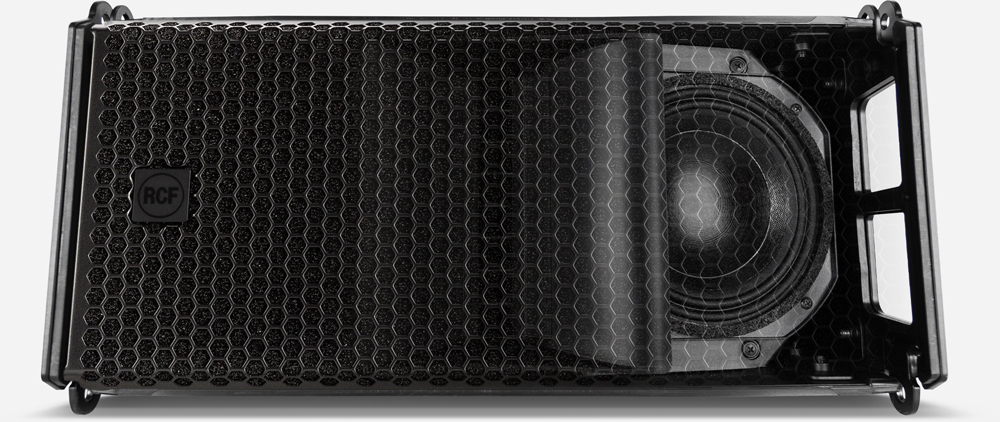

Constant directivity waveguide

The custom-designed waveguide allows a precise coverage of 100° x 10°, while also delivering a completely linear high-frequency response. The constant directivity waveguide delivers consistent coverage from 900 Hz to the highest audible frequencies.
Responsive Image

Perfect for installation

The passive architecture makes the HL 6 one of the lightest line array modules on the market. Combined with flexible rigging options and a wide range of accessories, it's the ideal line array for installation both in corporate environments or music venues. HL 6 provides plenty of sound pressure and clarity that can replace antiquated, oversized sound systems with improved acoustic performance.

Advanced design

The integrated fittings are both easy to use and reconfigurable, allowing the system engineer to create J-shaped and spiral arrays starting at 1° angle.
The hardware is designed for easy and fast setup. Up to 16 HL 6 modules can be fastened on a single flybar.

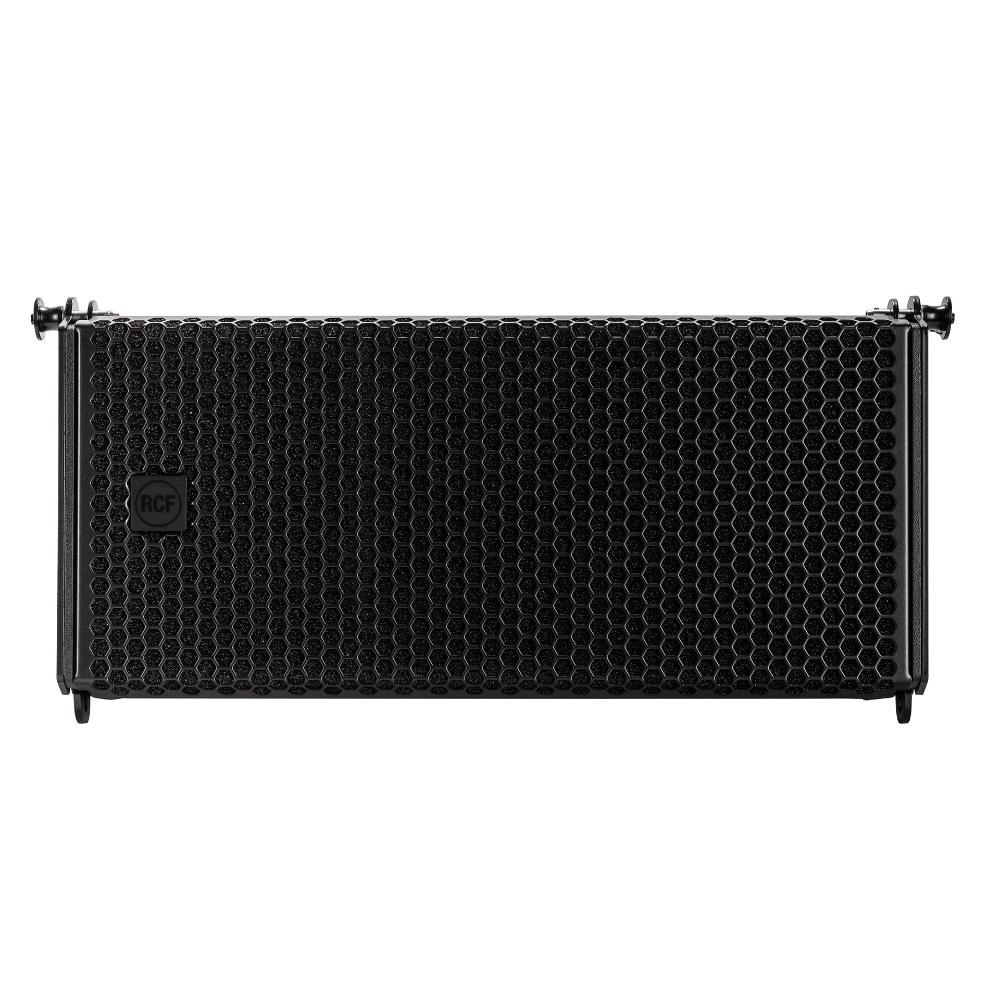

The heavy-duty front grille is powder-coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust and debris.
Responsive Image
Responsive Image

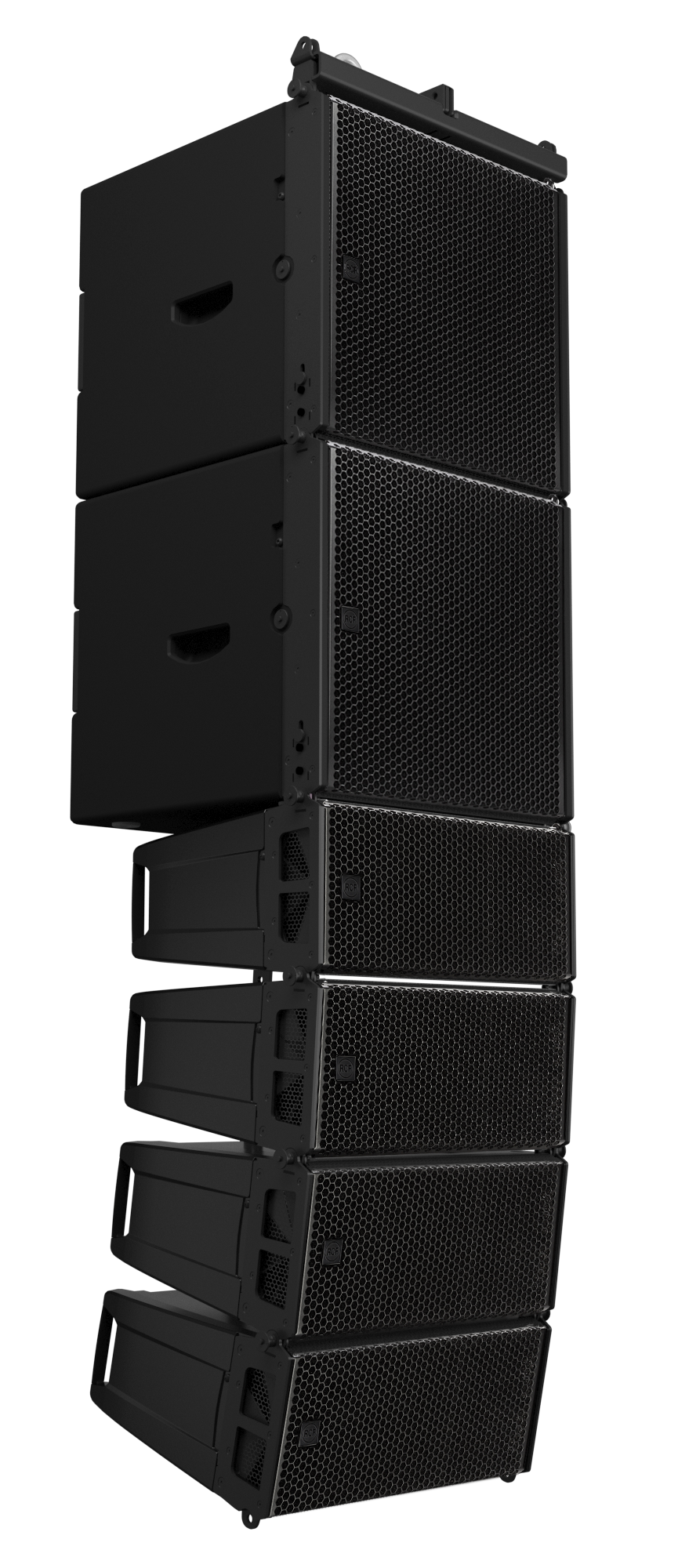

The HL 6’s perfect low-frequency companion

Perfect for keeping the floor clear and maximizing the efficiency and coherence of the array, the low-frequency companion designed for the HL 6 is the high-performance flyable single 15” HL 35-S. The integrated fittings are both easy to use and reconfigurable, allowing the system engineer to extend the HL 6 lower range with one or multiple HL 35-S modules. It can be used attached to the flybar, on the floor, or stacked with the HL 6 on top. HL 35-S provides sound pressure and clarity that can replace antiquated, oversized sound systems with improved acoustic performance.
Specifications
Acoustical specifications
Frequency Response (-10dB):
65 Hz ÷ 20000 Hz
Max SPL @ 1m:
131 dB
Horizontal coverage angle:
100°
Vertical coverage angle:
10°
Directivity index Q:
16
Power section
Amplification:
Full Range
Nominal Impedance:
16 ohm
Power Handling:
250 W
Peak Power Handling:
1000 W PEAK
Recommended Amplifier:
500 W
Protections:
Dynamic Active Mosfet
Crossover Frequencies:
900 Hz
Transducers
Compression Driver:
1 x 1.0'' neo, 1.75'' v.c
Woofer:
2 x 6.0'' neo, 2.0'' v.c

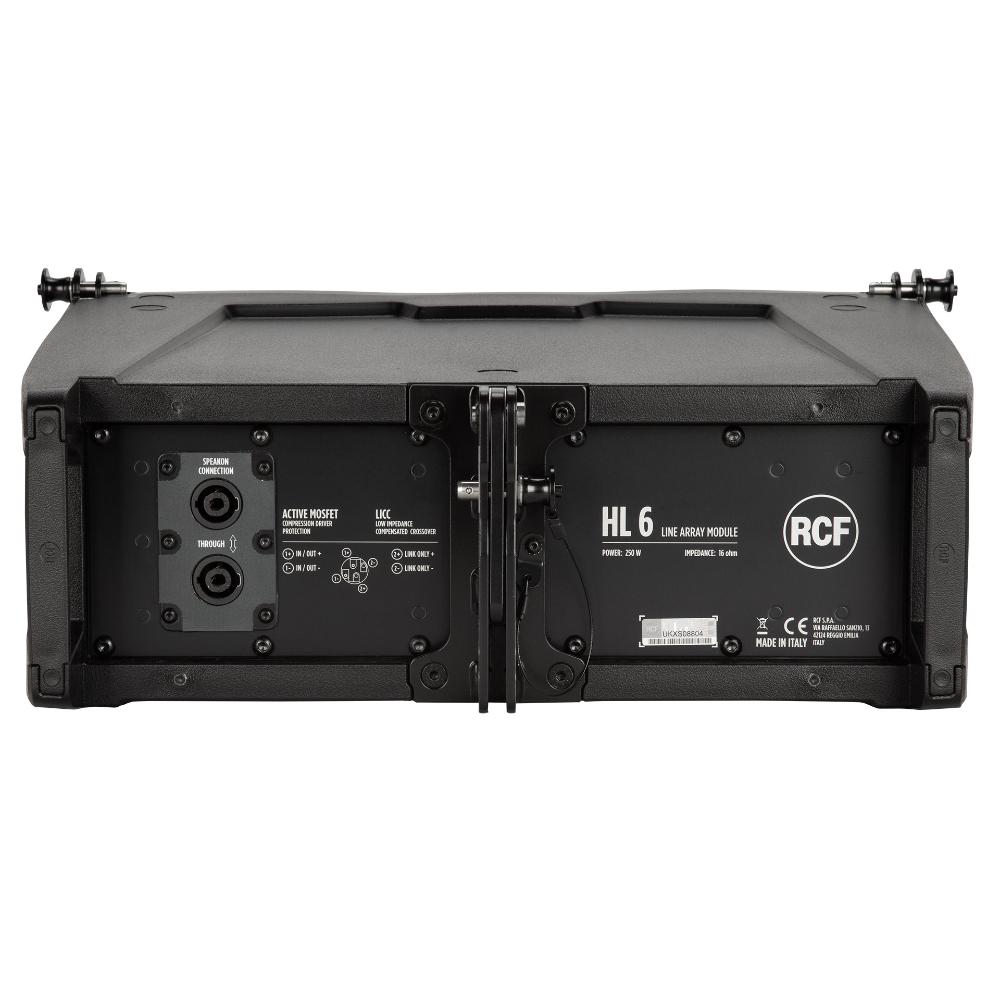

Input/Output section
Input connectors:
Speakon
Output connectors:
Speakon
Standard compliance
Safety agency:
CE compliant
Physical specifications
Cabinet/Case Material:
PP Composite
Hardware:
Integrated array mechanics
Handles:
2 on the rear panel
Grille:
Steel
Color:
Black - RAL 9005
Size
Height:
237 mm / 9.33 inches
Width:
470 mm / 18.5 inches
Depth:
377 mm / 14.84 inches
Weight:
11.8 kg / 26.01 lbs
Shipping information
Package Height:
260 mm / 10.24 inches
Package Width:
550 mm / 21.65 inches
Package Depth:
425 mm / 16.73 inches
Package Weight:
13.3 kg / 29.32 lbs
