MIXING CONSOLES

M 20X

DESKTOP DIGITAL MIXER
  • 20 analog inputs, 16 mic preamps and 4 line inputs
  • 12 balanced outputs + phones
  • 20-tracks sd card play/rec
  • 24 x 24 CH USB Audio Interface (24-bit/48 kHz)
Where to buy
Features
  • 20 analog inputs, 16 mic preamps and 4 line inputs
  • 12 balanced outputs + phones
  • 20-tracks sd card play/rec
  • 24 x 24 CH USB Audio Interface (24-bit/48 kHz)
  • 11 motorized Faders
  • Smooth User Interface with 5” Touchscreen
  • AES Digital Output
  • LAN / WiFi Remote Control

M 20X is a fully recallable mixer, with 16 remote controlled preamps and 11 motorized faders. Despite its dimensions, the M 20X packs a whole suite of capabilities, such as high-profile preamplifiers, top of class DSP with studio-quality processing, WiFi remote control and a comprehensive set of multitrack recording and playback functions. The mixer offers a total of 20 analog inputs and 14 output channels, between the balanced analog outputs and the AES/EBU digital output.

READ MORE FIRMWARE UPDATE TUTORIALS

Part number:

17140093
M 20X
EU, EAN 8024530016968

17140120
M 20X
US, EAN 8024530017859

17140121
M 20X
JP, EAN 8024530017866

17140122
M 20X
UK, EAN 8024530017873

M20 MIXREMOTE APP

Complete remote control of all M 20 models is available with M20 MixRemote, a dedicated App developed for both iOS and Android. There are several options to connect with the Digital Mixer:

  • Wireless, via an external WiFi Access Point connected to the LAN
  • USB tethering to an Android tablet
  • Wired to an iOS or Android tablet (via LAN adapter)
  • WiFi Dongle, two clients maximum
Responsive Image
M20 MYREMOTE APP

The M20 MyRemote app gives you a compact control option for your RCF M 20 Series digital mixer, providing control of MIX busses on tablets and smartphones. The app does not pass audio, and it connects to the console via WiFi; therefore, a WiFi access point is required, connected to the mixer. M20 MyRemote lets you:

  • Select the monitor mix (MIX1 to MIX8)
  • View channels numbers, names and mix master meter
  • Control the mix master level
  • Control the mix send levels

M20 MyRemote main view is equivalent to the FADERS > MIX subpages on M20 MixRemote app, and is designed to fit on the screen of a smartphone;

Responsive Image
Internal SD Multitrack Record/Playback
All 20 inputs can be recorded in multitrack WAV format on the local SD card, and played back as channel inputs, no computer required.
Multichannel USB 2.0 Audio Interface
A 24-track, 24-bit, 48-kHz low-latency USB audio interface is available and allows access to all inputs and several internal signal nodes. Extensive routing options allow both offline soundcheck and host-based effects processing.
USB Drive Stereo Player/Recorder
A flexible stereo file player can access USB mass storage devices (up to four different drives), with arbitrary sample rate, in MP3, WAV, and AIFF formats.
Specifications
Electronic specifications
Frequency Response:
20 Hz ÷ 20 kHz
THD+N, 0dB gain, 0dBu out:
< 0.02% A-Weighted
Dynamic Range, Analog to Analog:
109 dB A-Weighted
Residual Noise Level, Main Out, Muted:
-85 dBu A-Weighted
Inputs
Channels:
20
Mic:
8
Remote Controlled Storable Gain:
Yes
Gain Range:
0 dB ÷ 60 dB
Mic Inputs Impedance:
3.3 kohm
Maximum Input Level:
18 dBu
Phantom Power +48V:
Yes
Mic/Line (XLR/TRS combo):
8
Remote Controlled Storable Gain:
Yes
Gain Range:
0 dB ÷ 60 dB
Mic Inputs Impedance (XLR):
3.3 kohm
Line Inputs Impedance (TRS):
12.8 kohm
Maximum Input Level (XLR):
18 dBu
Maximum Input Level (TRS):
29 dBu
Phantom Power +48V:
Yes
Balanced Line (1/4" TRS):
2
Gain Range:
-10 dB ÷ 10 dB
Line Inputs Impedance (TRS):
18 kohm
Maximum Input Level (TRS):
18 dBu
Stereo Line (3,5mm jack):
1
Gain Range:
-10 dB ÷ 10 dB
Line Inputs Impedance (TRS):
15 kohm
Maximum Input Level (TRS):
18 dBu
Input connectors:
XLR, Jack
Outputs
MIX Buses:
8
MAIN OUT (Balanced XLR):
2
Main Out Impedance:
50 ohm
Main Out Level:
24 dBu
MIX OUT (Balanced XLR):
8
MIX OUT (1/4" TRS):
2
Output Impedance:
150 ohm
Maximum Output Level:
24 dBu
Phones:
1
Output Impedance:
50 ohm
Maximum Output Level:
18 dBu
AES3 (XLR):
1
Output connectors:
XLR, Jack
Processing
Signal Processing:
32 Bit Floating Point
A/D-D/A conversion:
24 Bit @ 48.0 kHz
Headroom:
20 dB
Buss:
16
Input processing
Source Selector:
Yes
Polarity:
Yes
High Pass Filter:
Yes
Delay:
100 ms
Gate:
with Gain Reduction meter
PEQ:
4 Band
Compressor / De-Esser on Inputs:
1 ÷ 16 (with Gain Reduction meter)
Output processing
Delay:
250 ms
GEQ:
30 Band
PEQ:
8 Band
Compressor / Limiter:
with Gain Reduction meter
MIX OUT:
[1 ÷ 8]
Delay:
250 ms
PEQ:
8 Band
Compressor / Limiter:
with Gain Reduction meter
Real Time Analyzer:
Yes
Delay:
250 ms
Effects
Internal FX:
4
FX1:
Reverb (Hall, Room, Plate, Ambience)
FX2:
Reverb (Hall, Room, Plate, Ambience)
FX3:
Delay (Stereo, Modern, Vintage, Dual, ER)
FX4:
Modulation (Chorus, Flanger, Tremolo)
Multitrack
USB Audio Interface:
Yes
Number of Tracks:
20
A/D-D/A conversion:
24 Bit @ 48.0 kHz
SD Multitrack Format:
WAV, 24Bit, 48.0kHz
Recording:
20 Channels
Playback:
20 Channels
USB Audio:
Yes
A/D-D/A conversion:
24 Bit @ 48.0 kHz
USB Audio Interface Format:
WAV, 24Bit, 48.0kHz
Upstream:
24 Channels
Downstream:
24 Channels
USB drive play/rec
A/D-D/A conversion:
24 Bit @ 48.0 kHz
USB Drive Recording:
2 Channels @ WAV, 24Bit, 48.0kHz
A/D-D/A conversion:
16 Bit @ 44.1, 48.0, 88.2, 96.0 kHz
USB Drive Playback:
2 Channels @ WAV/MP3/AIFF, 16Bit, 44.1, 48.0, 88.2, 96.0kHz
Control interfaces
LAN port:
1000-BaseTX for remote control
USB Ports:
2 Type A
Description:
MIDI interface, WiFi dongle (must be en
Electrical specifications
Power supply:
Internal
Voltage requirements:
100 V - 240 V
Power consumption (MAX):
70 W
Physical specifications
Cabinet/Case Material:
Metal
Size
Height:
131 mm / 5.16 inches
Width:
388 mm / 15.28 inches
Depth:
428 mm / 16.85 inches
Weight:
7.9 kg / 17.42 lbs
Shipping information
Package Height:
215 mm / 8.46 inches
Package Width:
580 mm / 22.83 inches
Package Depth:
506 mm / 19.92 inches
Package Weight:
9 kg / 19.84 lbs

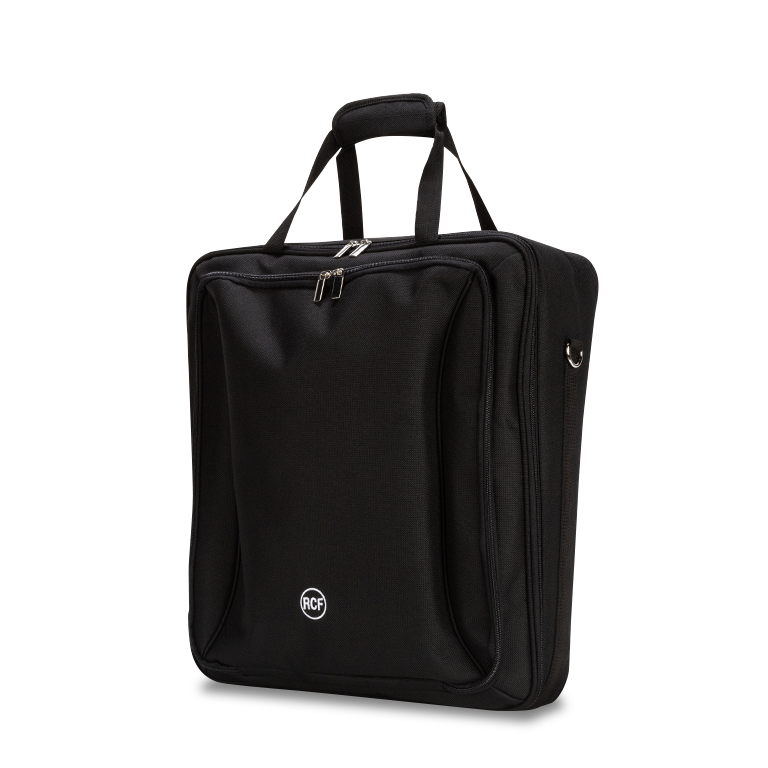

Accessories
