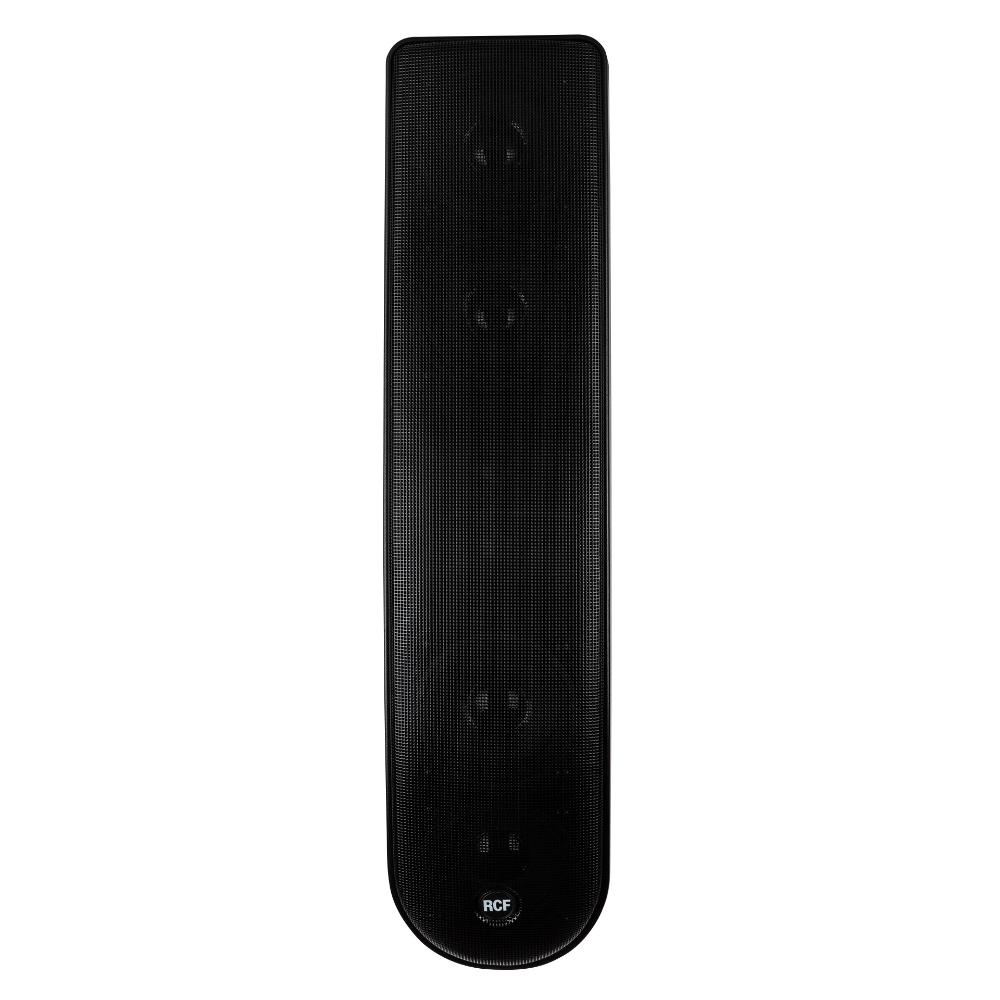

MQ 100L

THREE-WAY COLUMN LOUDSPEAKER
  • 2 x 3.5" woofer, 2 x 3.5 midrange and 2 x 0.75 dome tweeter
  • Power selectable (100 V): 40 W – 20 W – 10 W – 5 W
  • 93 dB sensitivity
  • Colour white RAL 9016 and black RAL 9005
Where to buy
Features
  • 2 x 3.5" woofer, 2 x 3.5 midrange and 2 x 0.75 dome tweeter
  • Power selectable (100 V): 40 W – 20 W – 10 W – 5 W
  • 93 dB sensitivity
  • Colour white RAL 9016 and black RAL 9005
  • Plastic body, steel grille

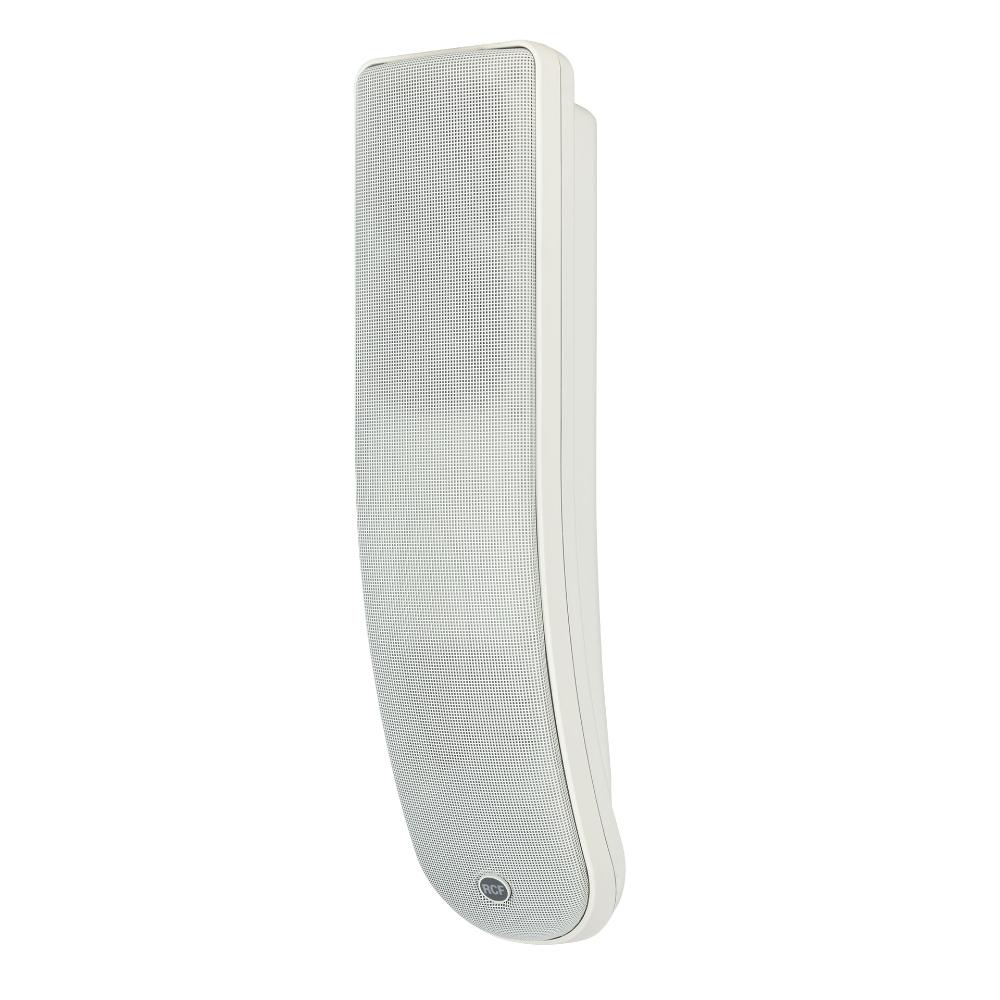

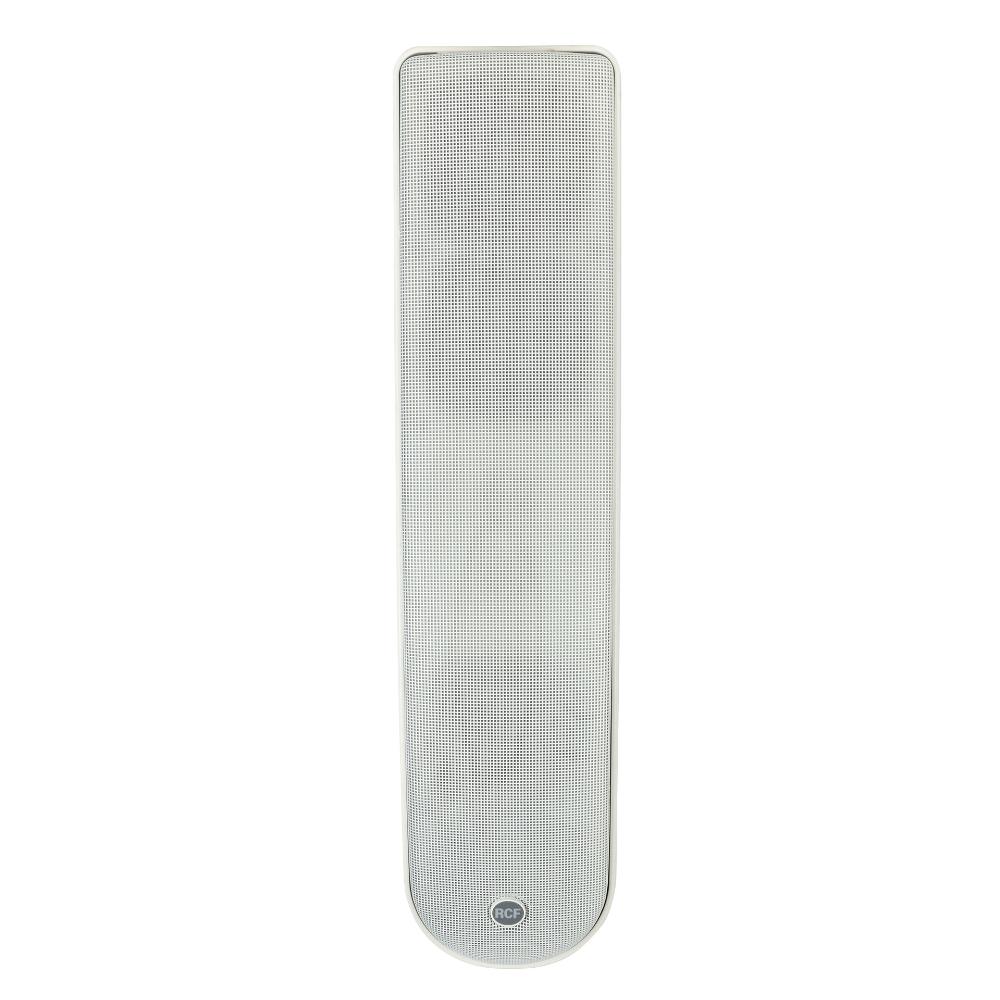

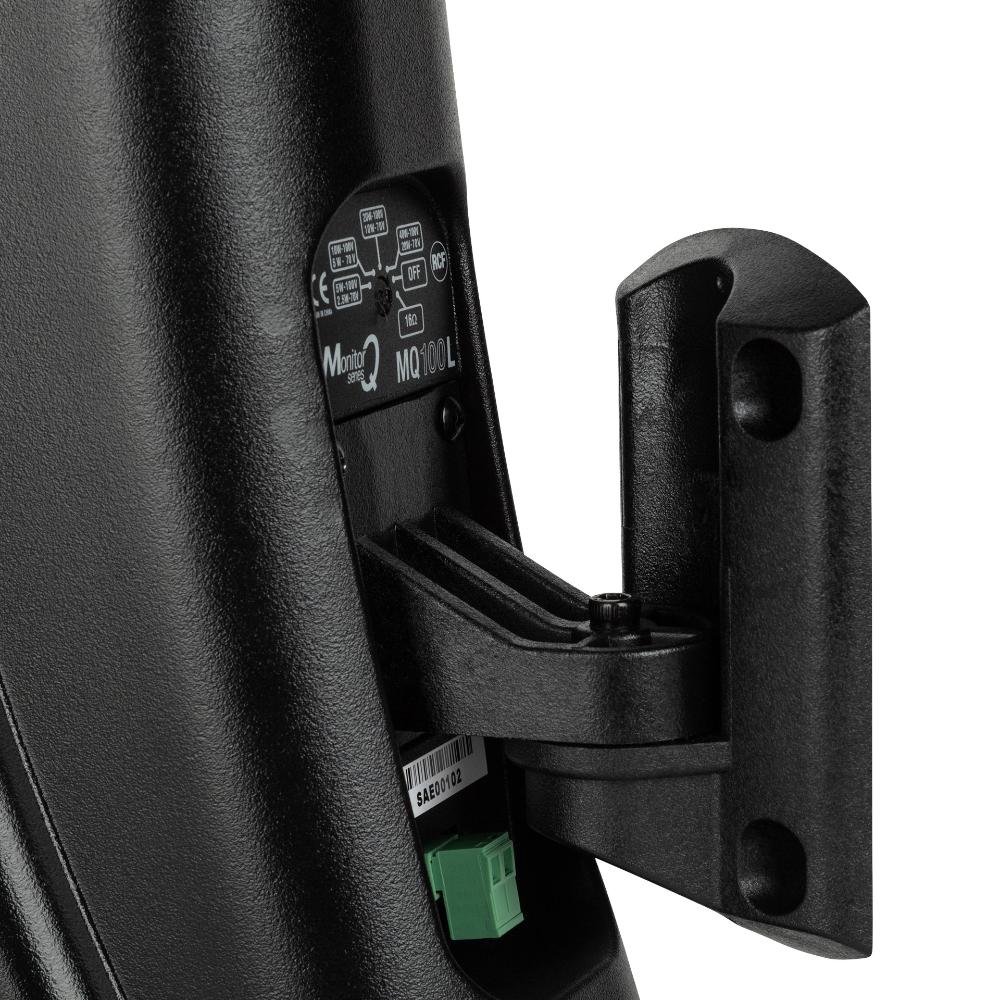

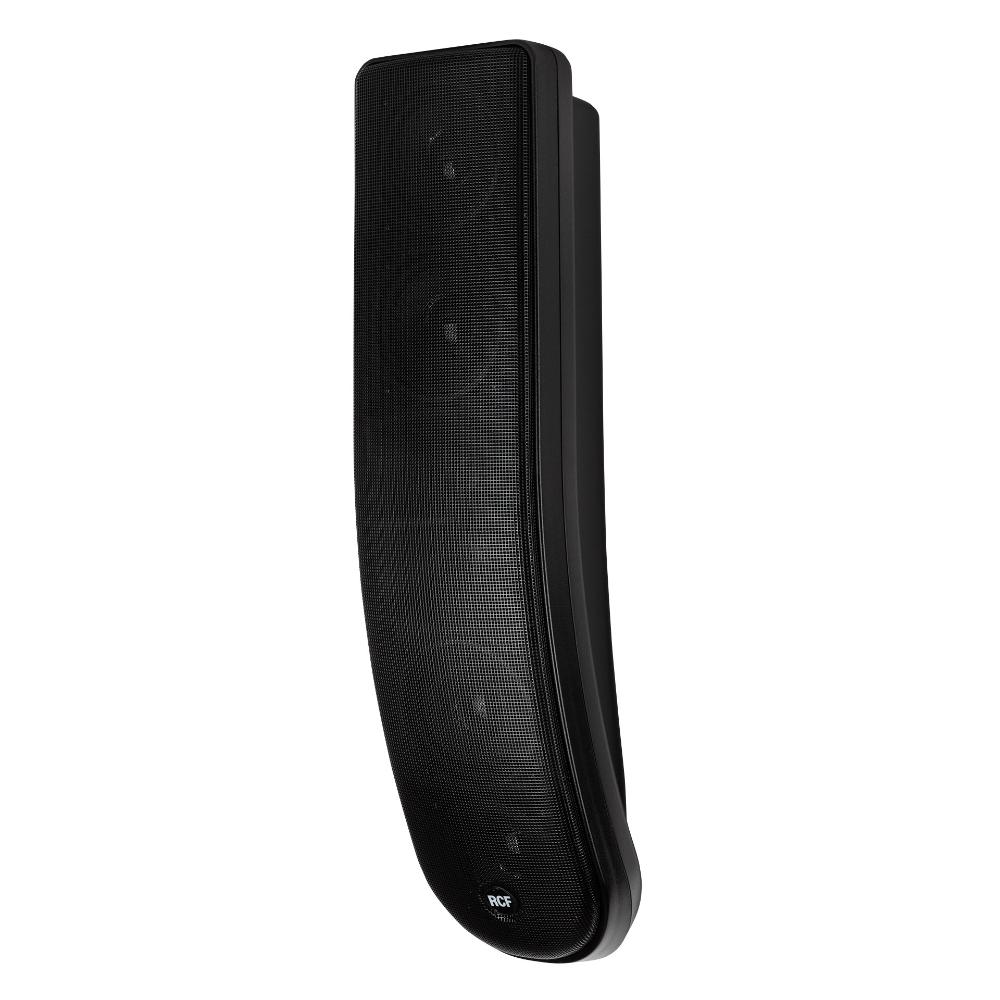

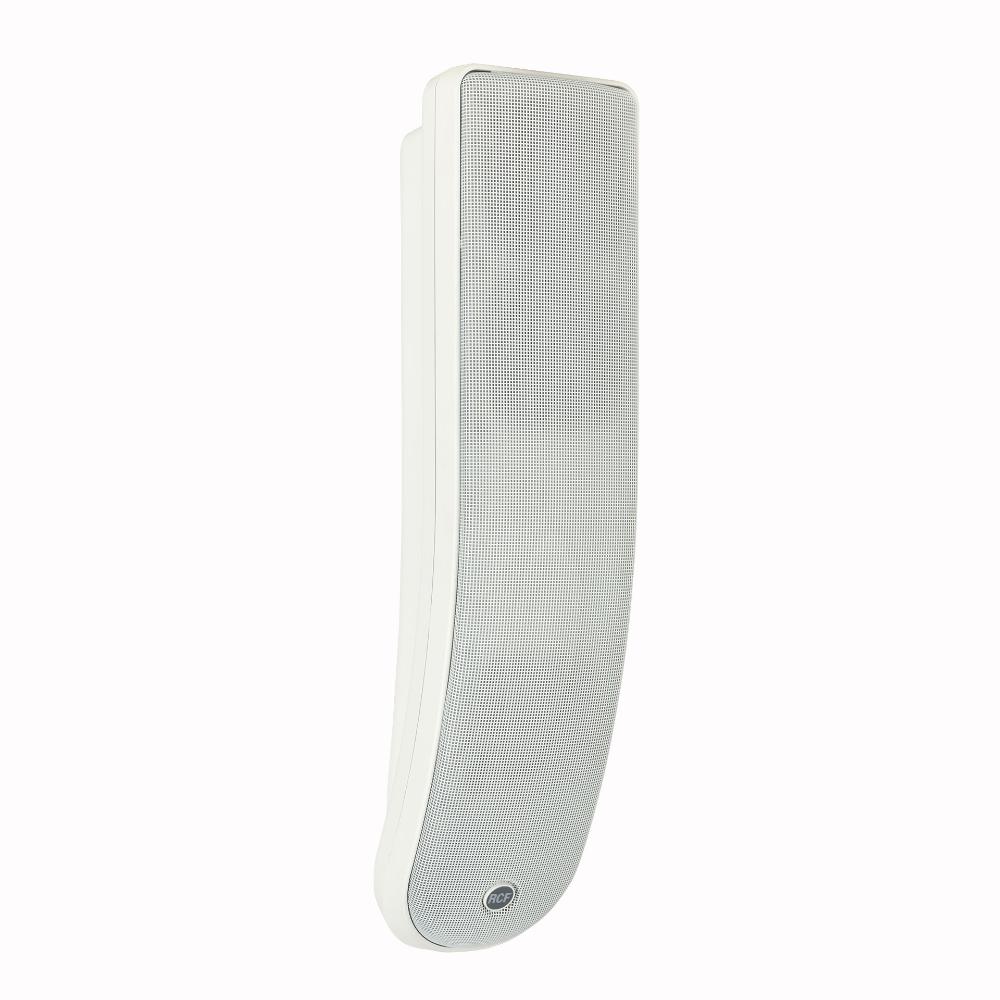

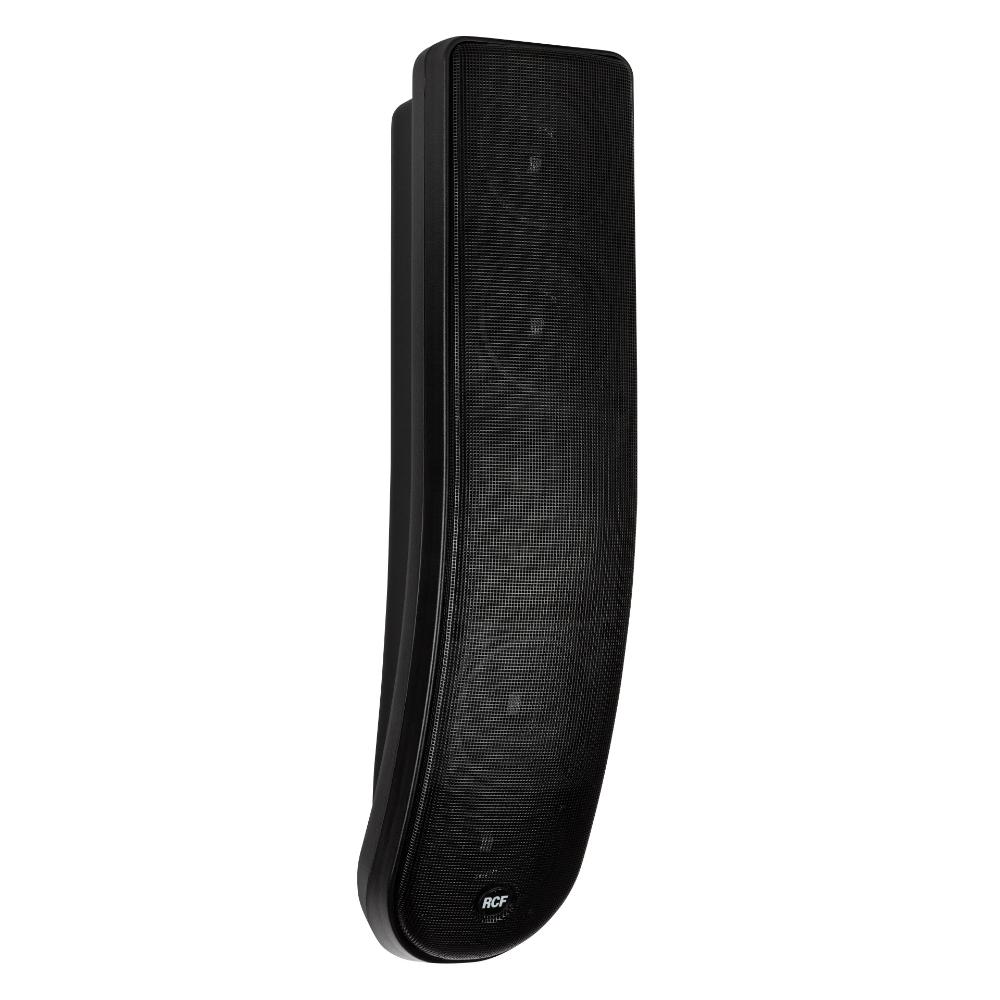

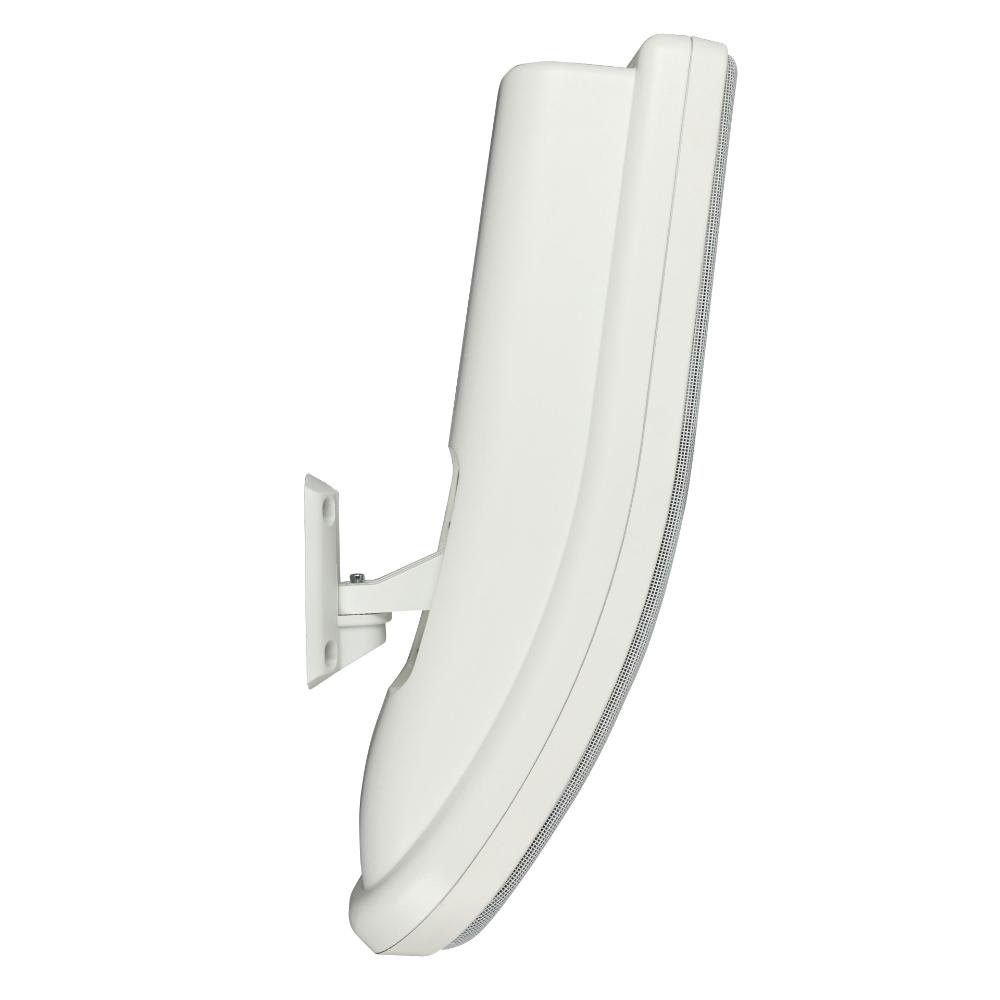

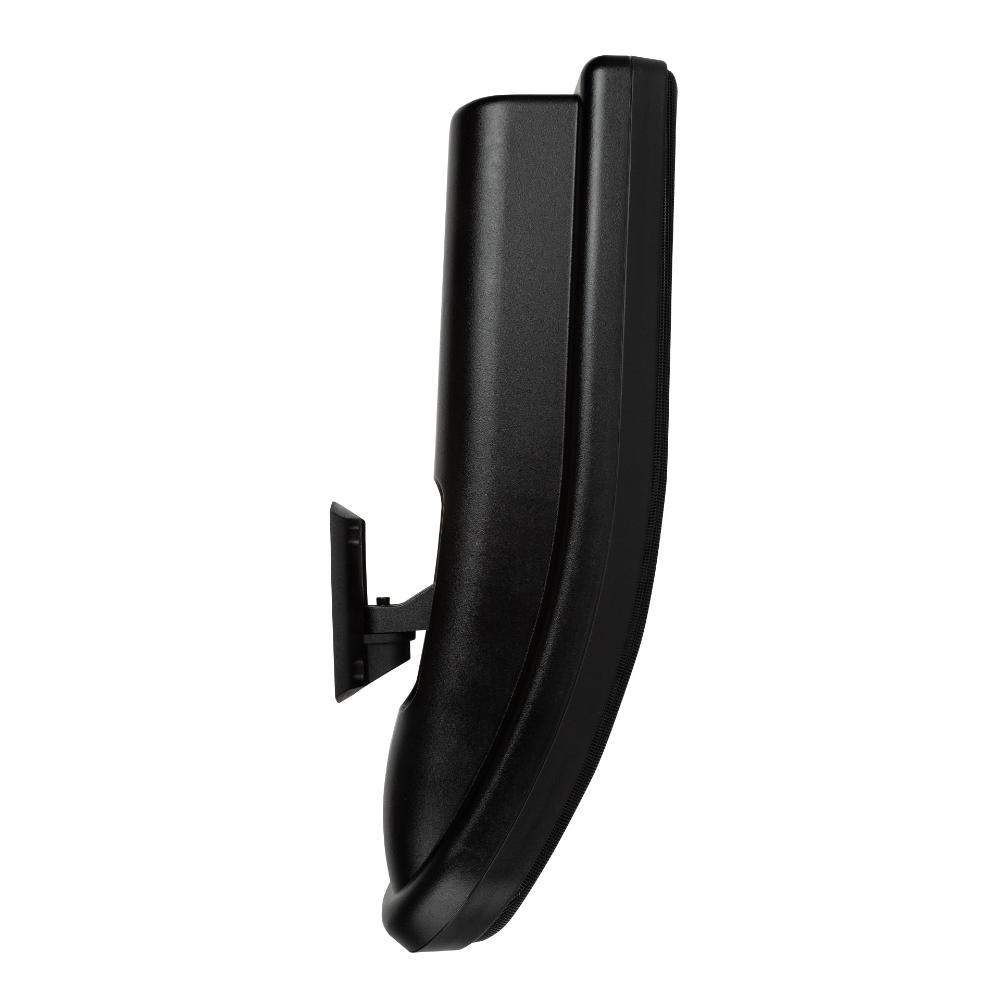

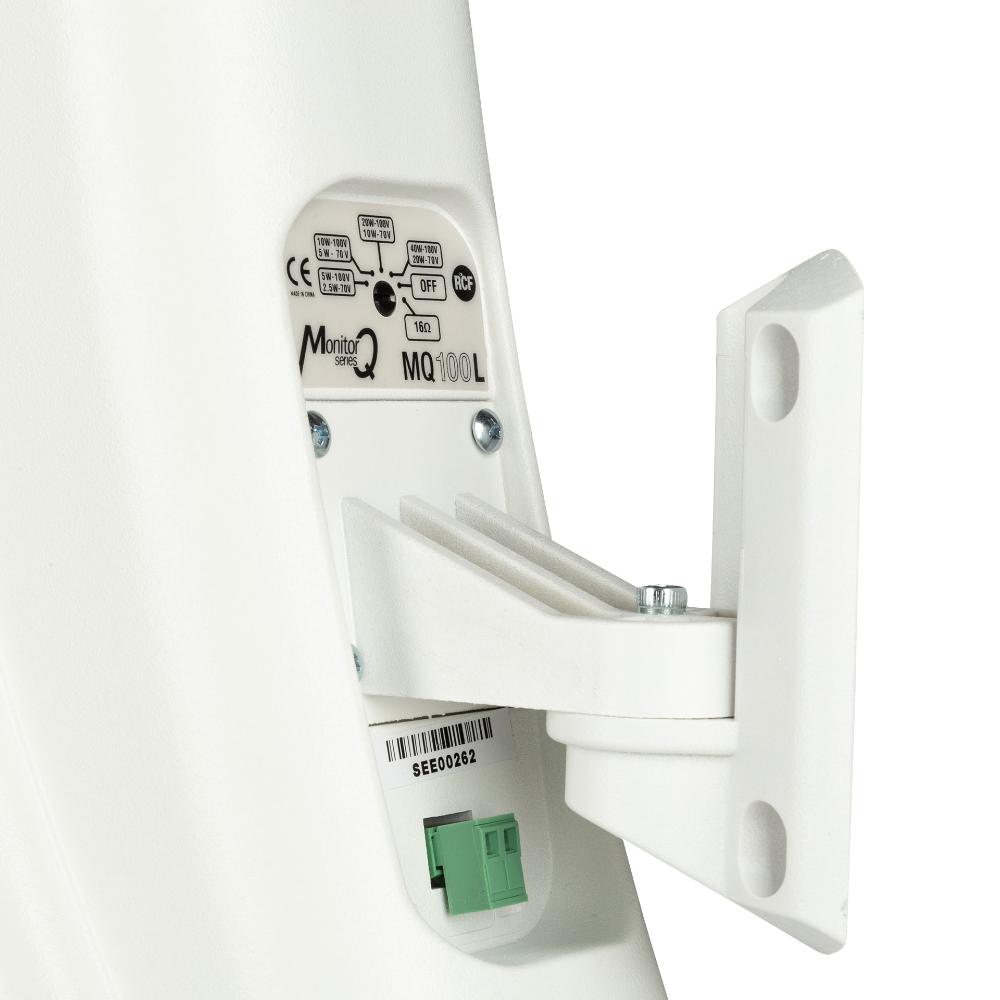

MQ 100L (available in black and white) is a 3 way column loudspeaker providing natural hi-fi delity sound of both speech and music, suitable for sound system having fixed loudspeakers where the environment is acoustically critical or with architectural constraints. The wide horizontal coverage angle (180°) and the vertical dispersion (60°) allow the correct sound reproduction in a wide space, in order to limit feedback and improve the sound directivity which is important, for instance, in halls having a long reverberation time. The mounting accessories are included. These have been engineered to keep the column as close as possible to the wall and simplify the installation. Its tilt angle can be chosen among 0° – 5° – 10°. The 60° vertical dispersion is asymmetric: it is the difference between 20° upwards and 40° downwards. The vertical dispersion axis is in fact already angled 10° downwards, making it unnecessary to tilt the sound column excessively.

Part number:

13000186
MQ 100L B
Black - RAL 9005, EAN 8024530006563

13000187
MQ 100L W
White - RAL 9016, EAN 8024530006570

Specifications
Acoustical specifications
Frequency Response (-10dB):
130 Hz ÷ 20000 Hz
Max SPL @ 1m:
112 dB
Horizontal coverage angle:
180°
Vertical coverage angle:
60°
System Sensitivity:
93 dB
Power section
Nominal Impedance:
16 ohm
Power Handling:
80 W RMS
Peak Power Handling:
320 W PEAK
Recommended Amplifier:
160 W
Protections:
PTC on tweeter
Crossover Frequencies:
2000 Hz
Transducers
Dome Tweeter:
2 x 0.75''
Midrange:
2 x 3.5''
Woofer:
2 x 3.5''
Input/Output section
Input connectors:
Euroblock
Output connectors:
Euroblock
Constant Voltage Transformer:
100 V
Power selection 1:
40 W - 250 ohm
Power selection 2:
20 W - 500 ohm
Power selection 3:
10 W - 1000 ohm
Power selection 4:
5 W - 2000 ohm
Physical specifications
Cabinet/Case Material:
Plastic
Hardware:
Wall mount bracket
Grille:
Steel
Color:
White - RAL 9016, Black - RAL 9005
Size
Height:
500 mm / 19.69 inches
Width:
120 mm / 4.72 inches
Depth:
167 mm / 6.57 inches
Weight:
2.73 kg / 6.02 lbs
Shipping information
Package Height:
550 mm / 21.65 inches
Package Width:
180 mm / 7.09 inches
Package Depth:
180 mm / 7.09 inches
Package Weight:
4.8 kg / 10.58 lbs
