NEW
COMMERCIAL AUDIO BUSINESS MUSIC

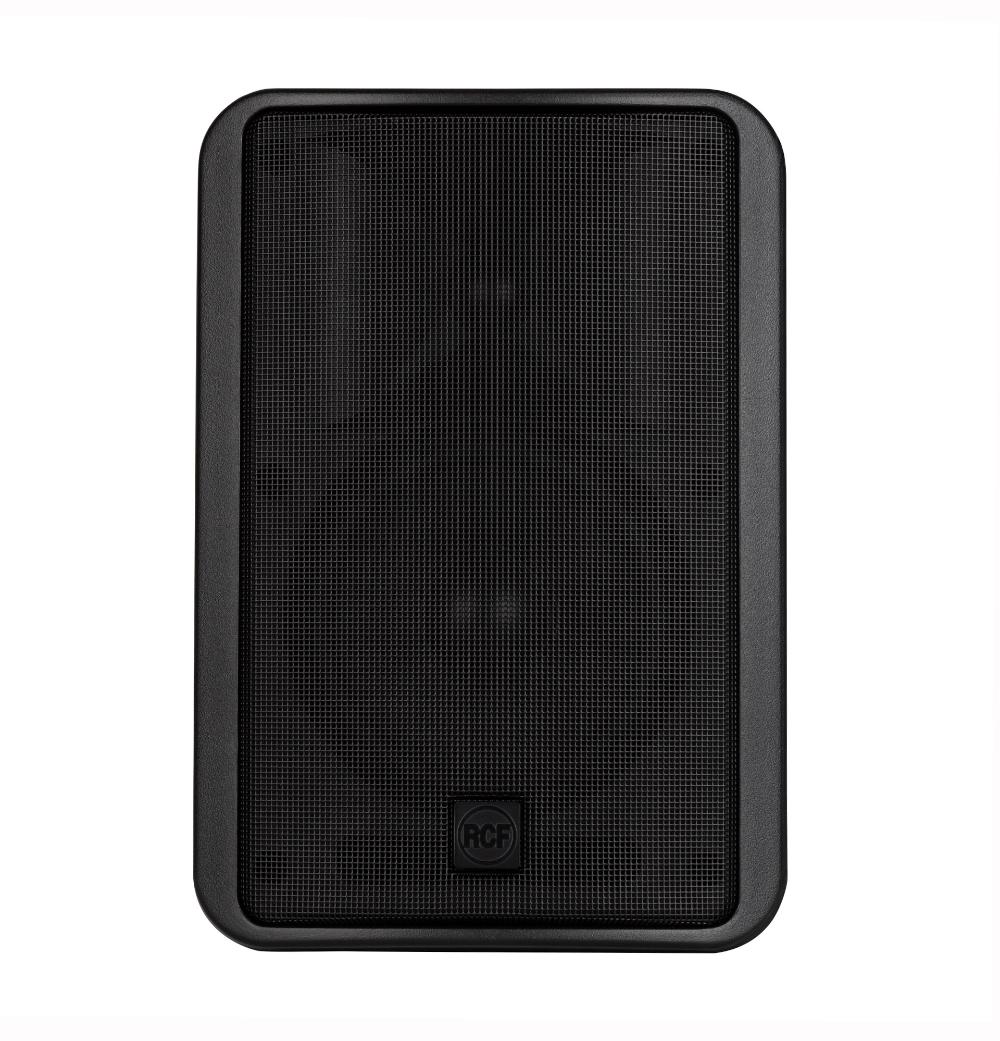

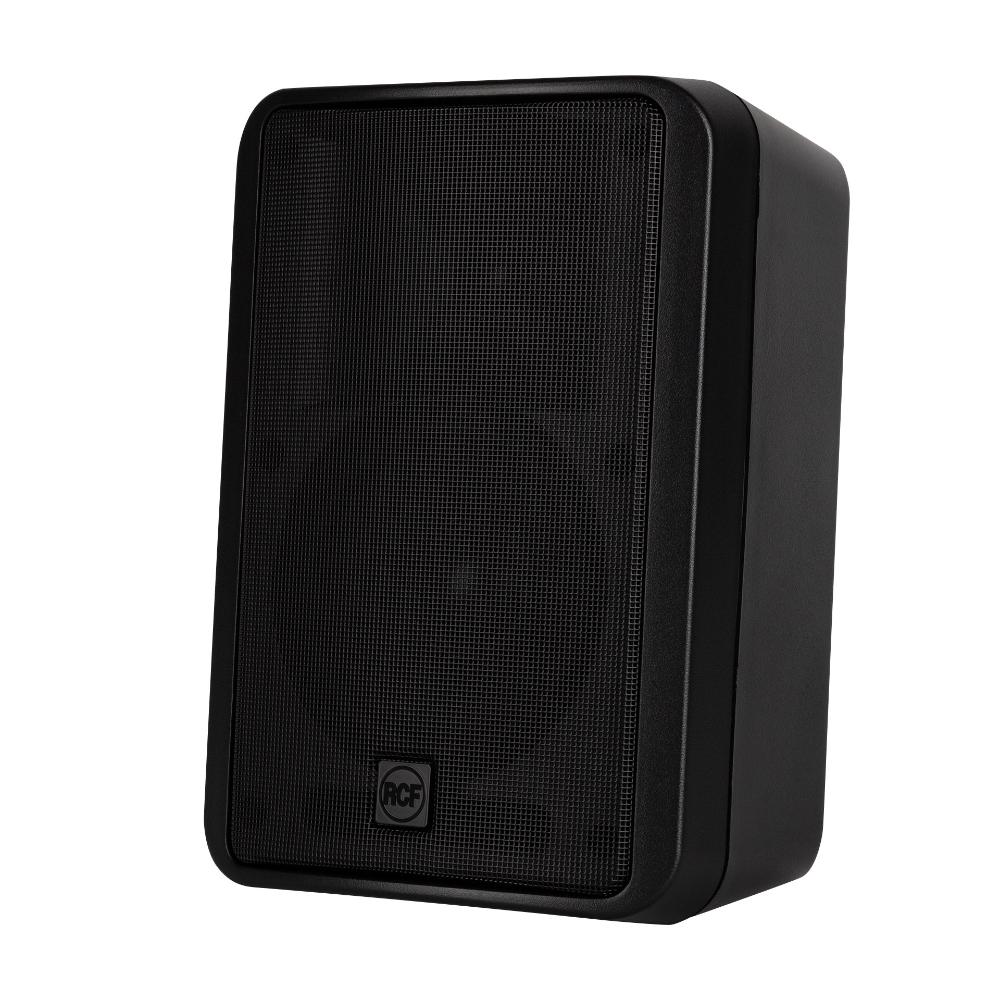

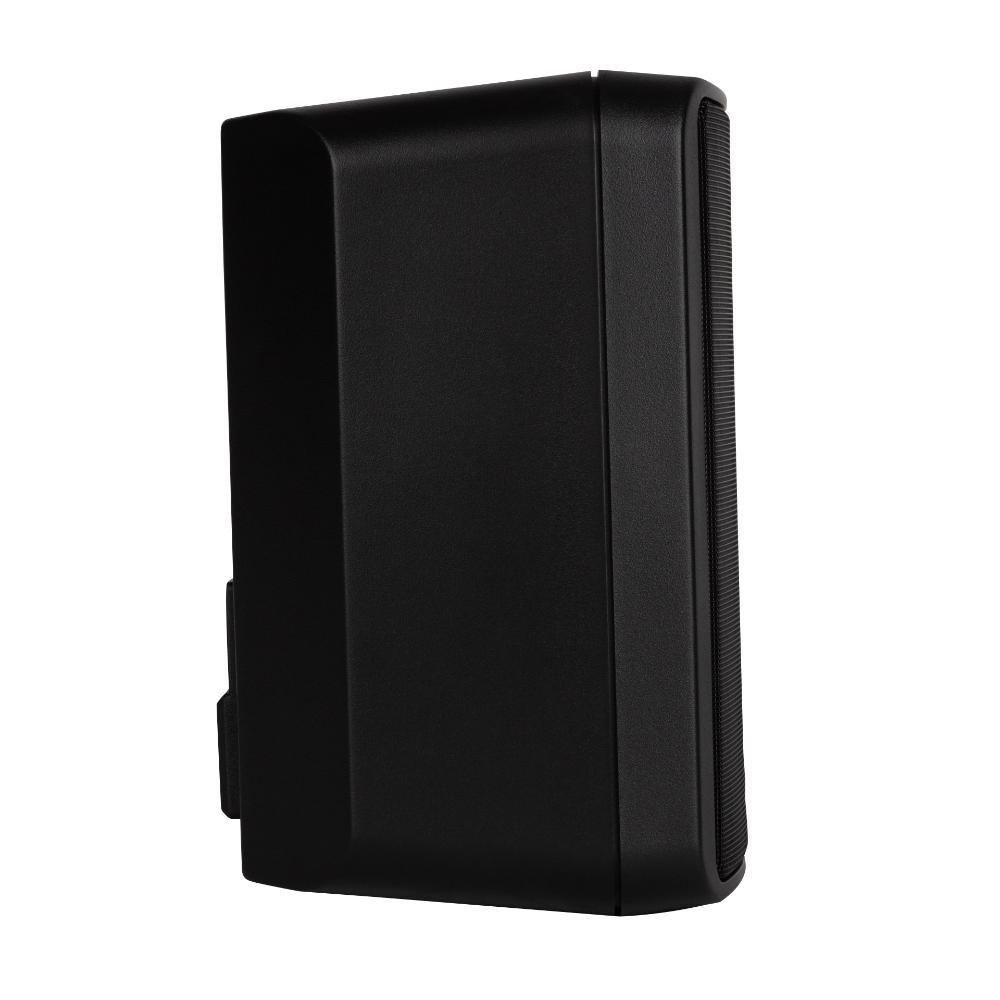

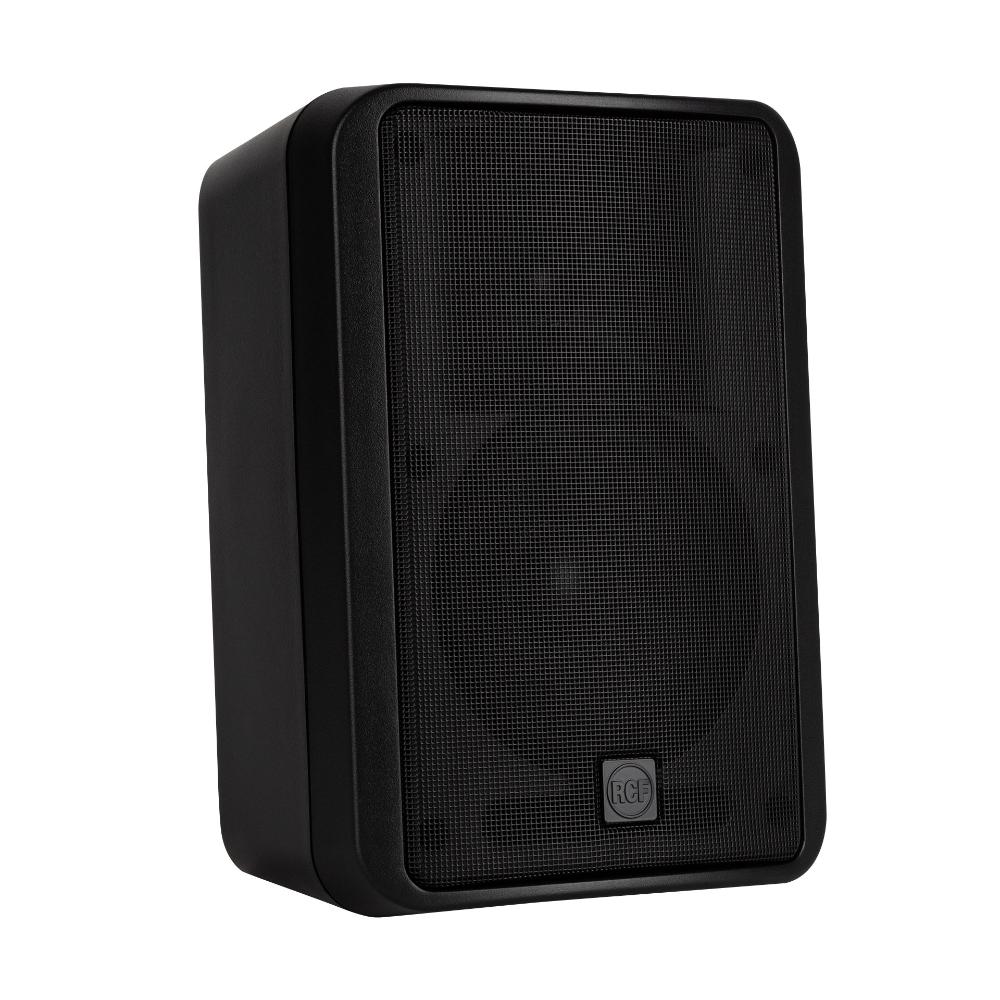

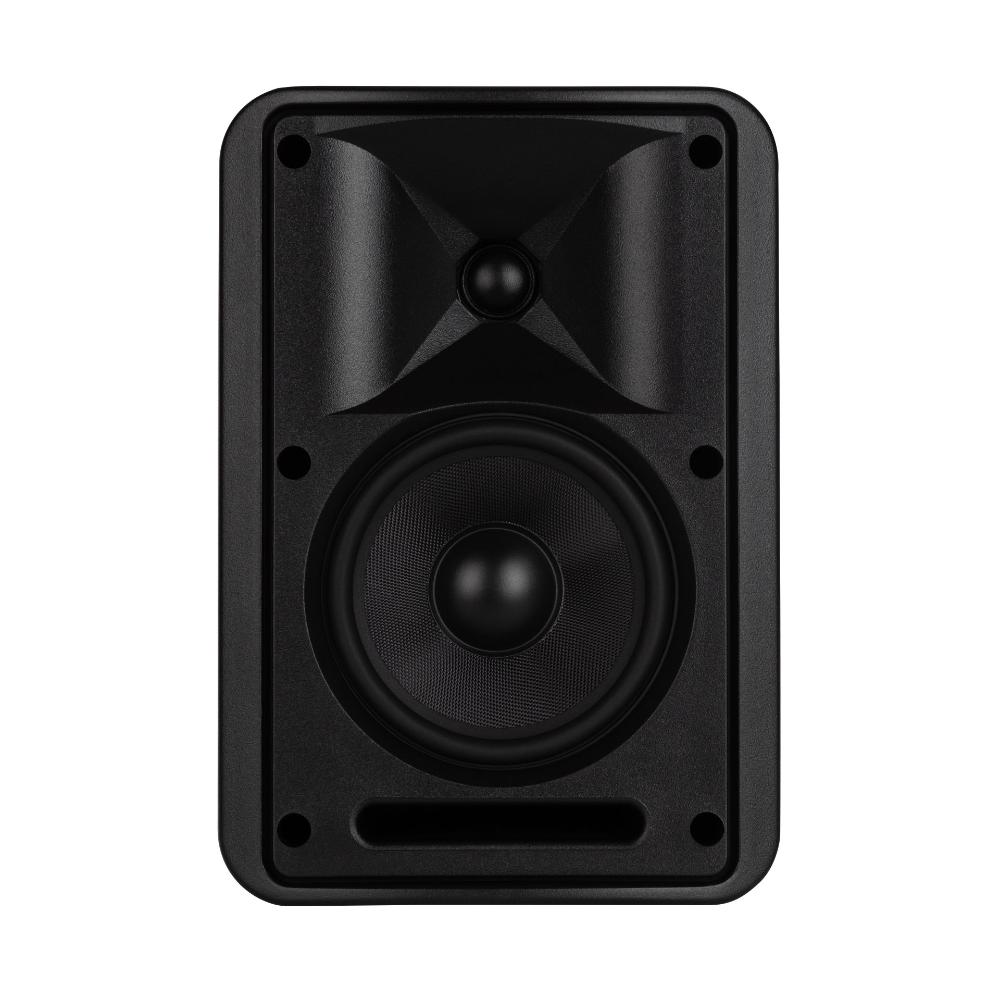

MR 50

TWO-WAY SPEAKER
  • 60 W (8 ohm) power handling
  • 110 dB max SPL
  • IP 55 protection grade
  • Colour black RAL 9005 and white RAL 9003
Where to buy
Features
  • 60 W (8 ohm) power handling
  • 110 dB max SPL
  • 60 ÷ 20000 Hz frequency range
  • 110° x 100° coverage angles
  • 1 x 5" woofer (1’’ v.c.)
  • 1 x 1" dome tweeter (0.8’’ v.c.) neodymium magnet
  • Colour black RAL 9005 and white RAL 9003
  • IP 55 protection grade
  • Swivel wall mount accessory included

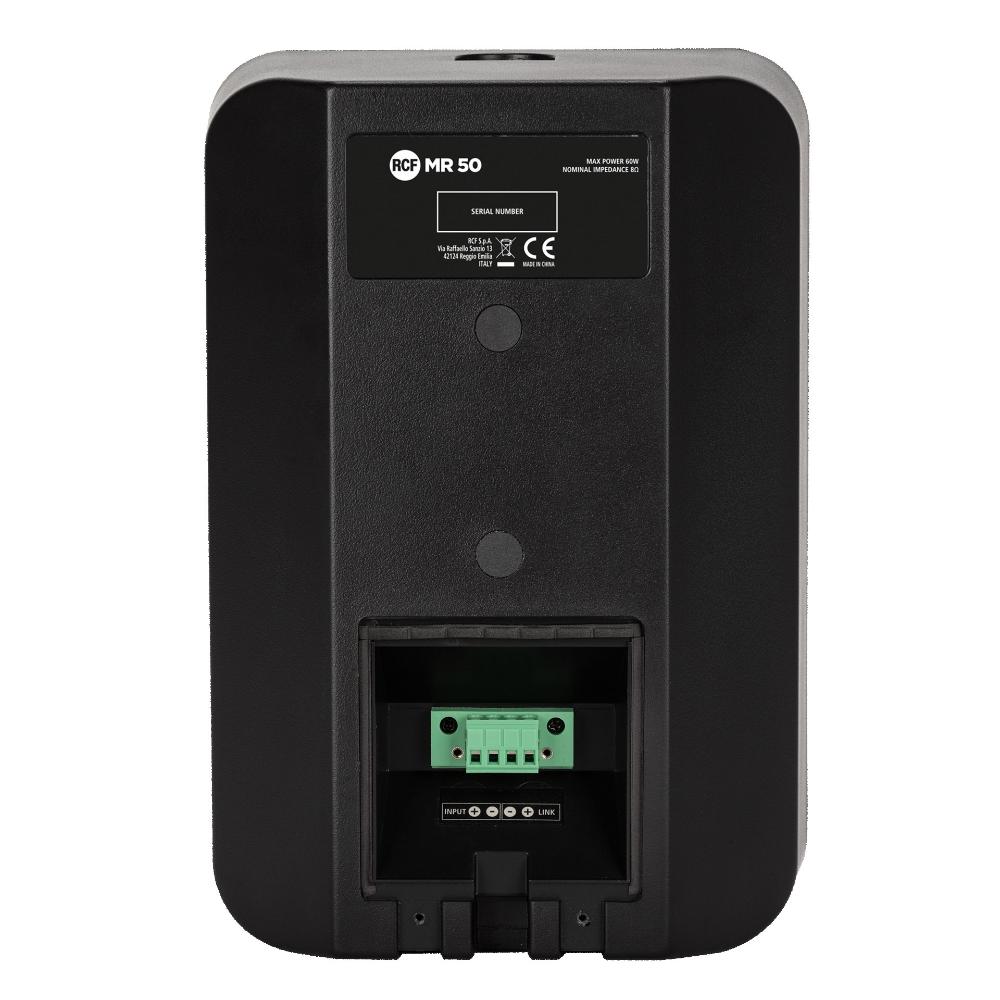

  • 4 pole EUROBLOCK connector

MR 50 is a bass-reflex two-way speaker designed to deliver uncompromised audio performance and high reliability in fixed installations. Blend in with any environment and deliver deep bass, smooth midrange, and finely-detailed high-frequency response. Quality components and careful acoustic design make MR 50 the perfect speaker for listening in the most demanding applications. Suitable for indoor and outdoor installation.

NEW

Part number:

13100038
MR 50
Black - RAL 9005, EAN 8024530017187

13100040

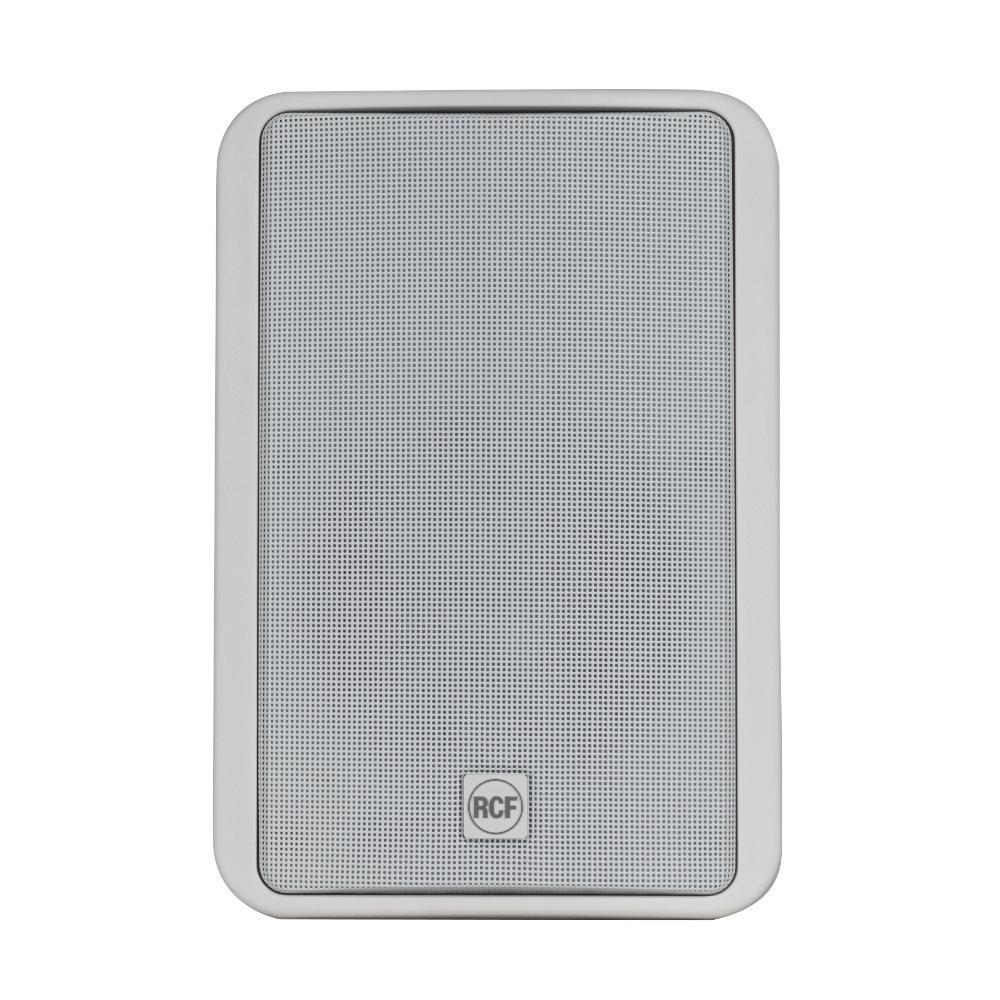

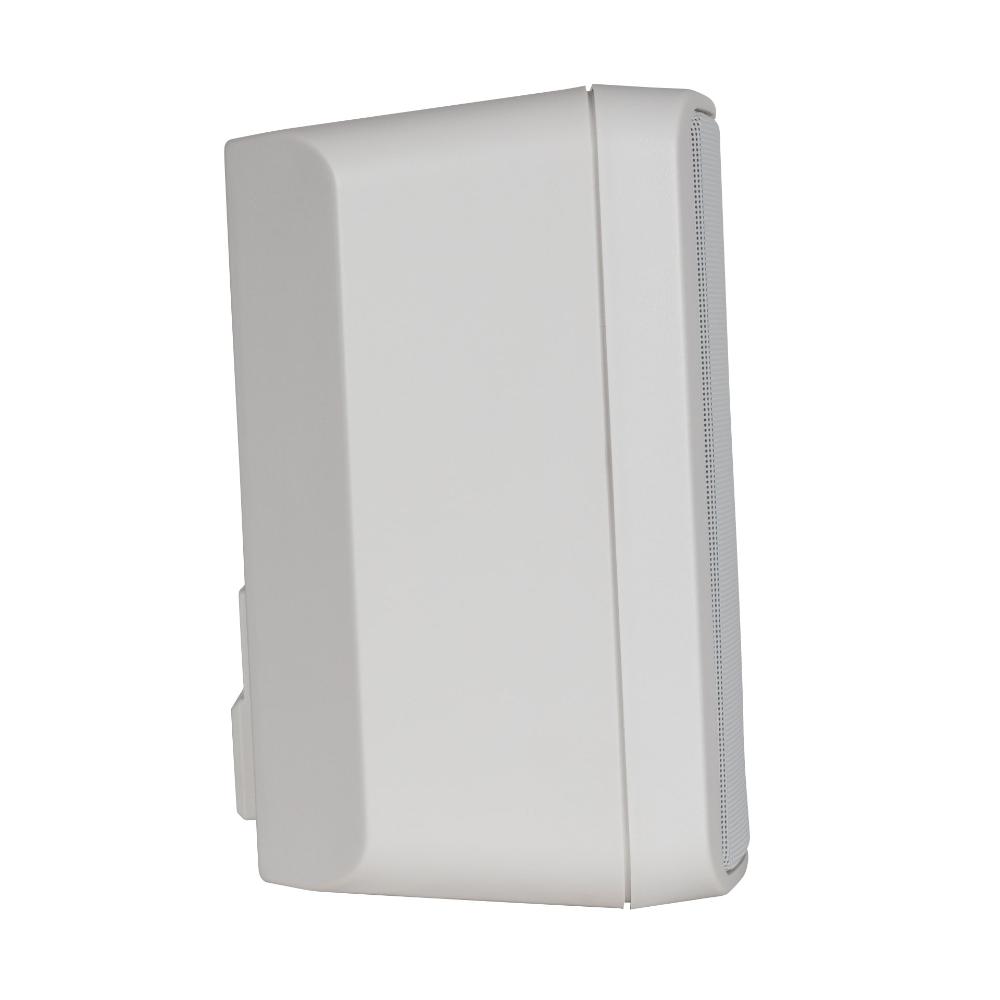

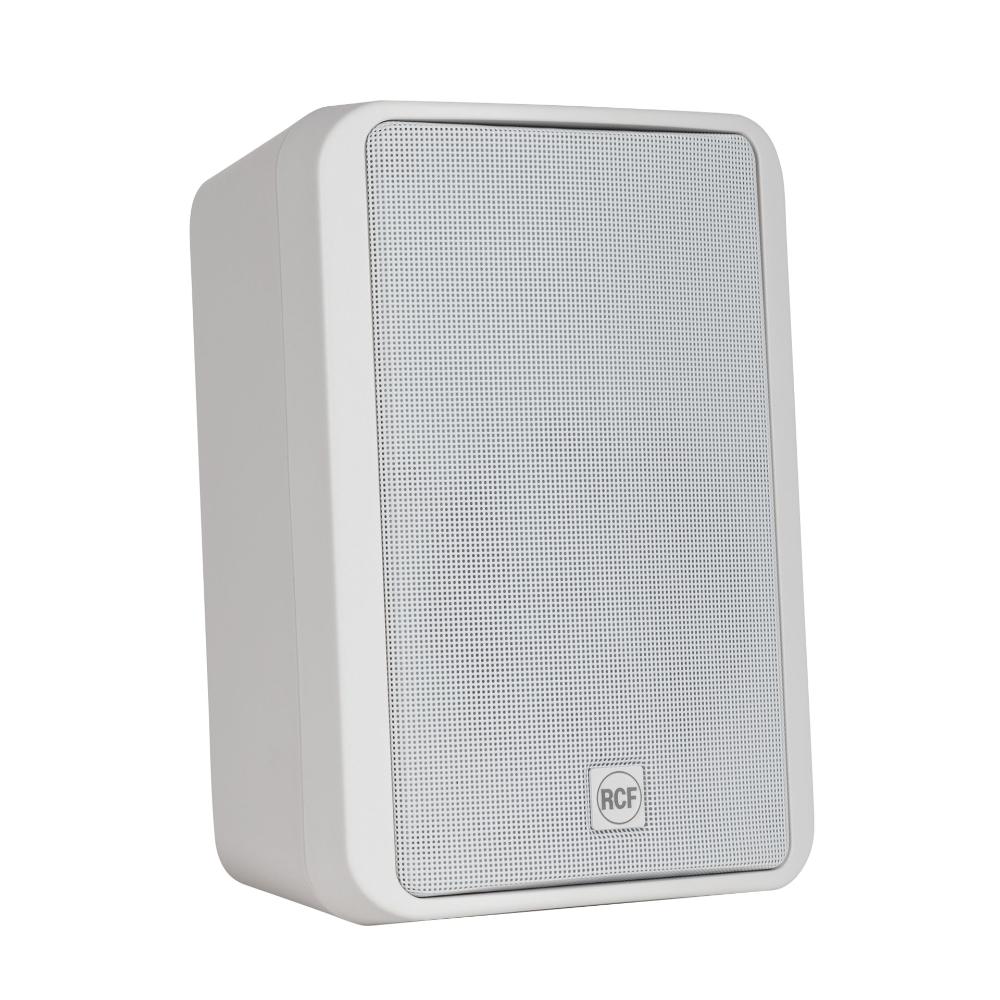

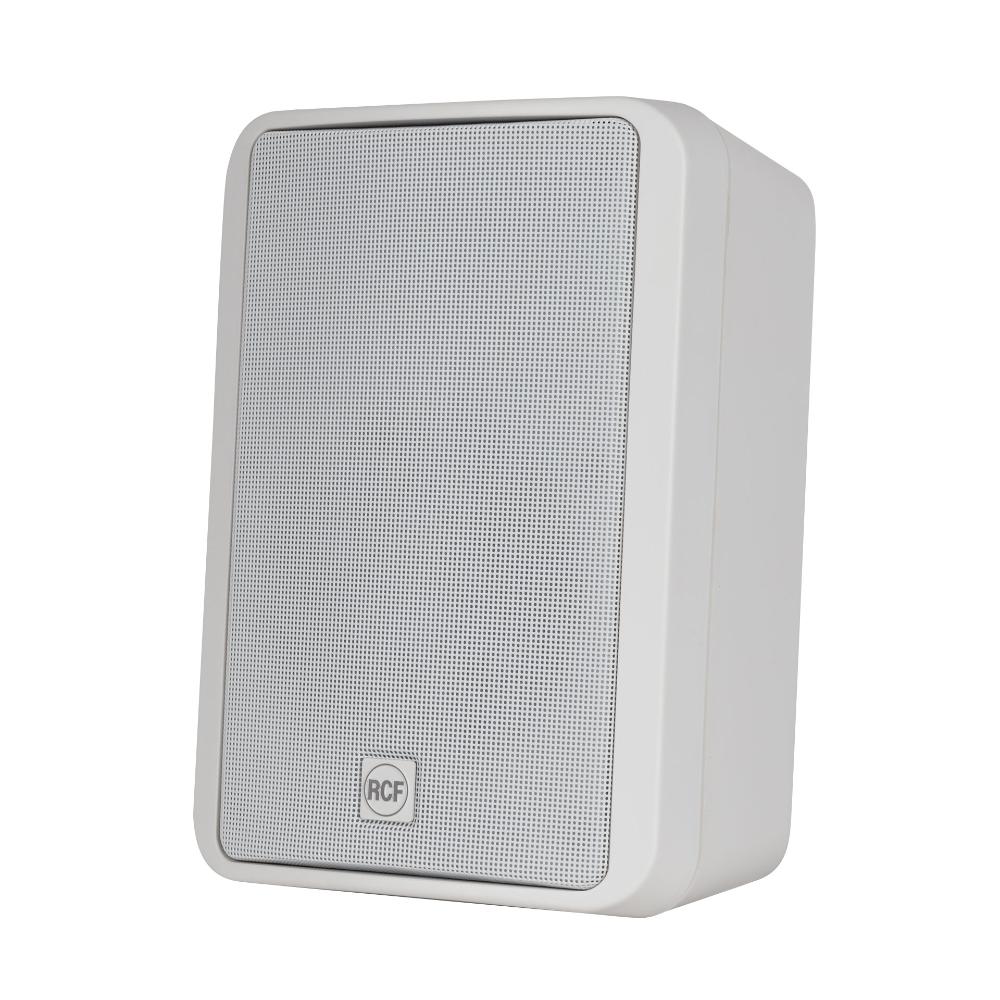

MR 50 W
White - RAL 9003, EAN 8024530017293

Responsive Image

Versatile sound

Elegant and discreet design, combined with an excellent audio performance, represent the RCF sound. MR speakers are ideal both for speech and music reproduction in any business and A/V application and deliver deep bass, smooth midrange, and finely-detailed high-frequency response.

Smooth installation

Housed in a robust plastic cabinet, the MR series delivers uncompromising audio performance and reliability in fixed installations where the speakers would blend into any environment. MR speakers are easy to install, with included and optional accessories to increase installation flexibility for wall mounting.

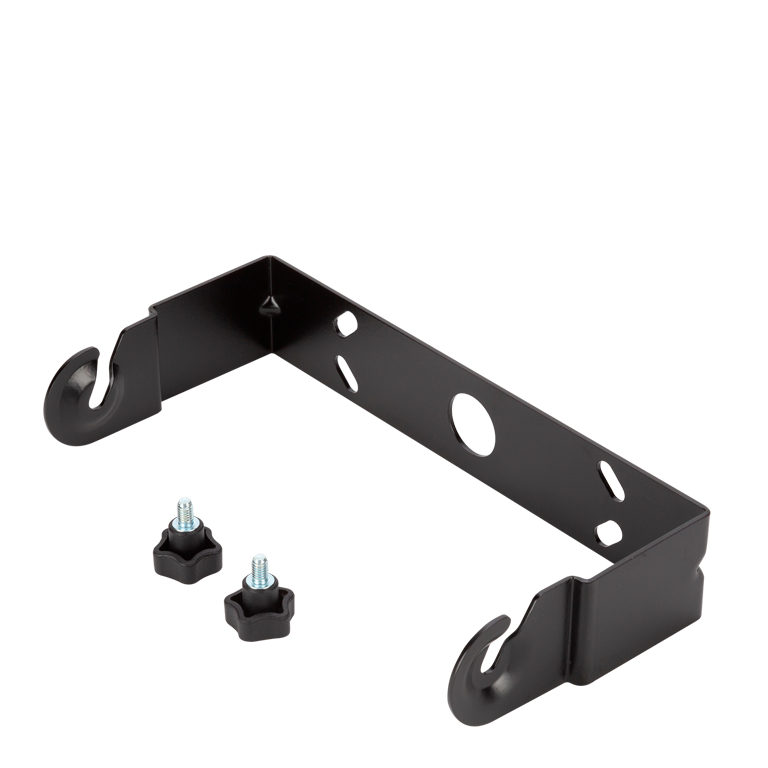

(the accessory shown in the picture is not included)
Responsive Image
Responsive Image

Uncompromised performance

Quality components and careful acoustic design make the MR series a perfect choice for applications such as speech and music reproduction in all A/V applications. Designed for easy installation into bars and restaurants, leisure hospitality, recreational facilities, theme parks, shopping malls or audio monitoring facilities.

All models use purpose-designed 1” voice coil woofers and 0.8” voice coil dome tweeters, combined with RCF Low Inductance Compensated Crossover (LICC) to assure exceptional audio performance and long-term reliability.
Specifications
Acoustical specifications
Frequency Response (-10dB):
60 Hz ÷ 20000 Hz
Max SPL @ 1m:
110 dB
Horizontal coverage angle:
110°
Vertical coverage angle:
100°
Directivity index Q:
7
System Sensitivity:
87 dB
Power section
Nominal Impedance:
8 ohm
Power Handling:
60 W
Peak Power Handling:
240 W PEAK
Recommended Amplifier:
120 W
Protections:
Bulb lamp
Crossover Frequencies:
3000 Hz
Transducers
Dome Tweeter:
1.0'' neo, 0.8'' v.c
Woofer:
5.0'', 1.0'' v.c
Input/Output section
Input connectors:
Euroblock
Output connectors:
Euroblock
Standard compliance
IP protection grade:
IP 55
Safety agency:
CE compliant
Physical specifications
Cabinet/Case Material:
Plastic
Hardware:
Wall mount bracket
Grille:
Steel
Color:
Black - RAL 9005, White - RAL 9003
Size
Height:
270 mm / 10.63 inches
Width:
187 mm / 7.36 inches
Depth:
167 mm / 6.57 inches
Weight:
3.8 kg / 8.38 lbs
Shipping information
Package Height:
370 mm / 14.57 inches
Package Width:
510 mm / 20.08 inches
Package Depth:
250 mm / 9.84 inches
Package Weight:
8.5 kg / 18.74 lbs
