NX 10-A II

ACTIVE TWO-WAY SPEAKER
  • 129 dB SPL Max
  • 1400 W 2-way Class-D amplifier
  • Easy to install with built-in multiple rigging points
  • 90° x 60° constant directivity coverage
FiRPHASE
Support
Features
  • 129 dB SPL Max
  • 1400 W 2-way Class-D amplifier
  • Easy to install with built-in multiple rigging points
  • 90° x 60° constant directivity coverage
  • 10” woofer, 2.5” voice coil
  • Horn-loaded 1.75” c. driver, 1” v.c.
  • FiRPHASE
  • 50 ÷ 20000 Hz Frequency Range

Featuring RCF Precision transducers and a wooden cabinet, the NX 10-A II is engineered from the ground up to deliver advanced audio performance and all-round versatility. Used stand-alone for FOH system, satellite (with subwoofer), stage monitor or flown speaker, the NX 10-A II blends high-performance and reliability in a compact package. Conceived as the ideal complement to the RCF high-powered HDL System or NXL arrays, it features multiple rigging points and FiRPHASE processing.

ARCHIVED

Part number:

13000625
NX 10-A II
220-240V, EAN 8024530017934

13000626
NX 10-A II
115V, EAN 8024530017941

New perspective on linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
Responsive Image
Responsive Image

High-performance compression driver

The CD350 is a high-performance 1.75-inch diaphragm ceramic compression driver with a 1.0-inch exit throat. The diaphragm is precision formed from polyester with voice coil assembly designed using high-temperature Kapton former and rectangular profile copper clad aluminum wire.

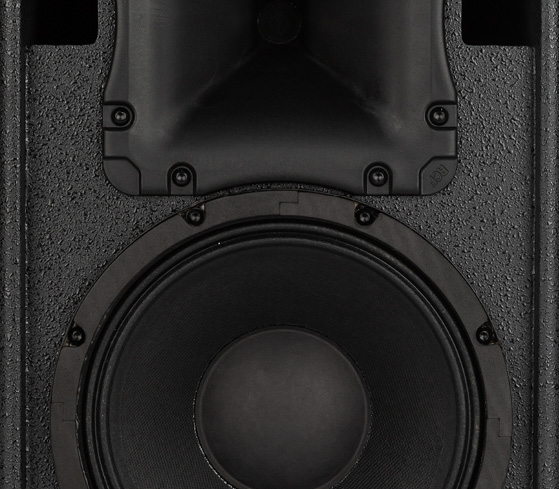

State of the art transducers

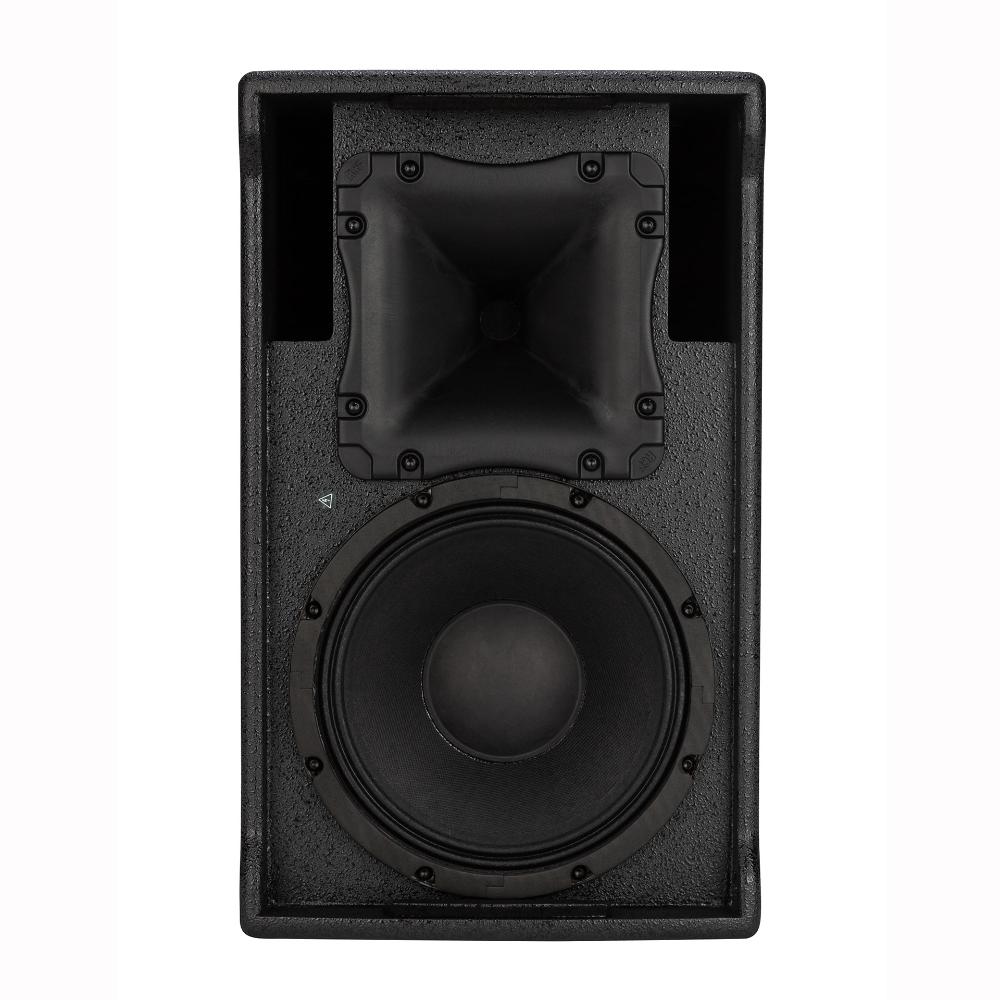

State of the art RCF 10-inch woofer and compression driver, horn-loaded for 90° x 60° Constant Directivity Coverage. All packed in a high strength, low-vibration birch plywood enclosure.
Responsive Image
Responsive Image

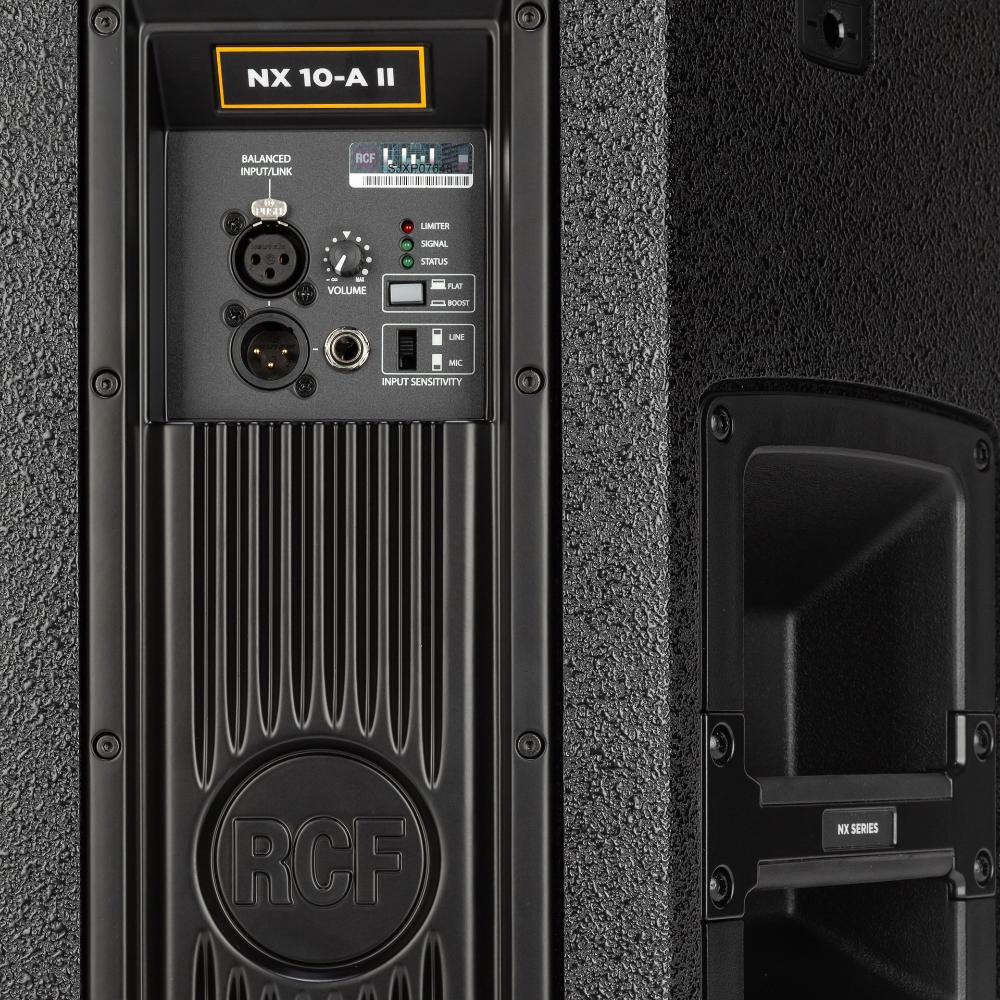

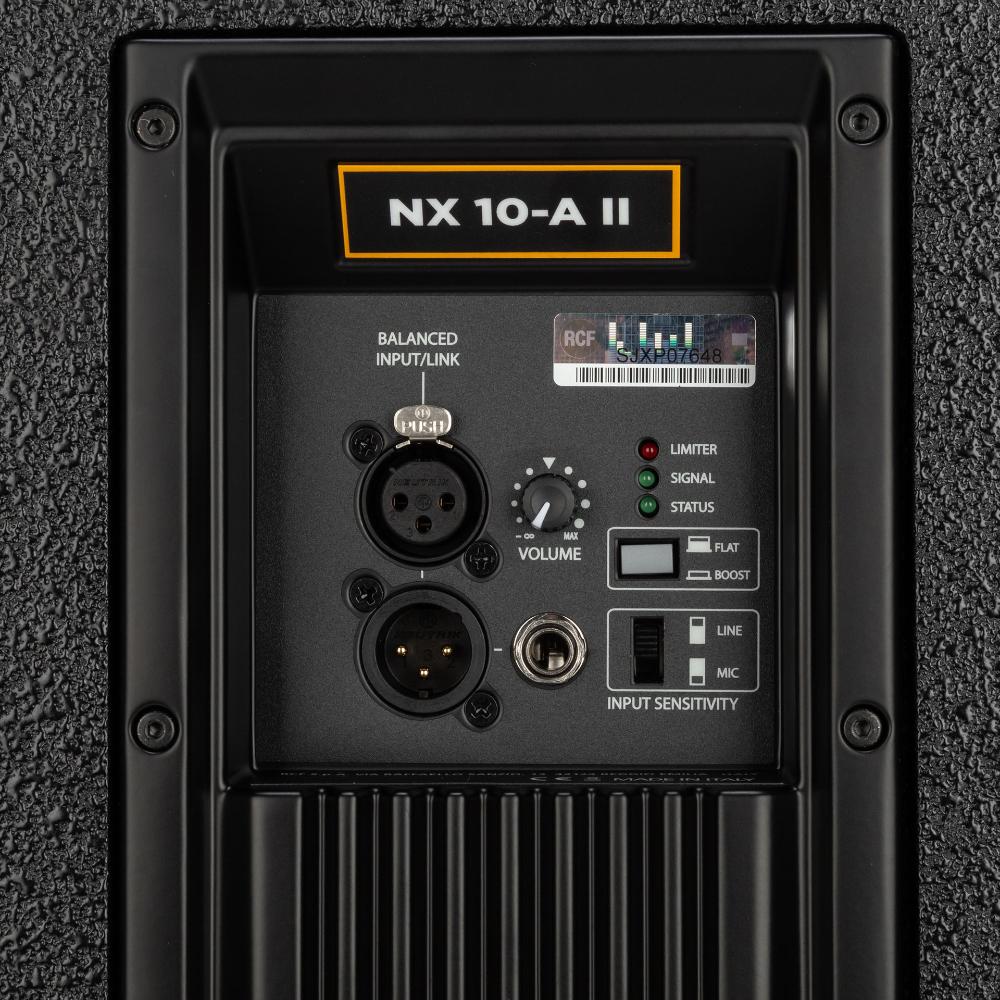

Amplifier and DSP

The 1400 W amplifier features a solid machined aluminum structure, which not only stabilizes the amplifier during transportation but also assists in heat dissipation. The internal DSP has limiters and protections for the transducers and includes the special FiRPHASE filters to achieve coherent distribution of sound for all listeners without phase distortion. A single button shapes the sound for background music purposes especially suitable when the system plays at minimum volume levels.

Cabinet and mechanics

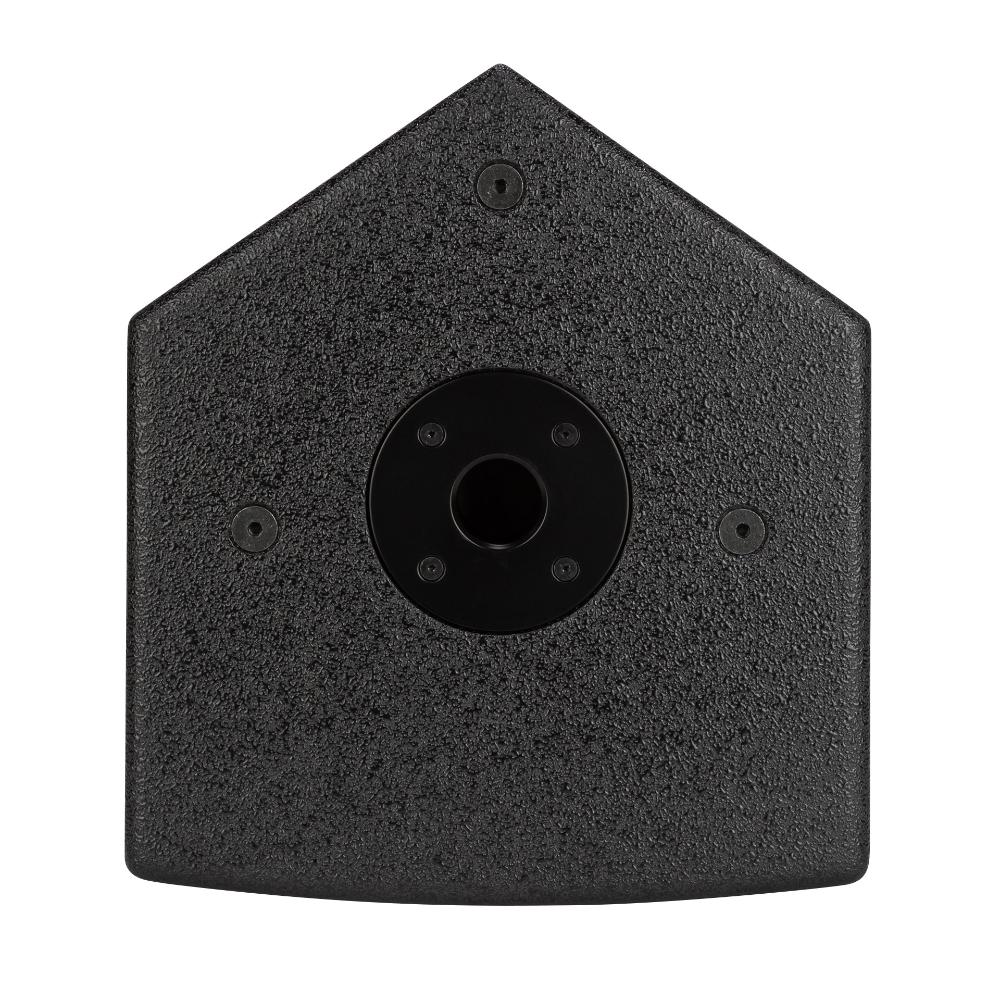

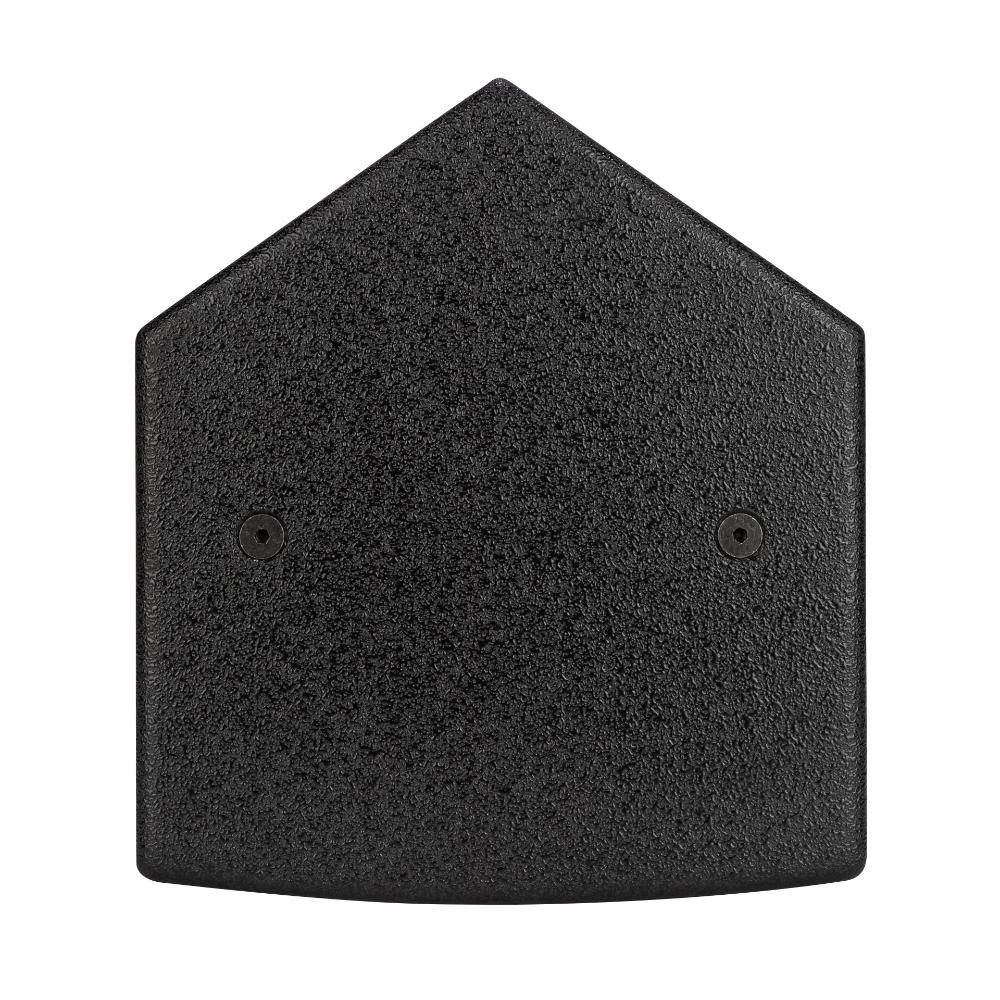

The heavy-duty birch plywood cabinet is coated with black textured polyurethane coating. A sturdy powder-coated metal grille protects the front, and the acoustically transparent sound foam backing on the inside ensures protection from dust and humidity. Four rigging points allow an easy rigging.
Responsive Image
Specifications
Acoustical specifications
Frequency Response:
50 Hz ÷ 20000 Hz
Max SPL @ 1m:
129 dB
Horizontal coverage angle:
90°
Vertical coverage angle:
60°
Transducers
Compression Driver:
1.0'', 1.75'' v.c
Woofer:
10'', 2.5'' v.c
Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR, Jack
Output connectors:
XLR
Input sensitivity:
-2 dBu/+4 dBu
Processor section
Crossover Frequencies:
1700 Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Volume, EQ Shape
Power section
Total Power:
1400 W Peak, 700 W RMS
High frequencies:
400 W Peak, 200 W RMS
Low frequencies:
1000 W Peak, 500 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Hardware:
5 x M10, 4 x quick lock
Handles:
2 Side
Pole mount/Cap:
Yes
Grille:
Steel
Color:
Black
Size
Height:
520 mm / 20.47 inches
Width:
315 mm / 12.4 inches
Depth:
358 mm / 14.09 inches
Weight:
18 kg / 39.68 lbs
Shipping information
Package Height:
586 mm / 23.07 inches
Package Width:
330 mm / 12.99 inches
Package Depth:
376 mm / 14.8 inches
Package Weight:
21 kg / 46.3 lbs
