PRO SOUND LIVE SOUND

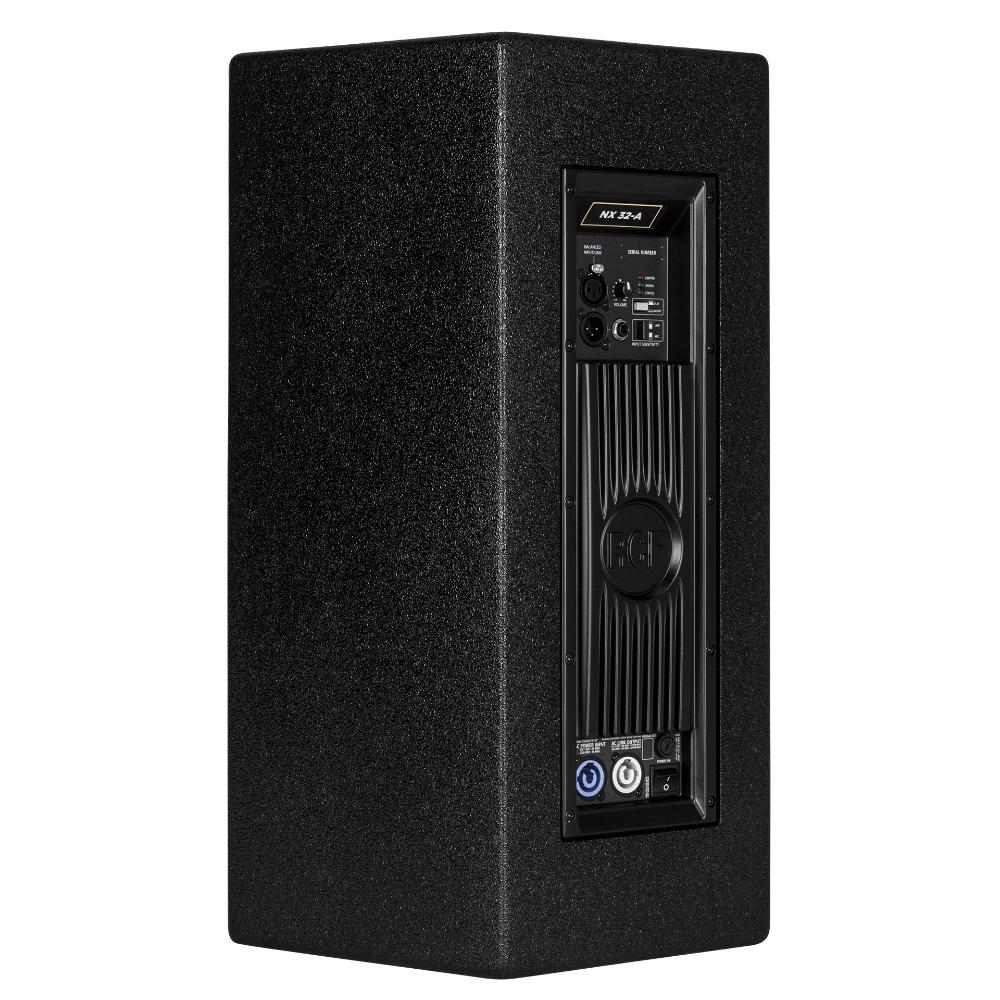

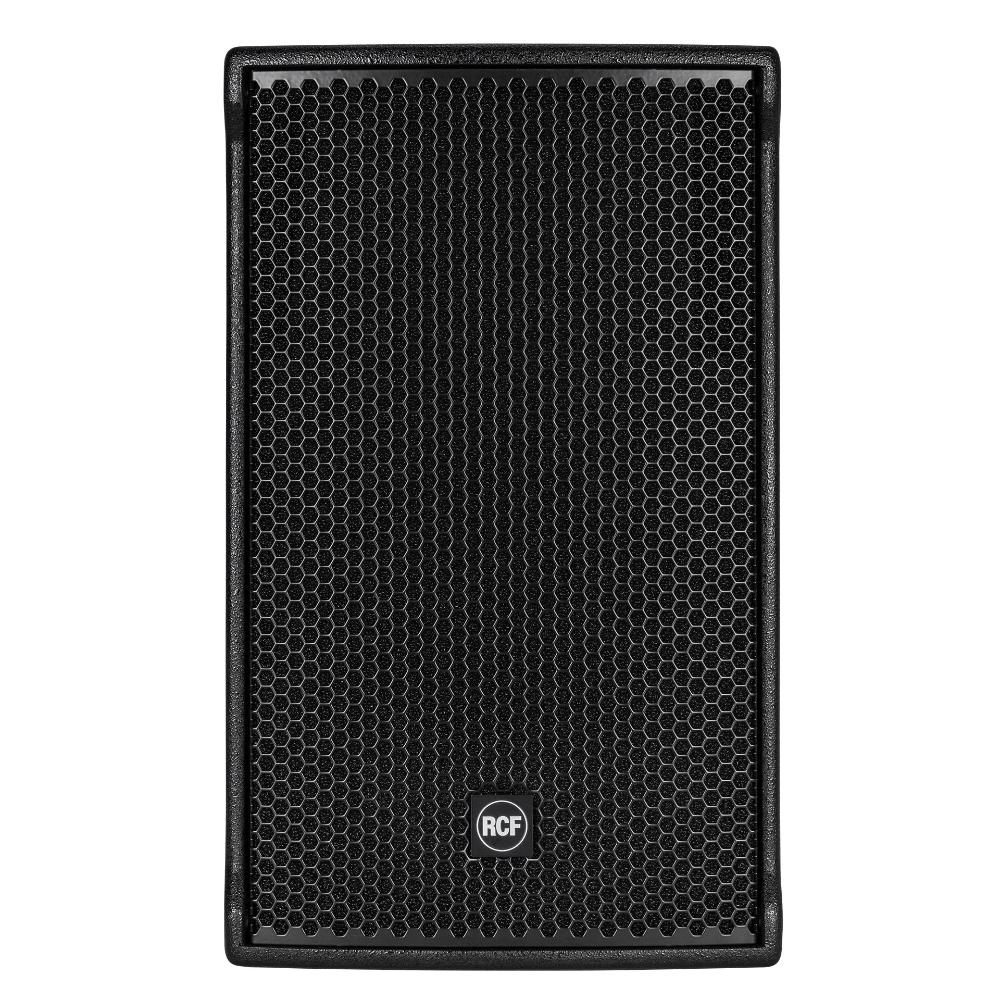

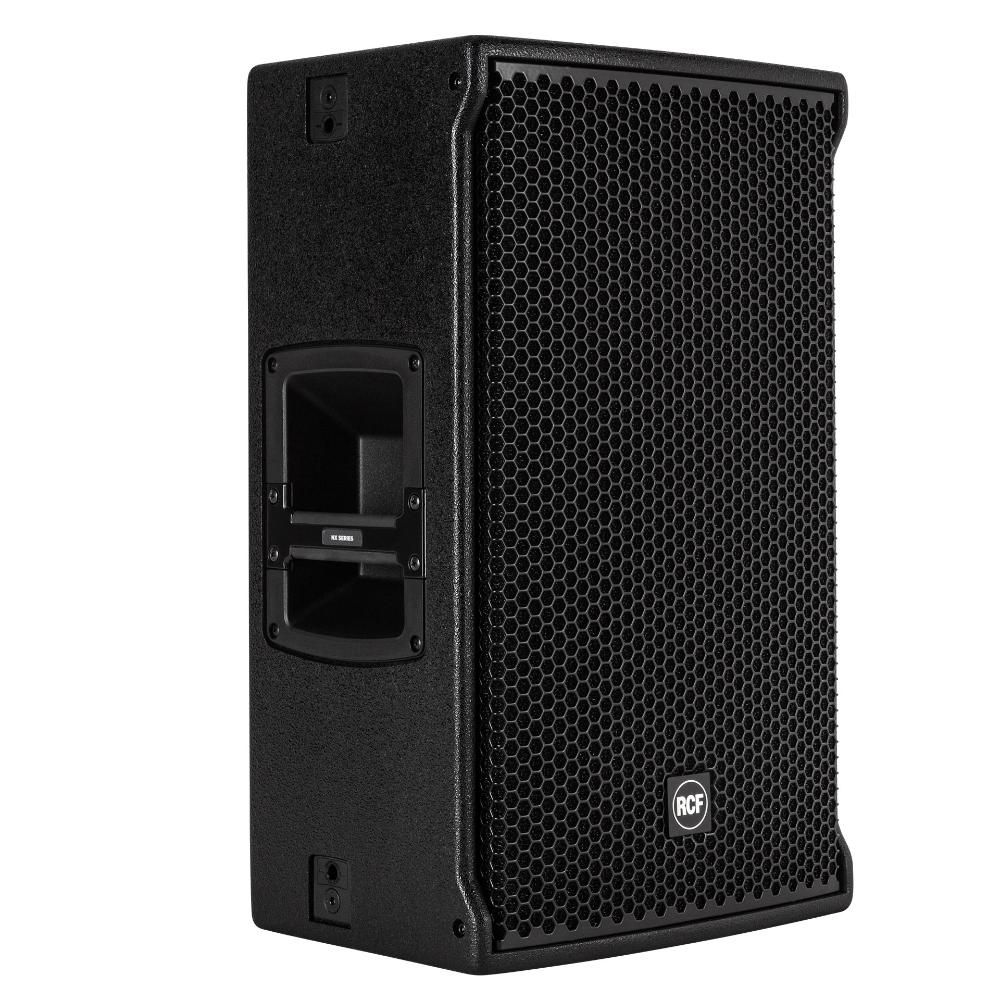

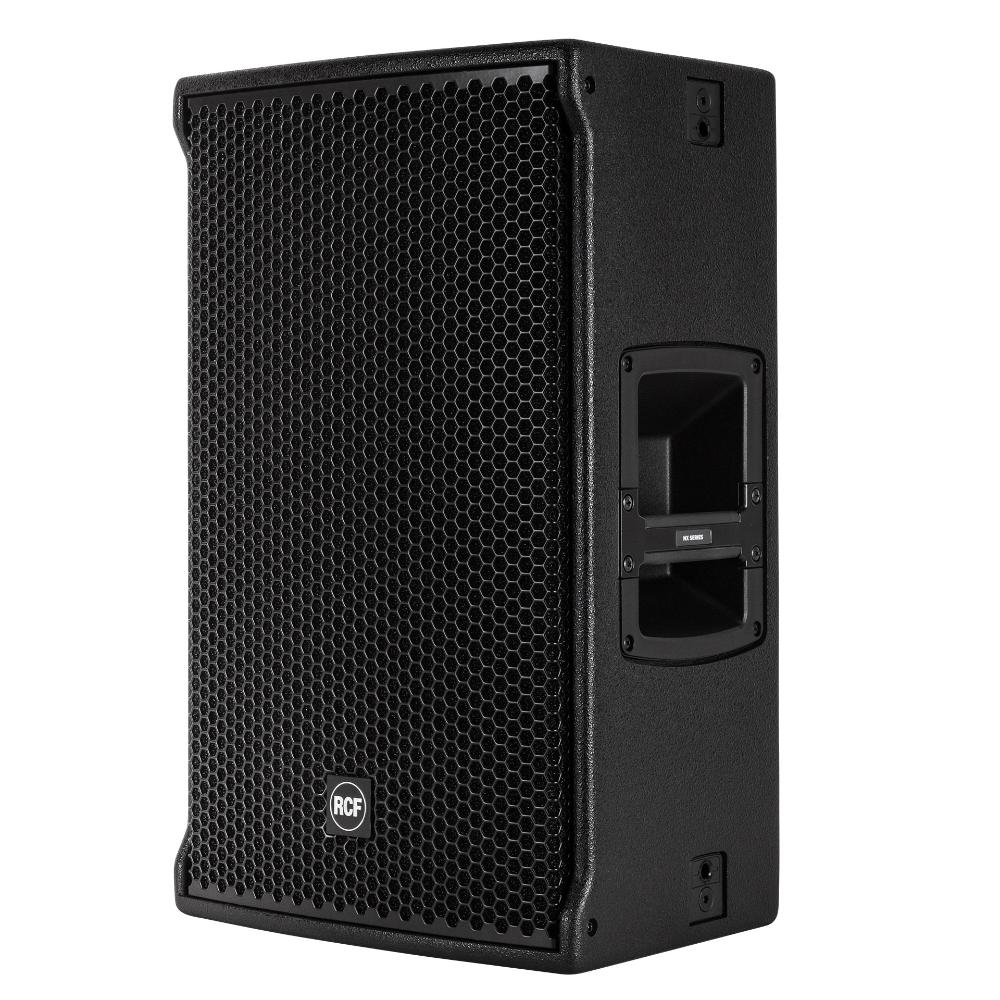

NX 32-A

ACTIVE TWO WAY MULTIPURPOSE SPEAKER
  • 1400 W 2-way class-D amplifier
  • 131 dB SPL Max
  • 50 – 20000 Hz Frequency Range
  • 90° x 60° constant directivity coverage
Where to buy
Features
  • 1400 W 2-way class-D amplifier
  • 131 dB SPL Max
  • 50 – 20000 Hz Frequency Range
  • 90° x 60° constant directivity coverage
  • 12" woofer, 2.5" voice coil
  • Horn loaded 3.0''neodymium c. driver
  • Multiple rigging points

The NX 32-A is an active speaker specifically designed to be the everyday tool for rental companies and professional musicians. It’s one of the most flexible speaker for deploying high-quality sound as a stand-alone FOH system or as a satellite (with subwoofer) but either as a stage monitor or a or a front, down or side fill speaker.

Part number:

13000550
NX 32-A
220-240V, EAN 8024530015312

13000551
NX 32-A
115V, EAN 8024530015480

New perspective on linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
Responsive Image
Responsive Image

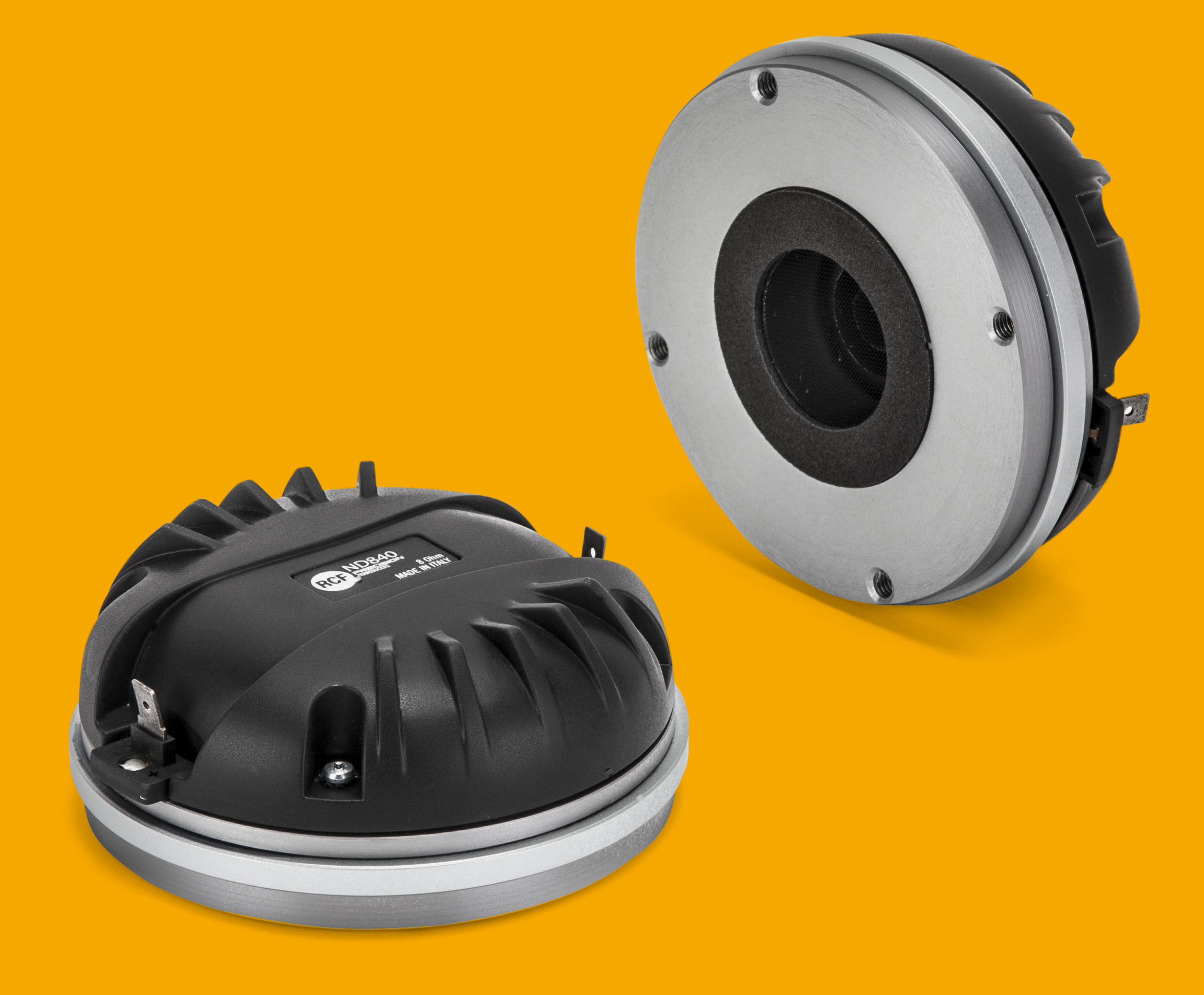

Superior compression drivers

The RCF Compression Drivers in pure Titanium are perfect for a crossover point lower than 700 Hz. This allows a better impulse response, fast decay and superior efficiency. Lightweight and powerful, our neodymium drivers are a reference in performance and reliability.

The voice coil features a high-temperature kapton former. The assembly process takes advantage of the RCF proprietary Direct Drive technology. The diaphragm’ s suspension has been designed following extensive studies aimed at minimising distortion and extending low frequency range.

Powerful class D amplifiers

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. NX amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the NX amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.
Responsive Image
Specifications
Acoustical specifications
Frequency Response:
50 Hz ÷ 20000 Hz
Max SPL @ 1m:
131 dB
Horizontal coverage angle:
90°
Vertical coverage angle:
60°
Transducers
Compression Driver:
1.4'' neo, 3.0'' v.c
Woofer:
12'', 2.5'' v.c
Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR, Jack
Output connectors:
XLR
Input sensitivity:
-2 dBu/+4 dBu
Mic. Input Sensitivity:
-32 dBu
Processor section
Crossover Frequencies:
700 Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Volume, boost, Mic/Line
Power section
Total Power:
1400 W Peak, 700 W RMS
High frequencies:
400 W Peak, 200 W RMS
Low frequencies:
1000 W Peak, 500 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Standard compliance
Safety agency:
CE compliant
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Hardware:
5 x M10, 4 x quick lock
Handles:
2 Side

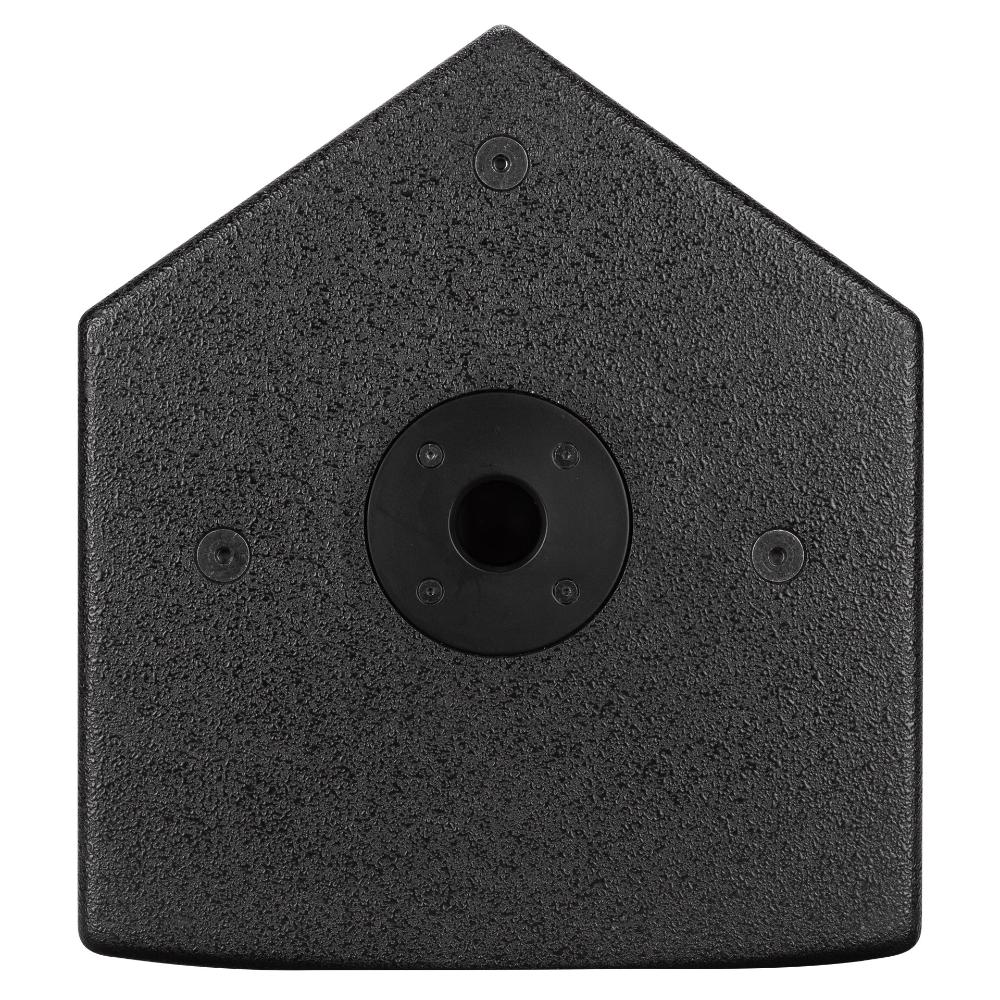

Pole mount/Cap:
Yes
Grille:
Steel
Color:
Black
Size
Height:
600 mm / 23.62 inches
Width:
365 mm / 14.37 inches
Depth:
378 mm / 14.88 inches
Weight:
20.6 kg / 45.42 lbs
Shipping information
Package Height:
655 mm / 25.79 inches
Package Width:
425 mm / 16.73 inches
Package Depth:
440 mm / 17.32 inches
Package Weight:
23.6 kg / 52.03 lbs
