NXL 24-A

ACTIVE TWO-WAY ARRAY
  • 1,400 Watt Class D bi-amplification
  • 4 x 6" Woofers
  • 2.5" voice coil RCF Precision C. Driver on a waveguide
  • 65 Hz - 20 kHz frequency response
Support
Features
  • 1,400 Watt Class D bi-amplification
  • 131 dB SPL Max
  • 65 Hz - 20 kHz frequency response
  • 4 x 6" Woofers
  • 2.5" voice coil RCF Precision C. Driver on a waveguide
  • 100° x 30° slightly tilted pattern control
  • DSP controlled input section with single or dual EQ preset

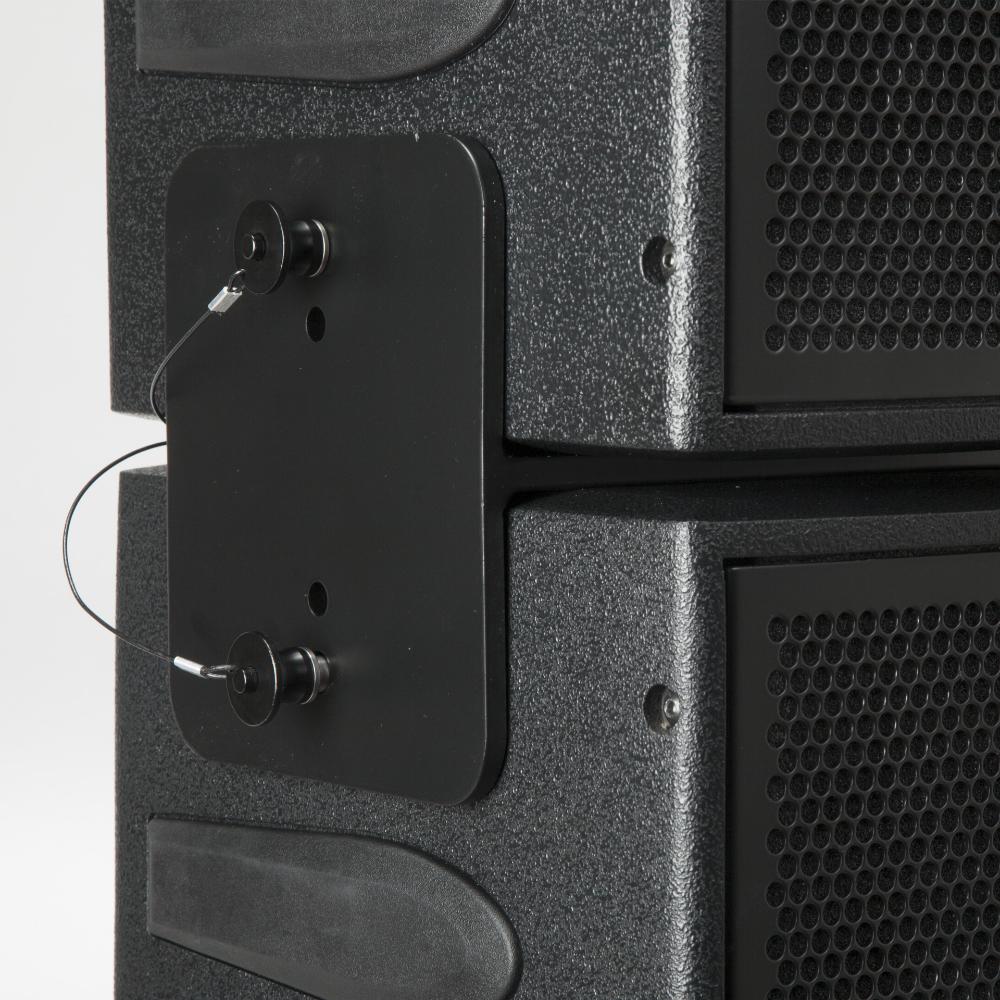

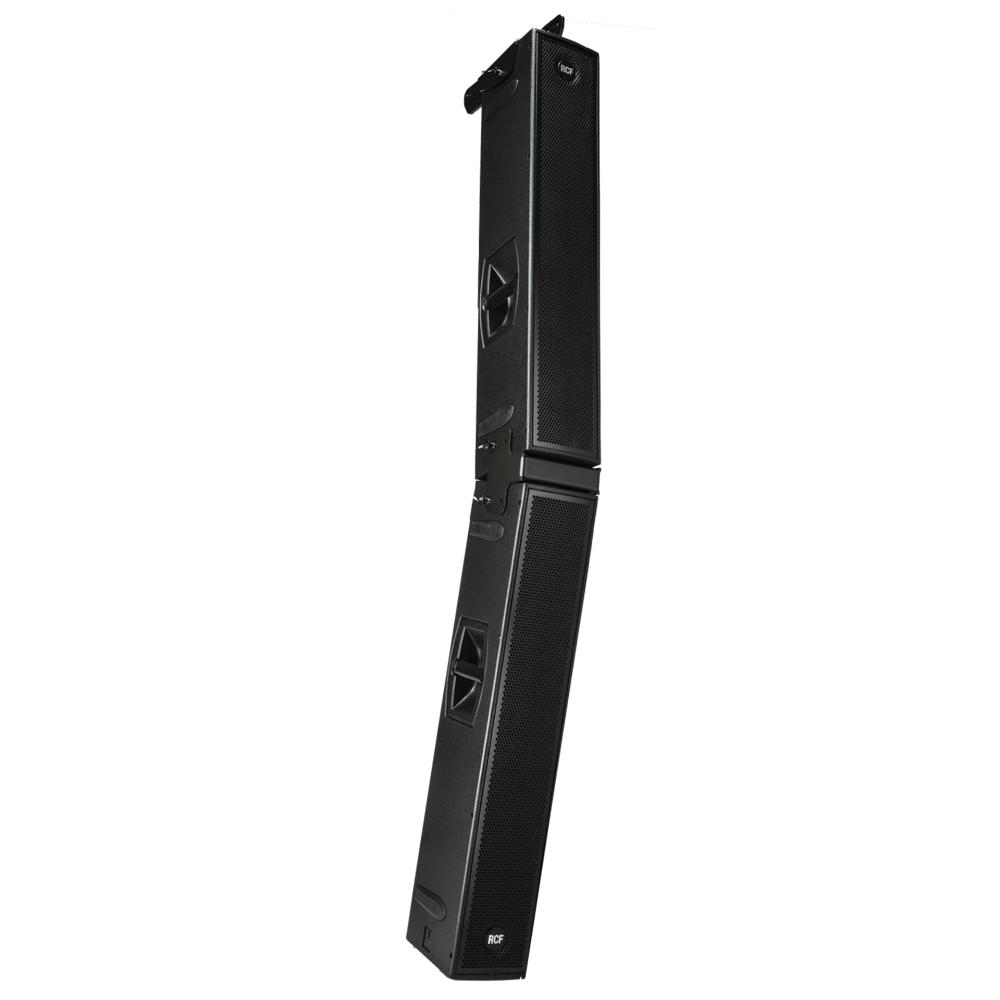

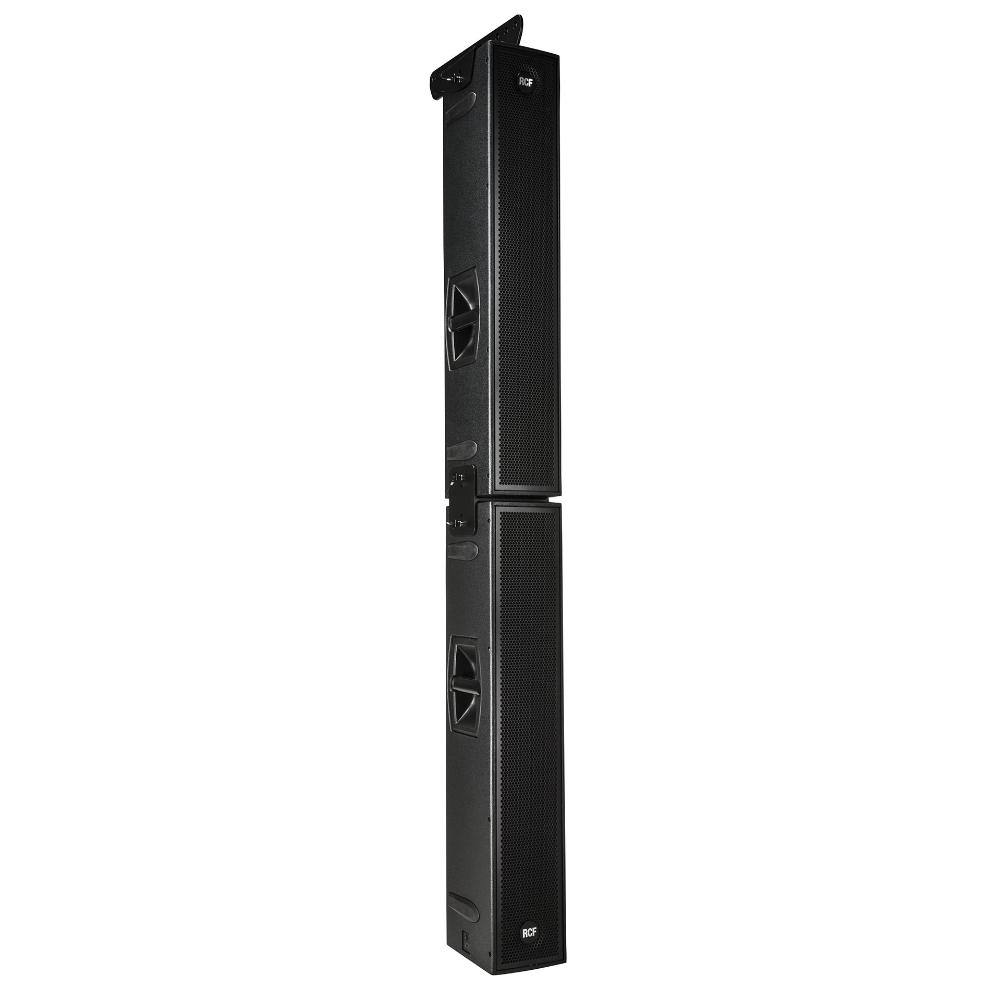

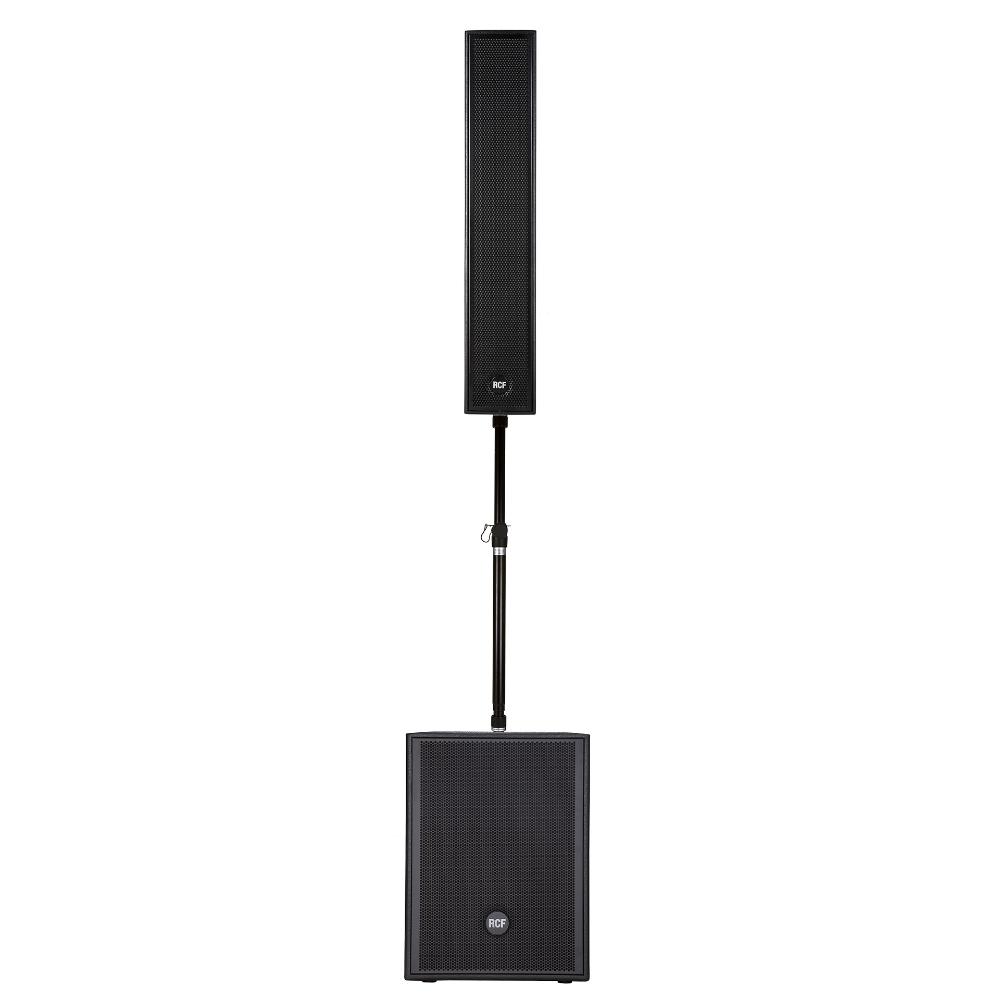

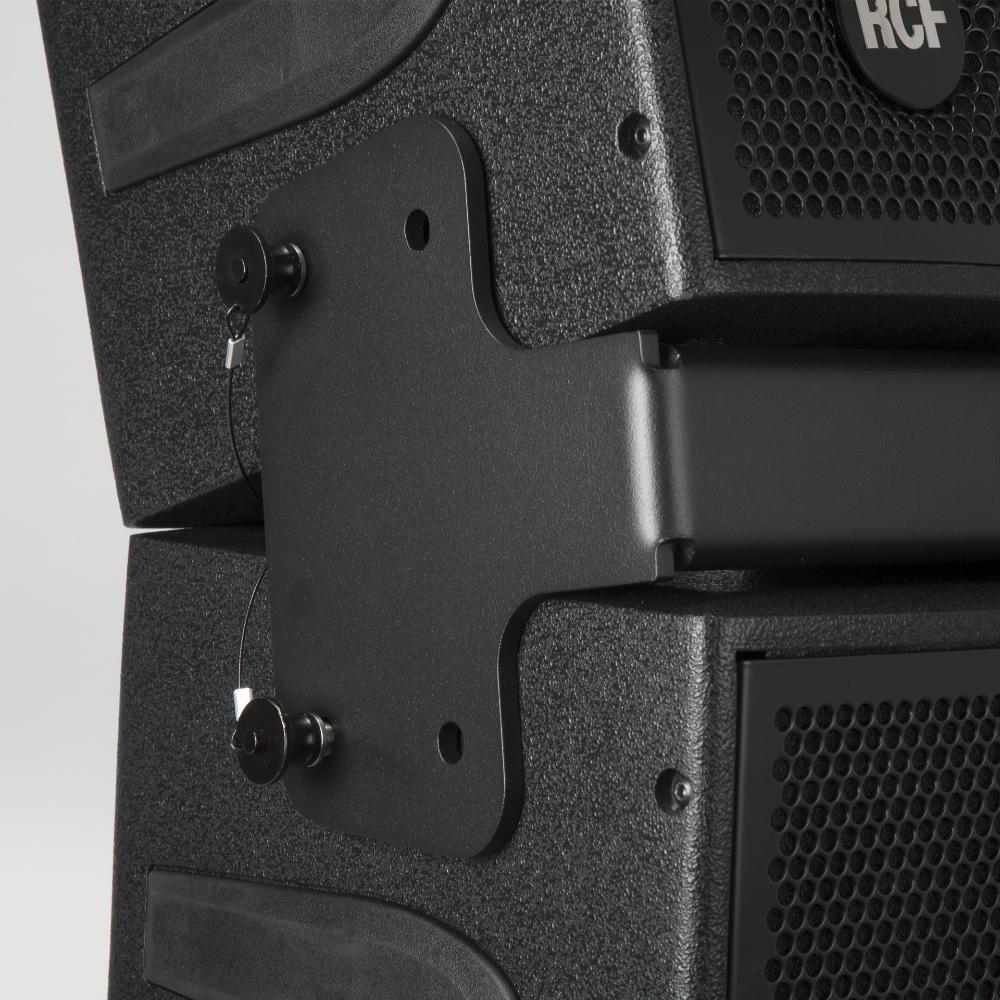

  • East-to-fly and install with built-in rigging points and pole mount socket

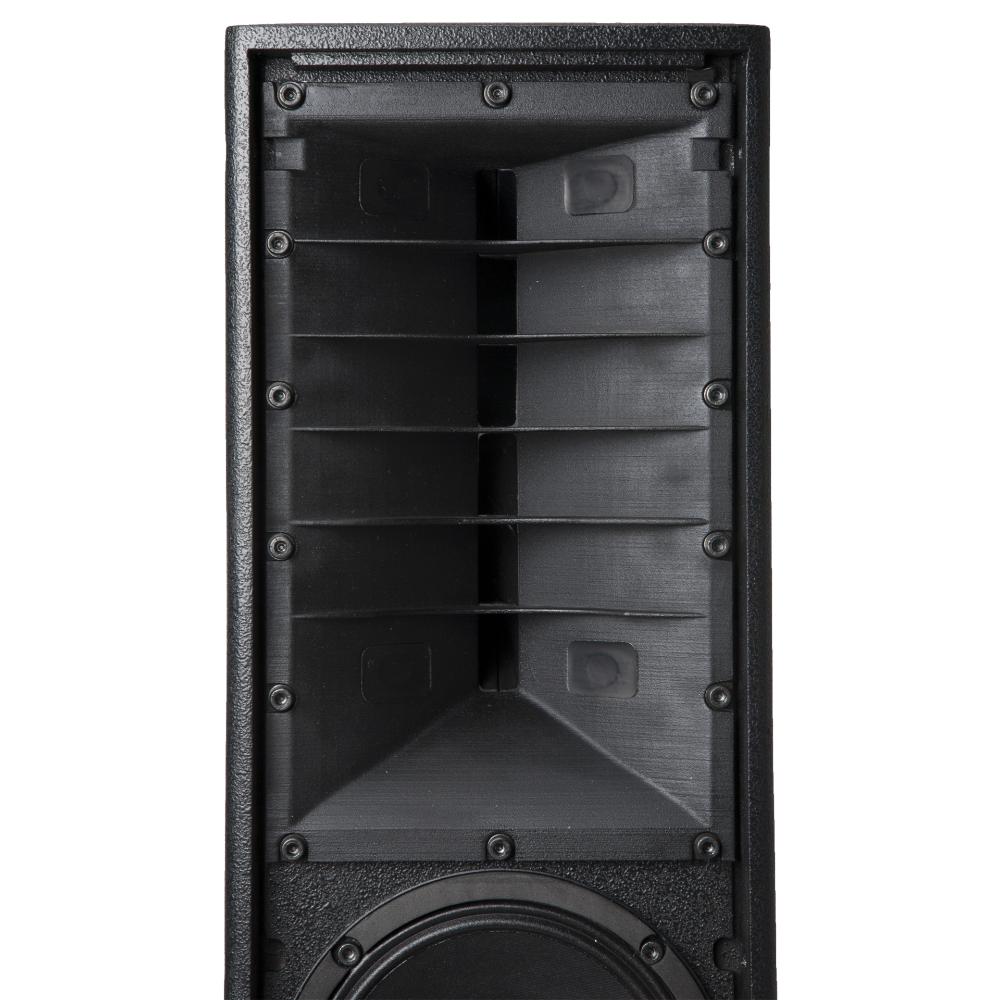

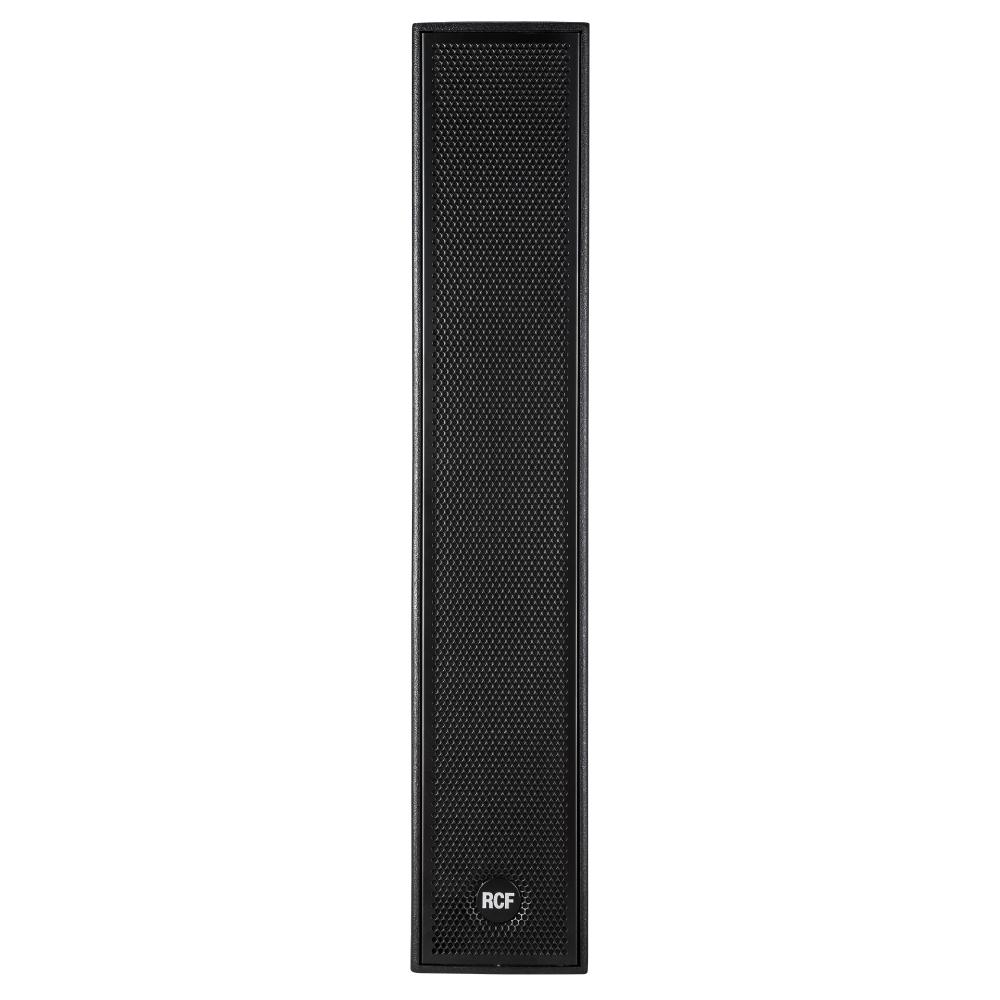

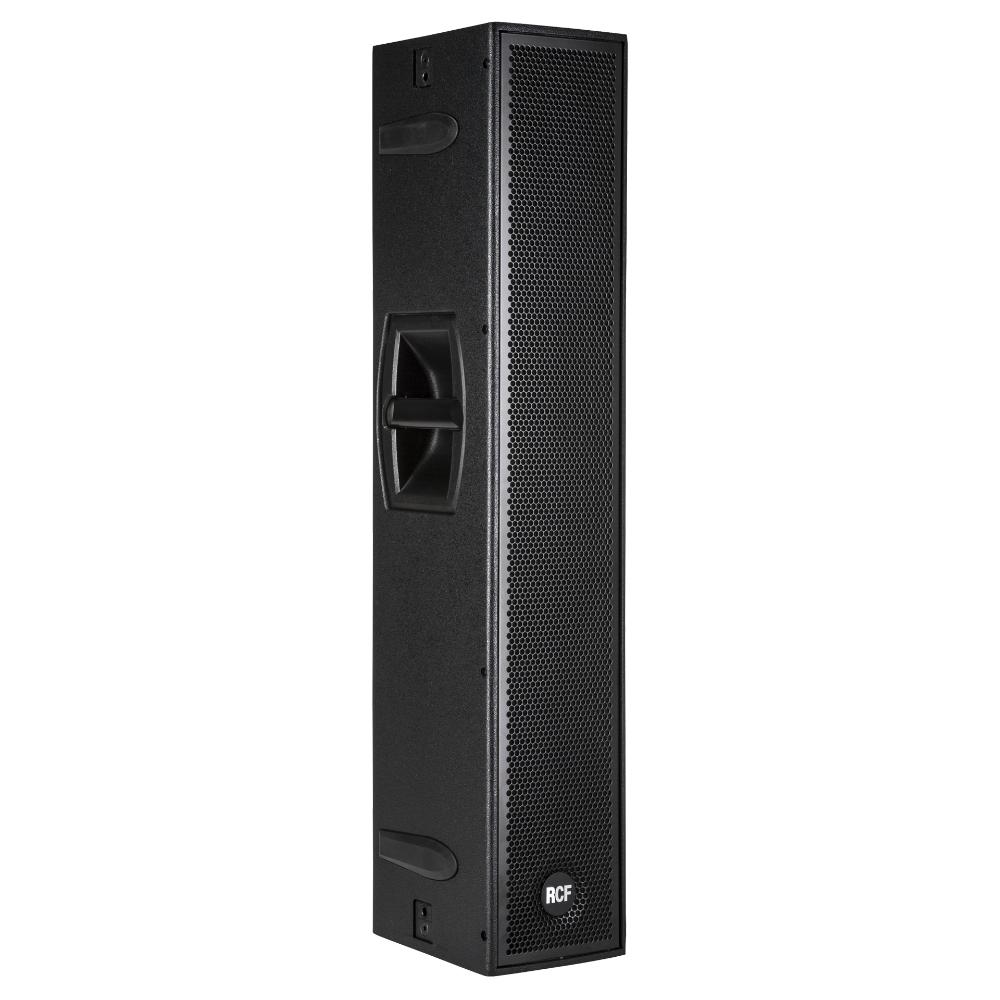

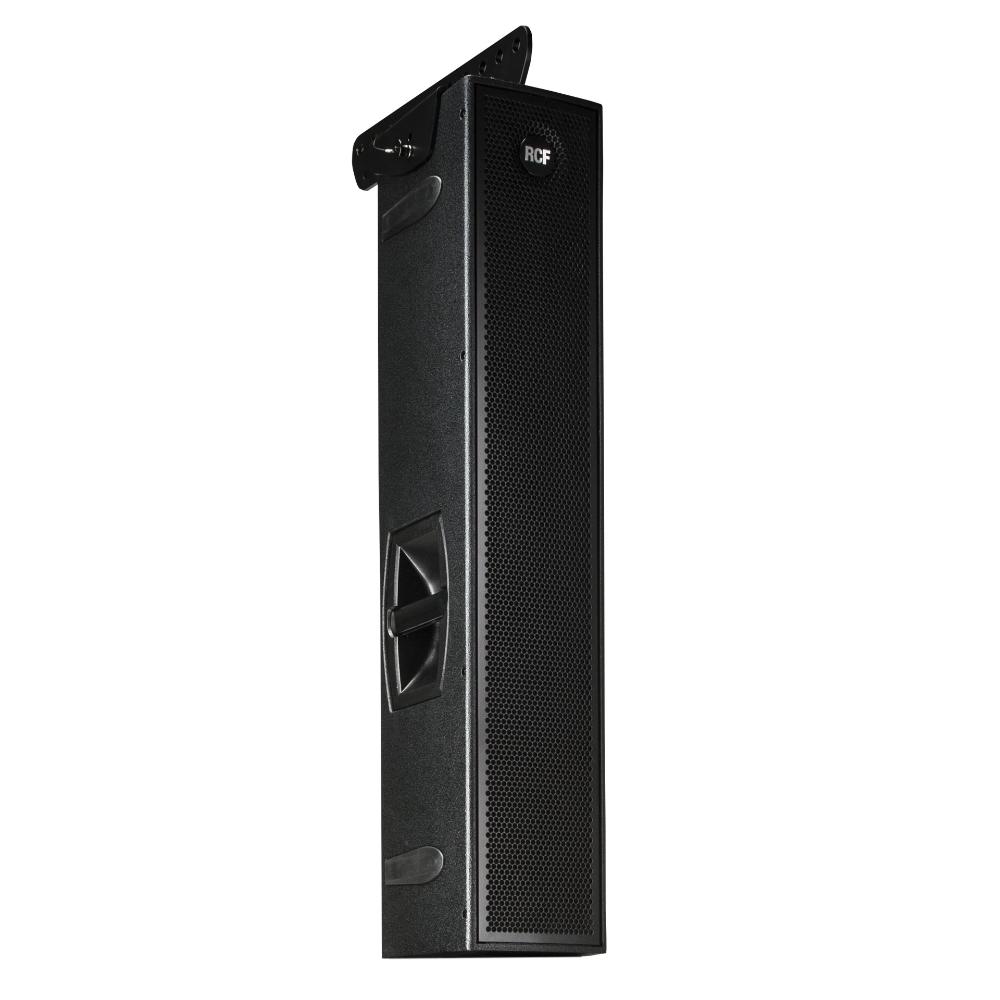

The NXL 24-A is an active column speaker array system with four 6” high power woofers and a 2.5” voice coil compression driver loaded on a 100° x 30° constant directivity waveguide. The amplifier delivers 1,400 Watts and is controlled by a DSP handling crossover, equalization, phase alignment, soft limiting, and speaker protections. Equalization can be applied to a single unit or a pair of speakers.

ARCHIVED

Part number:

13000399
NXL 24-A
220-240V, EAN 8024530010805

13000400
NXL 24-A
115V, EAN 8024530010812

Specifications
Acoustical specifications
Frequency Response:
65 Hz ÷ 20000 Hz
Max SPL @ 1m:
131 dB
Horizontal coverage angle:
100°
Vertical coverage angle:
30°
Transducers
Compression Driver:
1 x 1.4'', 2.5'' v.c
Woofer:
4 x 6.0'', 1.5'' v.c

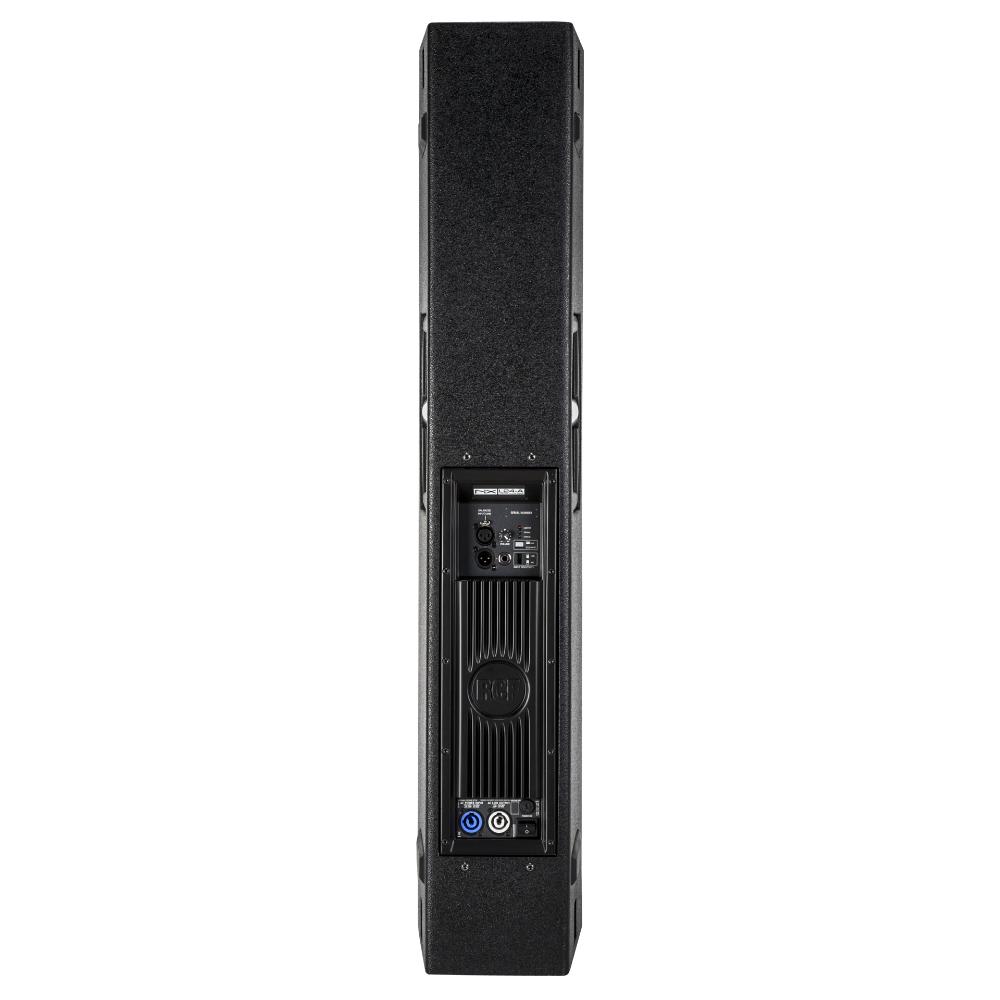

Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR, Jack
Output connectors:
XLR
Input sensitivity:
-2 dBu/+4 dBu
Processor section
Crossover Frequencies:
800 Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Volume, EQ Shape, MIc/Line
Power section
Total Power:
1400 W Peak, 700 W RMS
Low frequencies:
1000 W Peak, 500 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Hardware:
4 x MB, 4 x quick lock
Handles:
2 side
Pole mount/Cap:
Yes
Grille:
Steel
Color:
Black
Size
Height:
1056 mm / 41.57 inches
Width:
201 mm / 7.91 inches
Depth:
274 mm / 10.79 inches
Weight:
26.4 kg / 58.2 lbs
Shipping information
Package Height:
316 mm / 12.44 inches
Package Width:
1155 mm / 45.47 inches
Package Depth:
222 mm / 8.74 inches
Package Weight:
29 kg / 63.93 lbs
