Features
  • 1,400 WATT Class D Bi-Amplification

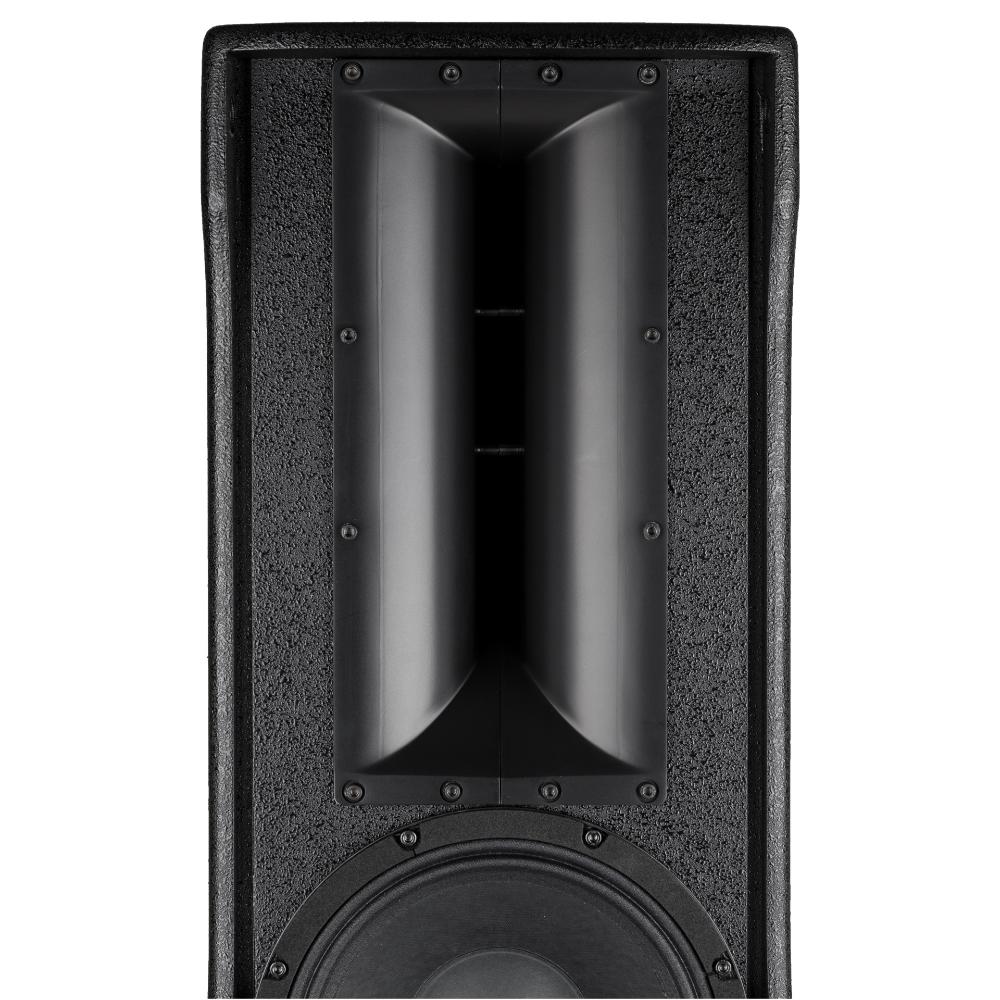

  • 90° x 30° constant directivity waveguide, tilted (+5°, -25°)
  • 3 x 10" neodymium woofer
  • 1.4" compression neodymium driver, 3.0" voice coil
  • DSP Processing with optimized phase response

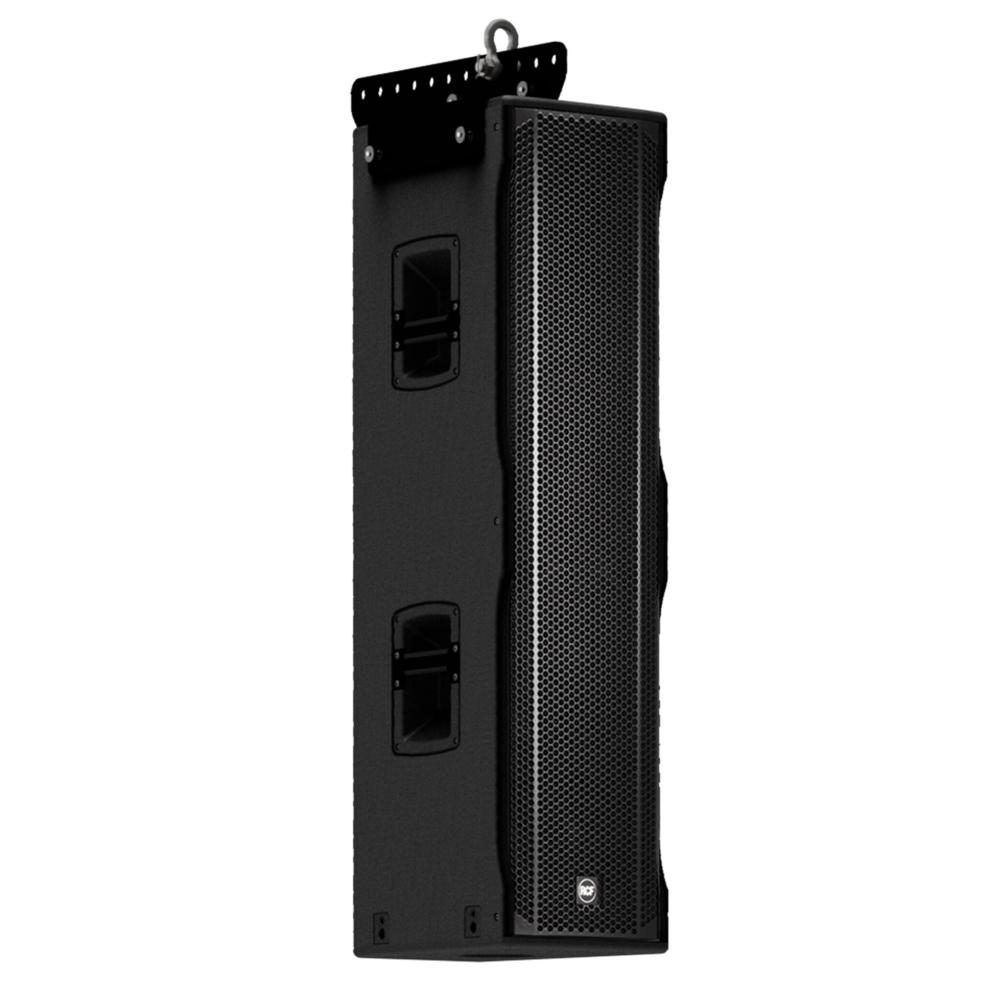

  • Easy-to-fly and install with built-in rigging points

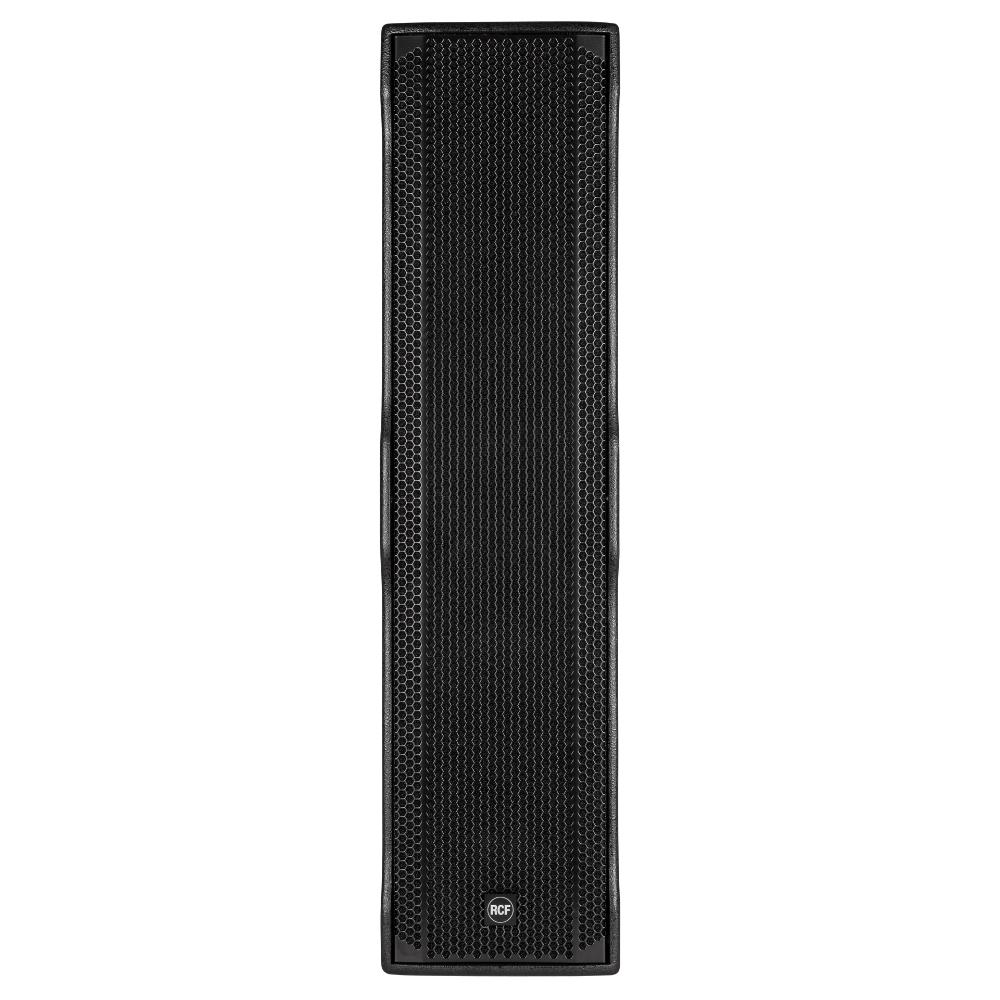

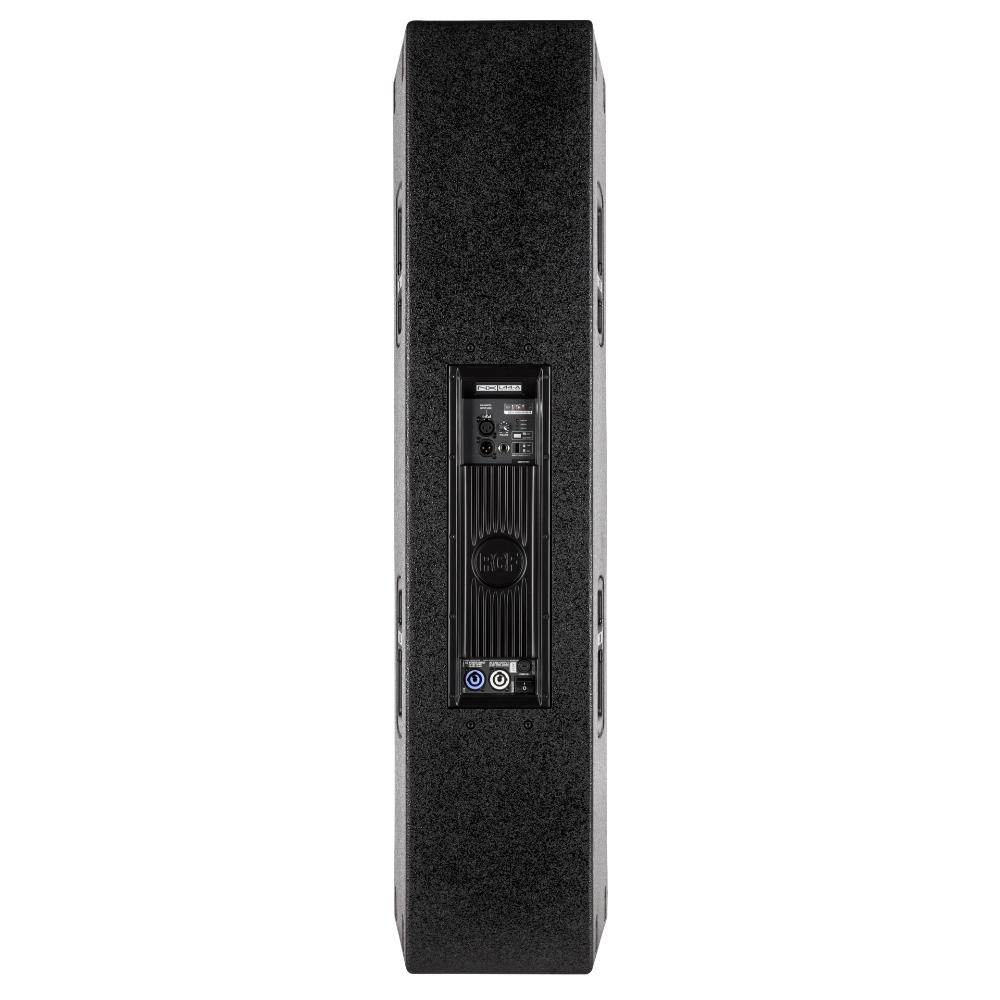

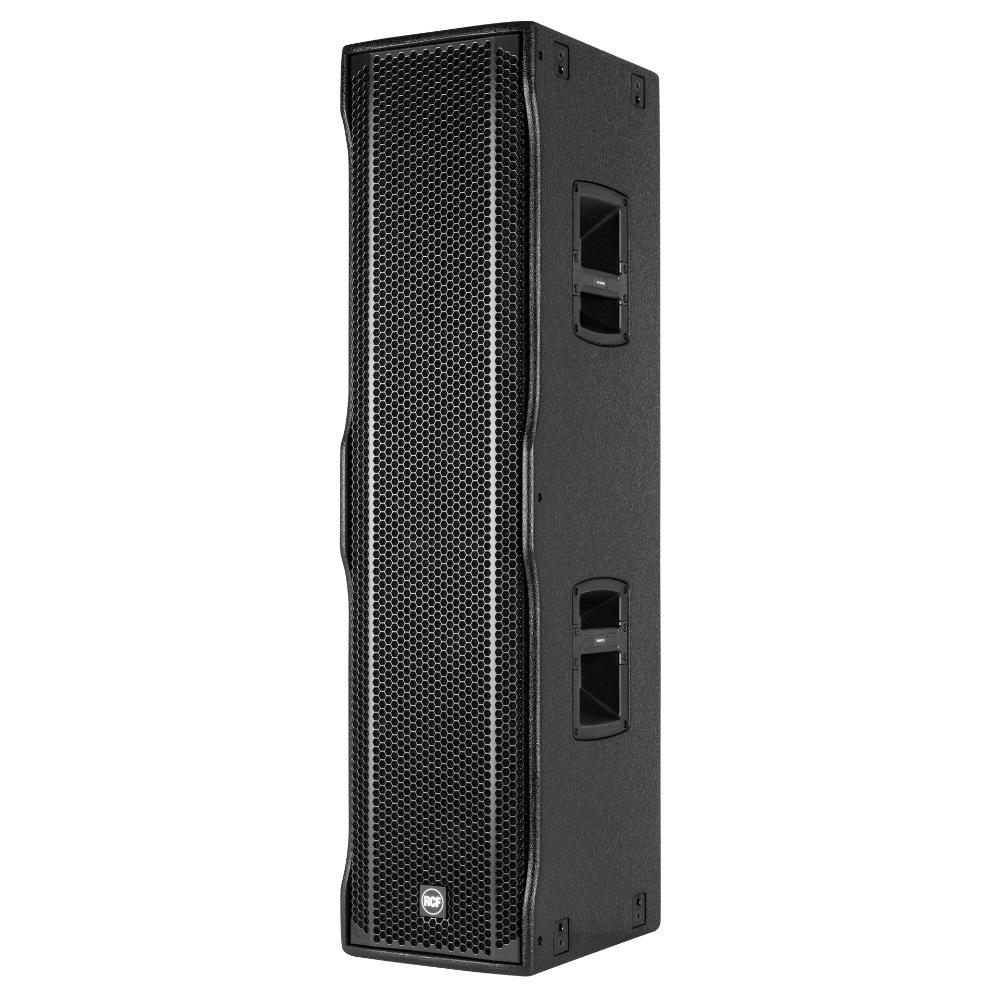

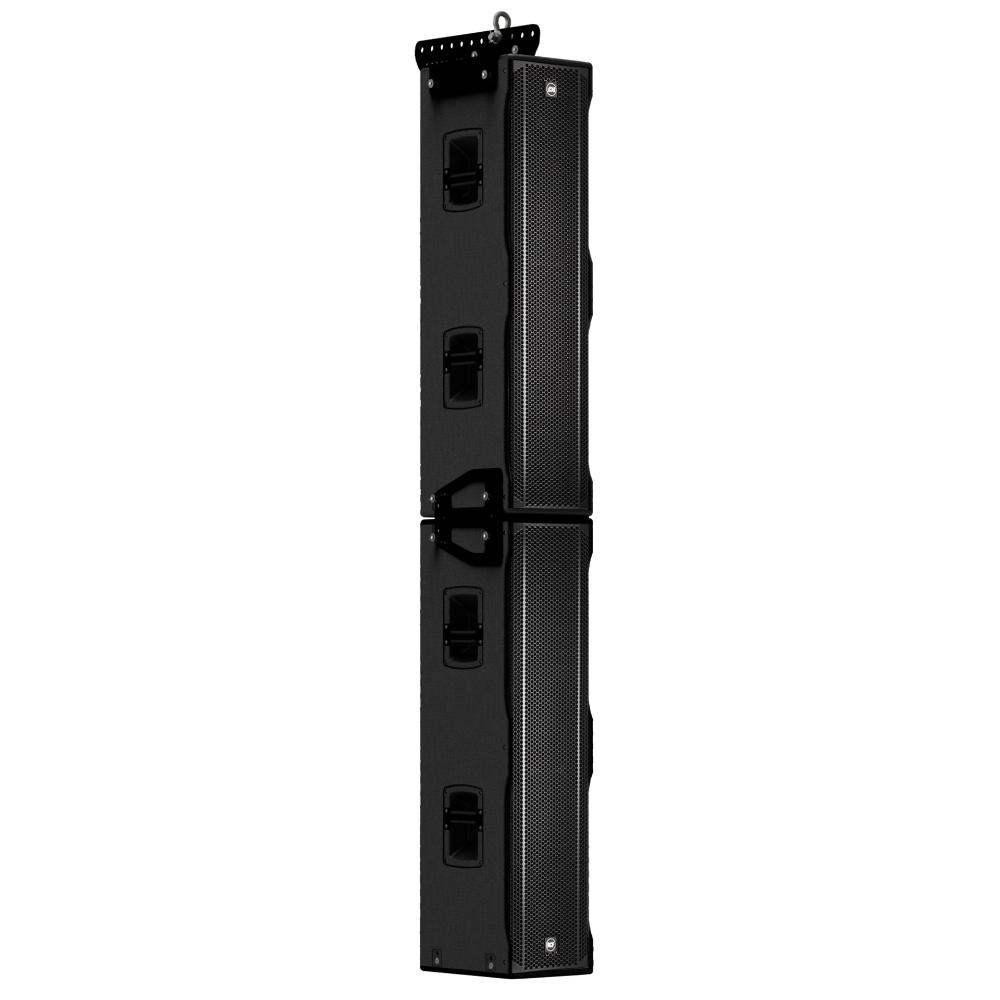

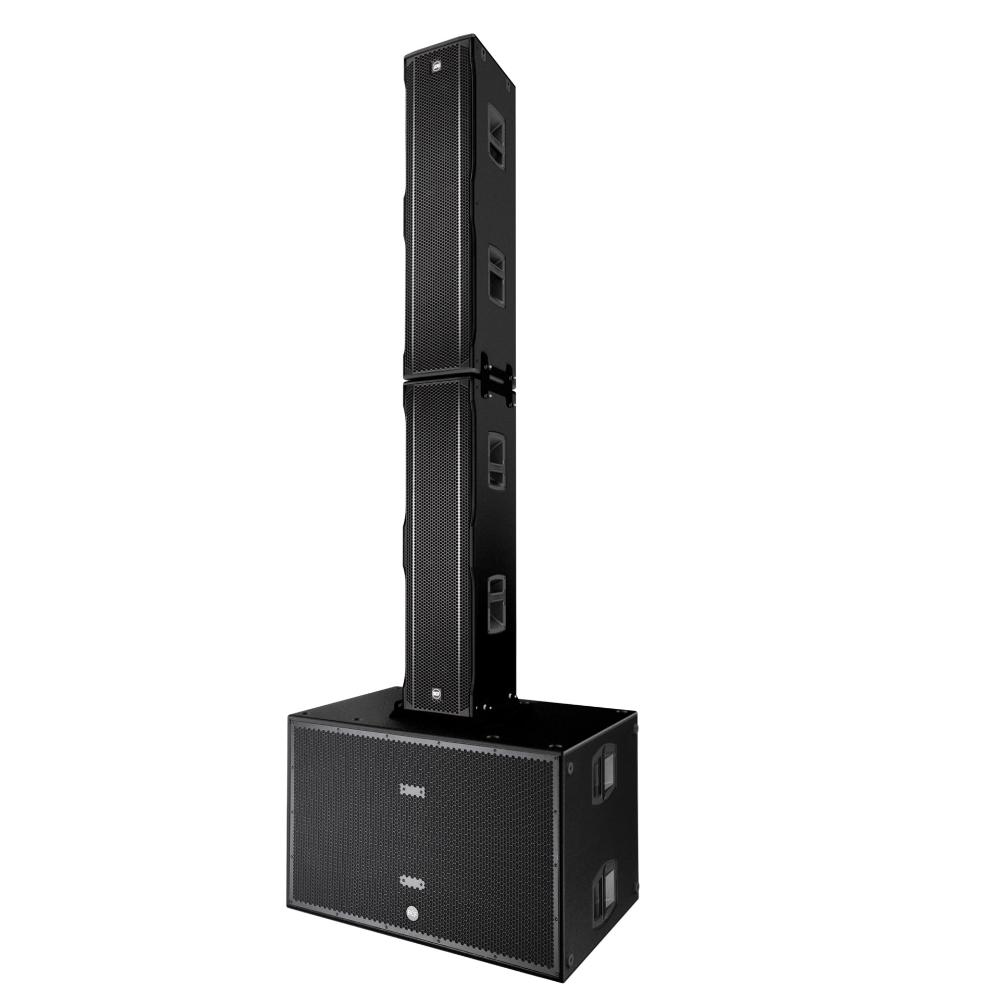

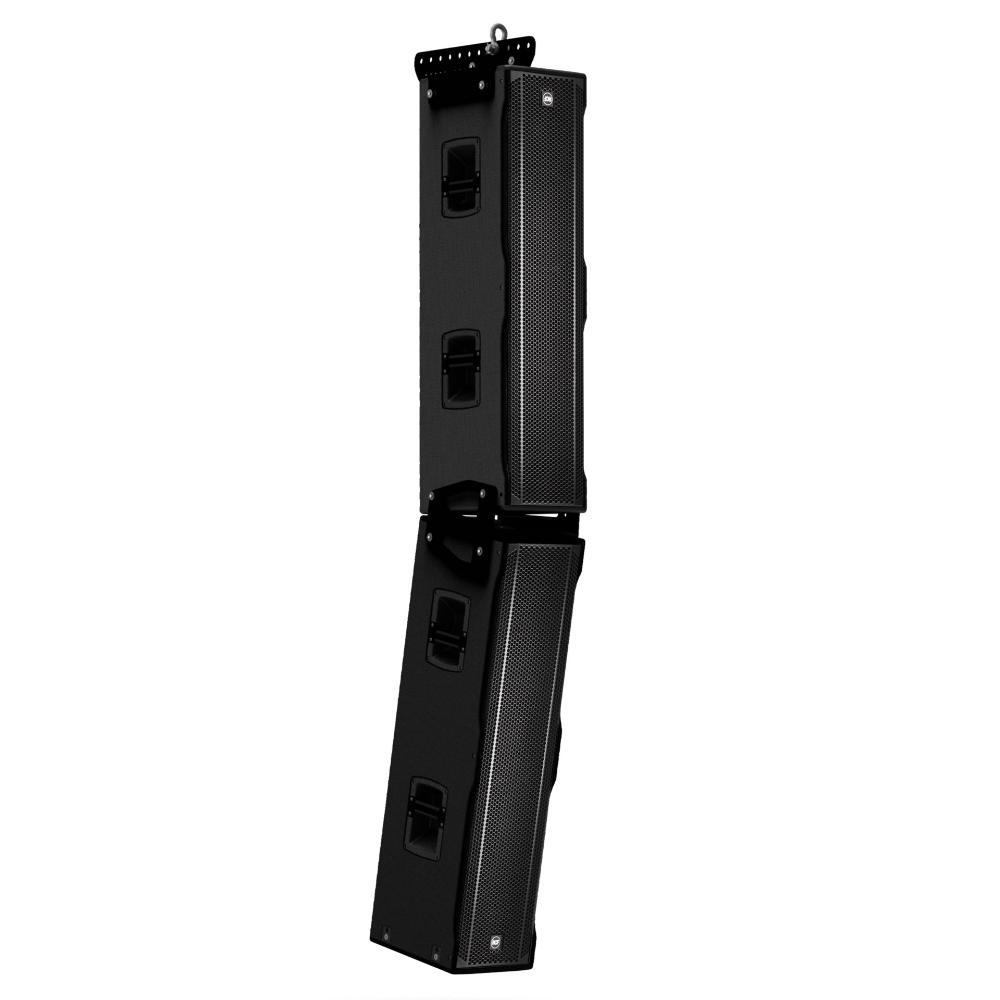

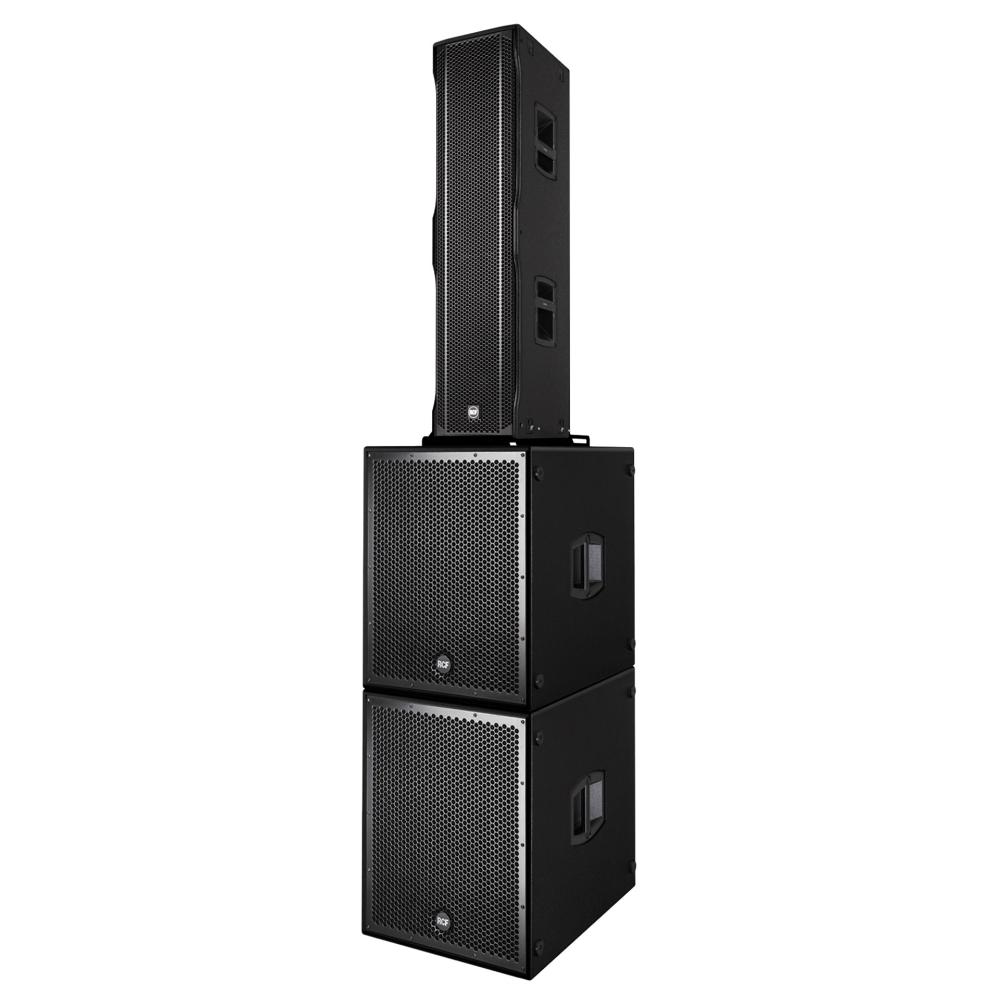

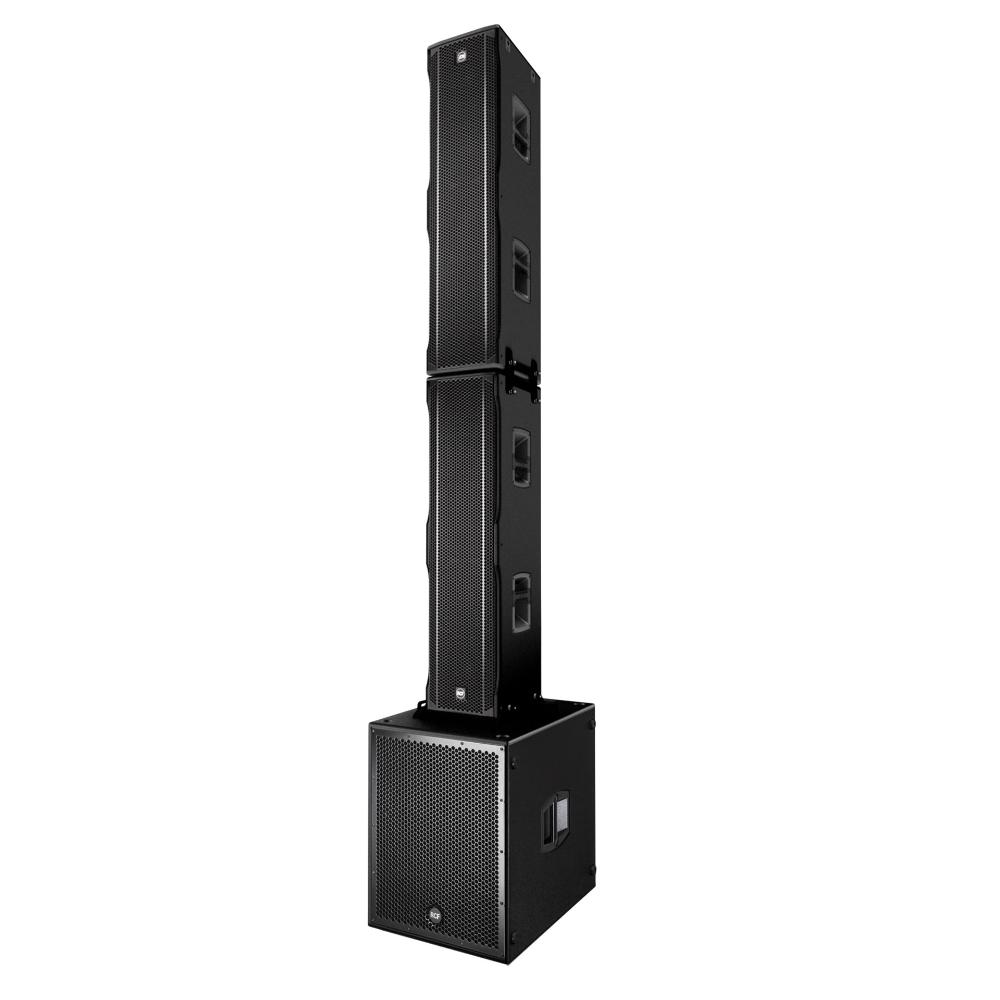

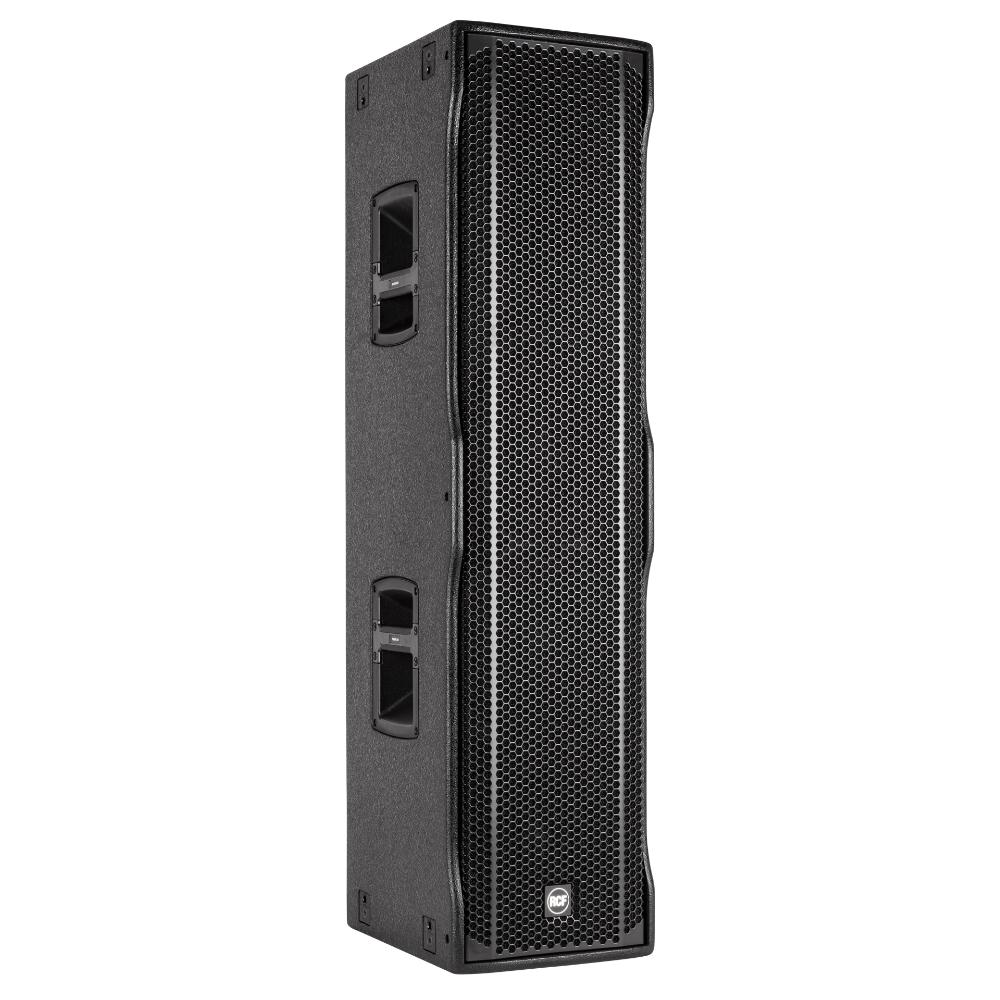

NXL 44-A is a line array column speaker featuring a two-channel 1,400 Watt amplifier powering three 10” neodymium woofers and a 1.4” driver with 3“ voice coil on an asymmetrical waveguide. The horn’s design delivers accurate sound to the coverage area without tilting the enclosure. The speaker delivers an extended frequency range down to 45 Hz, used alone or coupled with subwoofers for medium-sized concerts and DJ sets. Precision controlled by an on-board DSP, the NXL 44-A is ideal for professional live sound reinforcement with sleek design, incredible power, and sound detail. A complete set of rigging accessories allows for simple flying and stacking.


ARCHIVED

Part number:

13000479
NXL 44-A
220-240V, EAN 8024530013523

13000480
NXL 44-A
115V, EAN 8024530013660

Specifications
Acoustical specifications
Frequency Response:
45 Hz ÷ 20000 Hz
Max SPL @ 1m:
134 dB
Horizontal coverage angle:
90°
Vertical coverage angle:
30°

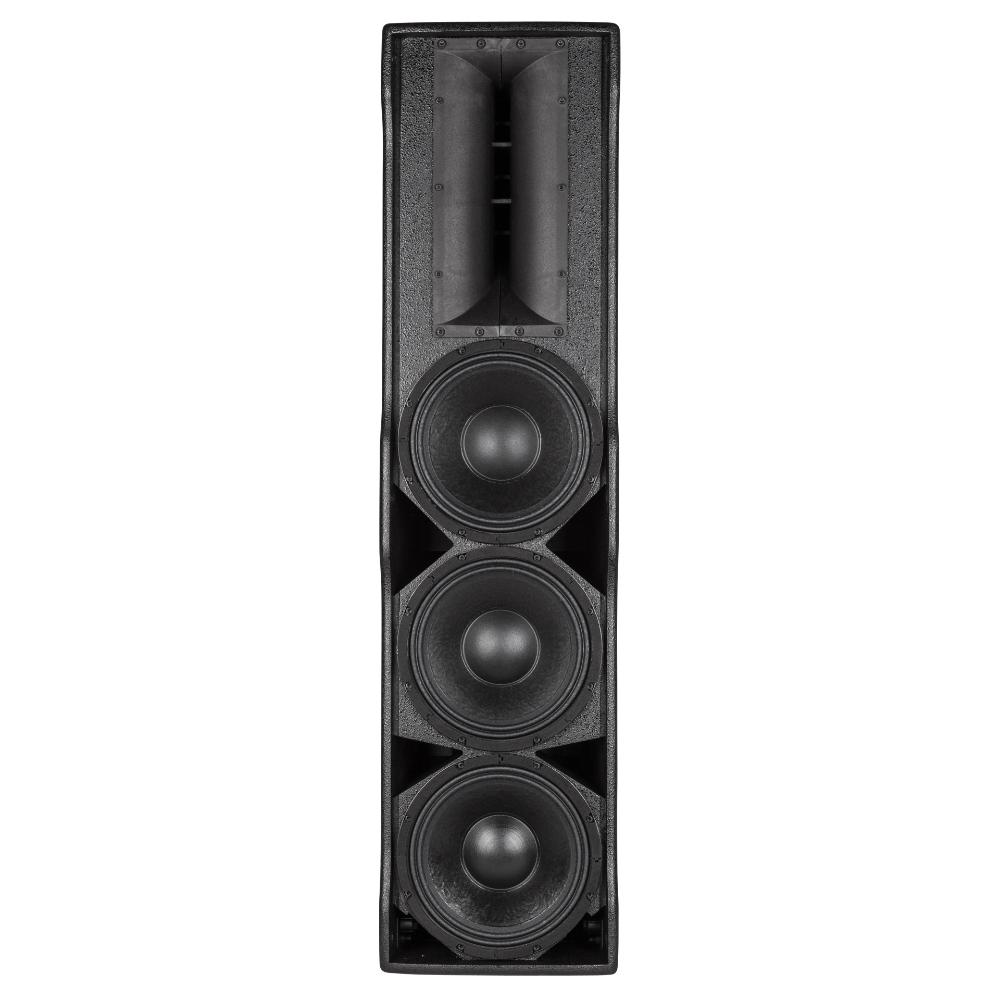

Transducers
Compression Driver:
1 x 1.4'' neo, 3.0'' v.c

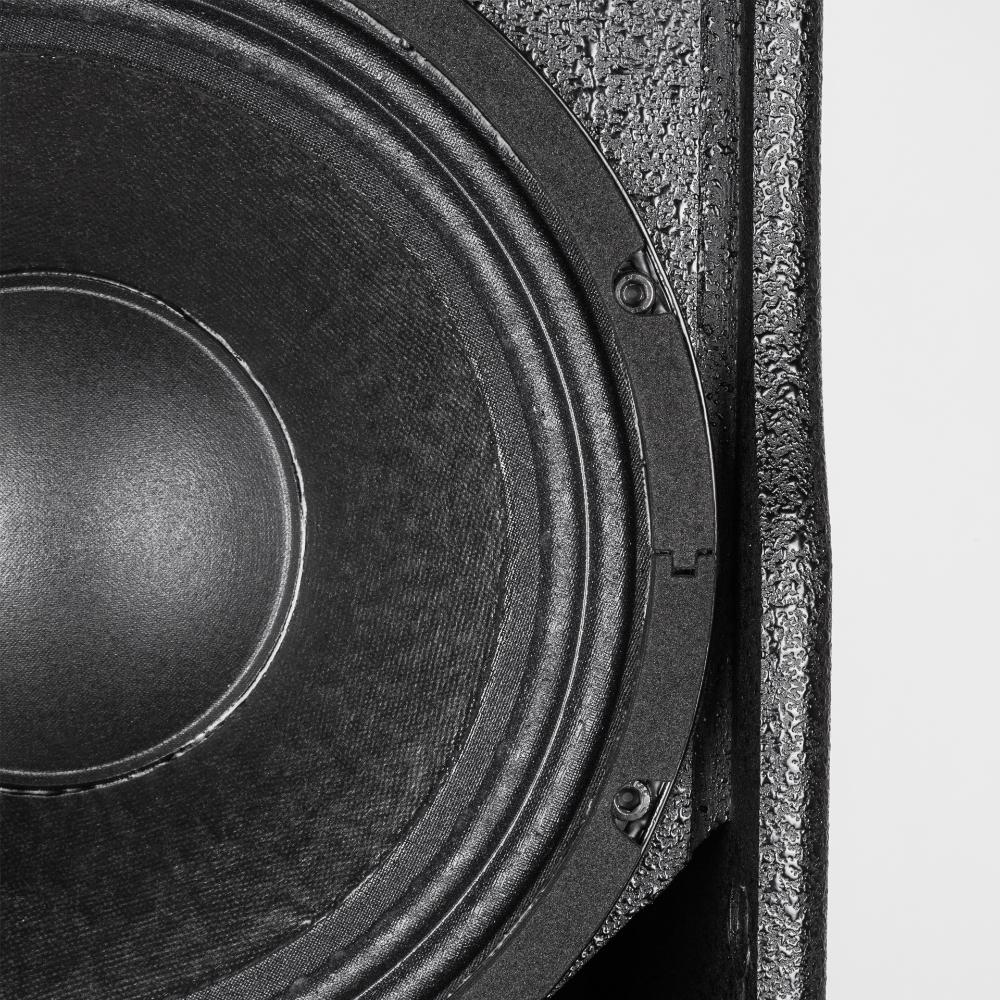

Woofer:
3 x 10'' neo, 2.5'' v.c

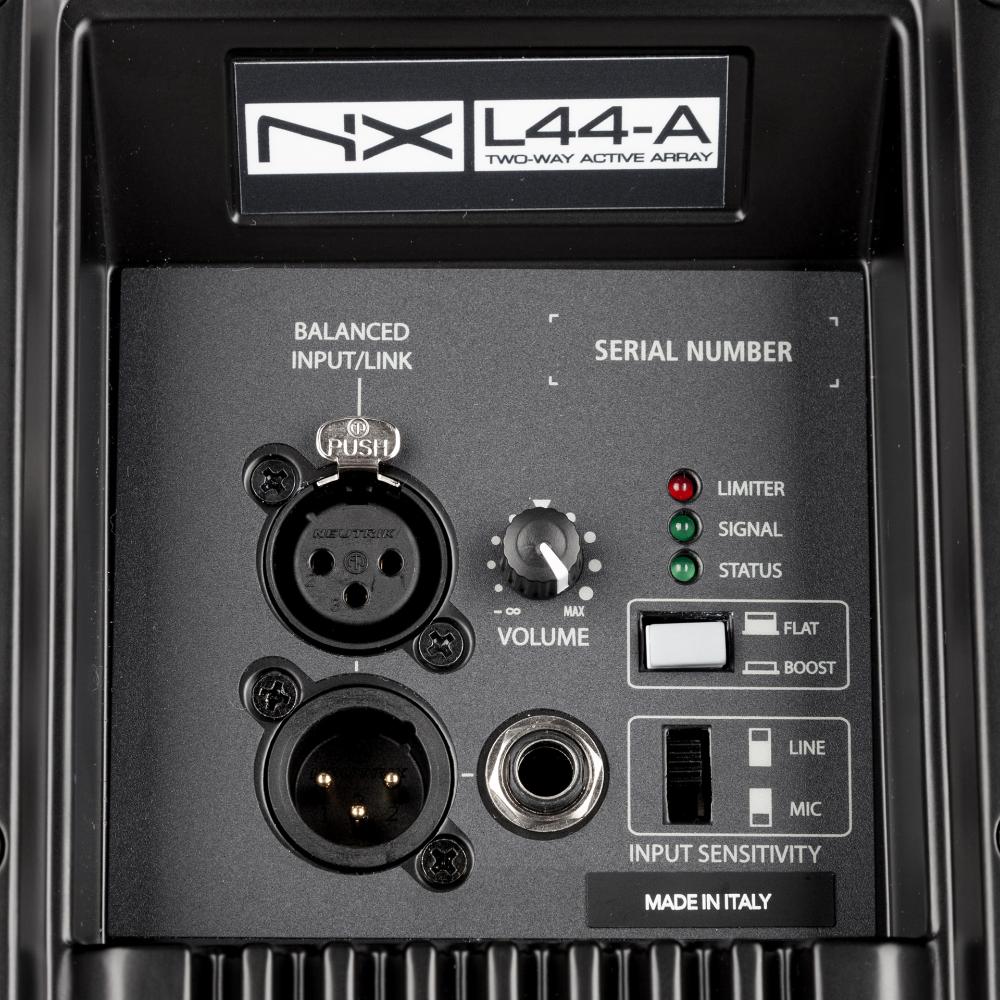

Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR, Jack
Output connectors:
XLR
Input sensitivity:
-2 dBu/+4 dBu
Processor section
Crossover Frequencies:
800 Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Volume, EQ Shape, Mic/Line
Power section
Total Power:
1400 W Peak, 700 W RMS
High frequencies:
400 W Peak, 200 W RMS
Low frequencies:
1000 W Peak, 500 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Hardware:
4 x M8, 4 x quick lock, 2 x pole mount

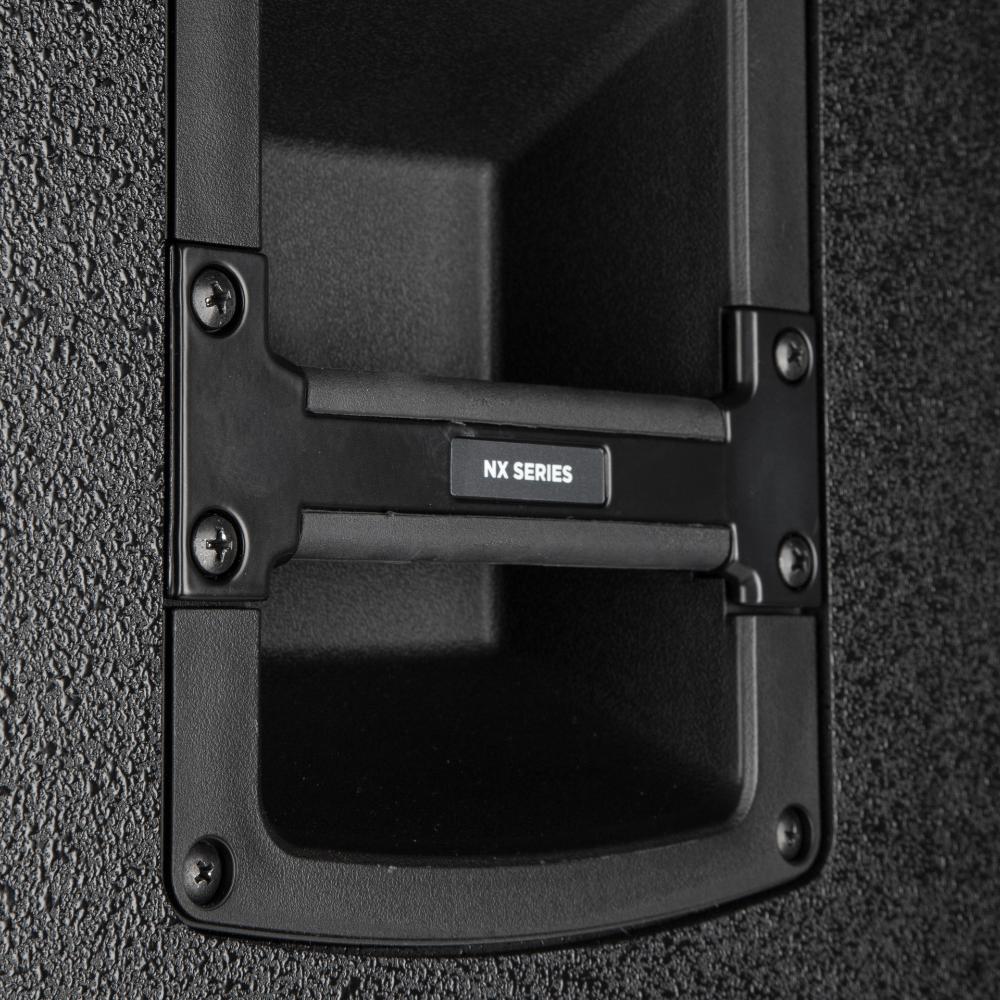

Handles:
4 side

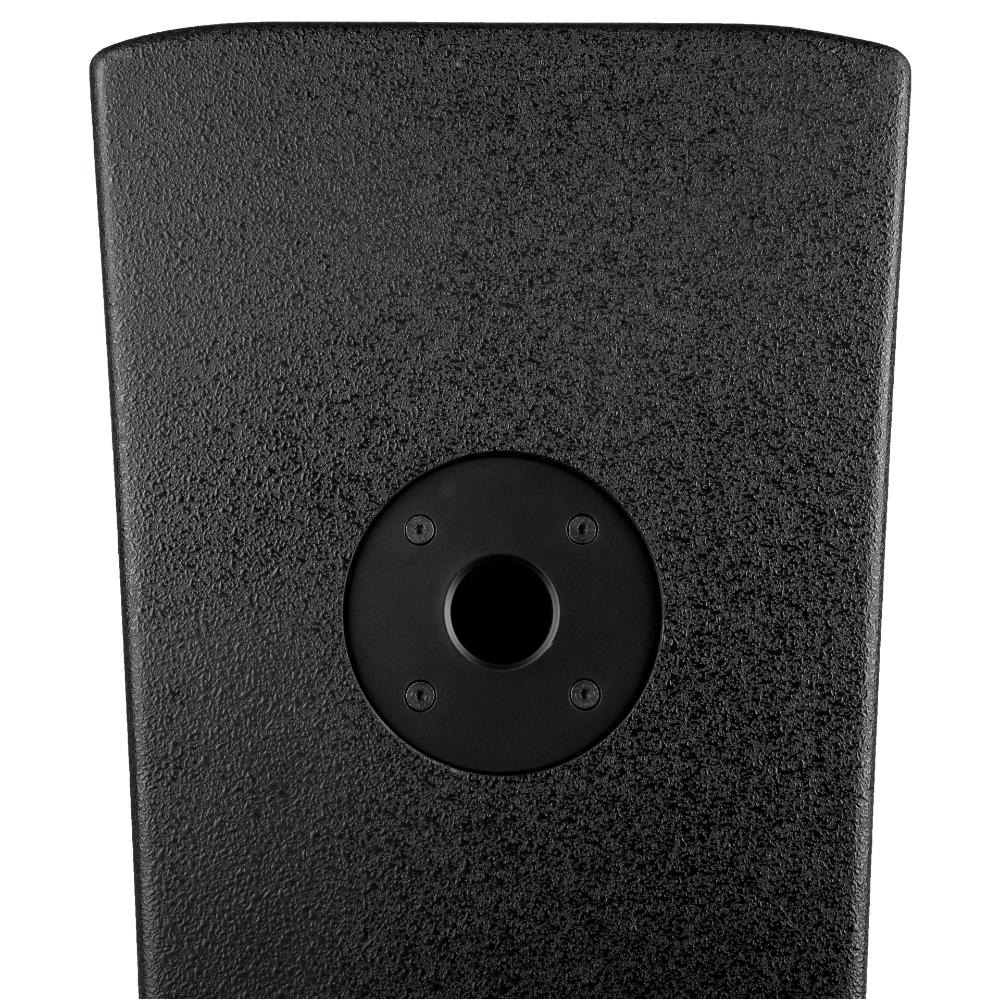

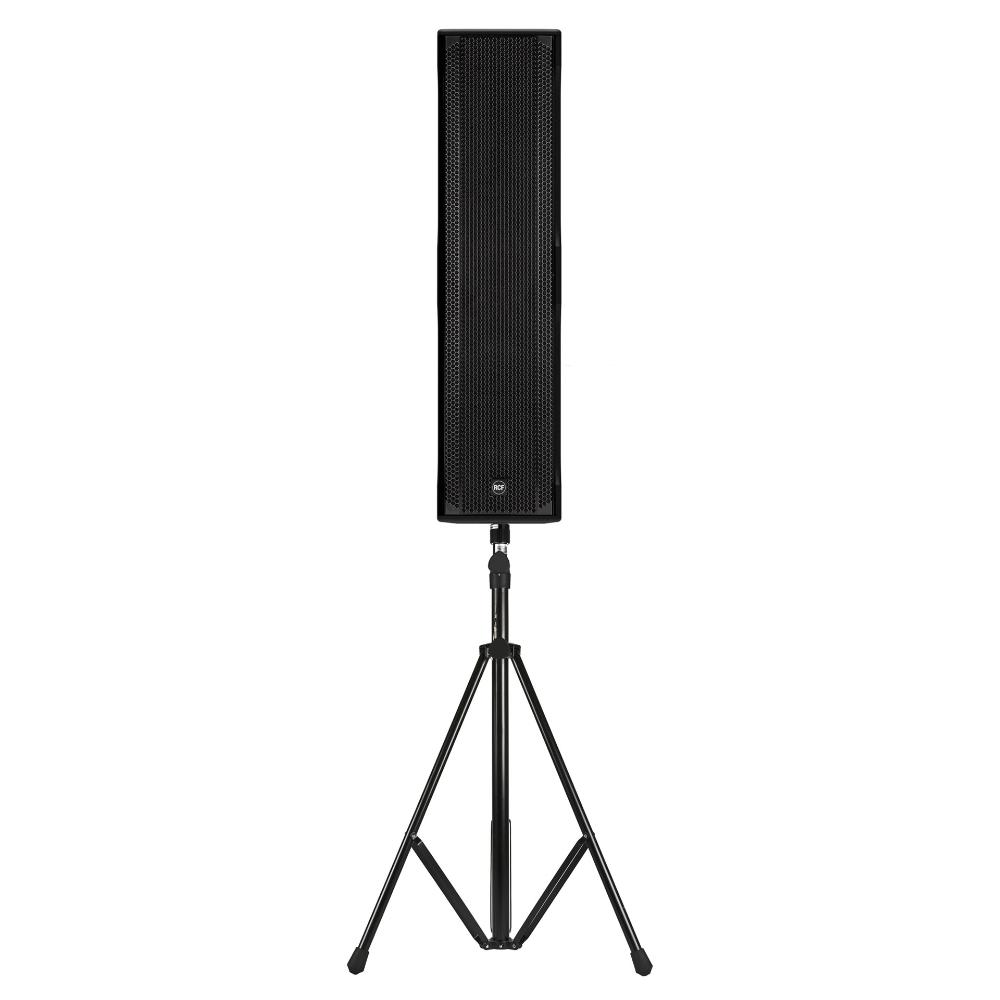

Pole mount/Cap:
Yes
Grille:
Steel
Color:
Black
Size
Height:
1198 mm / 47.17 inches
Width:
303 mm / 11.93 inches
Depth:
402 mm / 15.83 inches
Weight:
34.5 kg / 76.06 lbs
Shipping information
Package Height:
437 mm / 17.2 inches
Package Width:
1224 mm / 48.19 inches
Package Depth:
330 mm / 12.99 inches
Package Weight:
36.5 kg / 80.47 lbs
