COMMERCIAL AUDIO BUSINESS MUSIC

PL 40

CEILING SPEAKER
  • 3.5" fullrange transducer
  • Power selectable (100 V): 8 W – 6 W – 4 W – 2 W
  • 88 dB sensitivity
  • Colour white RAL 9003
Where to buy
Features

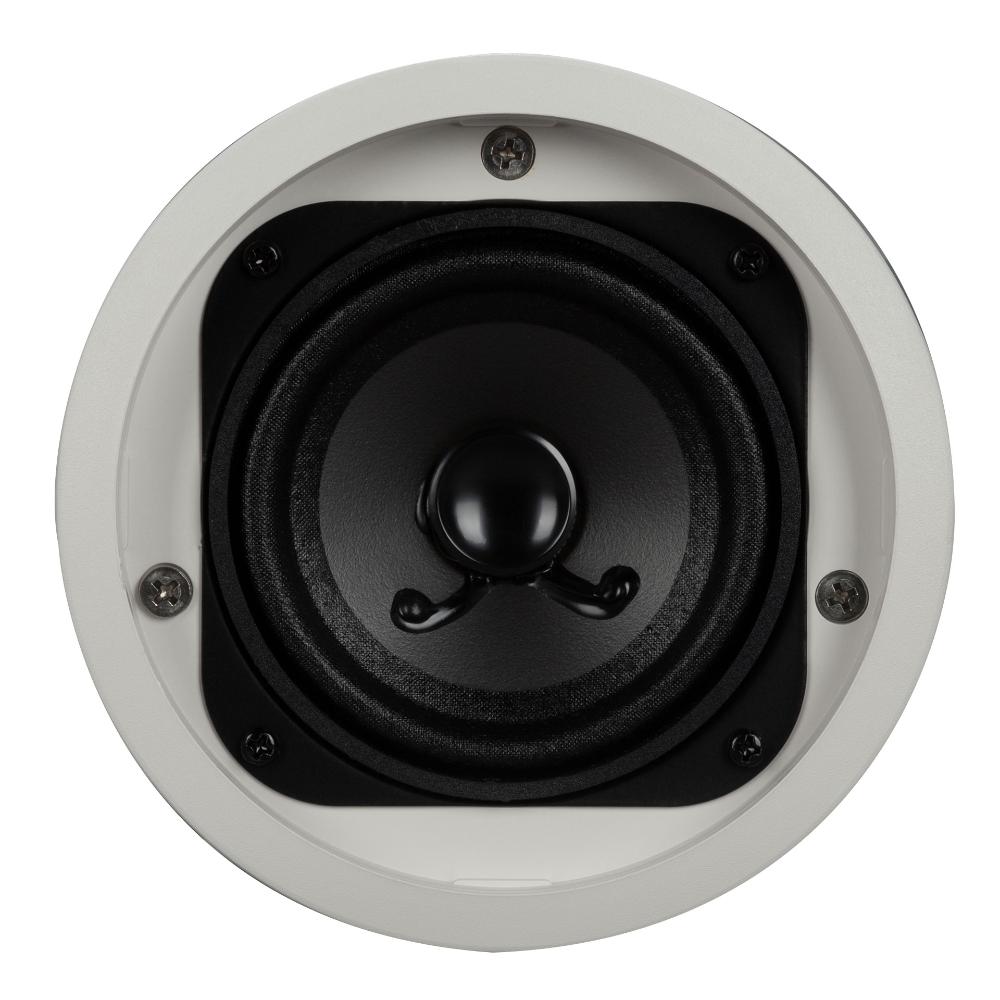

  • 3.5" fullrange transducer
  • Power selectable (100 V): 8 W – 6 W – 4 W – 2 W
  • 88 dB sensitivity
  • Colour white RAL 9003

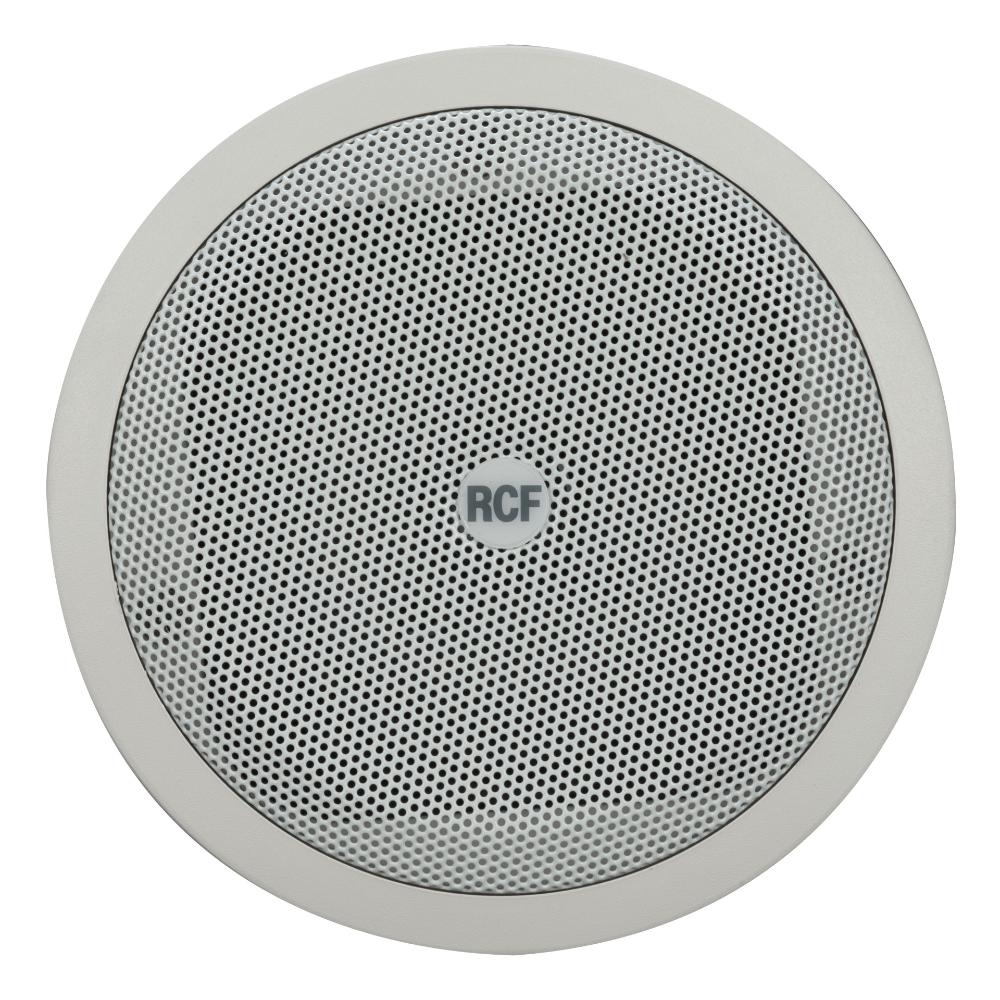

  • Plastic frame UL 94 V0, aluminium grille

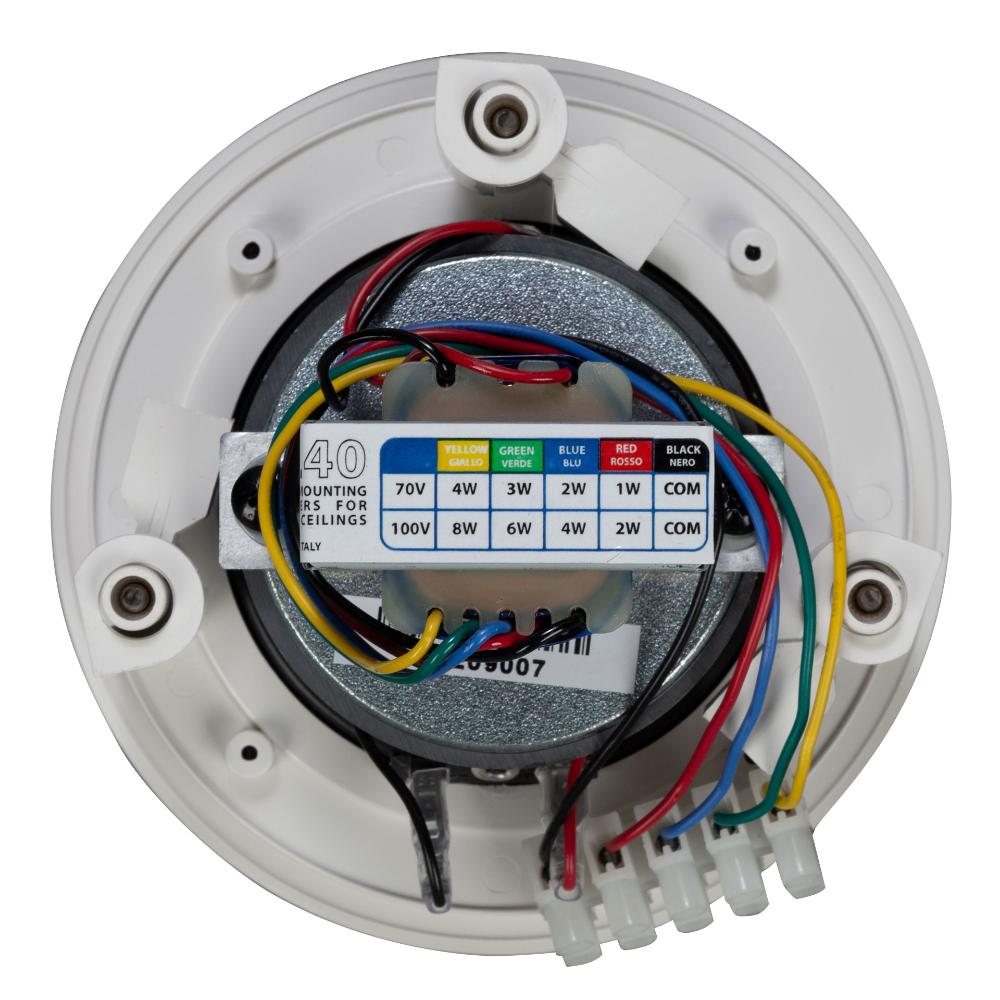

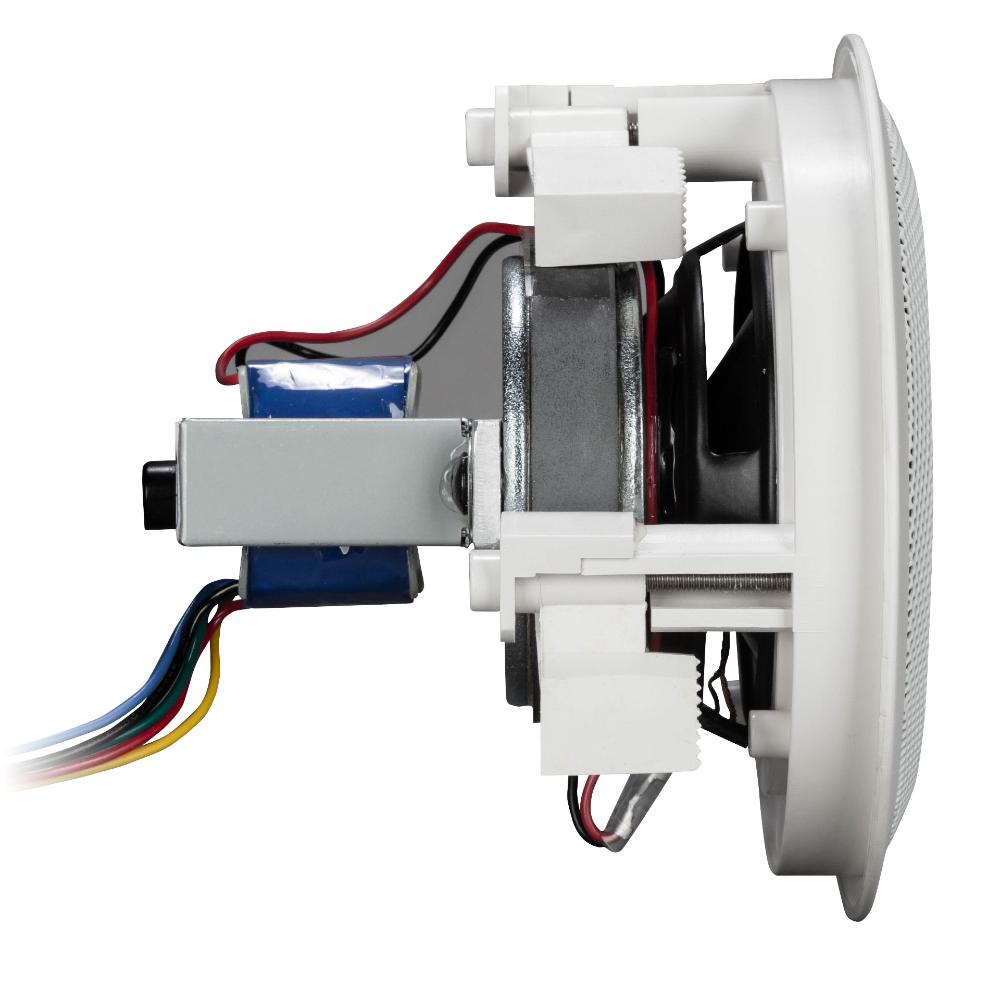

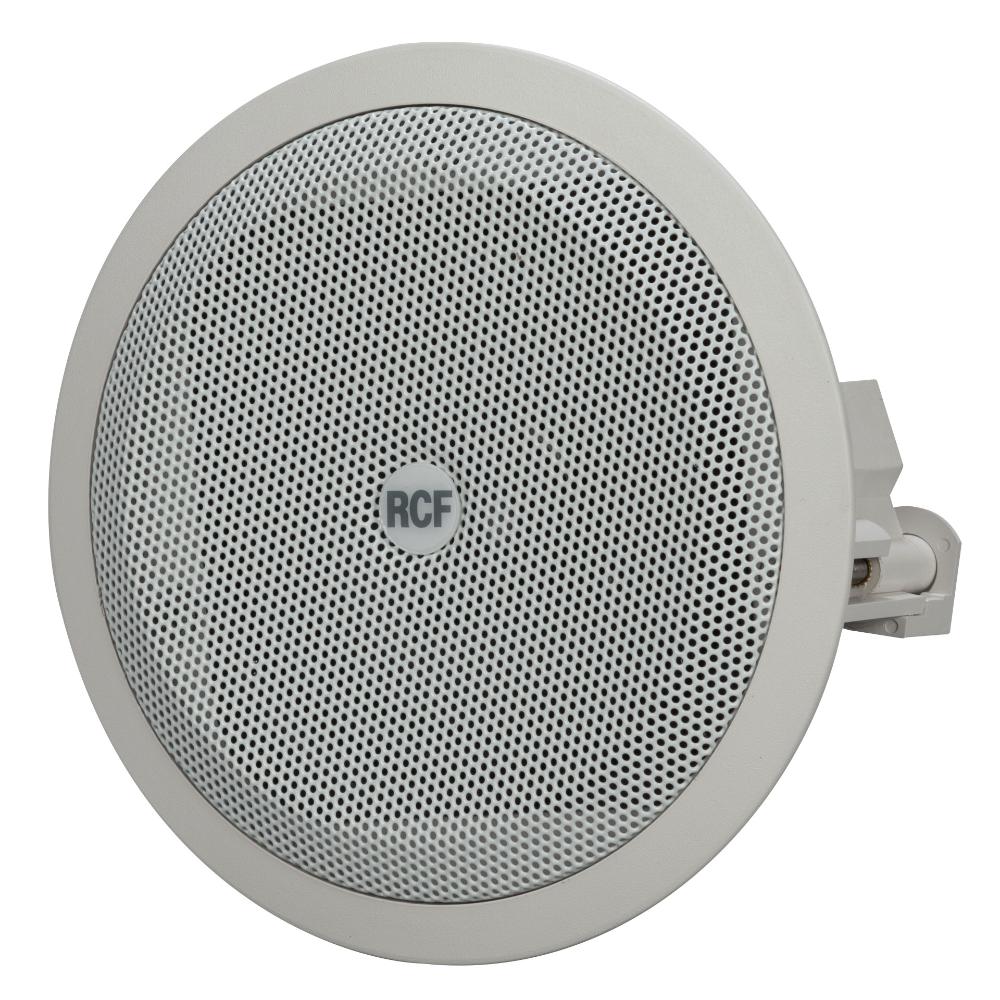

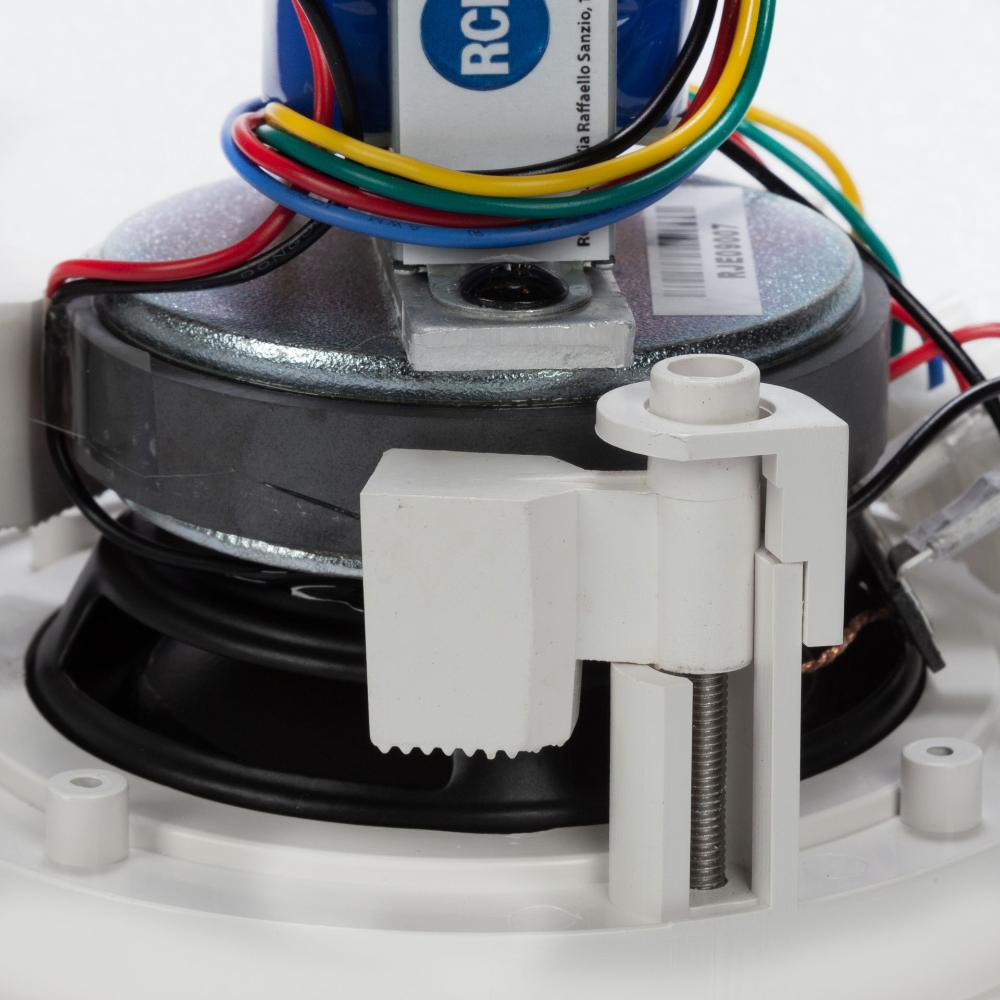

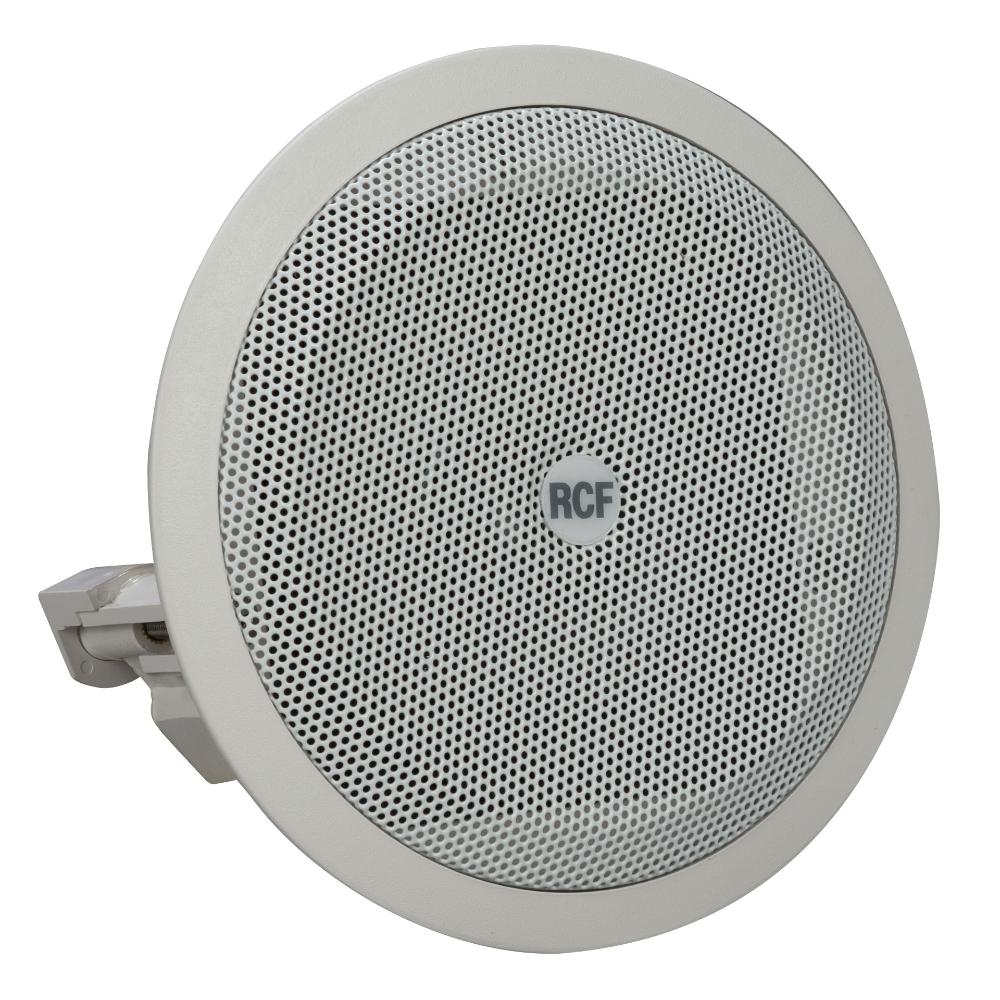

PL 40 is a ceiling speakers featuring elegant and innovative design that can be flushmounted in false ceilings or panels. Incorporating a 3.5” fullrange transducer, PL 40 is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.

Part number:

13133045
PL 40
EAN 8024530004989

Specifications
Acoustical specifications
Frequency Response (-10dB):
90 Hz ÷ 20000 Hz
Max SPL @ 1m:
100 dB
Coverage angle:
120°
System Sensitivity:
88 dB
Power section
Power Handling:
8 W RMS
Peak Power Handling:
32 W PEAK
Recommended Amplifier:
16 W
Transducers
Fullrange:
3.5''
Input/Output section
Input connectors:
Screw Terminals
Output connectors:
Screw Terminals
Constant Voltage Transformer:
100 V
Power selection 1:
8 W - 1250 ohm
Power selection 2:
6 W - 1667 ohm
Power selection 3:
4 W - 2500 ohm
Power selection 4:
2 W - 5000 ohm
Standard compliance
IP protection grade:
IP 44
Physical specifications
Cabinet/Case Material:
Plastic
Hardware:
Plastic Material
Grille:
Aluminium
Color:
White - RAL 9003
Size
Depth:
110 mm / 4.33 inches
Recessed Depth:
103 mm / 4.06 inches
Diameter:
130 mm / 5.12 inches
Cut out diameter:
122 mm / 4.8 inches
Weight:
0.38 kg / 0.84 lbs
Shipping information
Package Height:
120 mm / 4.72 inches
Package Width:
175 mm / 6.89 inches
Package Depth:
175 mm / 6.89 inches
Package Weight:
1.2 kg / 2.65 lbs
