PL 50

CEILING SPEAKER
  • 6" fullrange transducer
  • Power selectable (100 V): 6 W – 3 W
  • 90 dB sensitivity
  • Colour white RAL 9003
Where to buy
Features
  • 6" fullrange transducer
  • Power selectable (100 V): 6 W – 3 W
  • 90 dB sensitivity
  • Colour white RAL 9003
  • Plastic frame and grille

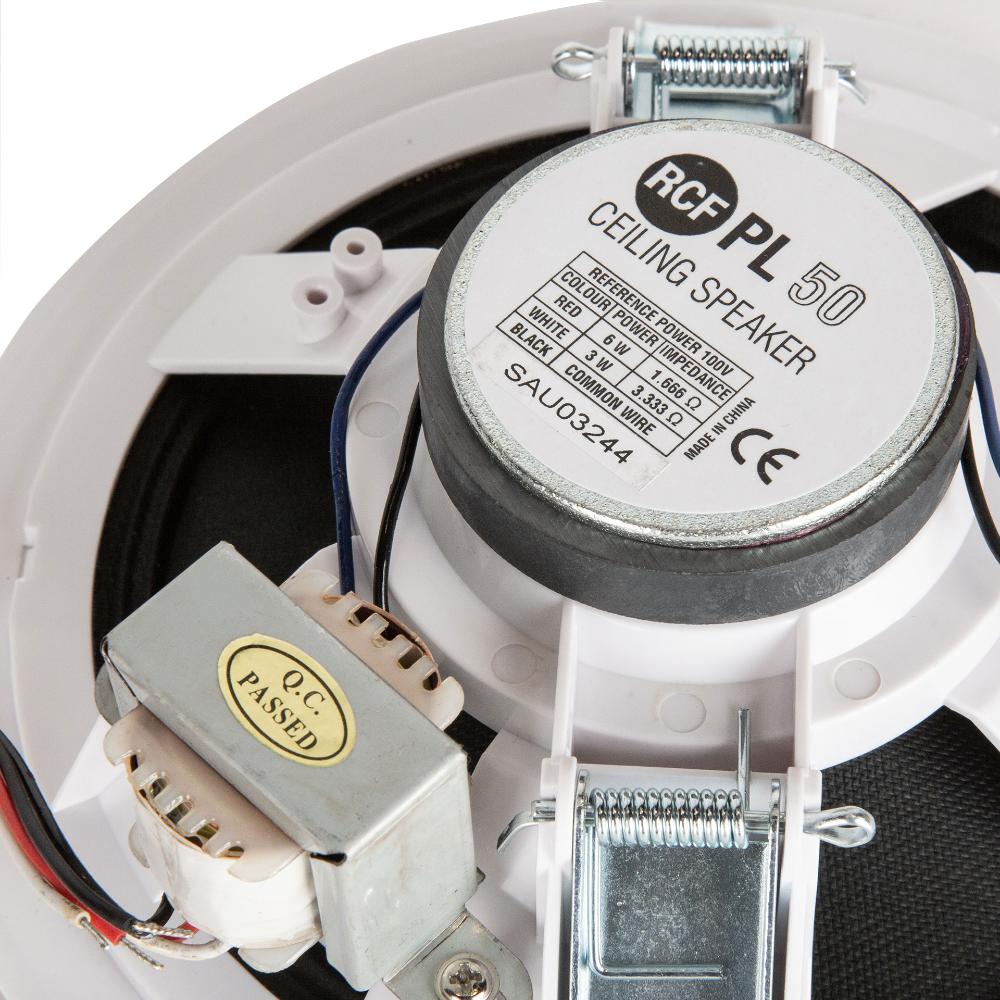

PL 50 is a flush-mount ceiling 6” (dual-cone) loudspeaker. It has an internal transformer that allows direct connection to 100 V constant voltage lines. The transformer has 2 inputs for power tapping: 6 – 3 W. The false-ceiling installation is made through its 2 spring clamps without using tools and other additional attachment components.

Part number:

13133060
PL 50
EAN 8024530007096

Specifications
Acoustical specifications
Frequency Response (-10dB):
100 Hz ÷ 20000 Hz
Max SPL @ 1m:
98 dB
Coverage angle:
150°
System Sensitivity:
90 dB
Power section
Power Handling:
6 W RMS
Peak Power Handling:
24 W PEAK
Recommended Amplifier:
12 W
Transducers
Fullrange:
6.0''
Input/Output section
Input connectors:
Screw Terminals
Output connectors:
Screw Terminals
Constant Voltage Transformer:
100 V
Power selection 1:
6 W - 1667 ohm
Power selection 2:
3 W - 3333 ohm
Physical specifications
Cabinet/Case Material:
Plastic
Hardware:
Metal
Grille:
Plastic
Color:
White - RAL 9003
Size
Depth:
65 mm / 2.56 inches
Recessed Depth:
59 mm / 2.32 inches
Diameter:
186 mm / 7.32 inches
Weight:
0.5 kg / 1.1 lbs
Shipping information
Package Height:
80 mm / 3.15 inches
Package Width:
200 mm / 7.87 inches
Package Depth:
200 mm / 7.87 inches
Package Weight:
0.6 kg / 1.32 lbs
