PL 60

HIGH EFFICENCY CEILING SPEAKER
  • 6" fullrange transducer
  • Power selectable (70 V / 100 V): 6 W – 3 W – 1.5 W
  • 91 dB sensitivity
  • Colour white RAL 9003
Where to buy
Features
  • 6" fullrange transducer
  • Power selectable (70 V / 100 V): 6 W – 3 W – 1.5 W
  • 91 dB sensitivity
  • Colour white RAL 9003
  • Plastic frame, steel grille

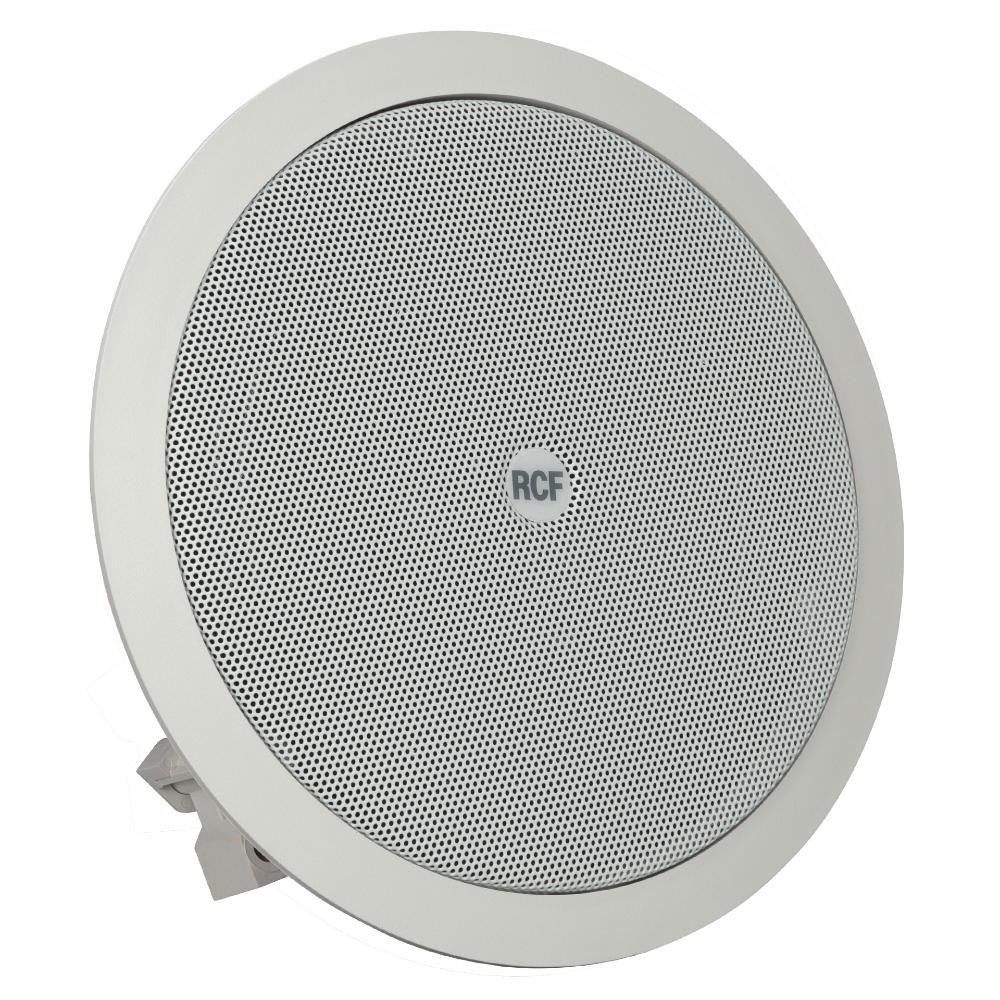

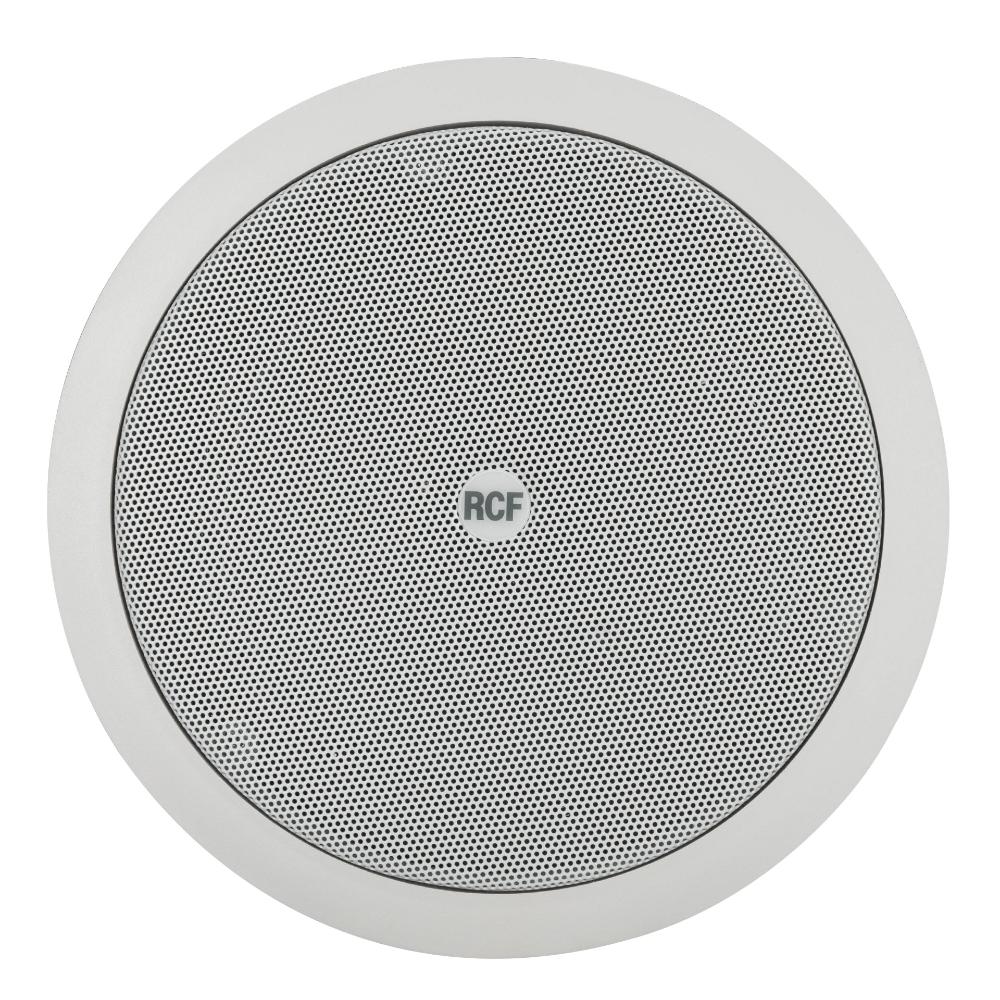

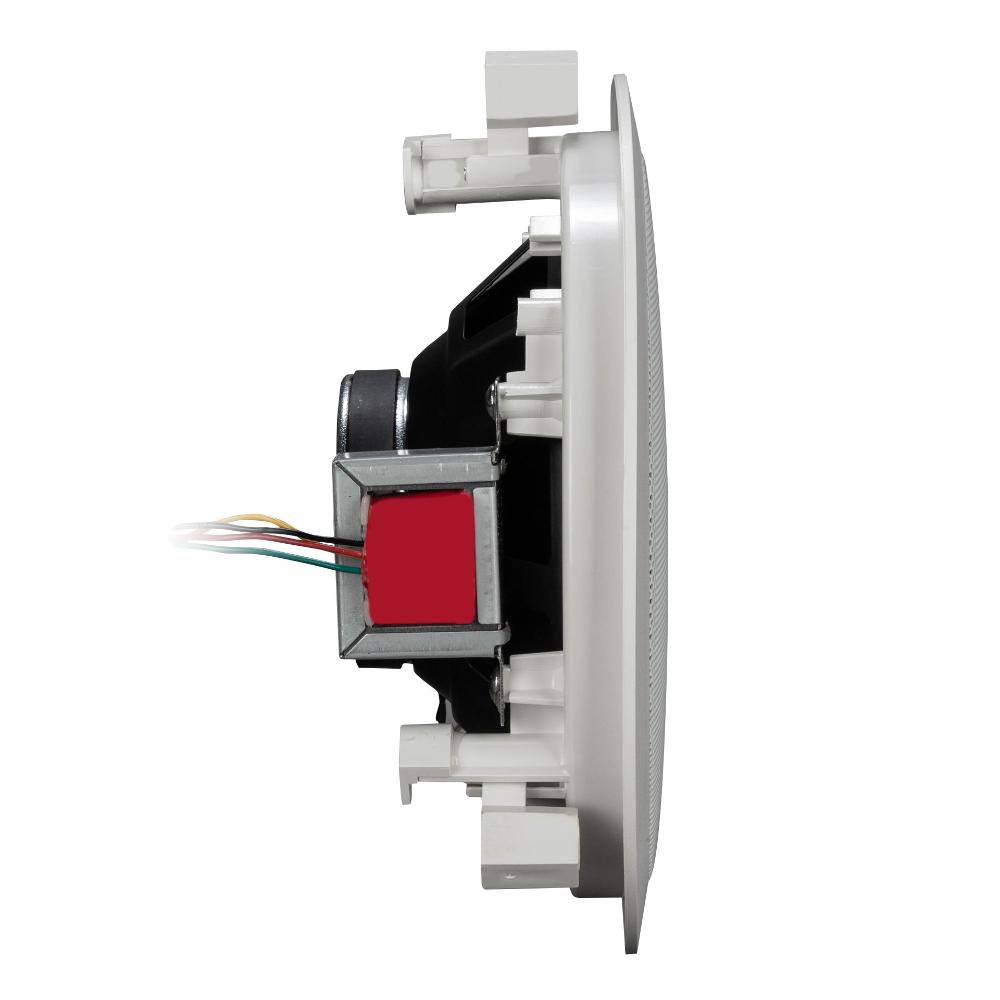

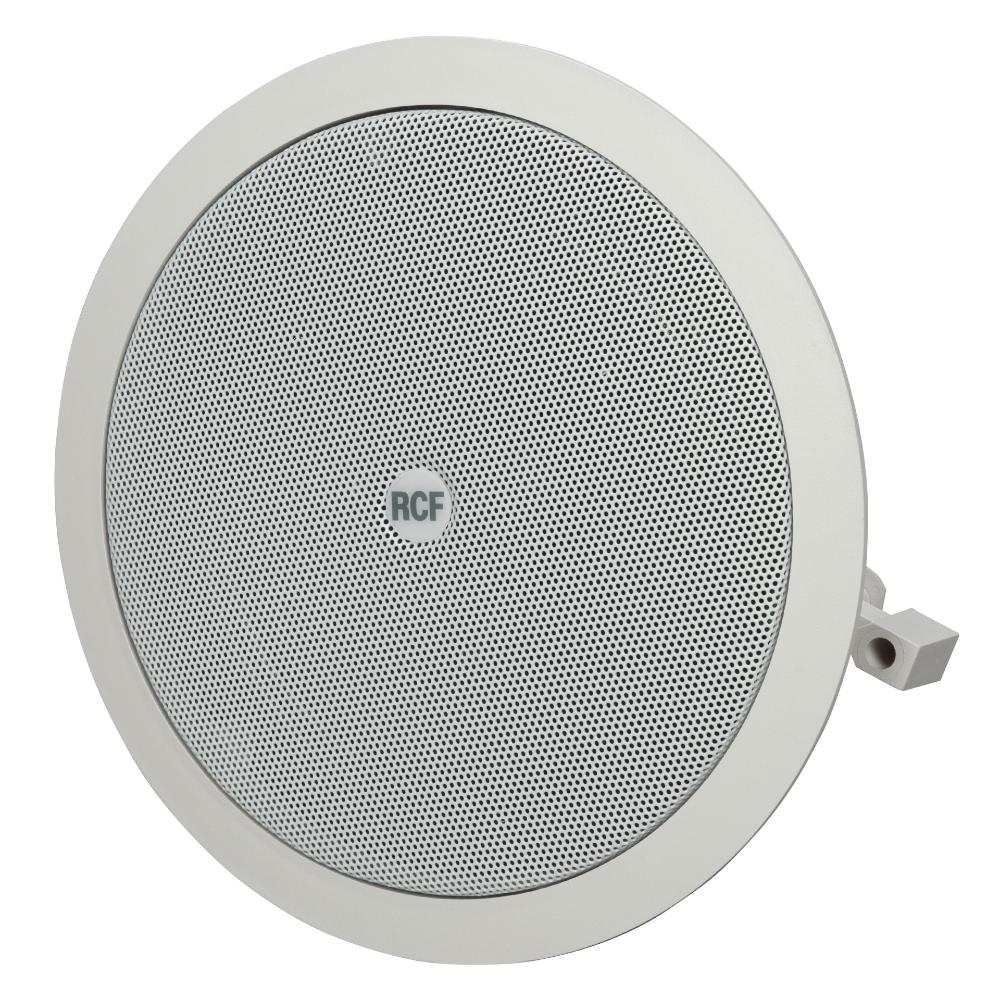

The PL60 is a ceiling speaker with an elegant design, intended for recess installation in false ceilings or panels. It is ideal for the reproduction of announcements and background music and features a multiplesocket line transformer for use with constant voltage systems.

Part number:

13110214
PL 60
EAN 8024530010102

Specifications
Acoustical specifications
Frequency Response (-10dB):
90 Hz ÷ 20000 Hz
Max SPL @ 1m:
107 dB
Coverage angle:
90°
System Sensitivity:
91 dB
Power section
Nominal Impedance:
8 ohm
Power Handling:
6 W RMS
Peak Power Handling:
24 W PEAK
Recommended Amplifier:
12 W
Transducers
Fullrange:
6.0''
Input/Output section
Input connectors:
Screw Terminals
Output connectors:
Screw Terminals

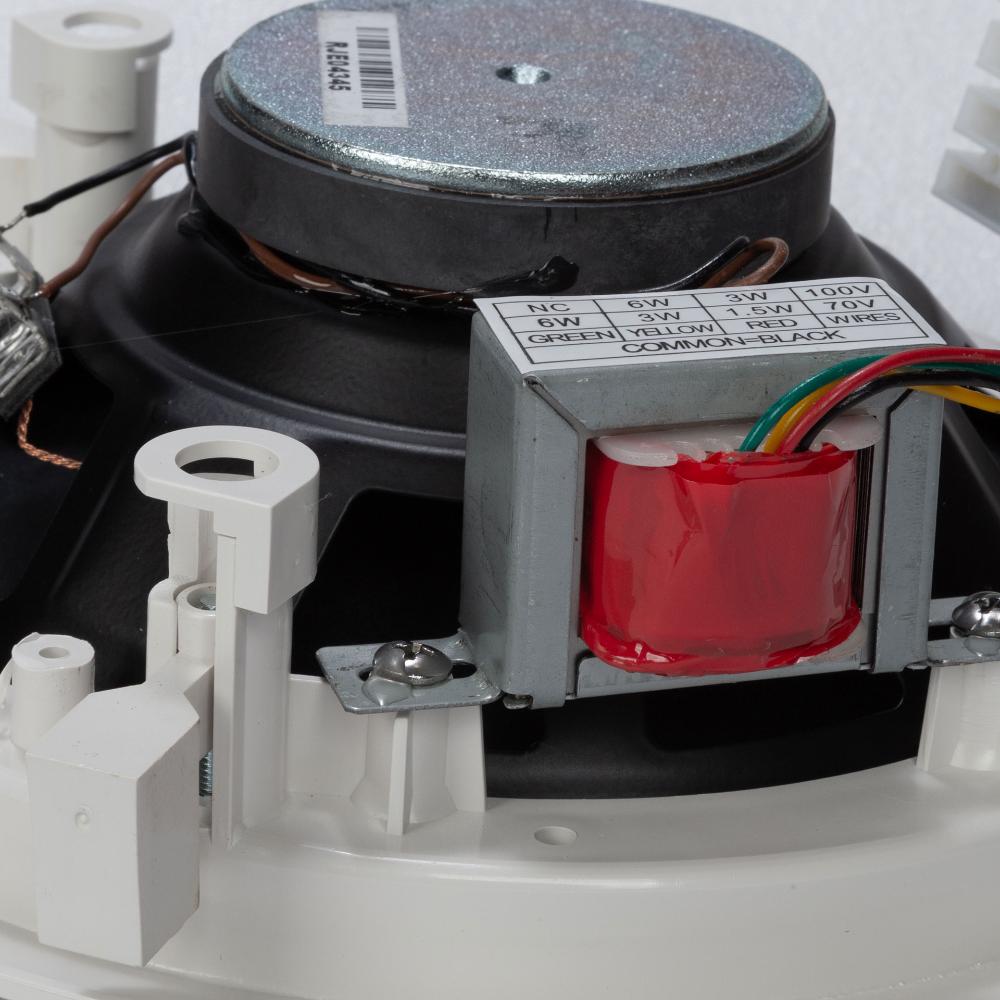

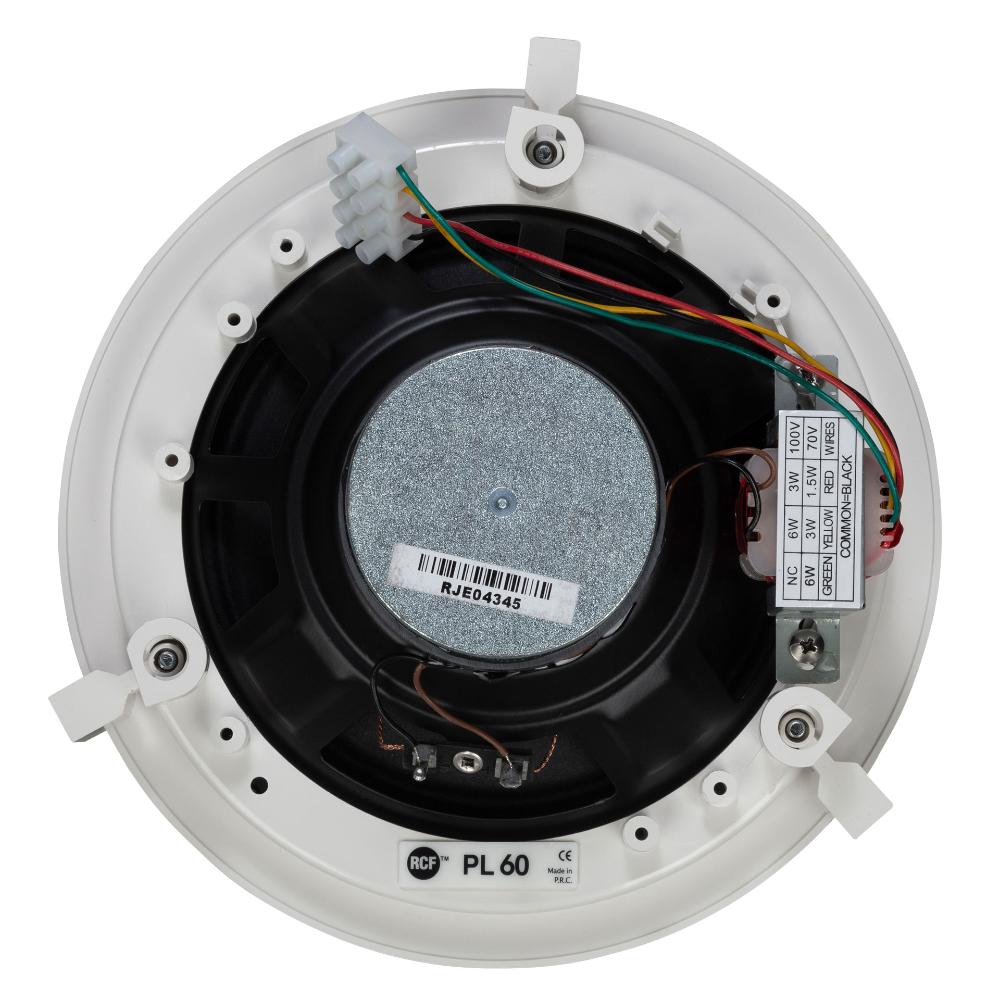

Constant Voltage Transformer:
70/100 V
Power selection 1:
6 W - 1667 ohm
Power selection 2:
3 W - 3333 ohm
Power selection 3:
1.5 W - 6667 ohm
Physical specifications
Cabinet/Case Material:
Plastic
Hardware:
Plastic Material
Grille:
Steel
Color:
White - RAL 9003
Size
Depth:
75 mm / 2.95 inches
Recessed Depth:
69 mm / 2.72 inches
Diameter:
204 mm / 8.03 inches
Weight:
0.34 kg / 0.75 lbs
Shipping information
Package Height:
105 mm / 4.13 inches
Package Width:
240 mm / 9.45 inches
Package Depth:
235 mm / 9.25 inches
Package Weight:
1.07 kg / 2.36 lbs
