COMMERCIAL AUDIO BUSINESS MUSIC

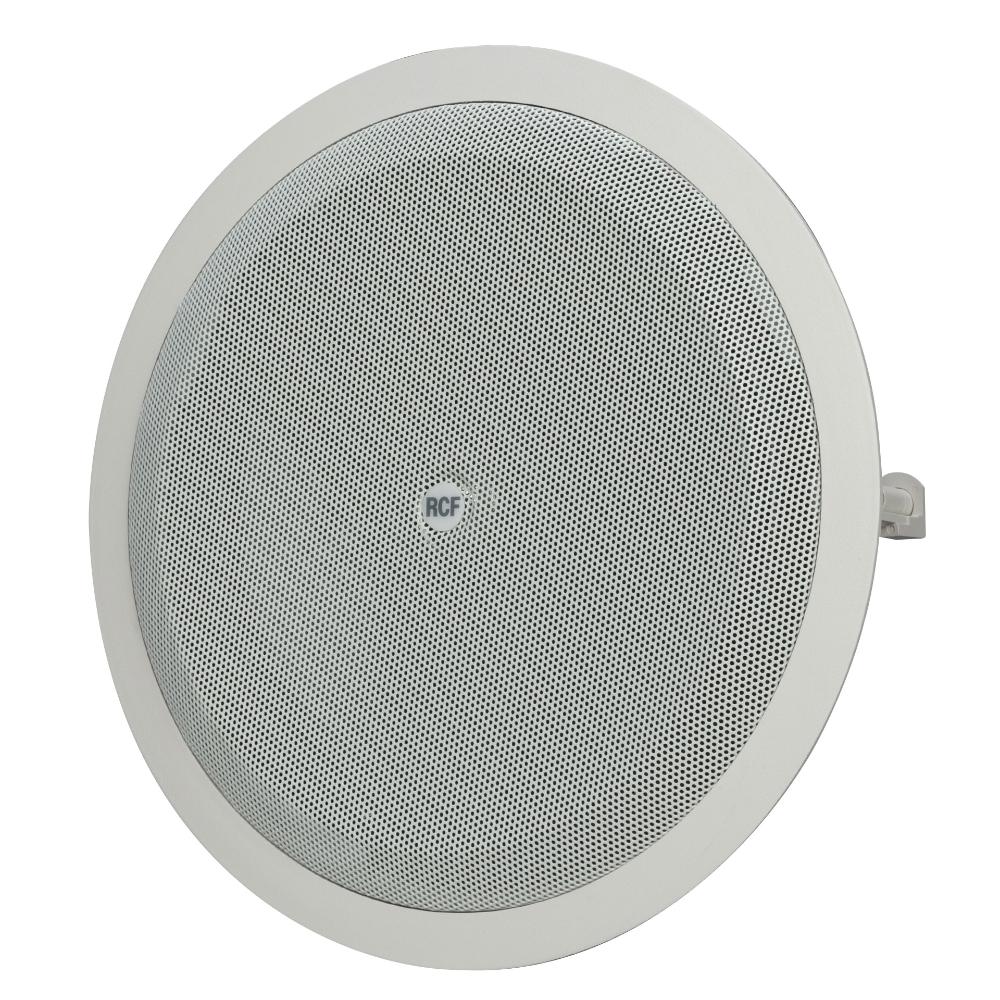

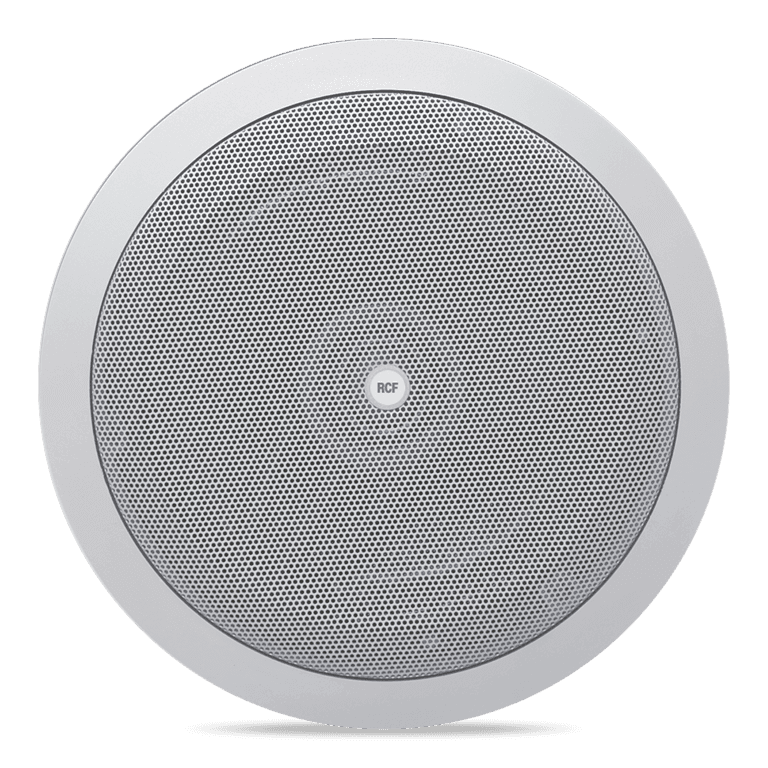

PL 8X

COAXIAL CEILING SPEAKER
  • 8" woofer with 1" dome tweeter
  • Power selectable (70 V / 100 V): 20 W – 10 W – 5 W – 2.5 W
  • 93 dB sensitivity
  • Colour white RAL 9003 and black RAL 9005
Where to buy
Features
  • 8" woofer with 1" dome tweeter
  • Power selectable (70 V / 100 V): 20 W – 10 W – 5 W – 2.5 W
  • 93 dB sensitivity
  • Colour white RAL 9003 and black RAL 9005
  • Plastic frame UL 94 V0, aluminium grille

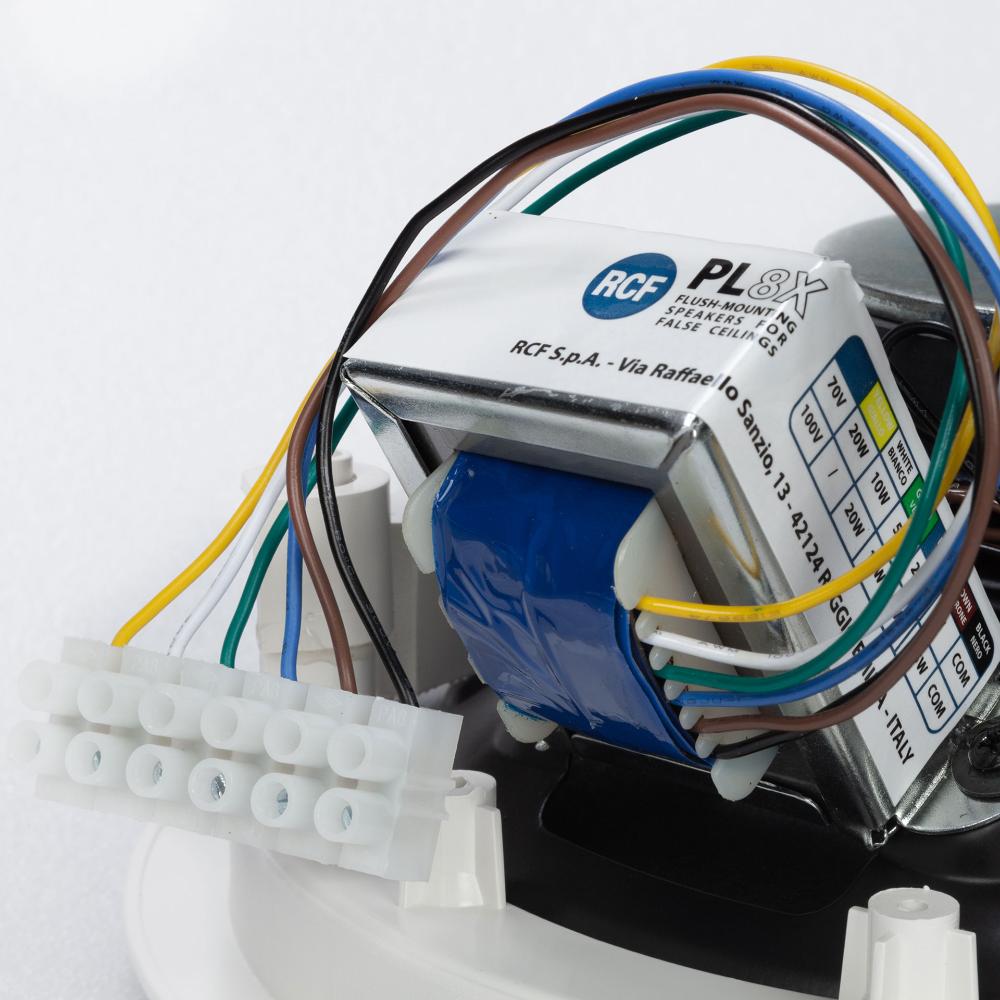

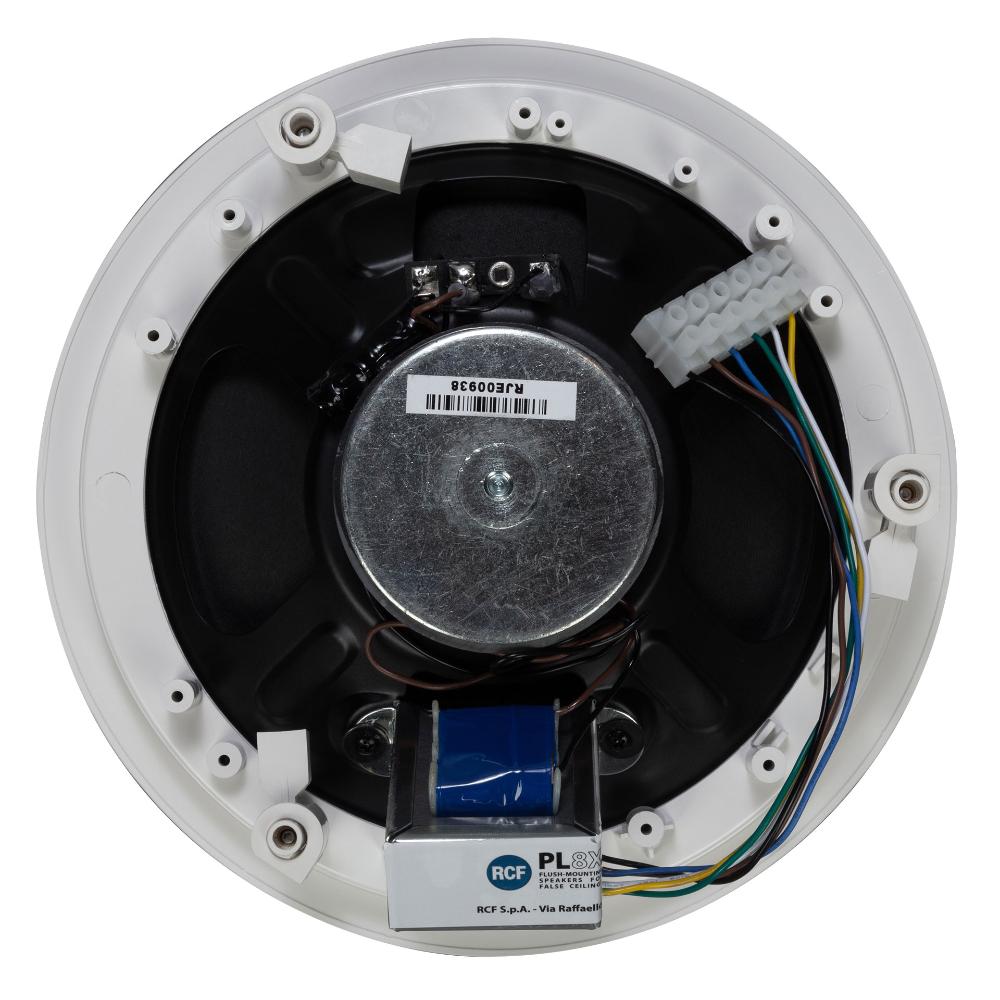

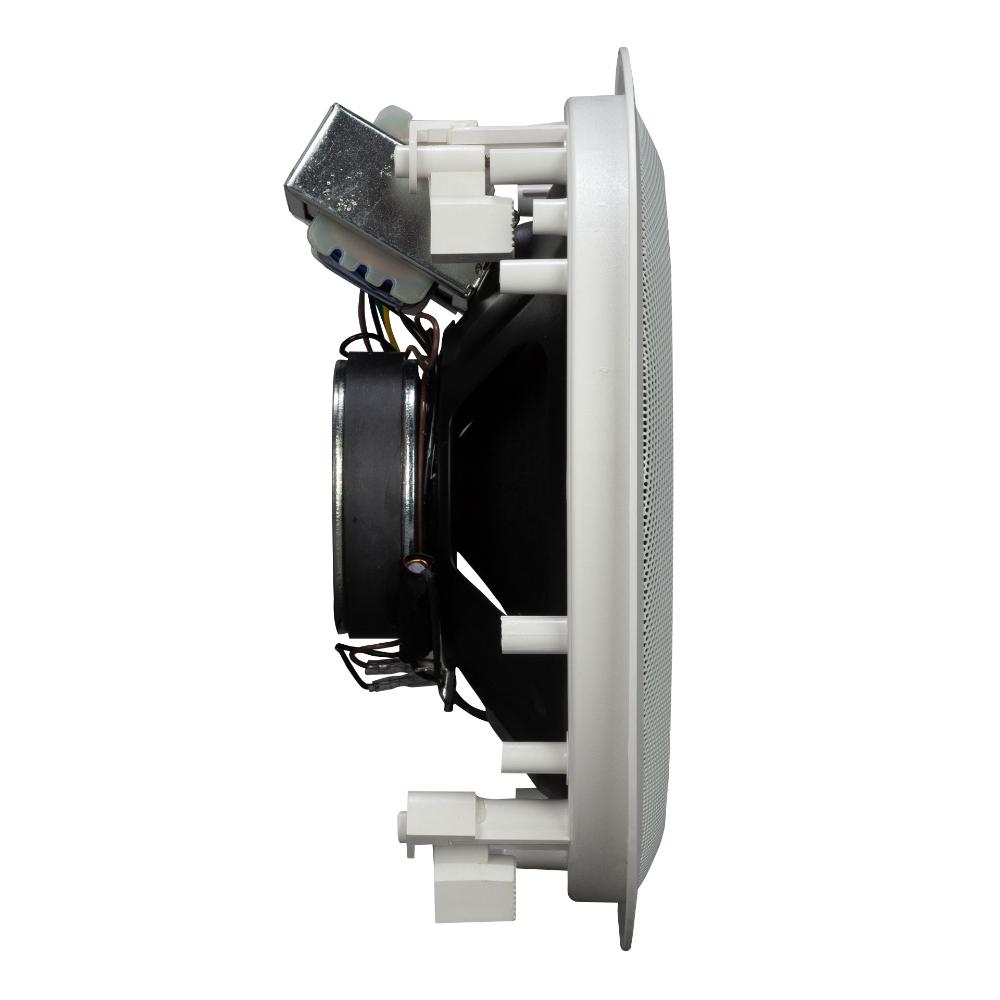

PL 8X is a ceiling speakers featuring elegant and innovative design that can be flush-mounted in false ceilings or panels. Incorporating a 8” coaxial woofer with a 1” tweeter placed on a bridge support. PL 8X is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.

Part number:

13100088

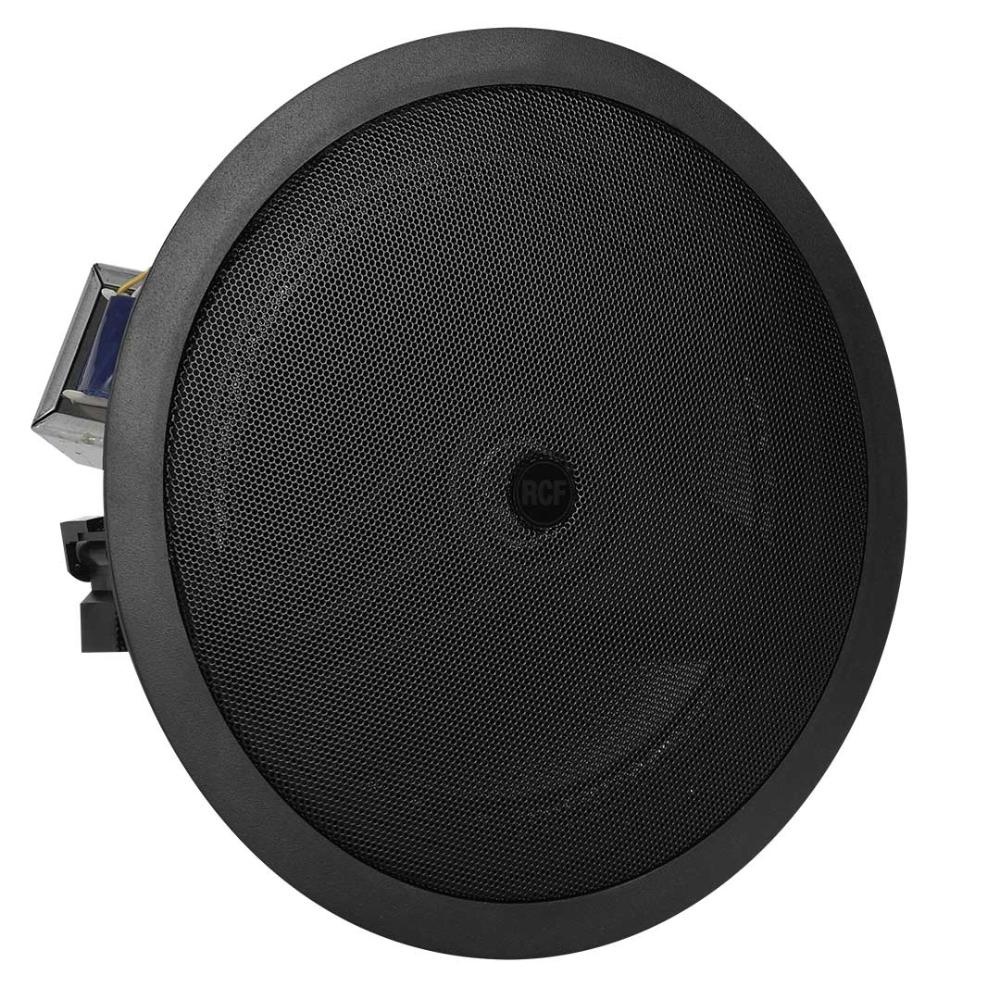

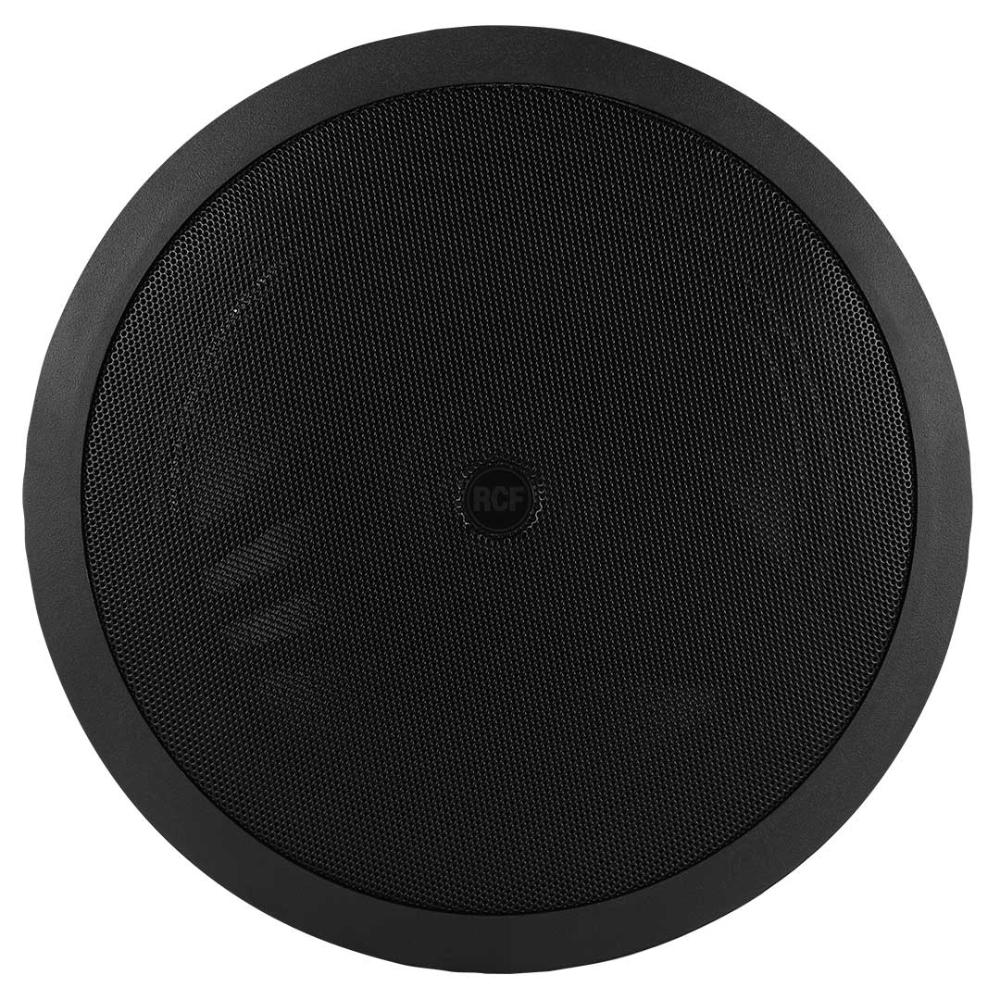

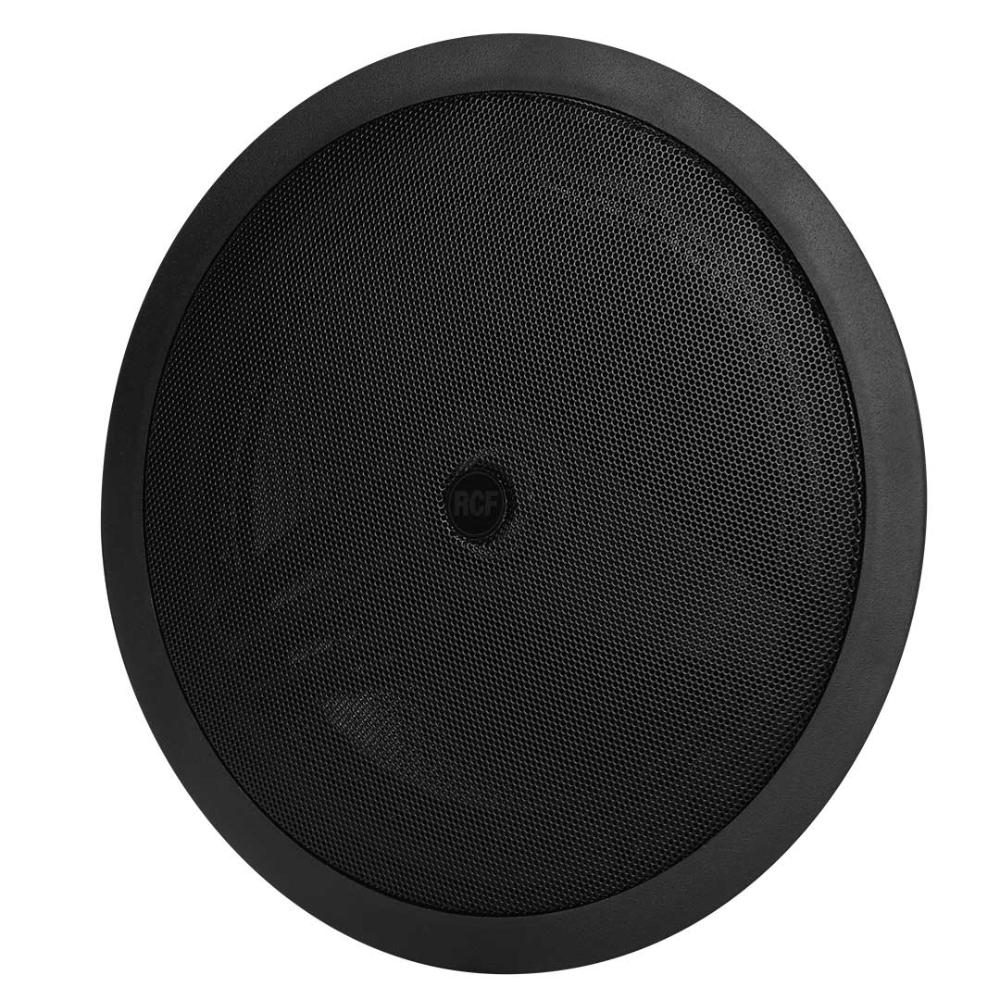

PL 8X B
Black - RAL 9005, EAN 8024530018474

13133043

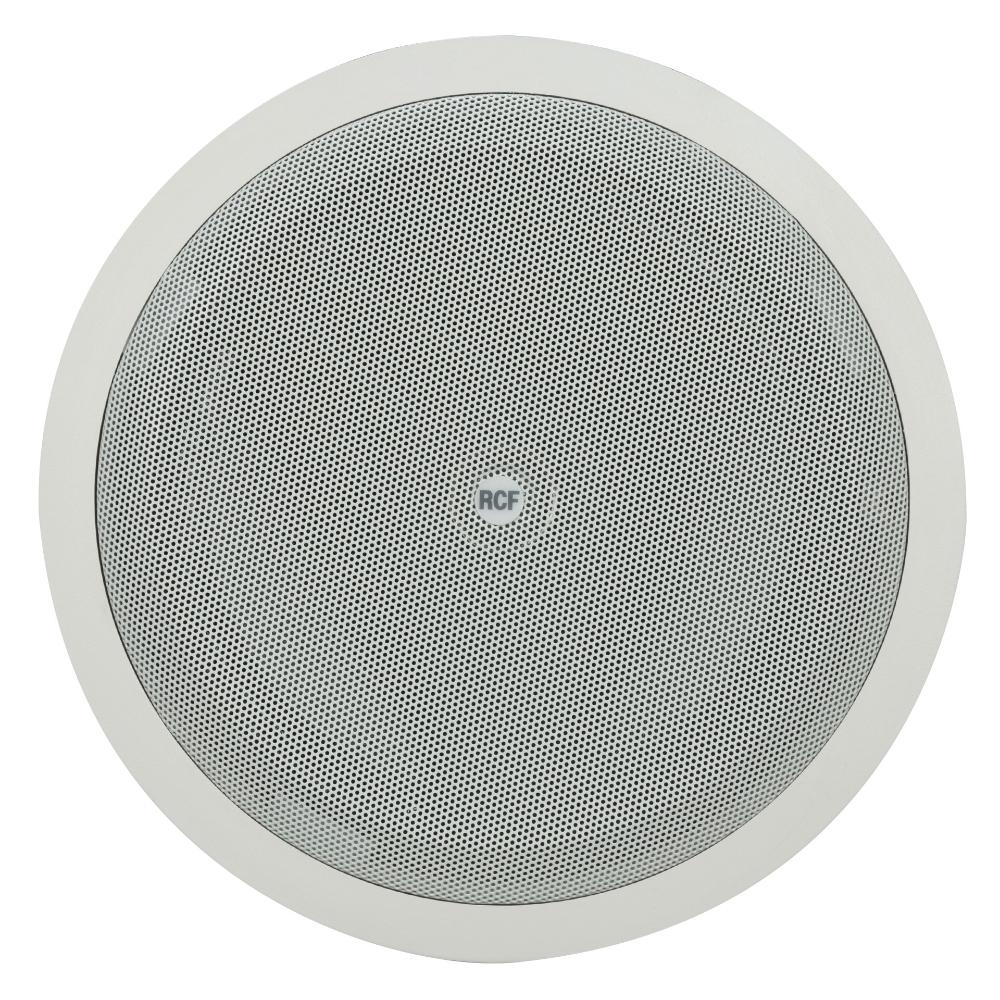

PL 8X
White - RAL 9003, EAN 8024530004965

Specifications
Acoustical specifications
Frequency Response (-10dB):
60 Hz ÷ 20000 Hz
Max SPL @ 1m:
109 dB
Coverage angle:
80°
System Sensitivity:
93 dB
Power section
Power Handling:
20 W RMS
Peak Power Handling:
80 W PEAK
Recommended Amplifier:
40 W
Transducers
Dome Tweeter:
1.0''
Woofer:
8''
Input/Output section
Input connectors:
Screw Terminals
Output connectors:
Screw Terminals
Constant Voltage Transformer:
70/100 V
Power selection 1:
20 W - 500 ohm
Power selection 2:
10 W - 1000 ohm
Power selection 3:
5 W - 2000 ohm
Power selection 4:
2.5 W - 4000 ohm
Standard compliance
IP protection grade:
IP 44
Physical specifications
Cabinet/Case Material:
Plastic
Hardware:
Plastic Material
Grille:
Aluminium
Color:
White - RAL 9003, Black - RAL 9005
Size
Depth:
88 mm / 3.46 inches
Recessed Depth:
80 mm / 3.15 inches
Diameter:
247 mm / 9.72 inches
Cut out diameter:
224 mm / 8.82 inches
Weight:
1.23 kg / 2.71 lbs
Shipping information
Package Height:
280 mm / 11.02 inches
Package Width:
280 mm / 11.02 inches
Package Depth:
130 mm / 5.12 inches
Package Weight:
2.09 kg / 4.61 lbs
