TT+

TT 051-A II

ACTIVE ULTRA COMPACT WIDE COVERAGE SPEAKER
  • 300 W Class D two-channel amplifier
  • Heavy-duty multi-functional cabinet
  • 110° conical coverage
  • FiRPHASE for 0° phase response
RDNet
Support
Features
  • 300 W Class D two-channel amplifier
  • Heavy-duty multi-functional cabinet
  • 110° conical coverage
  • FiRPHASE for 0° phase response

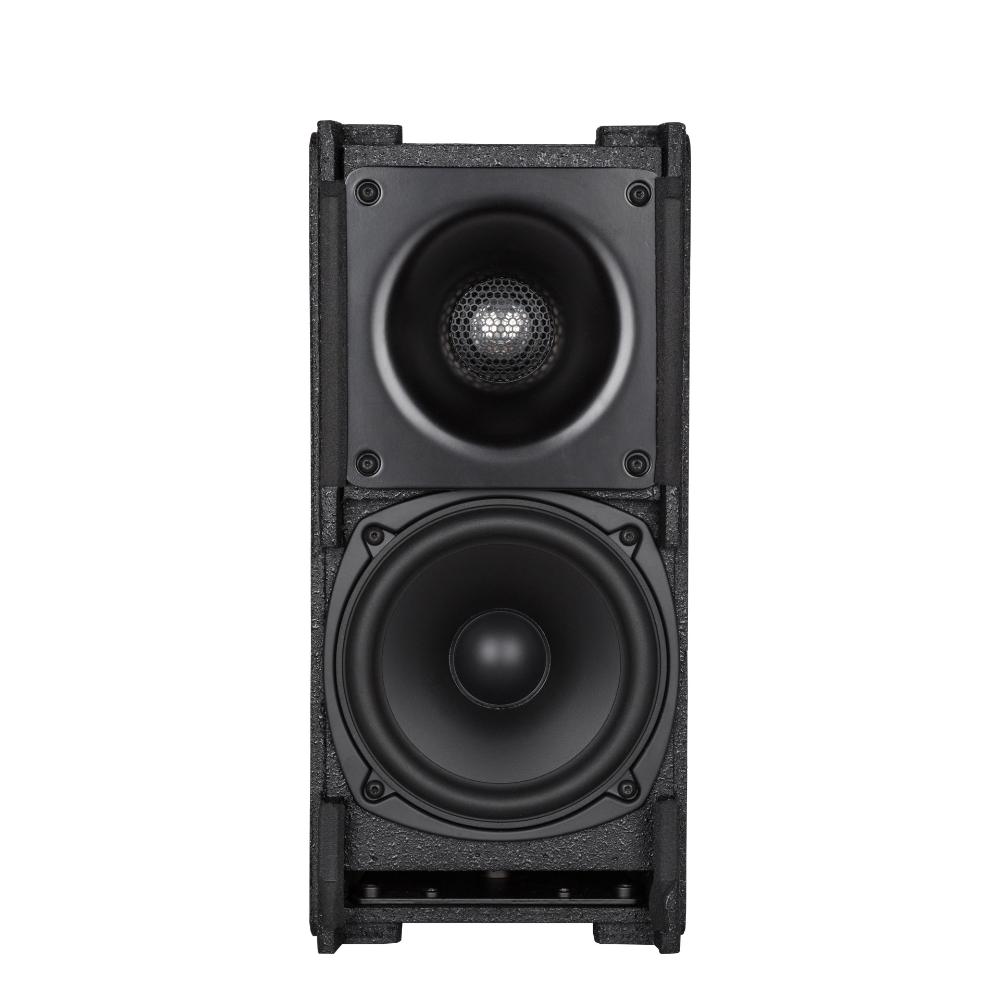

  • 5” neodymium low distortion woofer
  • 1.0" Alu tweeter

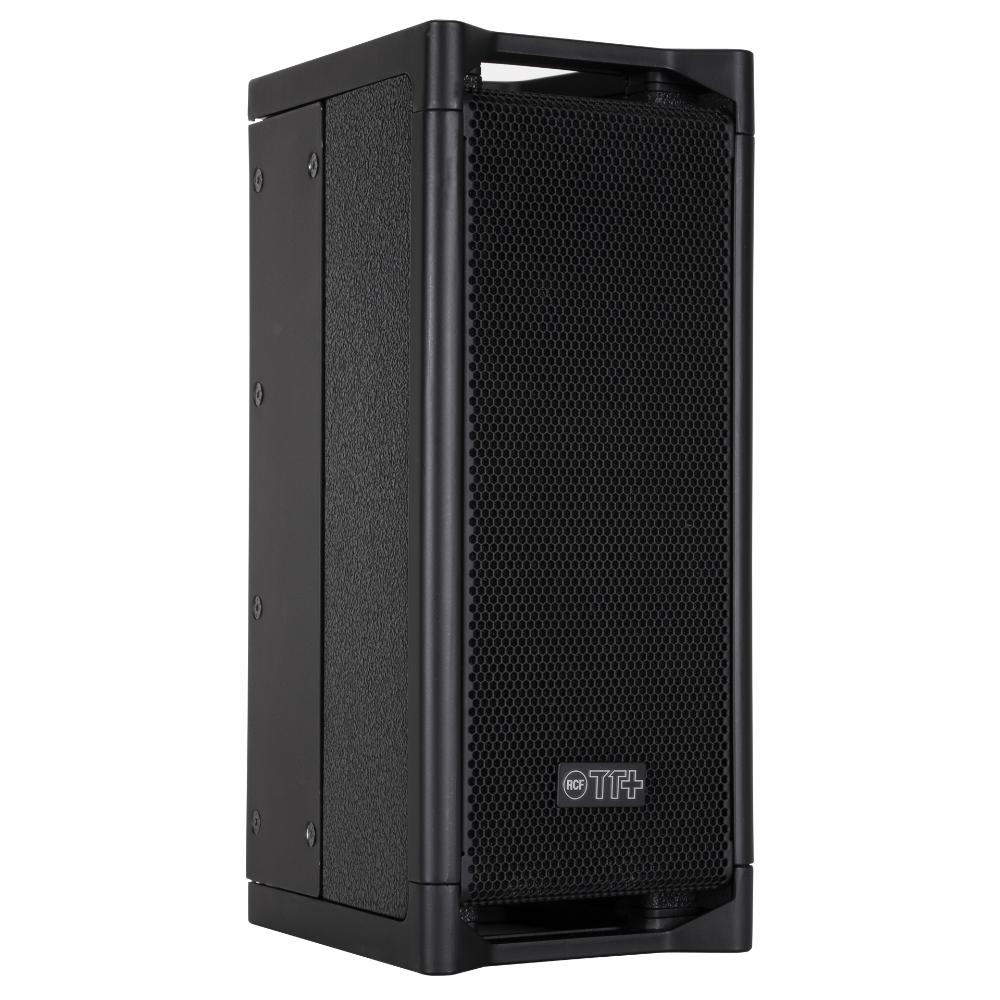

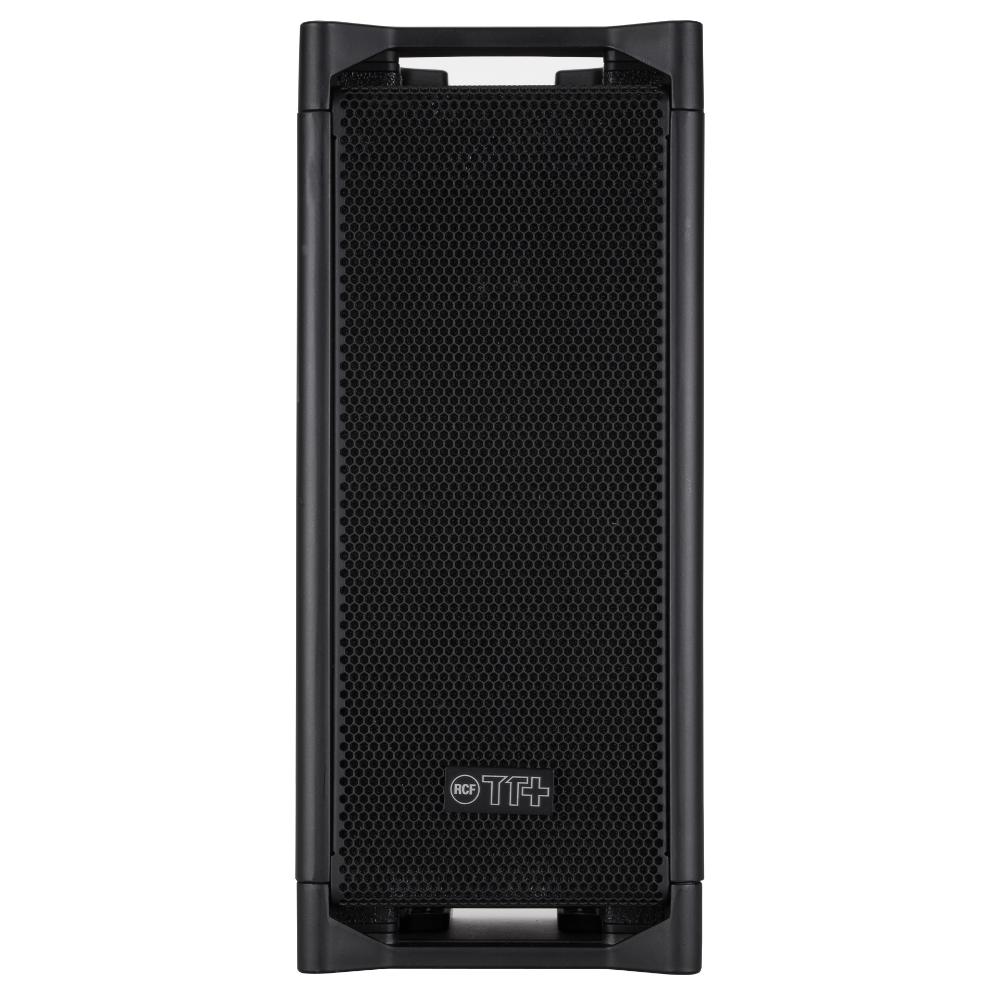

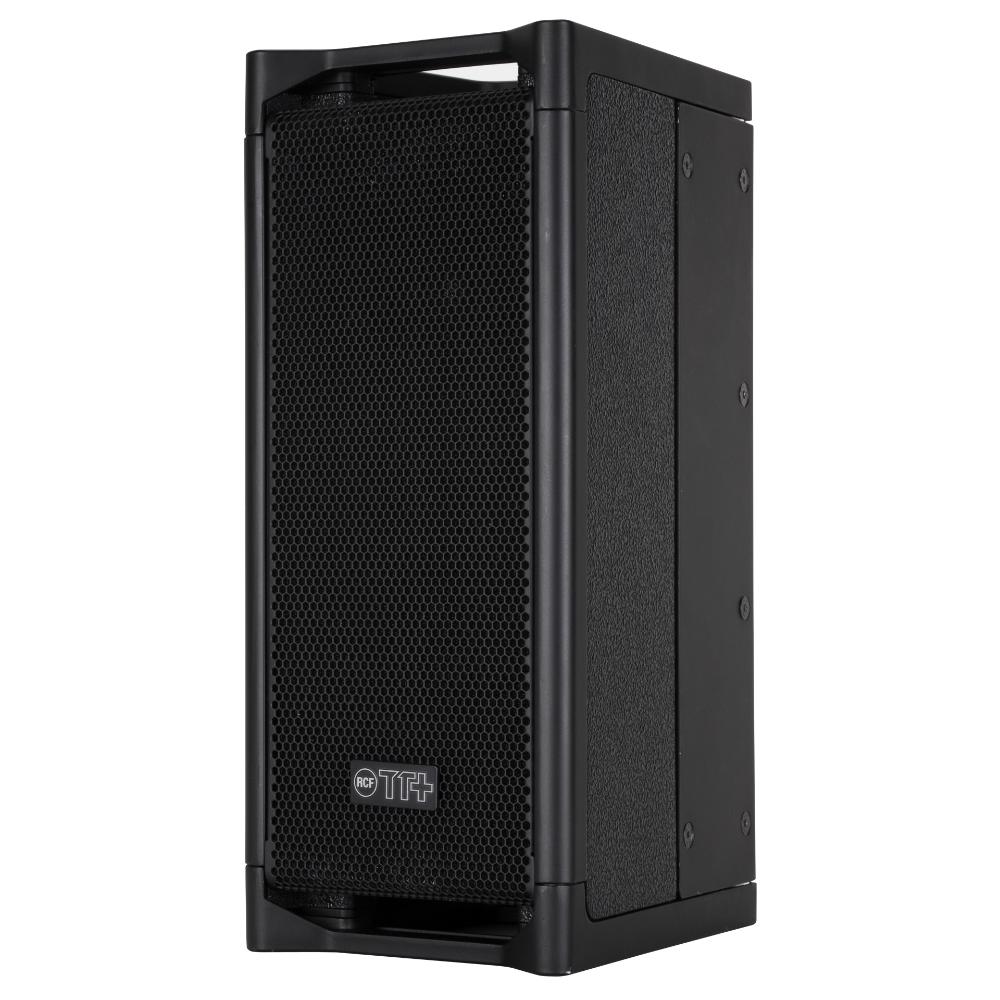

The TT 051-A II is an ultra-compact, active speaker designed for high quality indoor near field sound reinforcement. It is equipped with an onboard two-channel 300 W Class-D amplifier. One powerful 5” neodymium woofer and a 1” aluminum dome tweeter loaded to a wide dispersion constant directivity horn provide extensive coverage. Thanks to the RDNet networked control, powerful DSP and proprietary FiRPHASE processing, the TT 051-A II features a 0° linear phase response for TT+ class sound quality.

ARCHIVED

Part number:

13000632
TT 051-A II
220-240V, EAN 8024530017910

13000633
TT 051-A II
115V, EAN 8024530017927

Specifications
Acoustical specifications
Frequency Response:
65 Hz ÷ 20000 Hz
Max SPL @ 1m:
116 dB
Horizontal coverage angle:
110°
Vertical coverage angle:
110°
Transducers
Dome Tweeter:
1.0''
Woofer:
5.0'', 1.0'' v.c

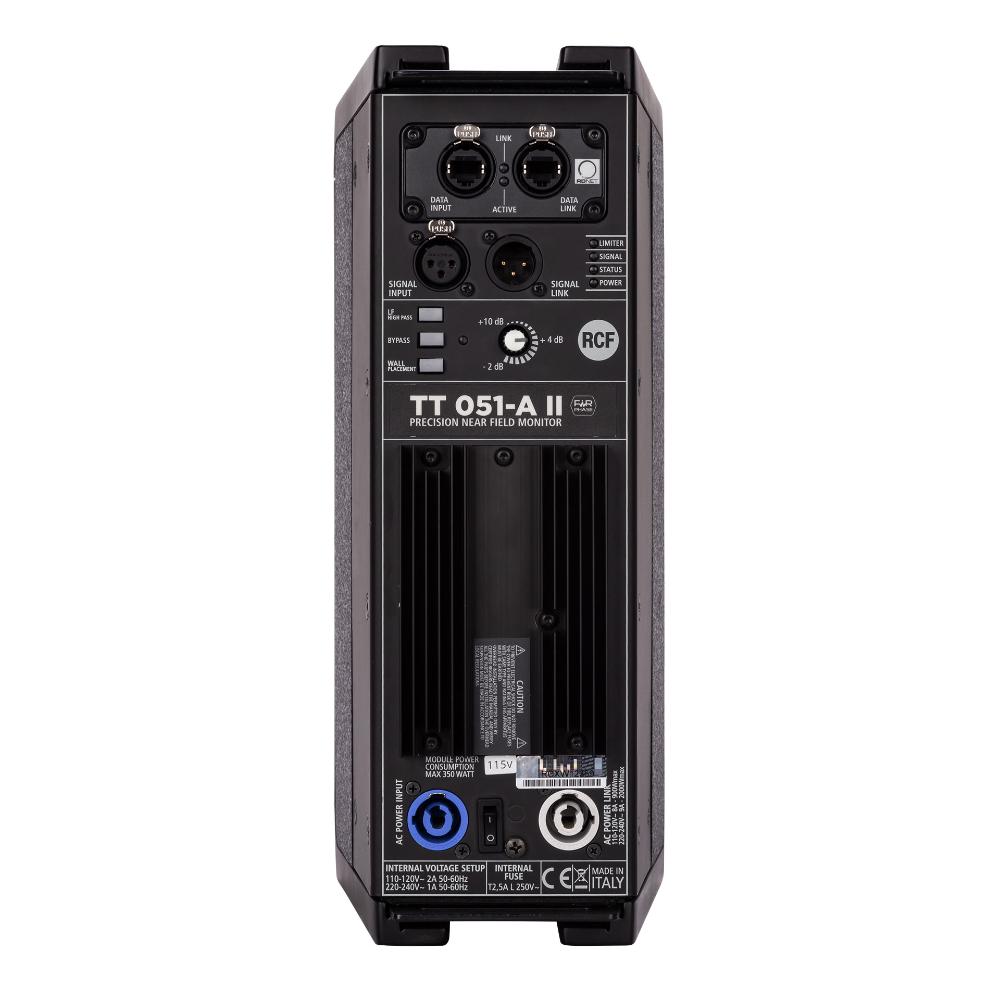

Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR
Output connectors:
XLR
Input sensitivity:
-2 dBu/+10 dBu
Processor section
Crossover Frequencies:
1800 Hz
Protections:
Thermal, Excurs., HF
Limiter:
Soft Limiter
Controls:
DSP Controlled, RDnet on board
RDNet:
Yes
Power section
Total Power:
600 W Peak, 300 W RMS
High frequencies:
300 W Peak, 150 W RMS
Low frequencies:
300 W Peak, 150 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Hardware:

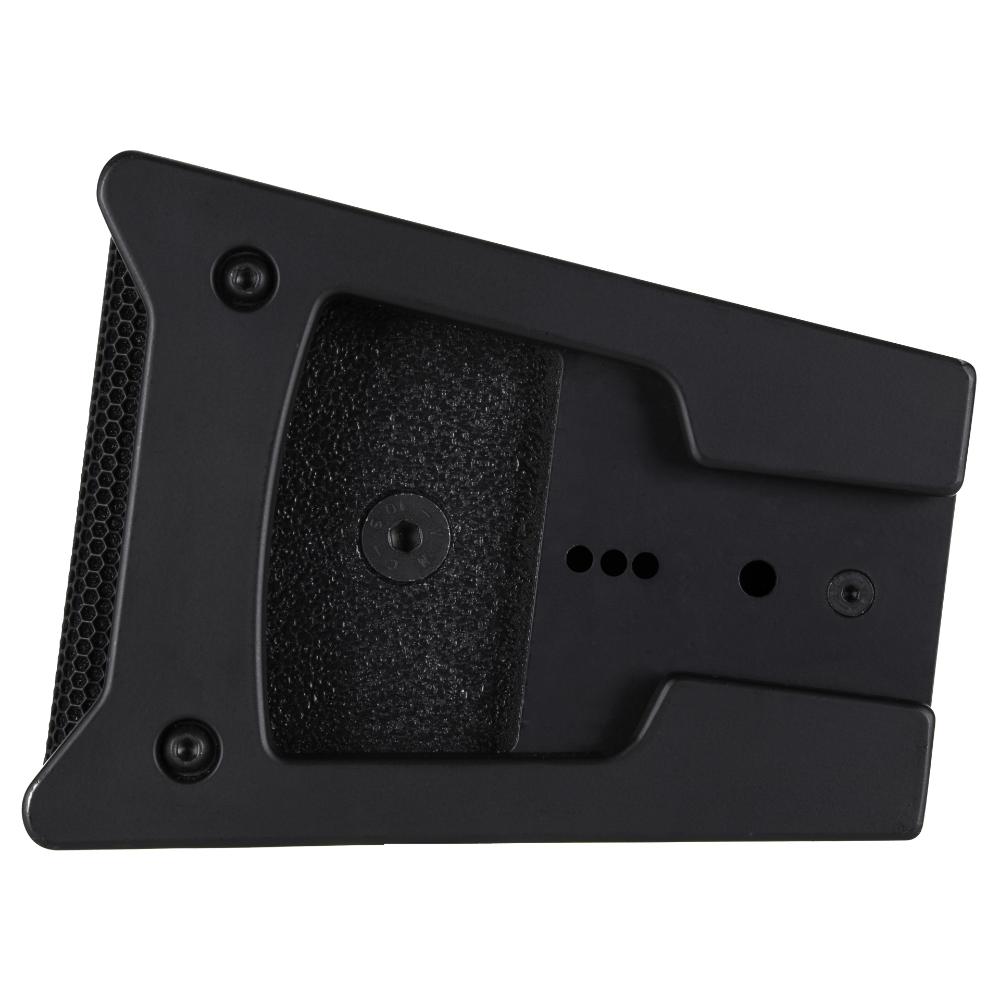

Multi - Functional
Handles:
Top, Battom
Grille:
Steel
Color:
Black
Size
Height:
348 mm / 13.7 inches
Width:
150 mm / 5.91 inches
Depth:
207 mm / 8.15 inches
Weight:
7 kg / 15.43 lbs
Shipping information
Package Height:
424 mm / 16.69 inches
Package Width:
294 mm / 11.57 inches
Package Depth:
214 mm / 8.43 inches
Package Weight:
8 kg / 17.64 lbs
