TT+

TT 051-A

ACTIVE ULTRA COMPACT WIDE DISPERSION SPEAKER
  • 300 Watt, 2 way amplification
  • 5" low distortion woofer
  • 1" titanium dome tweeter
  • RDNet ready
RDNet
Support
Features
  • 300 Watt, 2 way amplification
  • Heavy duty multi-functional cabinet
  • 5" low distortion woofer
  • 1" titanium dome tweeter
  • DSP processing
  • Wall mount EQ, High pass EQ
  • RDNet ready

The TT051-A is an ultra compact, active loudspeaker designed specifically for high quality indoor nearfield sound amplification. It is equipped with a 300 W digital amplifier, 150 W for the low frequencies and 150 W for the high frequencies. A powerful 5” neodymium woofer and a 1” aluminium dome tweeter loaded to a wide dispersion constant directivity horn provide an extensive coverage.

ARCHIVED

Part number:

13000243
TT051-A
220-240V, EAN 8024530008918

13000244
TT051-A
115V, EAN 8024530008925

Specifications
Acoustical specifications
Frequency Response:
65 Hz ÷ 20000 Hz
Max SPL @ 1m:
116 dB
Horizontal coverage angle:
110°
Vertical coverage angle:
110°

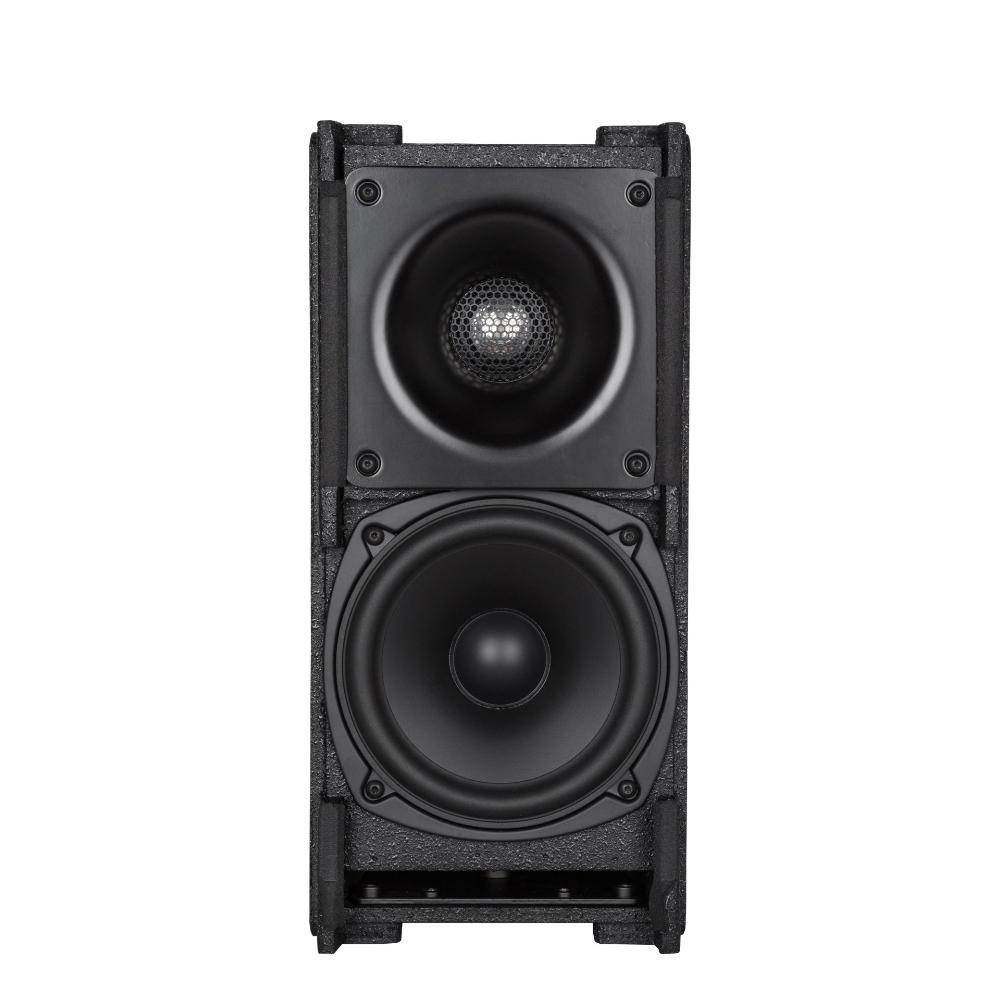

Transducers
Dome Tweeter:
1.0''
Woofer:
5.0'', 1.0'' v.c
Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR
Output connectors:
XLR
Input sensitivity:
-2 dBu/+10 dBu
Processor section
Crossover Frequencies:
1800 Hz
Protections:
Thermal, Excurs., HF
Limiter:
Soft Limiter
Controls:
DSP Controlled
RDNet:
Ready
Power section
Total Power:
600 W Peak, 300 W RMS
High frequencies:
300 W Peak, 150 W RMS
Low frequencies:
300 W Peak, 150 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Hardware:
Multi - Functional
Handles:
Top, Battom
Grille:
Steel
Size
Height:
348 mm / 13.7 inches
Width:
150 mm / 5.91 inches
Depth:
190 mm / 7.48 inches
Weight:
7 kg / 15.43 lbs
Shipping information
Package Height:
424 mm / 16.69 inches
Package Width:
294 mm / 11.57 inches
Package Depth:
214 mm / 8.43 inches
Package Weight:
8 kg / 17.64 lbs
