TT+

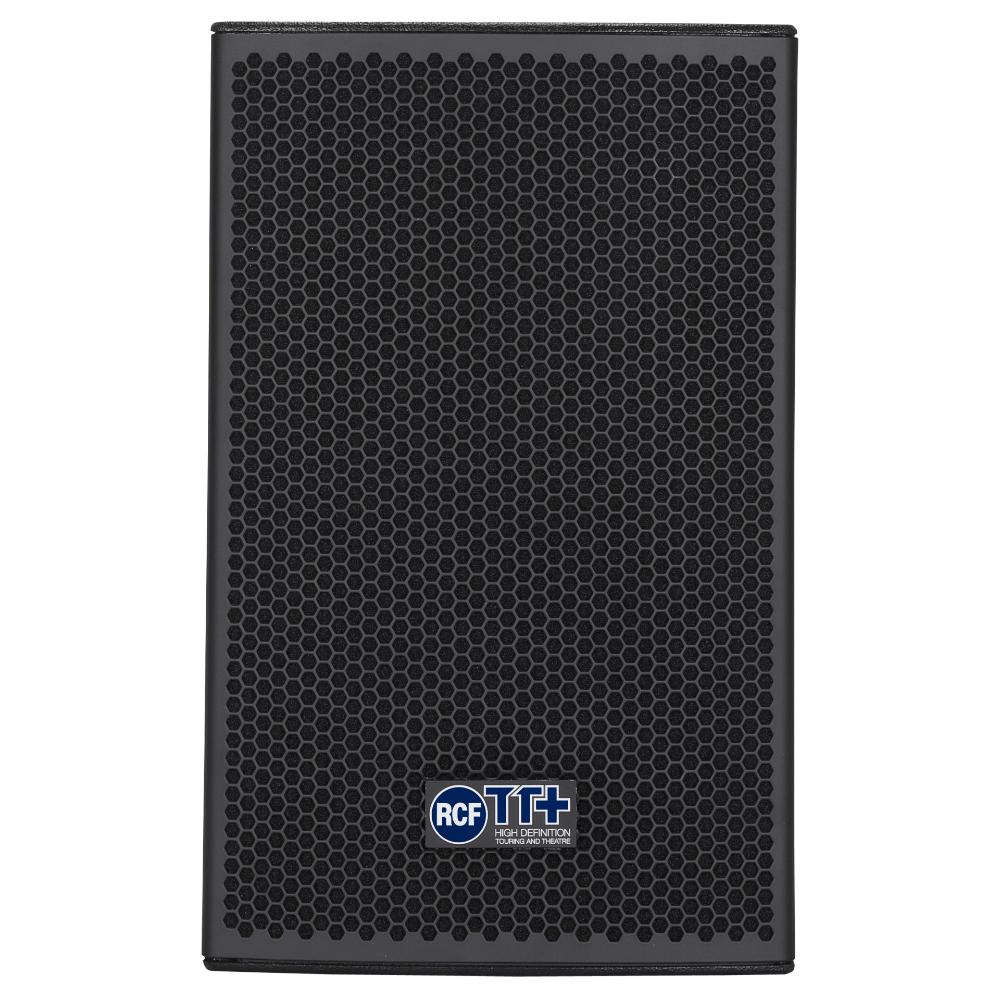

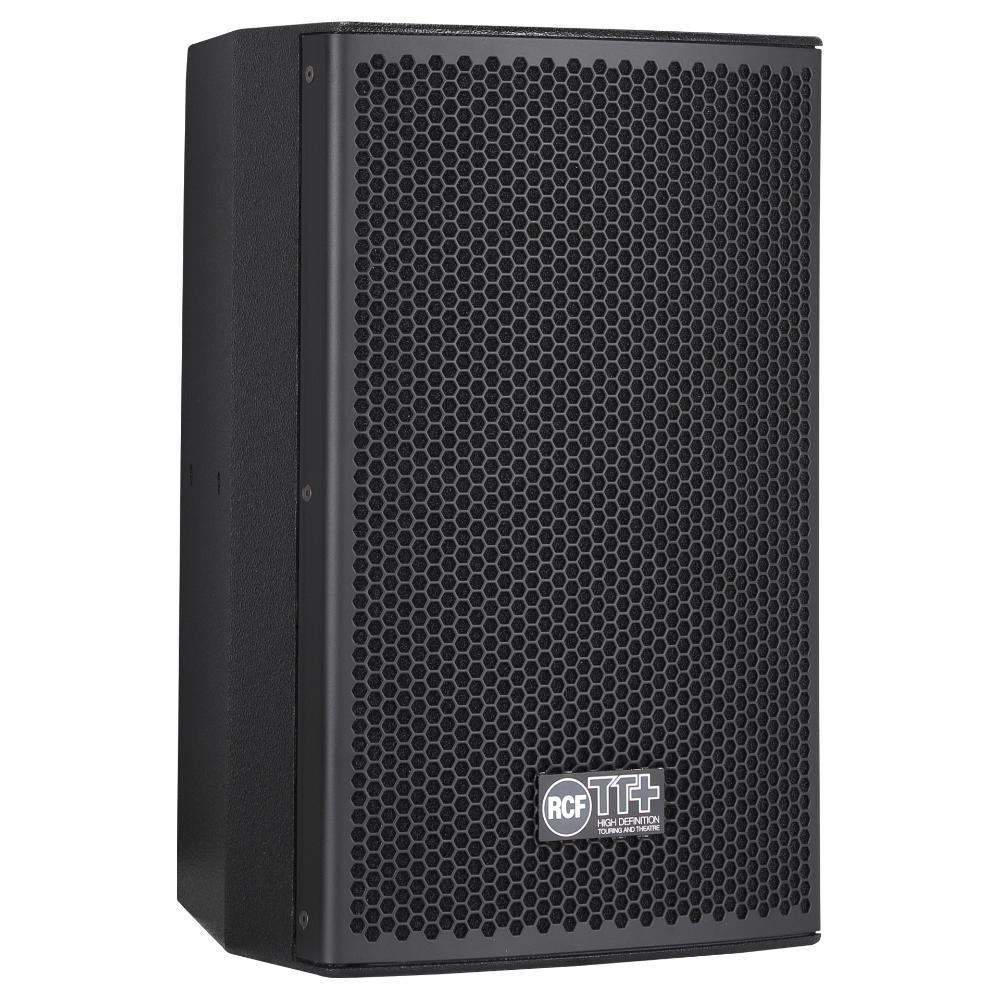

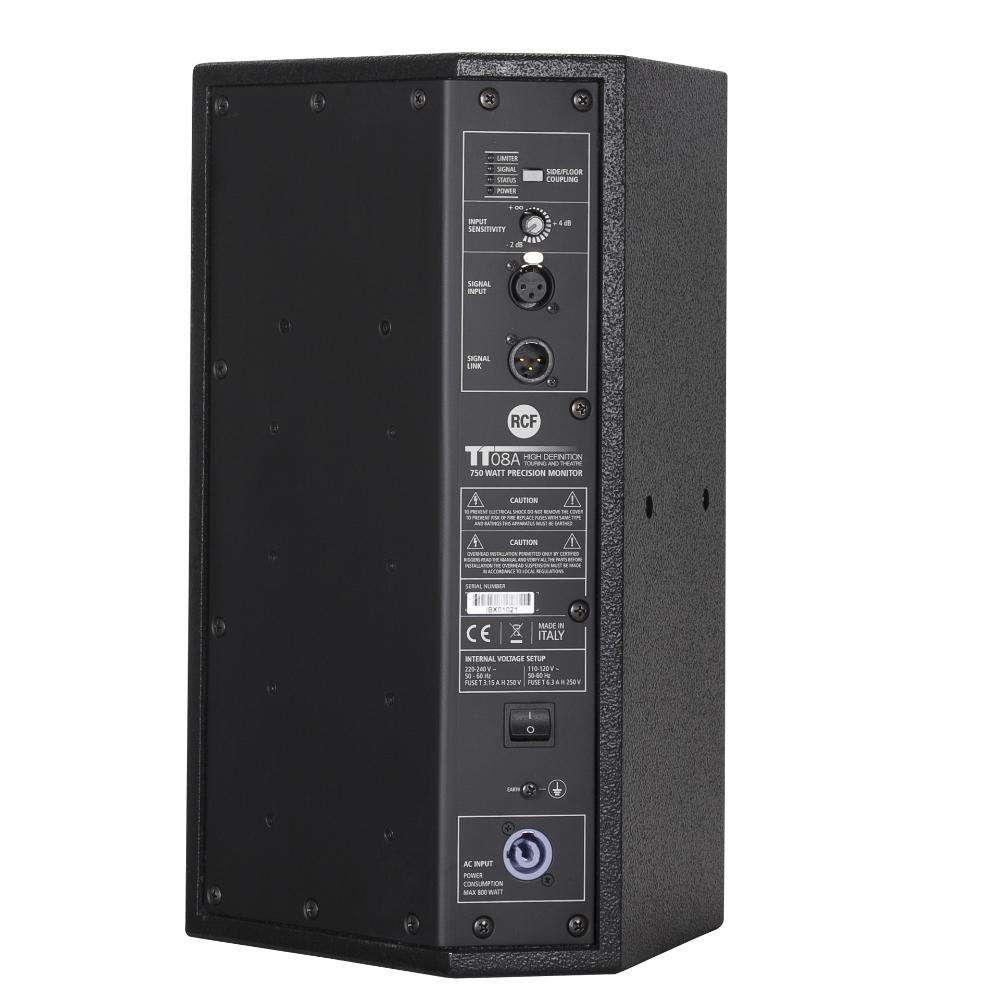

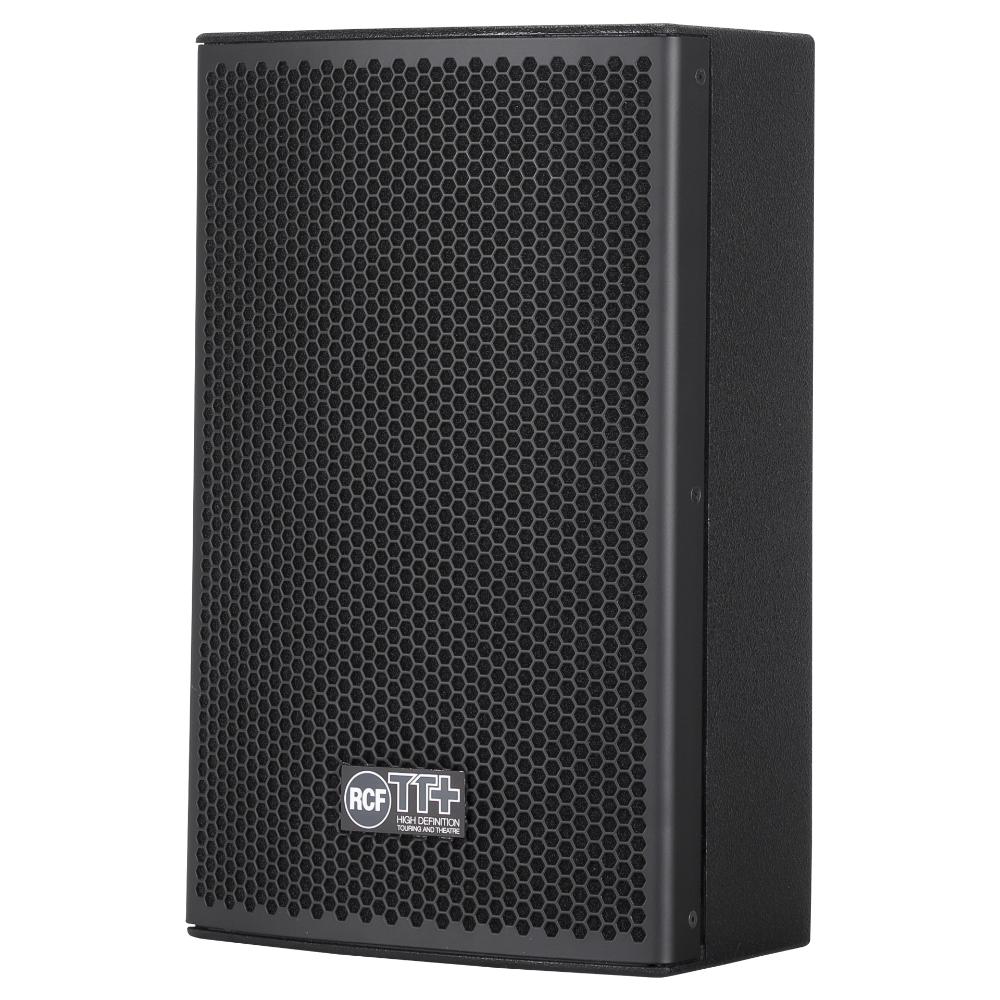

TT 08-A

ACTIVE PRECISION MONITOR
  • 750 W power switching amplifiers
  • High power 8" neo woofer
  • 1.0 " neo titanium compression driver
  • Soft limiter and RMS protection
Support
Features
  • 750 W power switching amplifiers
  • Wide, constant directivity, coverage angle
  • High power 8" neo woofer
  • 1.0 " neo titanium compression driver
  • High quality analog input board
  • Soft limiter and RMS protection
  • Maximum output per size available on the market

The TT08-A is by far the smallest member of the TT+ family, whilst being the most flexible and powerful tool in its class. From live sound to playback and monitoring, corporate events and broadcast studios. Though remarkably compact and lightweight, the TT08-A offers an incredible maximum sound pressure level of 128dB. Its performance efficiency is almost 3dB higher than many larger 10” speaker systems and indeed comparable to many 12” systems.

ARCHIVED

Part number:

13000116
TT 08-A
220-240V, EAN 8024530008178

13000120
TT 08-A
115V, EAN 8024530008215

Specifications
Acoustical specifications
Frequency Response:
65 Hz ÷ 20000 Hz
Max SPL @ 1m:
128 dB
Horizontal coverage angle:
90°
Vertical coverage angle:
60°
Transducers
Compression Driver:
1 x 1.0'' neo, 1.5'' v.c
Woofer:
8'' neo, 2.5'' v.c
Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR
Output connectors:
XLR
Input sensitivity:
-2 dBu/+4 dBu
Processor section
Crossover Frequencies:
1700 Hz
Protections:
Thermal, HF
Limiter:
Fast Limiter
Controls:
Side/floor coupling
Power section
Total Power:
1500 W Peak, 750 W RMS
High frequencies:
500 W Peak, 250 W RMS
Low frequencies:
1000 W Peak, 500 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Hardware:
2 x fly tracks
Pole mount/Cap:
Yes
Grille:
Steel
Color:
Black
Size
Height:
430 mm / 16.93 inches
Width:
270 mm / 10.63 inches
Depth:
303 mm / 11.93 inches
Weight:
11.6 kg / 25.57 lbs
Shipping information
Package Height:
520 mm / 20.47 inches
Package Width:
405 mm / 15.94 inches
Package Depth:
365 mm / 14.37 inches
Package Weight:
13.2 kg / 29.1 lbs
