TT+

TT 1-A II

ACTIVE TWO-WAY SPEAKER
  • 131 dB max SPL
  • 800 W Class-D two-channel amplifier
  • 90° x 60° constant directivity coverage
  • FiRPHASE for 0° phase response
RDNet
FiRPHASE
Support
Features
  • 131 dB max SPL
  • 800 W Class-D two-channel amplifier
  • 90° x 60° constant directivity coverage
  • FiRPHASE for 0° phase response
  • Heavy-duty touring cabinet
  • 32 bit - 96 kHz processing

The TT 1-A provides an extremely high-power output of 131 dB SPL max with low distortion in a vented two-way enclosure. The two-channel, class D power amplifier yields a total power output of 800 W RMS with FiRPHASE 0° linear phase DSP processing, a complete set of protection circuitry and onboard RDNet for remote control and monitoring. The speaker features a neodymium 10” woofer and a 3,0” voice coil, titanium dome compression driver on a large, 90° x 60° constant directivity horn.

ARCHIVED
RDNet Software

Part number:

13000624
TT 1-A II
220-240V, EAN 8024530018016

13000627
TT 1-A II
115V, EAN 8024530018023

Responsive Image

RCF RDNet

Networked control and much more
RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.

New perspective on linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
Responsive Image
Specifications
Acoustical specifications
Frequency Response:
55 Hz ÷ 20000 Hz
Max SPL @ 1m:
131 dB
Horizontal coverage angle:
90°
Vertical coverage angle:
60°
Transducers
Compression Driver:
1 x 1.4'' neo, 3.0'' v.c
Woofer:
10'' neo, 3.0'' v.c
Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR
Output connectors:
XLR
Input sensitivity:
+4 dBu
Processor section
Crossover Frequencies:
900 Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:

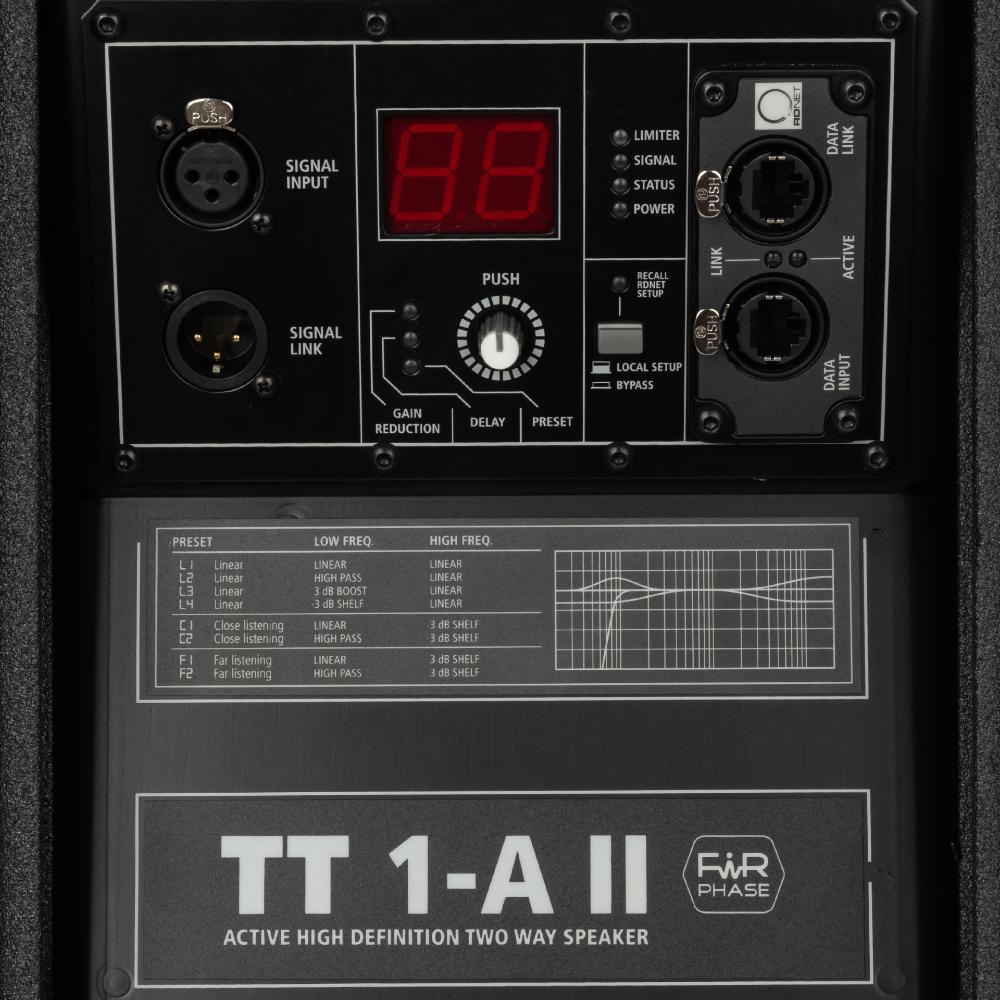

Gain reduction, RDNet local setup/bypass, time delay, Presets (linear, close, far listening, High - Pass), RDNet on board
RDNet:
Yes
Power section
Total Power:
1600 W Peak, 800 W RMS
High frequencies:
500 W Peak, 250 W RMS
Low frequencies:
1100 W Peak, 550 W RMS
Cooling:
Convection

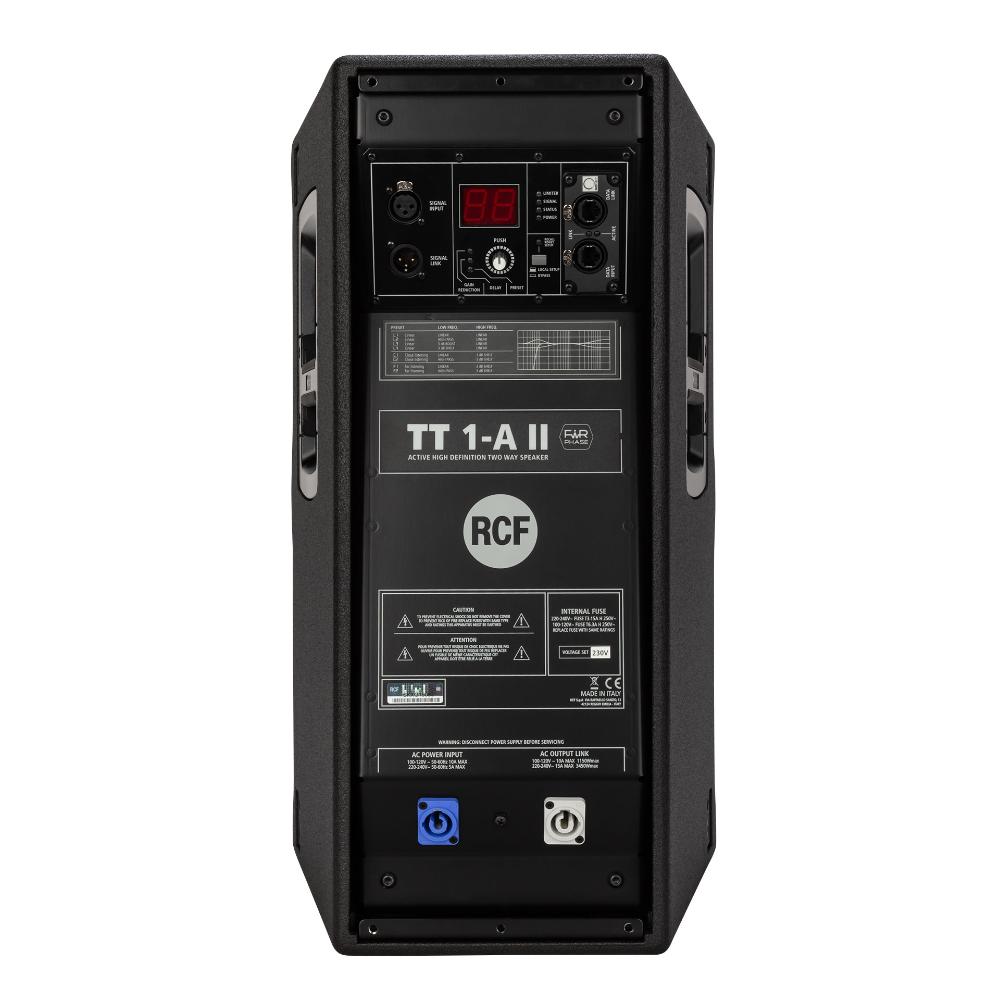

Connections:
Powercon IN/OUT
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Hardware:
Installation/Rental fittings

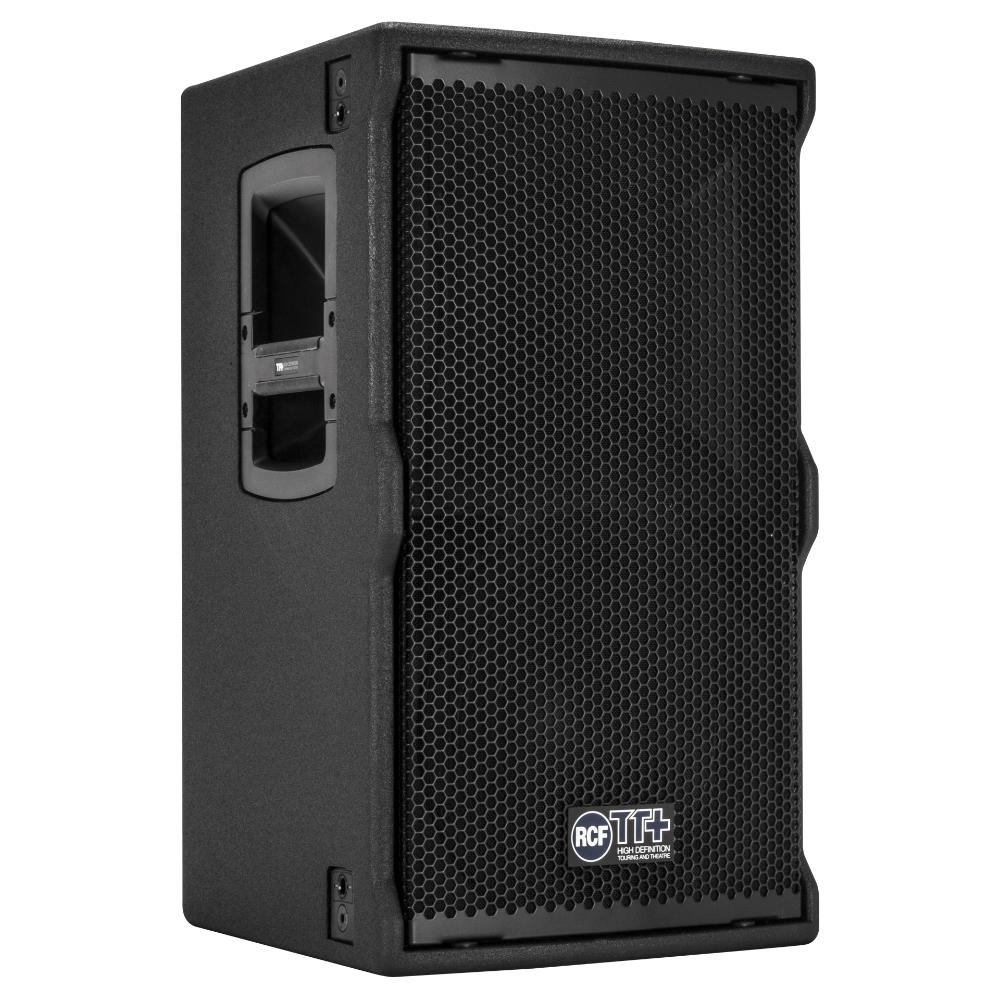

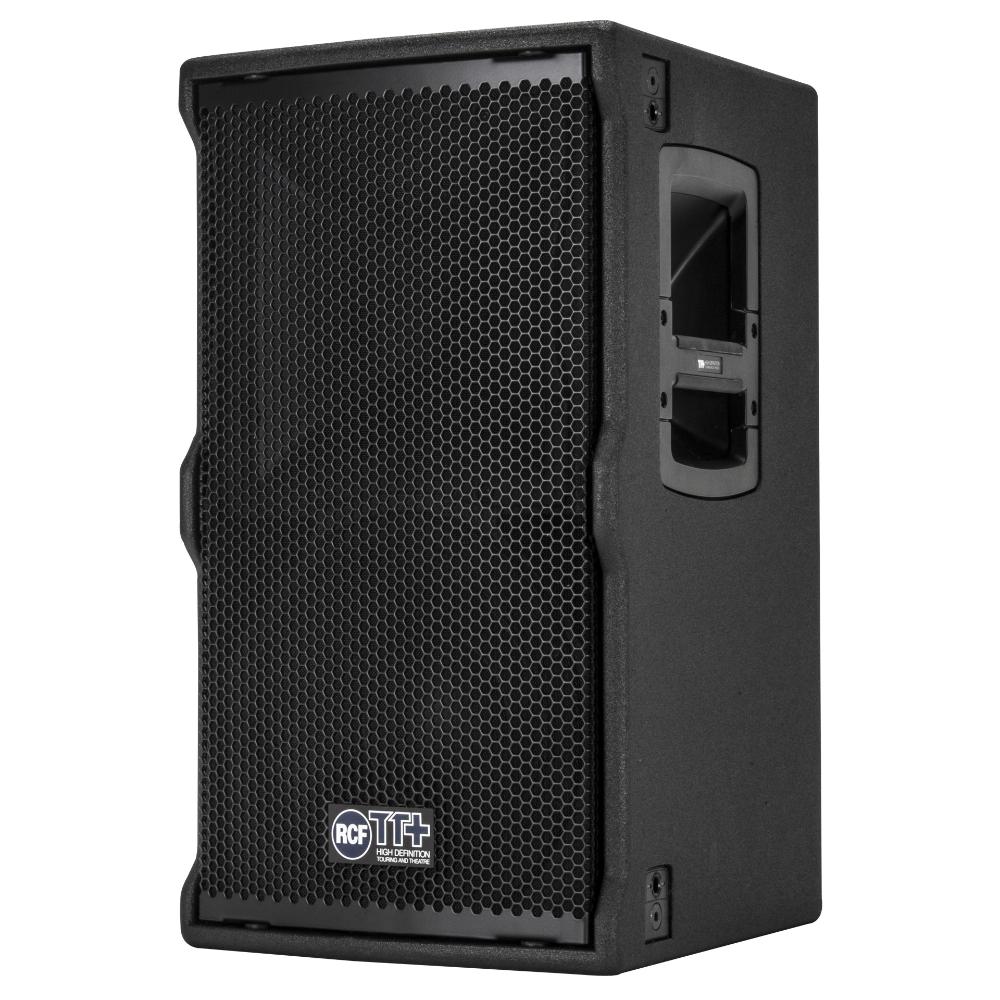

Handles:
2 side

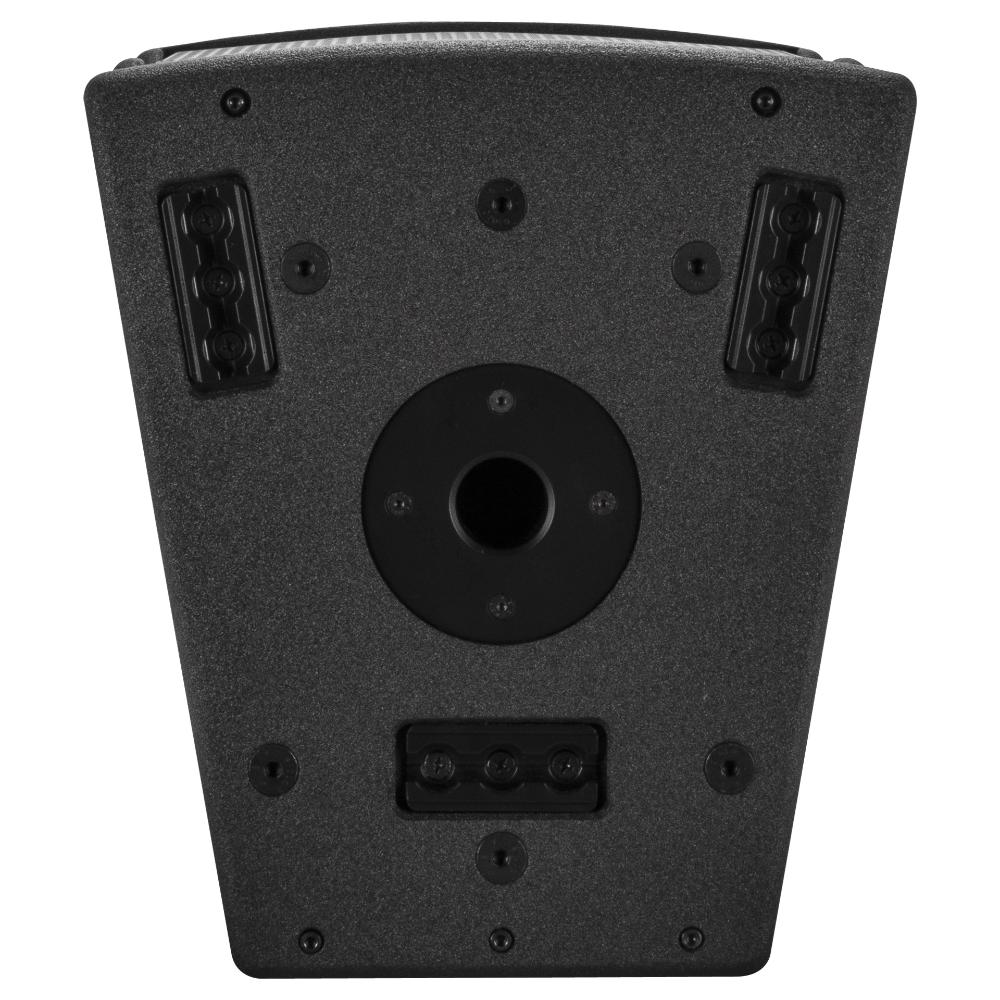

Pole mount/Cap:
Yes

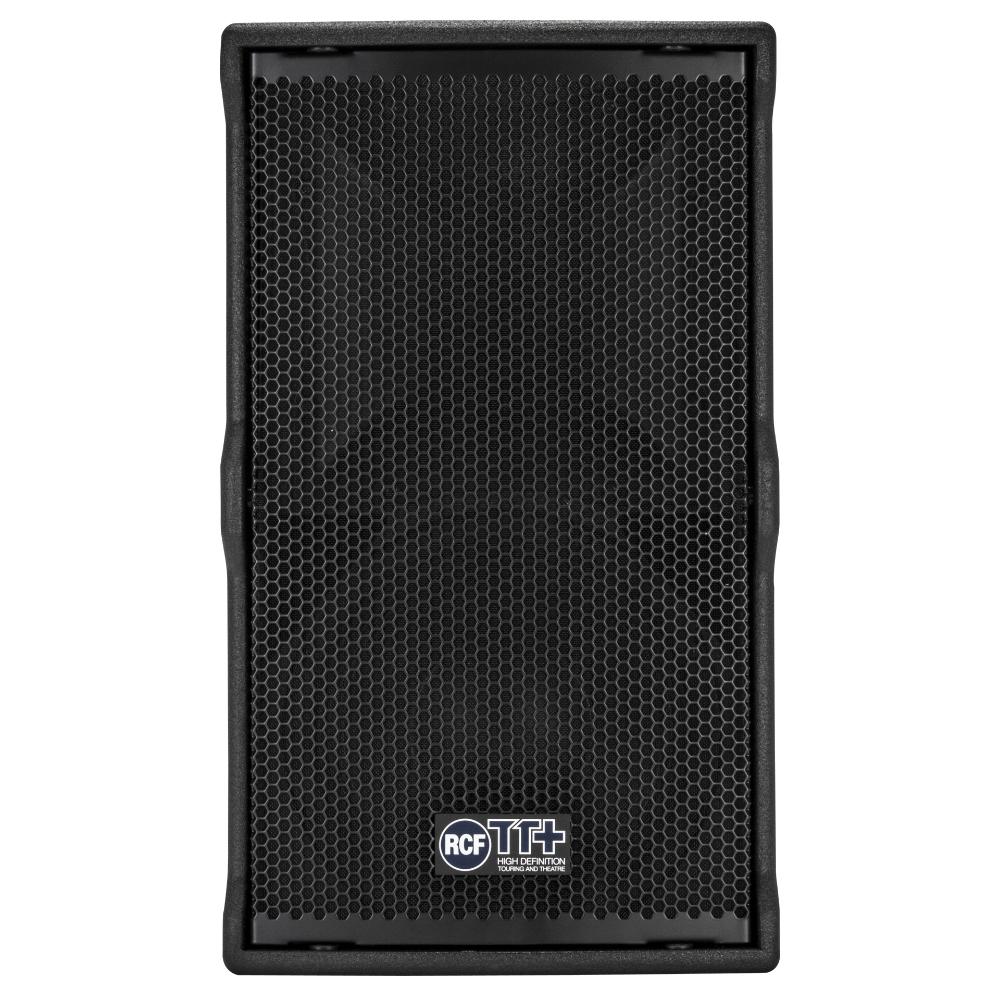

Grille:
Steel
Color:
Black
Size
Height:
566 mm / 22.28 inches
Width:
333 mm / 13.11 inches
Depth:
370 mm / 14.57 inches
Weight:
25.4 kg / 56 lbs
Shipping information
Package Height:
690 mm / 27.17 inches
Package Width:
480 mm / 18.9 inches
Package Depth:
430 mm / 16.93 inches
Package Weight:
28 kg / 61.73 lbs
