TT+

TT 1-A

ACTIVE HIGH OUTPUT TWO-WAY SPEAKER
  • 800 Watt, 2 way amplification
  • 10" neo woofer, 3.0" v.c.
  • 96 Khz, 32 bit DSP processing
  • RDNet Ready
RDNet
Support
Features
  • 800 Watt, 2 way amplification
  • 10" neo woofer, 3.0" v.c.
  • 1.4" titanium dome neo compression driver, 3.0" v.c.
  • 90° x 60° precision waveguide
  • 96 Khz, 32 bit DSP processing
  • Maximum output, perfect audio fidelity
  • Tour grade cabinet and mechanics
  • RDNet Ready

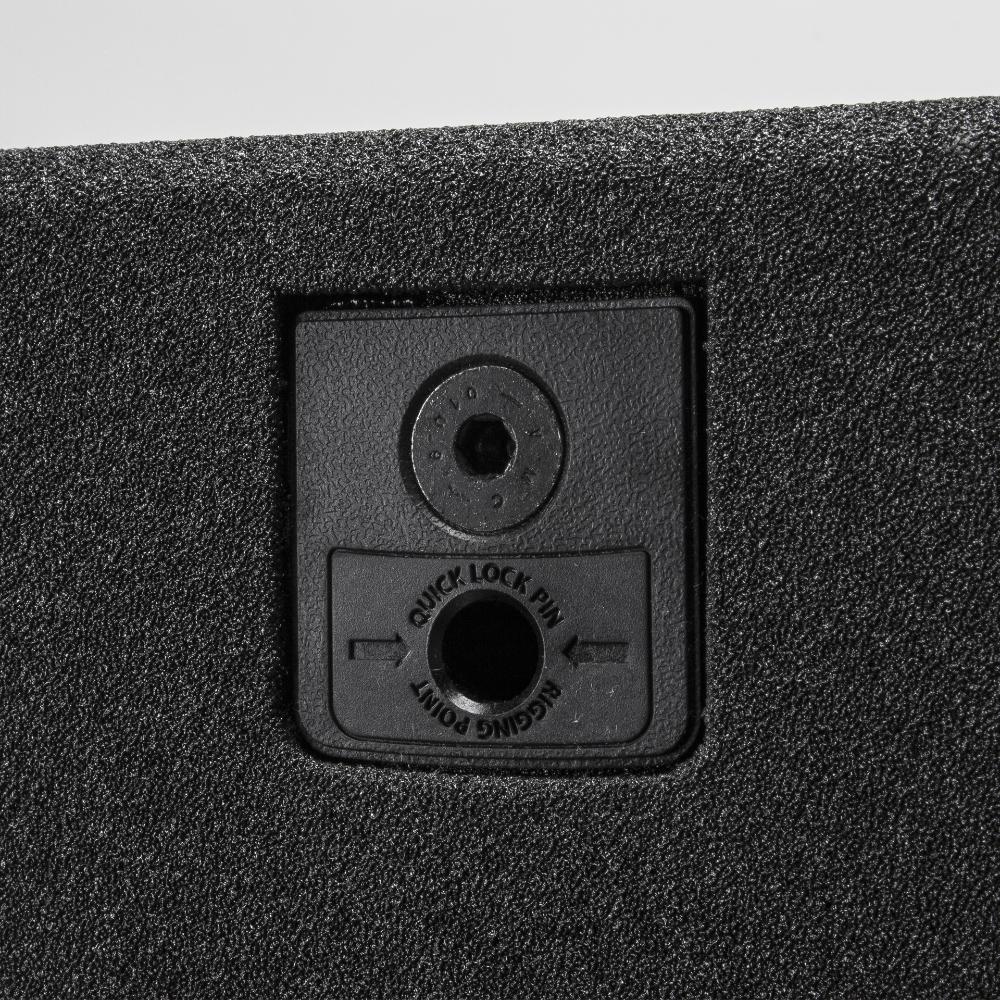

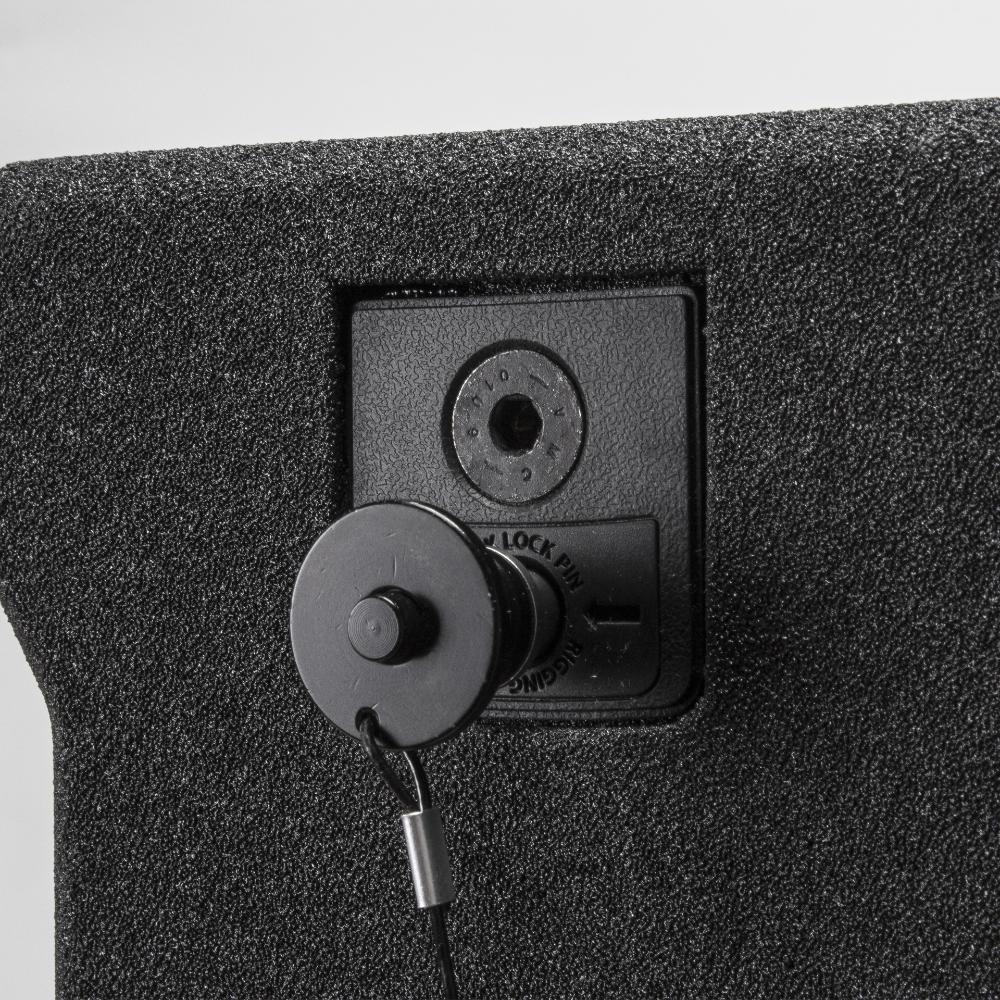

Hi-fi acoustic design, superb deep bass punch, very linear and precise frequency response. The TT1-A is the perfect small and powerful speaker for almost any sound reinforcement situation Ideal for live sound situations, incredible for playback and monitoring. The TT1-A, unique in its category, features a neodymium 3,0” voice coil compression driver on a large, constant directivity, precision horn. The integration of the 800 Watt, two channels, digital amplification and the advanced digital processing set a new standard for distortion, noise and thermal efficiency. The speaker is equipped with a complete set of integrated rigging mechanics for rental or installation. Dedicated accessories to create clusters are available.

ARCHIVED

Part number:

13000377
TT 1-A
220-240V, EAN 8024530010430

13000381
TT 1-A
115V, EAN 8024530010492

Specifications
Acoustical specifications
Frequency Response:
55 Hz ÷ 20000 Hz
Max SPL @ 1m:
131 dB
Horizontal coverage angle:
90°
Vertical coverage angle:
60°
Transducers
Compression Driver:
1 x 1.4'' neo, 3.0'' v.c
Woofer:
10'' neo, 3.0'' v.c
Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR
Output connectors:
XLR
Input sensitivity:
+4 dBu
Processor section
Crossover Frequencies:
900 Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Gain reduction, RDNet local setup/bypass, time delay, Presets (linear, close, far listening, High - Pass), RDNet Ready
RDNet:
Ready
Power section
Total Power:
1600 W Peak, 800 W RMS
High frequencies:
500 W Peak, 250 W RMS
Low frequencies:
1100 W Peak, 550 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Hardware:
Installation/Rental fittings
Handles:
2 side
Pole mount/Cap:
Yes
Grille:
Steel
Size
Height:
566 mm / 22.28 inches
Width:
333 mm / 13.11 inches
Depth:
370 mm / 14.57 inches
Weight:
25.4 kg / 56 lbs
Shipping information
Package Height:
690 mm / 27.17 inches
Package Width:
480 mm / 18.9 inches
Package Depth:
430 mm / 16.93 inches
Package Weight:
28 kg / 61.73 lbs
