TT+

TT 10-A

ACTIVE TWO-WAY HIGH DEFINITION SPEAKER
  • 130 dB SPL Max
  • 1000W RMS, two-way Class-D amplifier
  • Rotatable 90° x 70° Constant Directivity Horn
  • Quick Fit Bracket Socket
RDNet
FiRPHASE
Where to buy
Features
  • 130 dB SPL Max
  • 1000W RMS, two-way Class-D amplifier
  • Rotatable 90° x 70° Constant Directivity Horn
  • Quick Fit Bracket Socket
  • FiRPHASE
  • 10’’ neodymium Woofers, 2.5’’ voice coil
  • Horn-loaded 1” neo comp. driver, 1,75’’ voice coil
  • RDNet Networked Management
  • 60 ÷ 20000 Hz Frequency Range

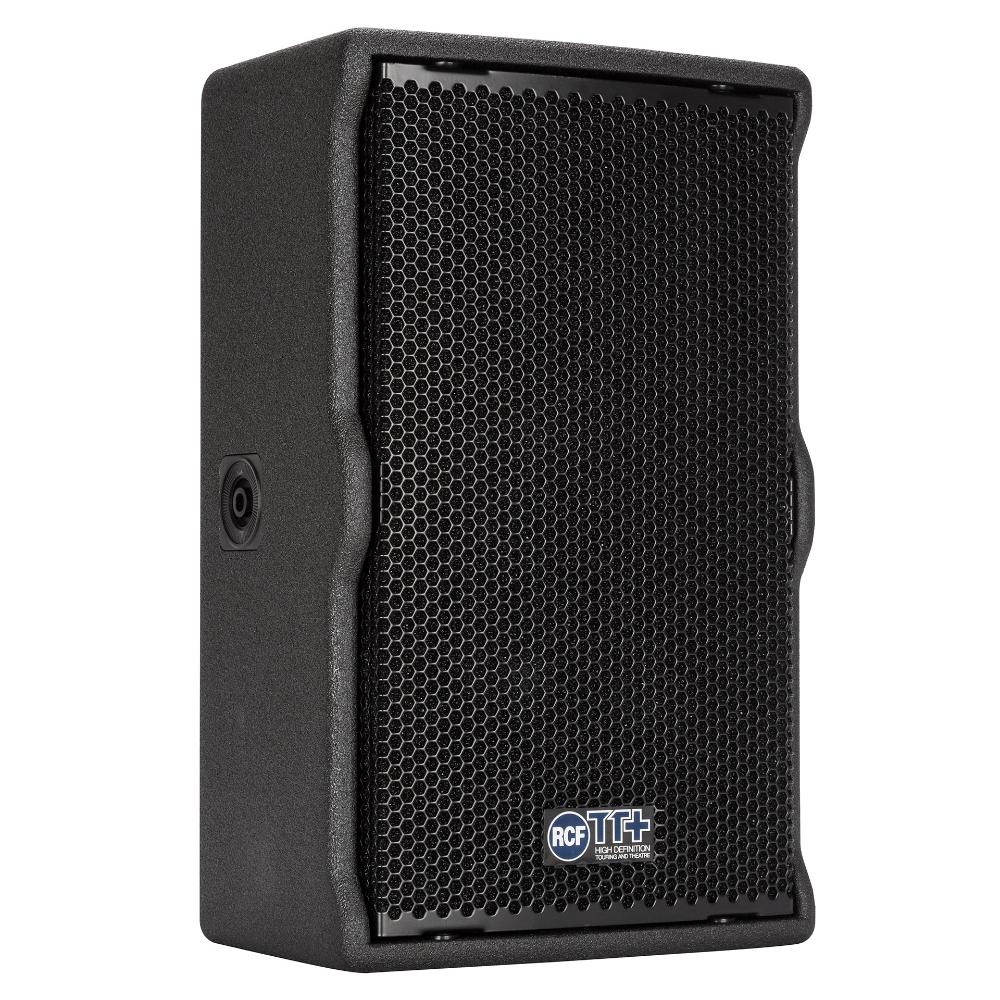

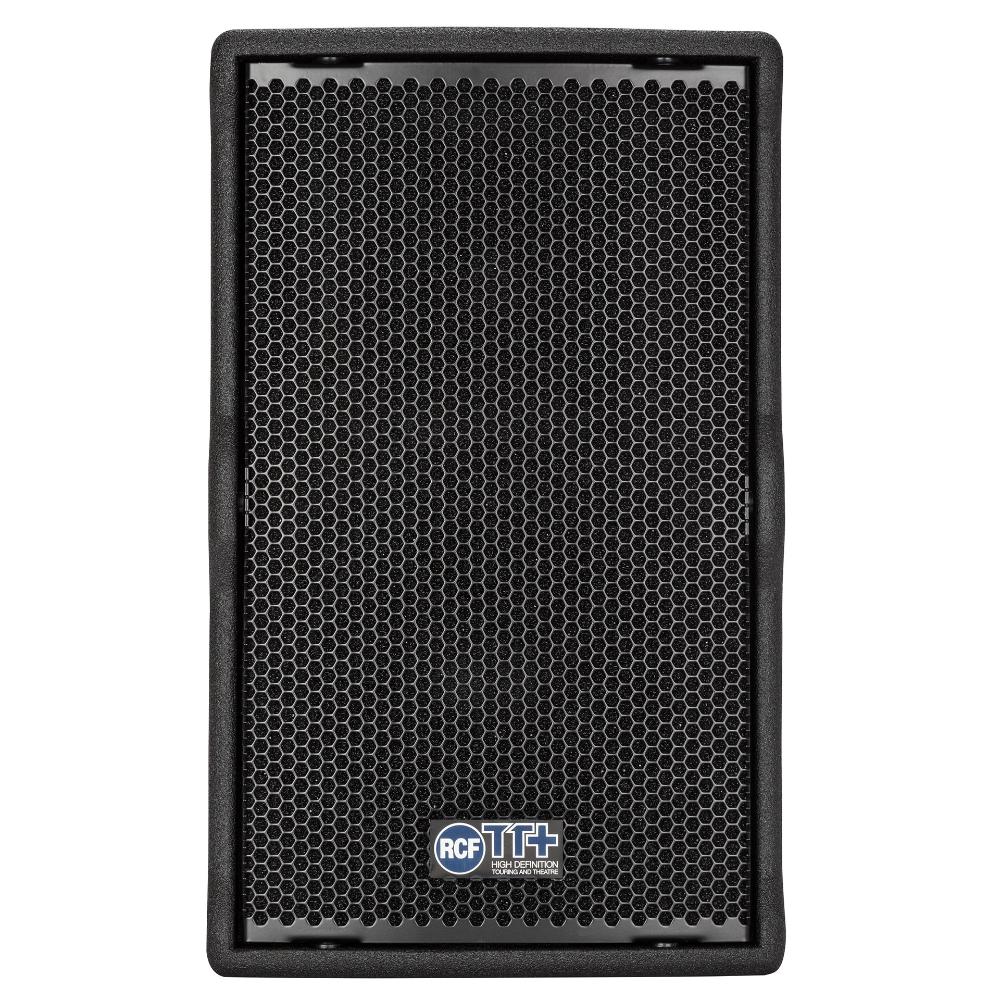

With 130 dB SPL power and a small footprint, the active two-way RCF TT10-A speaker saves the day when you need top quality sound power and unobtrusive size. Though remarkably compact and lightweight, the TT10-A offers the distinguished high-end TT+ sound quality, DSP capabilities, networked control, rugged hardware and a complete set of rigging options.

RDNet Software

Part number:

13000549
TT 10-A
220-240V, EAN 8024530017125

13000559
TT 10-A
115V, EAN 8024530017200

Responsive Image

RCF RDNet

Networked control and much more
RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.

Touring & theatre performance

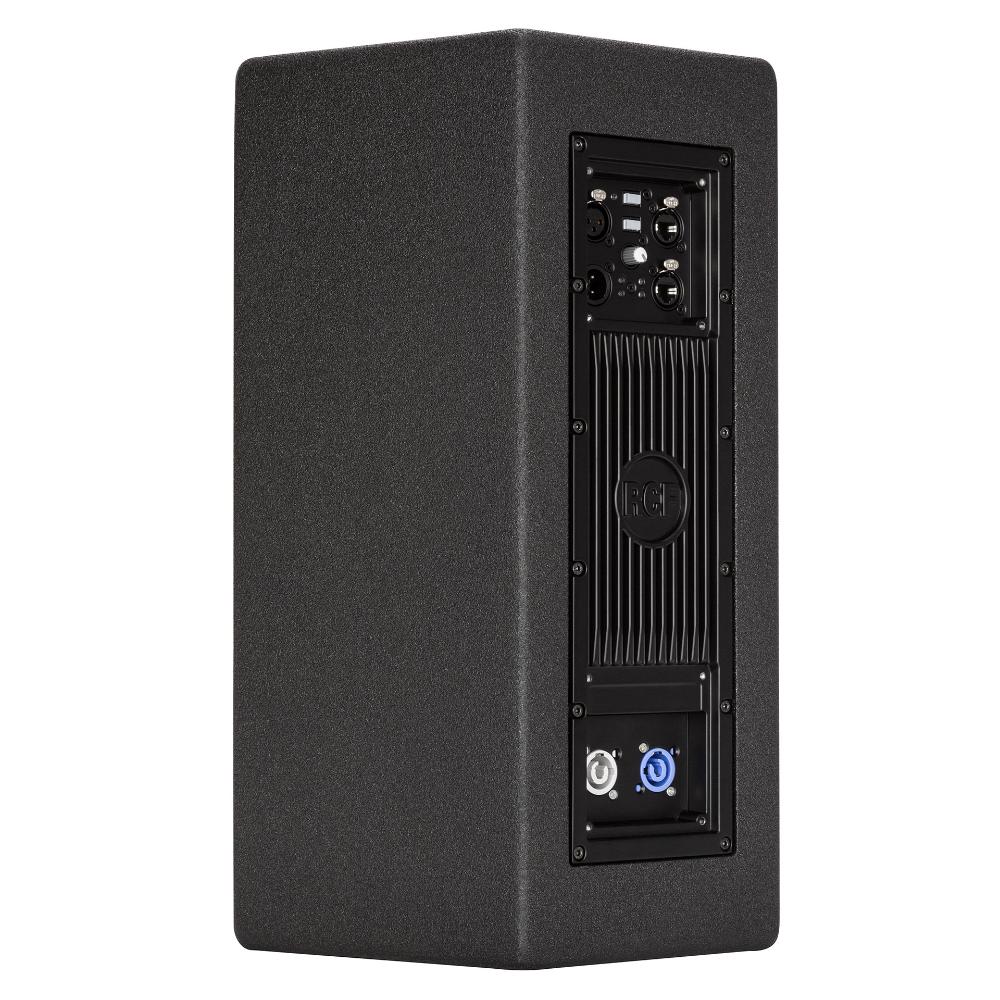

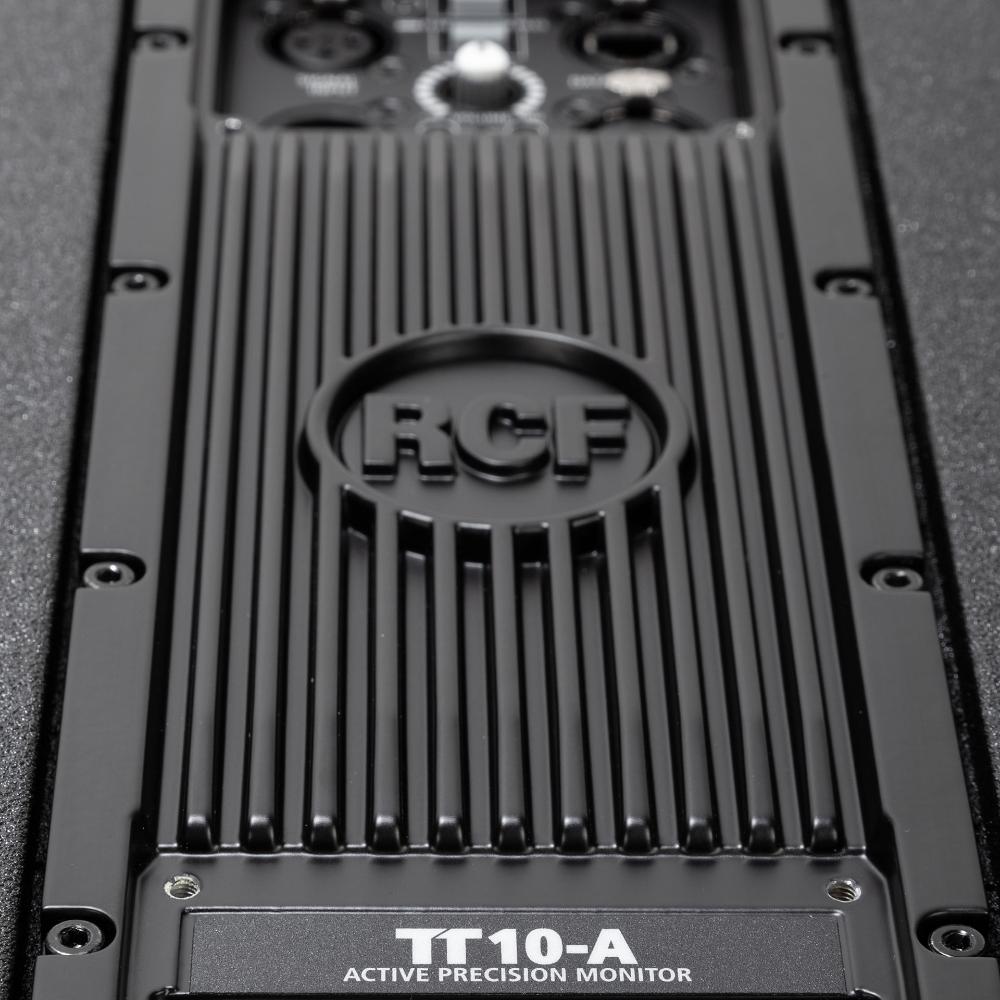

The innovative transducer design ensures extreme power-handling, making the TT 10-A the right choice for top demanding applications. The onboard DSP provides linear phase filters and crossover, system equalization, polarity control, fast limiter, RMS limiter and configuration control from the back panel or advanced management via RDNet.
Responsive Image
Responsive Image

Mutliple applications

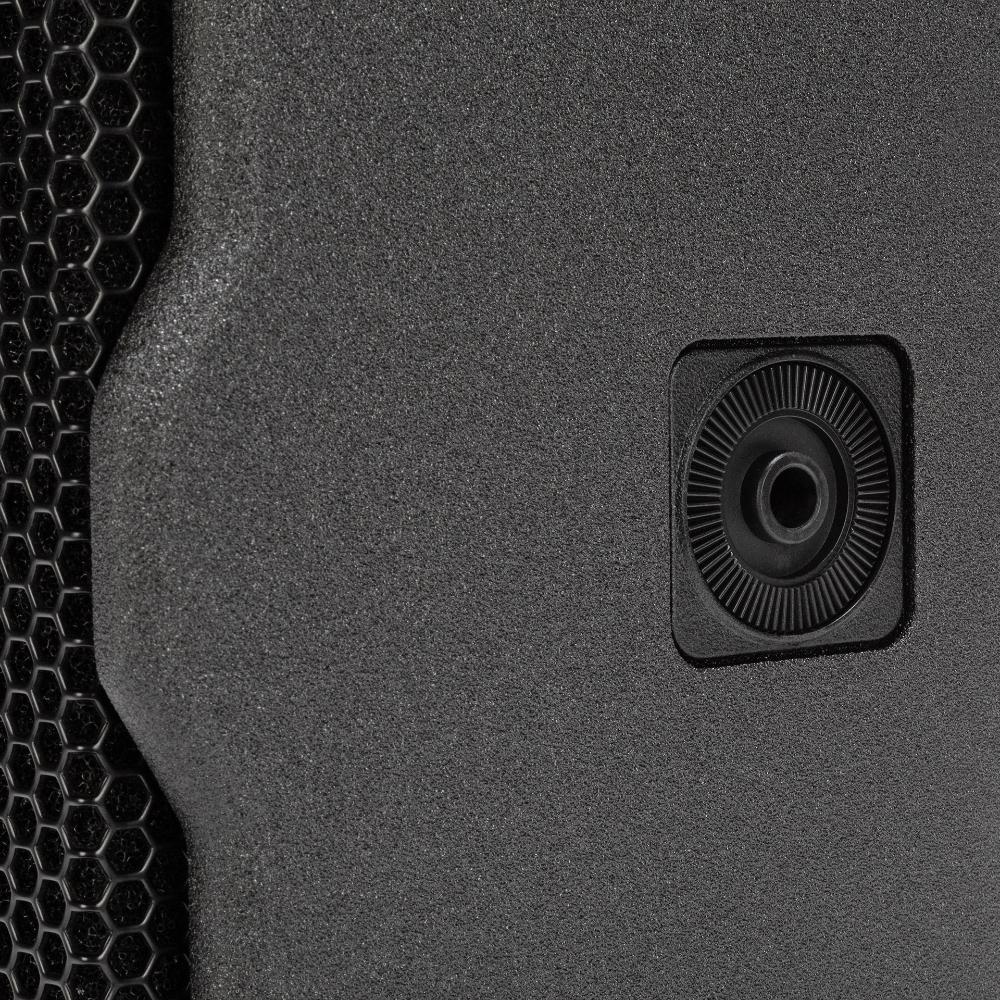

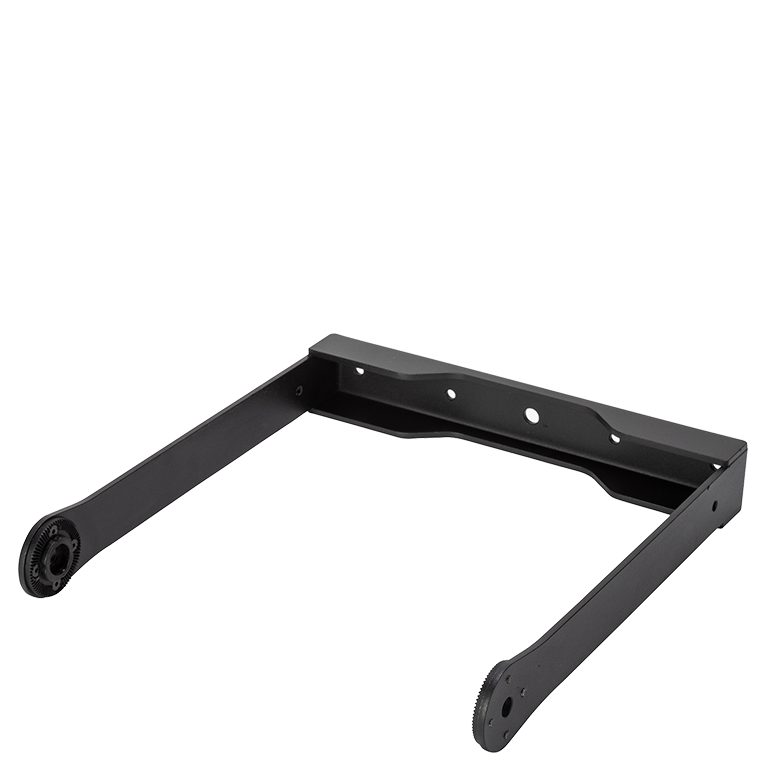

Innovative quick fit bracket socket for easy set-up and stable rigging.

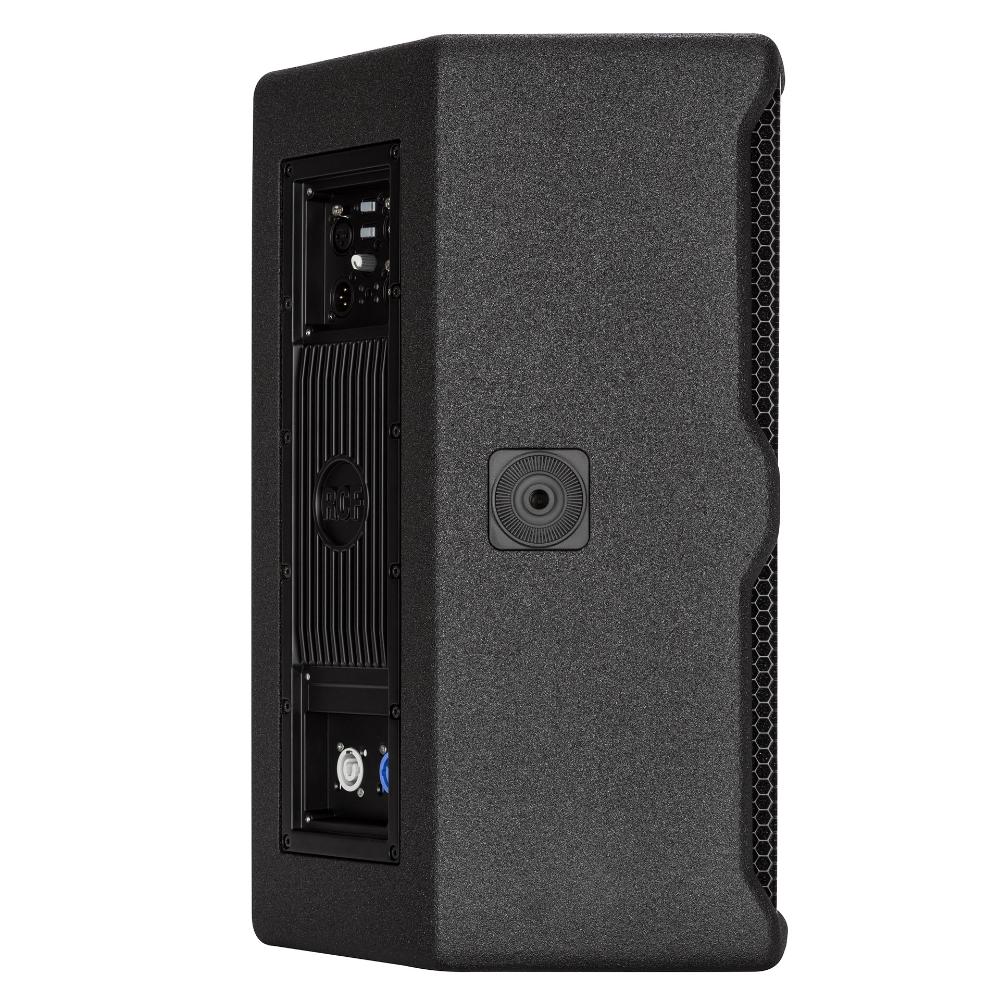

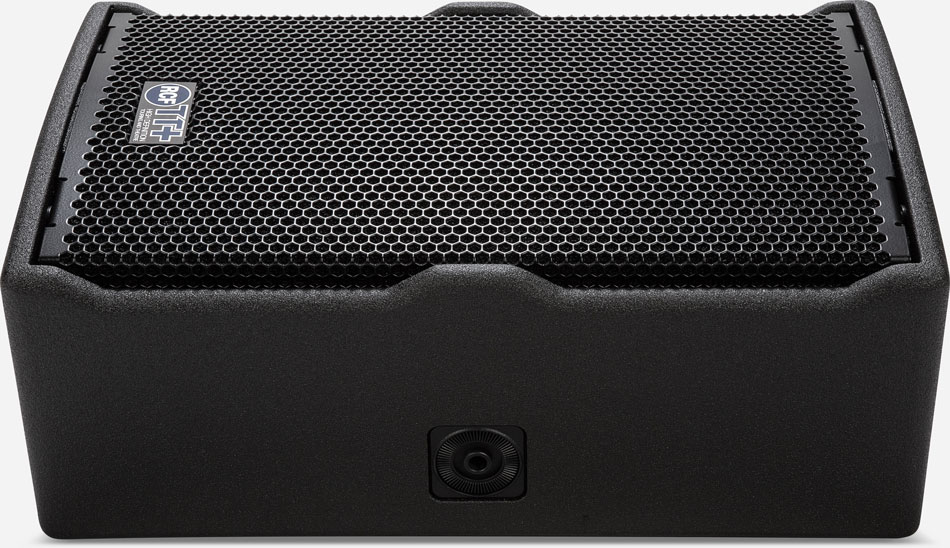

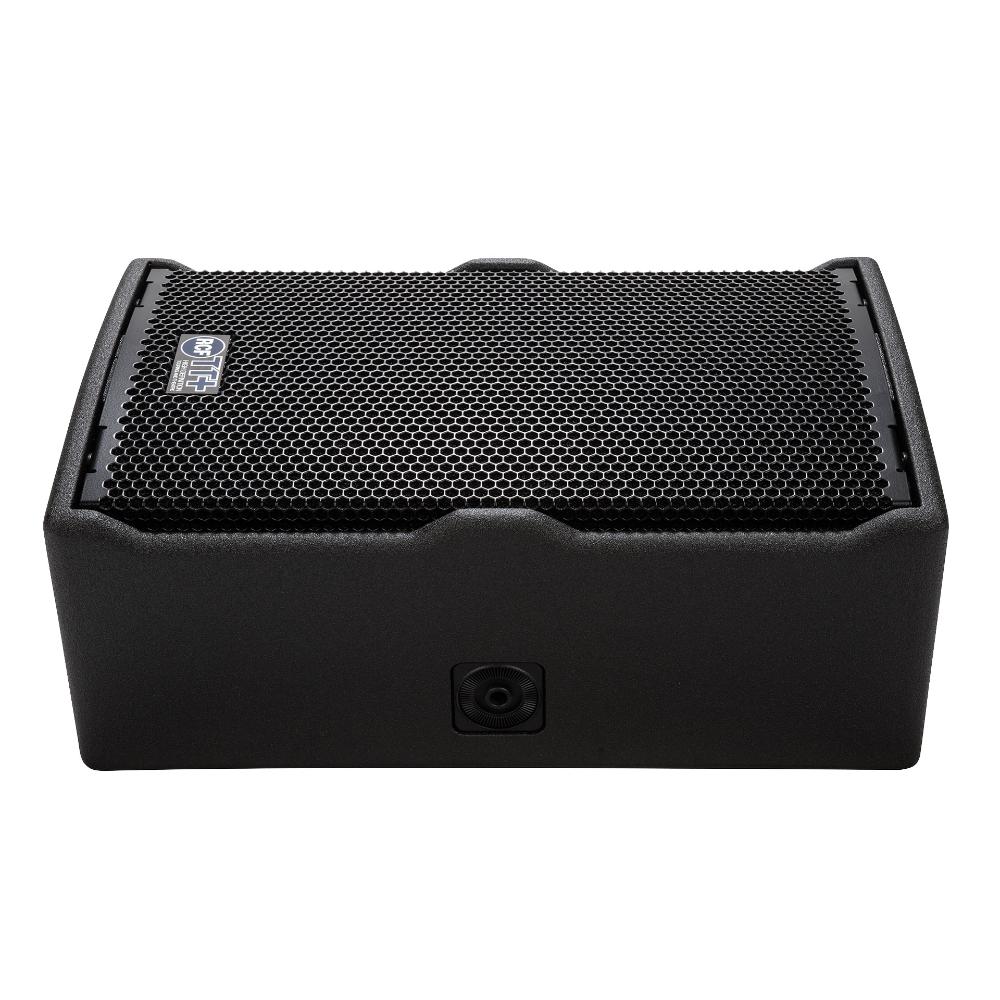

Pole mount, top and bottom M10 suspension points, quick fit bracket side sockets and a forged aluminum handle with rubber handgrip on top: the TT 10-A cabinet it is fully equipped for every application. One side of the cabinet presents a 35° angle, perfect for stage monitoring.

Durable and sturdy

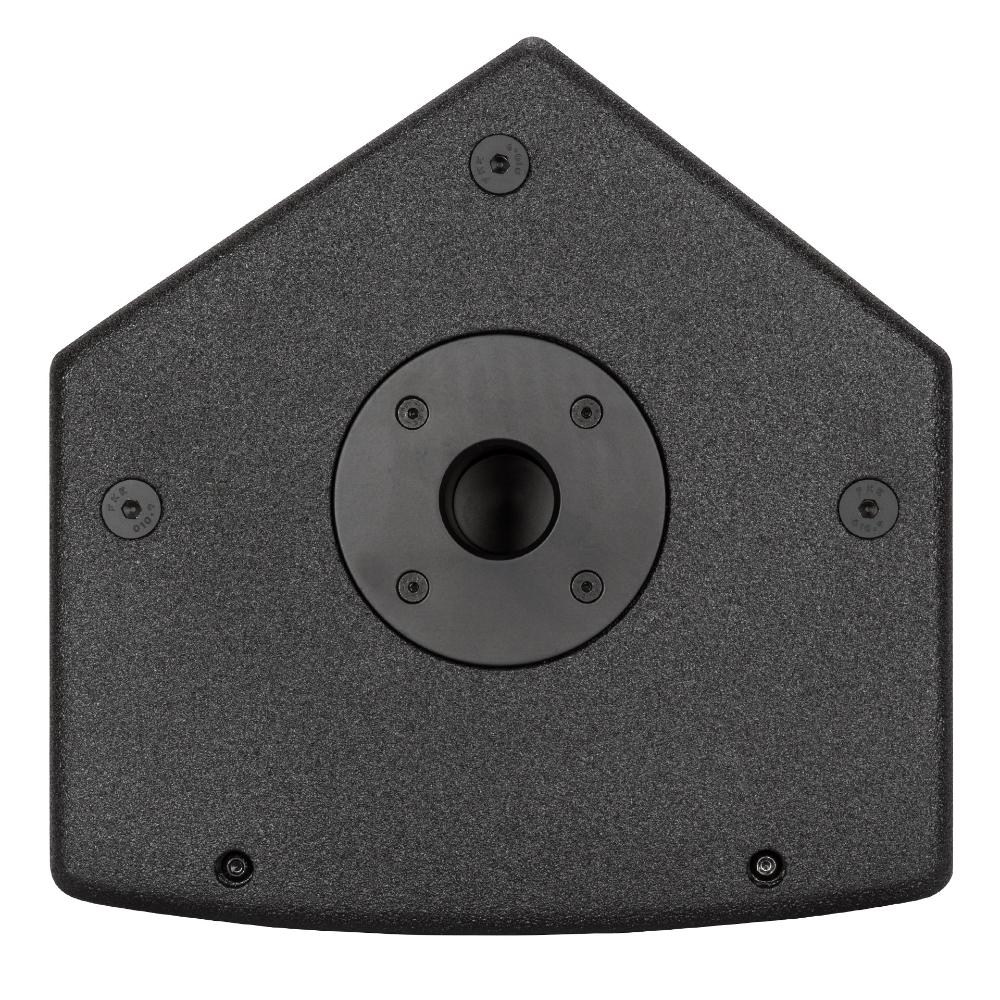

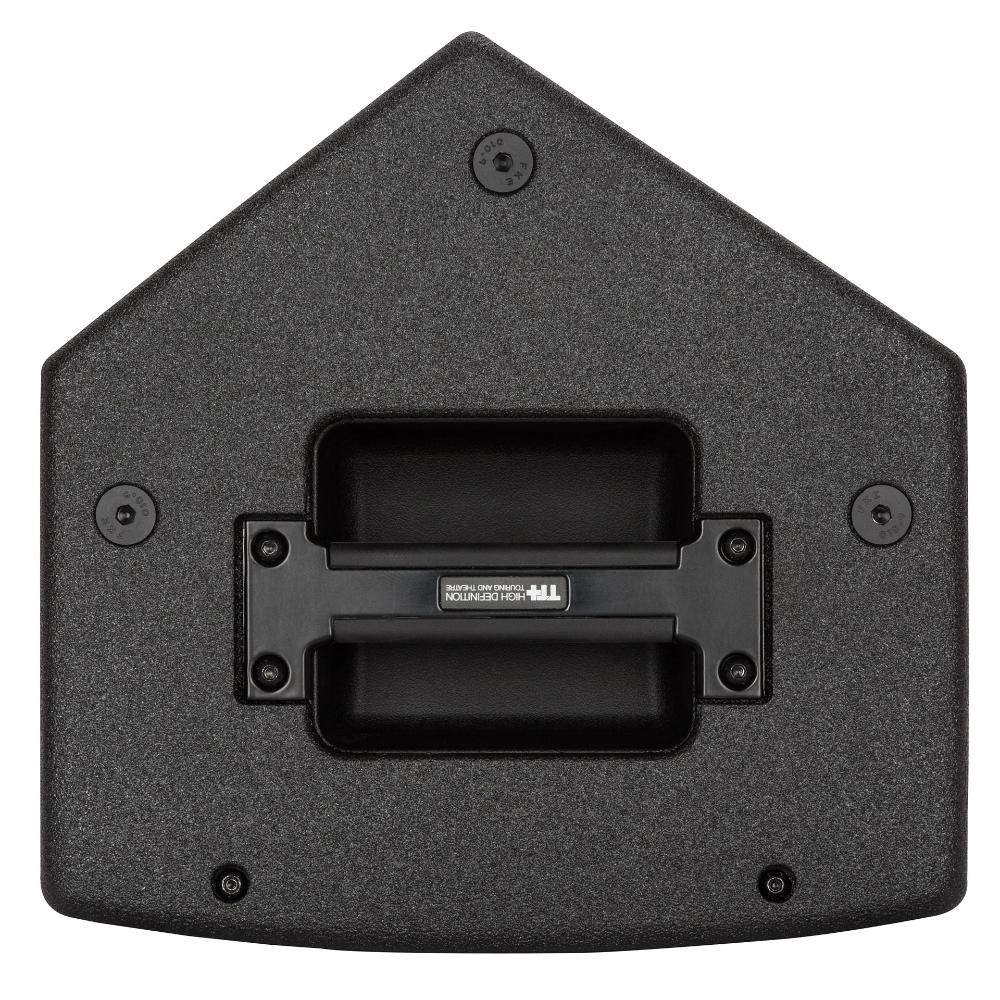

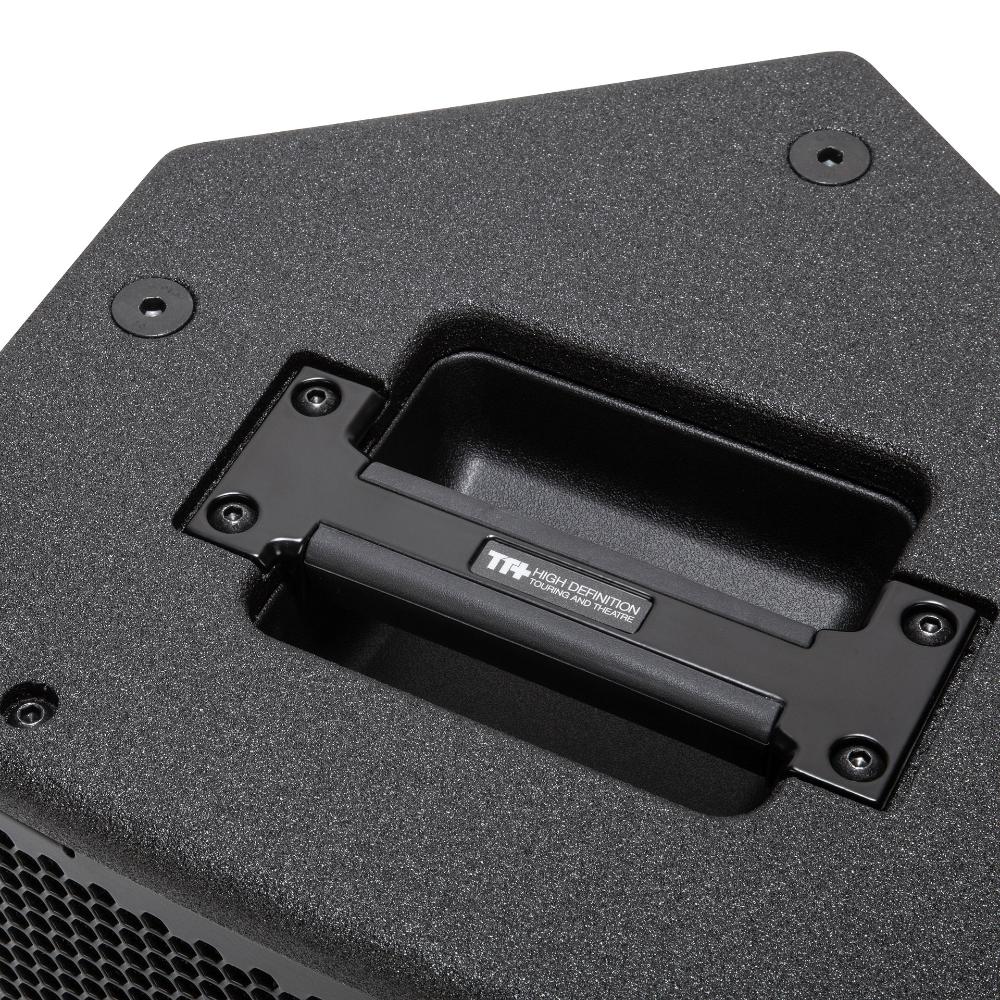

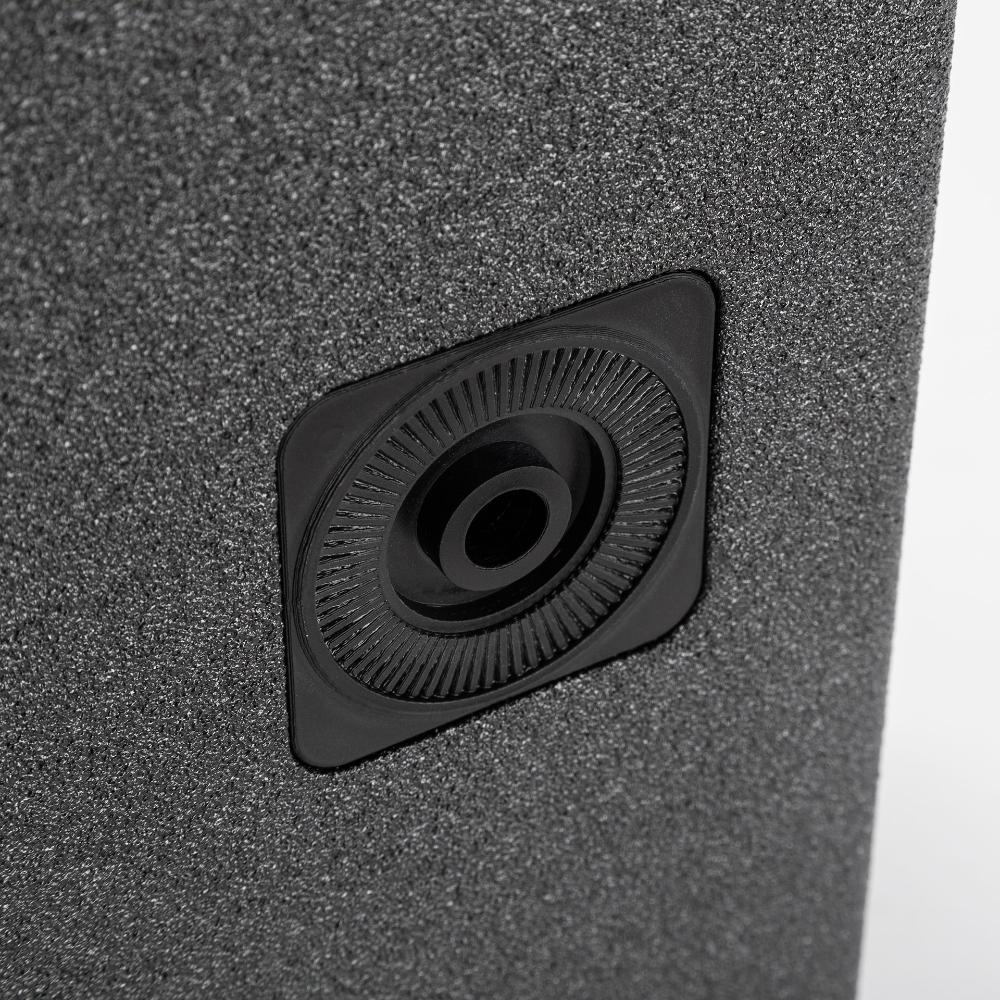

The cabinets feature an aluminum top handle designed to facilitate transport positioning and loading operations. A bottom pole socket allows the use as a point source sound system on a stand or subwoofer pole. The speaker cabinet is made of high-quality Baltic birch plywood with a special adhesive to glue every layer; this makes the cabinet completely water resistant even before the special polyurea paint, applied to make it highly resistant to scratches and bumps.
Responsive Image

New perspective on linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
Responsive Image
Specifications
Acoustical specifications
Frequency Response:
60 Hz ÷ 20000 Hz
Max SPL @ 1m:
130 dB
Horizontal coverage angle:
90°
Vertical coverage angle:
70°

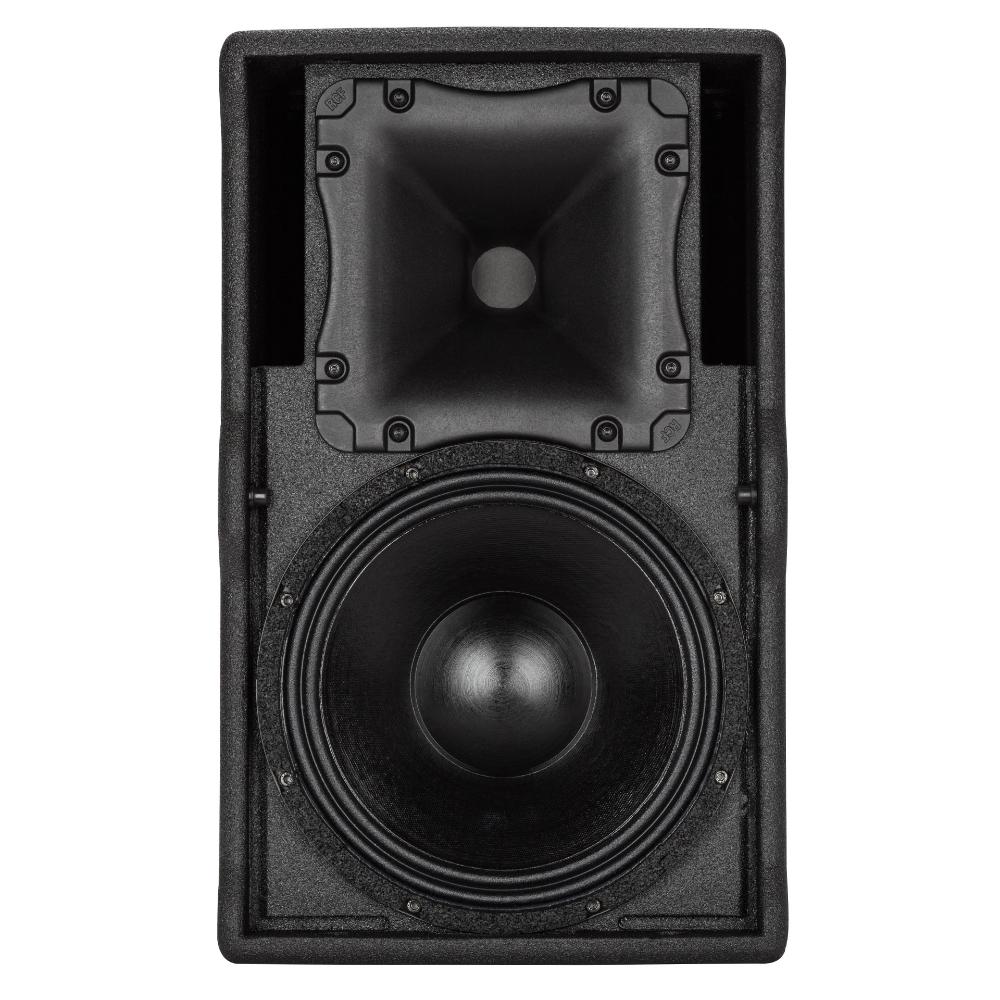

Transducers
Compression Driver:
1.0'' neo, 1.75'' v.c
Woofer:
10'' neo, 2.5'' v.c
Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR, RDNet Ethercon
Output connectors:
XLR, RDNet Ethercon
Input sensitivity:
-2 dBu/+4 dBu
Processor section
Crossover Frequencies:
900 Hz
Protections:
Thermal, HF
Limiter:
Fast Limiter
Controls:
Bypass, Linear/High Pass, Volume, RDnet on boar
RDNet:
Yes
Power section
Total Power:
2000 W Peak, 1000 W RMS
High frequencies:
600 W Peak, 300 W RMS
Low frequencies:
1400 W Peak, 700 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Hardware:
3X M10 TOP AND BOTTOM
2X PIN D.10 AND M10 SIDE
Handles:
1 TOP
Grille:
Steel
Color:
Black
Size
Height:
490 mm / 19.29 inches
Width:
306 mm / 12.05 inches
Depth:
299 mm / 11.77 inches
Weight:
11.5 kg / 25.35 lbs
Shipping information
Package Height:
540 mm / 21.26 inches
Package Width:
350 mm / 13.78 inches
Package Depth:
350 mm / 13.78 inches
Package Weight:
15.6 kg / 34.39 lbs
