TT+

TT 2-A II

ACTIVE TWO-WAY SPEAKER
  • 134 dB max SPL
  • 1600 W Class-D two-channel amplifier
  • 90° x 50° constant directivity coverage
  • FiRPHASE for 0° phase response
RDNet
Support
Features
  • 134 dB max SPL
  • 1600 W Class-D two-channel amplifier
  • 90° x 50° constant directivity coverage
  • FiRPHASE for 0° phase response
  • Heavy-duty touring cabinet
  • 32 bit - 96 kHz processing

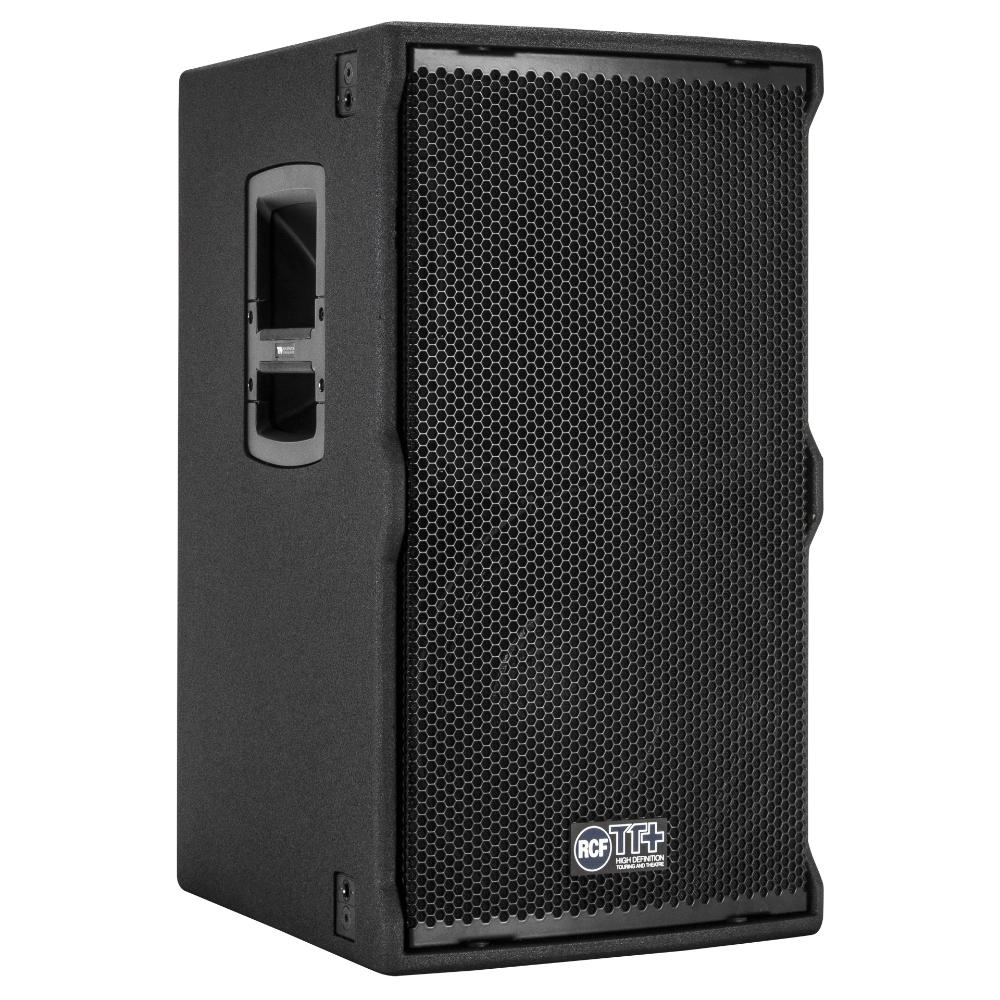

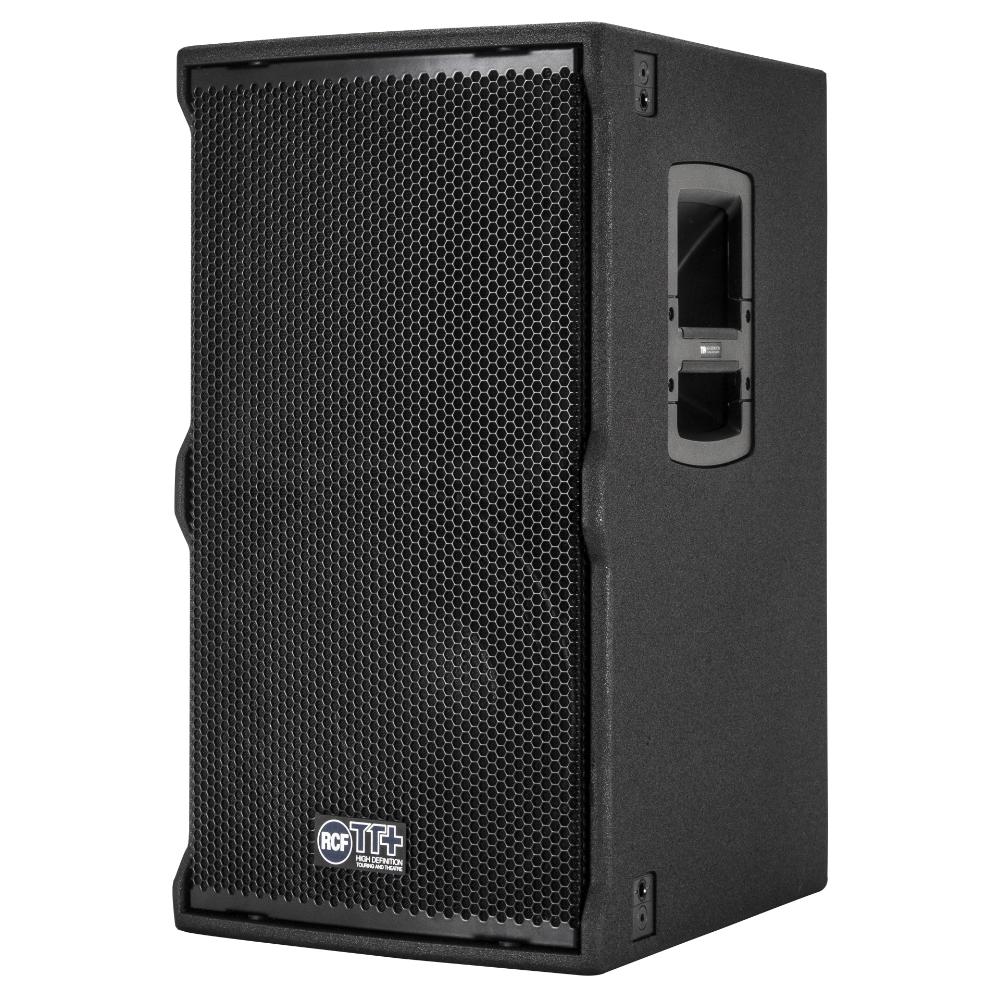

With 134 dB SPL power, extreme linearity and low distortion in a vented two-way enclosure, the active RCF TT 2-A speaker is one of the most flexible speakers in its category. Though compact and lightweight, the TT 2-A offers the signature high-end TT+ sound quality with a two-channel 1600 W RMS Class-D amplifier, FiRPHASE 0° linear phase response DSP, RDNet networked control, rugged hardware and a complete set of rigging options.

ARCHIVED

Part number:

13000628
TT 2-A II
220-240V, EAN 8024530018061

13000629
TT 2-A II
115V, EAN 8024530018078

Specifications
Acoustical specifications
Frequency Response:
50 Hz ÷ 20000 Hz
Max SPL @ 1m:
134 dB
Horizontal coverage angle:
90°
Vertical coverage angle:
50°

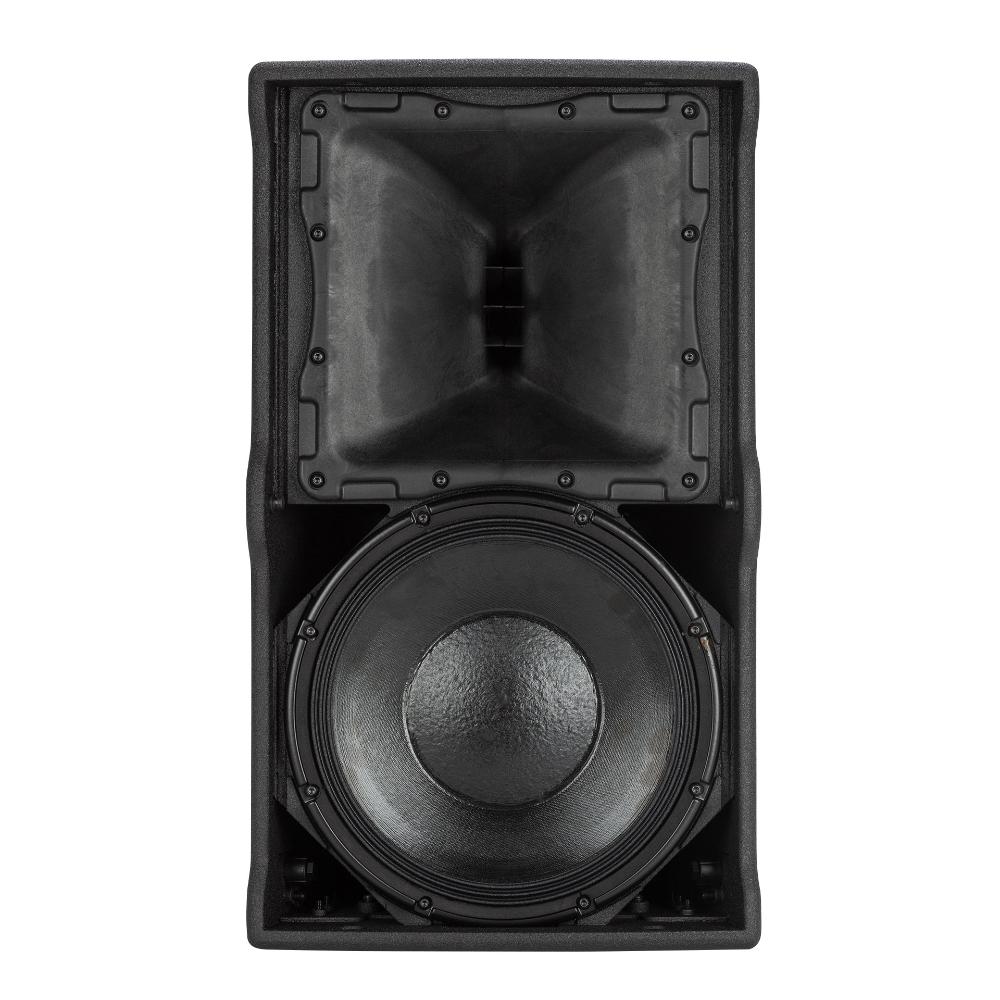

Transducers
Compression Driver:
1 x 1.4'' neo, 3.0'' v.c
Woofer:
12'' neo, 4.0'' v.c
Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR
Output connectors:
XLR
Input sensitivity:
+4 dBu
Processor section
Crossover Frequencies:
750 Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Gain reduction, RDNet local setup/bypass, Time Delay, Presets (Linear, Close, Far listening, High-pass), RDNet on board
RDNet:
Yes
Power section
Total Power:
3200 W Peak, 1600 W RMS
High frequencies:
1000 W Peak, 500 W RMS
Low frequencies:
2200 W Peak, 1100 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Hardware:
Installation/Rental fittings
Handles:
2 side
Pole mount/Cap:
Yes
Grille:
Steel
Color:
Black
Size
Height:
643 mm / 25.31 inches
Width:
372 mm / 14.65 inches
Depth:
470 mm / 18.5 inches
Weight:
34.4 kg / 75.84 lbs
Shipping information
Package Height:
900 mm / 35.43 inches
Package Width:
580 mm / 22.83 inches
Package Depth:
490 mm / 19.29 inches
Package Weight:
37.8 kg / 83.33 lbs
