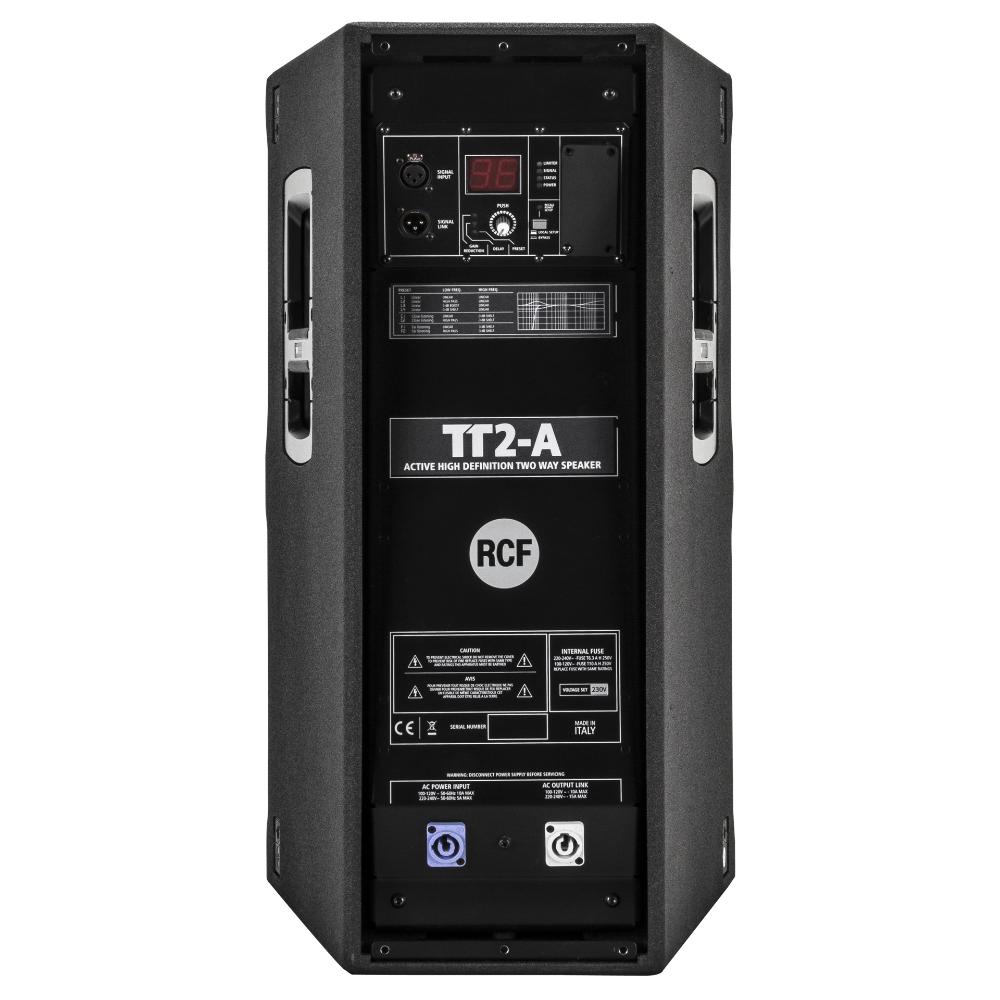

TT+

TT 2-A

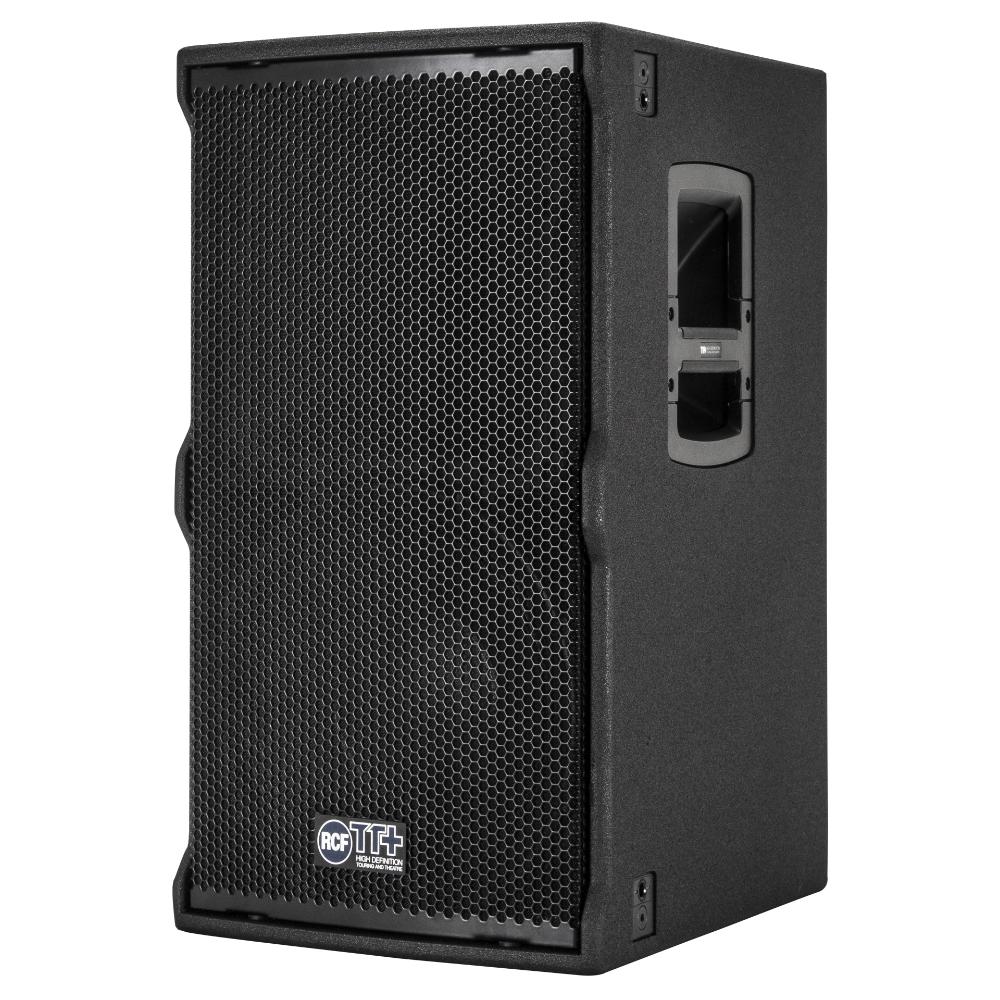

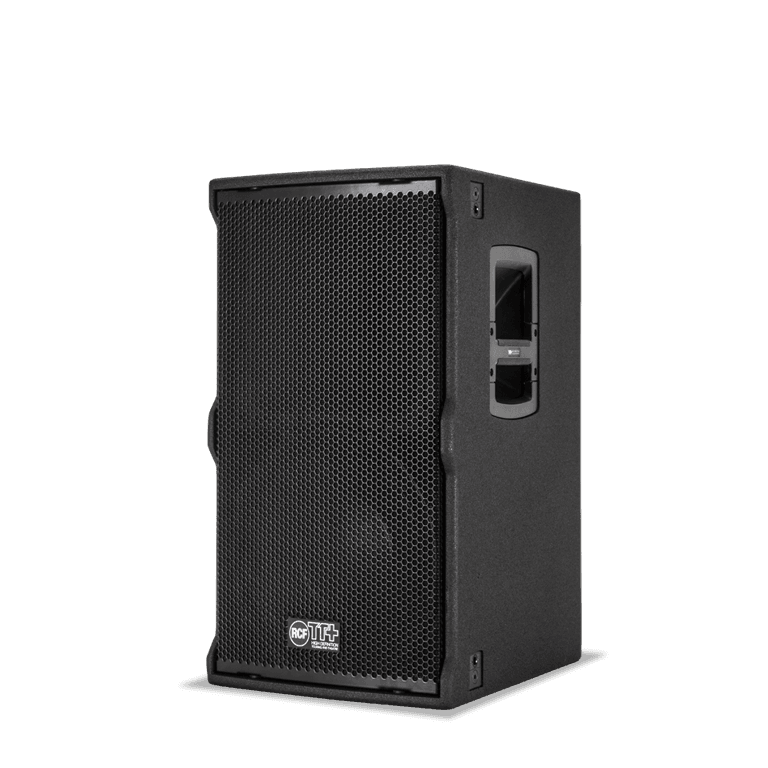

ACTIVE HIGH OUTPUT TWO-WAY SPEAKER
  • 1600 Watt, 2 way amplification
  • 12" neo woofer, 4" v.c.
  • 96 Khz, 32 bit DSP processing
  • RDNet Ready

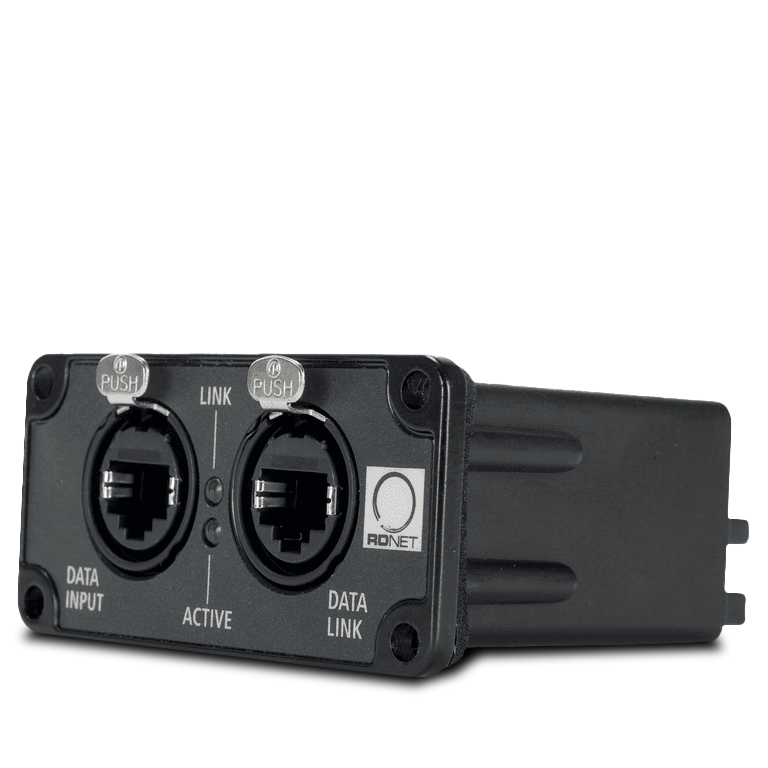

RDNet
Support
Features
  • 1600 Watt, 2 way amplification
  • 12" neo woofer, 4" v.c.
  • 1.4" titanium dome neo compression driver, 3.0" v.c.
  • 90° x 50° precision waveguide
  • 96 Khz, 32 bit DSP processing
  • Maximum output, perfect audio fidelity
  • Tour grade cabinet and mechanics
  • RDNet Ready

The TT2-A is the most flexible and powerful tool in its class. The incredible output and dynamics, the extreme linearity and fidelity makes the TT2-A a special product in its category. The TT2-A is the ideal compact two-way speaker for near field sound reinforcement, live sound and corporate events. The integration of the 1600 Watt, two channel, digital amplification and the advanced digital processing set a new standard for distortion, noise and thermal efficiency. The speaker is equipped with a complete set of integrated rigging mechanics for rental or installation. Dedicated accessories to create clusters are available.

ARCHIVED

Part number:

13000378
TT 2-A
220-240V, EAN 8024530010454

13000382
TT 2-A
115V, EAN 8024530010485

Specifications
Acoustical specifications
Frequency Response:
50 Hz ÷ 20000 Hz
Max SPL @ 1m:
134 dB
Horizontal coverage angle:
90°
Vertical coverage angle:
50°

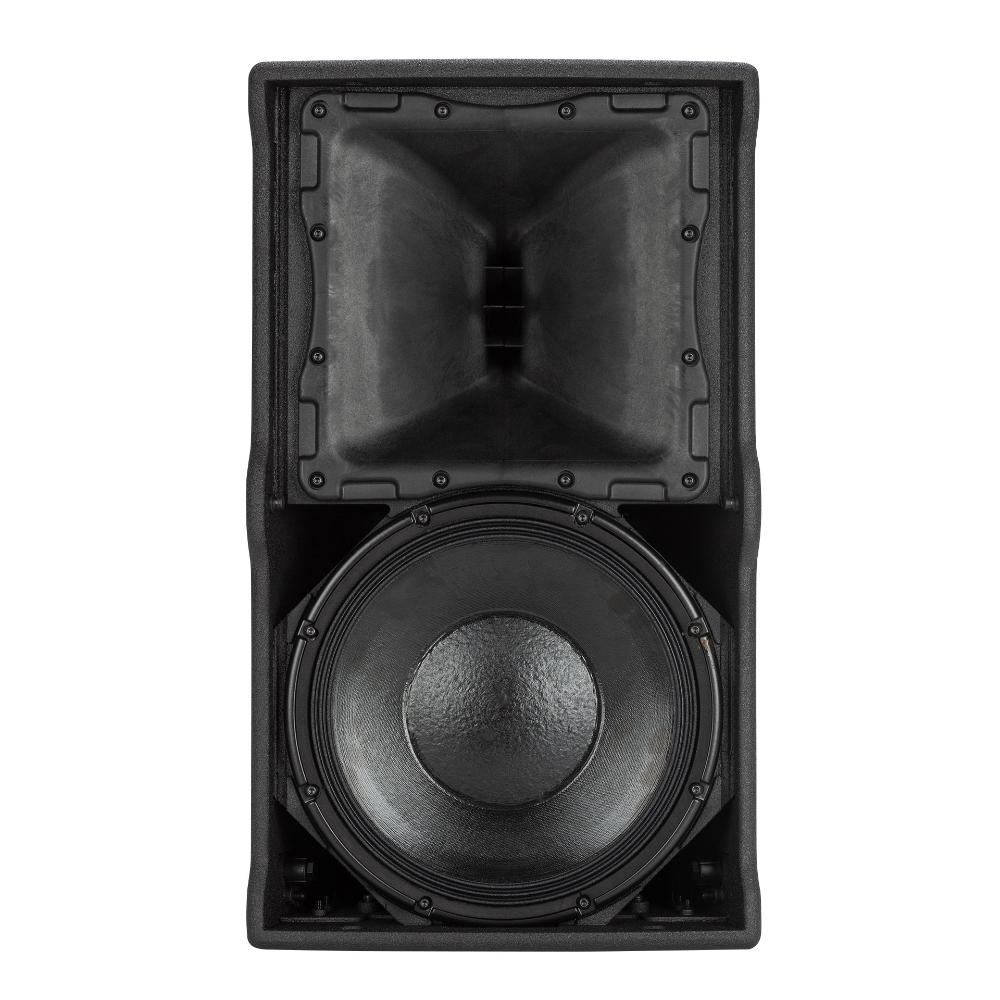

Transducers
Compression Driver:
1 x 1.4'' neo, 3.0'' v.c
Woofer:
12'' neo, 4.0'' v.c
Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR
Output connectors:
XLR
Input sensitivity:
+4 dBu
Processor section
Crossover Frequencies:
750 Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Gain reduction, RDNet local setup/bypass, Time Delay, Presets (Linear, Close, Far listening, High-pass), RDNet Ready
RDNet:
Ready
Power section
Total Power:
3200 W Peak, 1600 W RMS
High frequencies:
1000 W Peak, 500 W RMS
Low frequencies:
2200 W Peak, 1100 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Hardware:
Installation/Rental fittings

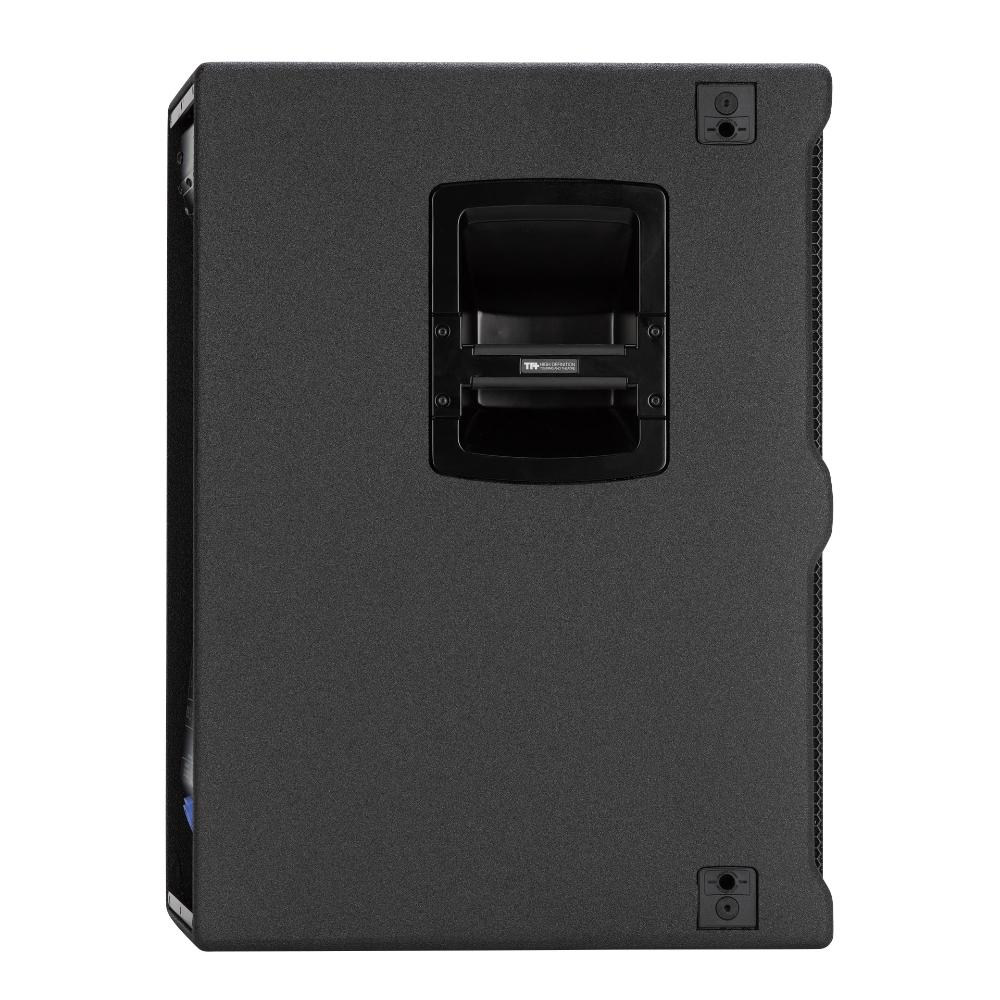

Handles:
2 side

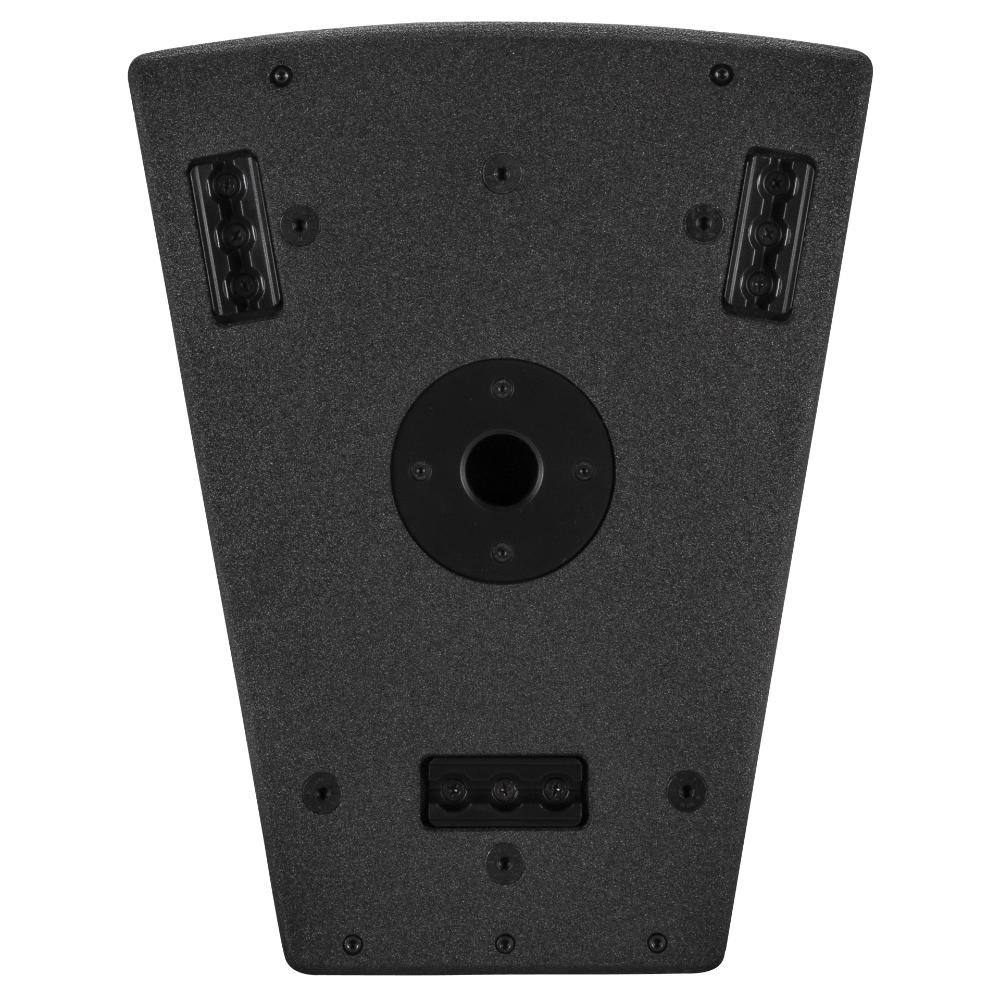

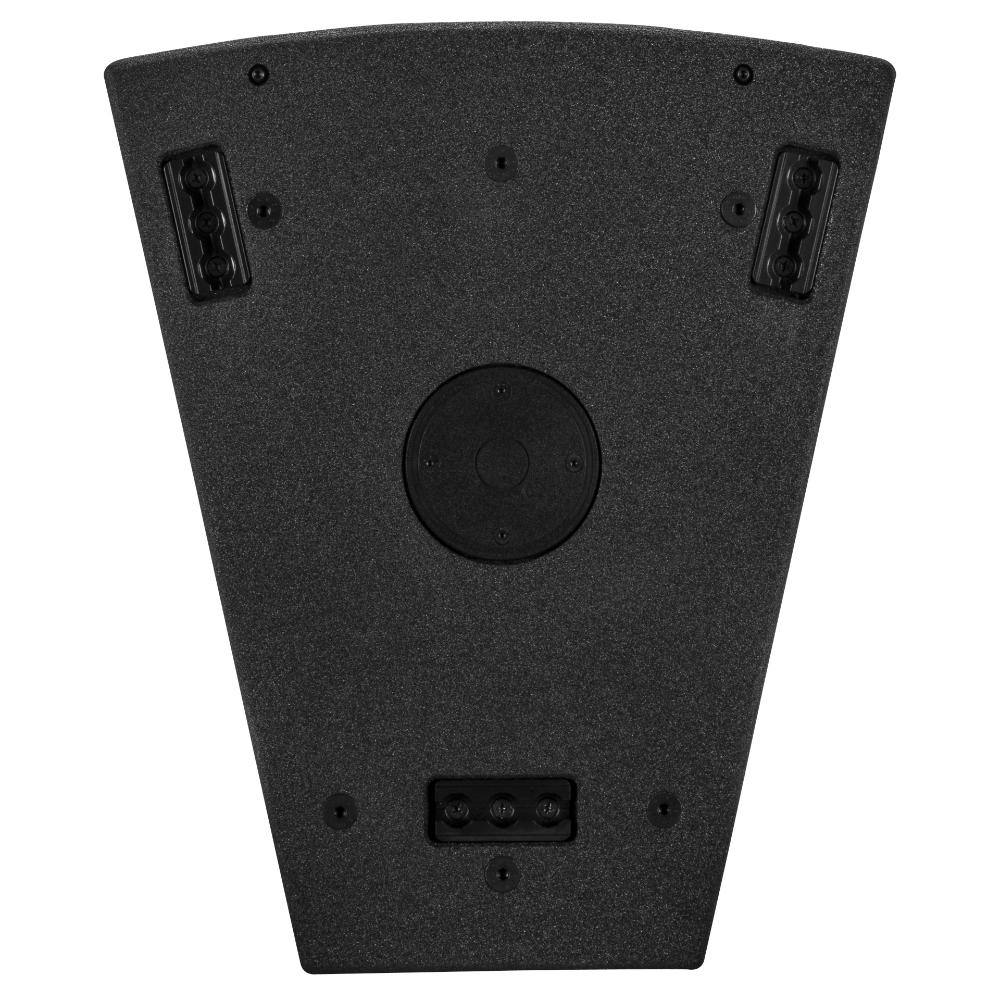

Pole mount/Cap:
Yes

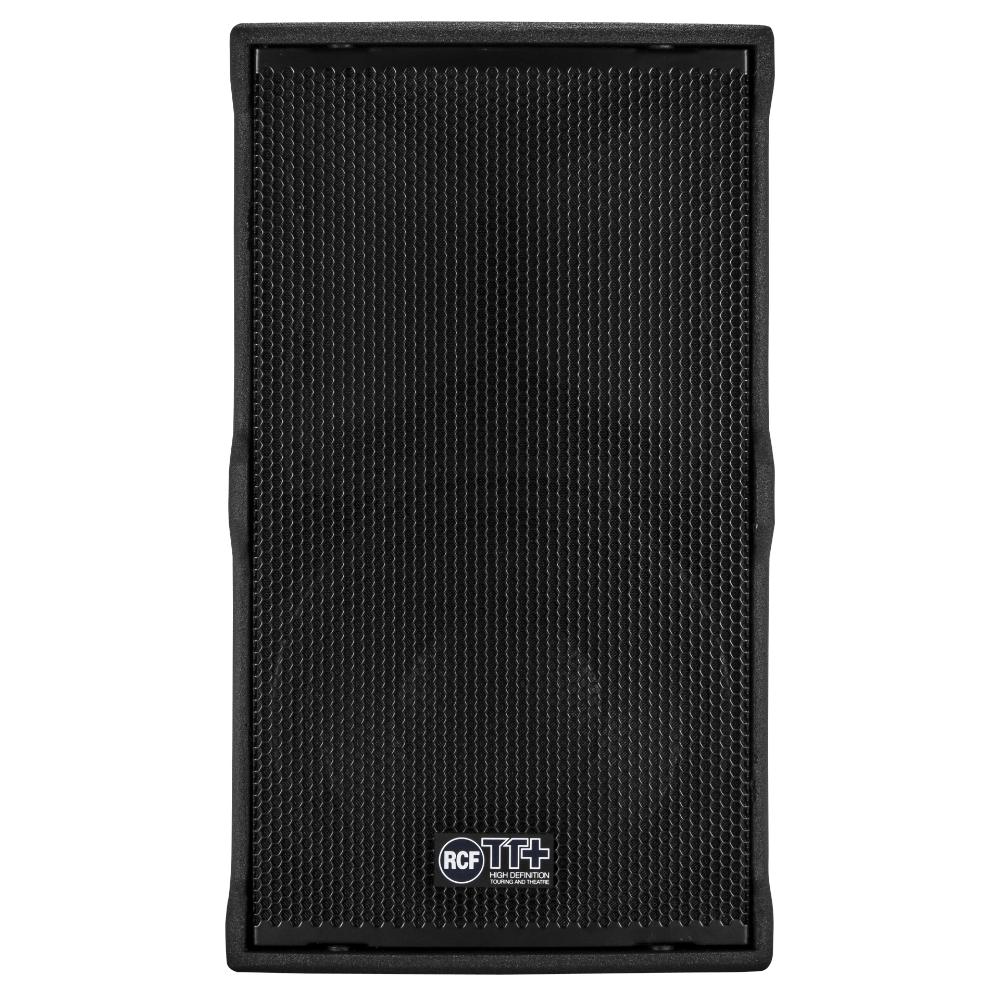

Grille:
Steel
Size
Height:
643 mm / 25.31 inches
Width:
372 mm / 14.65 inches
Depth:
470 mm / 18.5 inches
Weight:
34.4 kg / 75.84 lbs
Shipping information
Package Height:
900 mm / 35.43 inches
Package Width:
580 mm / 22.83 inches
Package Depth:
490 mm / 19.29 inches
Package Weight:
37.8 kg / 83.33 lbs
