TT+

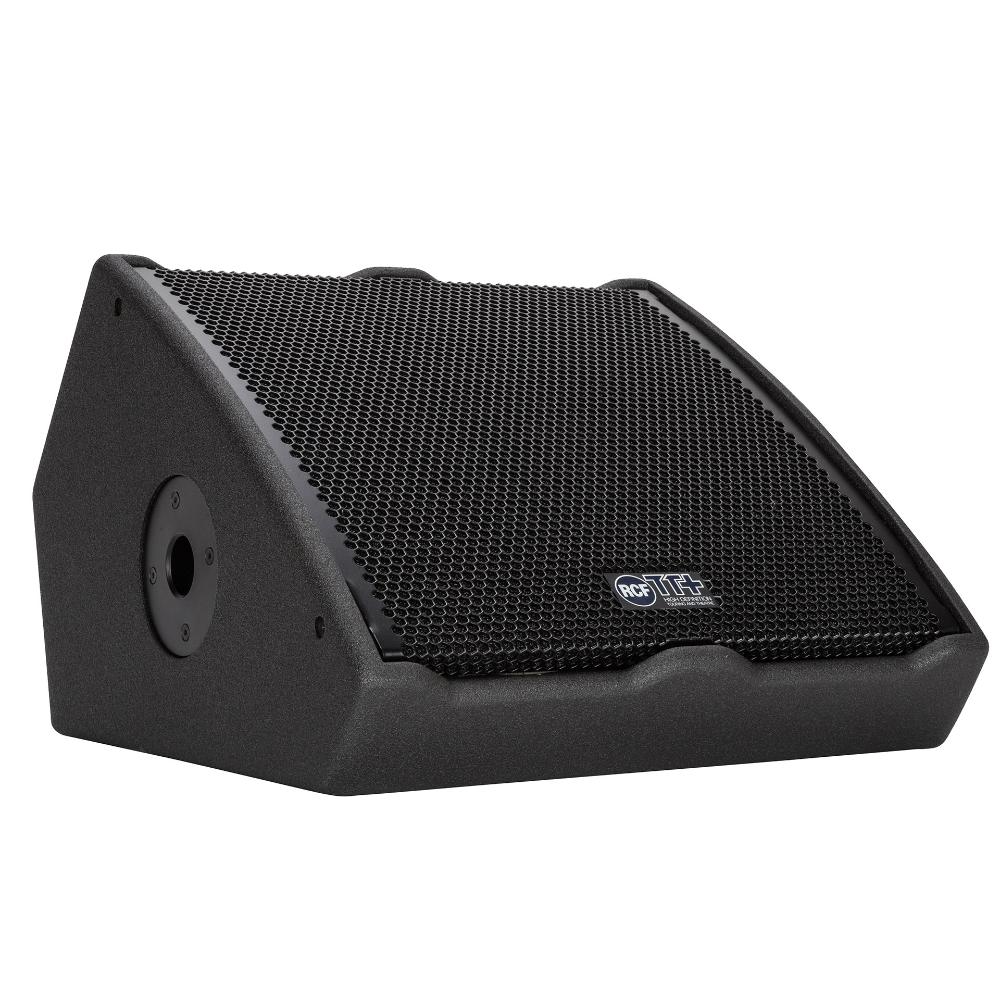

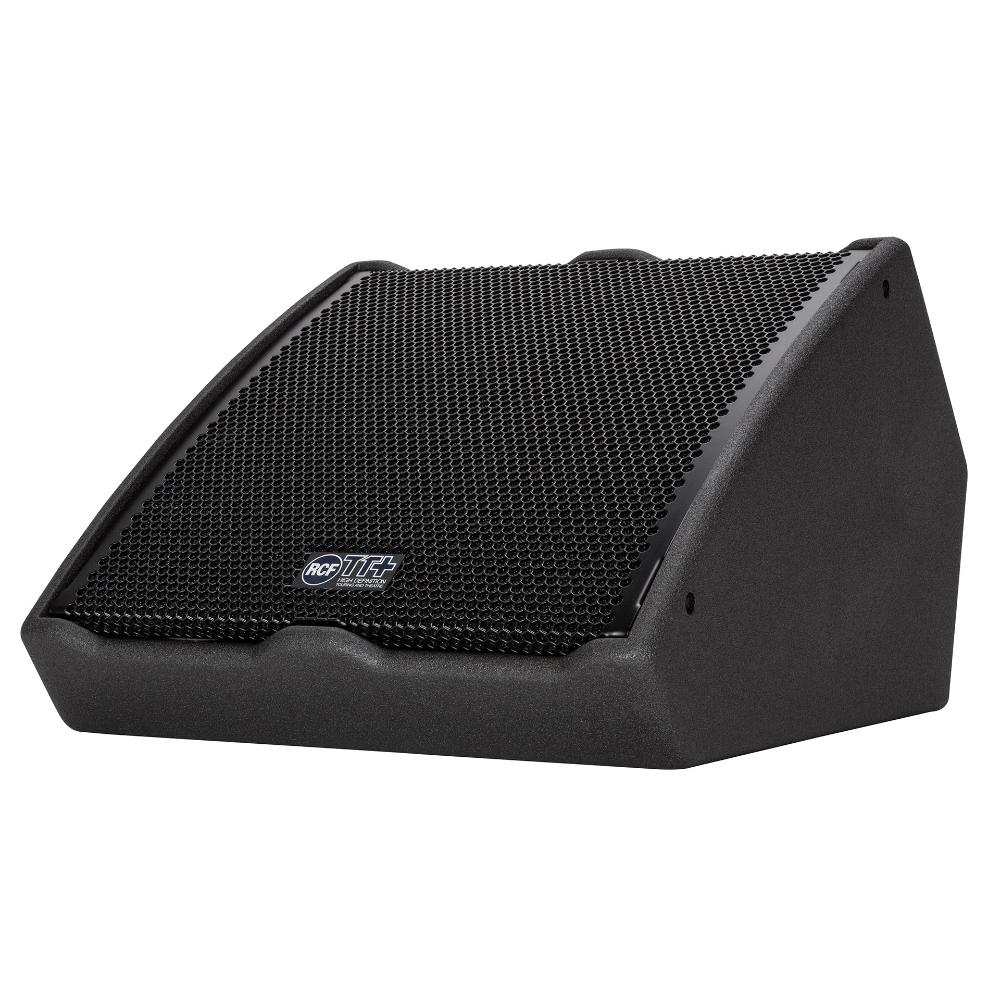

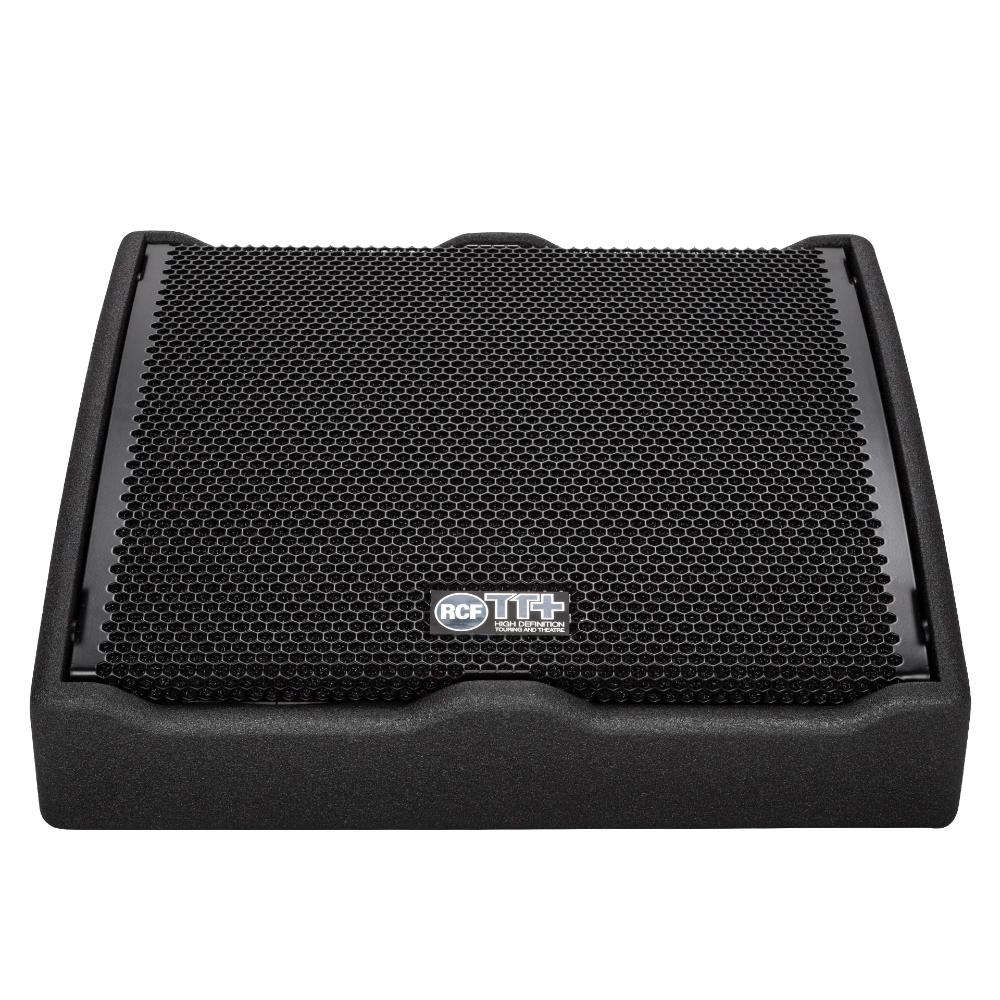

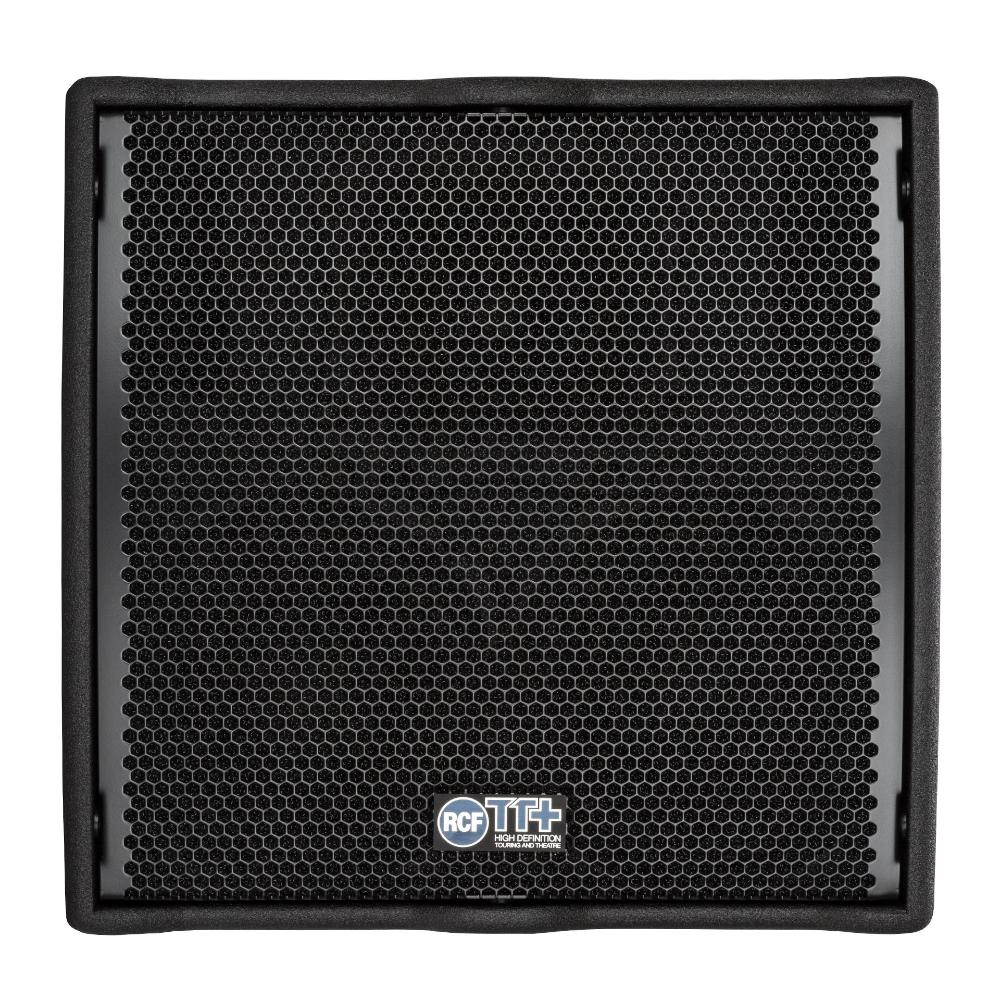

TT 20-CXA

ACTIVE TWO-WAY HIGH DEFINITION MONITOR
  • 131 dB SPL Max
  • 1000W RMS, two-way Class-D amplifier
  • 90° x 70° constant directivity coverage
  • Multifuncional cabinet with symmetrical transducers’ design
RDNet
FiRPHASE
Where to buy
Features
  • 131 dB SPL Max
  • 1000W RMS, two-way Class-D amplifier
  • 90° x 70° constant directivity coverage
  • Multifuncional cabinet with symmetrical transducers’ design
  • FiRPHASE
  • 2 x 8’’ neodymium Woofers, 2.5’’ voice coil
  • Horn loaded 1.4” neo comp. driver, 3’’ voice coil
  • RDNet Networked Management

This active high output stage monitor is a full range, low-profile enclosure with symmetrical transducers arrangement. The optimized frequency and phase response, consistent coverage of 90° x 70°, and potent acoustic output make the TT20-CXA the professional choice for any stage as a monitor or, thanks to the pole socket, as full range front of house system. With an exceptional transient response and the powerful FiRPHASE processing, the TT CXA series far exceeds the capabilities of conventional stage monitors.

RDNet Software

Part number:

13000544
TT 20-CXA
220-240V, EAN 8024530016807

13000560
TT 20-CXA
115V, EAN 8024530017101

Responsive Image

RCF RDNet

Networked control and much more
RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.
Responsive Image

Top quality transducers

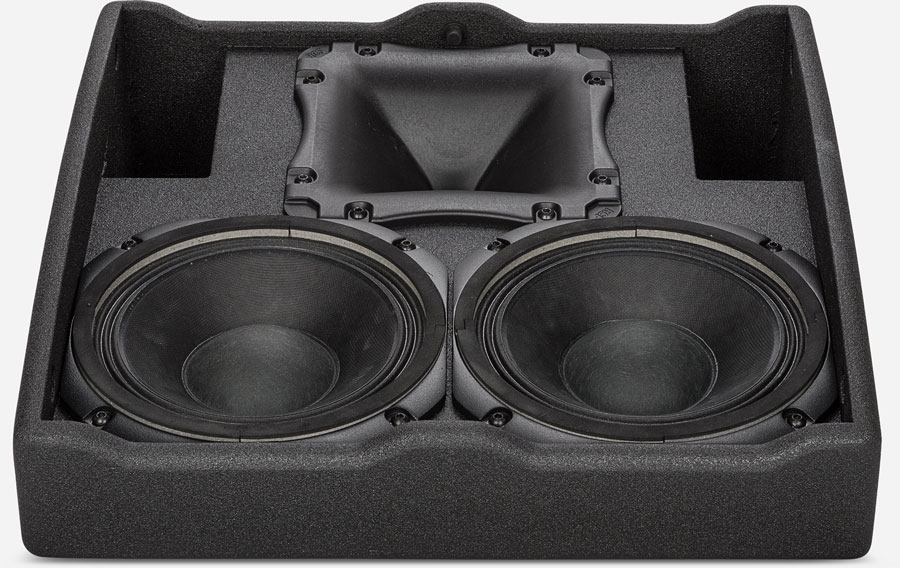

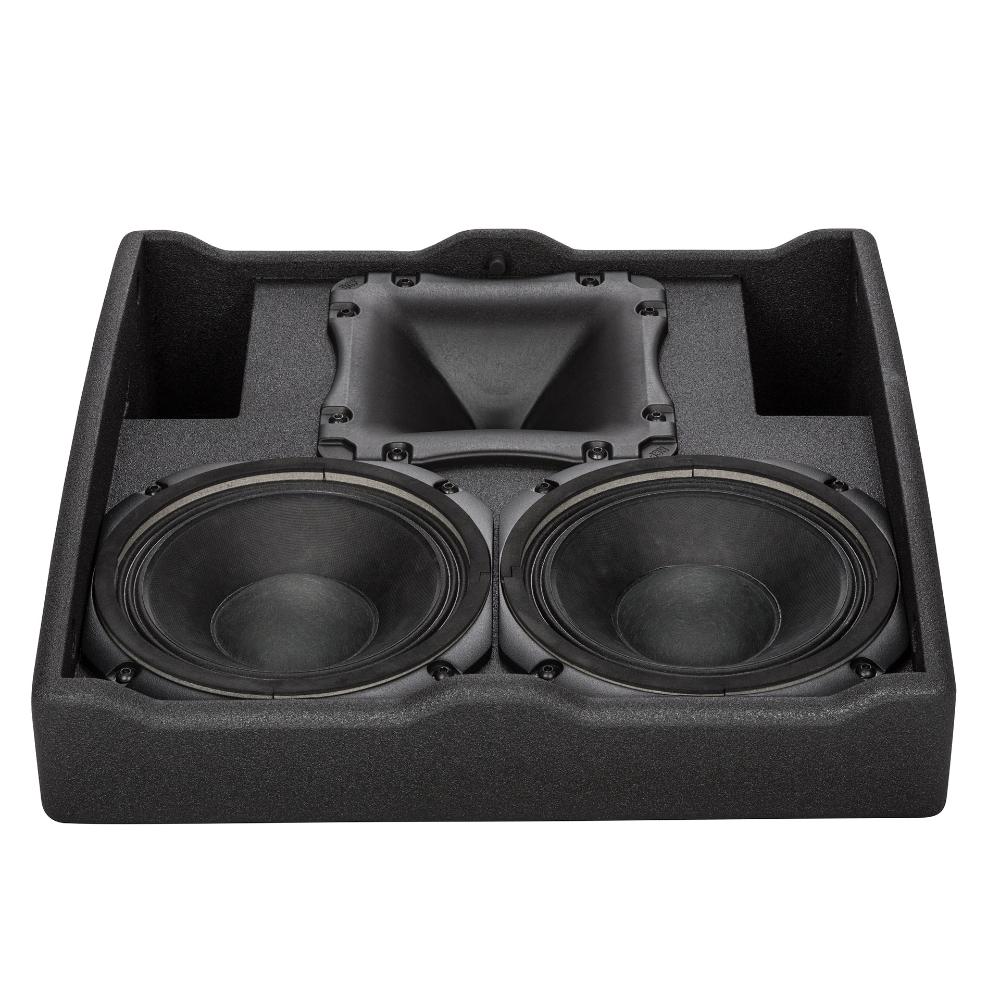

The high frequencies section features a 70° x 90° horn-loaded 2,5” compression driver with constant directivity coverage angle. The Direct Drive technology provides exceptional sound pressure levels. The loudspeaker’s low-frequency section comprises two 8” high-power neodymium woofers in a symmetrical configuration. The 2.5’’ voice coil with an innovative design ensure extreme power-handling, making the TT20-CXA the right choice for medium to large-scale applications.

Amplifier and DSP

The amplifier section features class-D dual switching power supply module, 700 W low frequency, 300 W high frequency. The onboard RDNet functionality includes remote monitoring, special custom-made equalizations and high-pass, two-way position, high-frequency distance correction and many other features. The embedded FiRPHASE filters achieve coherent musical sound without phase distortions.
Responsive Image
Responsive Image

All you need

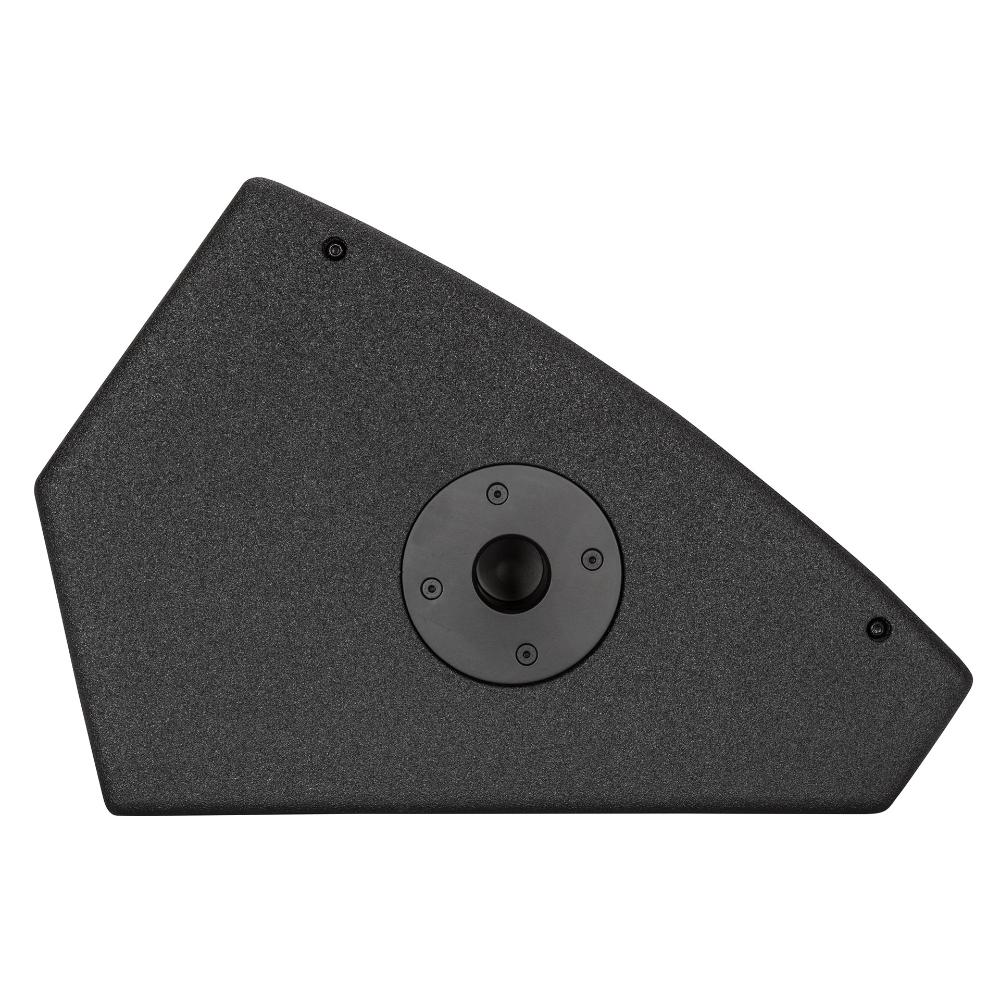

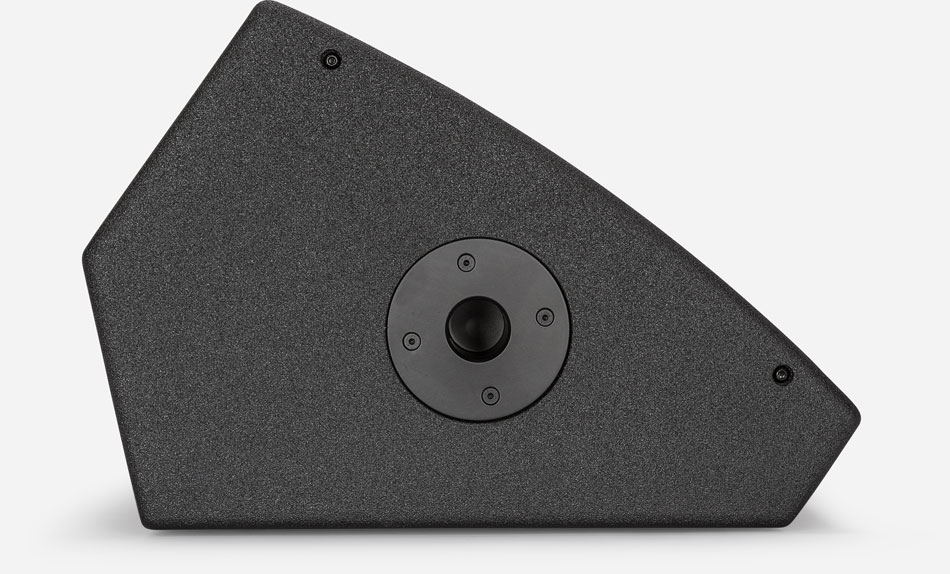

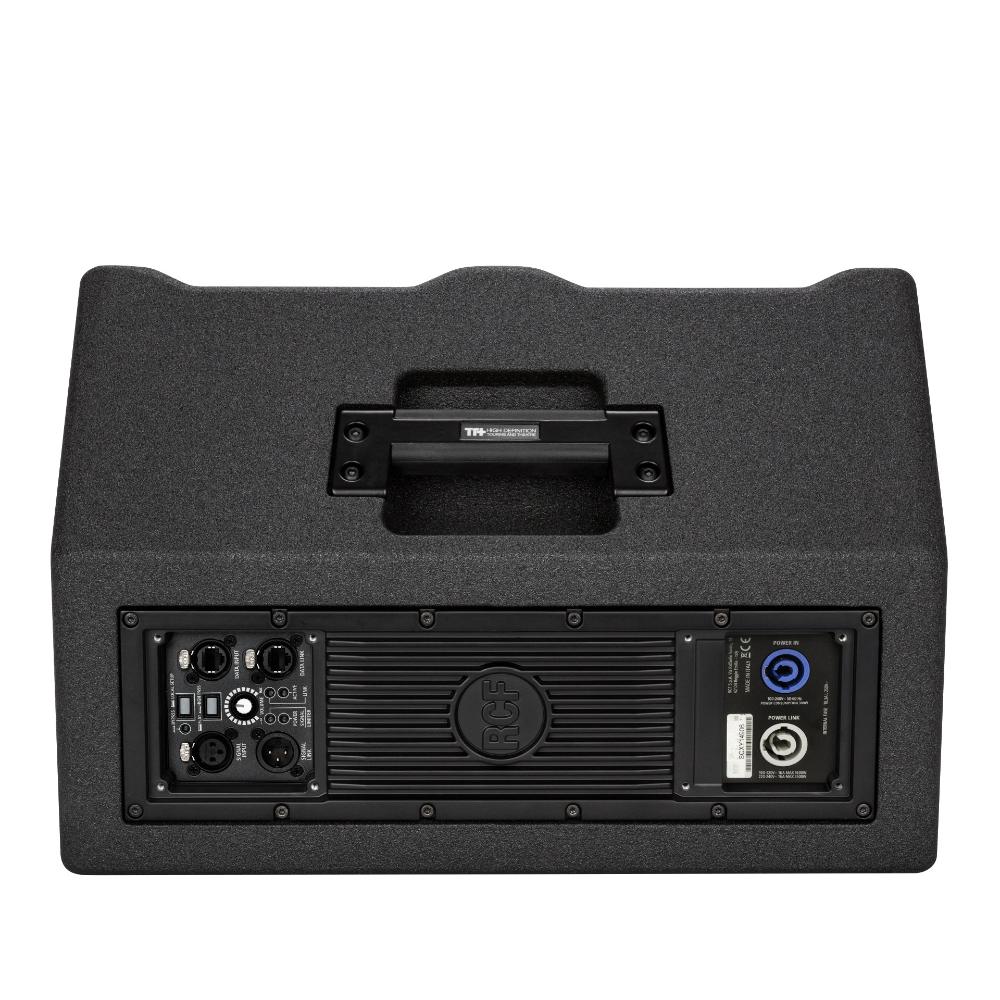

The speaker features an aluminum top handle designed to facilitate transport positioning and loading operations. The side pole socket allows the use as the main speaker on a stand or a subwoofer pole. The speaker’s cabinet is made of high-quality Baltic birch plywood with a special adhesive to glue every layer; this makes the box completely water resistant even before the special polyurea paint, applied to make it highly resistant to scratches and bumps.

New perspective on linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
Responsive Image
Specifications
Acoustical specifications
Frequency Response:
60 Hz ÷ 20000 Hz
Max SPL @ 1m:
131 dB
Horizontal coverage angle:
90°
Vertical coverage angle:
70°
Transducers
Compression Driver:
1 x 1.5'' neo, 3.0'' v.c
Woofer:
2 x 8'' neo, 2.5'' v.c

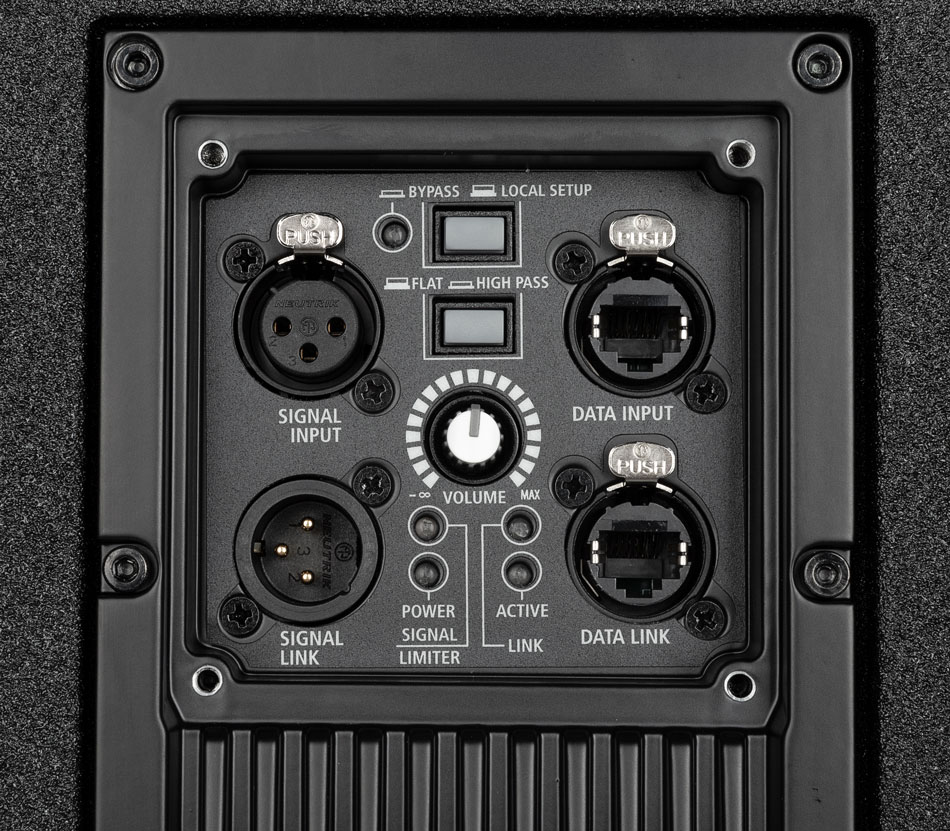

Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR, RDNet Ethercon
Output connectors:
XLR, RDNet Ethercon
Input sensitivity:
-2 dBu/+4 dBu
Processor section
Crossover Frequencies:
900 Hz
Protections:
Thermal, HF
Limiter:
Fast Limiter
Controls:
Bypass, Linear/High Pass, Volume, RDnet on boar
RDNet:
Yes
Power section
Total Power:
2000 W Peak, 1000 W RMS
High frequencies:
600 W Peak, 300 W RMS
Low frequencies:
1400 W Peak, 700 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Handles:
1 TOP
Grille:
Steel
Color:
Black
Size
Height:
318 mm / 12.52 inches
Width:
445 mm / 17.52 inches
Depth:
450 mm / 17.72 inches
Weight:
14 kg / 30.86 lbs
Shipping information
Package Height:
500 mm / 19.69 inches
Package Width:
490 mm / 19.29 inches
Package Depth:
375 mm / 14.76 inches
Package Weight:
16.4 kg / 36.16 lbs
