TT+

TT 22-A II

ACTIVE HIGH OUTPUT TWO-WAY SPEAKER
  • 1100 W Class D Amplifier
  • 12" neo woofer, 3.5" mm voice coil
  • 1.5 " neo c. driver, 3.0" mm voice coil
  • Onboard RDNet Control
RDNet
FiRPHASE
Where to buy
Features
  • 1100 W Class D Amplifier
  • 90 x 60 constant directivity coverage angle
  • 12" neo woofer, 3.5" mm voice coil
  • 1.5 " neo c. driver, 3.0" mm voice coil
  • DSP Processing
  • Onboard RDNet Control
  • Multifunctional cabinet
  • Very high output

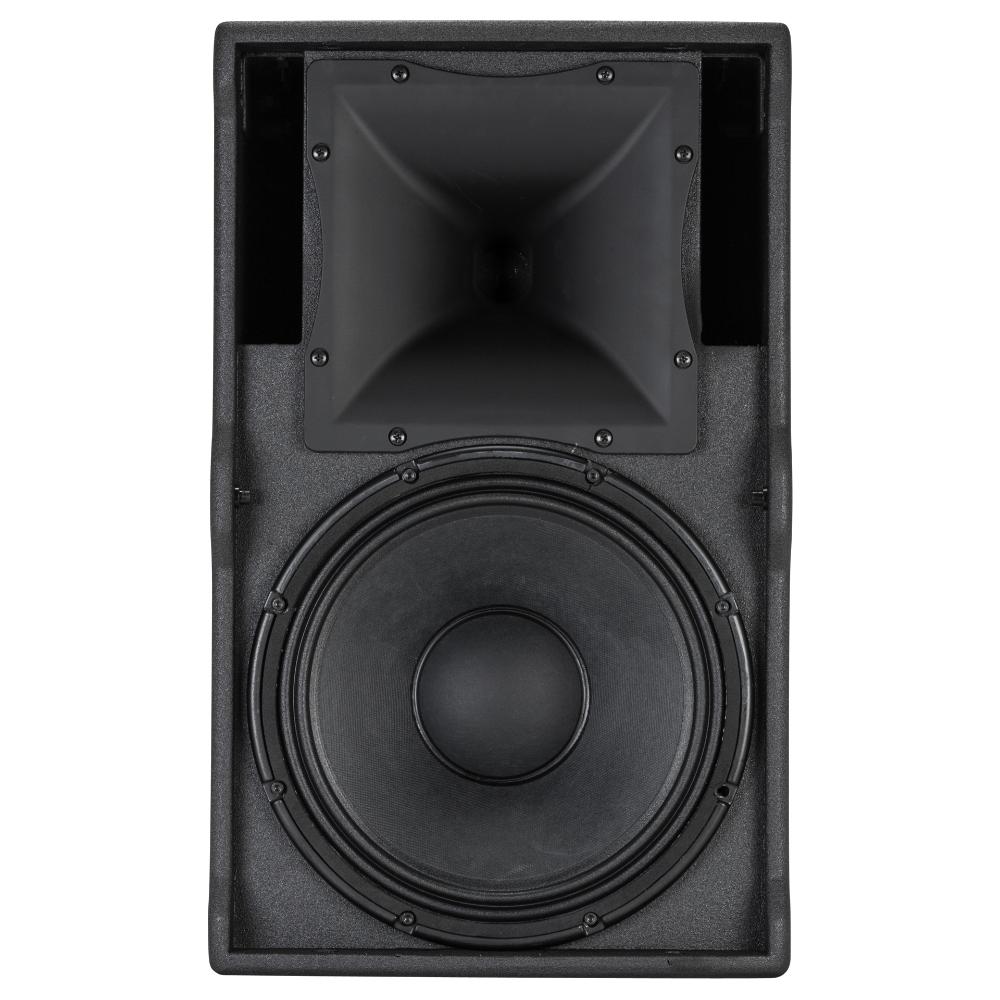

TT22-A II is a 2-way active system featuring a 12” neodymium woofer, 86 mm voice coil in a bass reflex configuration and a 1.4” exit, 75 mm voice coil neo compression driver. An extremely careful acoustic design plus the highest quality transducers and a powerful amplifier make the TT22-A II speaker system the perfect solution from live sound situations to playback and monitoring. The amplifier section features 1100 watt power – 800 watt low frequency, 300 watt high frequency. The cabinet is made of marine Baltic birch plywood and features high-resistance polyurea coating. The cabinets has 2 side handles, 6 x fly-track rigging points, quick lock pin receptacles and a steel pole mount.

RDNet Software

Part number:

13000444
TT 22-A II
220-240V, EAN 8024530012991

13000445
TT 22-A II
115V, EAN 8024530013219

Responsive Image

RCF RDNet

Networked control and much more
RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.

New perspective on linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
Responsive Image
Specifications
Acoustical specifications
Frequency Response:
50 Hz ÷ 20000 Hz
Max SPL @ 1m:
131 dB
Horizontal coverage angle:
90°
Vertical coverage angle:
60°
Transducers
Compression Driver:
1 x 1.5'' neo, 3.0'' v.c
Woofer:
12'' neo, 3.5'' v.c
Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR, RDNet Ethercon
Output connectors:
XLR, RDNet Ethercon
Input sensitivity:
-2 dBu/+4 dBu
Processor section
Crossover Frequencies:
800 Hz
Protections:
Thermal, HF
Limiter:
Fast Limiter
Controls:
proces., 8 sel. presets
RDNet:
Yes
Power section
Total Power:
2200 W Peak, 1100 W RMS
High frequencies:
600 W Peak, 300 W RMS
Low frequencies:
1600 W Peak, 800 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Hardware:
6 x fly tracks, quick lock, pole mount
Handles:
2 on side
Pole mount/Cap:
Yes
Grille:
Steel
Color:
Black
Size
Height:
600 mm / 23.62 inches
Width:
365 mm / 14.37 inches
Depth:
379 mm / 14.92 inches
Weight:
22.6 kg / 49.82 lbs
Shipping information
Package Height:
655 mm / 25.79 inches
Package Width:
410 mm / 16.14 inches
Package Depth:
420 mm / 16.54 inches
Package Weight:
25.5 kg / 56.22 lbs
