TT+

TT 25-A II

ACTIVE HIGH OUTPUT TWO-WAY SPEAKER
  • 1100 W Class D Amplifier
  • 15" neo woofer, 3.5" voice coil
  • 1.5 " neo c. driver, 4.0" voice coil
  • Onboard RDNet Control
RDNet
FiRPHASE
Where to buy
Features
  • 1100 W Class D Amplifier
  • 90 x 60 constant directivity coverage angle
  • 15" neo woofer, 3.5" voice coil
  • 1.5 " neo c. driver, 4.0" voice coil
  • DSP Processing
  • Onboard RDNet Control
  • Multifunctional cabinet
  • Very high output

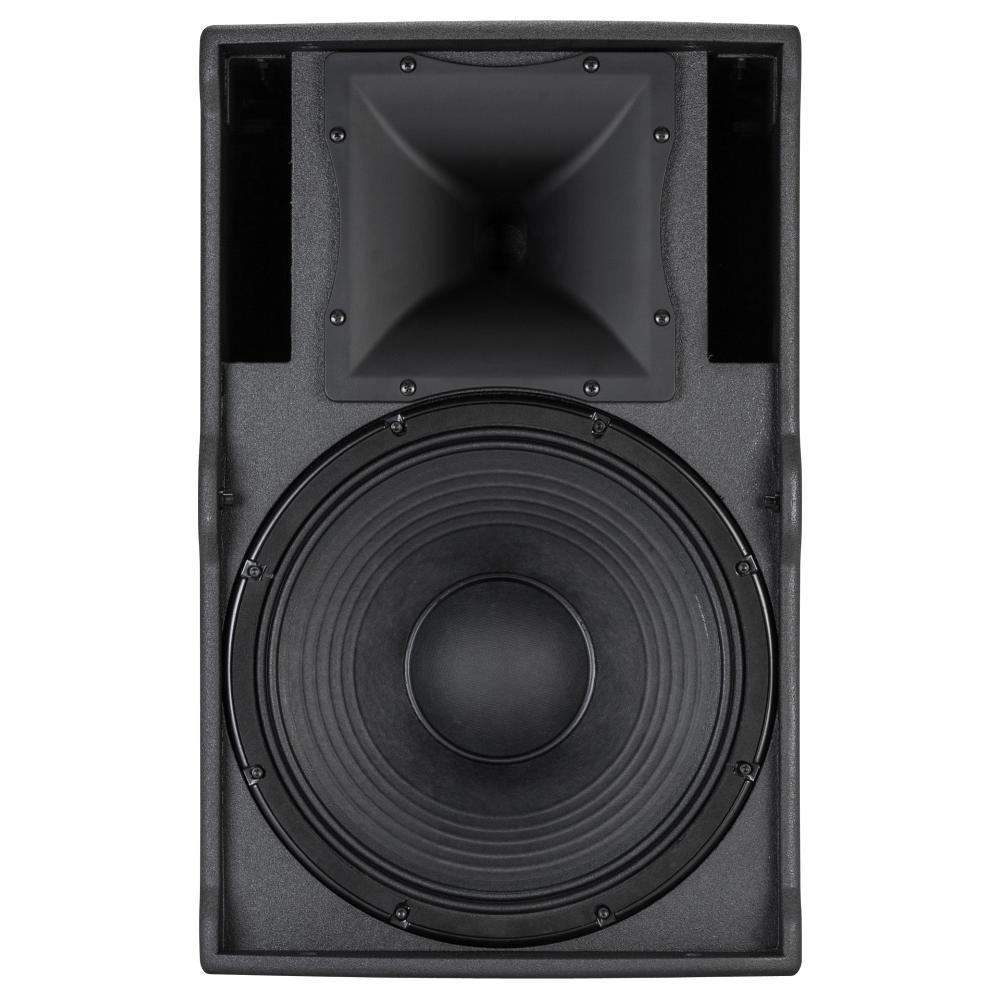

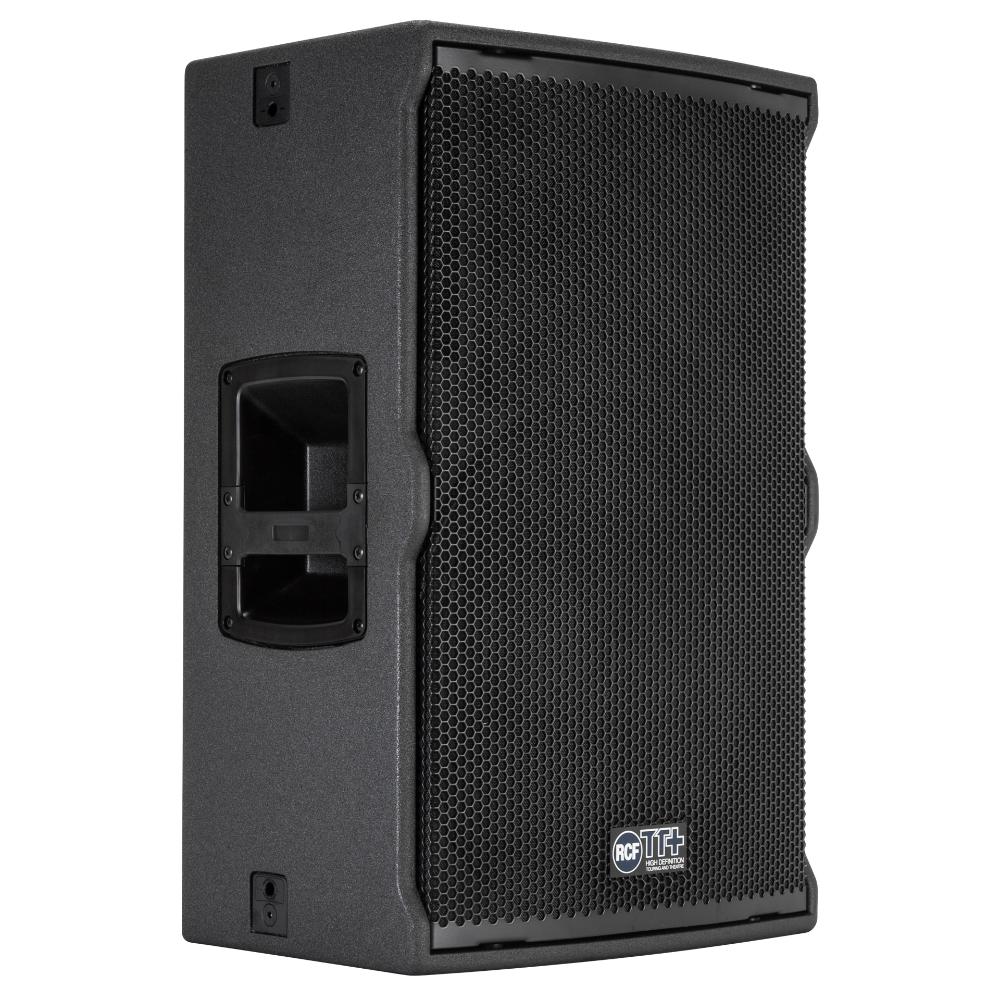

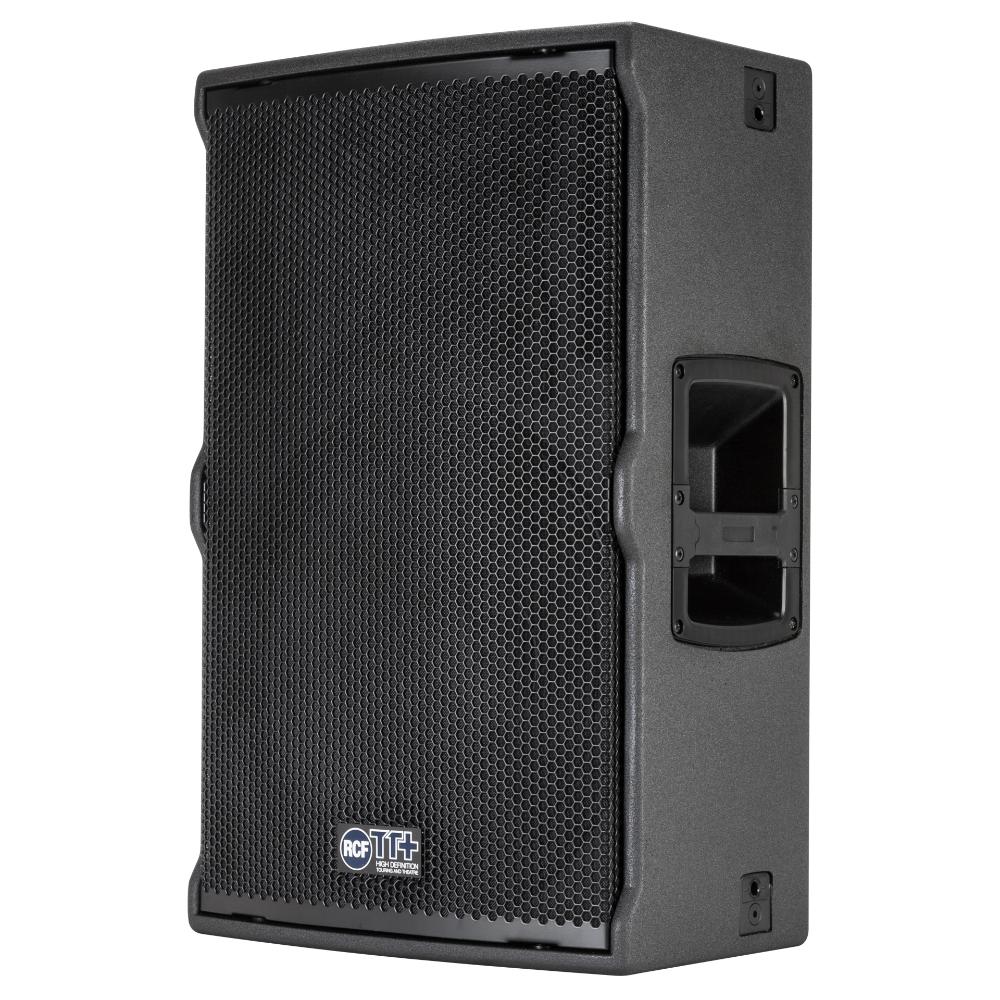

The TT25-A II is the most flexible and powerful tool in its class. TT25-A II offers very high output and dynamics, and extreme linearity and accuracy in a compact size. TT25-A II is a 2-way active system featuring a 15” neo woofer, 86 mm voice coil in a bass reflex configuration; 1,5” exit, 100 mm voice coil neo compression driver; 90° x 60° constant directivity horn, 90° rotating. The TT25-A II is the ideal professional speaker for sound reinforcement, live performances and events.

RDNet Software

Part number:

13000446
TT 25-A II
220-240V, EAN 8024530012984

13000447
TT 25-A II
115V, EAN 8024530013226

Responsive Image

RCF RDNet

Networked control and much more
RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.

New perspective on linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
Responsive Image
Specifications
Acoustical specifications
Frequency Response:
50 Hz ÷ 20000 Hz
Max SPL @ 1m:
134 dB
Horizontal coverage angle:
90°
Vertical coverage angle:
60°
Transducers
Compression Driver:
1 x 1.5'' neo, 4.0'' v.c
Woofer:
15'' neo, 3.5'' v.c

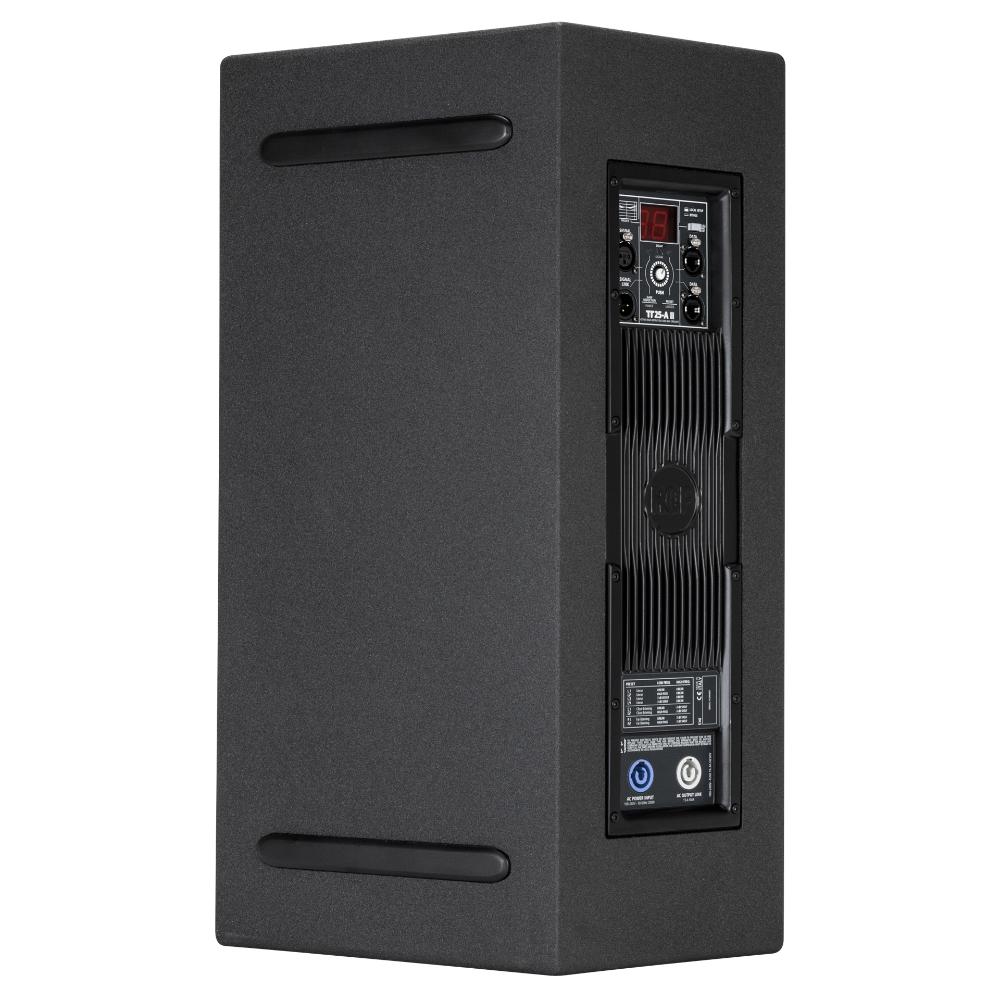

Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR, RDNet Ethercon
Output connectors:
XLR, RDNet Ethercon
Input sensitivity:
-2 dBu/+4 dBu
Processor section
Crossover Frequencies:
750 Hz
Protections:
Thermal, HF
Limiter:
Fast Limiter
Controls:
Proces., 8 sel. presets
RDNet:
Yes
Power section
Total Power:
2200 W Peak, 1100 W RMS
High frequencies:
600 W Peak, 300 W RMS
Low frequencies:
1600 W Peak, 800 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Hardware:

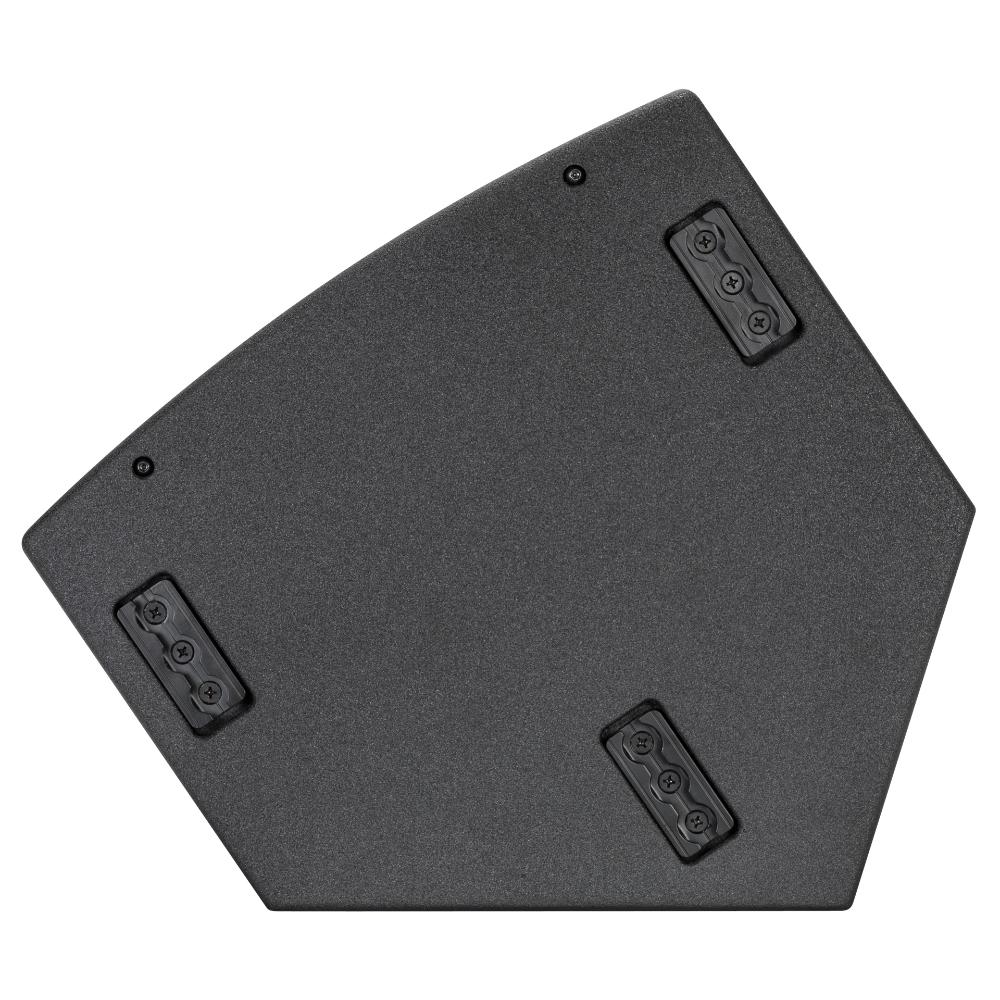

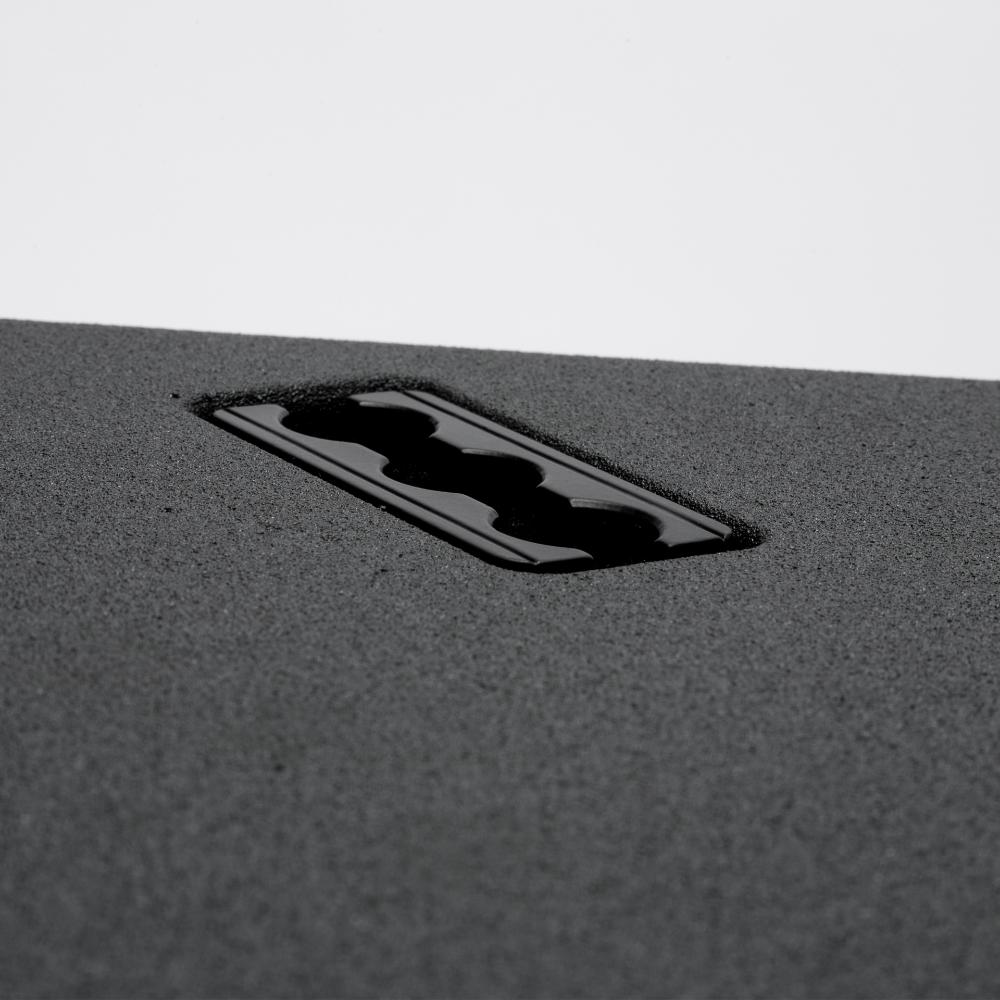

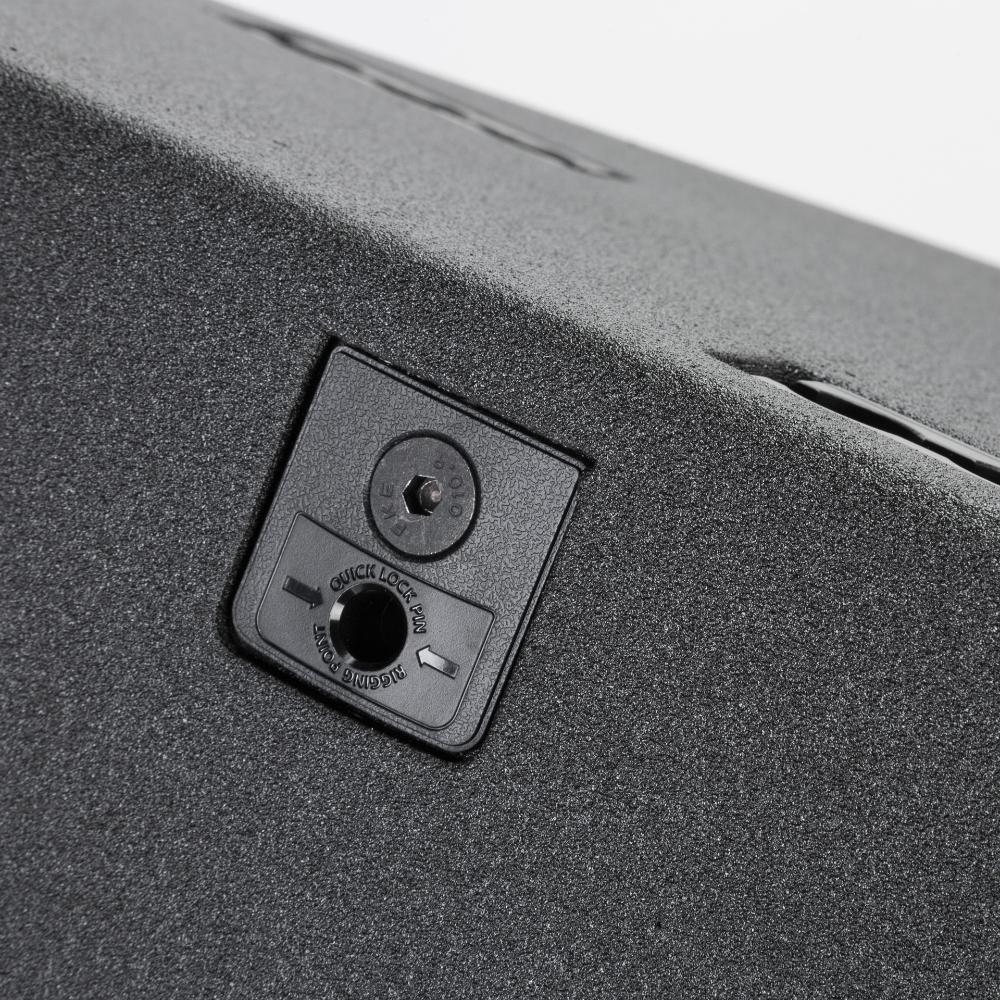

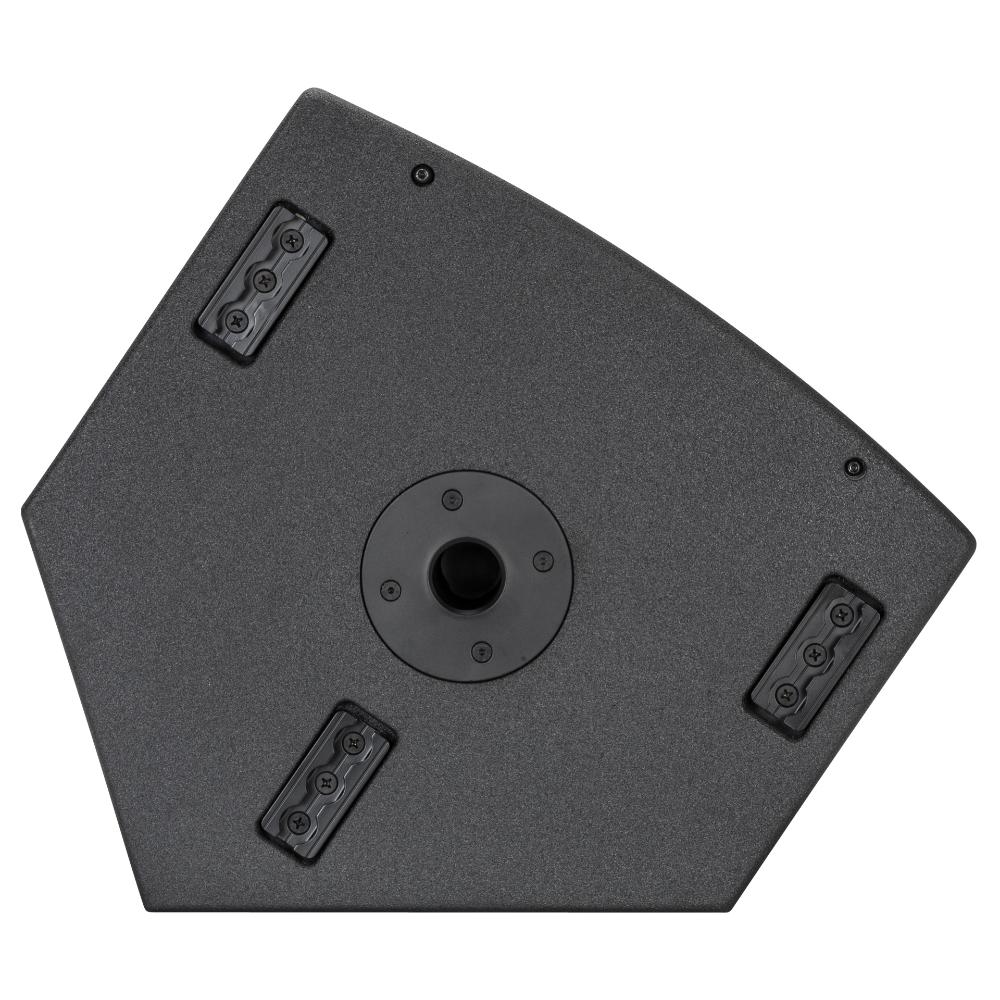

6xfly track, quick lock, pole mount
Handles:
2 on side
Pole mount/Cap:
Yes

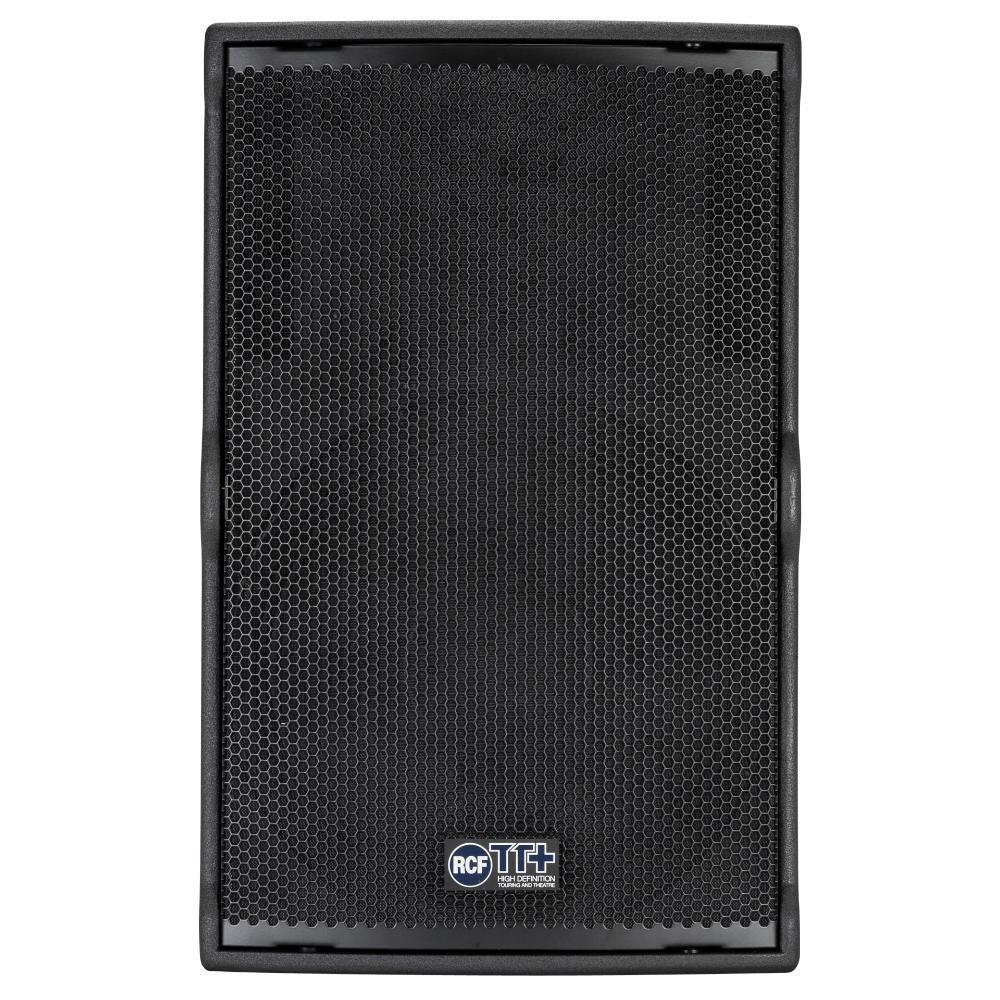

Grille:
Steel
Color:
Black
Size
Height:
670 mm / 26.38 inches
Width:
425 mm / 16.73 inches
Depth:
425 mm / 16.73 inches
Weight:
26 kg / 57.32 lbs
Shipping information
Package Height:
715 mm / 28.15 inches
Package Width:
470 mm / 18.5 inches
Package Depth:
470 mm / 18.5 inches
Package Weight:
32.7 kg / 72.09 lbs

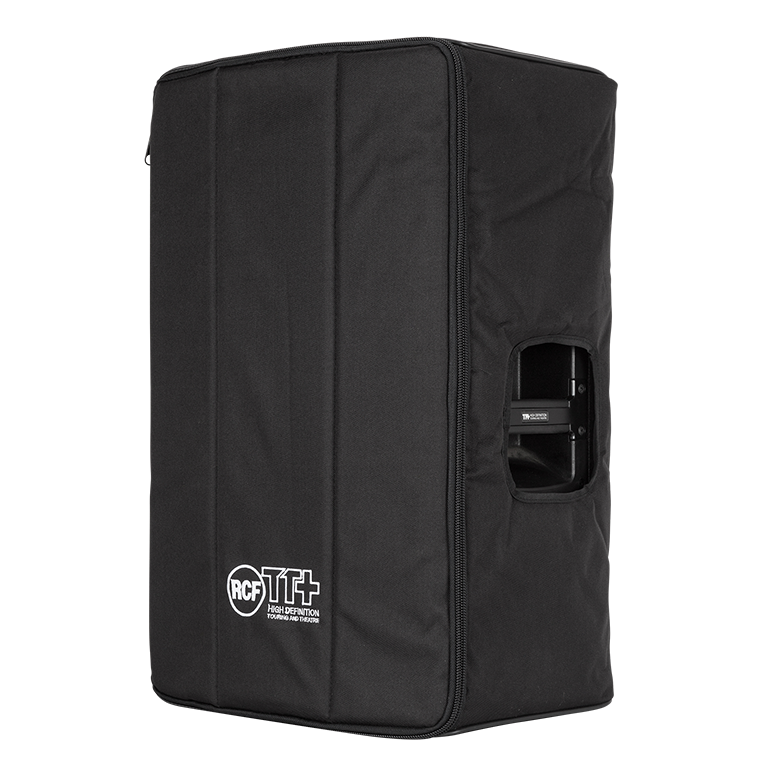

Accessories
