TT+

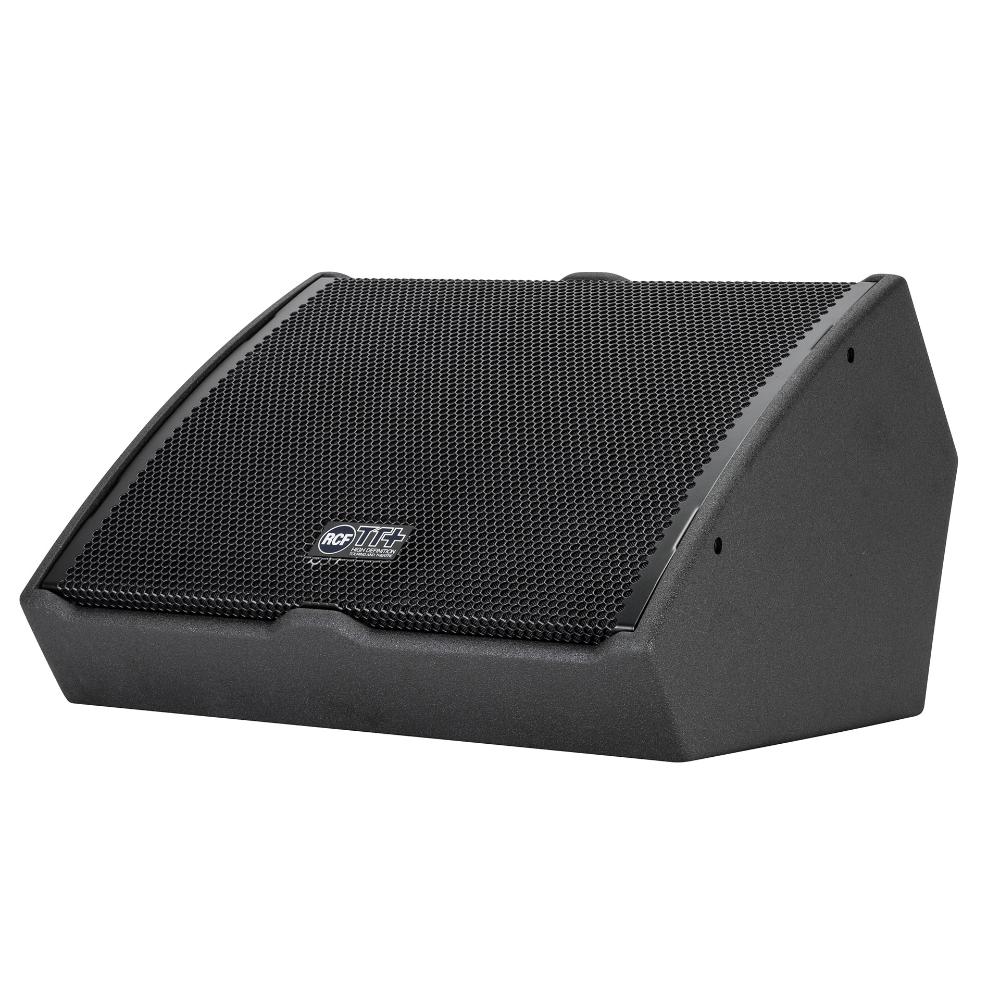

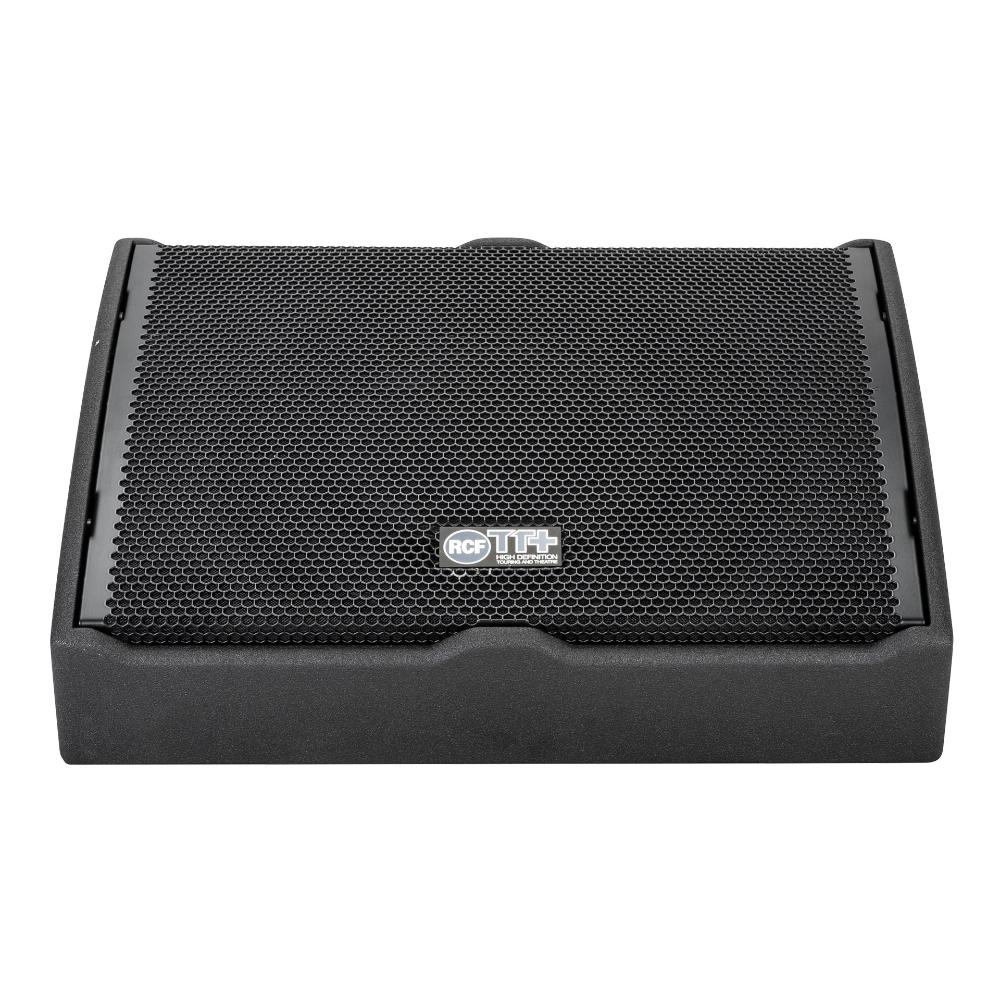

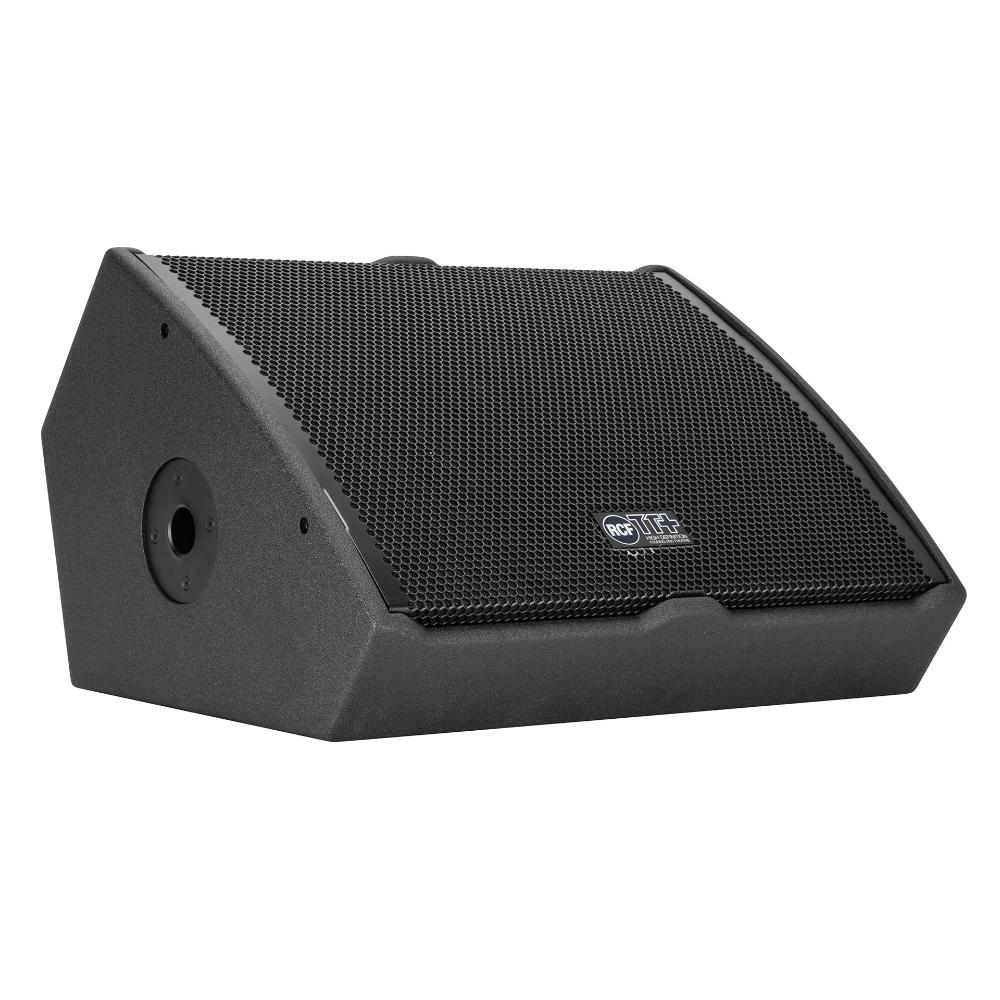

TT 25-CXA

ACTIVE HIGH DEFINITION COAXIAL MONITOR
  • 1100 W Class D Amplifier
  • 15" neo coaxial woofer, 3.5" voice coil
  • 1.5 " neo coaxial c. driver, 2.5" voice coil
  • Onboard RDNet Control
RDNet
FiRPHASE
Where to buy
Features
  • 1100 W Class D Amplifier
  • 60 x 60 constant directivity coverage angle
  • 15" neo coaxial woofer, 3.5" voice coil
  • 1.5 " neo coaxial c. driver, 2.5" voice coil
  • DSP Processing
  • Onboard RDNet Control
  • Multifunctional cabinet
  • Very high output

The TT25-CXA is a full range, high performance coaxial monitor. The linear response curve, the consistent coverage and acoustic output make the TT25-CXA II the professional choice for most demanding situations. The voicing is accurate and deep, the sound is transparent in the mids and extremely accurate at very high frequencies. The size is compact and the profile is very low for a discreet appearance. The TT25-CXA is a high power active system that sets a new standard in the touring and theatre sound reinforcement. By producing flat amplitude and phase response, full-range bandwidth and exceptional impulse response, the TT25-CXA far exceeds the capabilities of conventional stage monitors.

RDNet Software

Part number:

13000448
TT 25-CXA
220-240V, EAN 8024530012977

13000449
TT 25-CXA
115V, EAN 8024530013028

Responsive Image

RCF RDNet

Networked control and much more
RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.

New perspective on linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
Responsive Image
Specifications
Acoustical specifications
Frequency Response:
50 Hz ÷ 20000 Hz
Max SPL @ 1m:
133 dB
Horizontal coverage angle:
60°
Vertical coverage angle:
60°
Transducers
Compression Driver:
Coaxial 1.5'' neo, 2.5'' v.c
Woofer:
Coaxial 15'' neo, 3.5'' v.c
Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR, RDNet Ethercon
Output connectors:
XLR, RDNet Ethercon
Input sensitivity:
-2 dBu/+4 dBu
Processor section
Crossover Frequencies:
900 Hz
Protections:
Thermal, HF
Limiter:
Soft Limiter
Controls:
Proces., 8 sel. presets
RDNet:
Yes
Power section
Total Power:
2200 W Peak, 1100 W RMS
High frequencies:
600 W Peak, 300 W RMS
Low frequencies:
1600 W Peak, 800 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Handles:
1 Top
Pole mount/Cap:
Yes
Grille:
Steel
Color:
Black
Size
Height:
353 mm / 13.9 inches
Width:
580 mm / 22.83 inches
Depth:
486 mm / 19.13 inches
Weight:
18 kg / 39.68 lbs
Shipping information
Package Height:
615 mm / 24.21 inches
Package Width:
390 mm / 15.35 inches
Package Depth:
515 mm / 20.28 inches
Package Weight:
23 kg / 50.71 lbs
