TT+

TT 45-CXA

ACTIVE HIGH-OUTPUT STAGE MONITOR
  • 2200 Watt, three-way class D amplifier
  • 2 x 10'' neodymium woofers, 3.0'' voice coil
  • Horn loaded 1.4'' neo compression driver, 4.0'' v.c.
  • Onboard RDNet control
RDNet
Support
Features
  • 2200 Watt, three-way class D amplifier
  • 50° x 90° constant directivity coverage
  • 2 x 10'' neodymium woofers, 3.0'' voice coil
  • Horn loaded 1.4'' neo compression driver, 4.0'' v.c.
  • Symmetrical design
  • Multifunctional cabinet
  • DSP processing
  • Onboard RDNet control

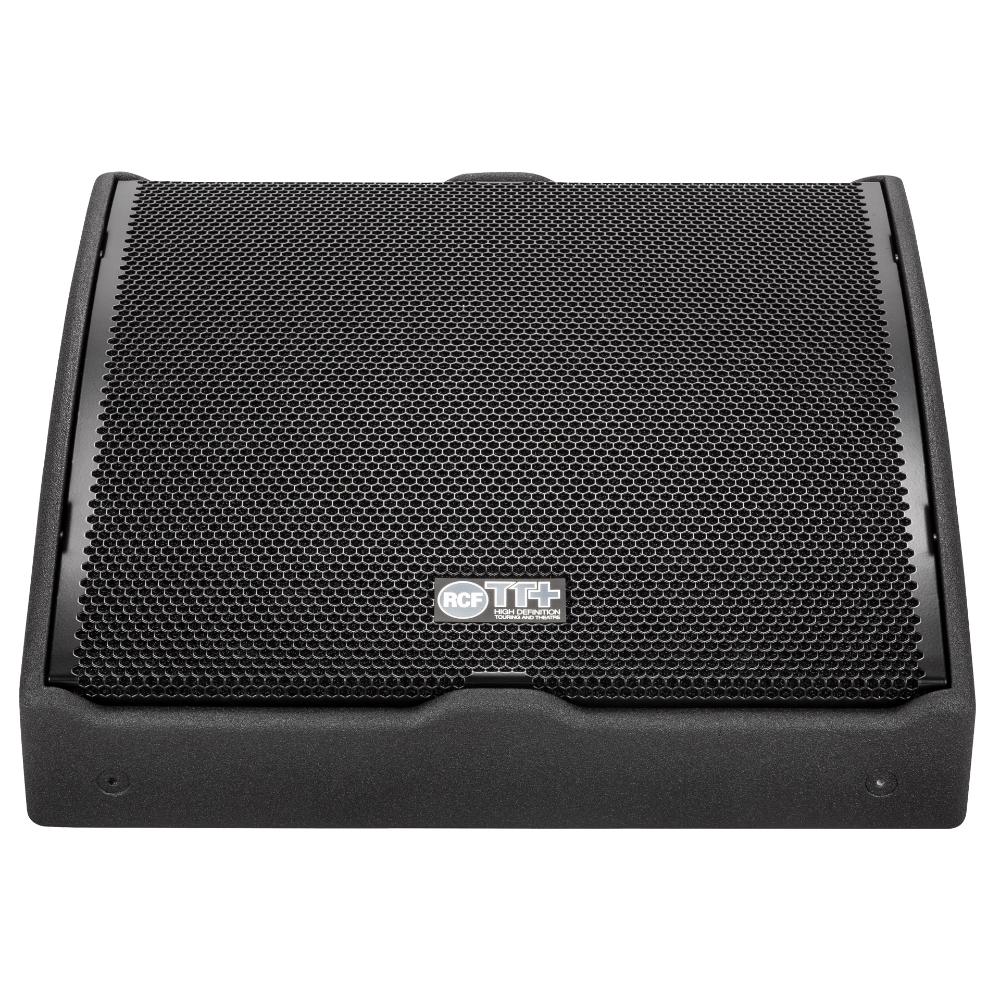

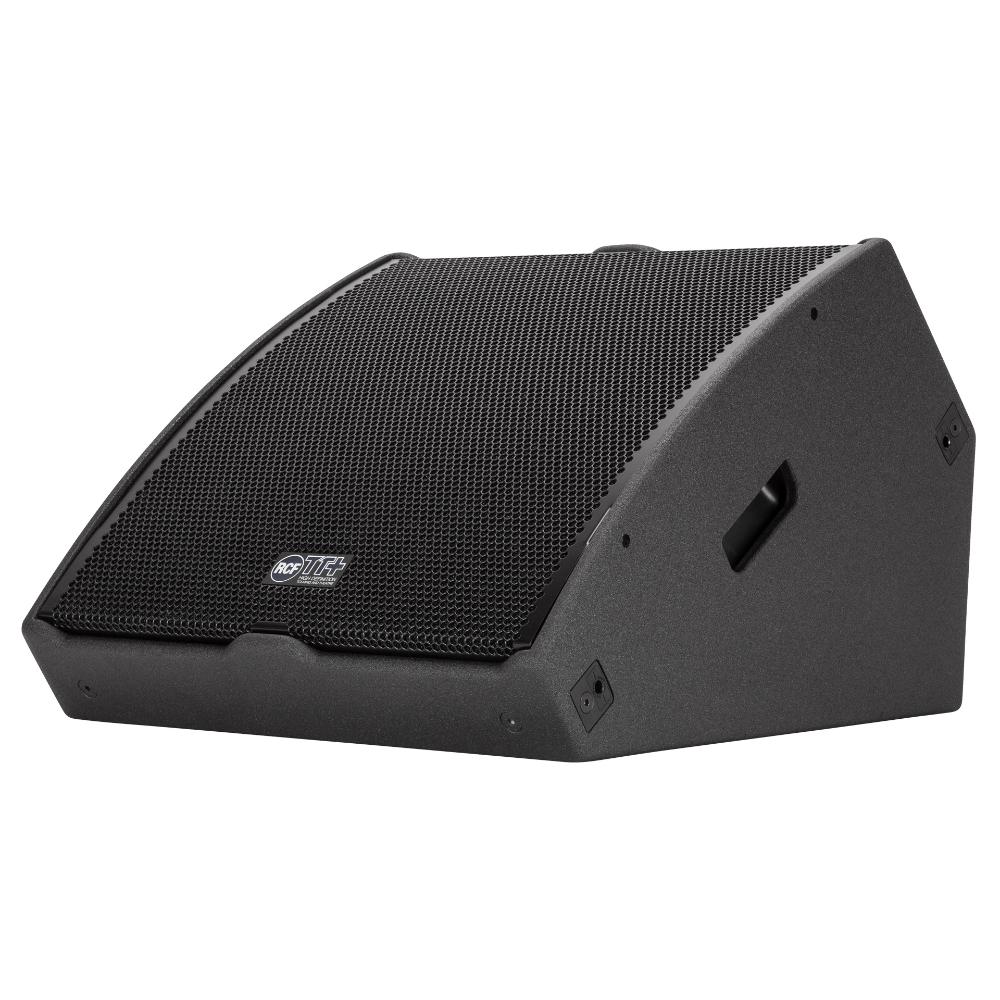

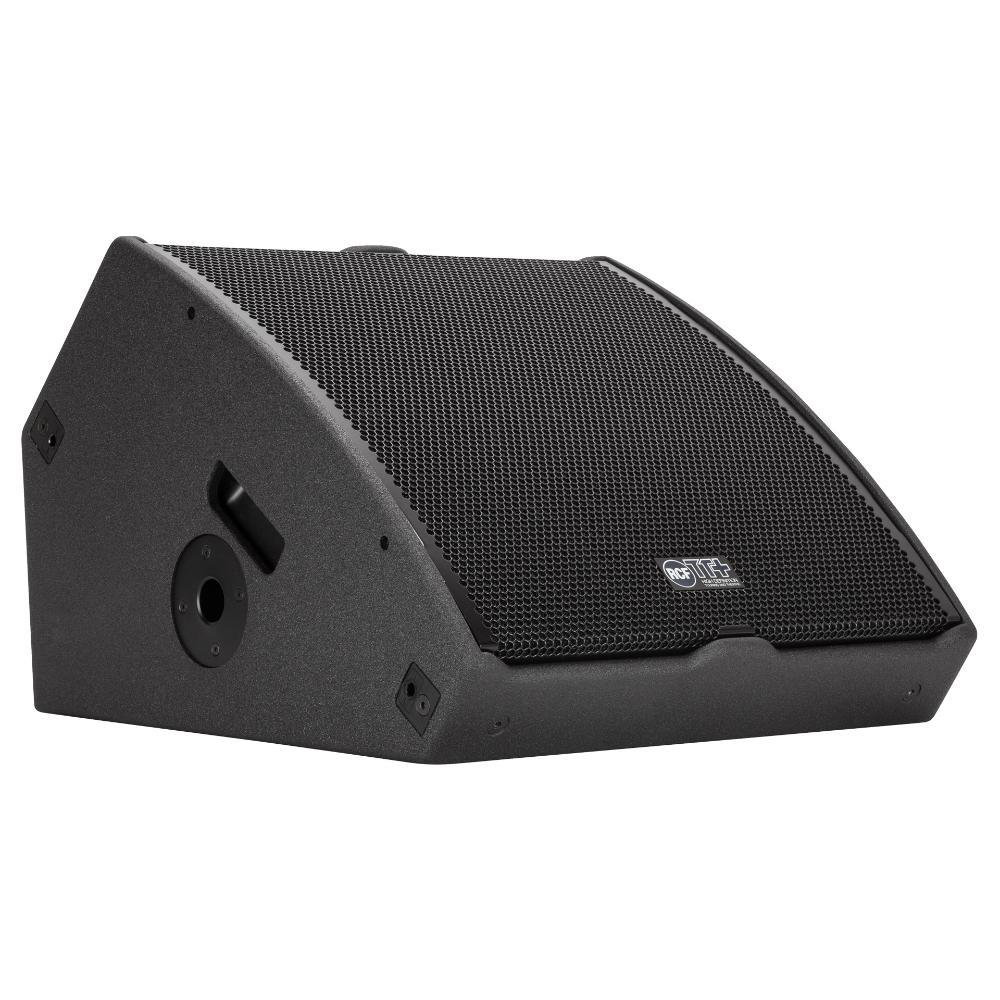

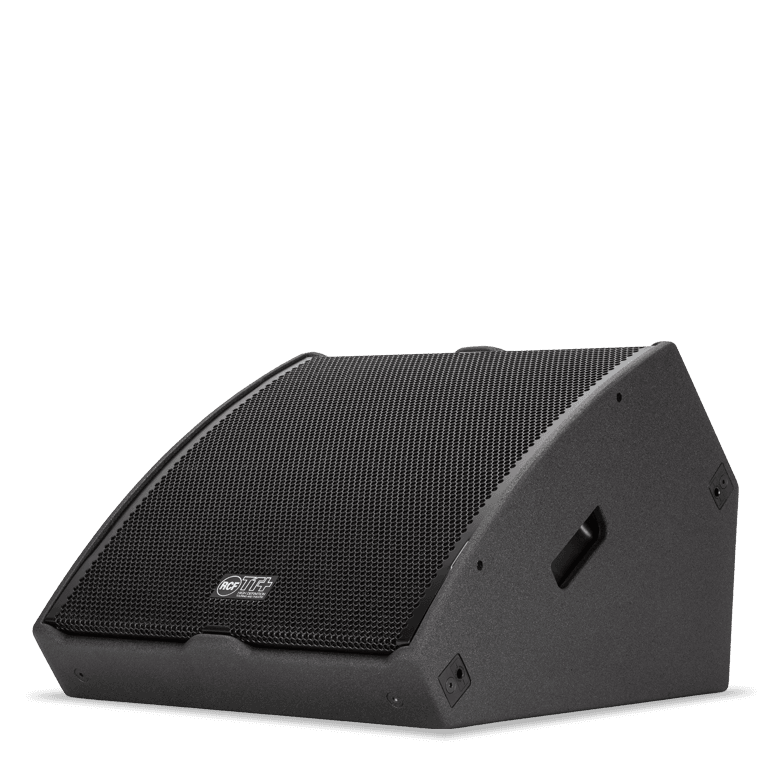

The TT45-CXA is a full range, high performance symmetrical monitor. The linear curve response, the consistent coverage and acoustic output make the TT45-CXA the professional choice for medium and large stages. The voicing is accurate and deep, the sound transparent in the mids and extremely accurate at very high frequencies. The size is compact and the profile low for a discrete appearance. The TT45-CXA is a full range, high power active system that sets a new standard in the touring and theatre sound reinforcement. By producing flat amplitude and phase response, fullrange bandwidth and exceptional impulse response, the TT45-CXA far exceeds the capabilities of conventional stage monitors.

ARCHIVED

Part number:

13000506
TT 45-CXA
220-240V, EAN 8024530014131

13000507
TT 45-CXA
115V, EAN 8024530014186

Specifications
Acoustical specifications
Frequency Response:
45 Hz ÷ 20000 Hz
Max SPL @ 1m:
136 dB
Horizontal coverage angle:
50°
Vertical coverage angle:
90°

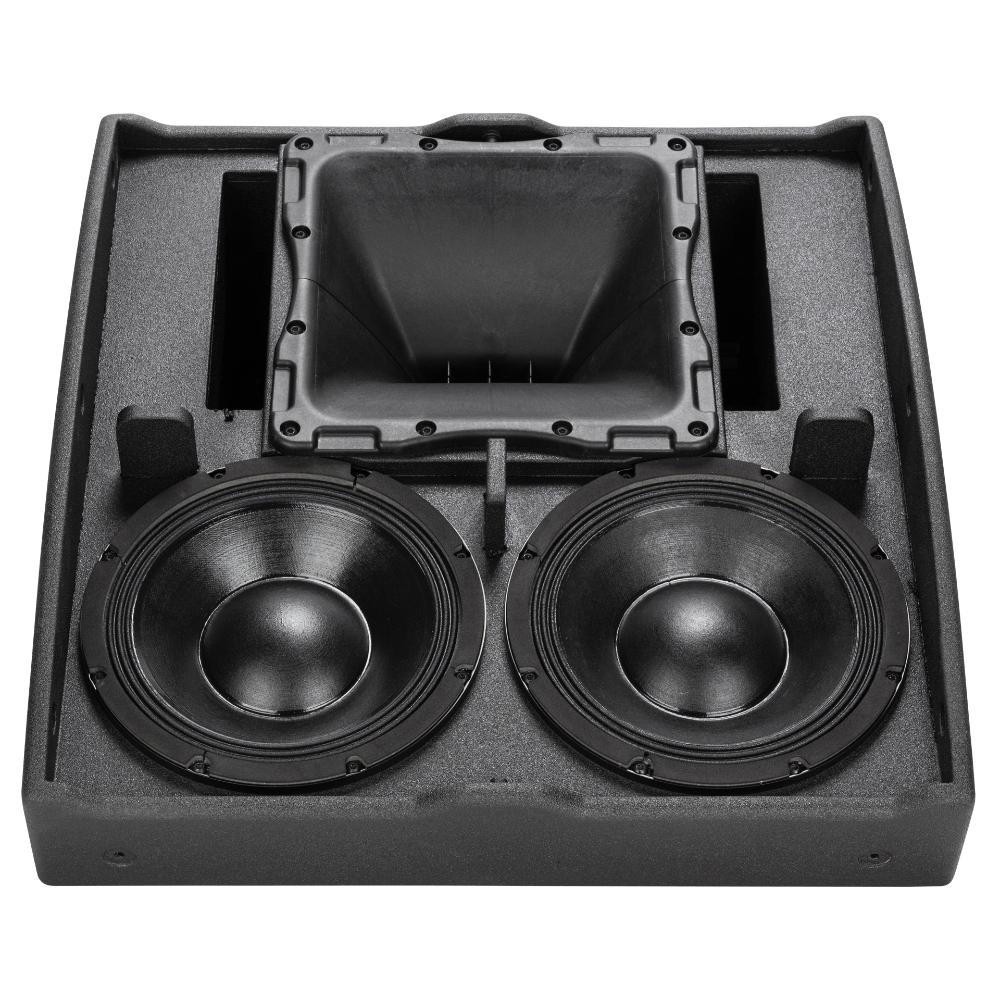

Transducers
Compression Driver:
1 x 1.5'' neo, 4.0'' v.c
Woofer:
2 x 10'' neo, 3.0'' v.c

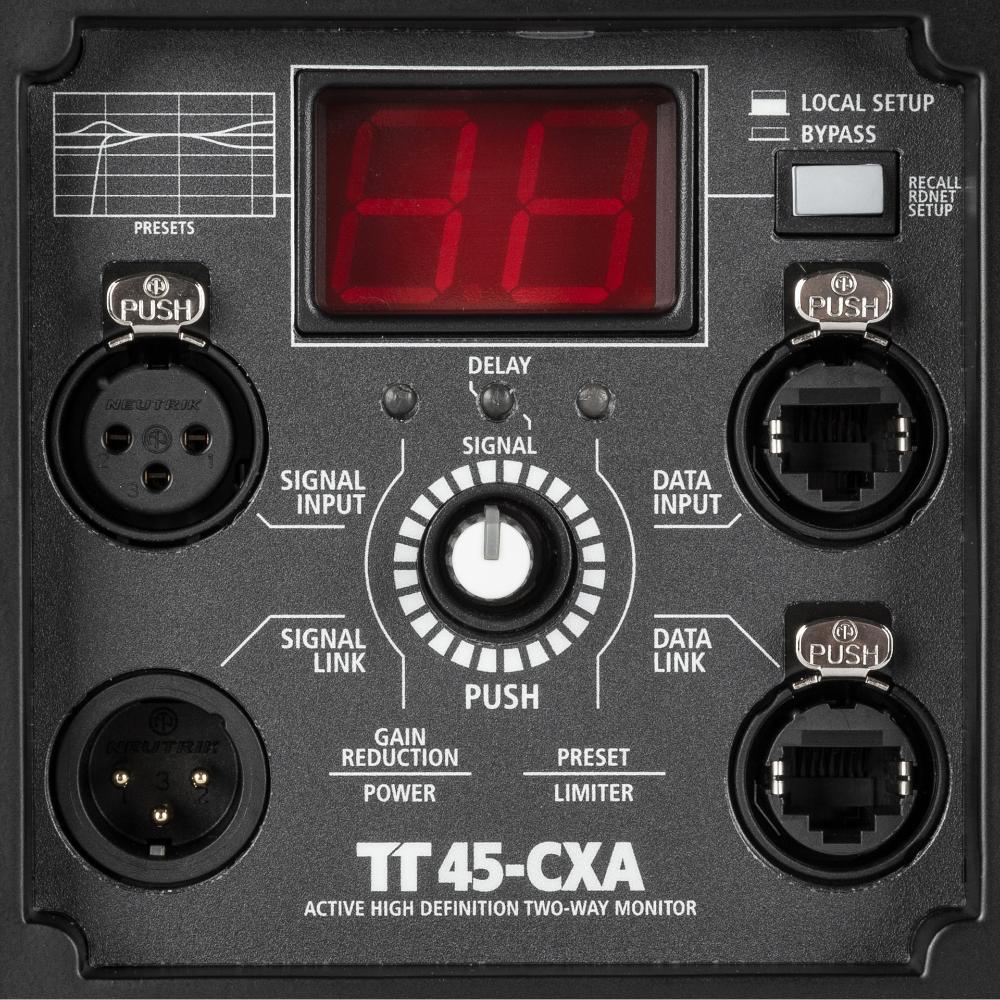

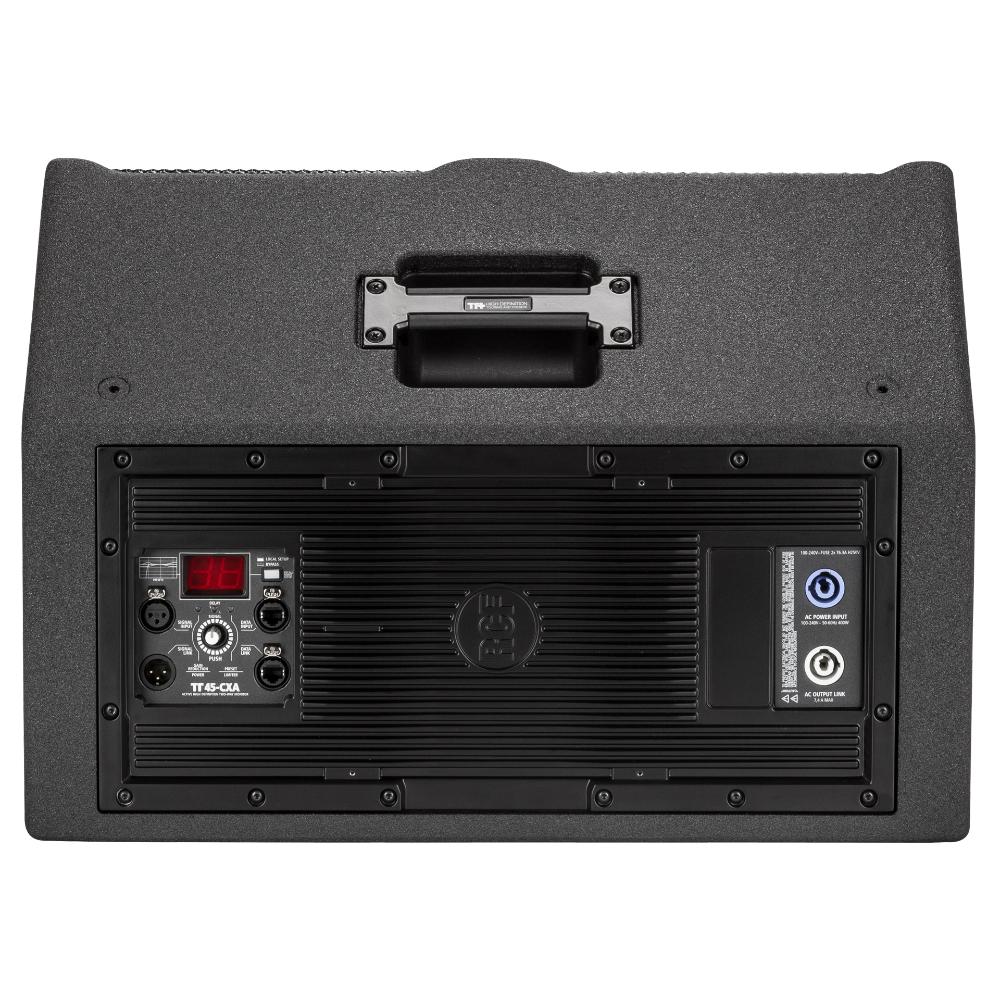

Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR, RDNet Ethercon
Output connectors:
XLR, RDNet Ethercon
Input sensitivity:
+4 dBu
Processor section
Crossover Frequencies:
600 Hz
Protections:
Thermal, RMS
Limiter:
Fast Limiter
Controls:
Gain, EQ, Preset, Phase switch, Output Delay Settings
RDNet:
Yes
Power section
Total Power:
4400 W Peak, 2200 W RMS
High frequencies:
2200 W Peak, 1100 W RMS
Low frequencies:
2200 W Peak, 1100 W RMS
Cooling:
Convection/Forced
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Hardware:
4xQuicklock

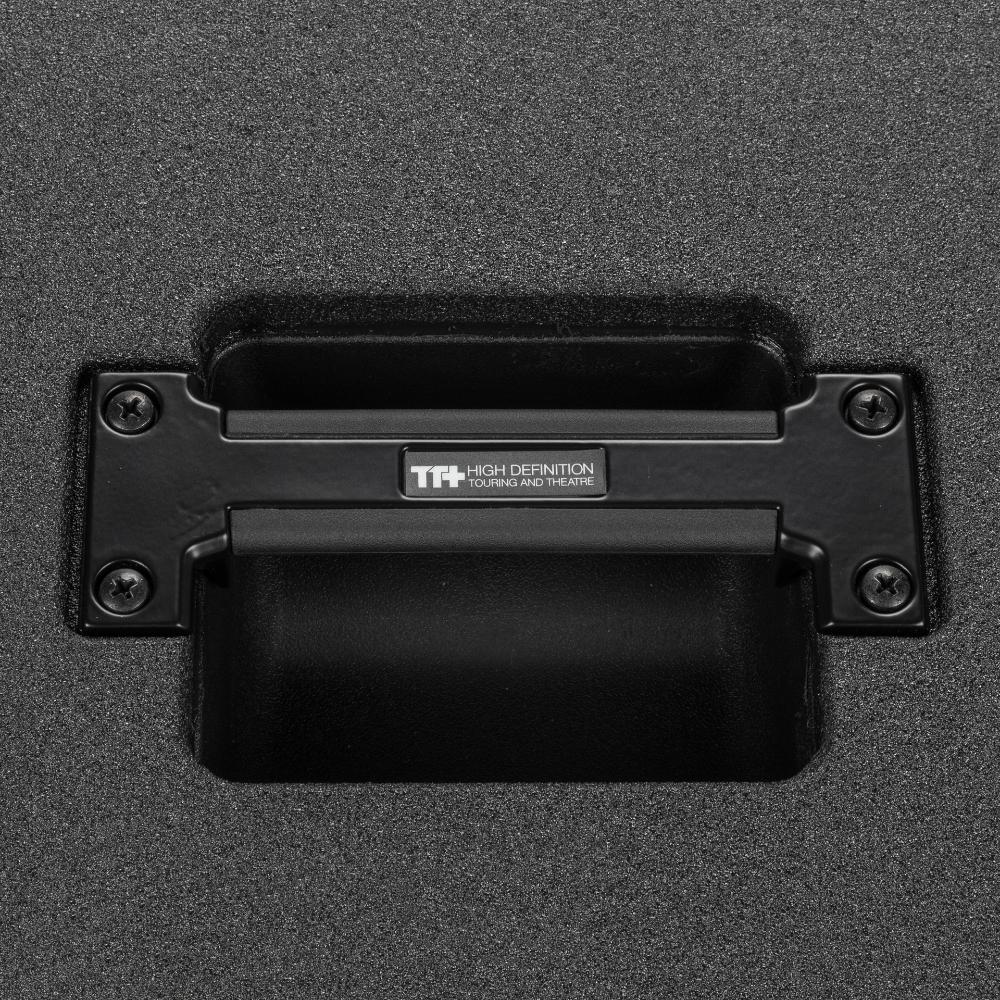

Handles:
2 side, 1 back

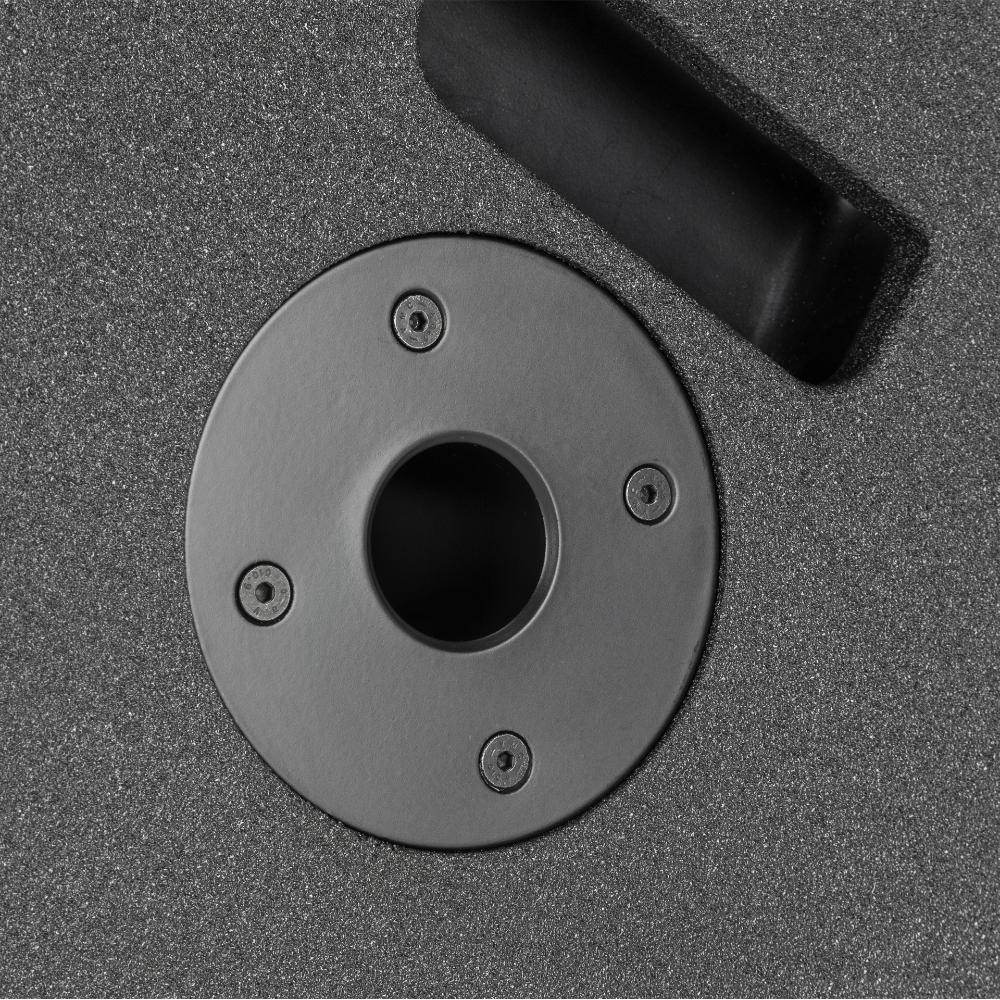

Pole mount/Cap:
Yes
Grille:
Steel
Size
Height:
420 mm / 16.54 inches
Width:
575 mm / 22.64 inches
Depth:
628 mm / 24.72 inches
Weight:
30 kg / 66.14 lbs
Shipping information
Package Height:
627 mm / 24.69 inches
Package Width:
477 mm / 18.78 inches
Package Depth:
691 mm / 27.2 inches
Package Weight:
33.7 kg / 74.3 lbs
