TT+

TT 5-A II

ACTIVE TWO-WAY SPEAKER
  • 136 dB max SPL
  • 1600 W Class-D two-channel amplifier
  • 90° x 50° constant directivity coverage
  • FiRPHASE for 0° phase response
RDNet
Support
Features
  • 136 dB max SPL
  • 1600 W Class-D two-channel amplifier
  • 90° x 50° constant directivity coverage
  • FiRPHASE for 0° phase response
  • Heavy-duty touring cabinet
  • 32 bit - 96 kHz processing

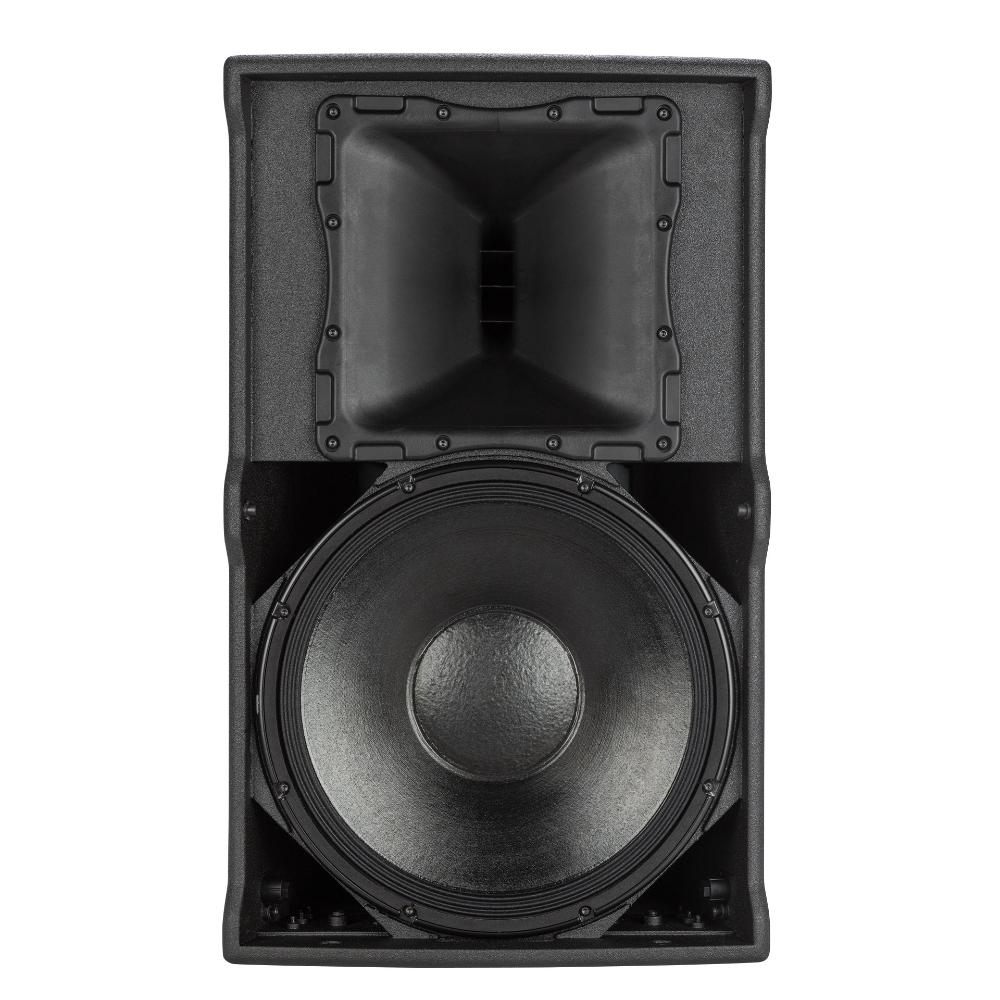

Deploying a powerful 4” titanium compression driver, a large-sized constant directivity horn, and an incredibly fast neodymium 15” woofer, TT 5-A offers the highest performance from a wide dispersion, active, 2-way system. The TT 5-A is the ideal professional two-way speaker for high-grade live performance. The integration of an RDNet remote-controllable 1600 W, two-channel Class-D amplifier and the advanced FiRPHASE DSP 0° linear phase processing set new standards for clarity and efficiency.

ARCHIVED

Part number:

13000630
TT 5-A II
220-240V, EAN 8024530017996

13000631
TT 5-A II
115V, EAN 8024530018009

Specifications
Acoustical specifications
Frequency Response:
45 Hz ÷ 20000 Hz
Max SPL @ 1m:
136 dB
Horizontal coverage angle:
90°
Vertical coverage angle:
50°
Transducers
Compression Driver:
1 x 1.4'' neo, 4.0'' v.c
Woofer:
15'' neo, 4.0'' v.c

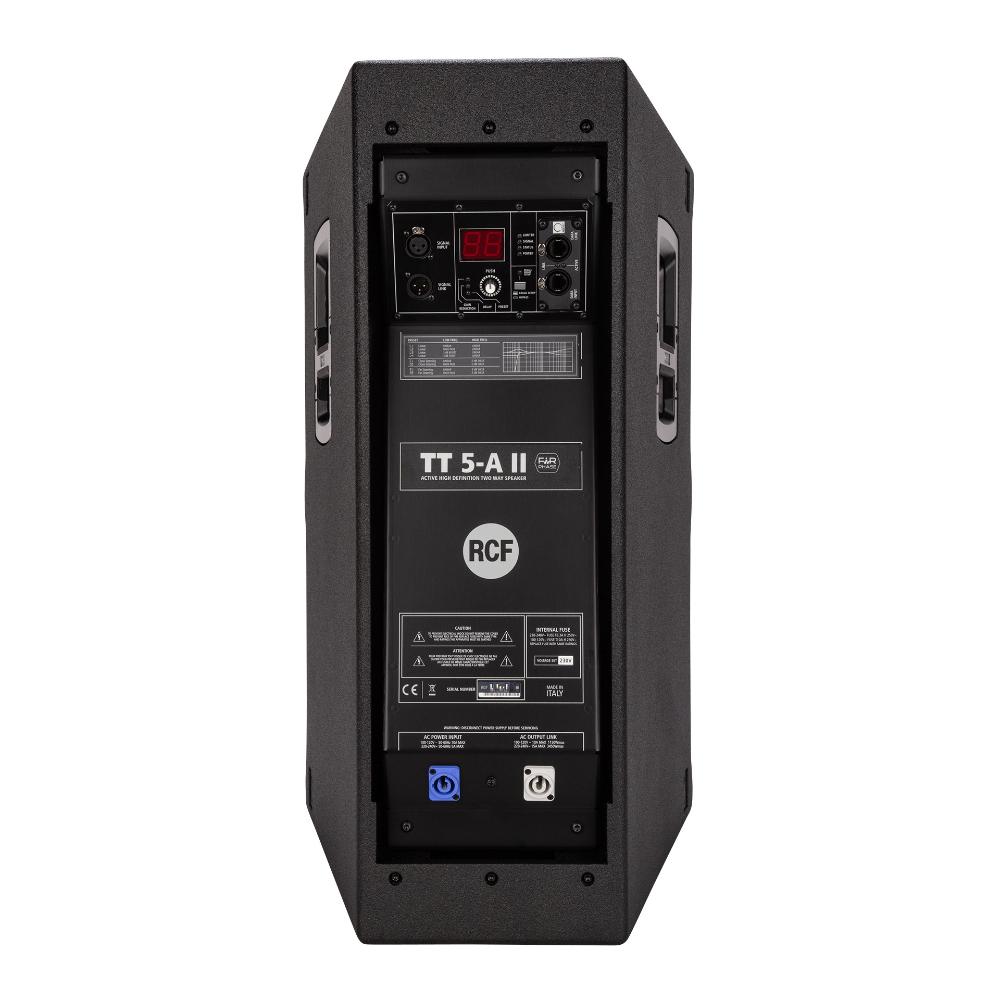

Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR, RDNet Ethercon
Output connectors:
XLR, RDNet Ethercon
Input sensitivity:
+4 dBu
Processor section
Crossover Frequencies:
650 Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter

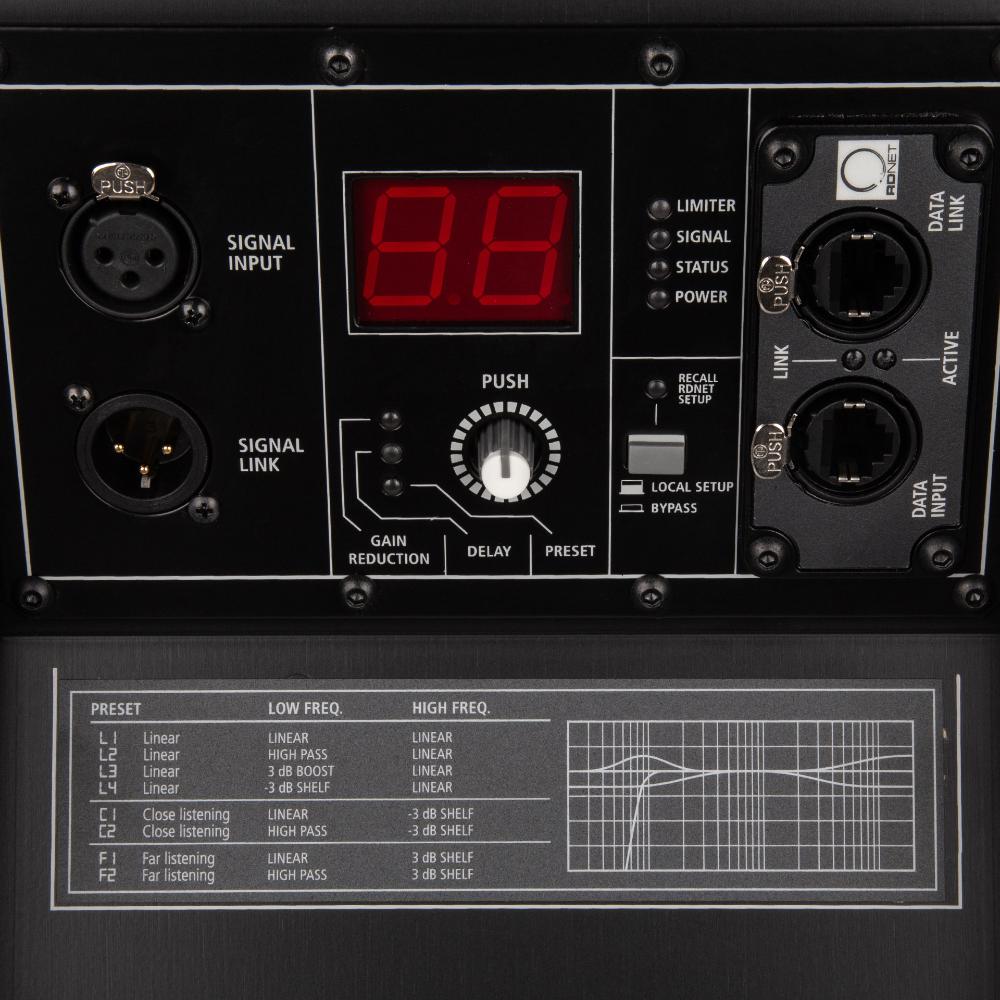

Controls:
Gain reduction, RDNet local setup/bypass, Time Delay, Presets (Linear, Close, Far listening, High- Pass), RDNet on board
RDNet:
Yes
Power section
Total Power:
3200 W Peak, 1600 W RMS
High frequencies:
1000 W Peak, 500 W RMS
Low frequencies:
2200 W Peak, 1100 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Hardware:
Installation/Rental fittings

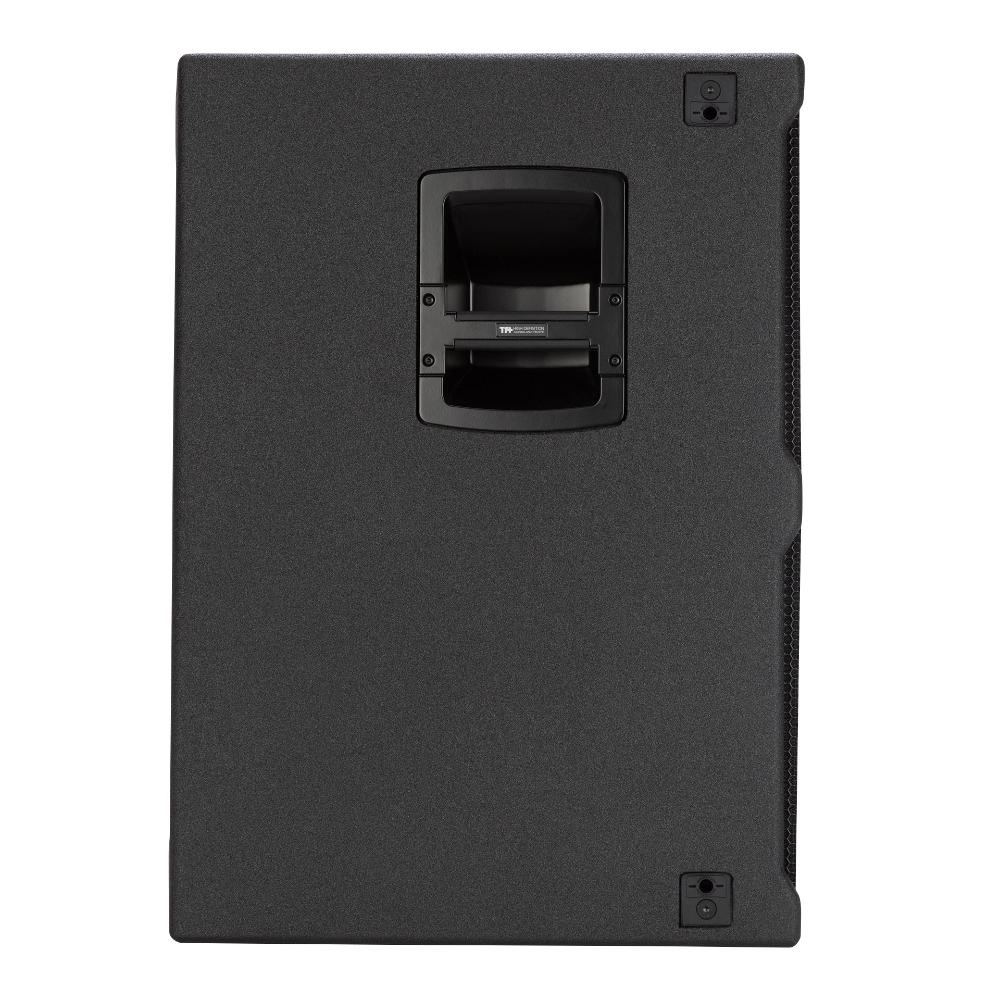

Handles:
2 side

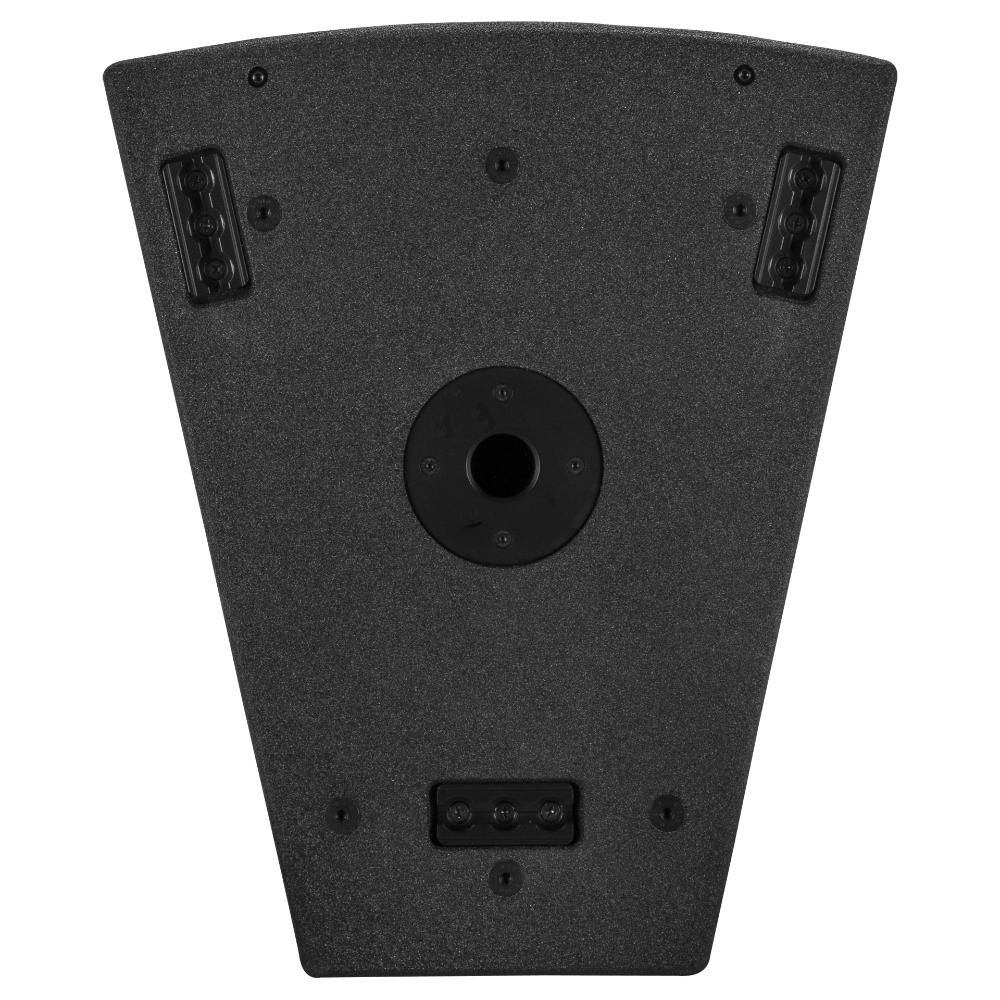

Pole mount/Cap:
Yes
Grille:
Steel
Color:
Black
Size
Height:
735 mm / 28.94 inches
Width:
444 mm / 17.48 inches
Depth:
529 mm / 20.83 inches
Weight:
42.5 kg / 93.7 lbs
Shipping information
Package Height:
870 mm / 34.25 inches
Package Width:
630 mm / 24.8 inches
Package Depth:
580 mm / 22.83 inches
Package Weight:
47.5 kg / 104.72 lbs
