TT+

TT 5-A

ACTIVE HIGH OUTPUT TWO-WAY SPEAKER
  • 1600 Watt, 2 way amplification
  • 15" neo woofer, 4" v.c.
  • 96 Khz, 32 bit DSP processing
  • RDNet Ready
RDNet
Support
Features
  • 1600 Watt, 2 way amplification
  • 15" neo woofer, 4" v.c.
  • 1.4" titanium dome neo compression driver, 4.0" v.c.
  • 90° x 50° precision waveguide
  • 96 Khz, 32 bit DSP processing
  • Maximum output, perfect audio fidelity
  • Tour grade cabinet and mechanics
  • RDNet Ready

Thanks to the powerful 4” compression driver, the large sized horn, the incredibly fast woofer, TT5-A offers the highest performance from a wide dispersion, active, 2 way system. High output and dynamics, extreme linearity and fidelity makes the TT5-A a unique product in its category. The TT5-A is the ideal professional two-way speaker for mid field and near field sound reinforcement, live performance and events. The RCF Precision newly designed 4” compression driver guarantees the exceptional sound projection and pattern control. The integration of the 1600 Watt, digital amplification and the advanced digital processing set a new standard for distortion, noise and thermal efficiency. The speaker is equipped with a complete set of integrated rigging mechanics for rental or installation. Dedicated accessories to create clusters are available.

ARCHIVED

Part number:

13000379
TT 5-A
220-240V, EAN 8024530010447

13000383
TT 5-A
115V, EAN 8024530010508

Specifications
Acoustical specifications
Frequency Response:
45 Hz ÷ 20000 Hz
Max SPL @ 1m:
136 dB
Horizontal coverage angle:
90°
Vertical coverage angle:
50°
Transducers
Compression Driver:
1 x 1.4'' neo, 4.0'' v.c
Woofer:
15'' neo, 4.0'' v.c
Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR, RDNet Ethercon
Output connectors:
XLR, RDNet Ethercon
Input sensitivity:
+4 dBu
Processor section
Crossover Frequencies:
650 Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Gain reduction, RDNet local setup/bypass, Time Delay, Presets (Linear, Close, Far listening, High- Pass), RDNet Ready
RDNet:
Yes
Power section
Total Power:
3200 W Peak, 1600 W RMS
High frequencies:
1000 W Peak, 500 W RMS
Low frequencies:
2200 W Peak, 1100 W RMS
Cooling:
Convection

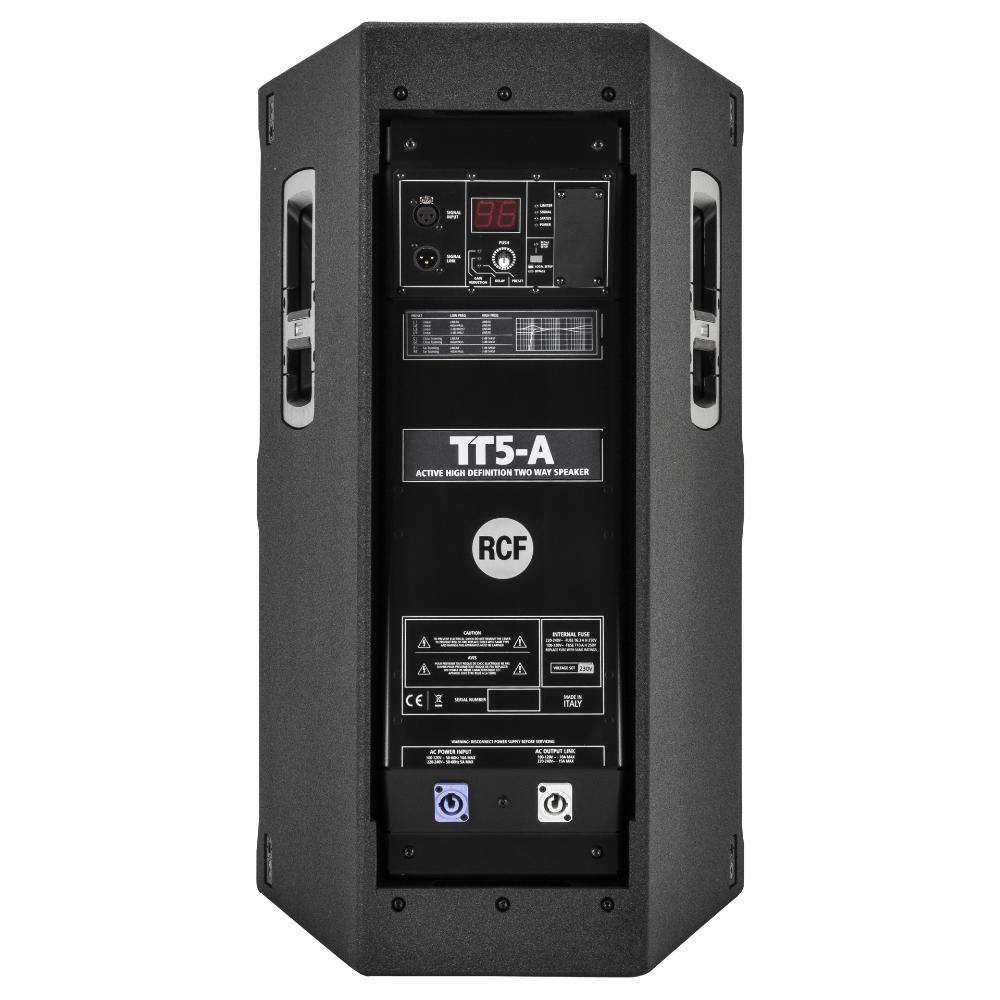

Connections:
Powercon IN/OUT
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Hardware:
Installation/Rental fittings
Handles:
2 side

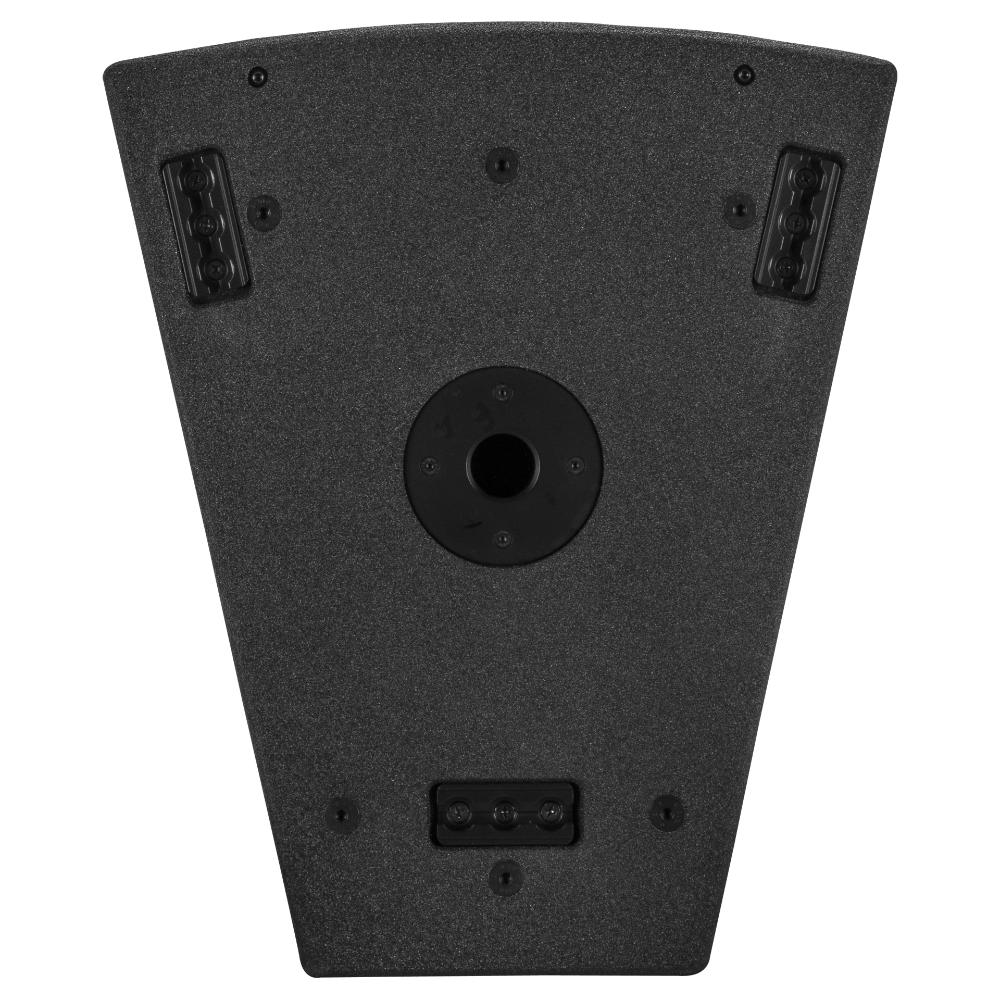

Pole mount/Cap:
Yes
Grille:
Steel
Color:
Black
Size
Height:
735 mm / 28.94 inches
Width:
444 mm / 17.48 inches
Depth:
529 mm / 20.83 inches
Weight:
42.5 kg / 93.7 lbs
Shipping information
Package Height:
870 mm / 34.25 inches
Package Width:
630 mm / 24.8 inches
Package Depth:
580 mm / 22.83 inches
Package Weight:
47.5 kg / 104.72 lbs
