TT+

TTP 5-A

POINT SOURCE ARRAY
  • 1600 Watt, 2 way amplification
  • 2.0" titanium dome neo c. driver, 4.0" v.c.
  • 96 Khz, 32 bit DSP processing
  • RDNet Onboard
RDNet
Support
Features
  • 1600 Watt, 2 way amplification
  • 15" neo woofer, 4.0" v.c.
  • 2.0" titanium dome neo c. driver, 4.0" v.c.
  • 22.5° x 60° precision waveguide
  • 96 Khz, 32 bit DSP processing
  • Maximum output, perfect audio fidelity

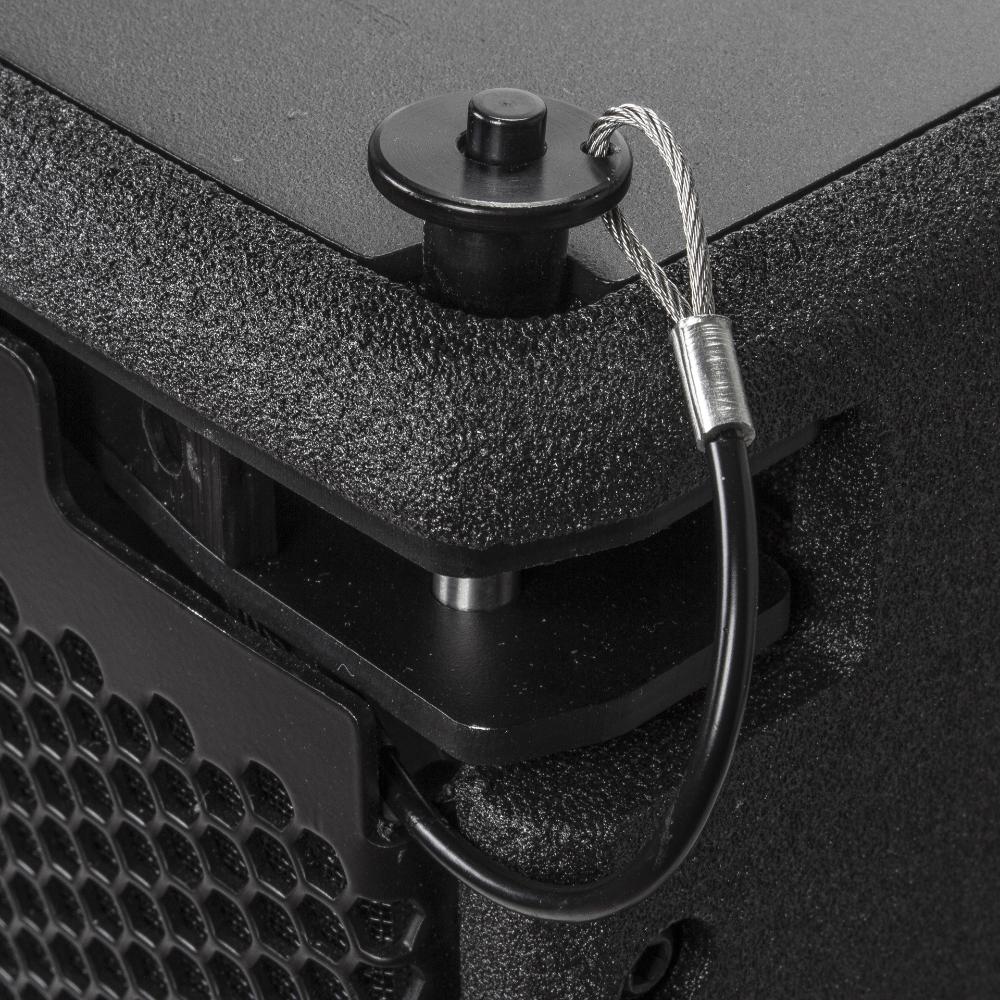

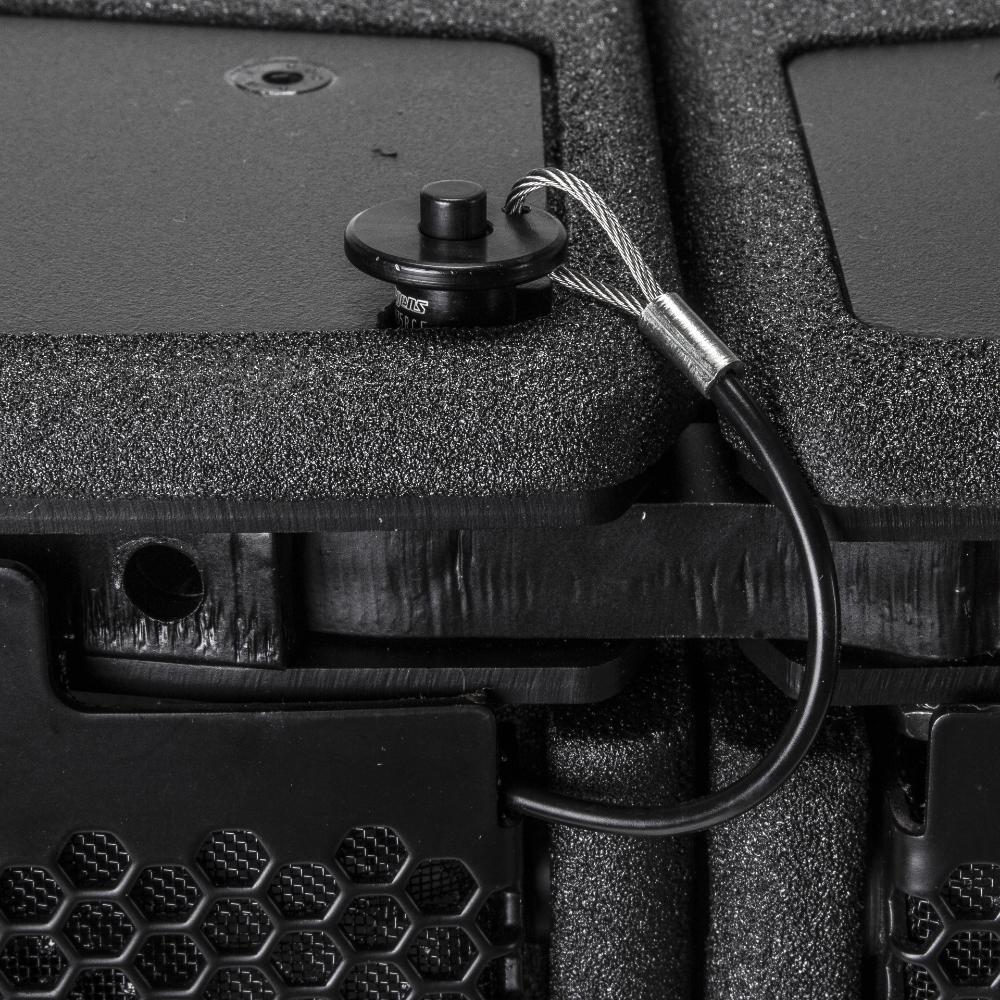

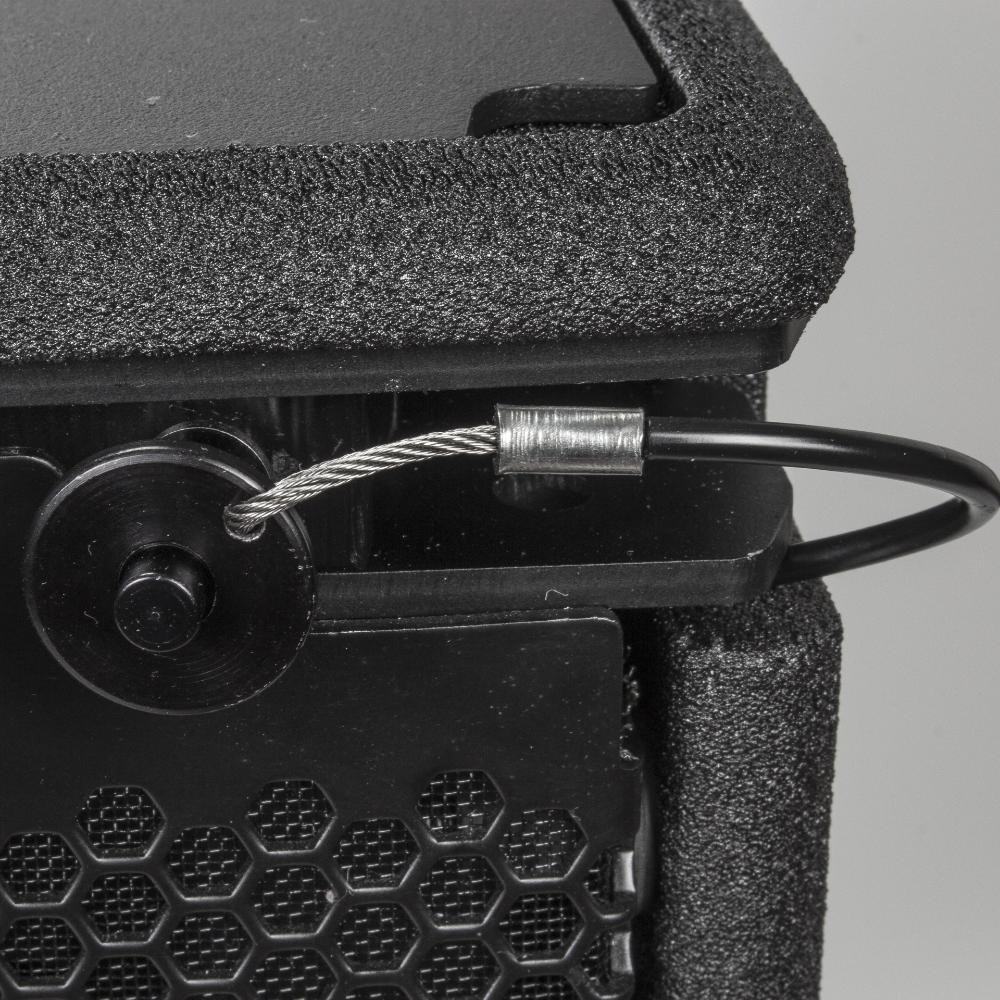

  • Tour grade cabinet and mechanics
  • RDNet Onboard

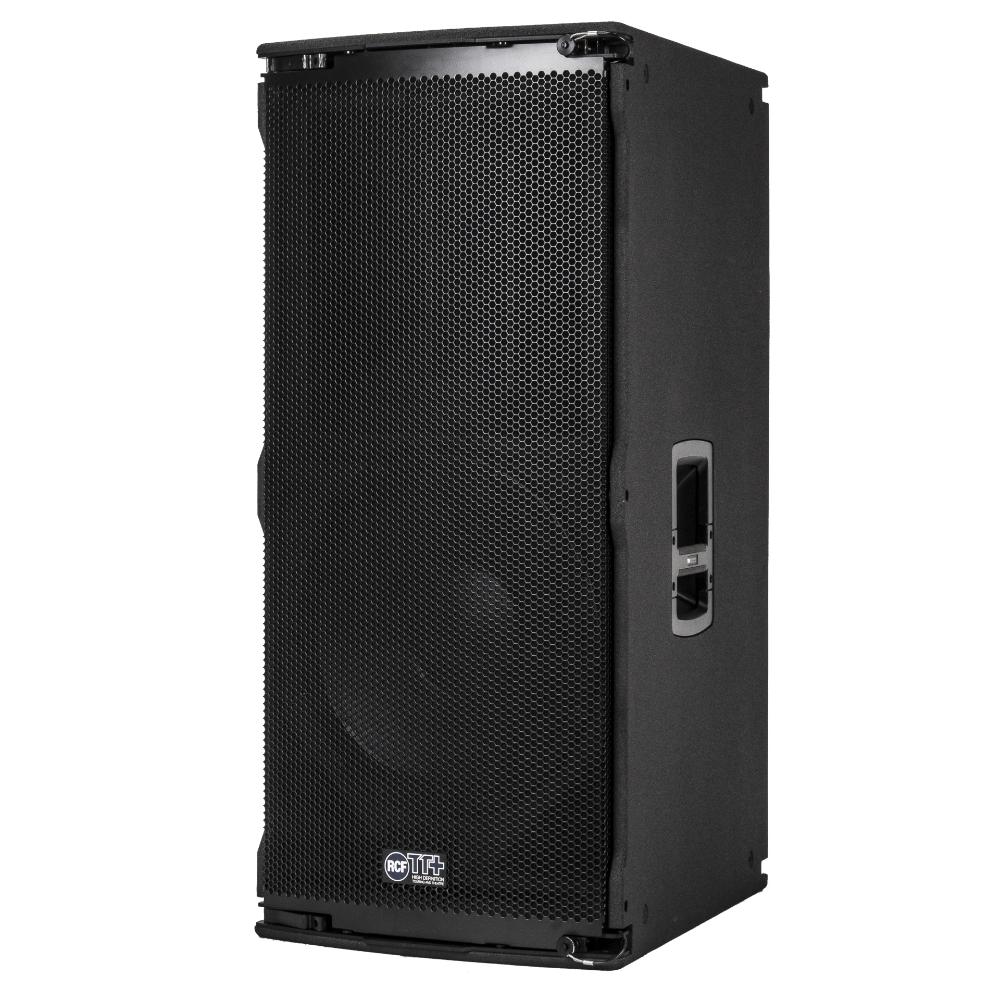

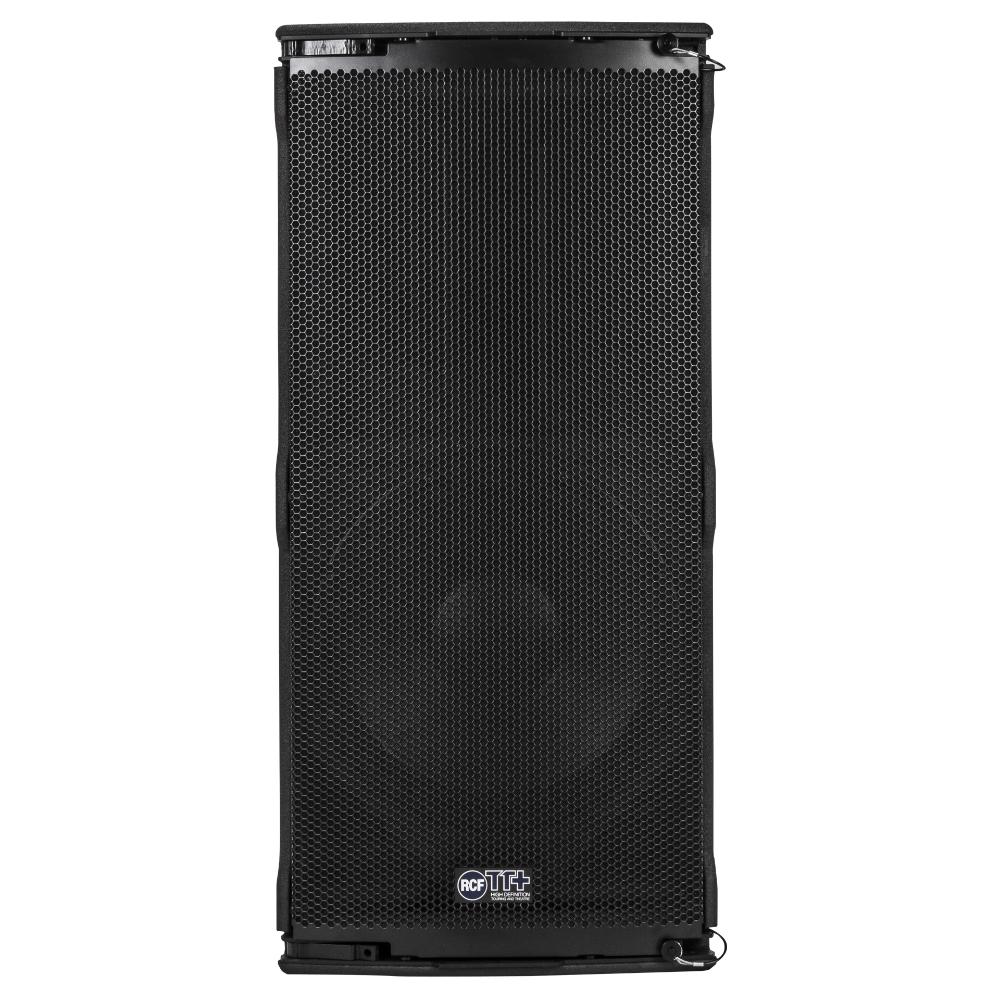

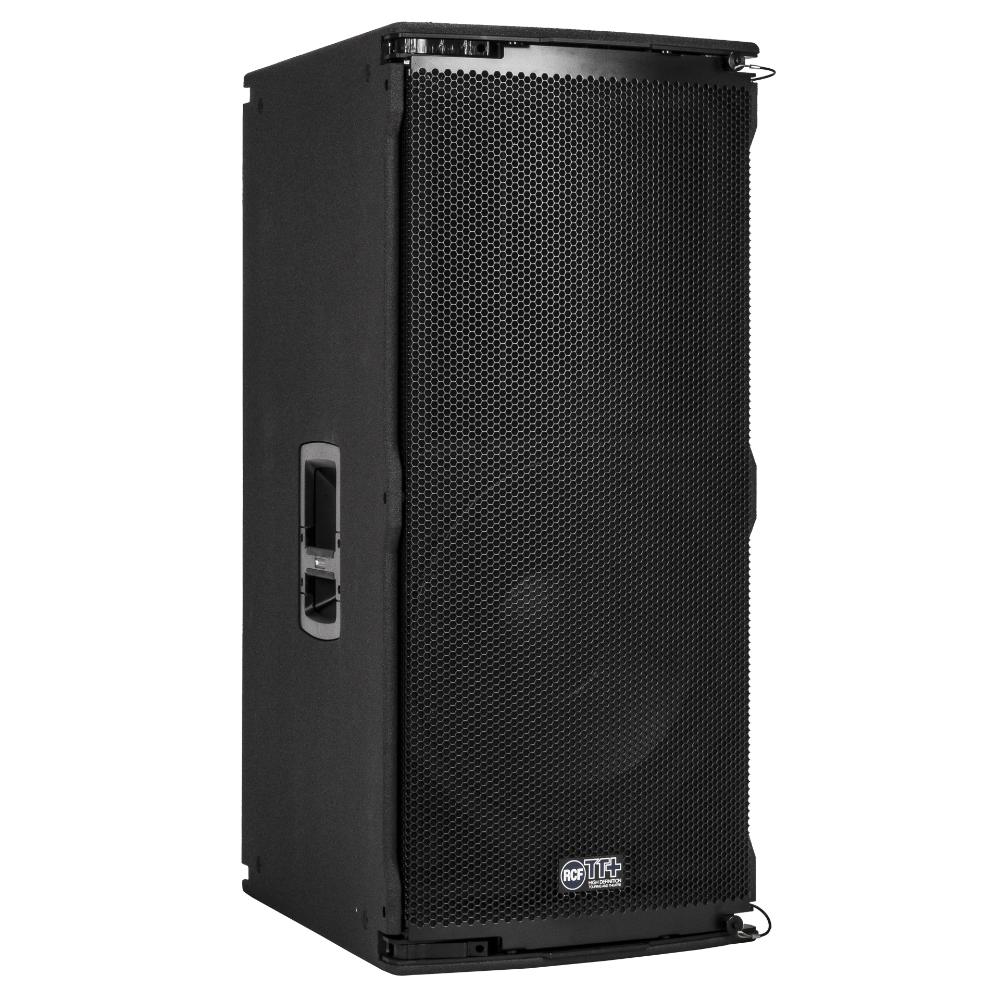

The TTP5-A is a high power, two way, active array module engineered to deliver high fidelity output for use in indoor and outdoor medium and large spaces. The system is designed to create horizontal or vertical arrays with a constant curvature. The system is designed to be used for medium-small theatres to very large outdoor stadia and public spaces. The RCF Precision newly designed 4” compression driver loaded on a dedicated waveguide guarantees the exceptional sound projection and pattern control. The new woofer design represents the result of many dedicated years in developing new solutions using the best materials available on the market. The integration of two channels 1600 Watt digital amplification and the advanced digital processing set a new standard for distortion, noise and thermal efficiency.

ARCHIVED
RDNet Software

Part number:

13000380
TTP 5-A
220-240V, EAN 8024530010522

13000384
TTP 5-A
115V, EAN 8024530010515

Specifications
Acoustical specifications
Frequency Response:
45 Hz ÷ 20000 Hz
Max SPL @ 1m:
138 dB
Horizontal coverage angle:
23°
Vertical coverage angle:
60°

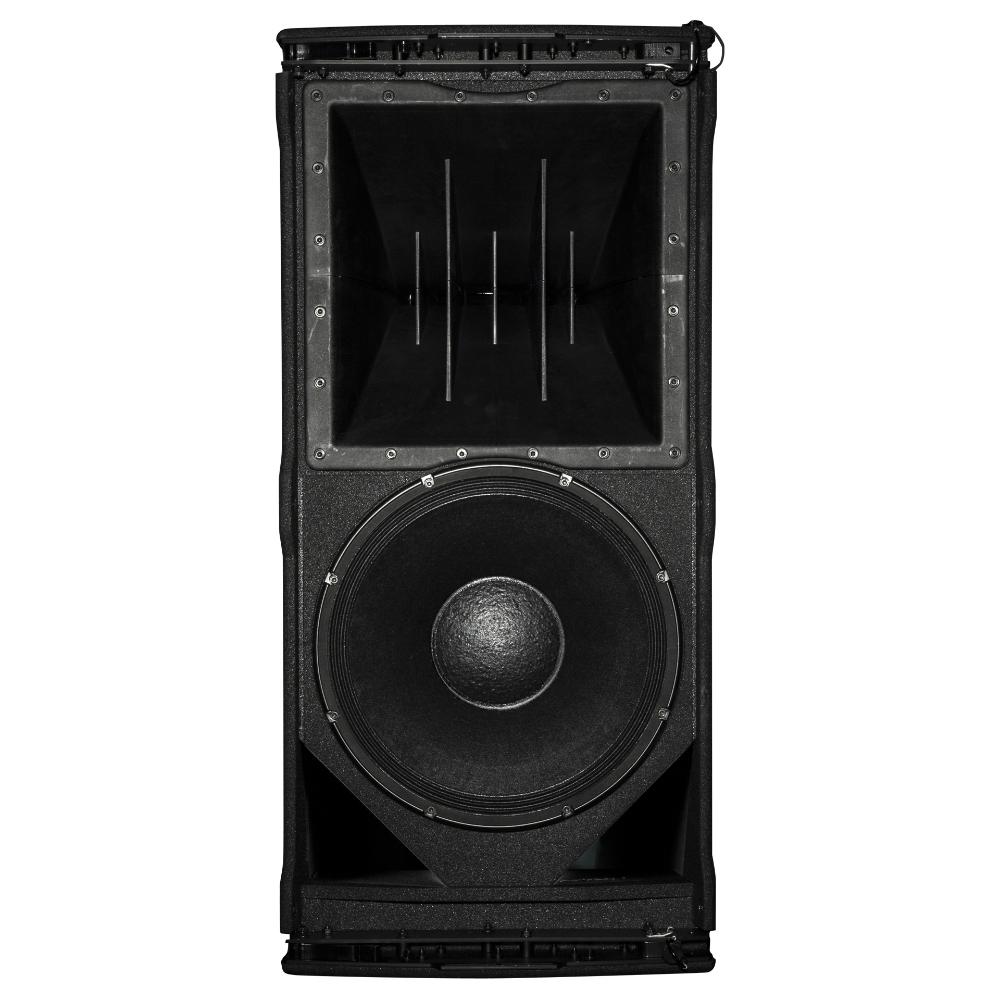

Transducers
Compression Driver:
1 x 1.4'' neo, 4.0'' v.c
Woofer:
15'' neo, 4.0'' v.c

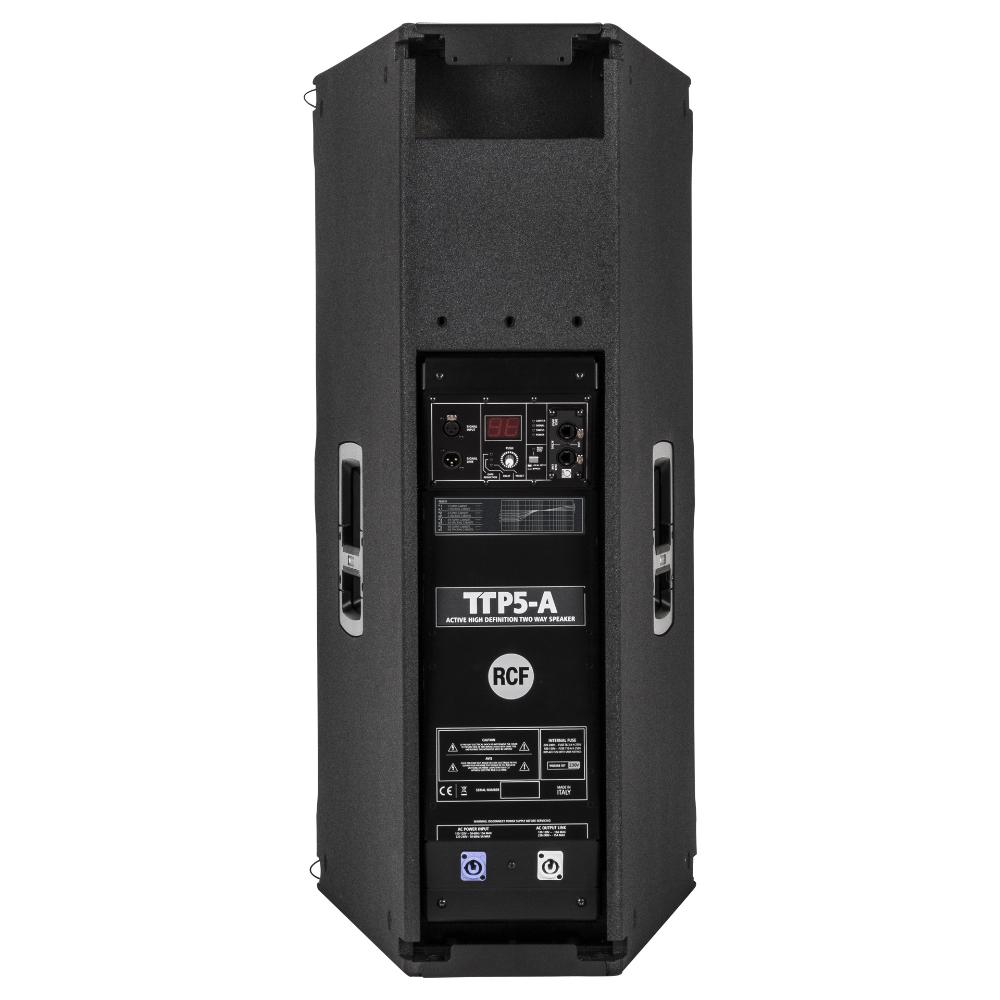

Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR, RDNet Ethercon
Output connectors:
XLR, RDNet Ethercon
Input sensitivity:
+4 dBu
Processor section
Crossover Frequencies:
550 Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Gain reduction, RDNet local setup/bypass, Time Delay, Presets (Linear, Close, Far)
RDNet:
Yes
Power section
Total Power:
3200 W Peak, 1600 W RMS
High frequencies:
1000 W Peak, 500 W RMS
Low frequencies:
2200 W Peak, 1100 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Hardware:

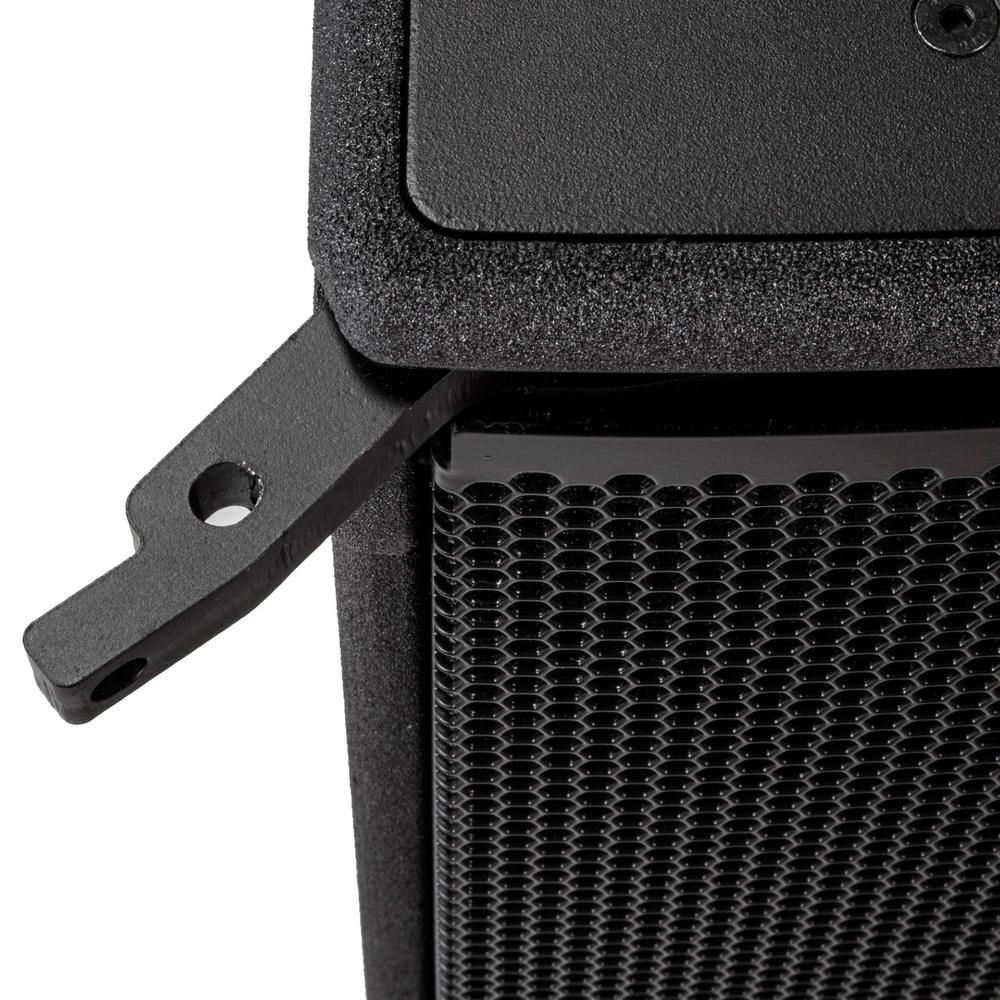

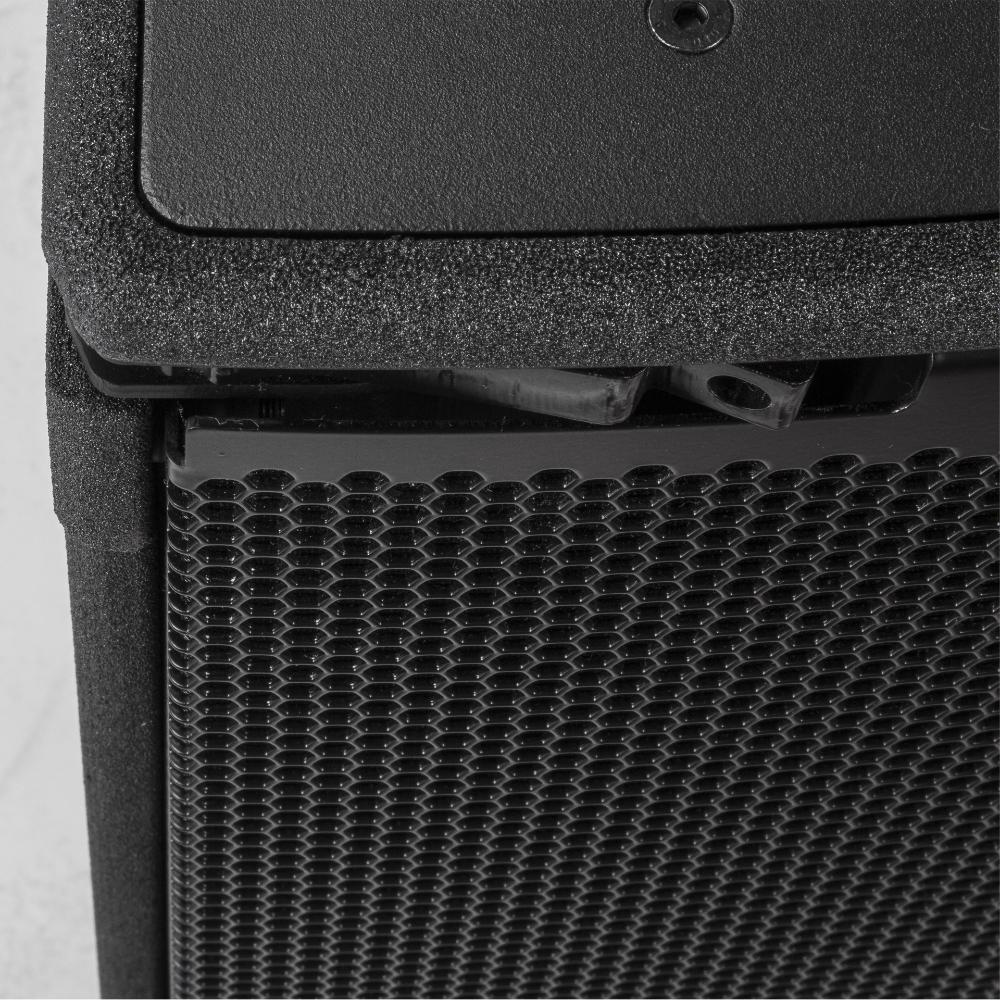

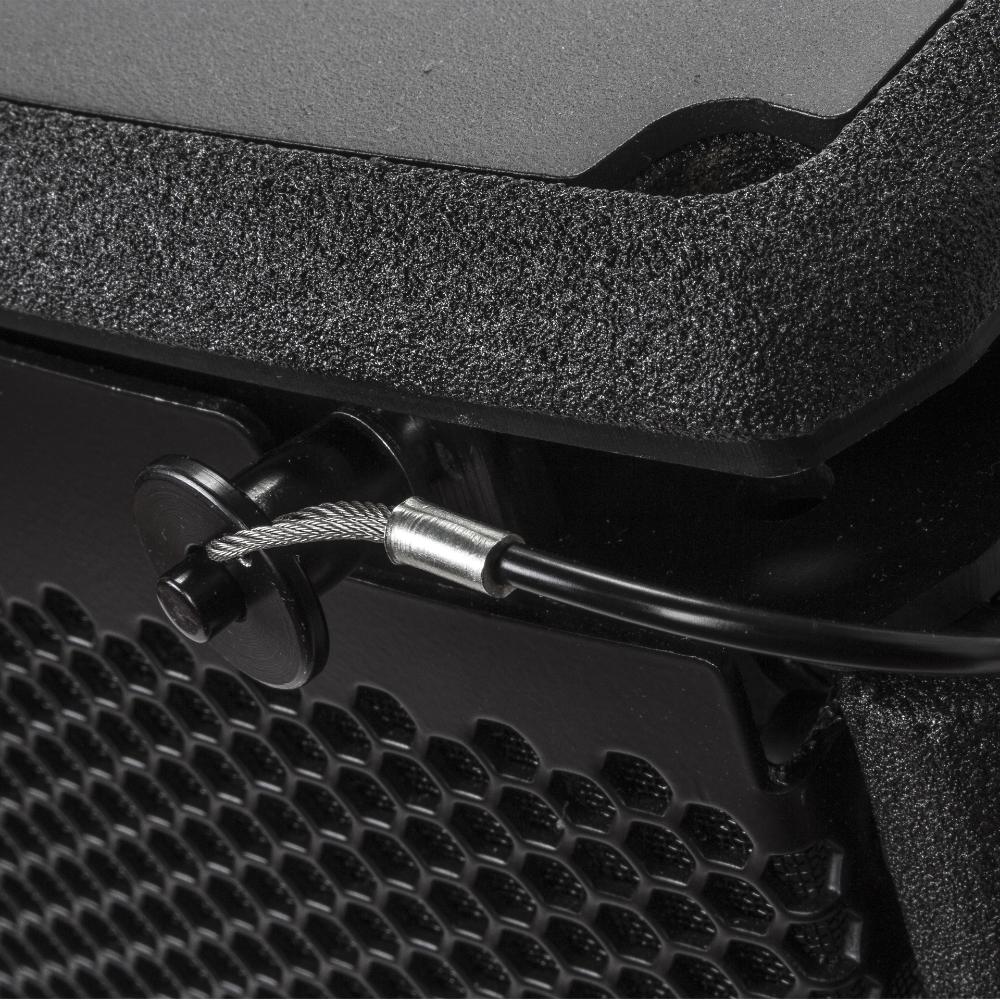

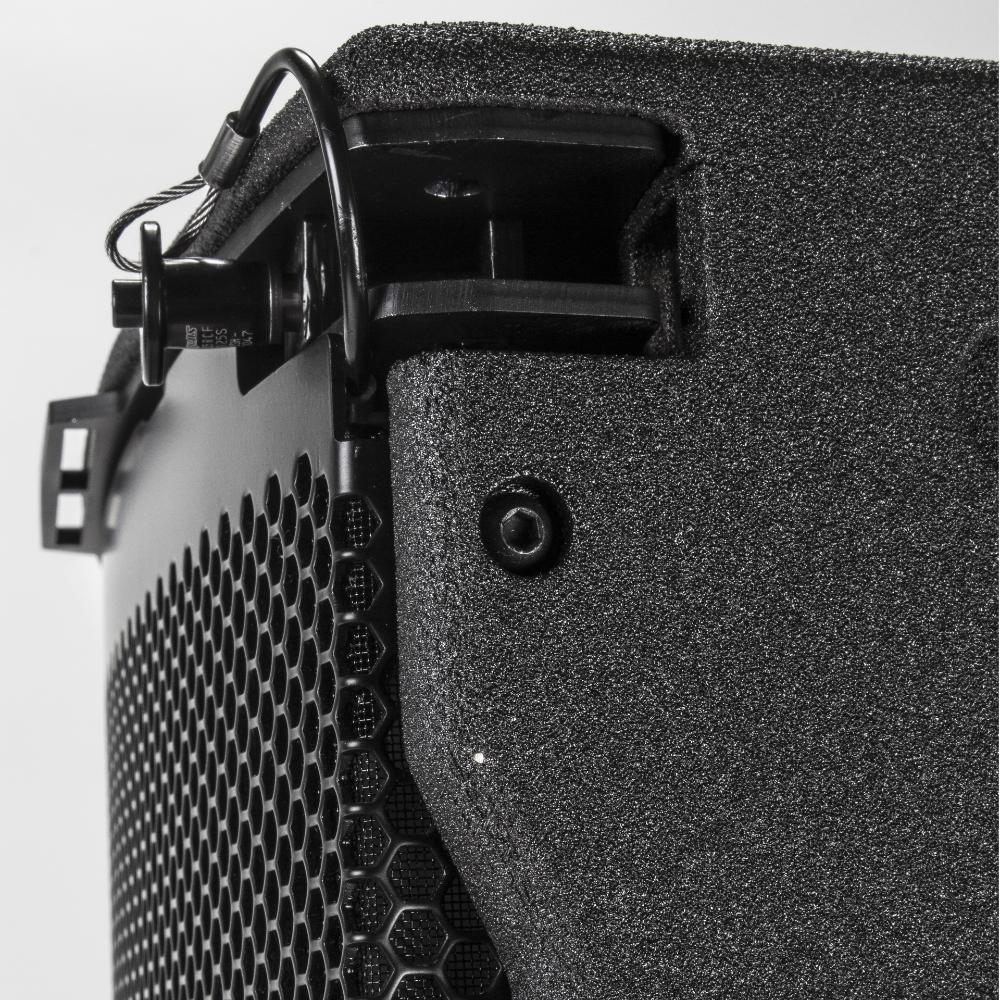

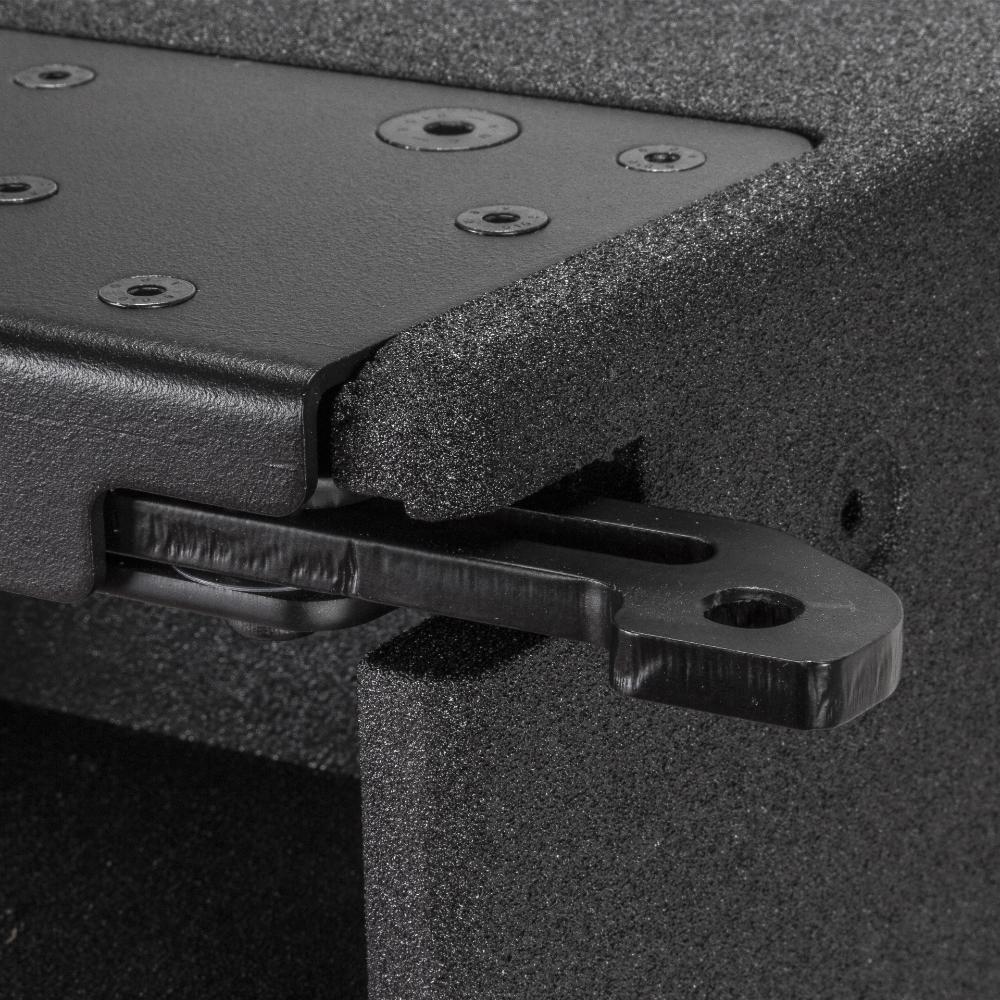

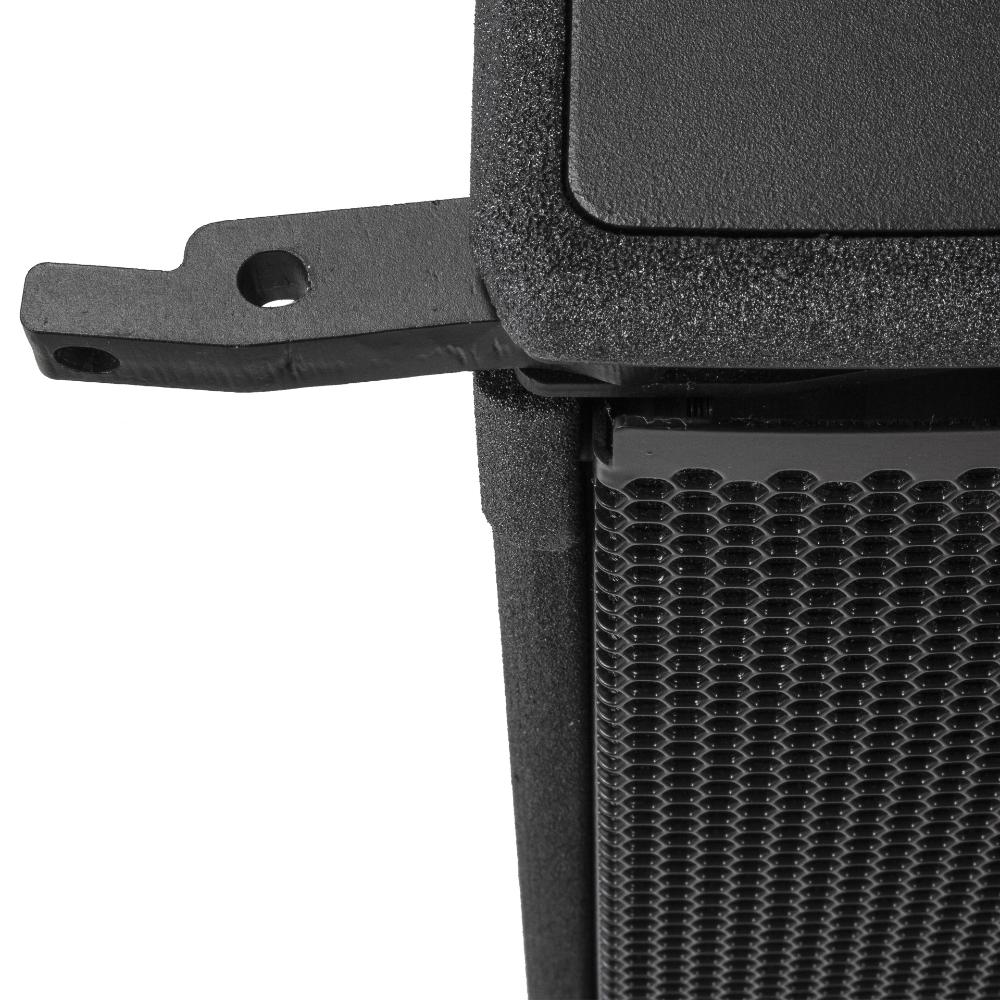

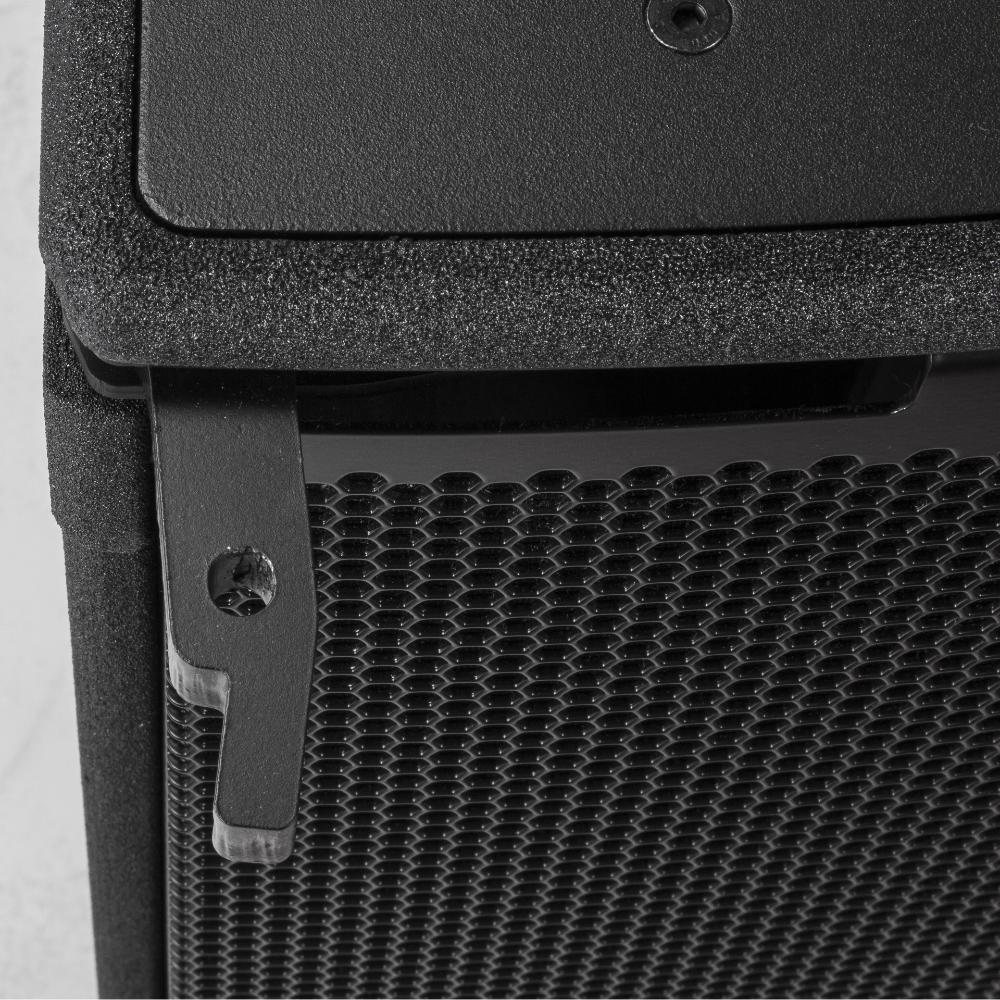

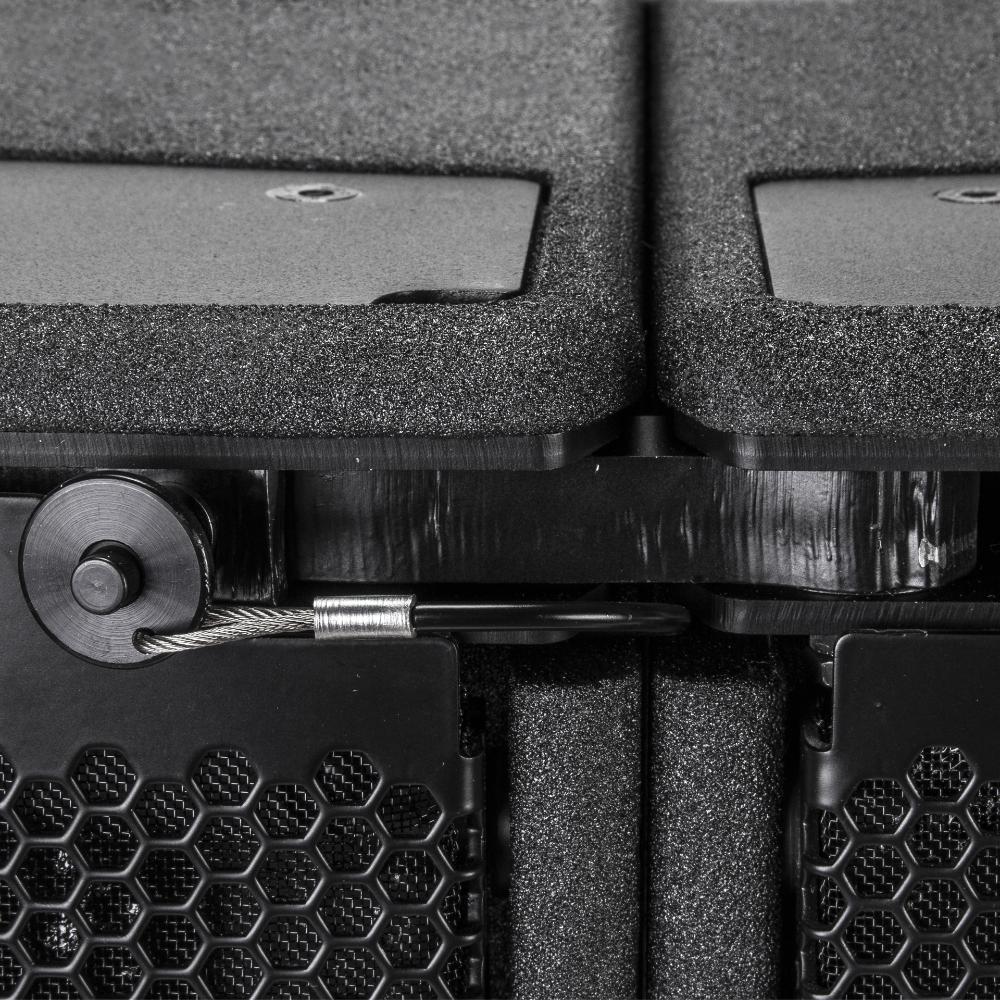

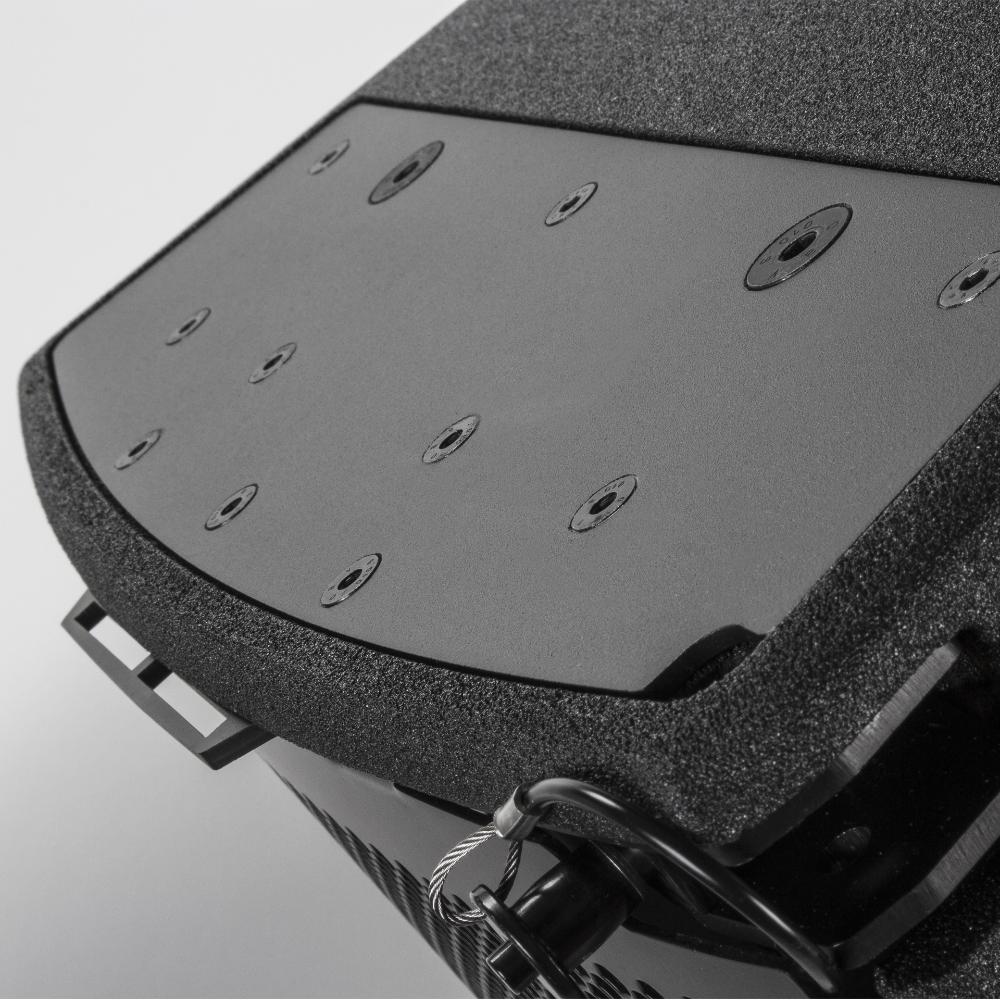

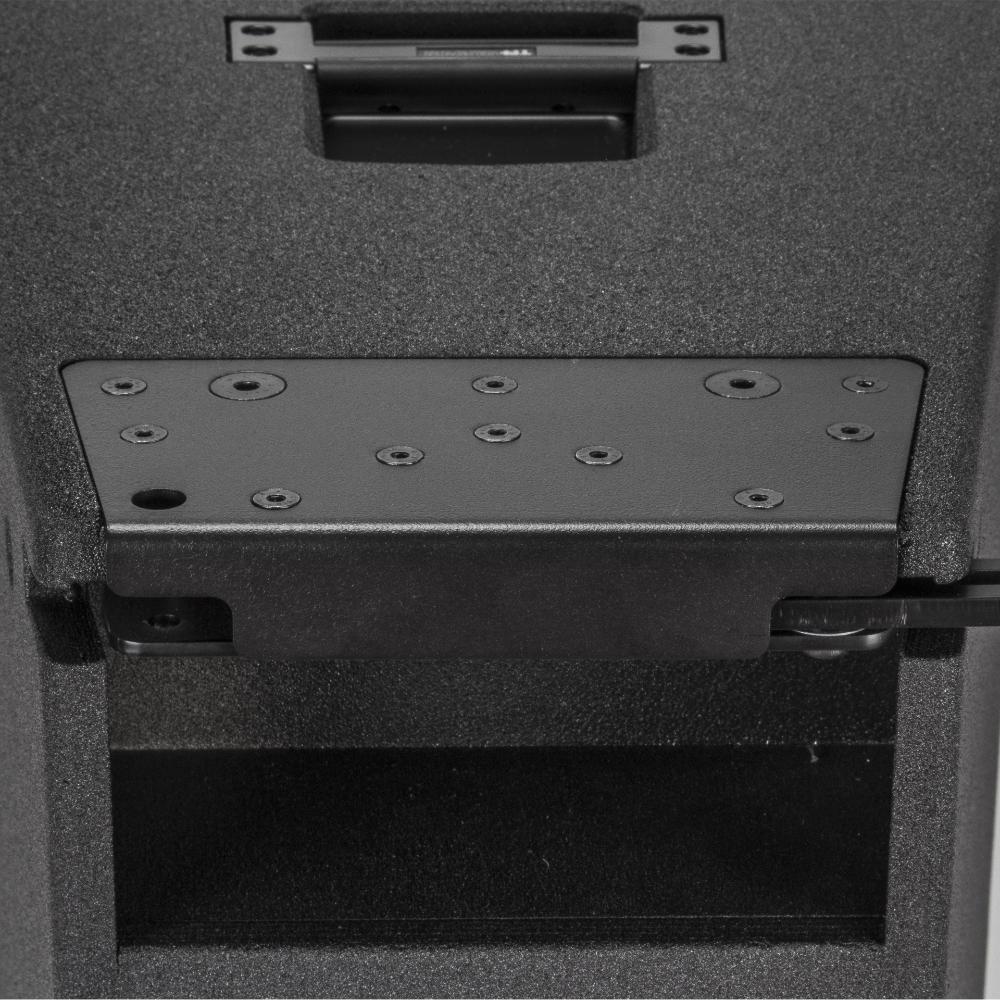

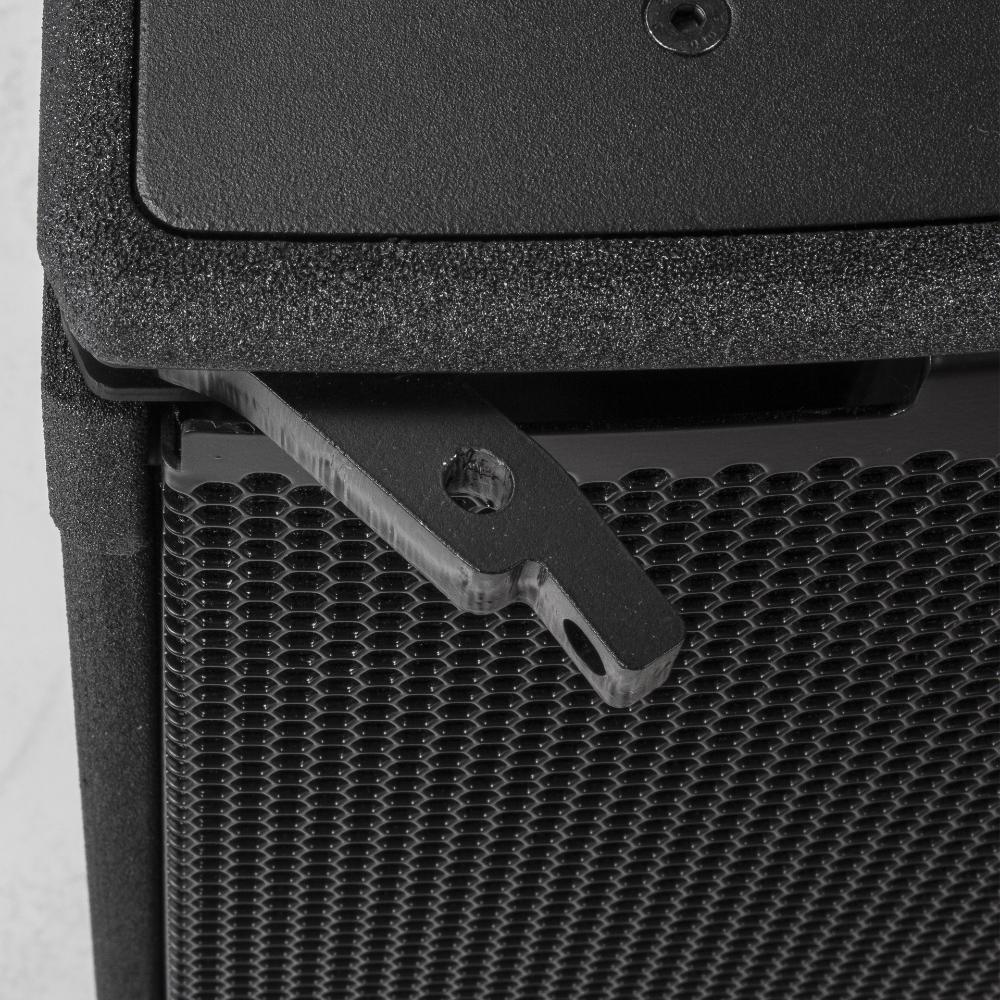

Cluster Mechanics

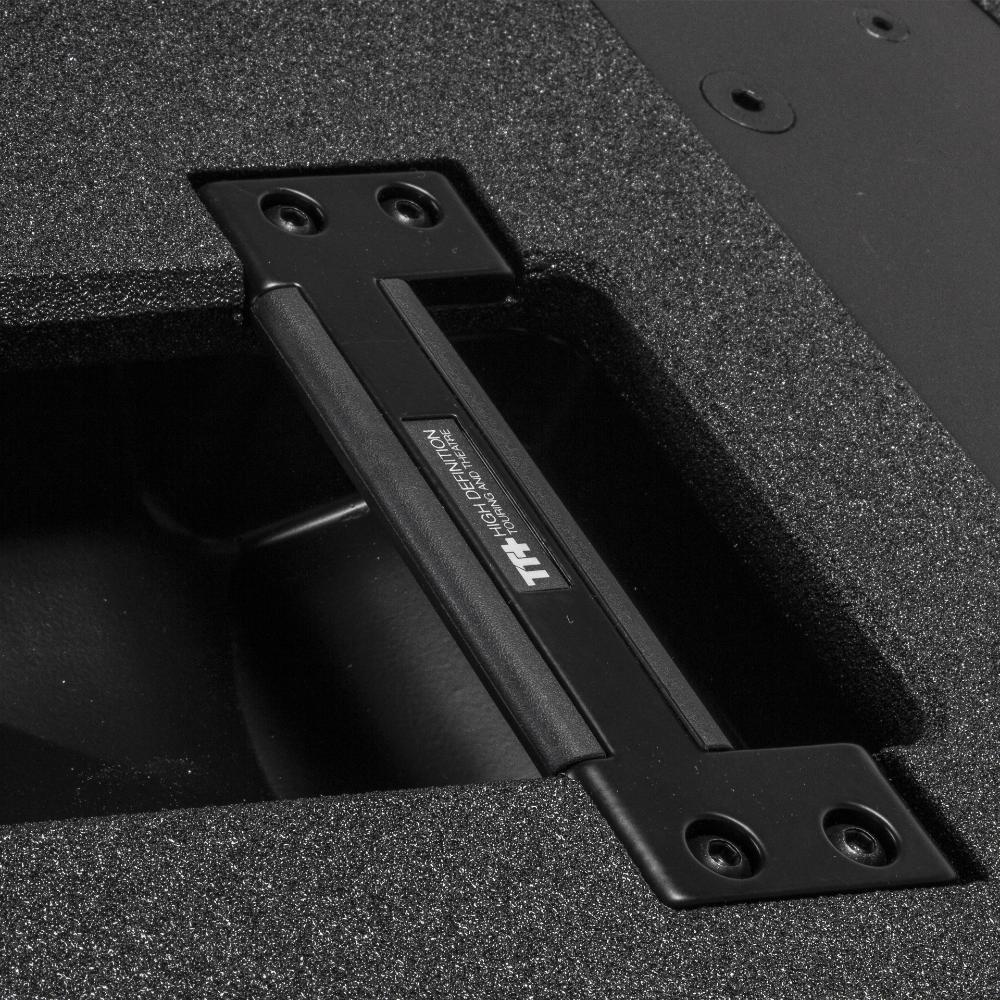

Handles:

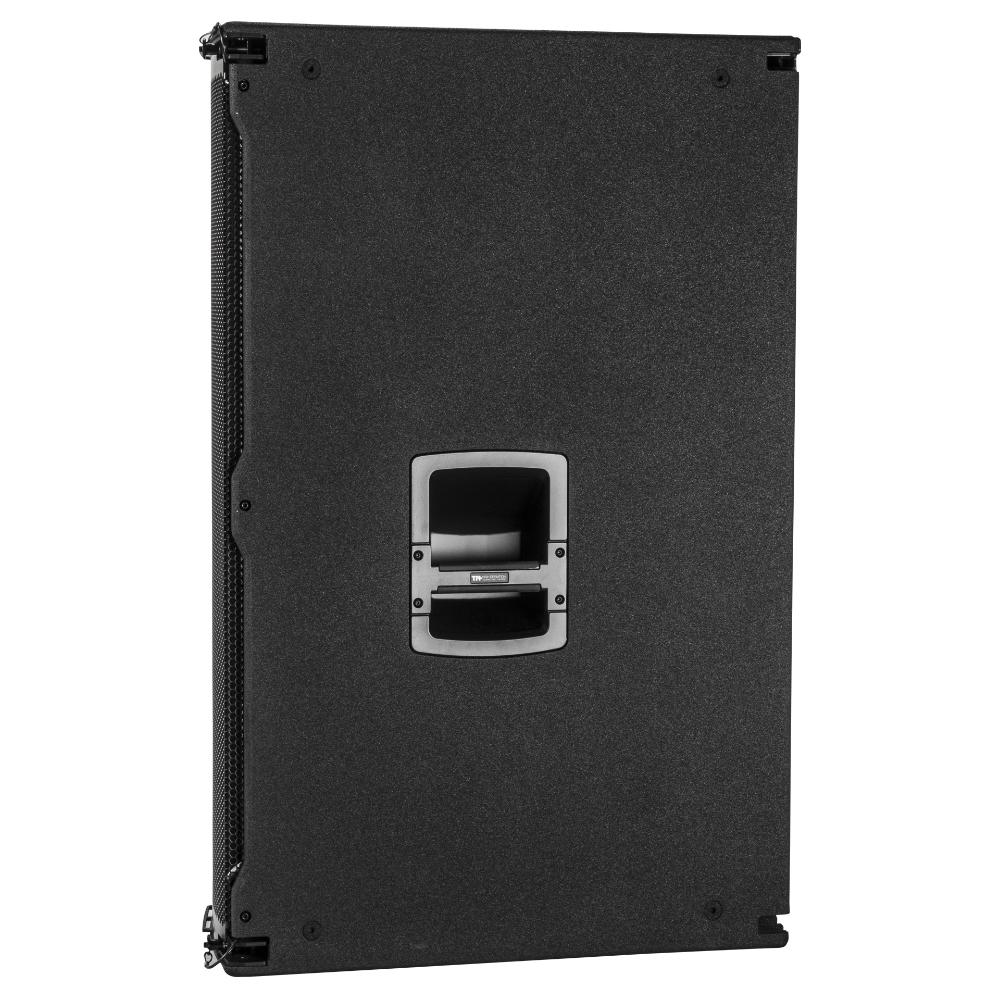

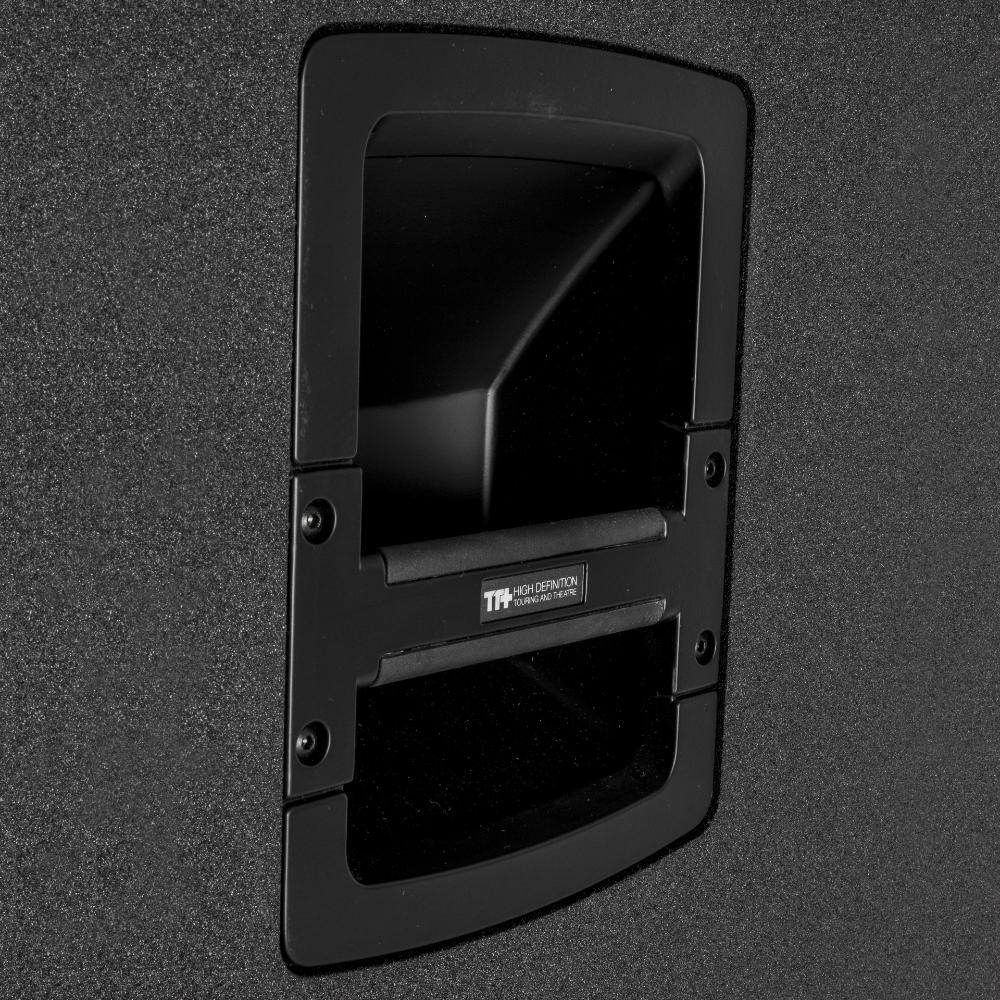

2 side, 1 top , 1 Bottom
Grille:
Steel
Color:
Black
Size
Height:
986 mm / 38.82 inches
Width:
458 mm / 18.03 inches
Depth:
646 mm / 25.43 inches
Weight:
66 kg / 145.5 lbs
Shipping information
Package Height:
1100 mm / 43.31 inches
Package Width:
590 mm / 23.23 inches
Package Depth:
780 mm / 30.71 inches
Package Weight:
70 kg / 154.32 lbs
