BUSINESS MUSIC

WMR 60T

TWO-WAY WALL-MOUNT MONITOR SPEAKER
  • 80W RMS power handling
  • 114 dB max SPL
  • Self-extinguishing plastic cabinet and steel front grille
  • Connection board integrated into the wall support
Where to buy
Features
  • 80W RMS power handling
  • 114 dB max SPL
  • 70 ÷ 20000 Hz frequency range
  • 140° x 100° constant directivity coverage angle

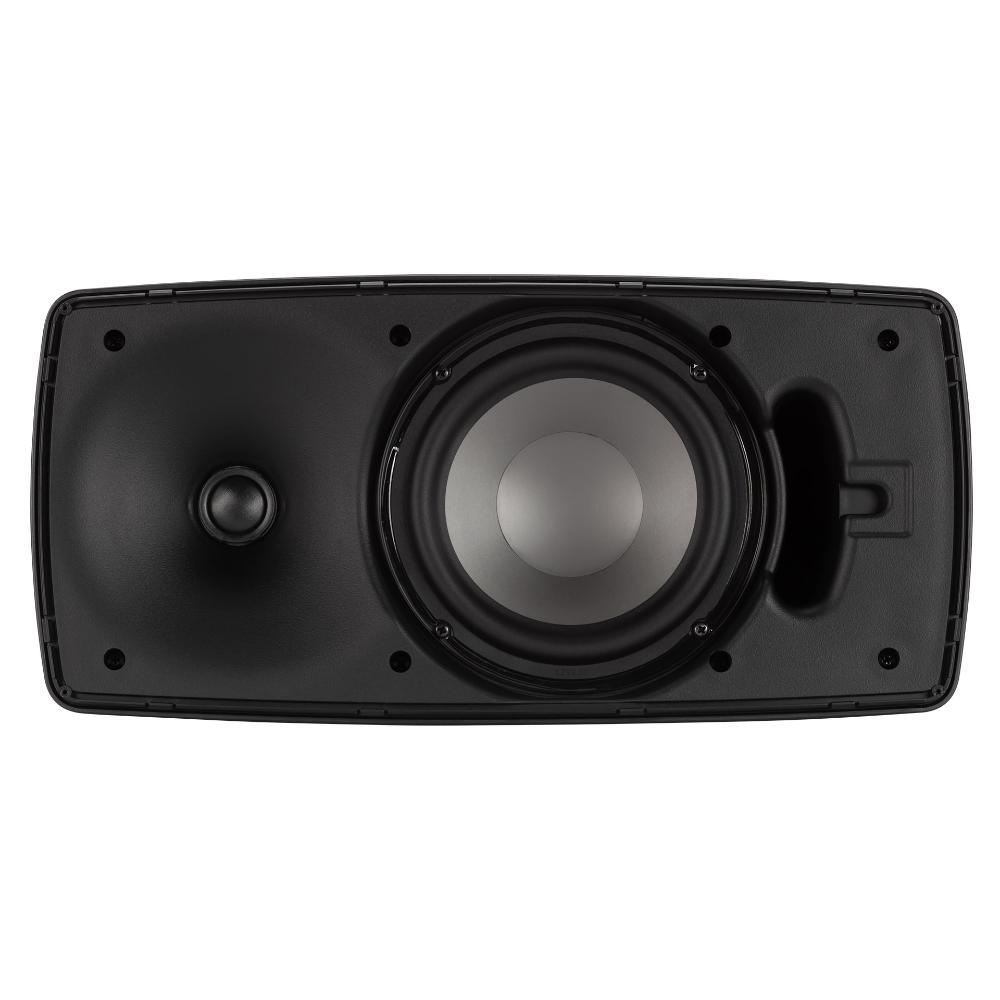

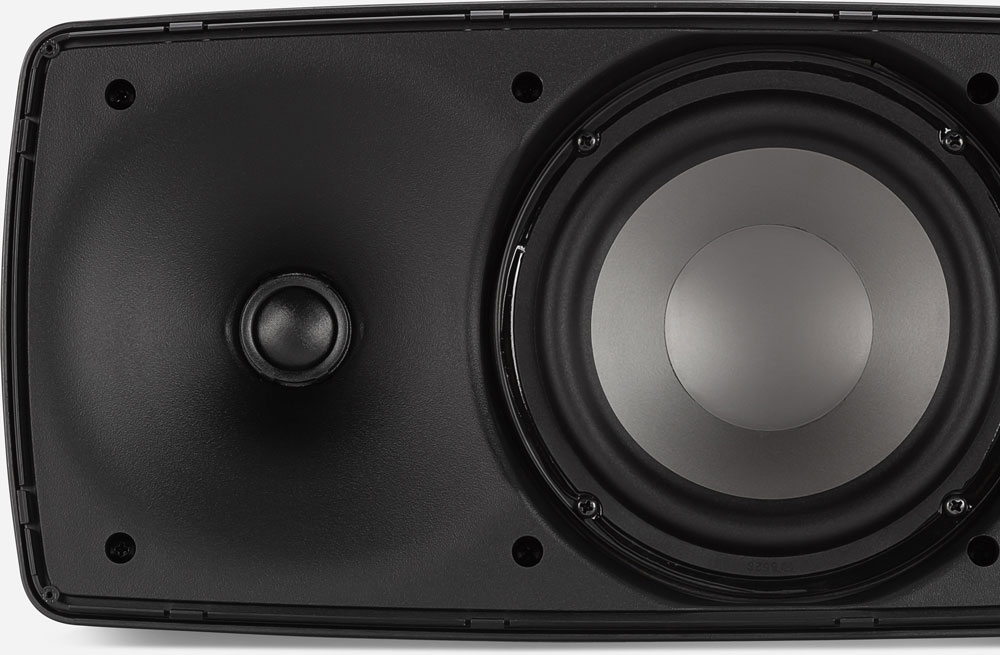

  • 6.5" high power woofer
  • 1" neodymium dome tweeter
  • Self-extinguishing plastic cabinet and steel front grille

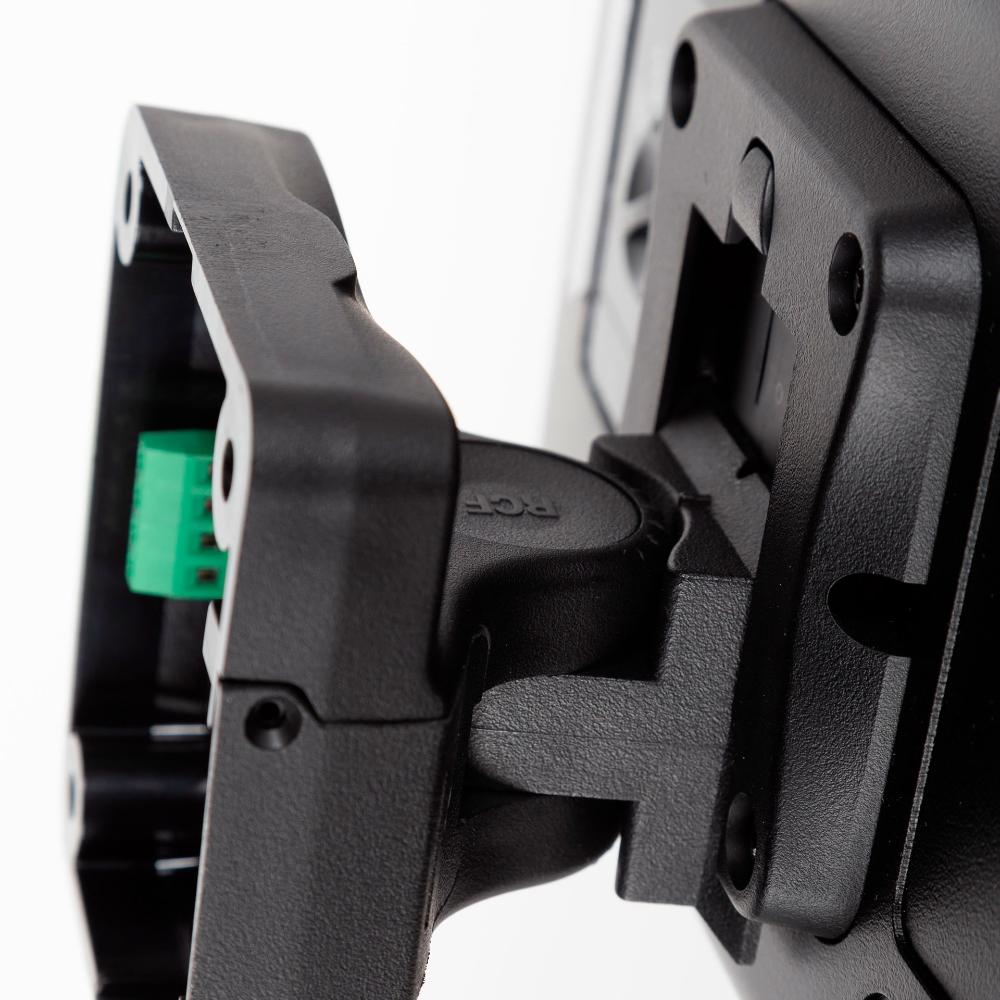

  • Connection board integrated into the wall support
  • 4 pole EUROBLOCK connector (audio input and parallel link output)
  • 5 different power levels selectable

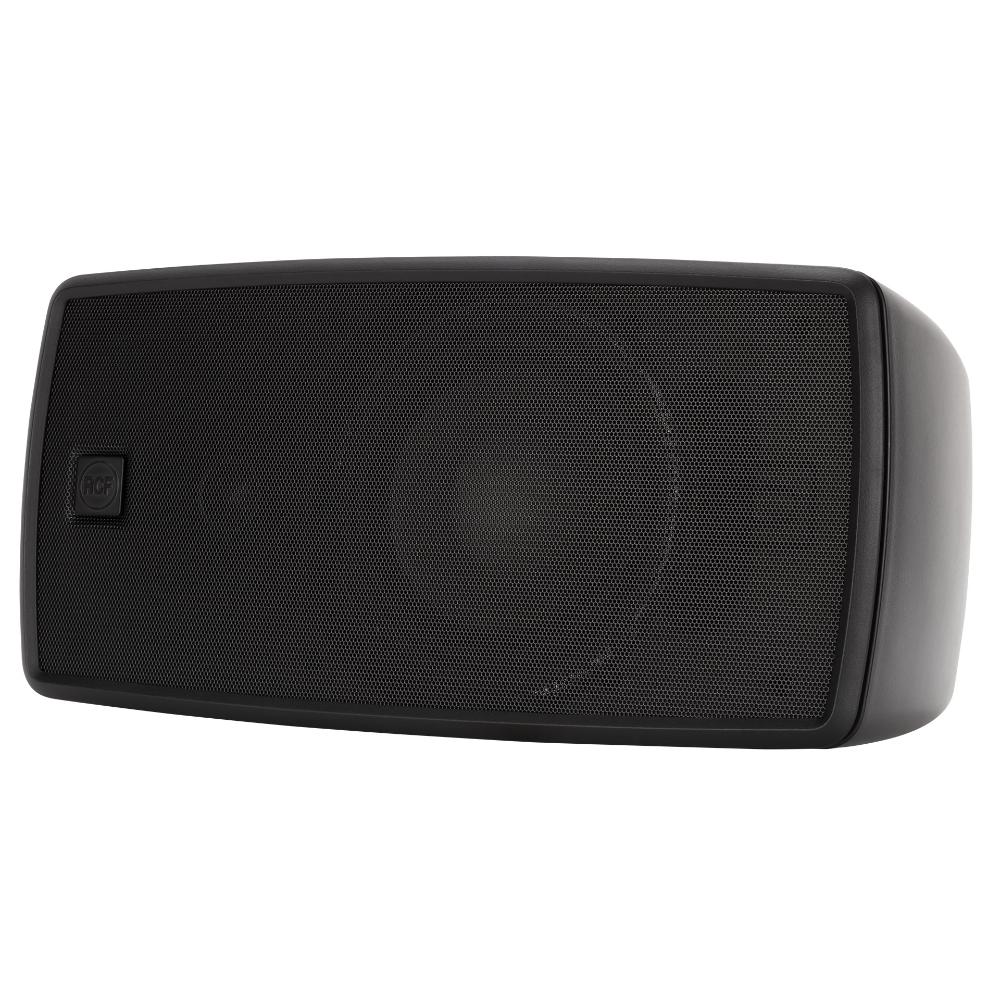

WMR 60T is a multi-purpose two-way wall-mounted speaker, suitable for a wide range of applications. Thanks to its elegant and discreet design and accurate details, WMR 60T pairs any building's aesthetic. The high-quality transducers guarantee a precise music reproduction of the entire frequency band and provide impressive sound pressure levels for such a compact enclosure. The installation is easy thanks to the dedicated connection board inside the (included) wall mount support, which allows the installer to set the desired tilt first, fix the speaker, and finally connect it without the need for any tooling.

READ MORE

Part number:

13100050
WMR 60T
Black - RAL 9005, EAN 8024530017453

13100071
WMR 60T W
White - RAL 9003, EAN 8024530020026

Multipurpose sound

Music nurtures engagement and improves the feeling of hospitality provided by the environment. With a wide conical coverage angle of 140° x 100°, WMR speakers feature a two-way configuration with a bass-reflex cabinet design, ideal for both speech and music reproduction.

All products designed for Business Music applications offer optimal background performance and consistent tonal quality across all the Series preserving the same performance even during high-powered foreground music. The combination of modern monochrome and discreet design blends into any environment.
Responsive Image
Responsive Image

Uncompromised performance

Quality components and careful acoustic design make the WMR Series a perfect choice for demanding applications. Designed for bars and restaurants, leisure hospitality, recreational facilities, theme parks, shopping malls, and corporate spaces. Their extra-wide directivity significantly reduces the number of speakers and installation points.

Smooth installation

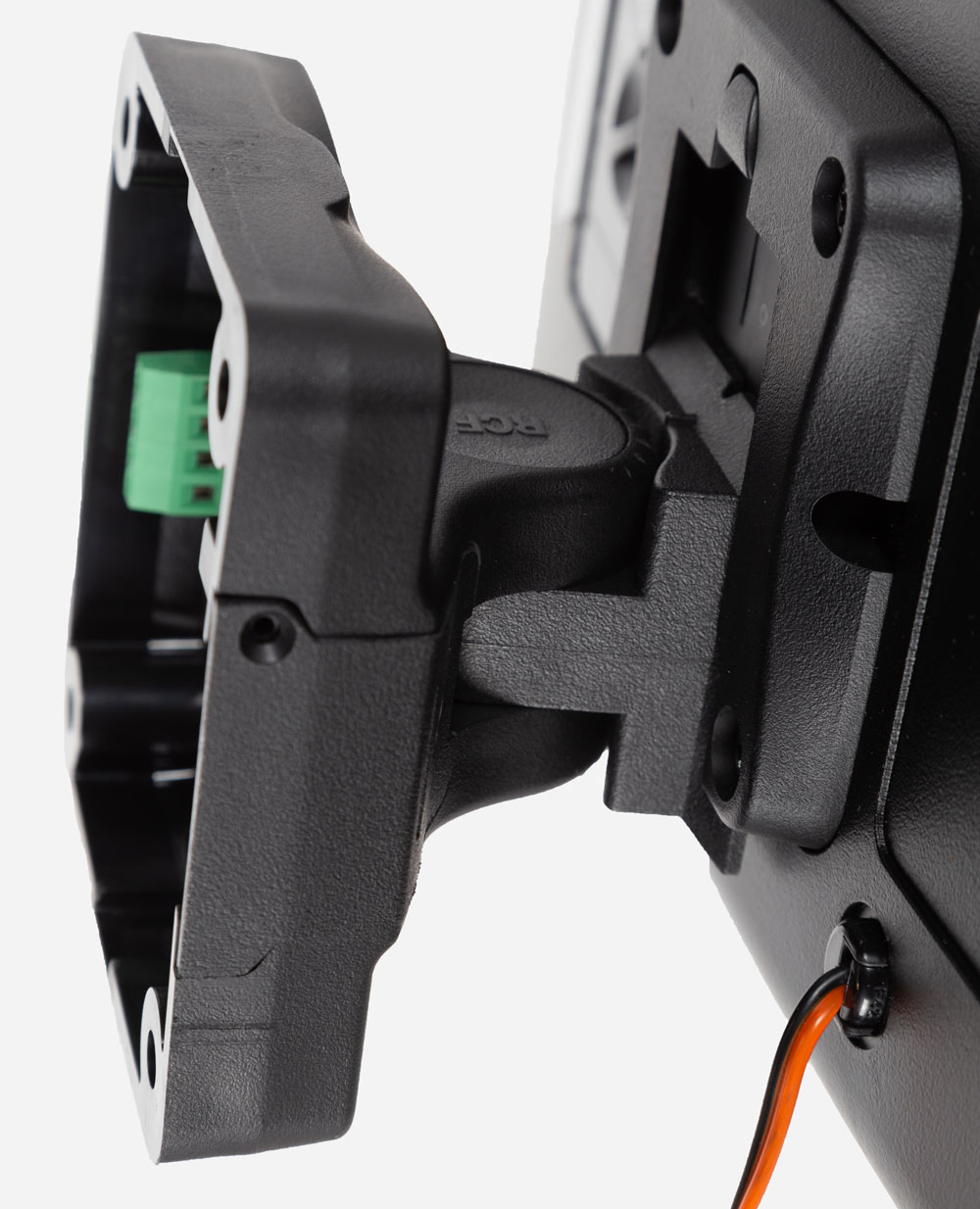

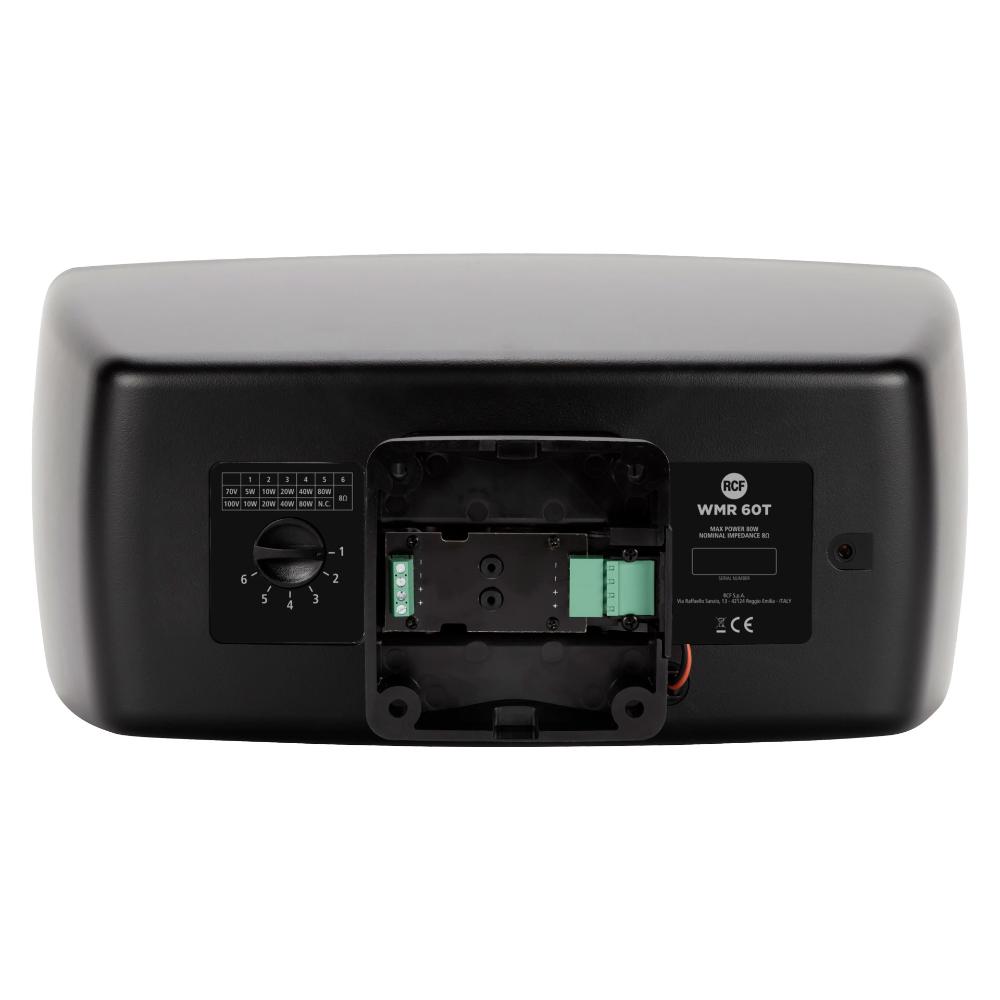

Housed in a compact self-extinguishing plastic cabinet, all models feature Euroblock inputs, a line transformer for 70V-100V systems, and quick and easy installation. The connection panel is embedded inside the wall mount support, for both ease of installation and elegance. The stepped swivel mount is fast to configure and secure.
Responsive Image
Specifications
Acoustical specifications
Frequency Response (-10dB):
70 Hz ÷ 20000 Hz
Max SPL @ 1m:
114 dB
Horizontal coverage angle:
140°
Vertical coverage angle:
100°
System Sensitivity:
89 dB
Power section
Amplification:
Full Range
Nominal Impedance:
8 ohm
Power Handling:
80 W RMS
Peak Power Handling:
320 W PEAK
Recommended Amplifier:
160 W
Protections:
Bulb lamp
Crossover Frequencies:
2500
Transducers
Dome Tweeter:
1.0'' neo, 1.0'' v.c
Woofer:
6.5'', 1.2'' v.c
Input/Output section
Input connectors:
Euroblock
Output connectors:
Euroblock
Constant Voltage Transformer:
70/100 V
Power selection 1:
80 W - 125 ohm
Power selection 2:
40 W - 250 ohm
Power selection 3:
20 W - 500 ohm
Power selection 4:
10 W - 1000 ohm
Power selection 5:
5 W - 2000 ohm
Standard compliance
IP protection grade:
IP 55
Safety agency:
CE compliant, UL 1480A
Physical specifications
Cabinet/Case Material:
ABS
Hardware:
Wall mount bracket
Grille:
Steel
Color:
Black - RAL 9005, White - RAL 9003
Size
Height:
403 mm / 15.87 inches
Width:
193 mm / 7.6 inches
Depth:
293 mm / 11.54 inches
Weight:
6 kg / 13.23 lbs
Shipping information
Package Height:
298 mm / 11.73 inches
Package Width:
468 mm / 18.43 inches
Package Depth:
338 mm / 13.31 inches
Package Weight:
7.5 kg / 16.53 lbs
