COMMERCIAL AUDIO BUSINESS MUSIC

PL 6X

COAXIAL CEILING SPEAKER
  • 6" woofer with 1" dome tweeter
  • Power selectable (70 V / 100 V): 12 W – 6 W – 3 W – 1.5 W
  • 92 dB sensitivity
  • Colour white RAL 9003 and black RAL 9005
Where to buy
Features
  • 6" woofer with 1" dome tweeter
  • Power selectable (70 V / 100 V): 12 W – 6 W – 3 W – 1.5 W
  • 92 dB sensitivity
  • Colour white RAL 9003 and black RAL 9005
  • Plastic frame UL 94 V0, aluminium grille

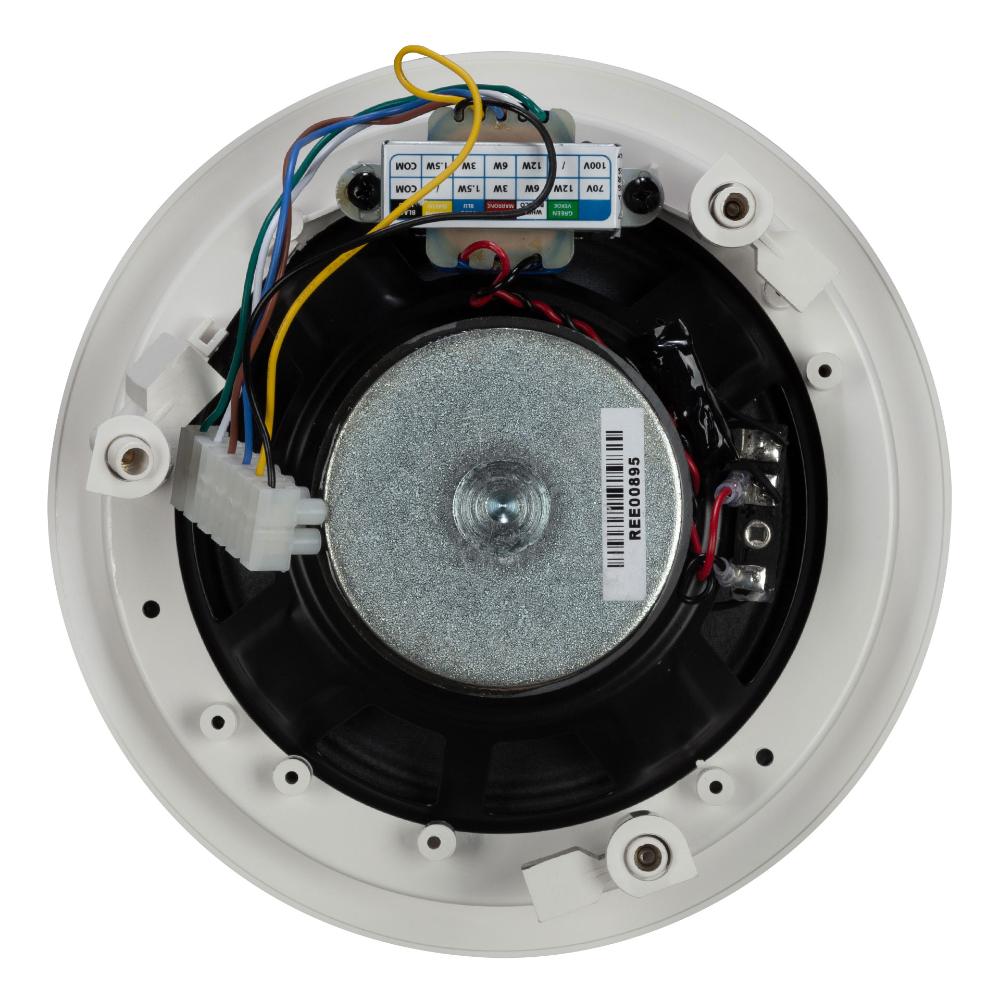

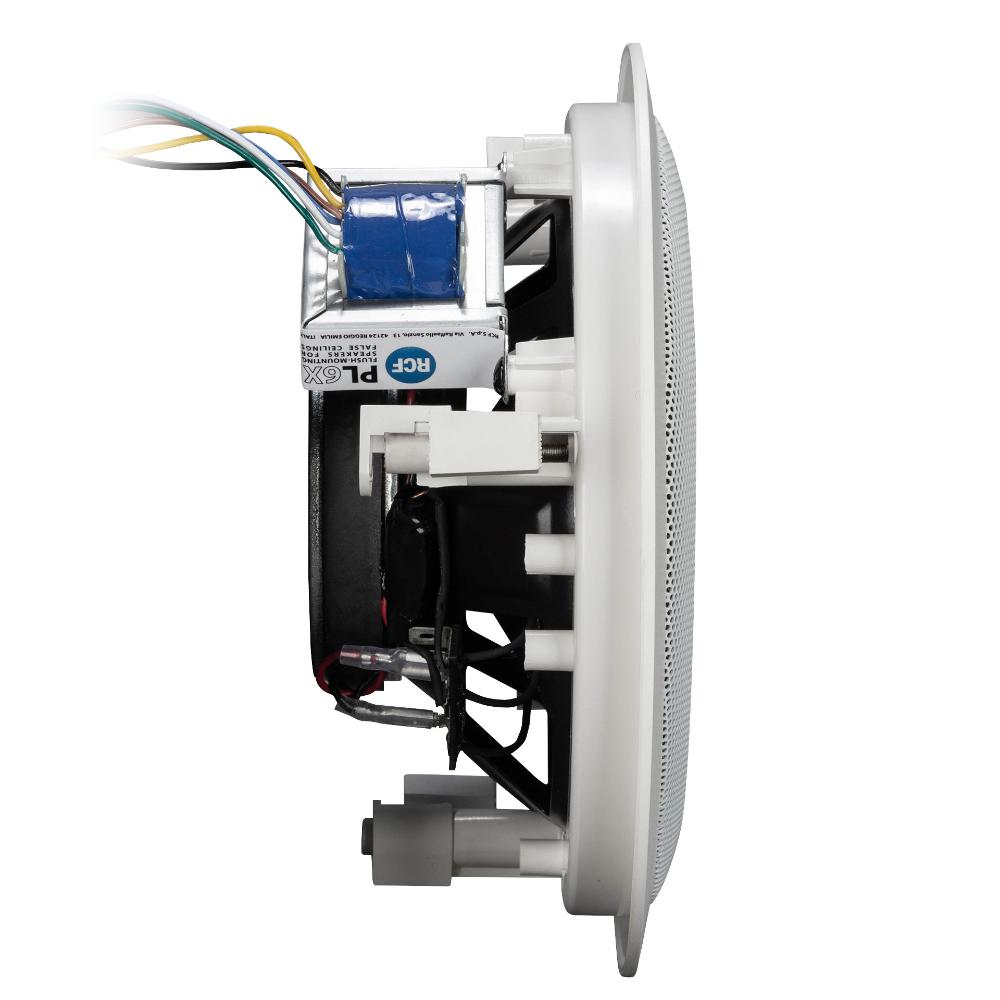

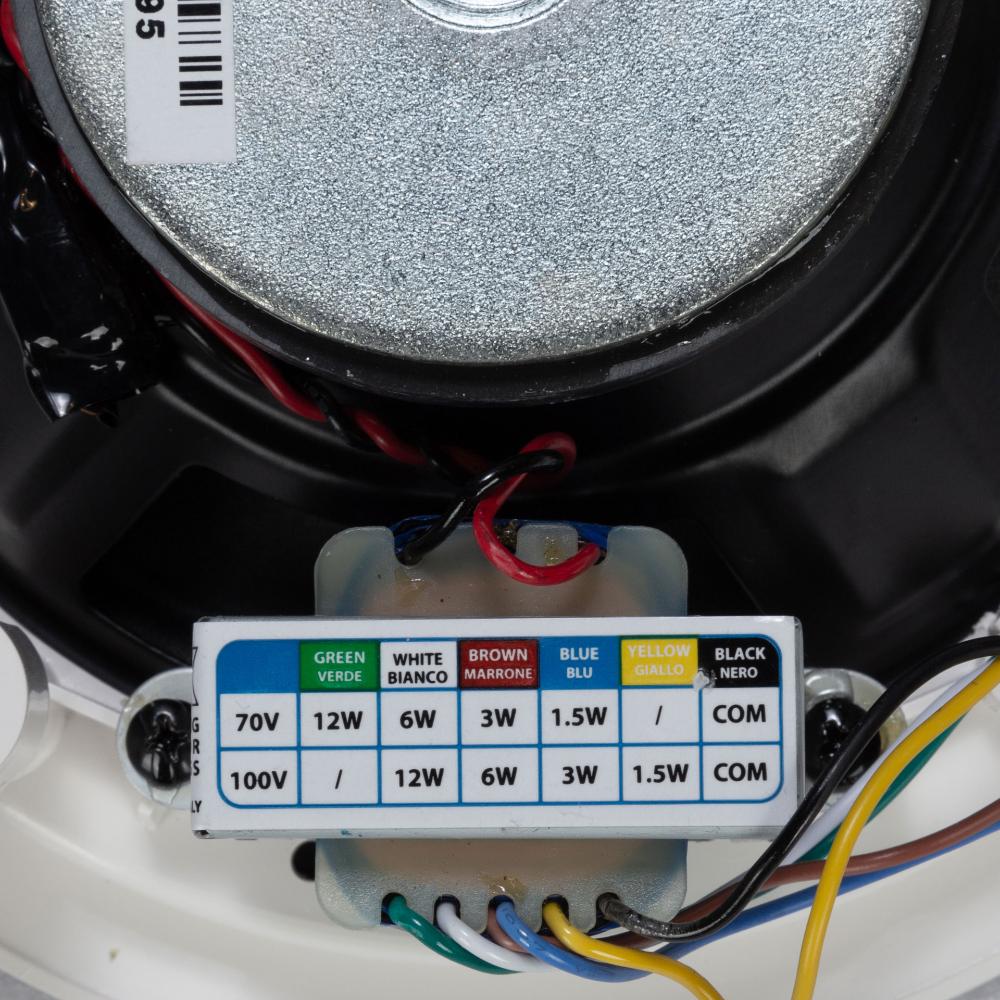

PL 6X is a ceiling speakers featuring elegant and innovative design that can be flushmounted in false ceilings or panels. Incorporating a 6” coaxial woofer with a 1” tweeter placed on a bridge support. PL 6X is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.

Part number:

13100087

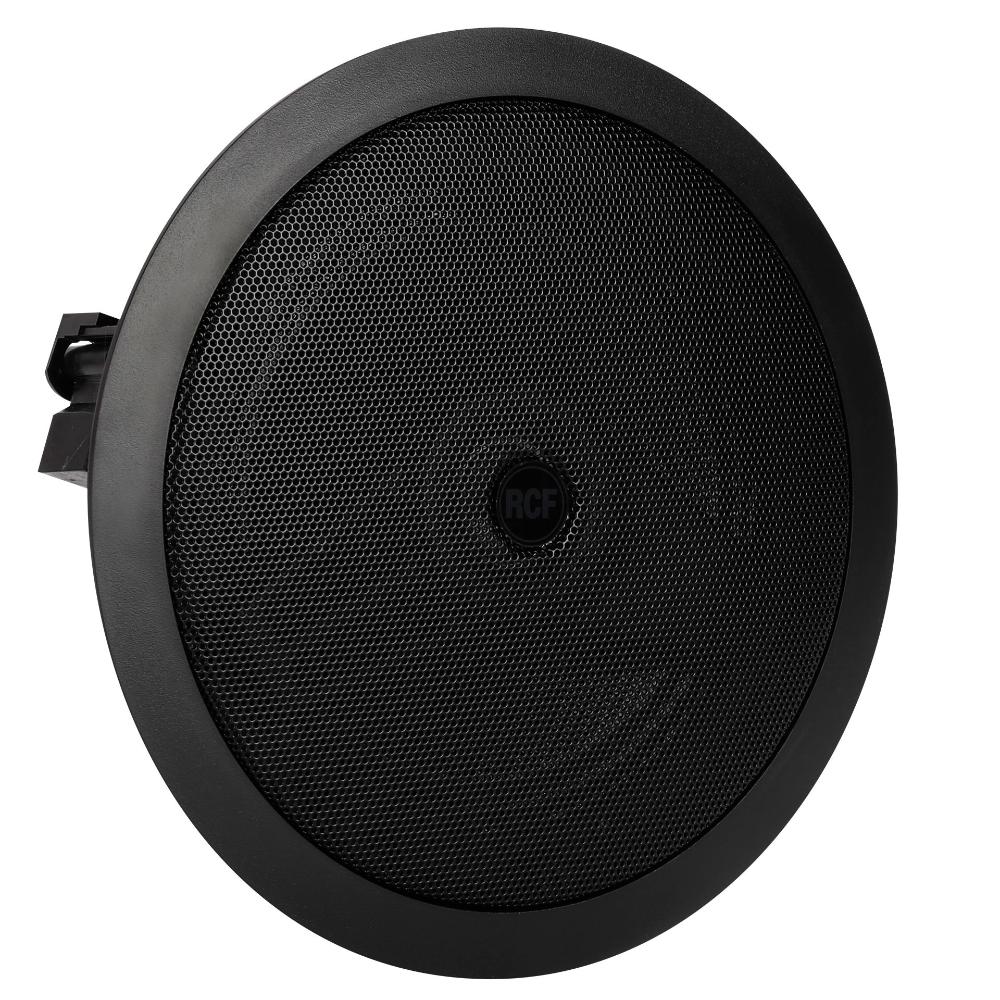

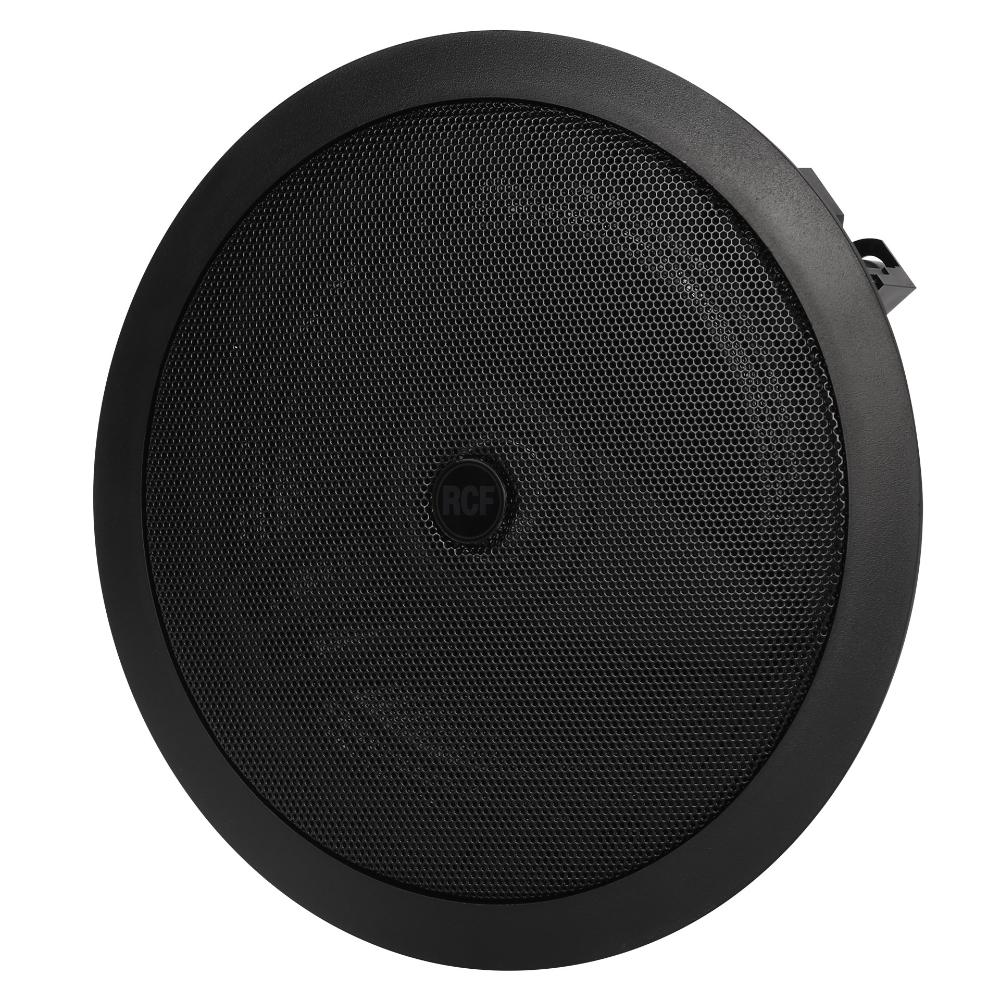

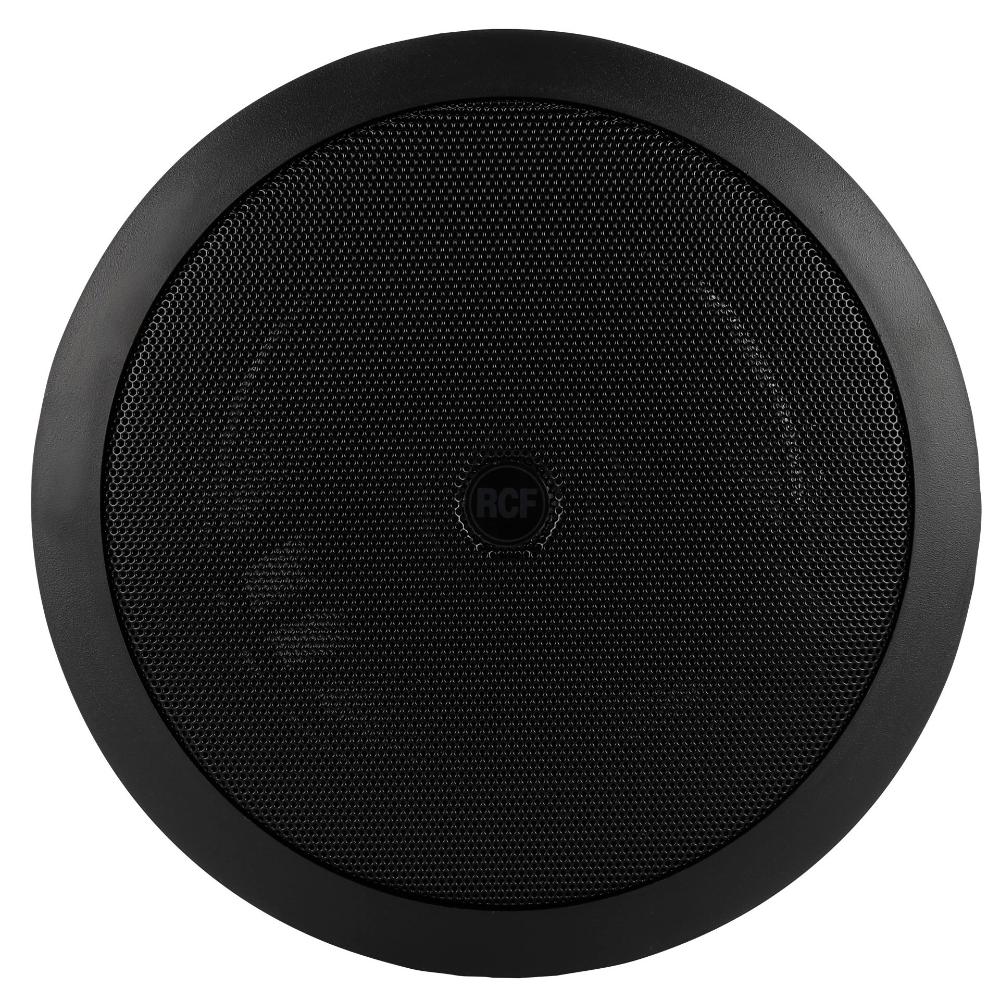

PL 6X B
Black - RAL 9005, EAN 8024530018467

13133042

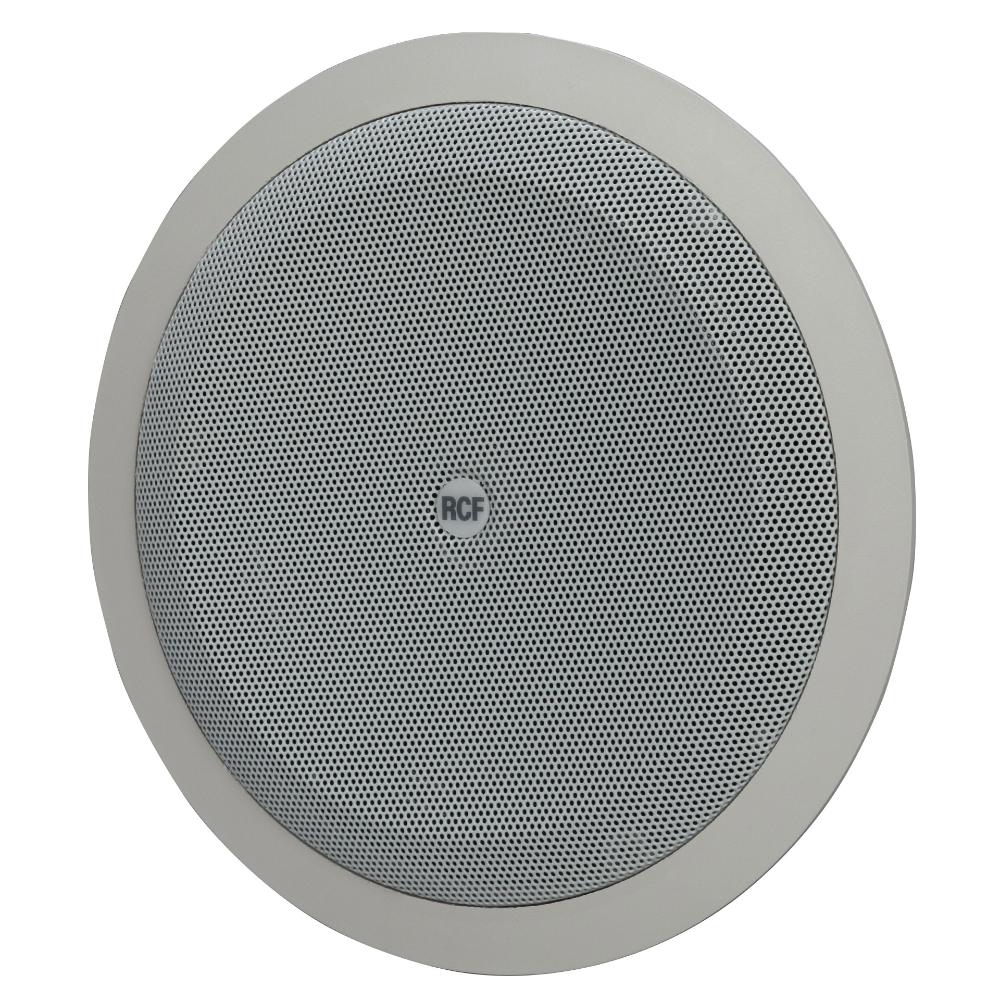

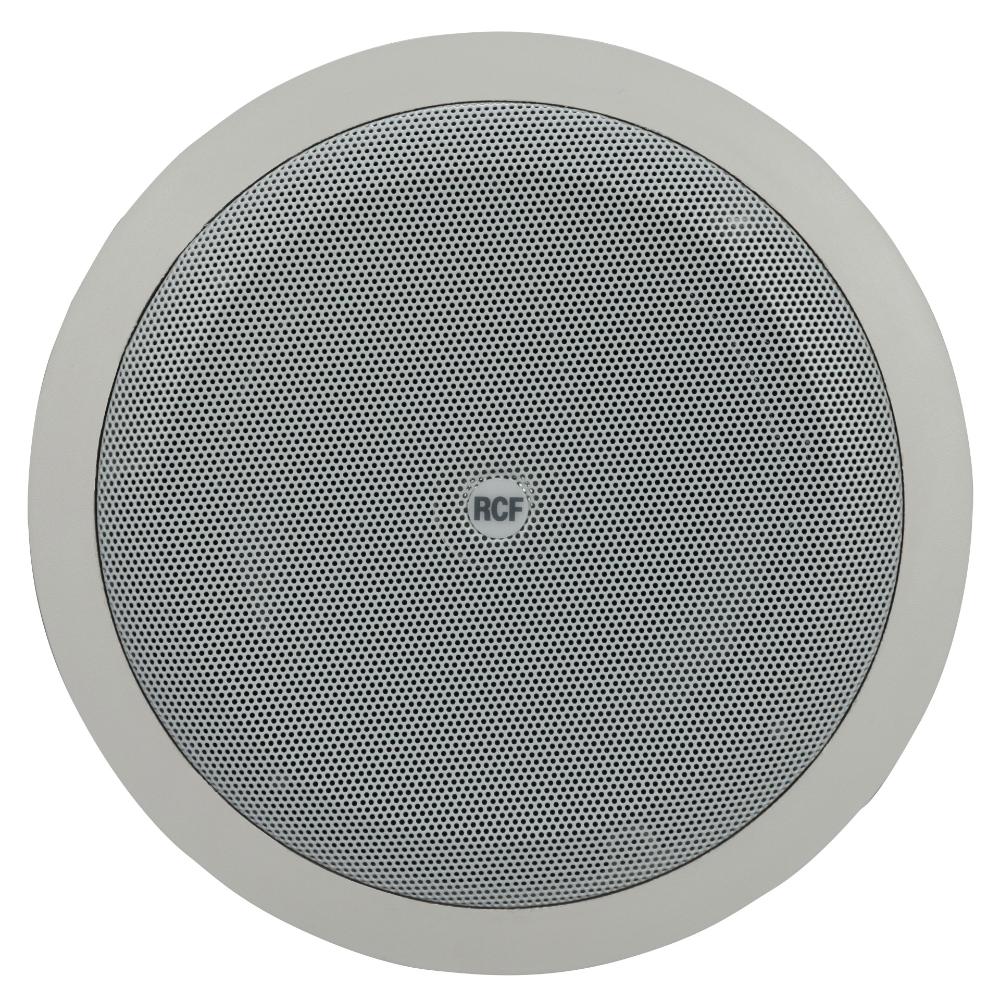

PL 6X
White - RAL 9003, EAN 8024530004972

Specifications
Acoustical specifications
Frequency Response (-10dB):
70 Hz ÷ 20000 Hz
Max SPL @ 1m:
106 dB
Coverage angle:
100°
System Sensitivity:
92 dB
Power section
Power Handling:
12 W RMS
Peak Power Handling:
48 W PEAK
Recommended Amplifier:
24 W
Transducers
Dome Tweeter:
1.0''
Woofer:
6.0''
Input/Output section
Input connectors:
Screw Terminals
Output connectors:
Screw Terminals

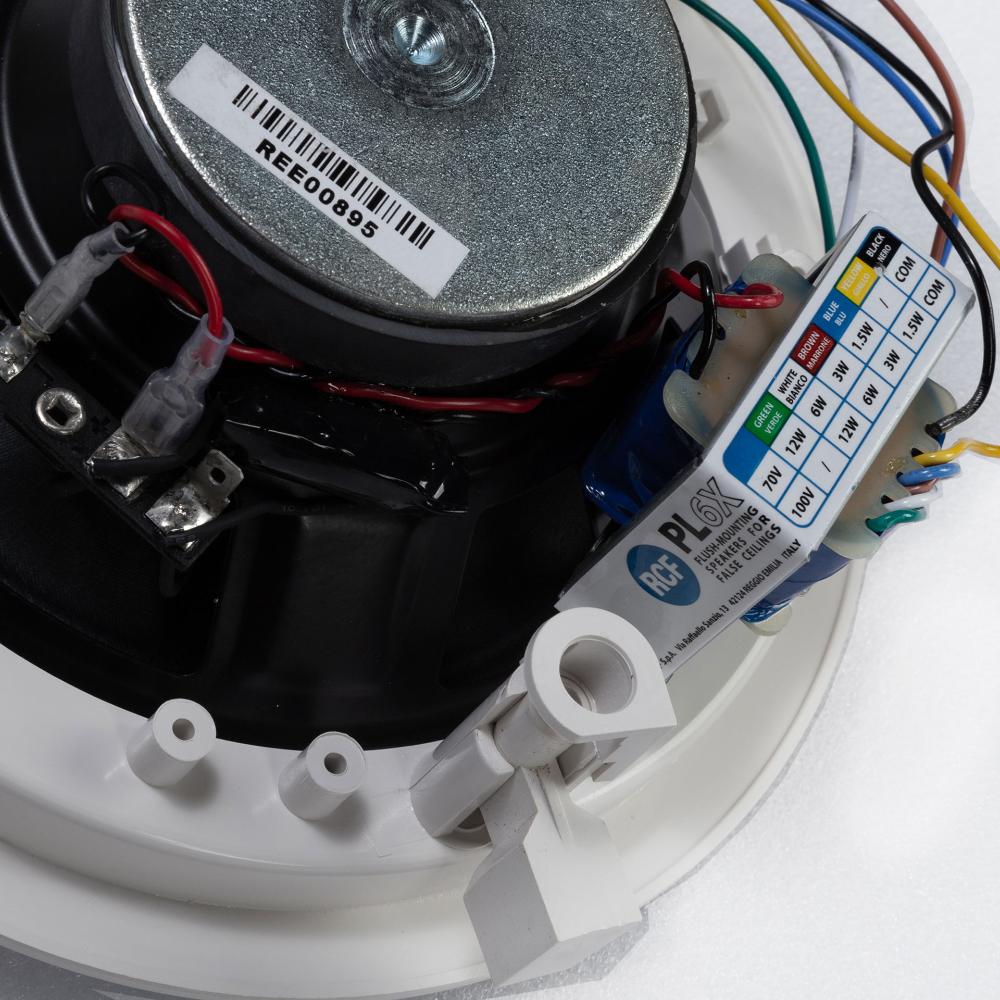

Constant Voltage Transformer:
70/100 V
Power selection 1:
12 W - 833 ohm
Power selection 2:
6 W - 1667 ohm
Power selection 3:
3 W - 3333 ohm
Power selection 4:
1.5 W - 6667 ohm
Standard compliance
IP protection grade:
IP 44
Physical specifications
Cabinet/Case Material:
Plastic
Hardware:
Plastic Material
Grille:
Aluminium
Color:
White - RAL 9003, Black - RAL 9005
Size
Depth:
73 mm / 2.87 inches
Recessed Depth:
66 mm / 2.6 inches
Diameter:
204 mm / 8.03 inches
Cut out diameter:
182 mm / 7.17 inches
Weight:
0.78 kg / 1.72 lbs
Shipping information
Package Height:
240 mm / 9.45 inches
Package Width:
240 mm / 9.45 inches
Package Depth:
110 mm / 4.33 inches
Package Weight:
1.56 kg / 3.44 lbs
