BUSINESS MUSIC

DMA 162

TWO CHANNELS MATRIX AMPLIFIER
  • 2 x 160 W Class-D power amplifier
  • Full on-board processing
  • Flexible and scalable multi-room architecture
  • Suitable for desktop or rack installation
RDNet
Where to buy
Features
  • 2 x 160 W Class-D power amplifier
  • 20 ÷ 20000 Hz frequency range
  • Full on-board processing
  • RCF speakers’ presets
  • Proprietary bass enhancer algorithm
  • FiRPHASE linear phase filters
  • Flexible and scalable multi-room architecture
  • Suitable for desktop or rack installation
  • RDNet ready for networked management
  • Remote controls and paging console accessories

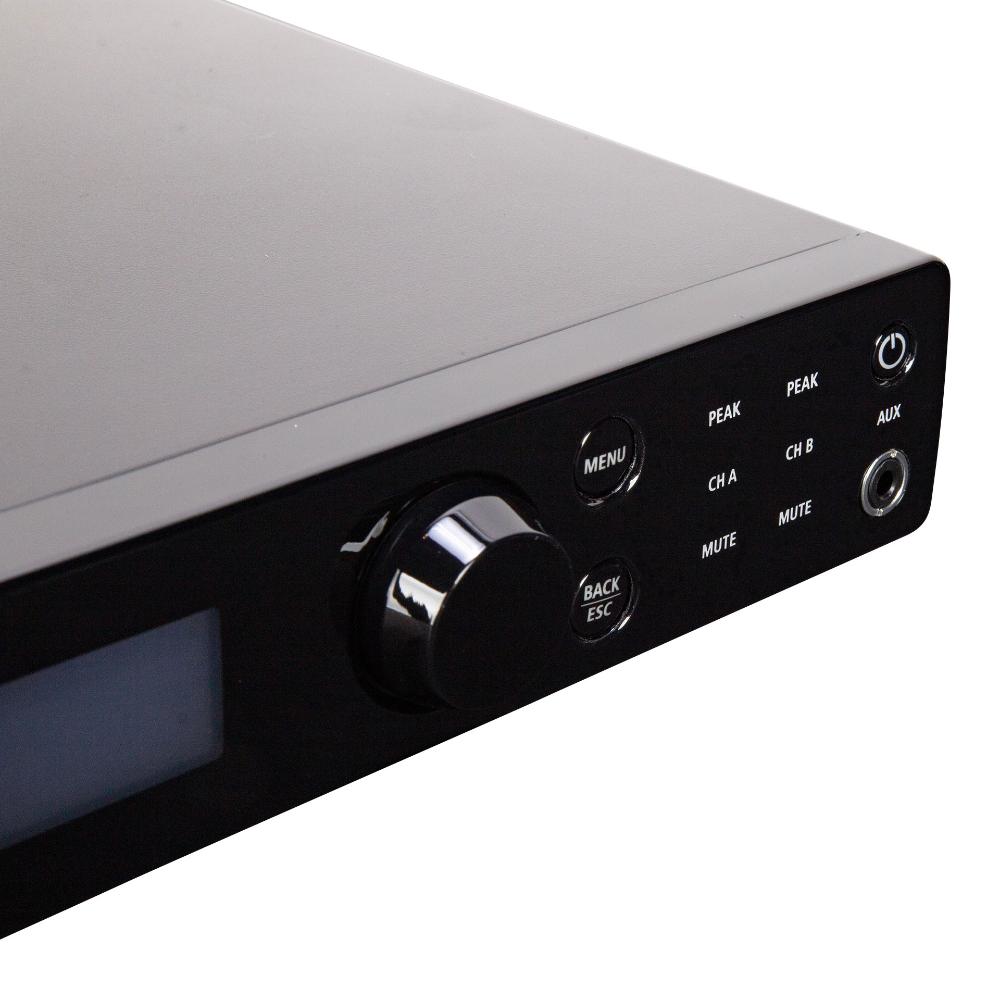

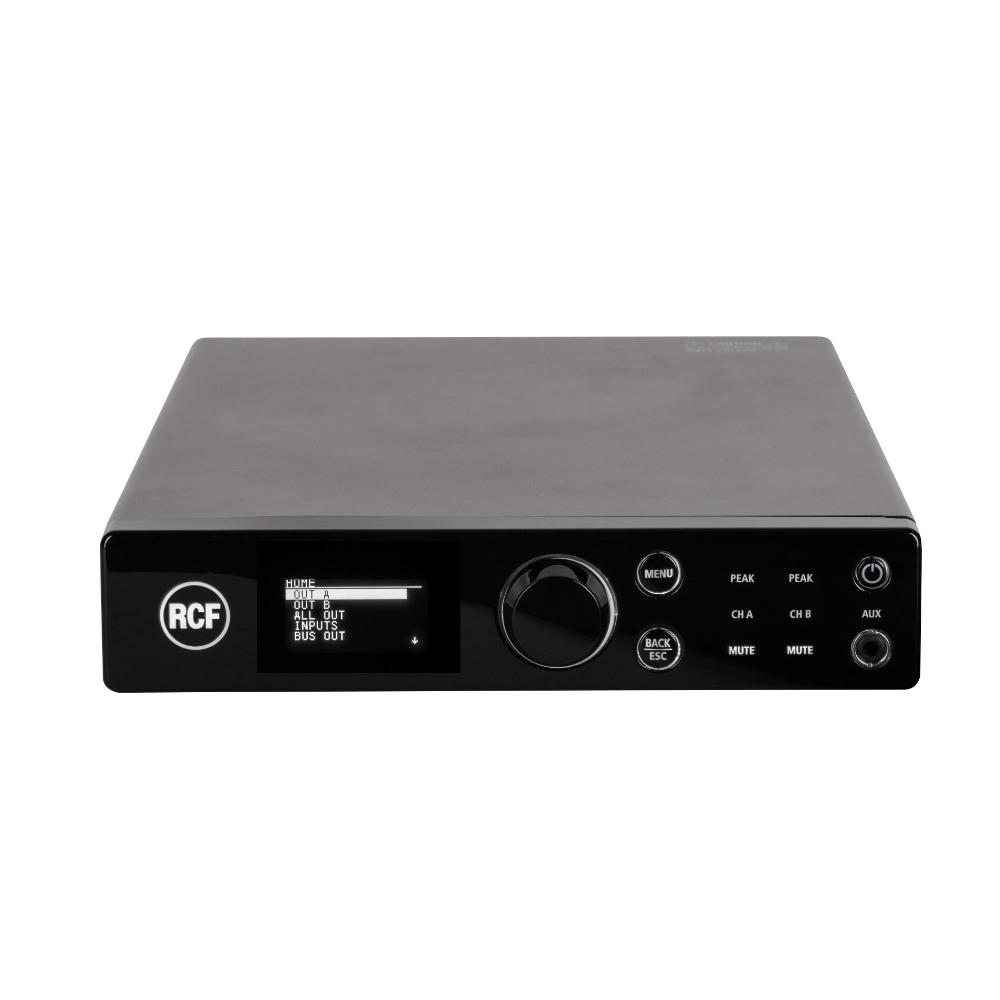

DMA 162 is a two-channel class-D matrix amplifiers equipped with a powerful DSP platform, allowing managing inputs and outputs in terms of routing and equalization (a complete set of processing functions is available, including PEQ, FIR filters, bass enhancement, limiters, compressors and environmental equalization); moreover, dedicated presets for RCF speakers have been implemented to optimize their acoustic performance. It can distribute 4 audio channels to DMA 162P units through an analogue audio BUS, combining a flexible and scalable multi-room architecture with an easy connection and installation. Its configuration is simple and user friendly and can be carried out through either its front panel controls (with OLED display) or RDNet. Thanks to its installation flexibility, accurate design, and robustness, it is ideal for a wide range of business music and installed sound applications.

READ MORE RDNet Software

Part number:

12100027
DMA 162 EU
EU, EAN 8024530017156

12100041
DMA 162 US
US, EAN 8024530018412

12100044
DMA 162 UK
UK, EAN 8024530018443

Responsive Image

DMA Series

Class-D amplifiers equipped with a powerful DSP platform, allowing managing inputs and outputs in terms of routing and equalization. A complete set of processing functions is available, including speaker presets, proprietary bass enhancer algorithm, FIR filters, and environmental equalization. Thanks to its extremely compact size, accurate design, and robustness, it is ideal for a wide range of applications.

Scalable architecture

To fit with any installation need, DMA amplifiers have been designed with a highly scalable architecture and each device can distribute 4 audio channels to satellite units. This allows increasing installed power and creating a multi-room architecture. The connection can be done with just 1 CAT5e cable. Each satellite unit can be differently set using the DIP-SWITCH on the rear panel to receive the desired channels.

Tecnical specifications

2 X 160 W ​@ 4 OHM OR 320 W hi-Z

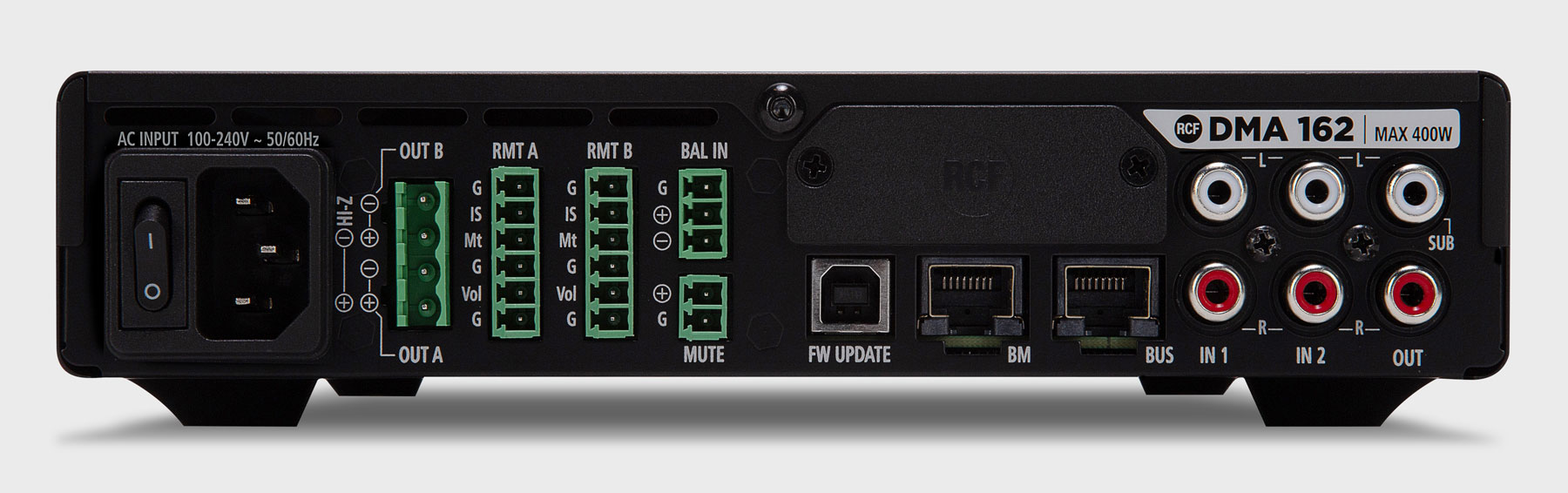

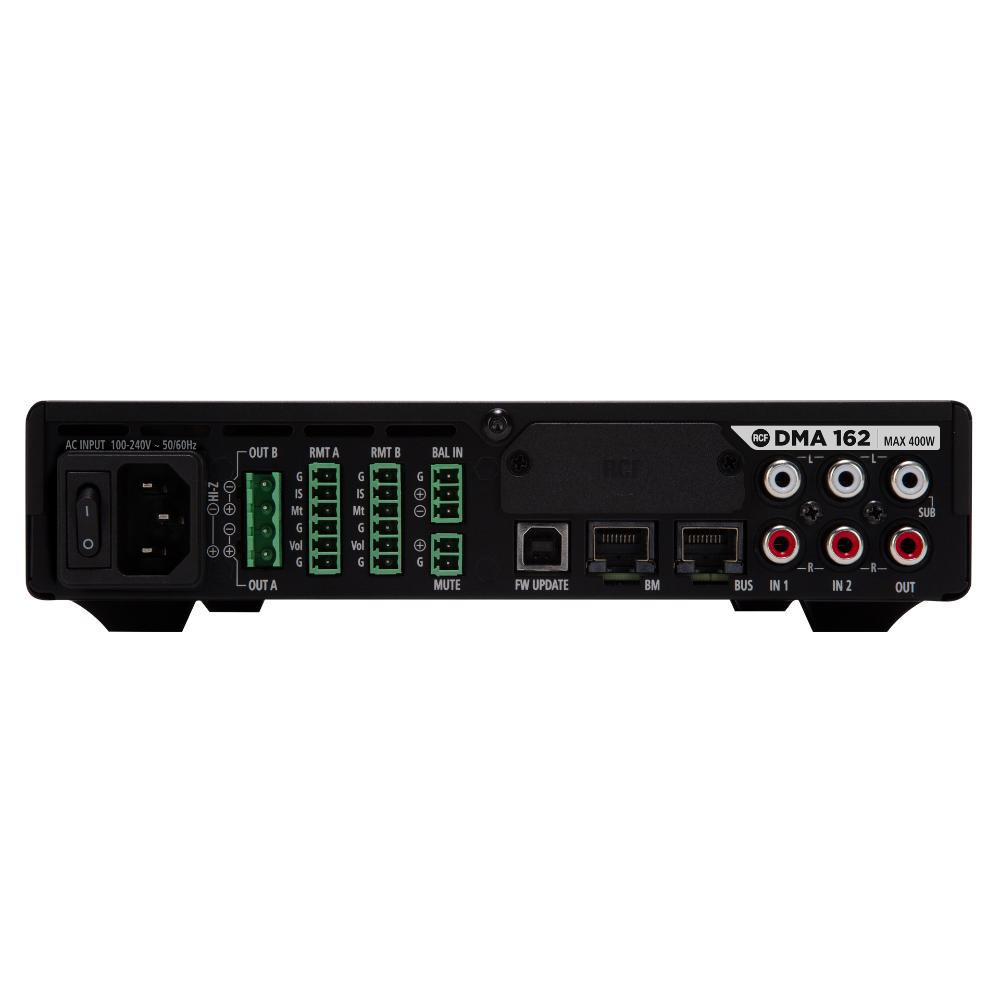

Inputs

  • 2 x LINE STEREO( RCA)
    (1 alternative to AUX IN on the front panel)
  • 1 x MIC/LINE balanced (removable terminal)
  • 1 x PAGING (RJ 45)

Outputs (signal)

  • 1 x STEREO LINE/SUB (RCA)
  • 1 x 4 CHANNELS AUDIO BUS (RJ 45)

Controls

  • 1 x REMOTE MUTE CONTACT
  • 2 x WALL MOUNT REMOTE CONTROLS
  • 1 x CTRL + FIRMWARE UPDATE USB PORT
Responsive Image

Full on-board processing

Equipped with a powerful DSP platform, DMA units integrate RCF proprietary technologies such as FiRPHASE, a FiR filtering technology, and BASS ENHANCER, a sophisticated algorithm that increases low frequencies perception without affecting the output power.



Speakers presets

Pre-loaded presets, to optimize the performance and equalization of any RCF speaker and to have the right RCF signature sound.

Easy and flexible configuration

RCF Business Music products are ready to use in few steps, even faster when connected to the RDNet networked management.

Responsive Image

RCF RDNet

Networked control and much more
RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.

Application examples

Discover our installation examples for the most common public spaces with configurations, schematics, and product lists.
Responsive Image

Responsive Image

DMA CONNECT APP

The DMA Connect app provides wireless control of RCF DMA Series Business Music amplifiers. With its functionality and user-friendly interface, it allows access to DMA settings such as: input and output levels, equalizers, routing, speaker preset selection, device information, and real-time VU-meters. Advanced settings for expert users are also available, including customizable names for input, outputs, and devices.
Specifications
Amplifier specifications
Amplifier Class:
D
Output power (all channels driven):
2 x 160 W @ 4 ohm
2 x 160 W @ 8 ohm
1 x 320 W @ 4 ohm (bridge)
1 x 320 W @ 8 ohm (bridge)
Output power @ 70 V:
1 x 320 W @ 70 V
Frequency Response (-3dB):
20 Hz ÷ 20000 Hz
Distortion (THD+N) @ 1 kHz nominal power:
<0.01 %
Input section
Total number of inputs:
5
Balanced:
2
Unbalanced:
3
Mono:
2
Stereo:
3
VOX:
Yes
Line inputs:
3
Line connectors:
JACK, Picoflex, RCA
Mic+Line inputs:
1
Mic+Line connectors:
Euroblock
VOX:
Yes
Paging inputs:
1
Paging connectors:
RJ45
Paging command:
Contact
General Purpose Inputs (GPI):
1
Output section
Signal output number:
1
Signal output connectors:
RCA
Power output connectors:
Euroblock
Processing
DSP:
Yes
EQ Filters:
Yes
FIR:
Yes
Compressors:
Yes
Tone controls:
Yes
High-pass filter:
80 Hz ÷ 200 Hz
Configuration and control
Configuration:
Front panel, PC Software
RCF speakers presets:
Yes
Protocols for system integration:
Proprietary
RDNet:
Yes
Protections
Cooling:
Forced
Short circuit:
Yes
Thermal:
Yes
DC:
Yes
Fuses:
Yes
VHF (Very High Frequencies):
Yes
Power requirement
Operating voltage:
90-240 V~ 50/60Hz
Power consumption (MAX):
400 W
Standard compliance
Safety agency:
CE compliant, UL 62368-1
Physical specifications
Cabinet/Case Material:
Metal
Color:
Black
Rack mounting:
1/2 19", 1U , Optional rack mounting accessory required
Size
Height:
44 mm / 1.73 inches
Width:
213 mm / 8.39 inches
Depth:
314 mm / 12.36 inches
Weight:
1.7 kg / 3.75 lbs
Shipping information
Package Height:
106 mm / 4.17 inches
Package Width:
360 mm / 14.17 inches
Package Depth:
381 mm / 15 inches
Package Weight:
2.7 kg / 5.95 lbs
