NEW

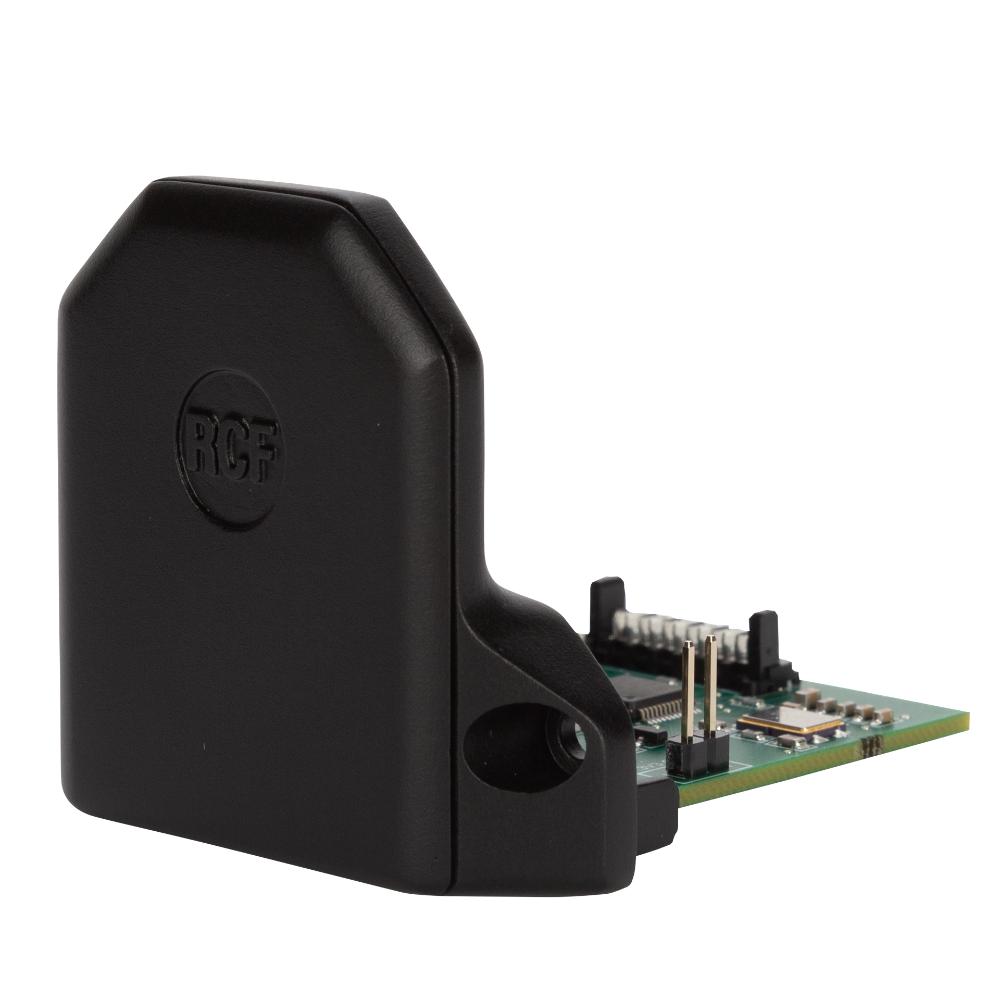

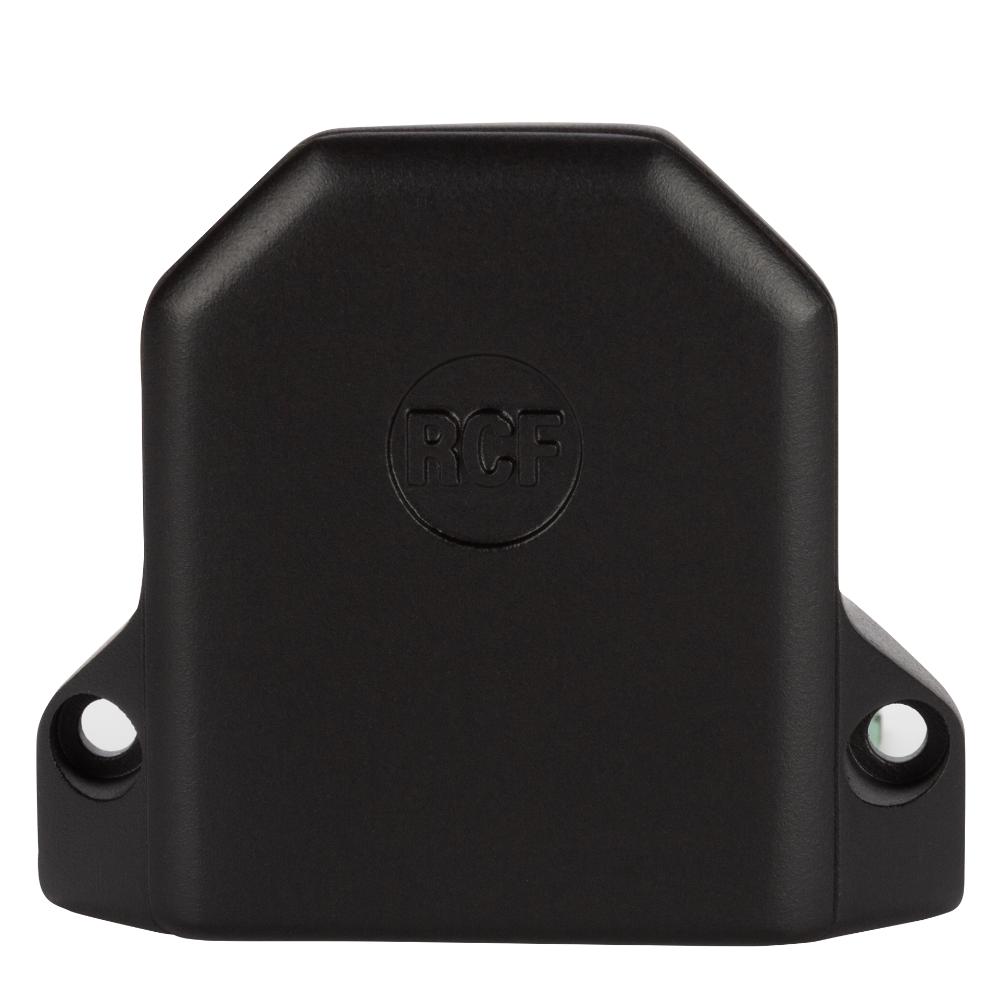

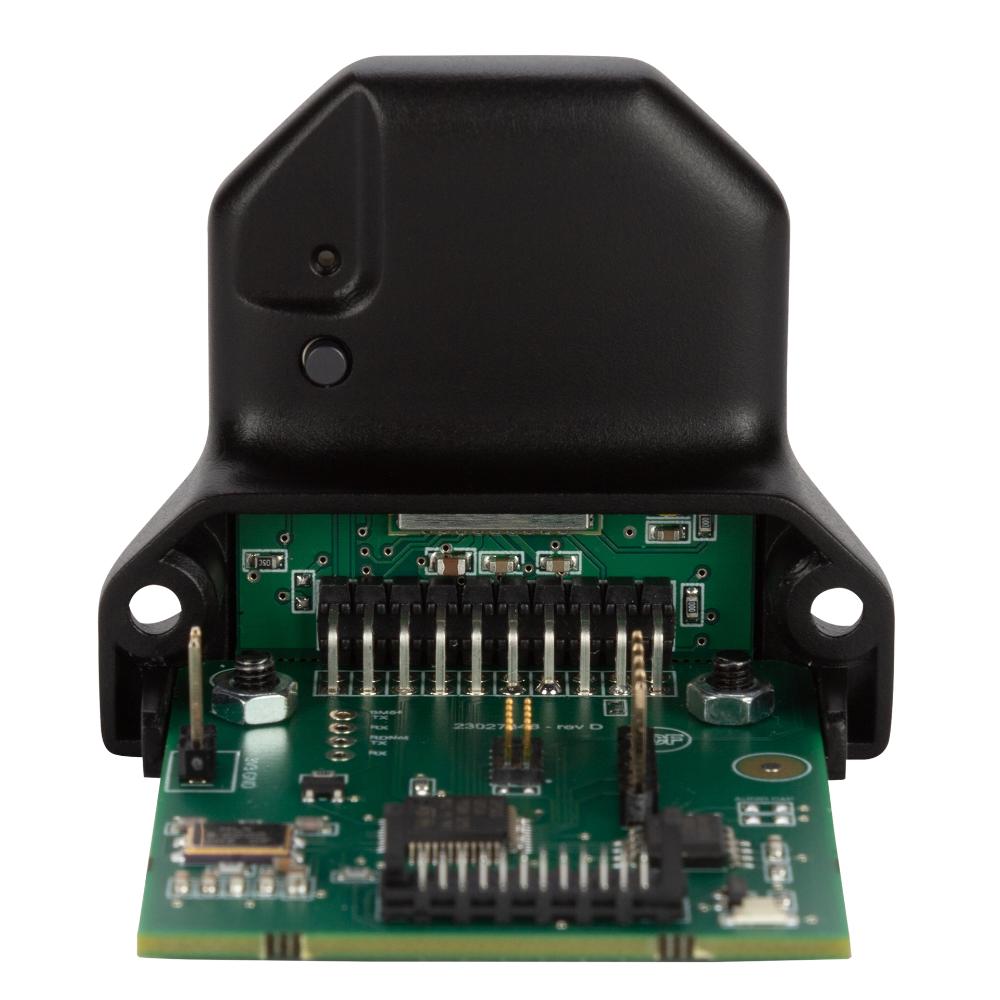

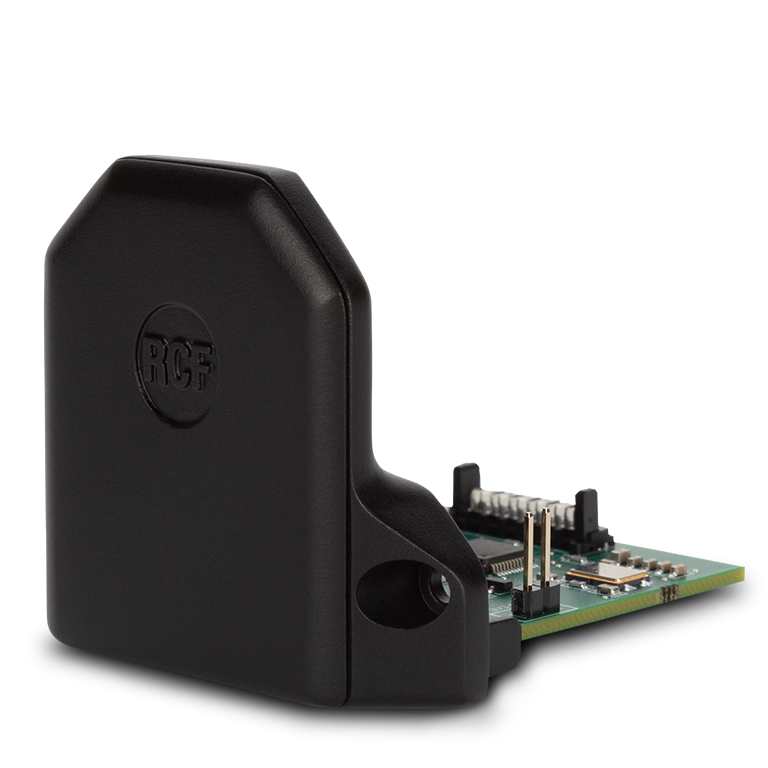

BT BOARD DMA

OPTIONAL BLUETOOTH BOARD
  • Installation inside DMA units
  • Up to 4 pairable devices
  • Audio streaming and control via mobile app
  • No additional power supply required
Where to buy
Features
  • Installation inside DMA units
  • No additional power supply required
  • Up to 4 pairable devices
  • Audio streaming and control via mobile app
  • Bluetooth 5.0. technology
  • Control app available for both Android and iOS devices.

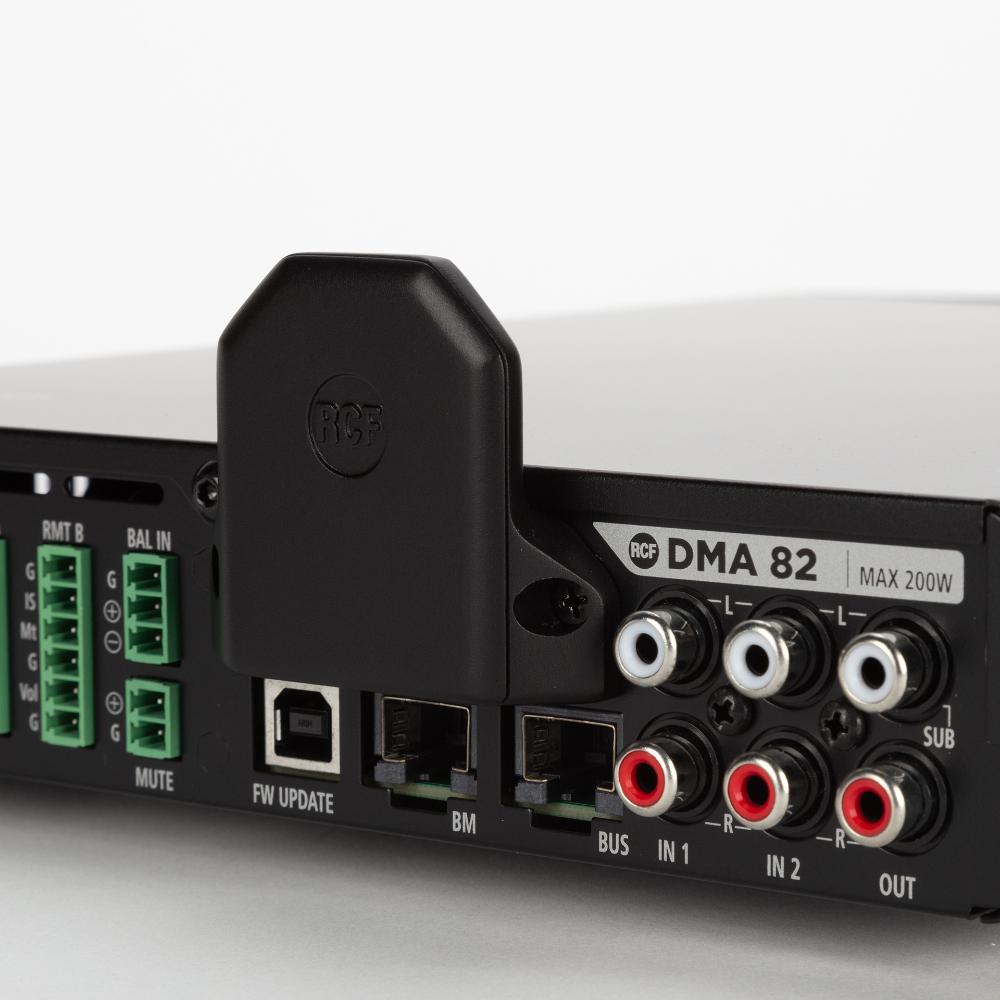

The BT BOARD is an additional board that allows to connect a DMA amplifier to a mobile device using Bluetooth technology. This makes possible to send audio from the mobile device to the amplifier and at the same time control it, in terms of levels and equalization of inputs and outputs. To control the amplifiers, an Android and iOS app is avalable for download.

NEW

Part number:

12399065
BT BOARD DMA
EAN 8024530018788

DMA Connect APP
The DMA Connect app provides wireless control of RCF DMA Series Business Music amplifiers. With its functionality and user-friendly interface, it allows access to DMA settings such as: input and output levels, equalizers, routing, speaker preset selection, device information, and real-time VU-meters. Advanced settings for expert users are also available, including customizable names for input, outputs, and devices.

The app is available as a free download on the Apple App Store and Google Play store. It can be used in combination with BT BOARD DMA, the additional board that connects DMA amplifiers to mobile devices via Bluetooth, both allowing audio streaming and control. DMA Connect offers a complete set of configuration functions and real-time information:

  • Input settings (level, mute, 3-band equalizer)
  • Output settings (level, mute, bass-enhancer, routing, speakers’ preset selection)
  • Global mute
  • Output signals graphic VU-Meters
  • Device information
  • Customizable device, input and outputs names
  • Advanced input management for more skilled users
  • BT BOARD DMA firmware update
Responsive Image

Specifications
General specifications
Compatible models:
DMA 82
DMA 162
DMA 162P
Power supply:
from DMA unit
Number of pairable devices:
4
Audio streaming:
Yes
Amplifier control:
Yes
Technology:
Bluetooth 5.0.
Standard compliance
Safety agency:
CE compliant
Physical specifications
Color:
Black - RAL 9005
Size
Height:
49 mm / 1.93 inches
Width:
56 mm / 2.2 inches
Depth:
56 mm / 2.2 inches
Weight:
0.03 kg / 0.07 lbs
Shipping information
Package Height:
88 mm / 3.46 inches
Package Width:
219 mm / 8.62 inches
Package Depth:
156 mm / 6.14 inches
Package Weight:
0.05 kg / 0.11 lbs
Compatible products
