COMMERCIAL AUDIO BUSINESS MUSIC

DM 41

TWO-WAY COMPACT SPEAKER
  • 3.5" woofer with 1'' dome tweeter
  • Power selectable (100 V): 15 W – 7.5 W – 5 W – 2.5 W – 1.25 W
  • 87 dB sensitivity
  • Colour white RAL 9002 and black RAL 9005
Where to buy
Features
  • 3.5" woofer with 1'' dome tweeter
  • Power selectable (100 V): 15 W – 7.5 W – 5 W – 2.5 W – 1.25 W
  • 87 dB sensitivity
  • Colour white RAL 9002 and black RAL 9005
  • Plastic body UL 94 V0, steel grille
  • Protection grade IP 55

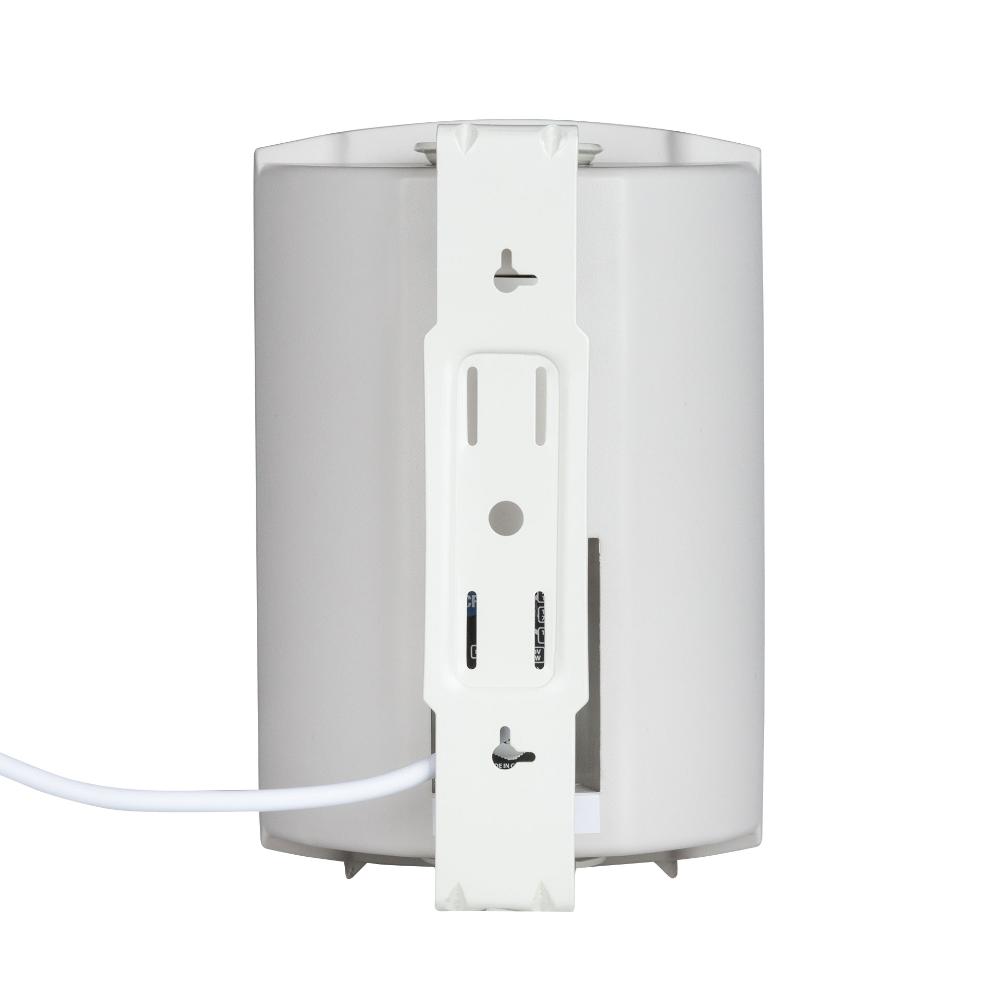

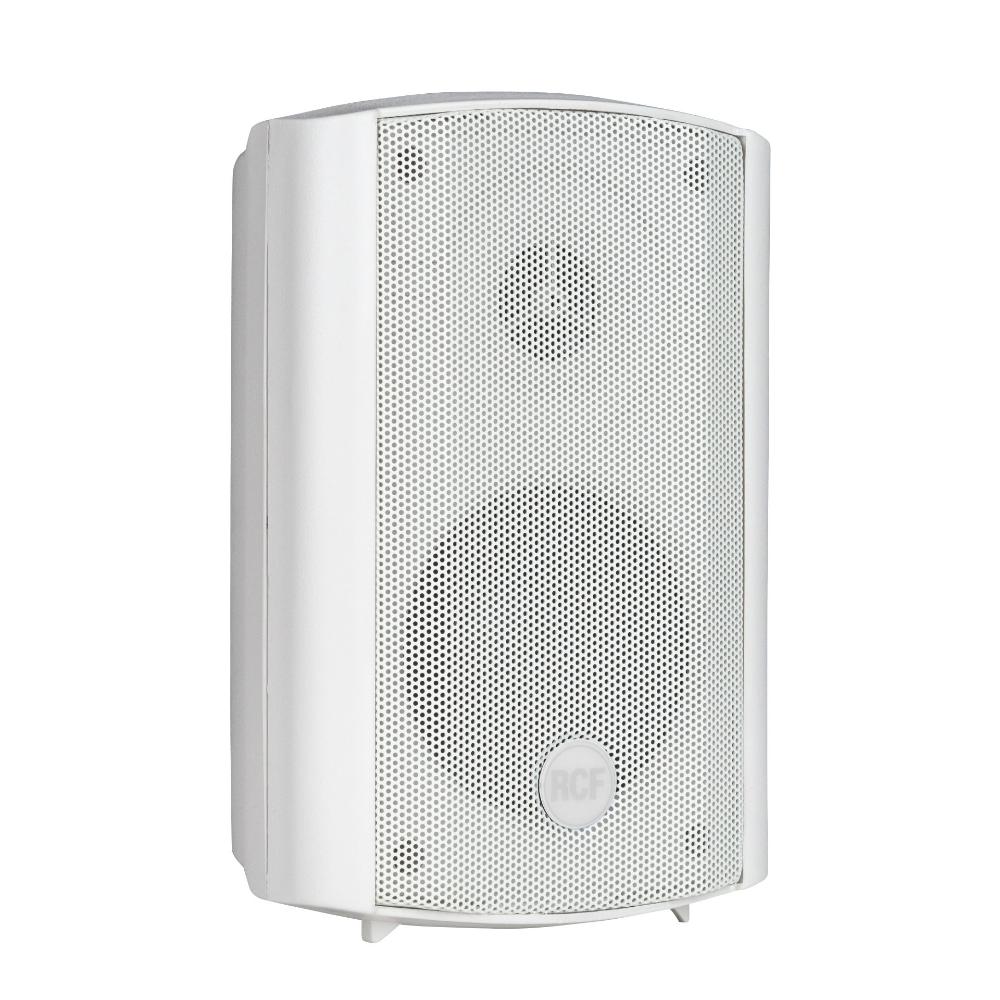

DM 41 is a compact two way speaker designed for constant voltage systems. The speaker provide natural, smooth sound reproduction ideal for use in business music systems and indoor/outdoor background music applications. Connections to the loudspeaker line are made by using the two wire cable coming out from the loudspeaker rear side. The enclosure includes a protective perforated grille and an accessory for the wall mounting.

Part number:

13000049

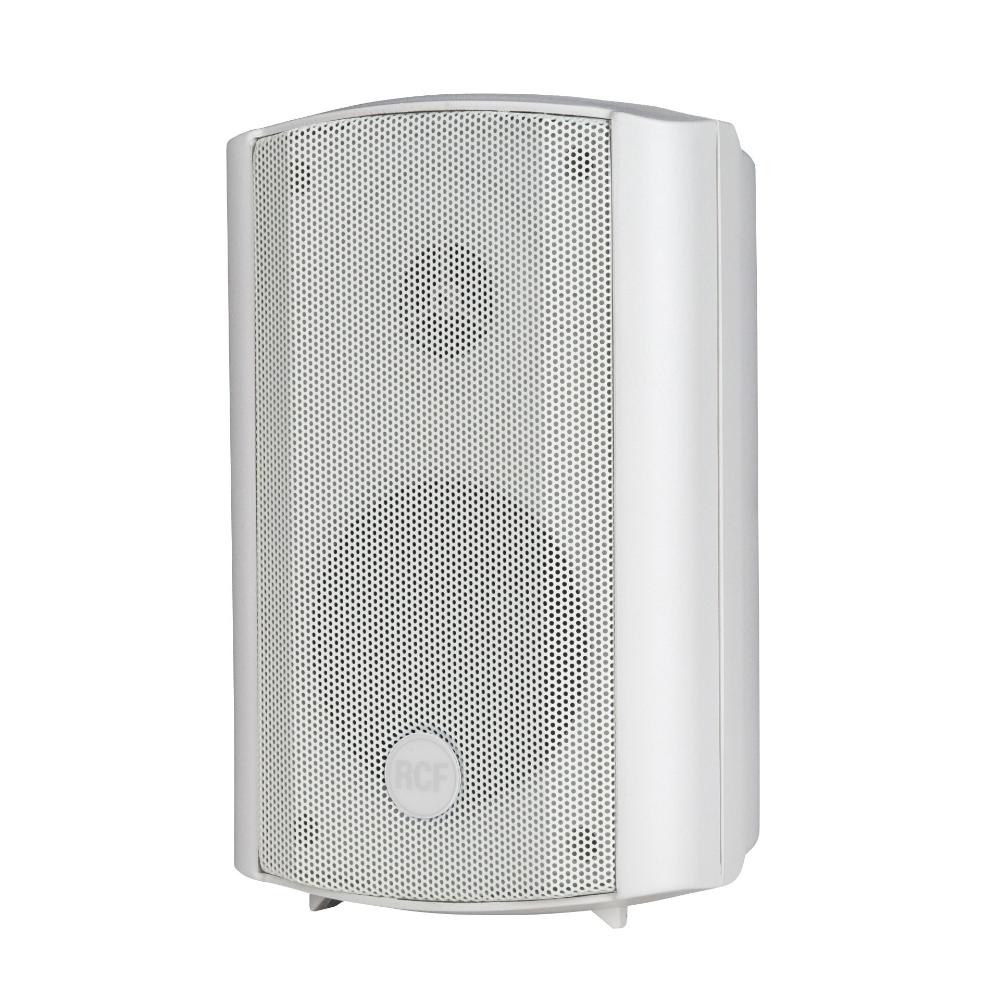

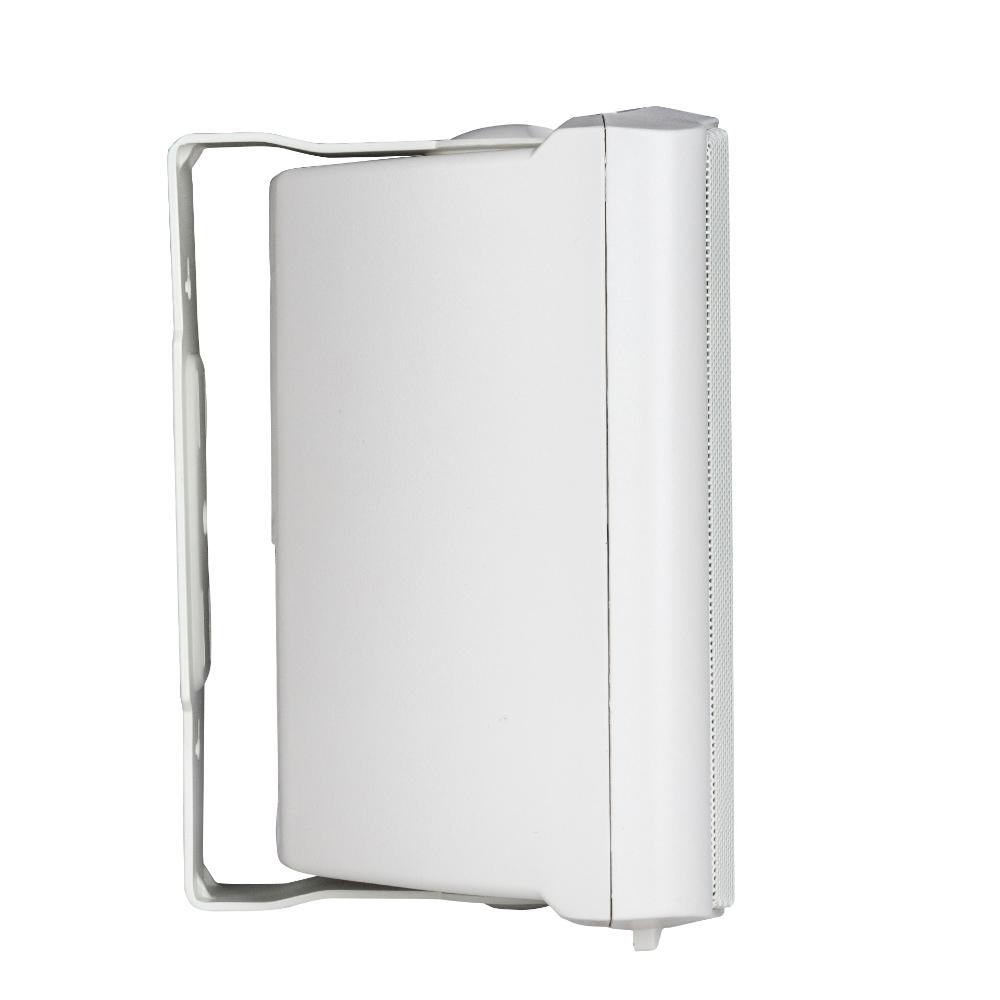

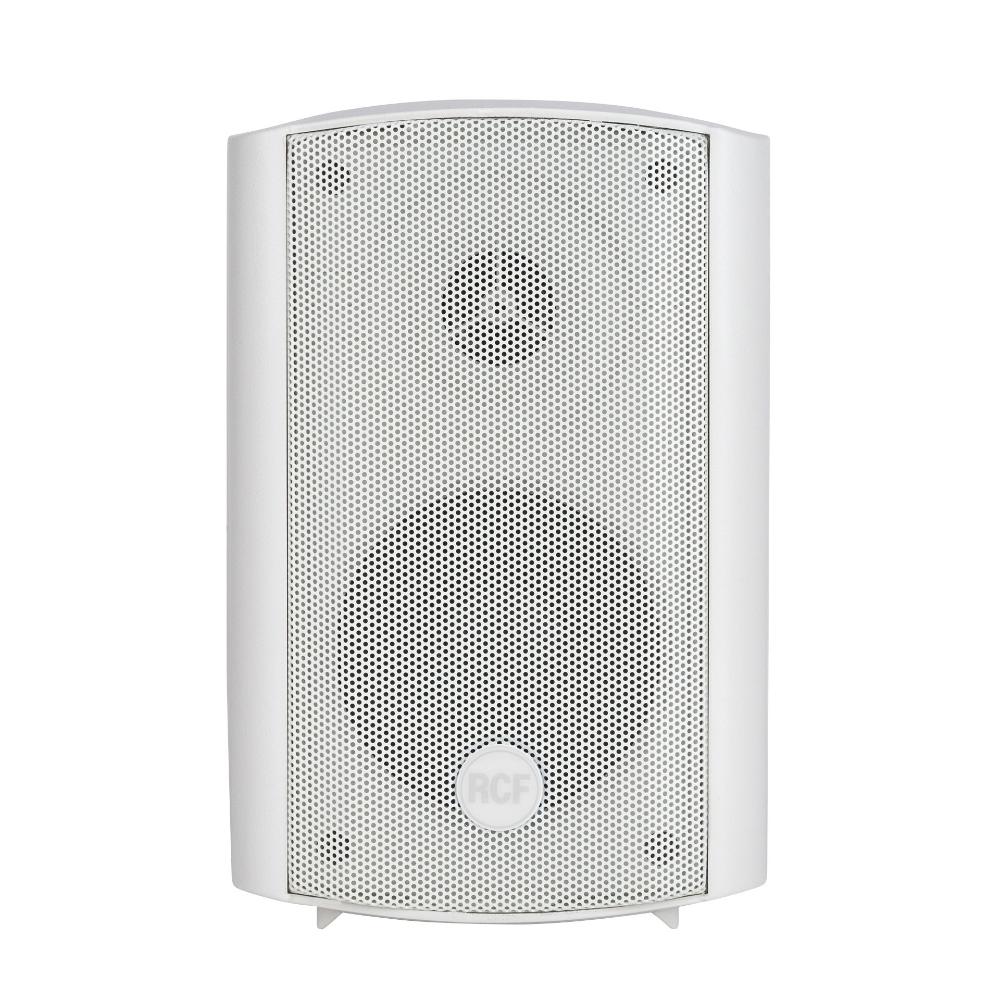

DM 41
White - RAL 9002, EAN 8024530004941

13000387

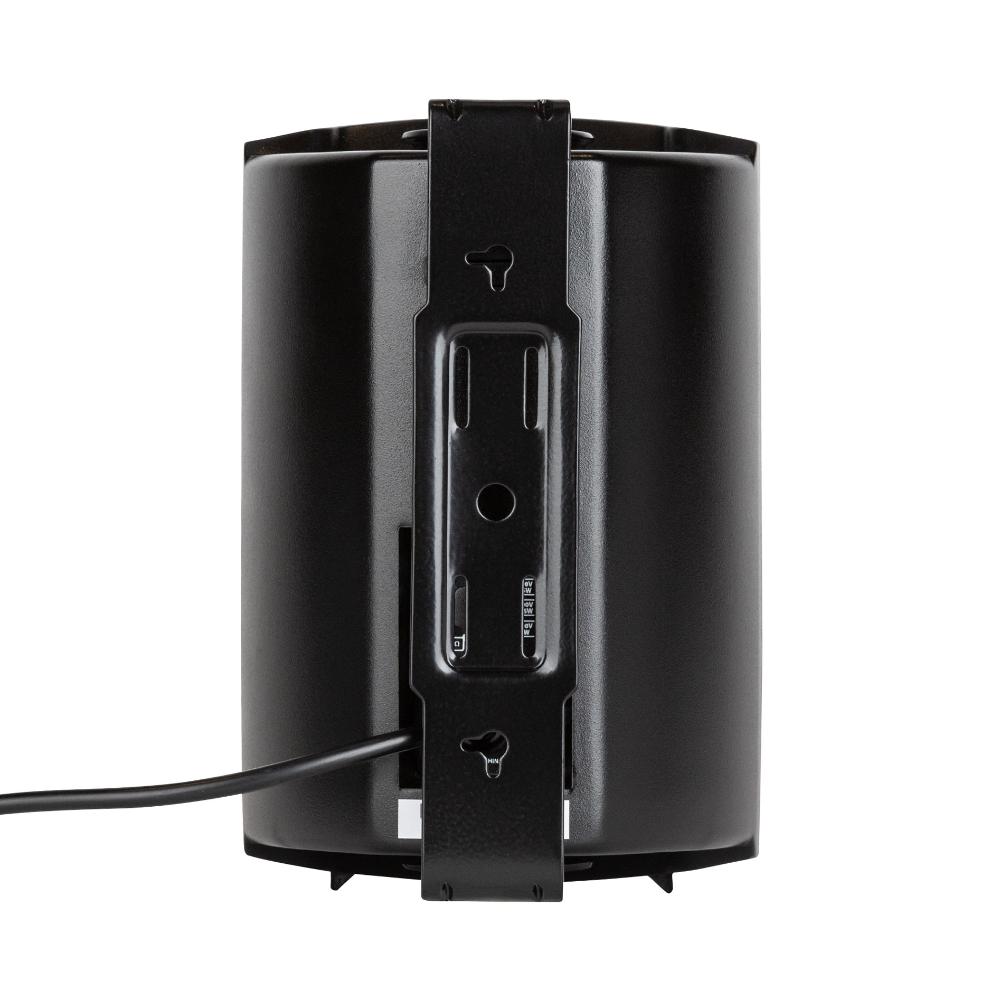

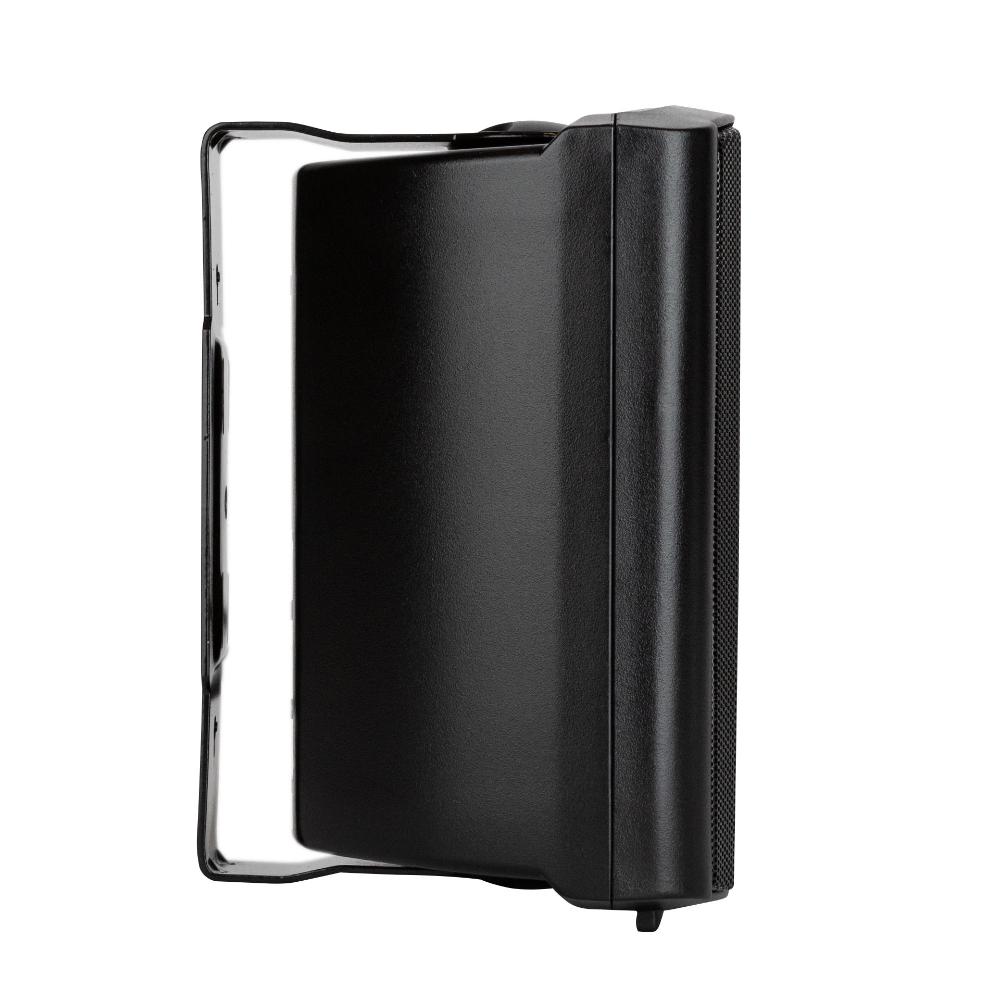

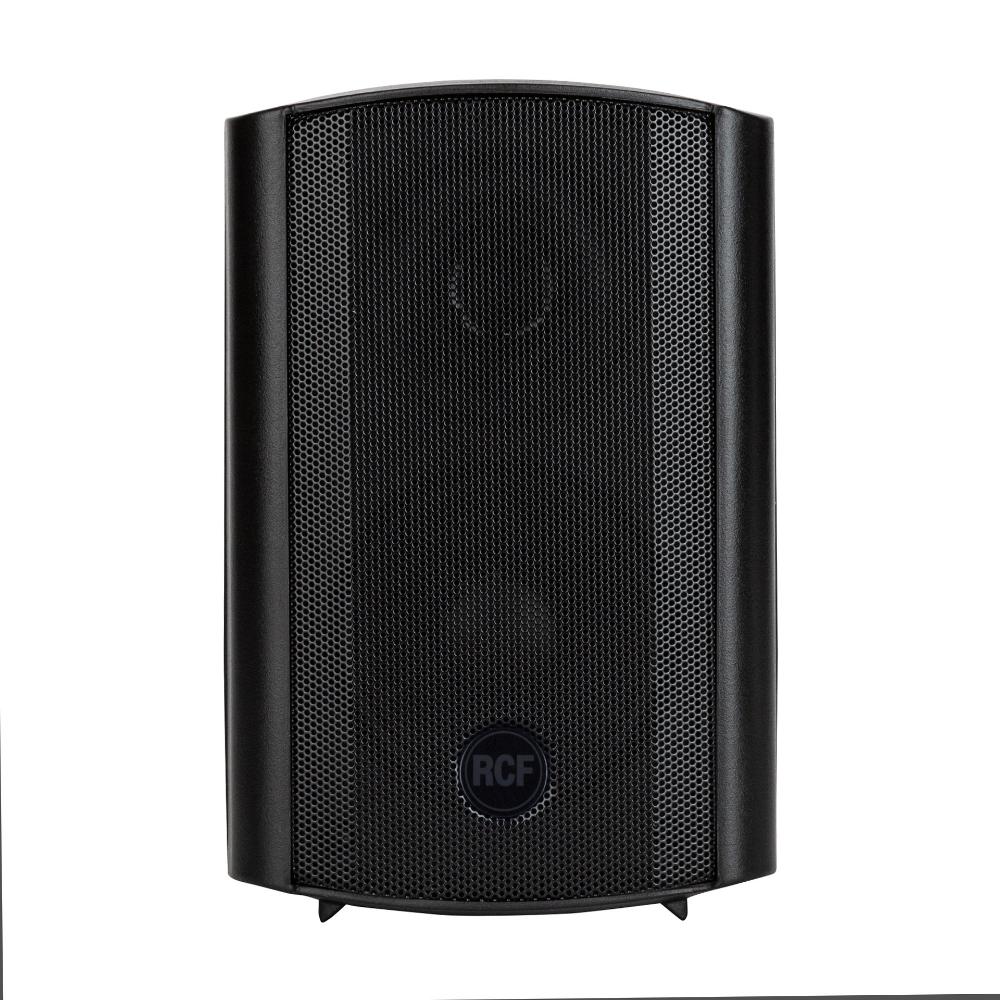

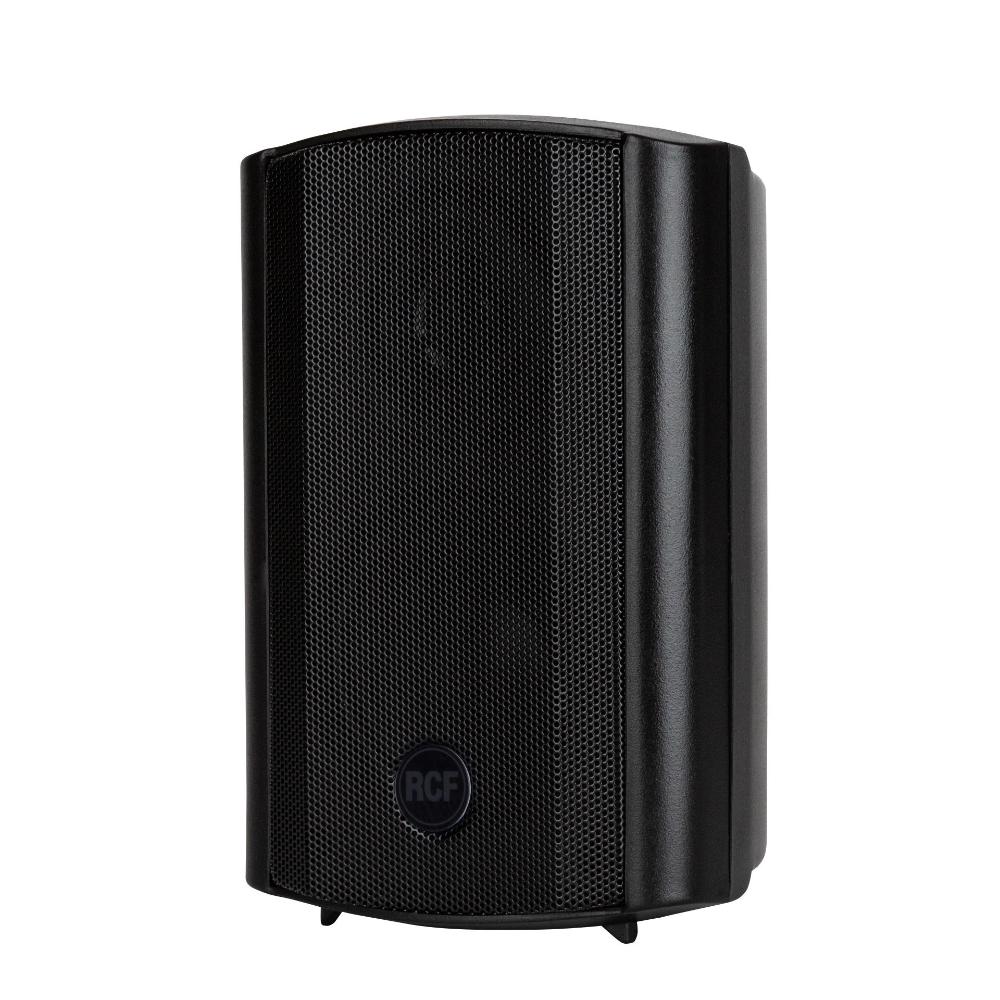

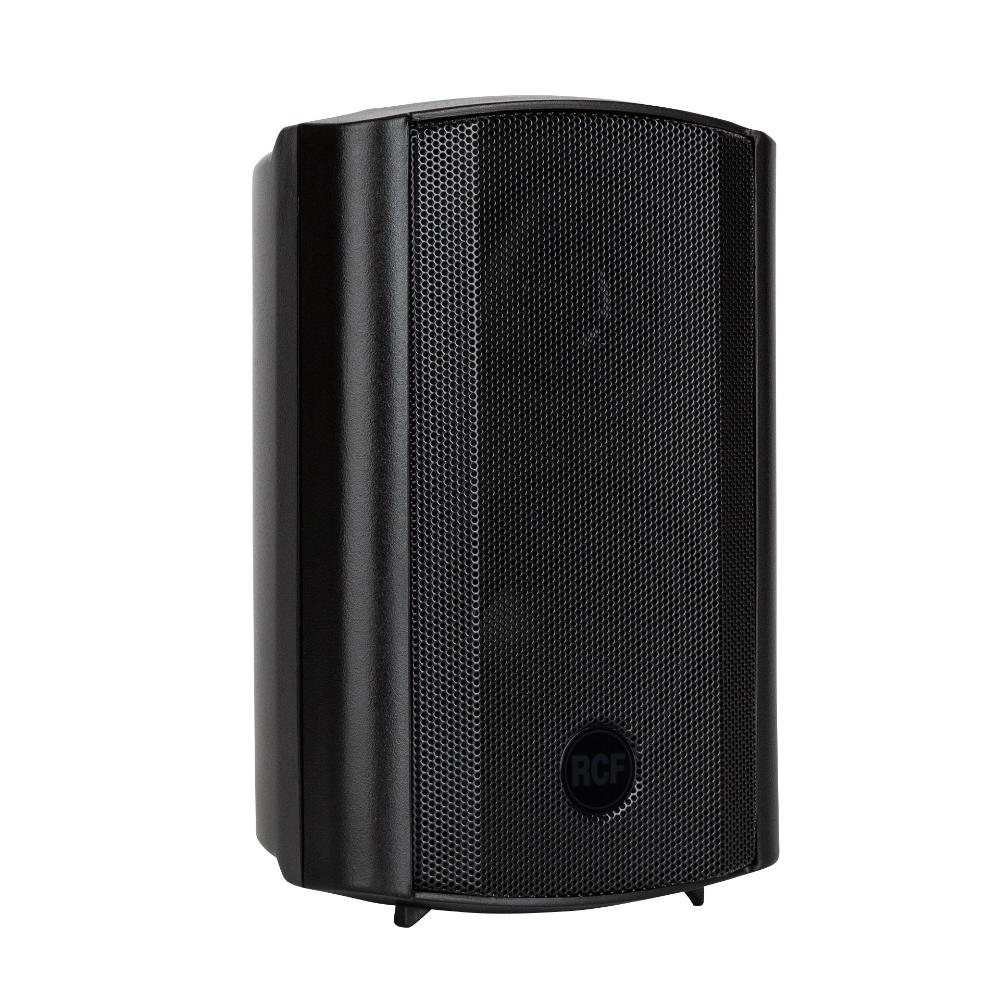

DM 41 B
Black - RAL 9005, EAN 8024530010348

Specifications
Acoustical specifications
Frequency Response (-10dB):
100 Hz ÷ 20000 Hz
Max SPL @ 1m:
102 dB
Horizontal coverage angle:
180°
Vertical coverage angle:
170°
System Sensitivity:
87 dB
Power section
Nominal Impedance:
8 ohm
Power Handling:
15 W
Peak Power Handling:
60 W PEAK
Recommended Amplifier:
30 W
Crossover Frequencies:
2.5 Hz
Transducers
Dome Tweeter:
1.0''
Woofer:
3.5''
Input/Output section
Input connectors:
Cable
Output connectors:
Cable
Constant Voltage Transformer:
100 V

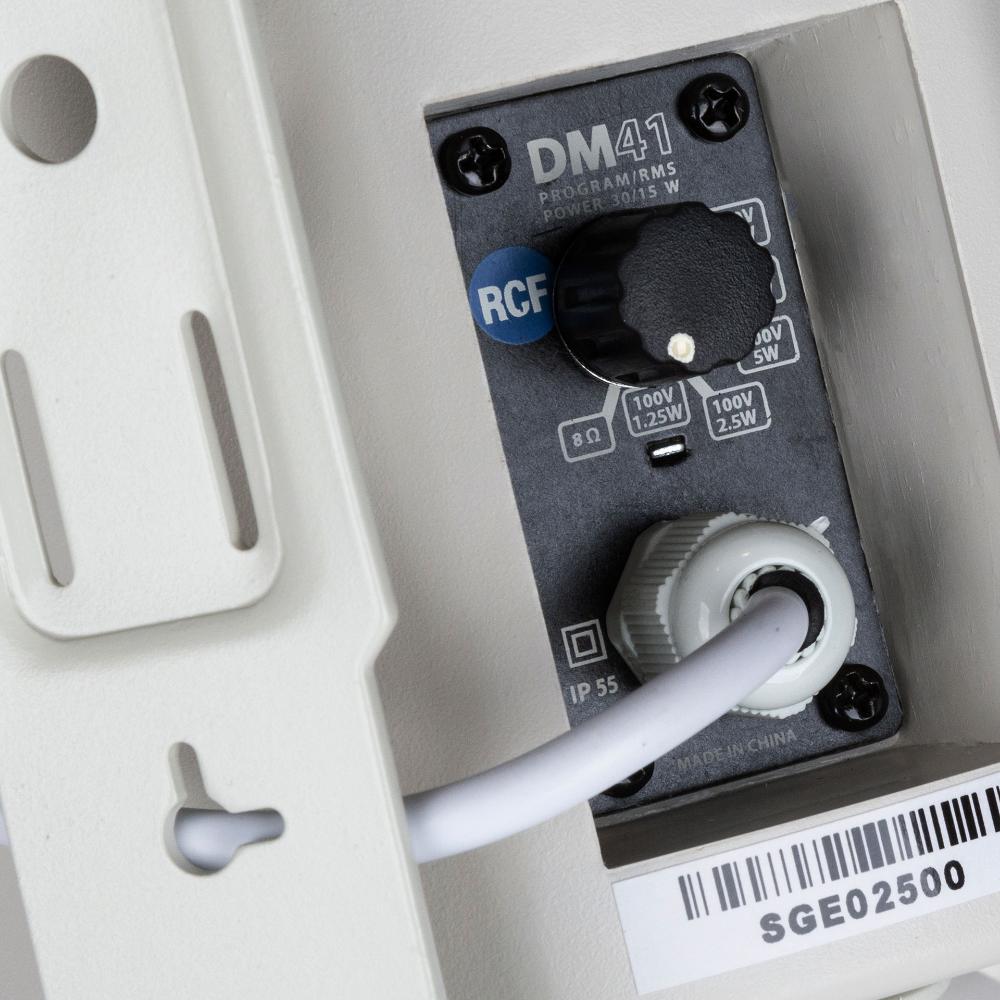

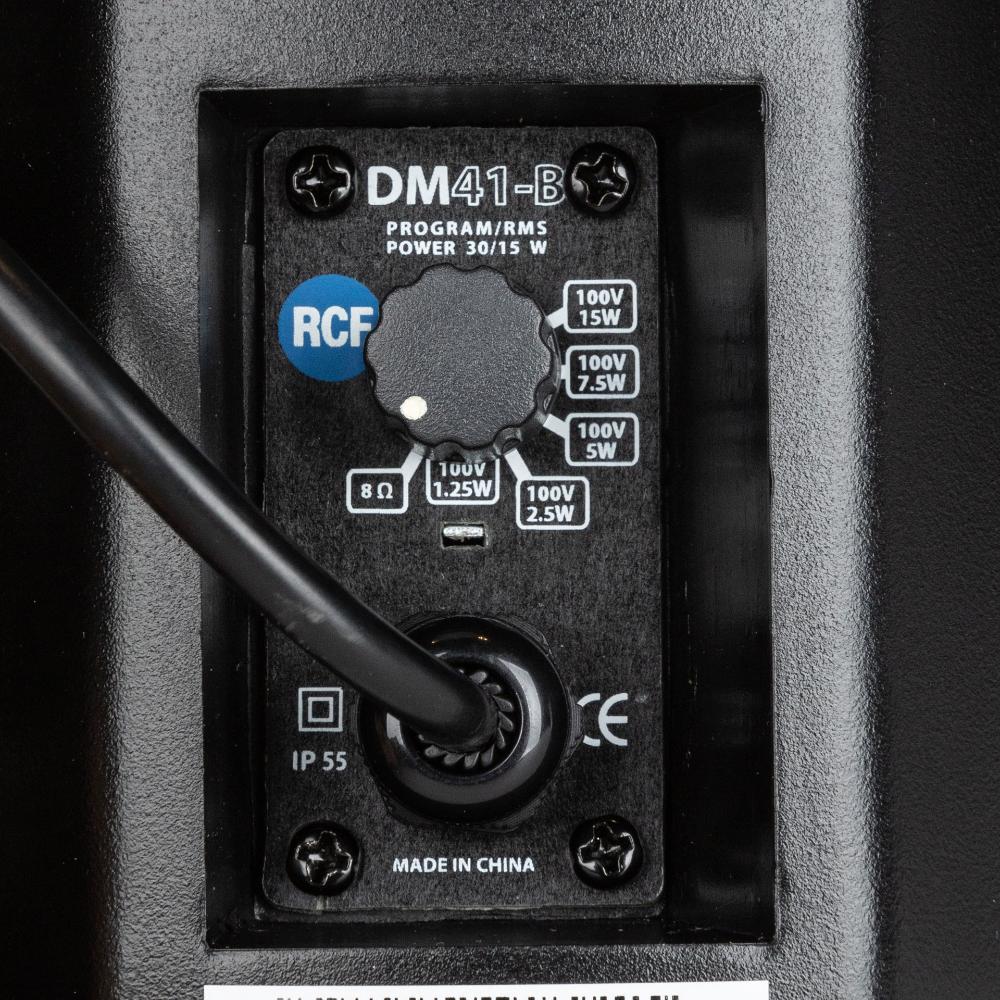

Power selection 1:
15 W - 667 ohm
Power selection 2:
7.5 W - 1333 ohm
Power selection 3:
5 W - 2000 ohm
Power selection 4:
2.5 W - 4000 ohm
Power selection 5:
1.25 W - 8000 ohm
Standard compliance
IP protection grade:
IP 55
Physical specifications
Cabinet/Case Material:
Plastic
Hardware:
Aluminium U bracket
Grille:
Aluminium
Color:
White - RAL 9002, Black - RAL 9005
Size
Height:
197 mm / 7.76 inches
Width:
130 mm / 5.12 inches
Depth:
115 mm / 4.53 inches
Weight:
1.7 kg / 3.75 lbs
Shipping information
Package Height:
260 mm / 10.24 inches
Package Width:
180 mm / 7.09 inches
Package Depth:
175 mm / 6.89 inches
Package Weight:
1.96 kg / 4.32 lbs
