NEW
COMMERCIAL AUDIO BUSINESS MUSIC

MR 40T

TWO-WAY SPEAKER
  • 40 W (8 ohm) / 20 W - 10 W - 5 W - 2.5 W (70/100V) power handling
  • 108 dB max SPL
  • IP 55 protection grade
  • Colour black RAL 9005 and white RAL 9003
Where to buy
Features
  • 40 W (8 ohm) / 20 W - 10 W - 5 W - 2.5 W (70/100V) power handling
  • 108 dB max SPL
  • 70 ÷ 20000 Hz frequency range
  • 110° x 100° coverage angles
  • 1 x 4" woofer (1’’ v.c.)
  • 1 x 1" dome tweeter (0.8’’ v.c.) neodymium magnet
  • Colour black RAL 9005 and white RAL 9003
  • IP 55 protection grade
  • Swivel wall mount accessory included

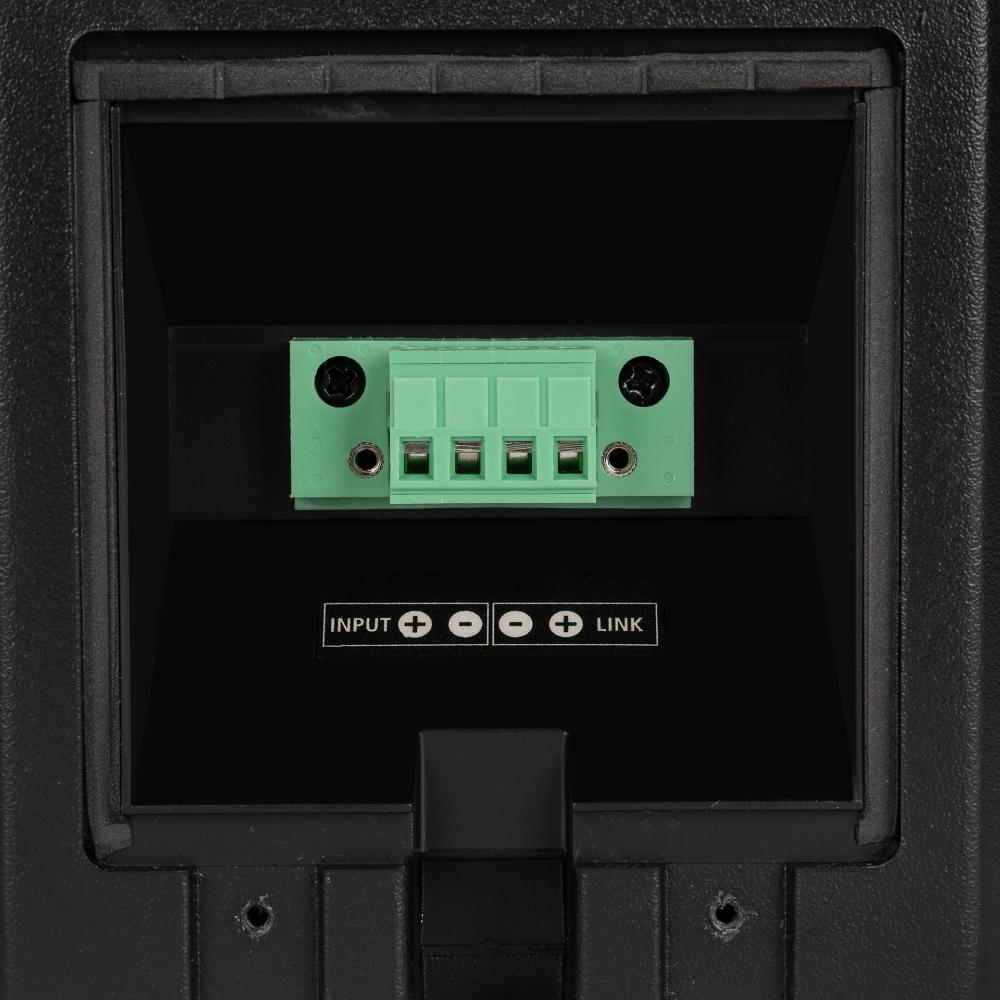

  • 4 pole EUROBLOCK connector

MR 40T is a bass-reflex two-way speaker designed to deliver uncompromised audio performance and high reliability in fixed installations. Blend in with any environment and deliver deep bass, smooth midrange, and finely-detailed high-frequency response. Quality components and careful acoustic design make MR 40T the perfect speaker for listening in the most demanding applications. Suitable for indoor and outdoor installation.

NEW

Part number:

13100035
MR 40T
Black - RAL 9005, EAN 8024530017262

13100037
MR 40T W
White - RAL 9003, EAN 8024530017279

Responsive Image

Versatile sound

Elegant and discreet design, combined with an excellent audio performance, represent the RCF sound. MR speakers are ideal both for speech and music reproduction in any business and A/V application and deliver deep bass, smooth midrange, and finely-detailed high-frequency response.

Smooth installation

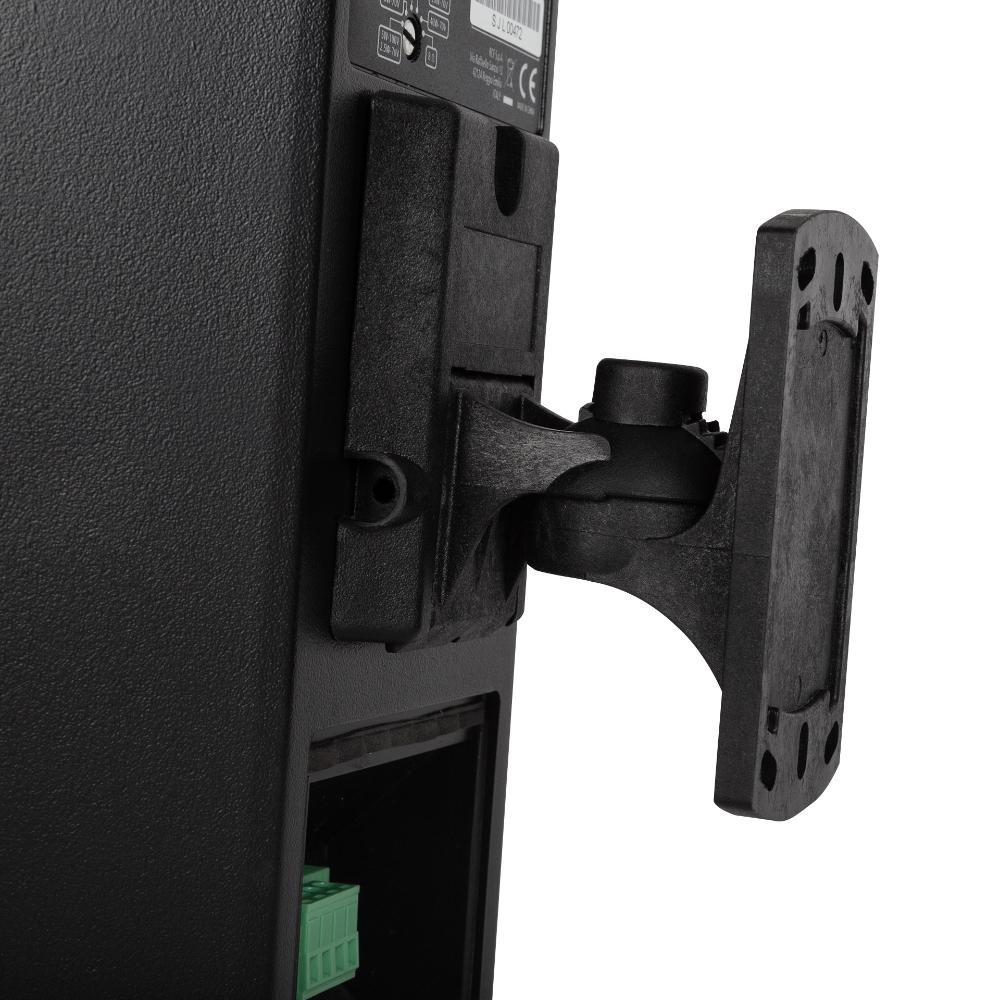

Housed in a robust plastic cabinet, the MR series delivers uncompromising audio performance and reliability in fixed installations where the speakers would blend into any environment. MR speakers are easy to install, with included and optional accessories to increase installation flexibility for wall mounting.
(the accessory shown in the picture is not included)
Responsive Image
Responsive Image

Uncompromised performance

Quality components and careful acoustic design make the MR series a perfect choice for applications such as speech and music reproduction in all A/V applications. Designed for easy installation into bars and restaurants, leisure hospitality, recreational facilities, theme parks, shopping malls or audio monitoring facilities.

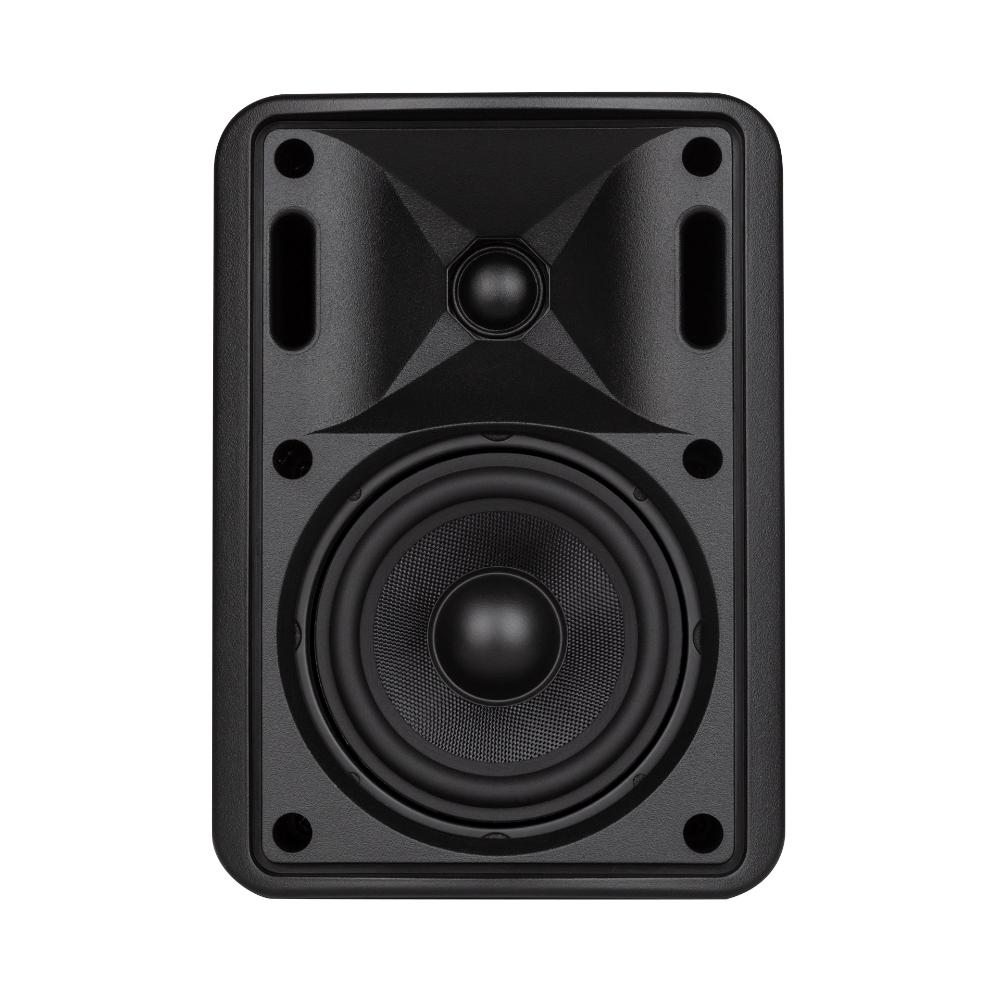

All models use purpose-designed 1” voice coil woofers and 0.8” voice coil dome tweeters, combined with RCF Low Inductance Compensated Crossover (LICC) to assure exceptional audio performance and long-term reliability.

Constant voltage speakers

Constant-voltage speaker systems, also called high impedance or 70V/100V audio distribution systems, refer to networks of loudspeakers equipped with line transformers connected to an audio amplifier with high impedance output. This approach offers several advantages such as:
  • High voltage (70V or 100V) enables long cable runs between amp and speakers with reduced power loss: low level current allows smaller cable diameters
  • Speakers can be wired in parallel in large number, limited only by available amplifier power
  • Different speaker types with different power requirements can share the same speaker line simultaneously making the system-wiring easie
  • Adding or removing a speaker is very quick and simple, it does not require to re-wire the overall circuit
Responsive Image
Specifications
Acoustical specifications
Frequency Response (-10dB):
70 Hz ÷ 20000 Hz
Max SPL @ 1m:
108 dB
Horizontal coverage angle:
110°
Vertical coverage angle:
100°
Directivity index Q:
7
System Sensitivity:
86 dB
Power section
Nominal Impedance:
8 ohm
Power Handling:
40 W
Peak Power Handling:
160 W PEAK
Recommended Amplifier:
80 W
Protections:
Bulb lamp
Crossover Frequencies:
3000 Hz
Transducers
Dome Tweeter:
1.0'' neo, 0.8'' v.c
Woofer:
4.0'', 1.0'' v.c
Input/Output section
Input connectors:
Euroblock
Output connectors:
Euroblock
Constant Voltage Transformer:
70/100 V
Power selection 1:
20 W - 500 ohm
Power selection 2:
10 W - 1000 ohm
Power selection 3:
5 W - 2000 ohm
Power selection 4:
2.5 W - 4000 ohm
Standard compliance
IP protection grade:
IP 55
Safety agency:
CE compliant
Physical specifications
Cabinet/Case Material:
Plastic
Hardware:
Wall mount bracket
Grille:
Steel
Color:
Black - RAL 9005, White - RAL 9003
Size
Height:
216 mm / 8.5 inches
Width:
154 mm / 6.06 inches
Depth:
135 mm / 5.31 inches
Weight:
2.3 kg / 5.07 lbs
Shipping information
Package Height:
285 mm / 11.22 inches
Package Width:
400 mm / 15.75 inches
Package Depth:
235 mm / 9.25 inches
Package Weight:
5.5 kg / 12.13 lbs
