BUSINESS MUSIC INSTALLED SOUND

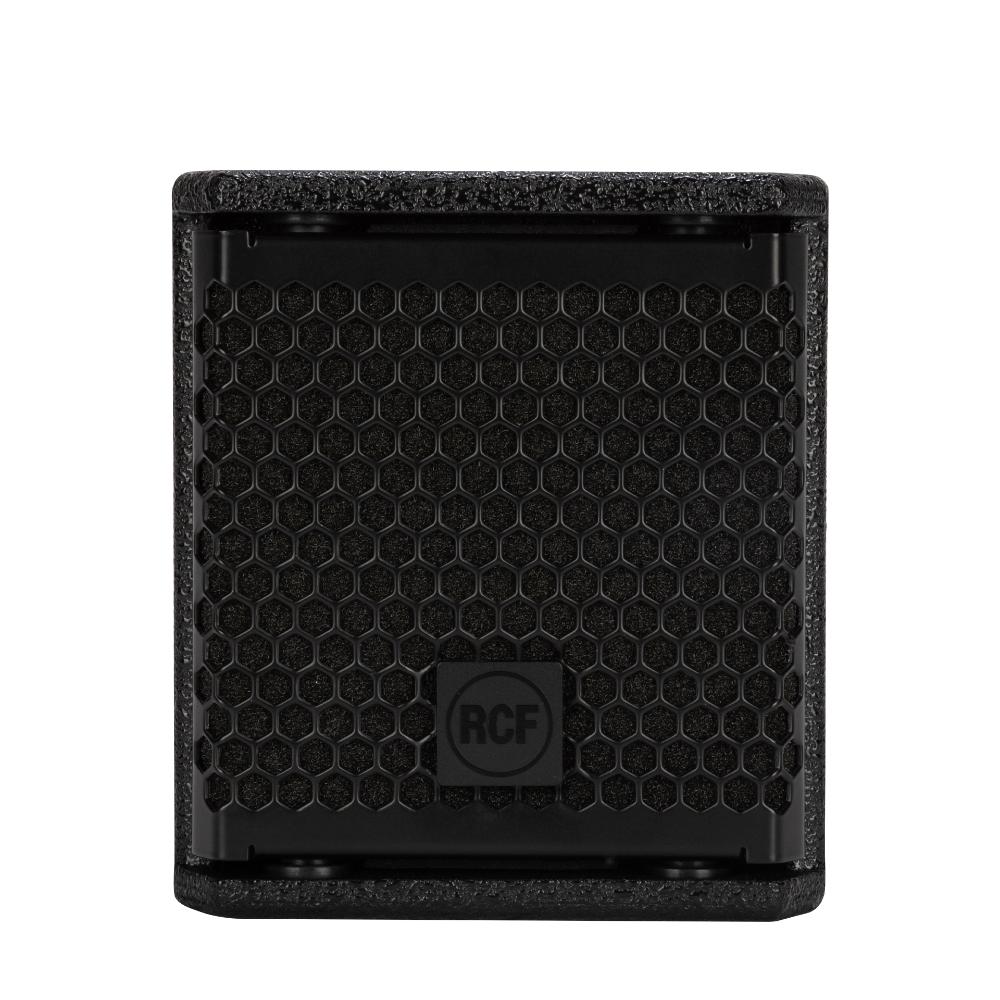

COMPACT M 04

TWO-WAY PASSIVE SPEAKER
  • 60W RMS power handling
  • 113 dB max SPL
  • 90 ÷ 20000 Hz frequency range
  • 120° x 120° constant directivity coverage angle
Where to buy
Features
  • 60W RMS power handling
  • 113 dB max SPL
  • 90 ÷ 20000 Hz frequency range
  • 120° x 120° constant directivity coverage angle

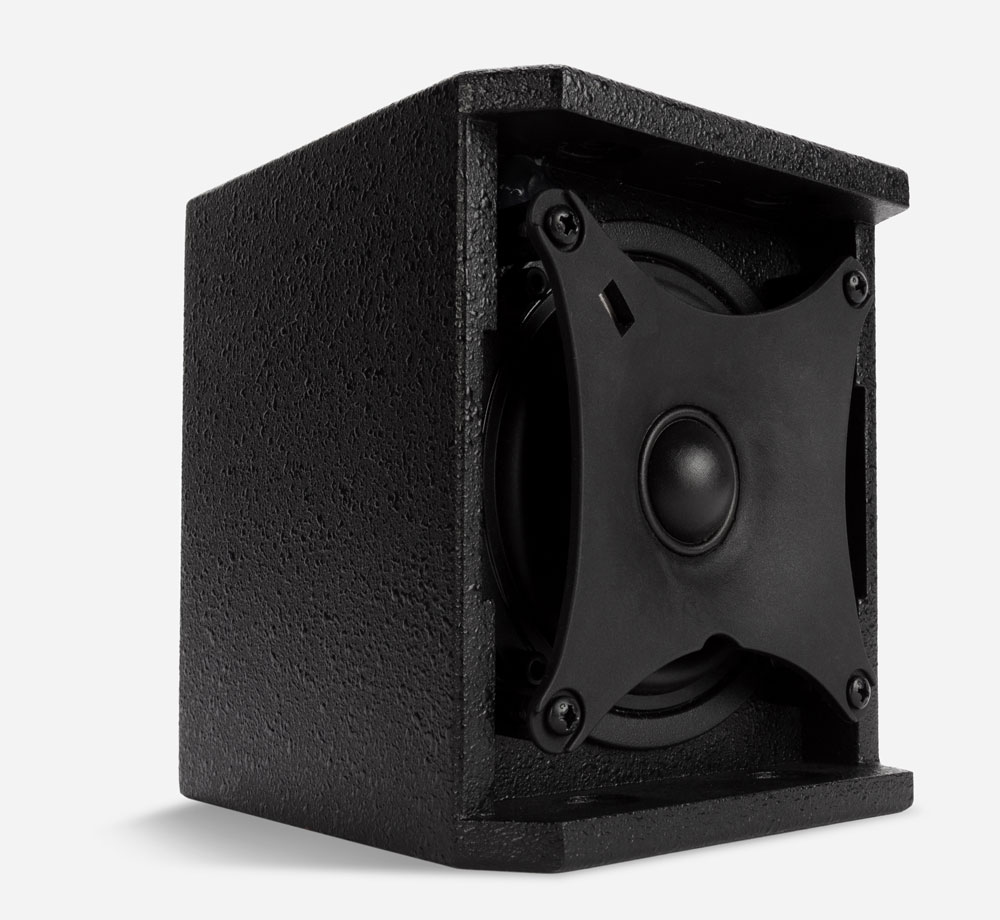

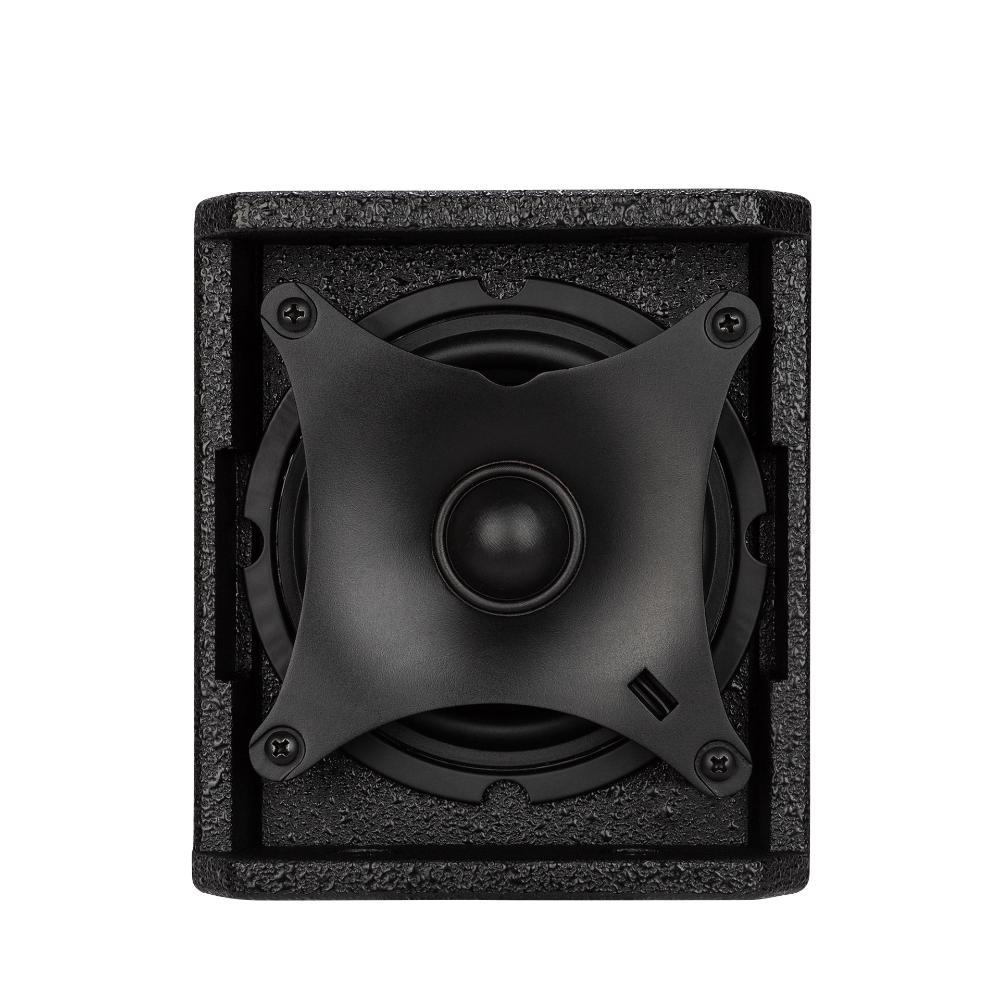

  • 1 x 4" coax woofer
  • 1 x 1" voice coil neodymium dome tweeter
  • High quality plywood cabinet
  • Wall mount bracket included

COMPACT M 04 is a multipurpose two-way full-range coaxial speaker system, suitable for a wide range of applications. Its balanced sound is a big asset in near-field applications for the best intelligibility. M 04 features high sensitivity, thanks to the use of oversized magnets, and a HI-FI sound quality, with smooth and wide frequency response. The SPL level of low-distortion audio the M 04 can provide goes far beyond expectations of such a compact solution. The elegant and compact design with accurate finishing makes M 04 suitable for almost any environment, even with architectural constraints. Included wall mount bracket allow the use of the M 04 on wall or ceiling installations.

READ MORE

Part number:

13000623

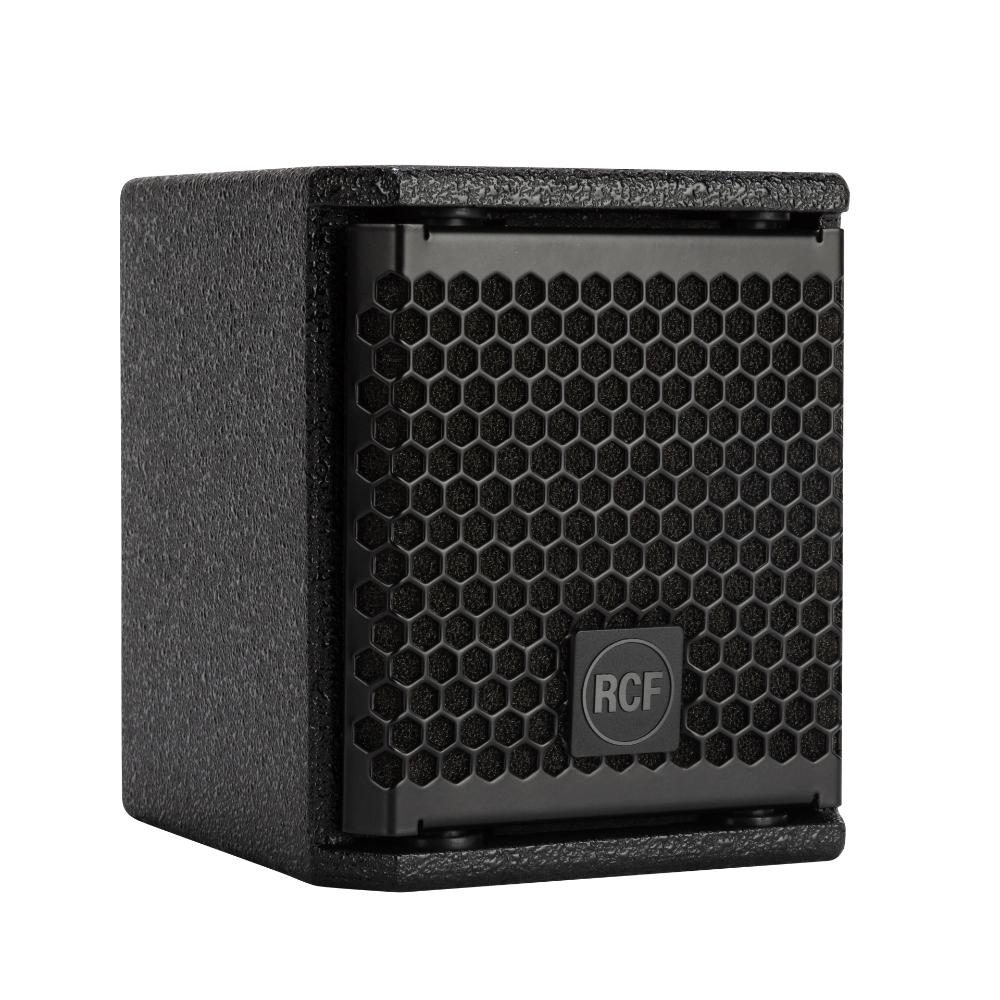

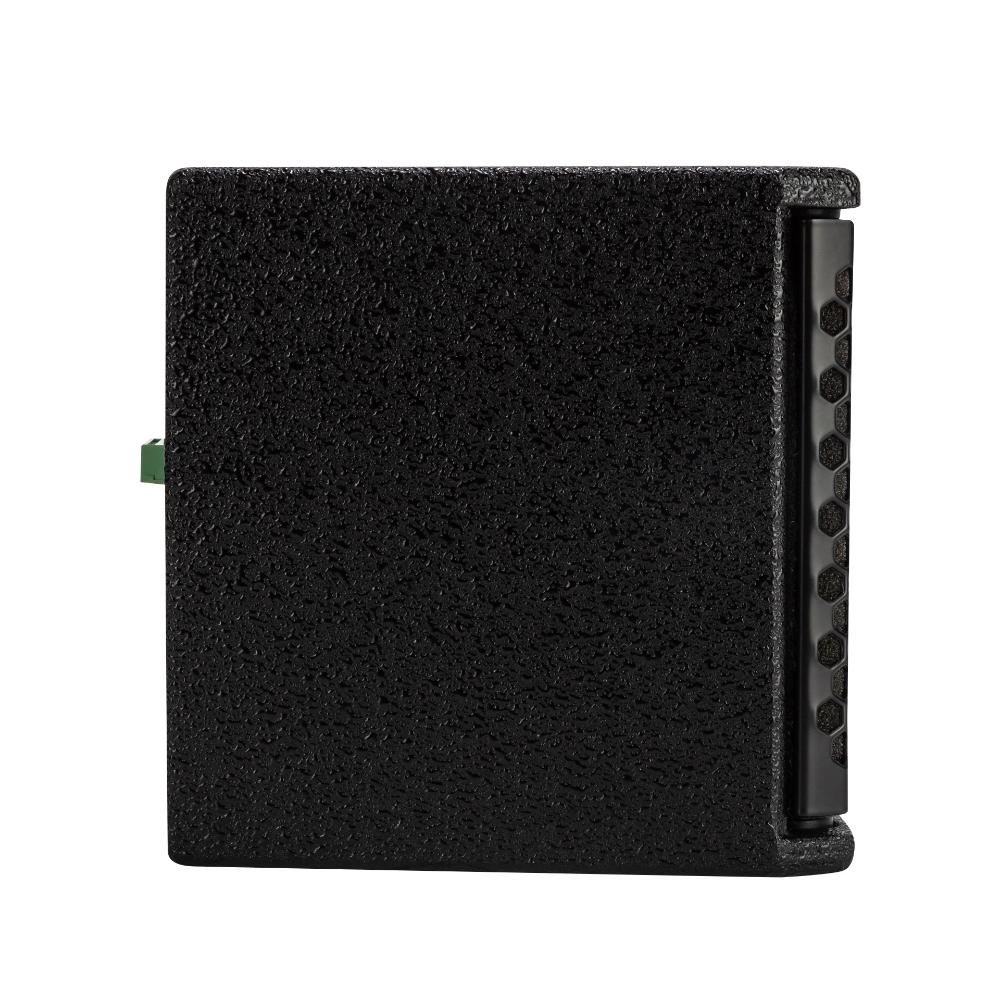

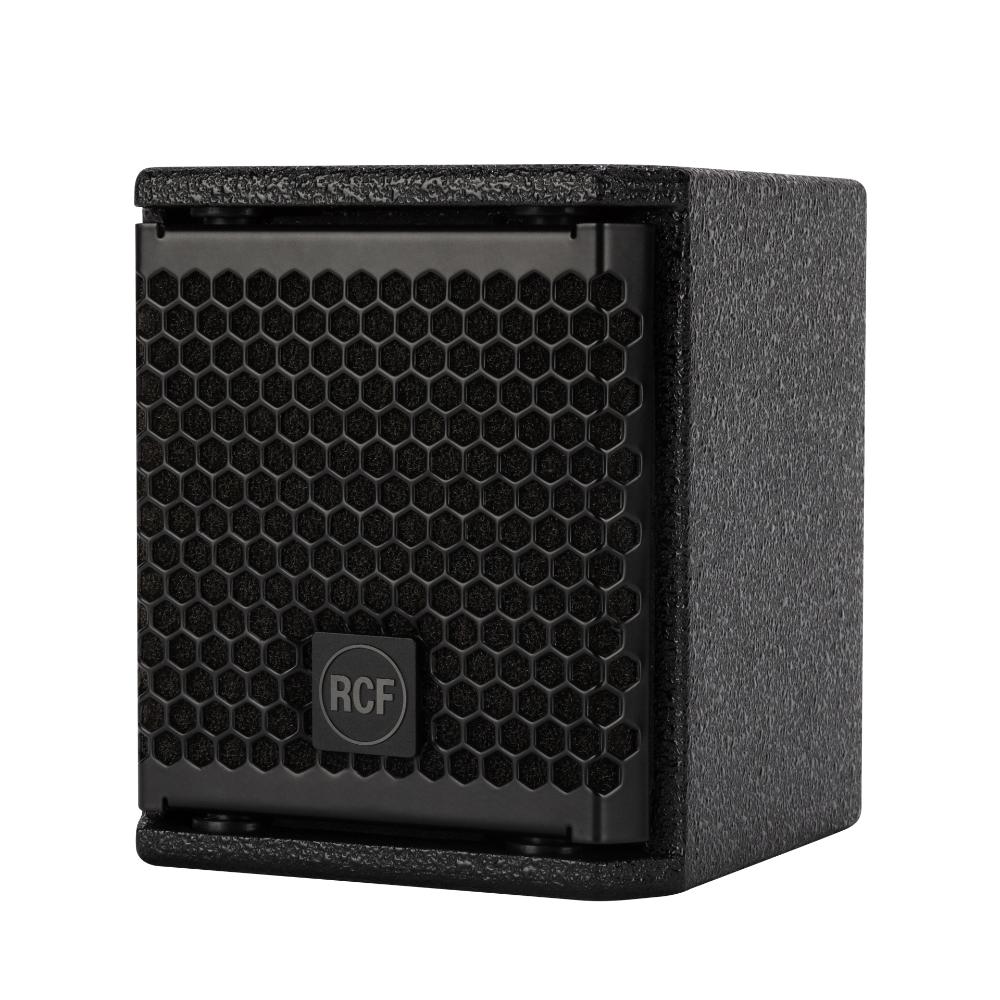

COMPACT M 04
Black - RAL 9005, EAN 8024530018740

13000725

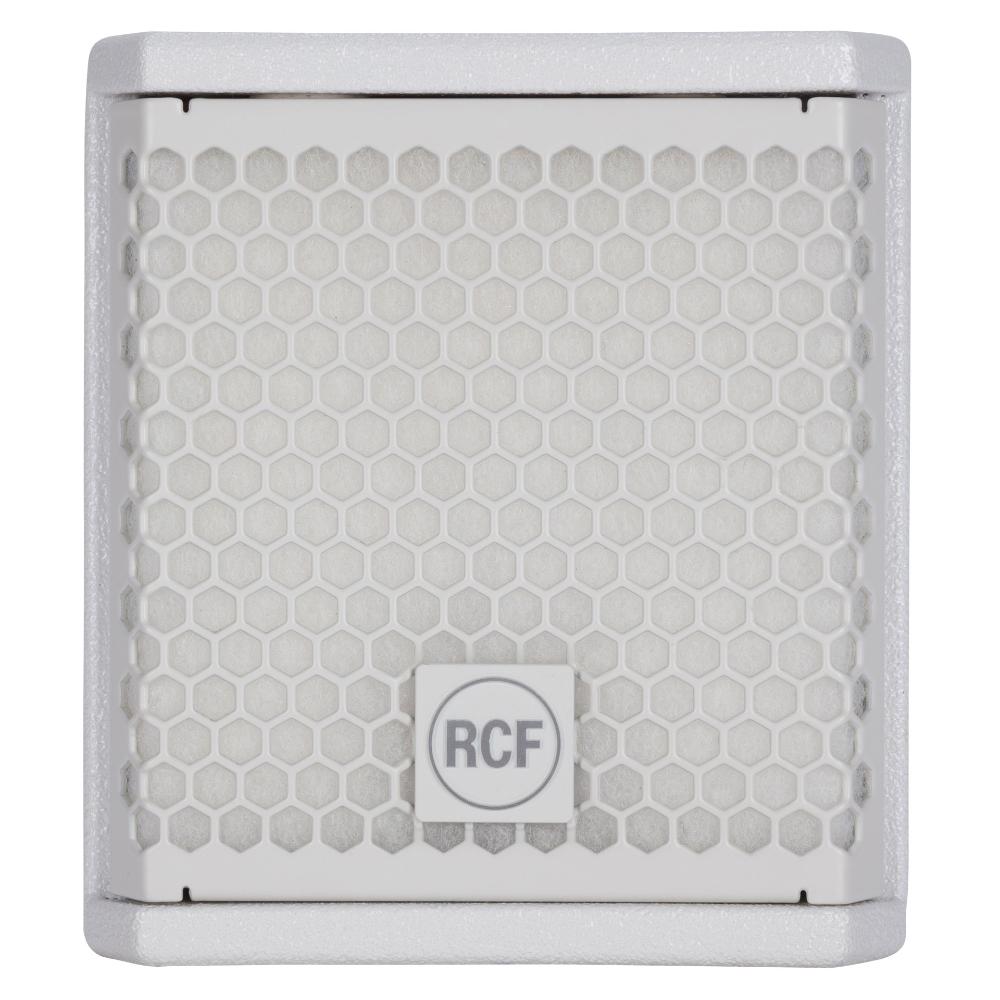

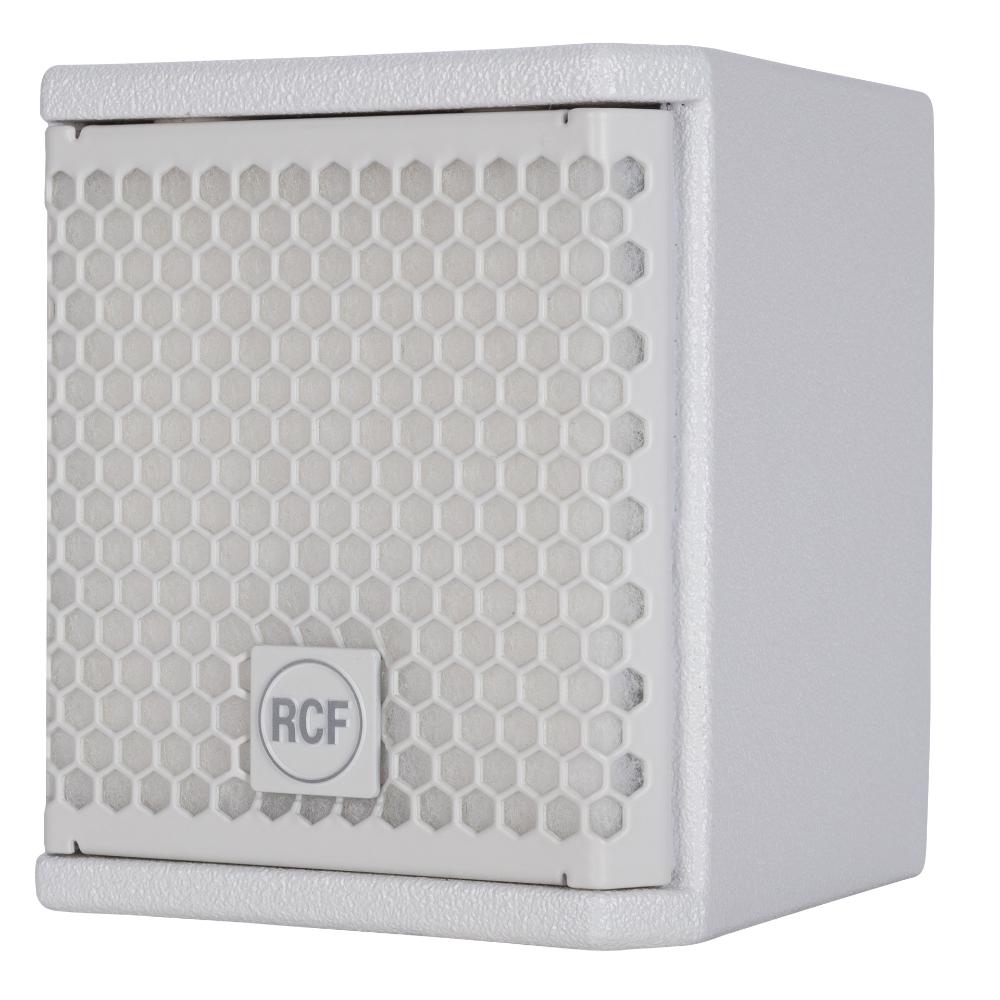

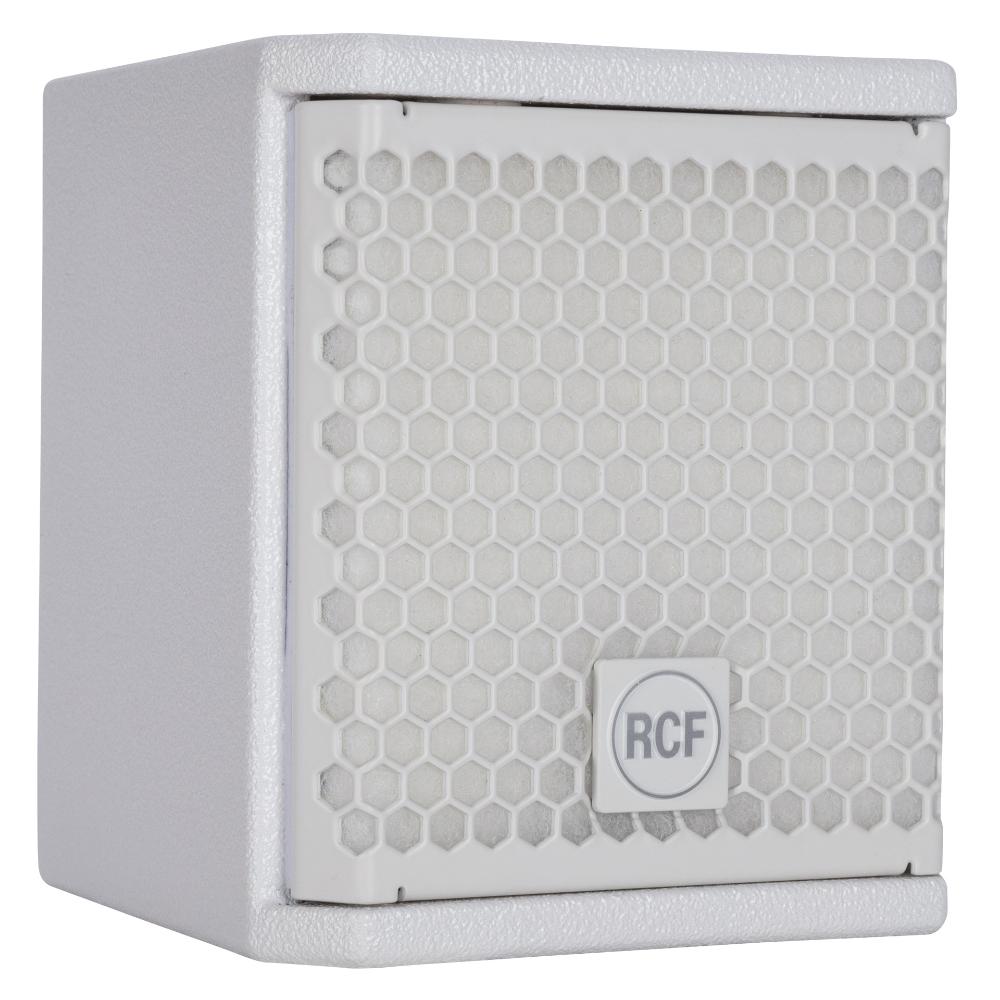

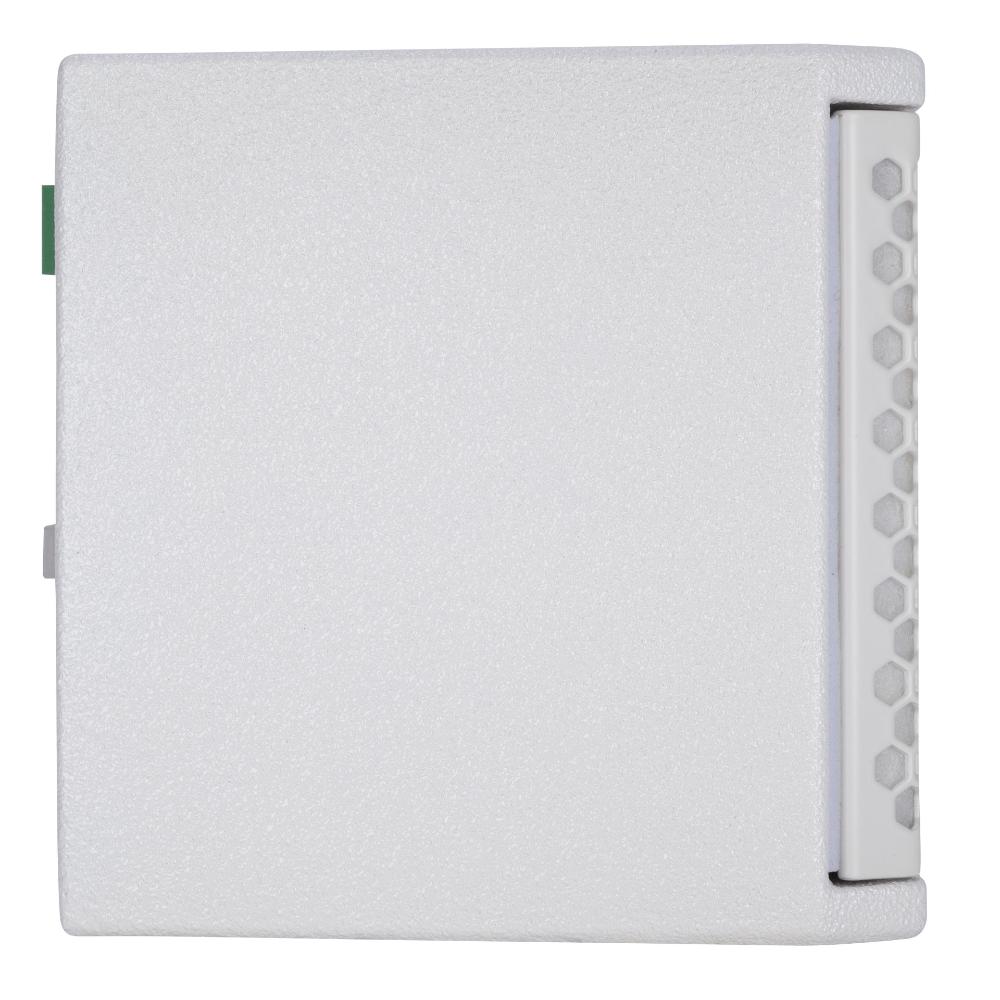

COMPACT M 04 W
White - RAL 9003, EAN 8024530019372

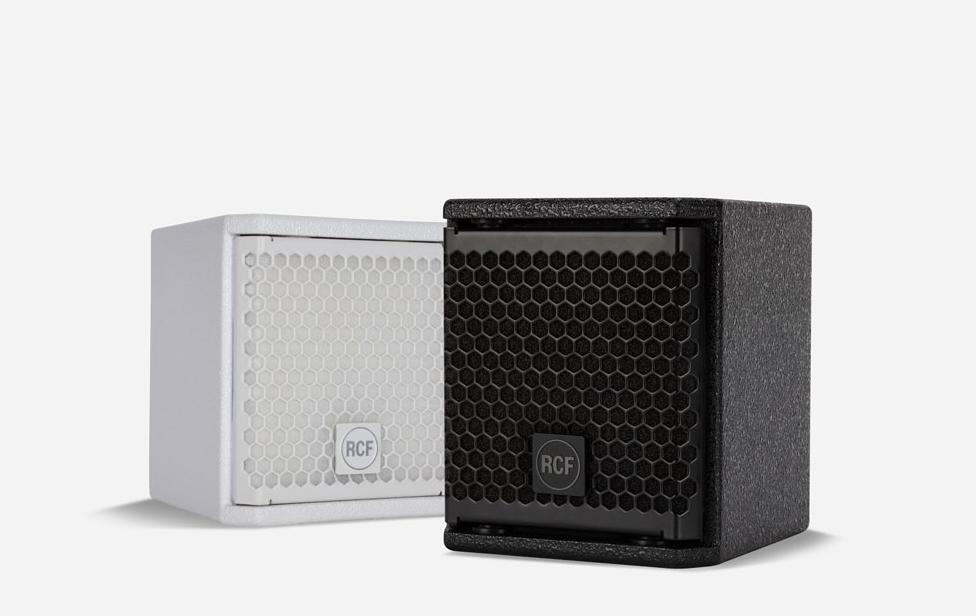

Black & white

When in need of a particular appearance, matching the colour of interiors, or searching for a stylish, minimalistic sound system for your next DJ set, we can provide you with a full set of white speakers — a tough coating for wooden speakers or a robust white polypropylene composite material for portable systems, pole included, in perfect fashion. Purity and elegance, all available to be included in corporate gigs, weddings, and houses of worship.
Responsive Image

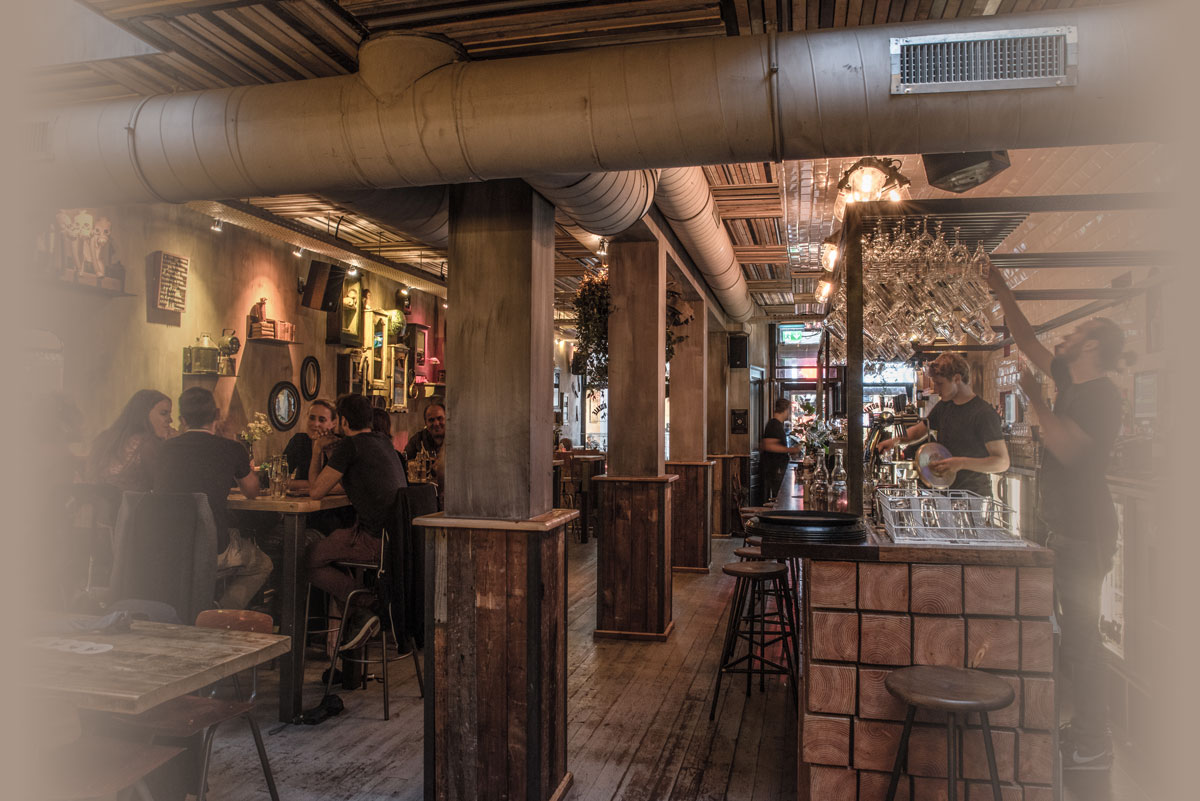

Multipurpose sound

Elegant design aesthetic, multiple formats and RCF signature sound quality that allows to deliver a supreme audio experience in any application, from restaurant and retail shops to clubs, corporate spaces and venues.
Responsive Image
Responsive Image

Engage your customers

Compact dimensions and impressive size/weight to SPL output ratio. These are the features that will allow your audience enjoying an immersive musical experience.

Improve the audio atmosphere

Music supports engagement and improves the feeling of hospitality in the environment, especially if the perceived sound quality is higher. This is the aim of RCF Compact M Series - optimal performance in both background music and high powered foreground audio.
Responsive Image

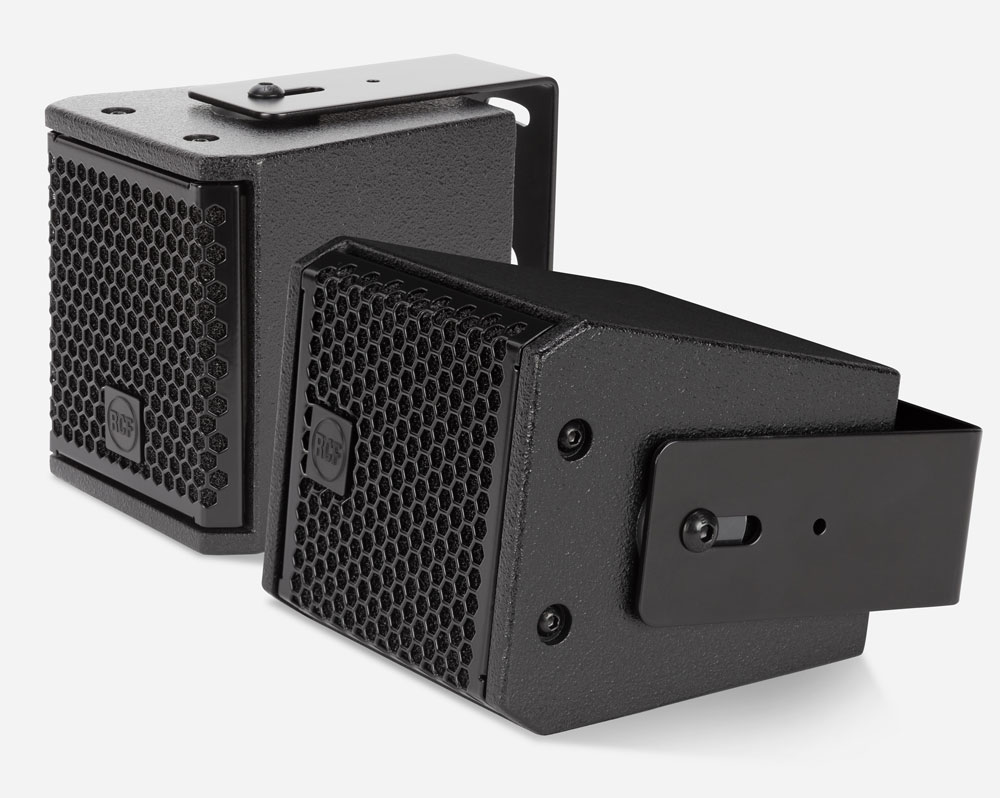

Smooth installation

Compact M speakers sticks to the functionality and style of the Italian design, always in harmony with any type of interiors. With a complete range of solid wood cabinets, multiple rigging points and accessories, installation time is minimal.
Responsive Image
Specifications
Acoustical specifications
Frequency Response (-10dB):
90 Hz ÷ 20000 Hz
Max SPL @ 1m:
113 dB
Horizontal coverage angle:
120°
Vertical coverage angle:
120°
Directivity index Q:
6
System Sensitivity:
89 dB
Power section
Amplification:
Full Range
Nominal Impedance:
16 ohm
Power Handling:
60 W
Peak Power Handling:
240 W PEAK
Recommended Amplifier:
120 W
Crossover Frequencies:
1800 Hz
Transducers
Dome Tweeter:
1.0'' neo, 1.0'' v.c
Woofer:
4.0'', 1.0'' v.c
Input/Output section

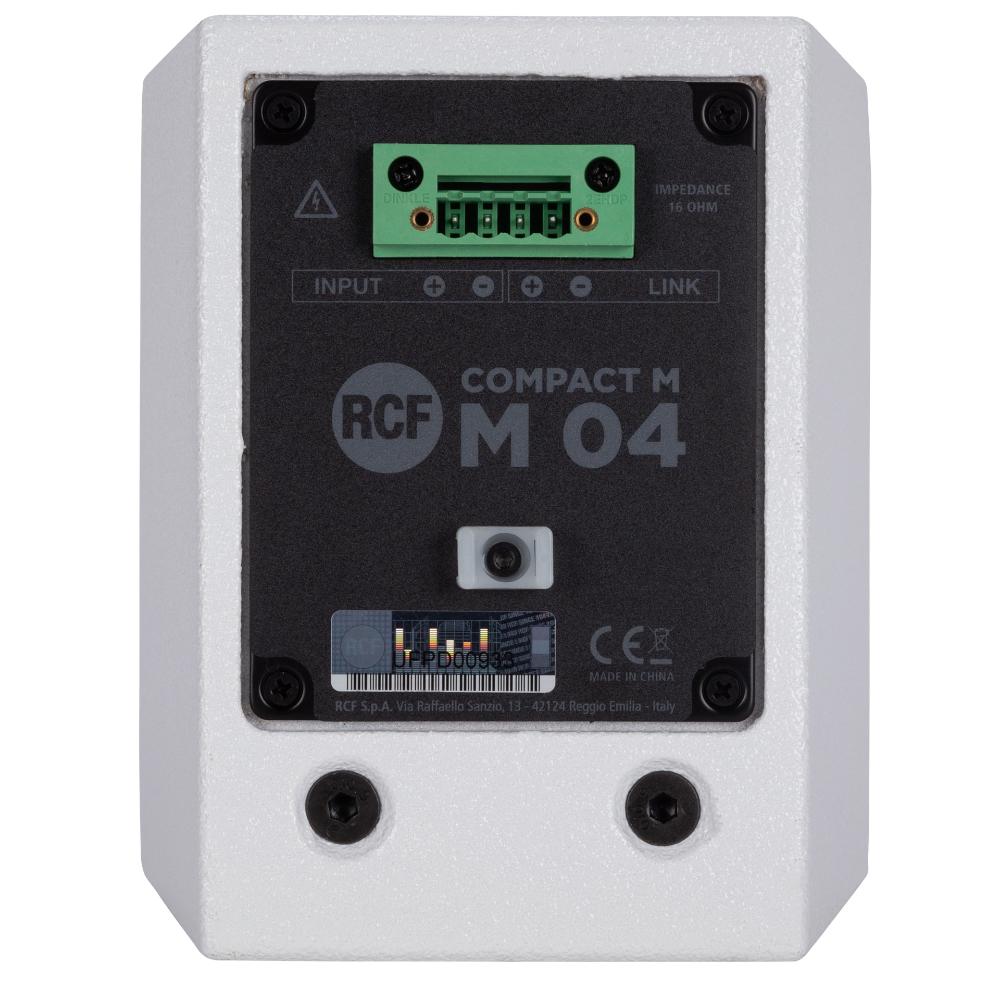

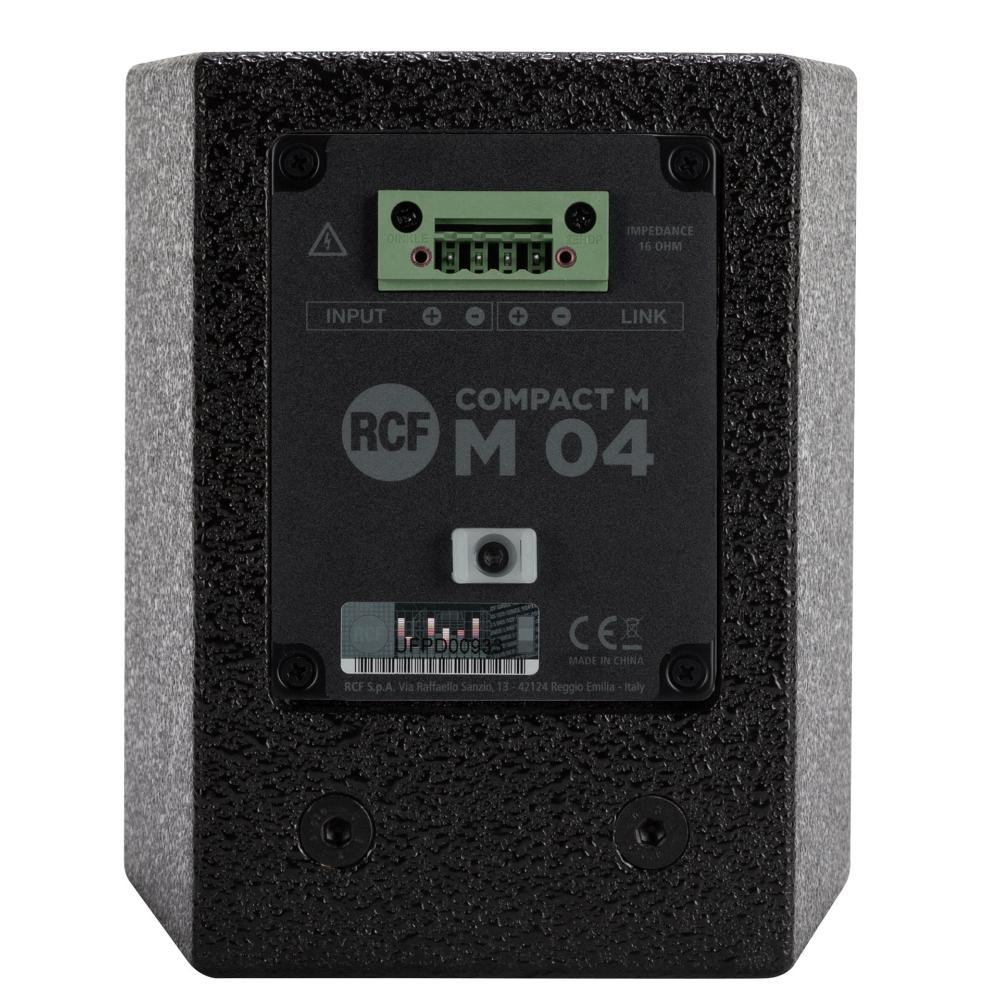

Input connectors:
Euroblock
Output connectors:
Euroblock
Standard compliance
Safety agency:
CE compliant
Physical specifications
Cabinet/Case Material:
Plywood

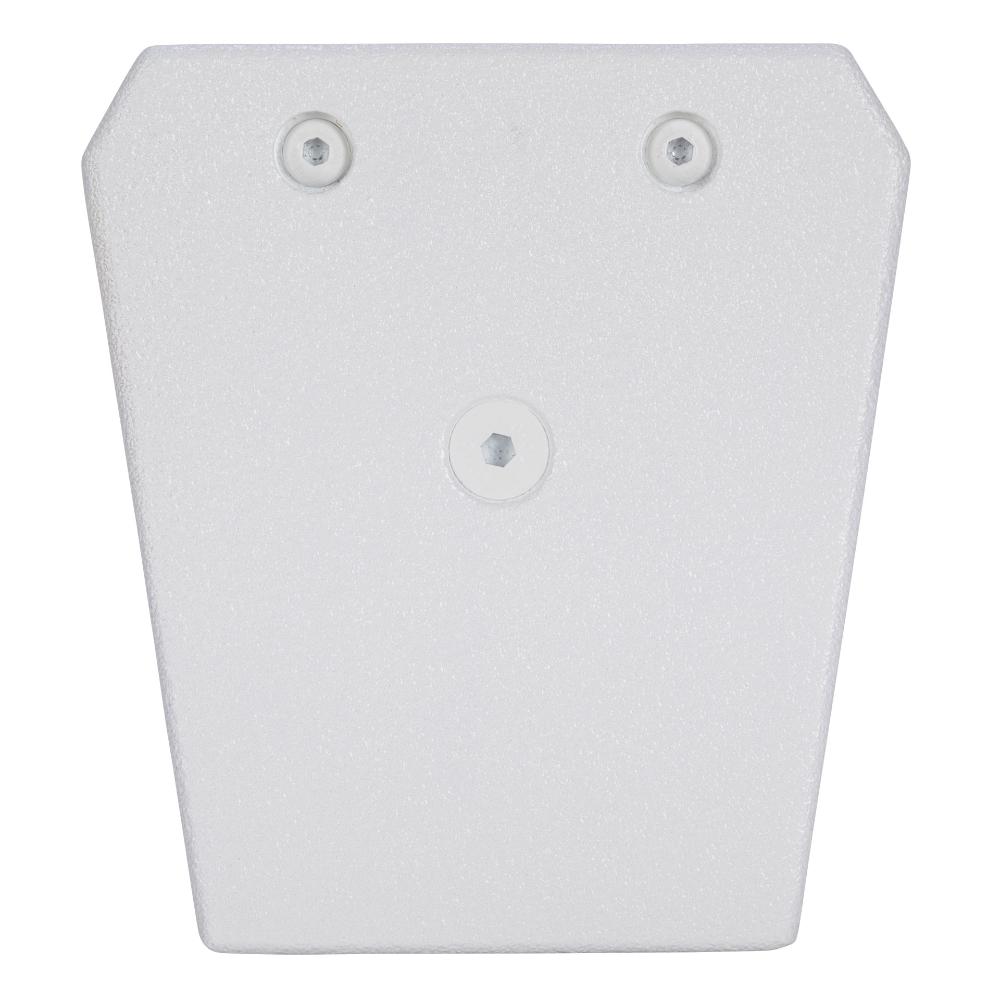

Hardware:
2 x M6, 2 x M8
Grille:
Steel with clothing
Color:
Black - RAL 9005, White - RAL 9003
Size
Height:
148 mm / 5.83 inches
Width:
132 mm / 5.2 inches
Depth:
145 mm / 5.71 inches
Weight:
2.3 kg / 5.07 lbs
Shipping information
Package Height:
168 mm / 6.61 inches
Package Width:
233 mm / 9.17 inches
Package Depth:
150 mm / 5.91 inches
Package Weight:
2.9 kg / 6.39 lbs
